Model Whirlpool 3VED27DQEW01 REFRIGERATOR – Common Parts & Diagrams

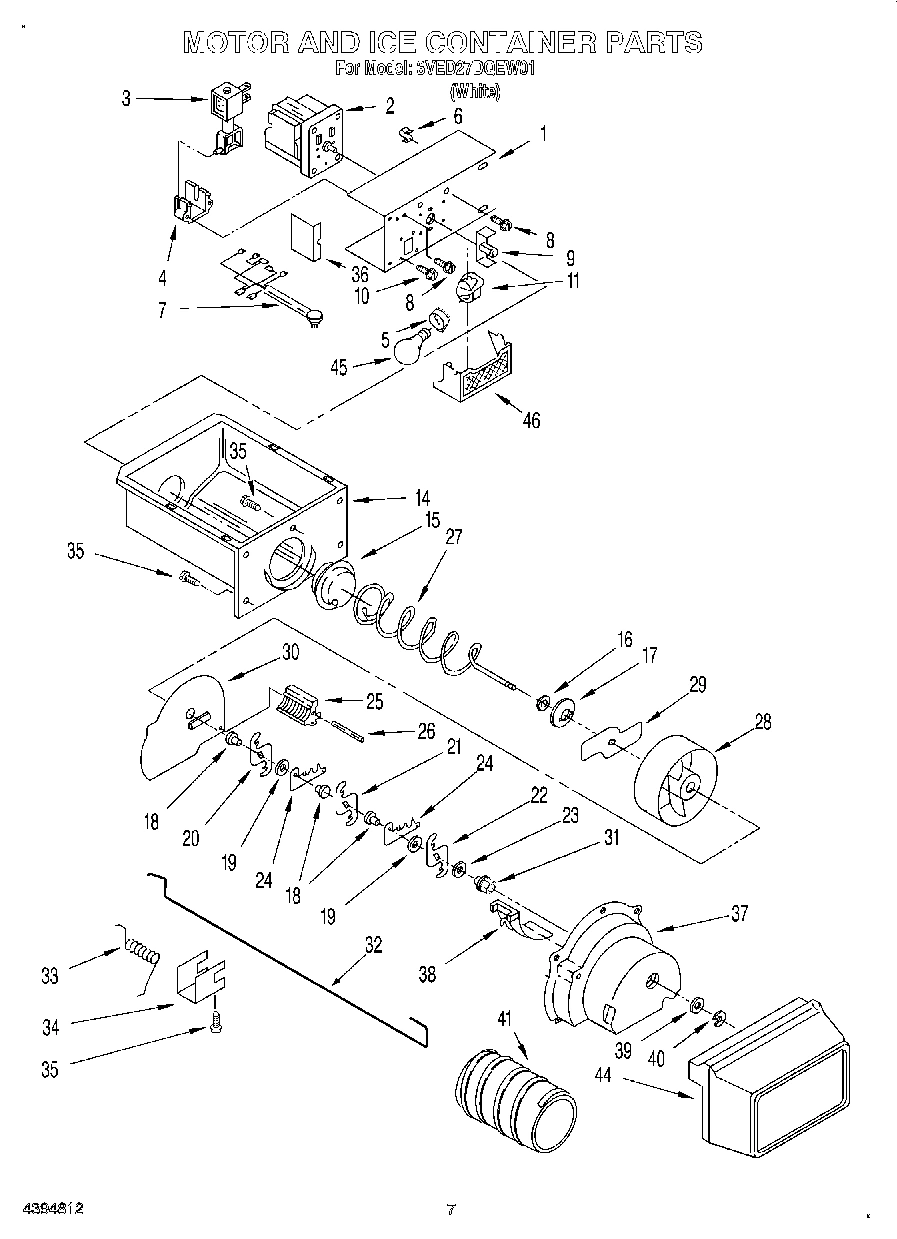

05 - MOTOR AND ICE CONTAINER

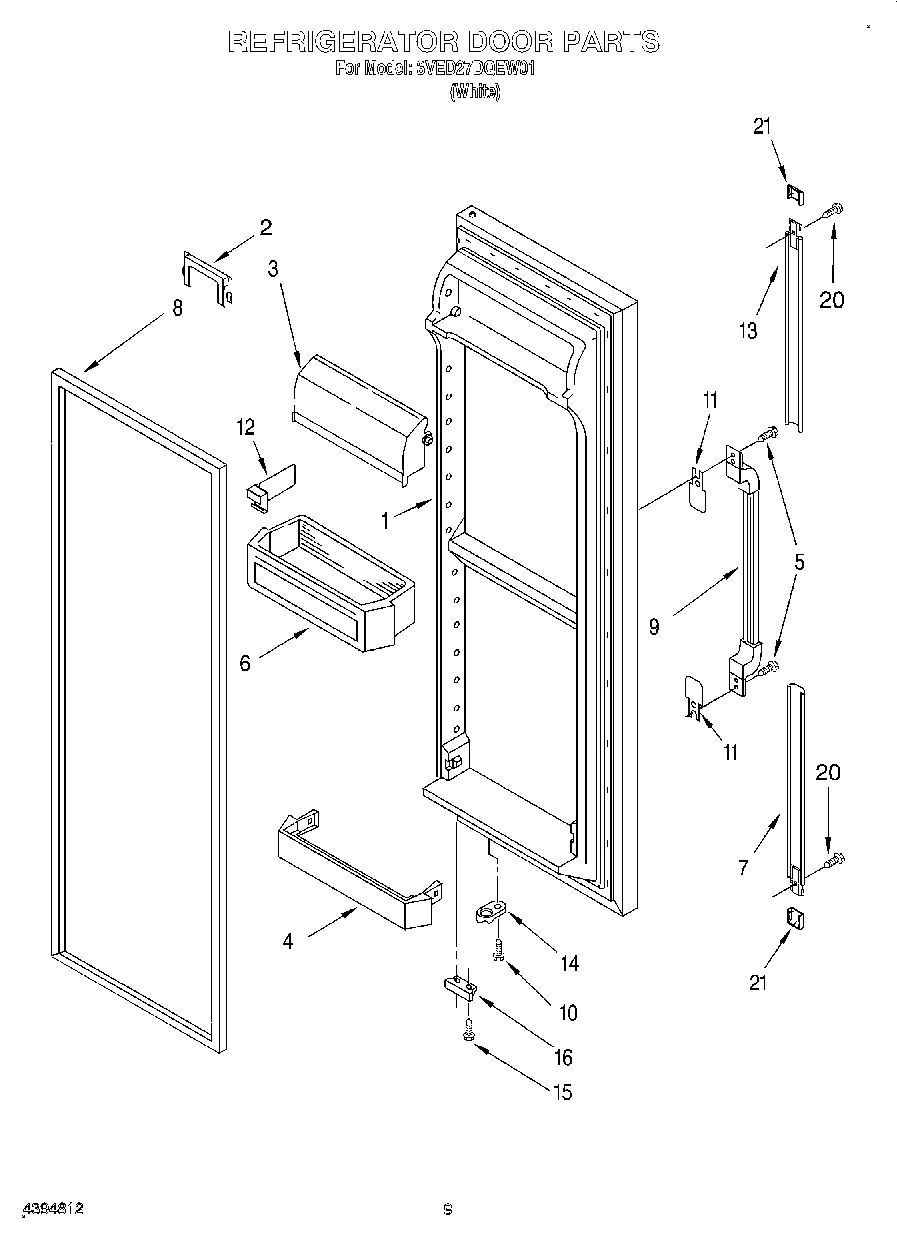

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
10 - AIR FLOW
12 - ICE MAKER, LIT/OPTIONAL
07 - FREEZER DOOR
09 - UNIT
11 - CONTROL
03 - REFRIGERATOR SHELF
04 - FREEZER LINER
01 - CABINET
02 - REFRIGERATOR LINER
Common parts from model Whirlpool 3VED27DQEW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12398A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12397A1 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176651 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Hole Plug WPL 2166844 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
20
Bushing WPL 1129449 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Door, Top Compartment WPL 2194090 Contact Us For Availability
22
Grille WPL 2155486 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 17, 27 WPL 2183443 Contact Us For Availability
30
Washer WPL 486632 Contact Us For Availability
31
Unit, Harness WPL 2195108 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2177149 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI12396A3 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
