Model Whirlpool 3ED25DQXDW00 REFRIGERATOR – Common Parts & Diagrams

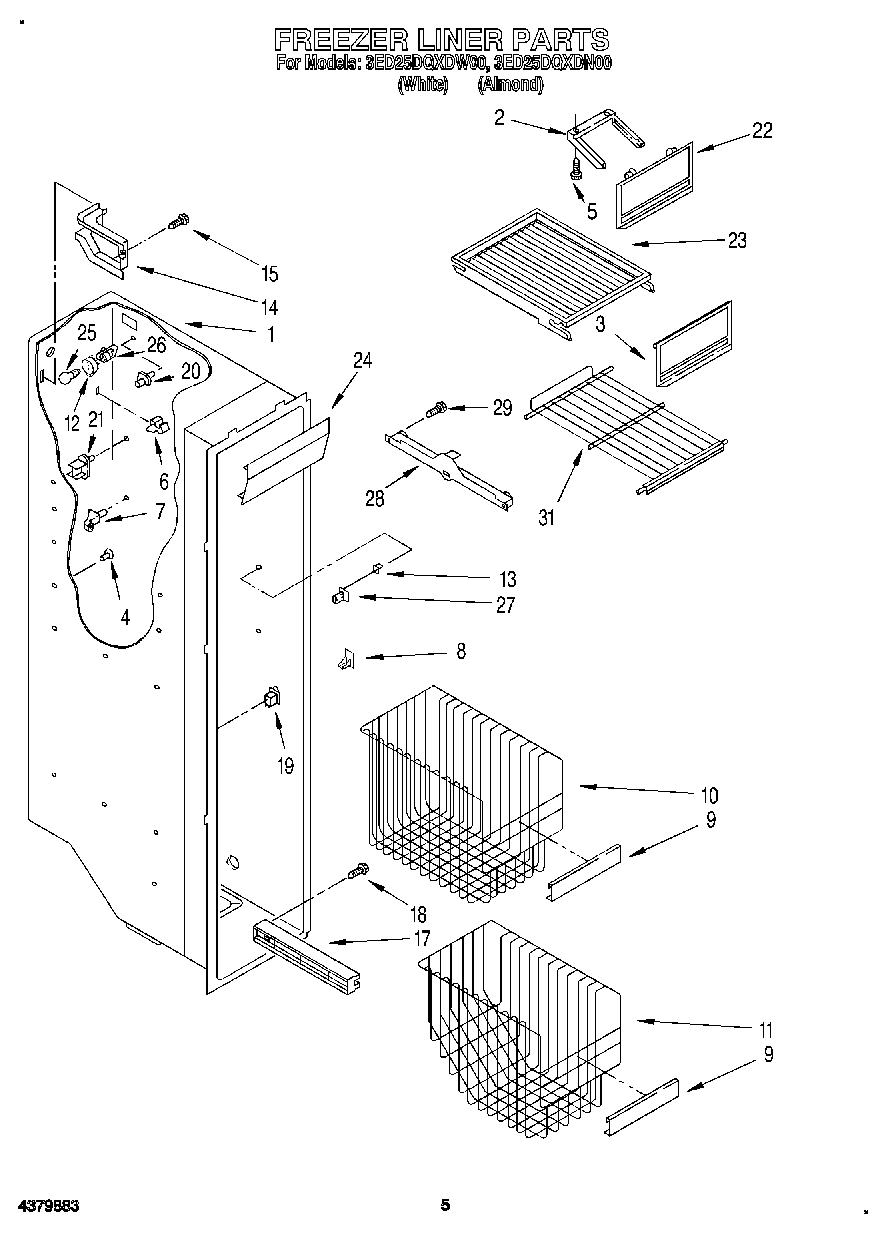

04 - FREEZER LINER
11 - CONTROL
01 - CABINET
02 - REFRIGERATOR LINER
07 - FREEZER DOOR
08 - DISPENSER FRONT
06 - REFRIGERATOR DOOR
09 - UNIT
10 - AIR FLOW
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 3ED25DQXDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170416 WPL LIT2170416 Contact Us For Availability
WPL LIT2176762 WPL LIT2176762 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2177319 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2177320 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Cover, Switch WPL 2174960 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI11833A2 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Gasket, Cover (Rear) WPL 2174483 Contact Us For Availability
7
Shelf Bin (2) WPL 2179576 Contact Us For Availability
7
Extension, Bottom (White) WPL 2174282 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2174283 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Handle, Center (White) WPL 2179366 Contact Us For Availability
9
Handle, Center (Almond) WPL 2179367 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2176138 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Extension, Top (White) WPL 2174279 Contact Us For Availability
13
Extension, Top (Almond) WPL 2174280 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2155332 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174392 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 17, 27 WPL 2169451 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2174310 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2179202 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
PAINT, BULK (1 QT.) WPL 799344 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
