Model GE 363.59477991 Refrigerator (Kenmore 36359477991) – Common Parts & Diagrams

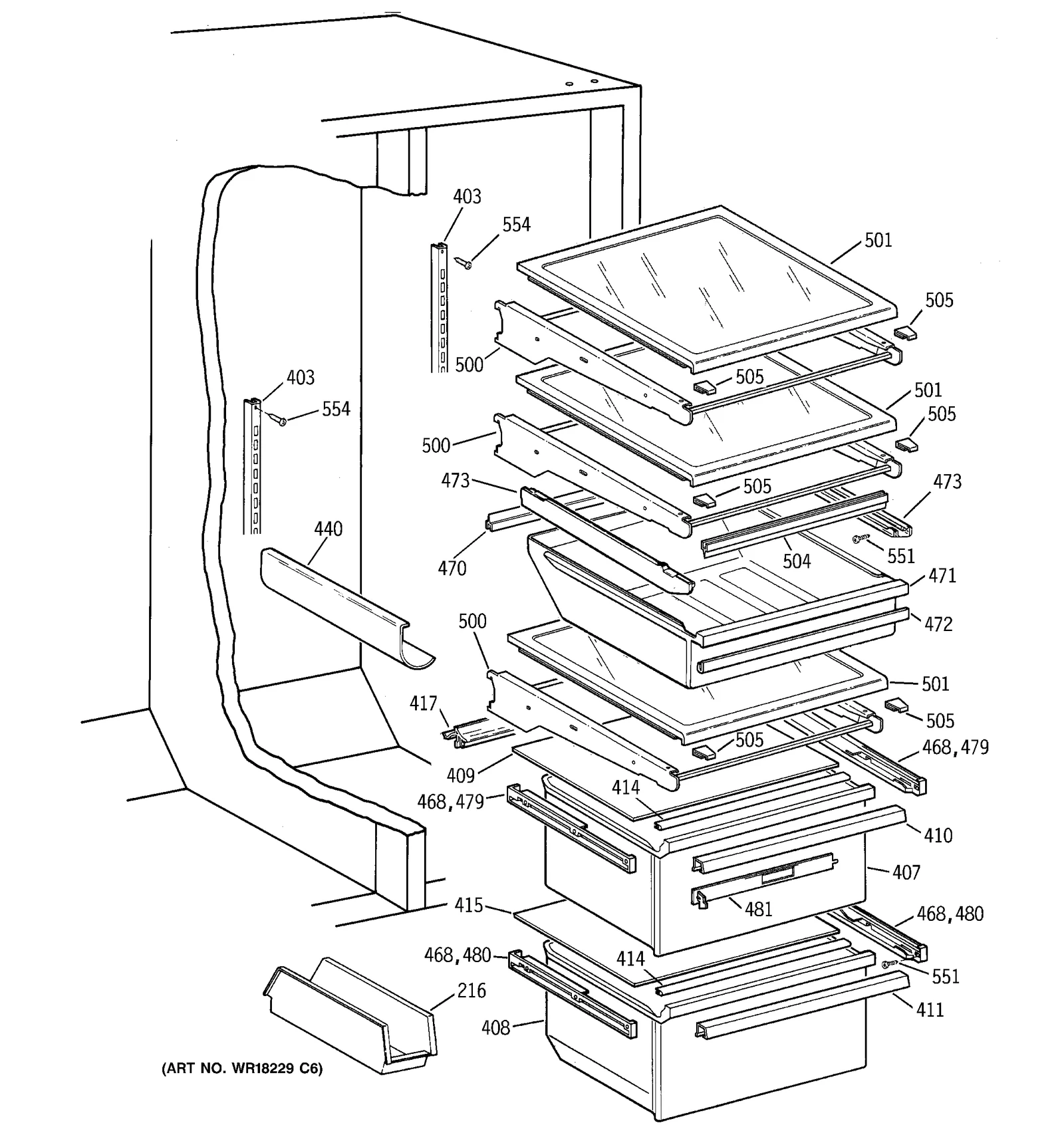

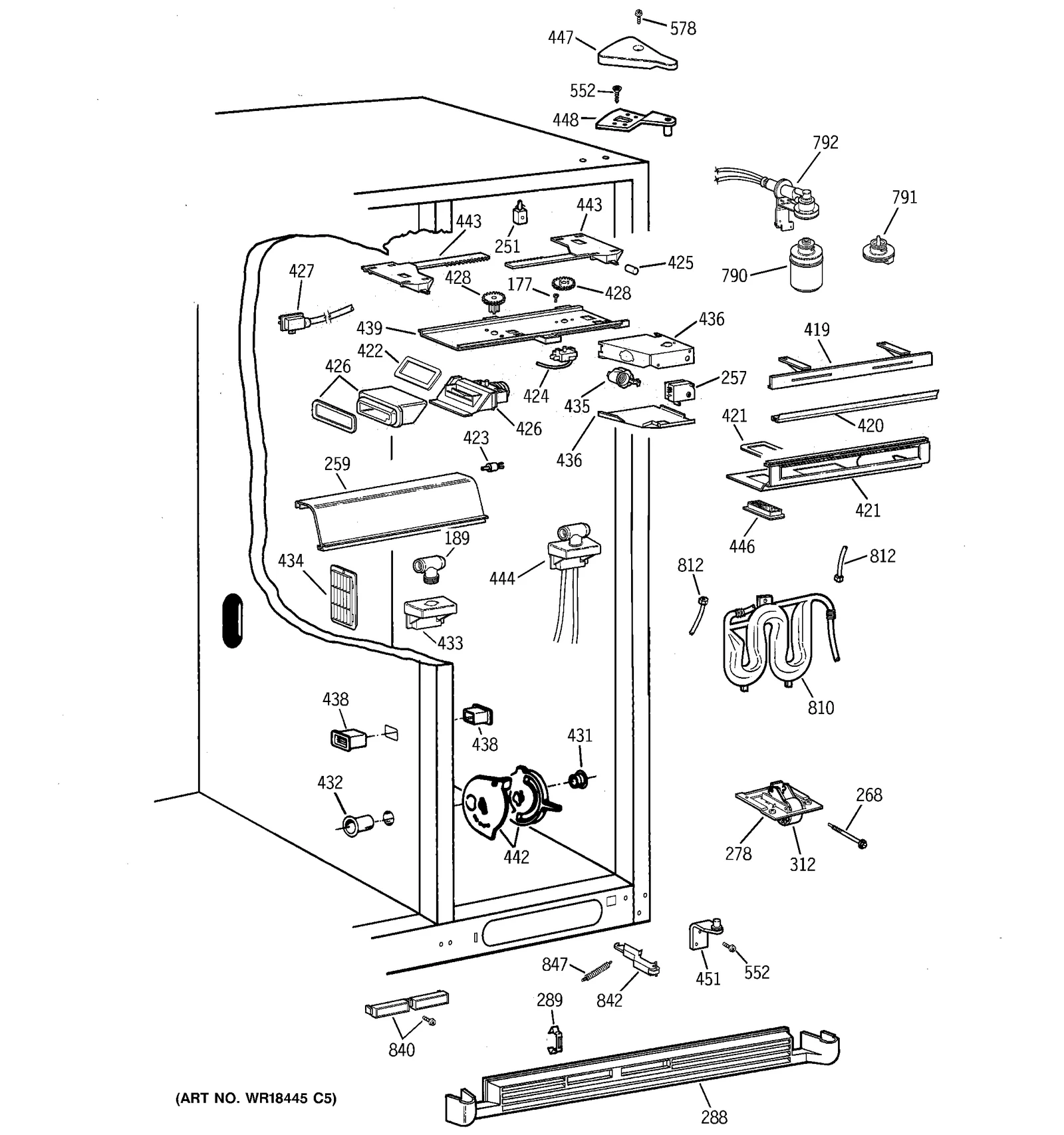

FRESH FOOD SECTION

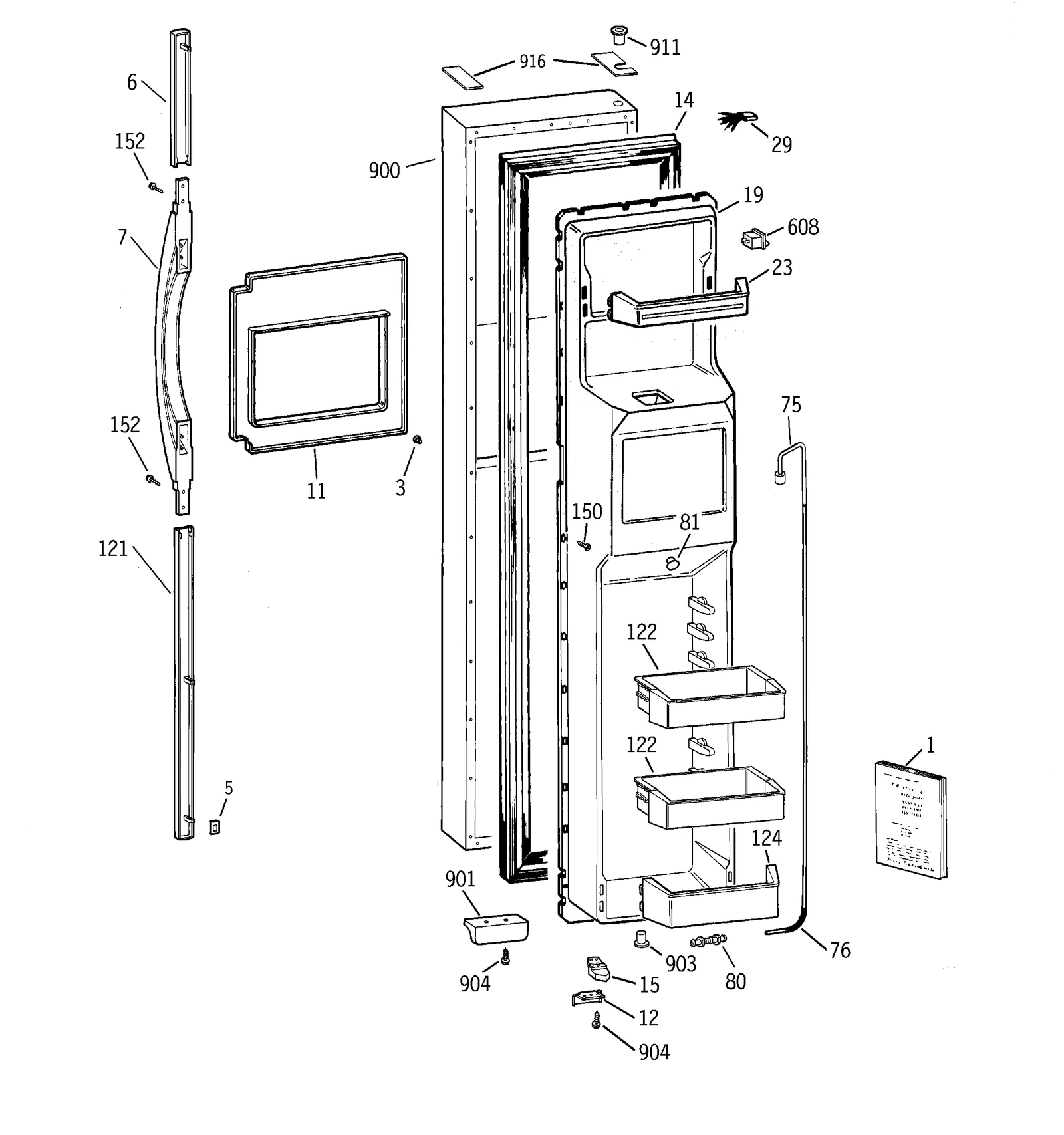

FREEZER DOOR

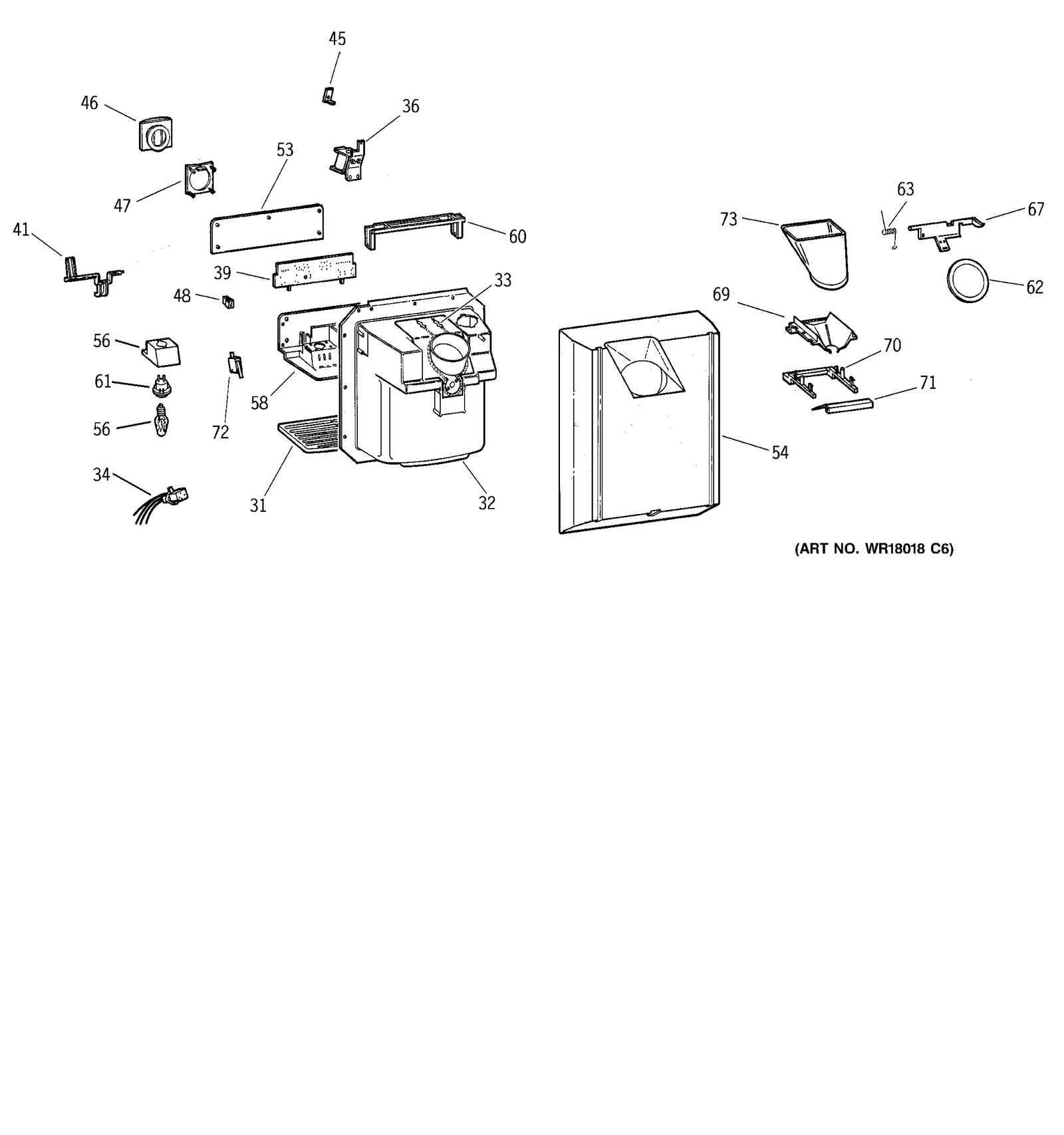

DISPENSER

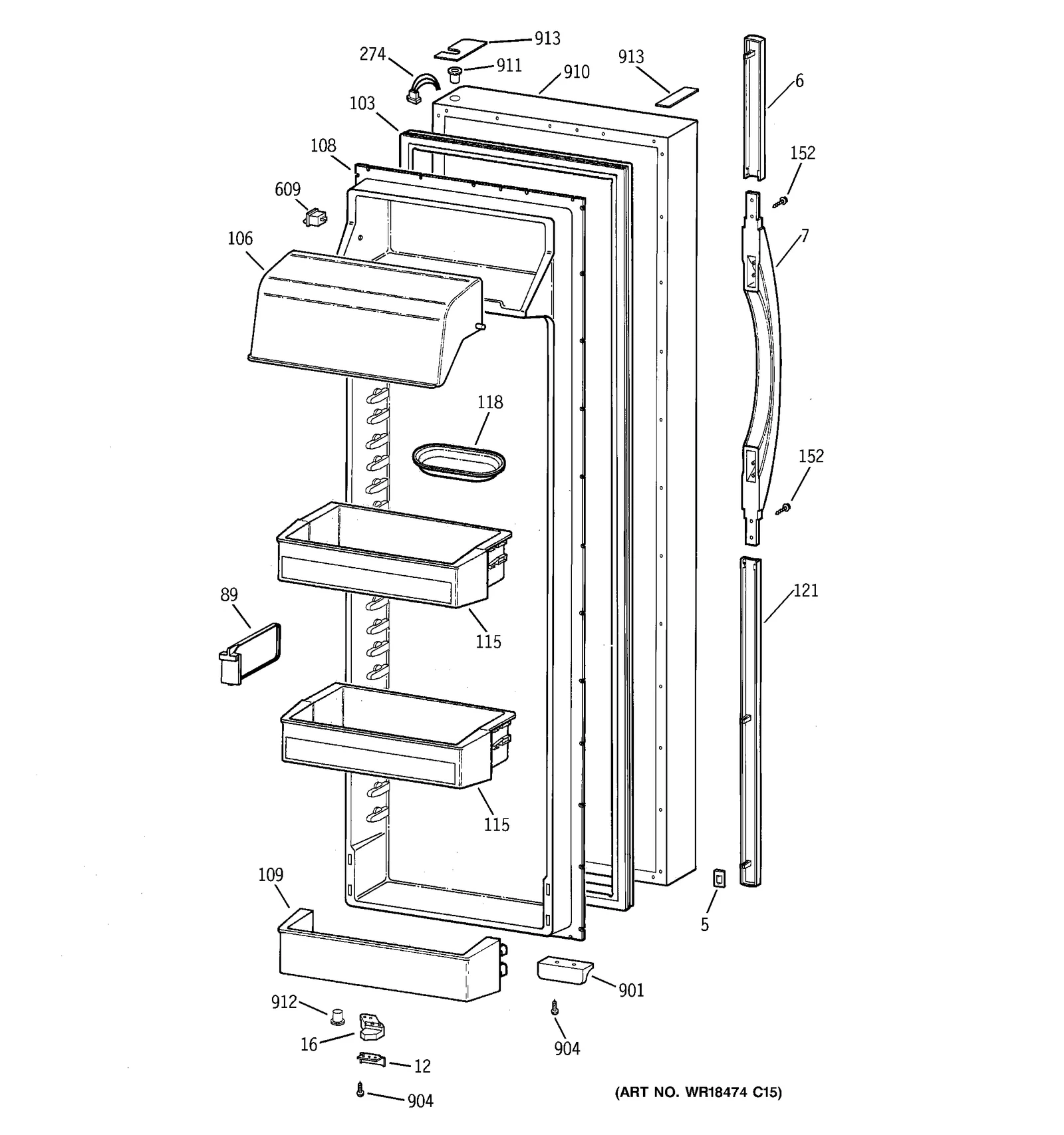

FRESH FOOD DOOR
FRESH FOOD SECTION

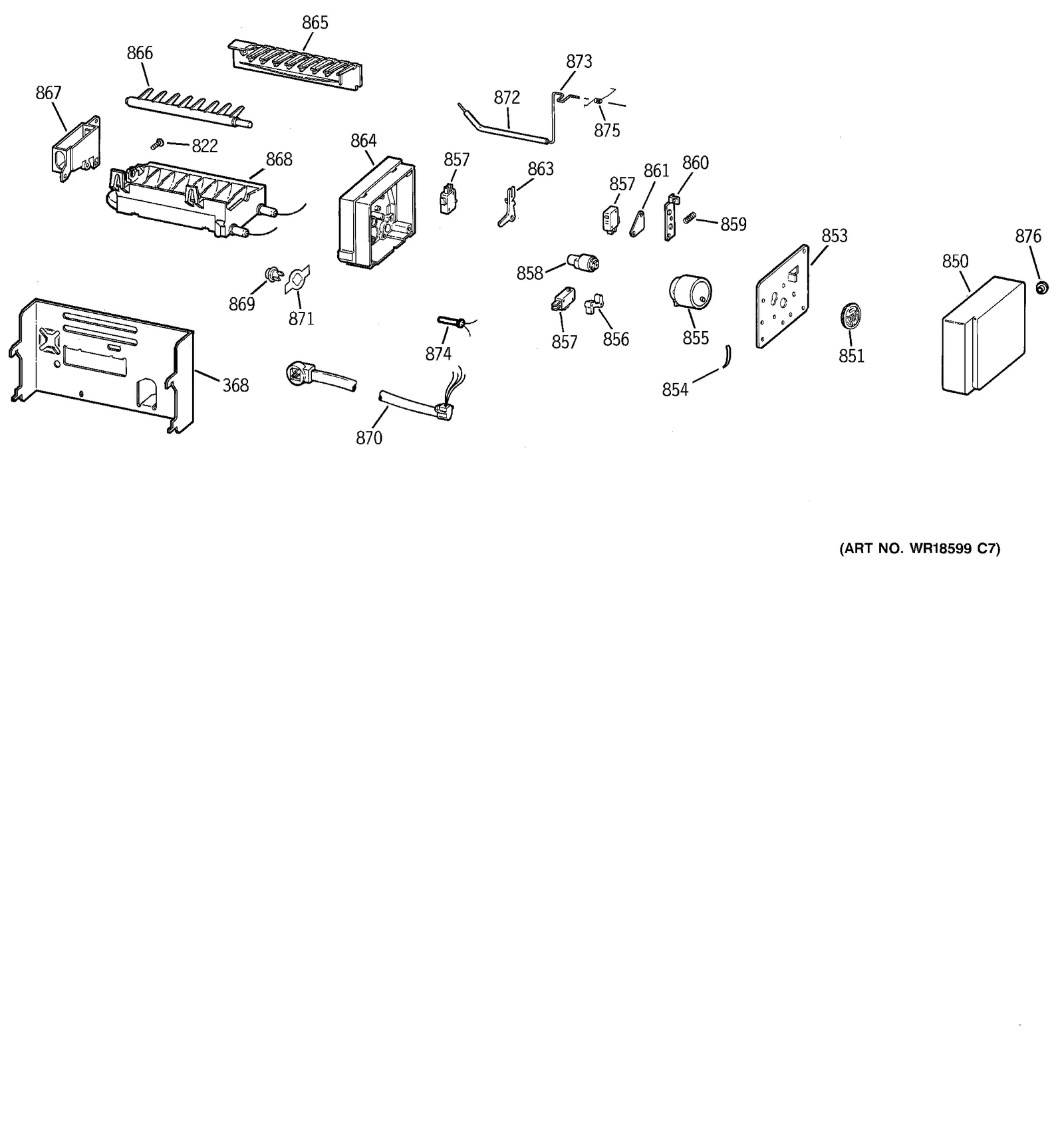

ICEMAKER WR30X0328

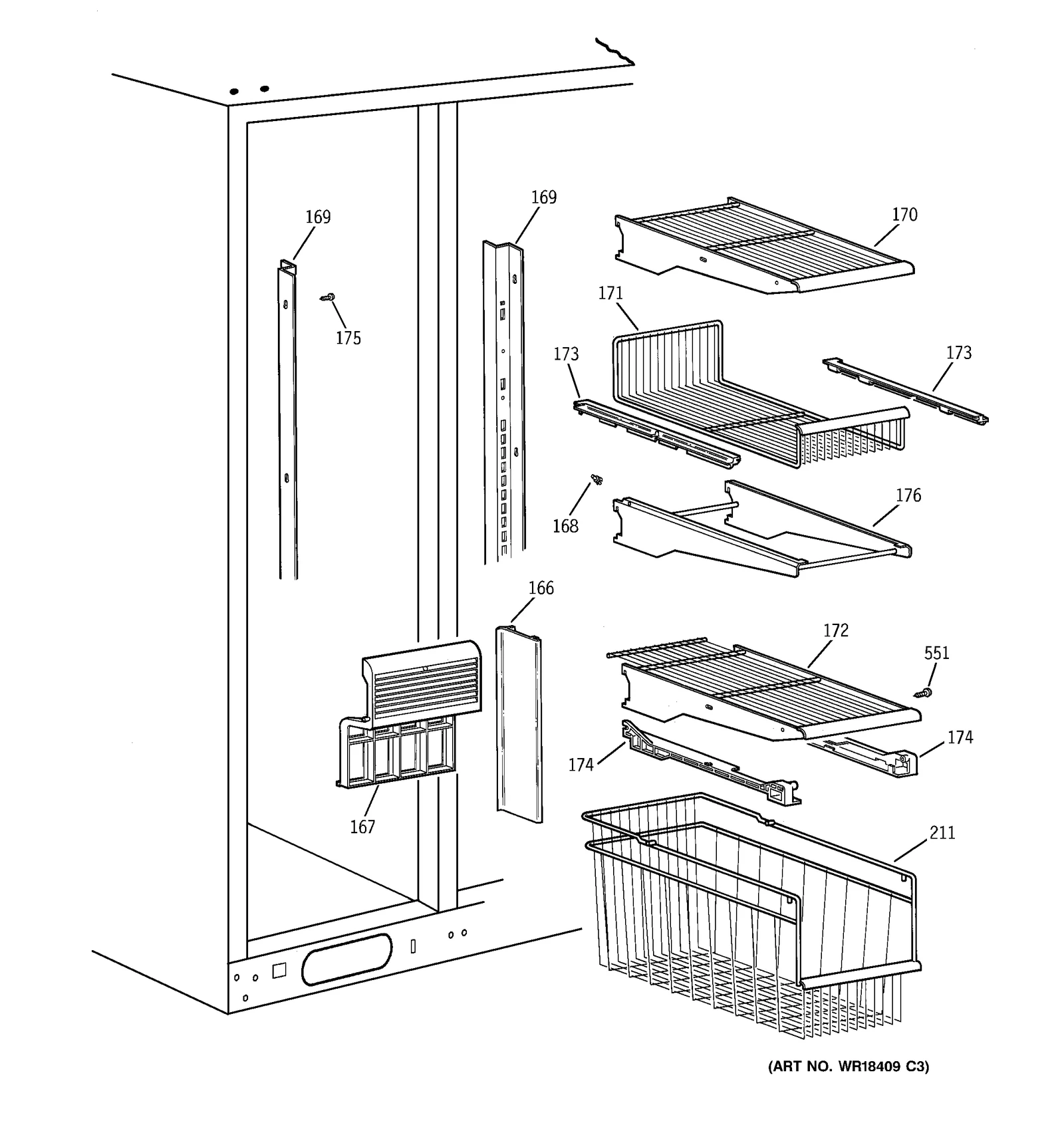

FREEZER SHELVES

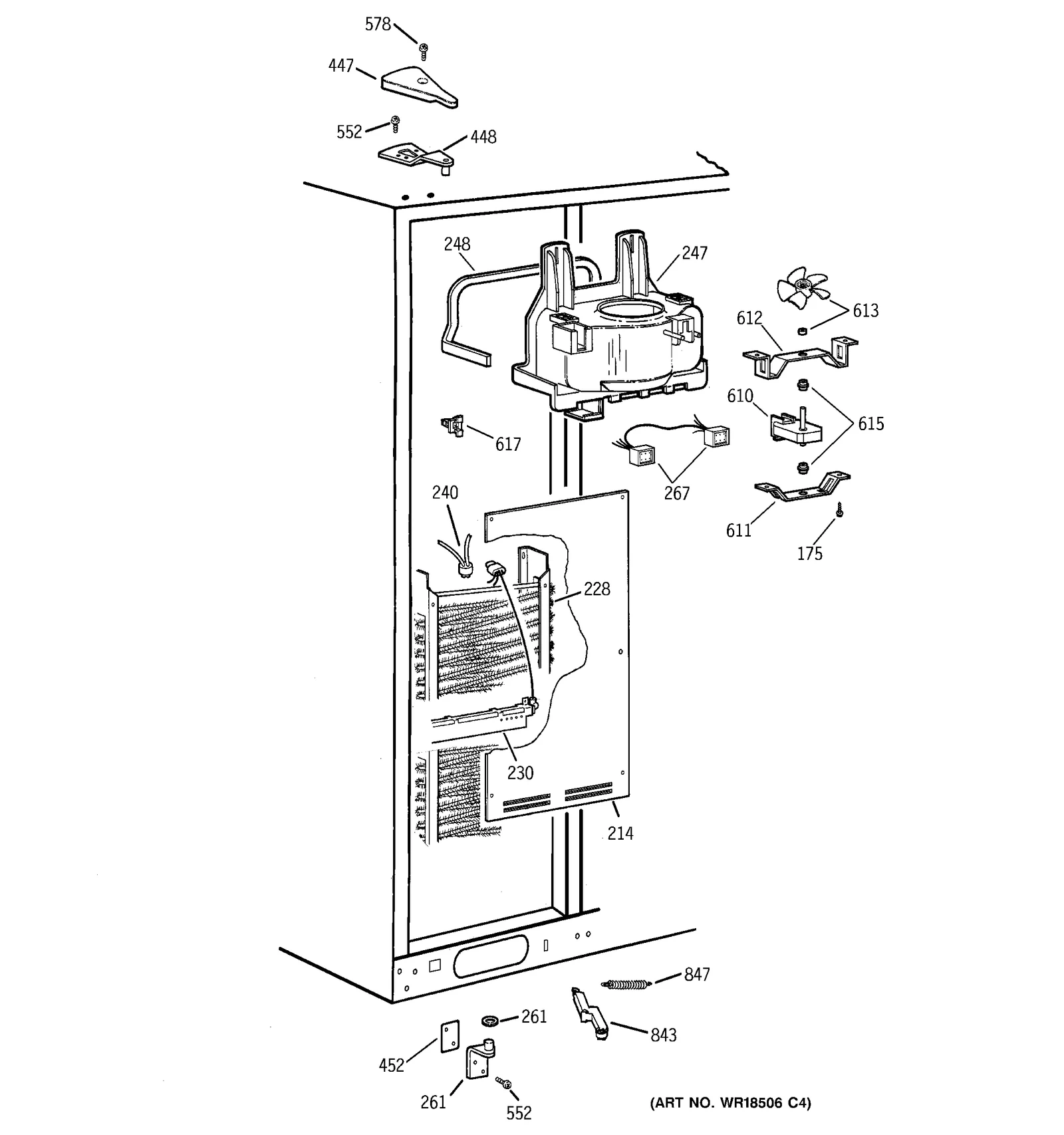

FREEZER SECTION

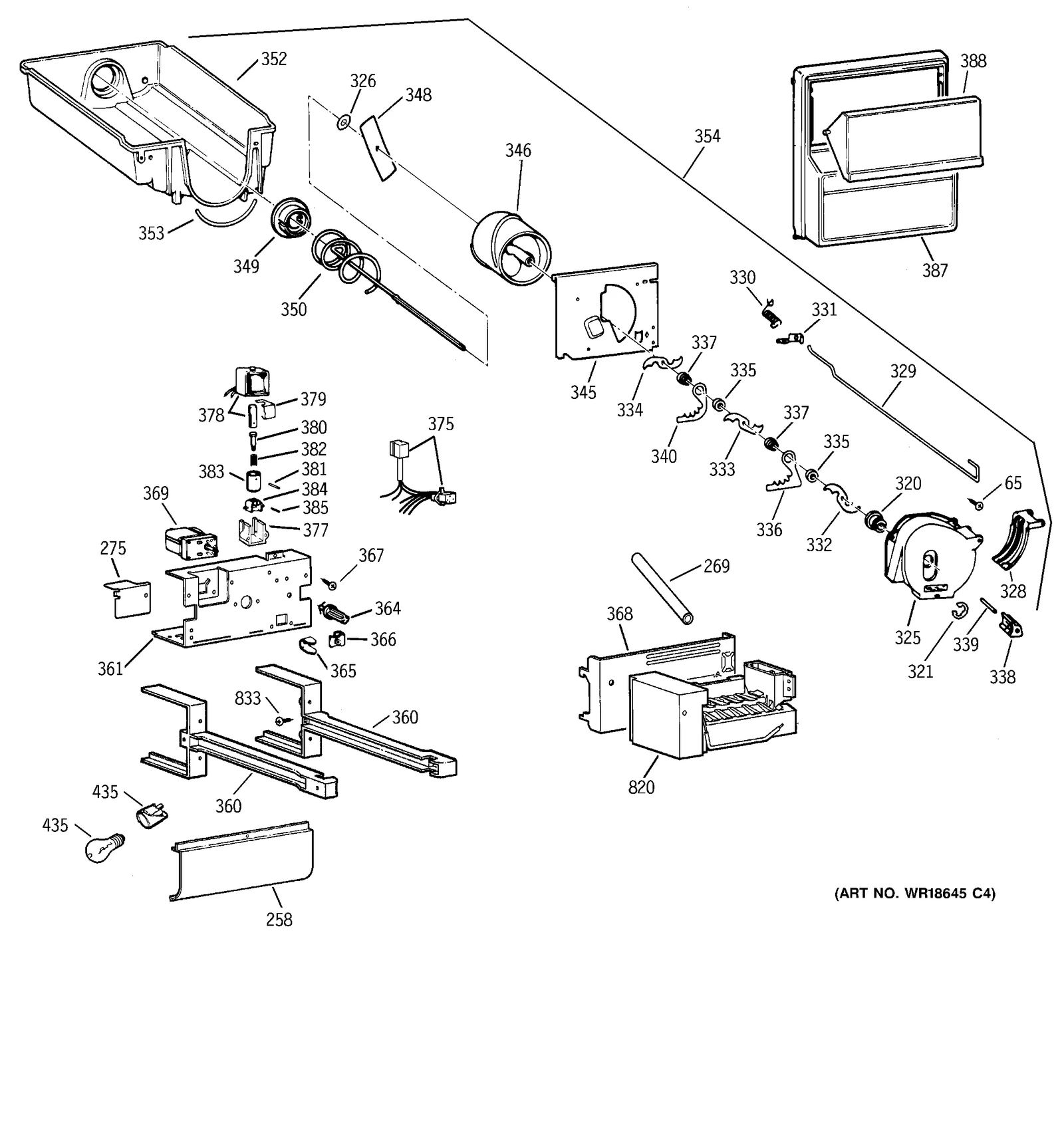

ICE BUCKET

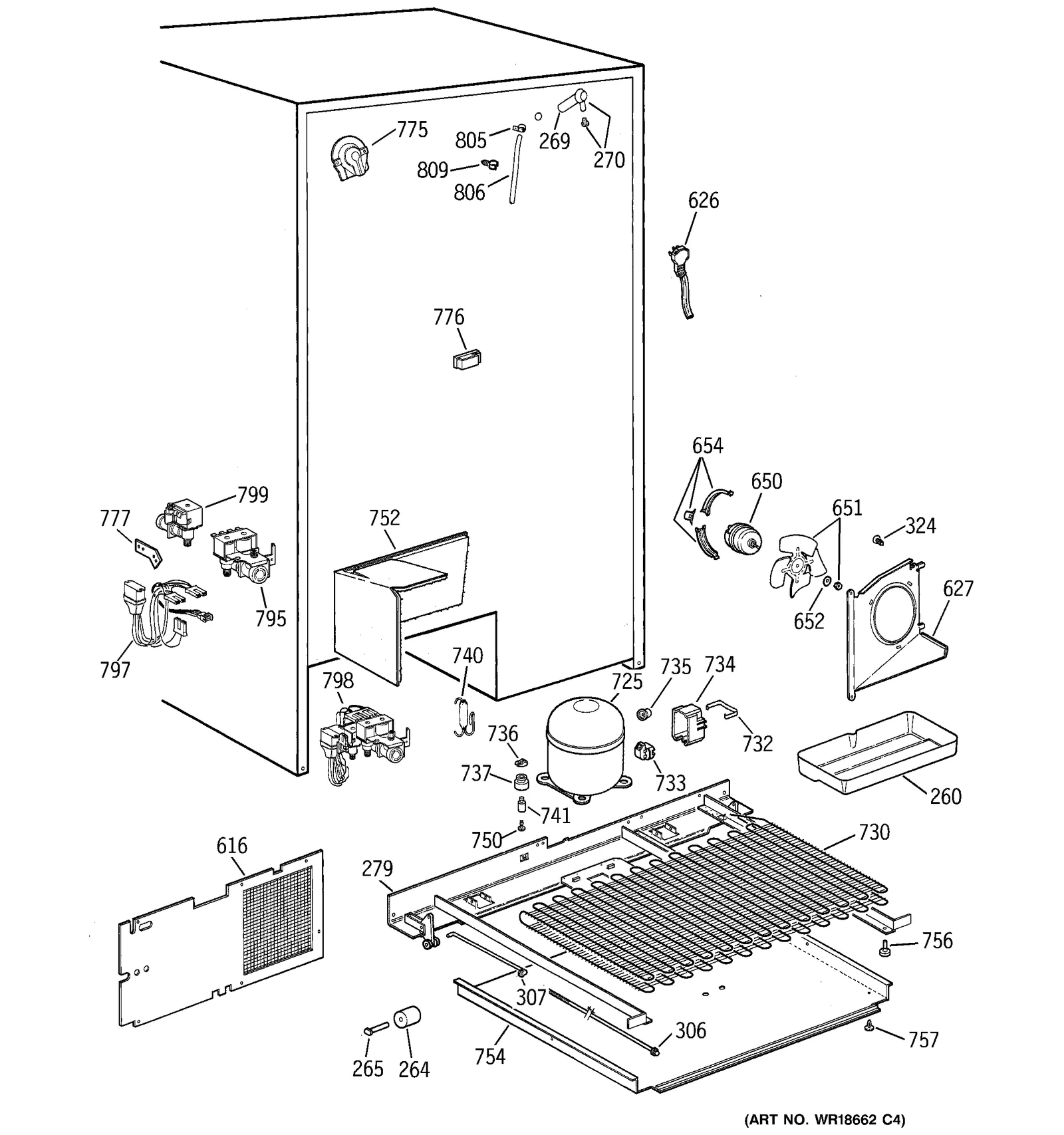

UNIT PARTS
Common parts from model GE 363.59477991 Refrigerator (Kenmore 36359477991)
1
Refrigerator Mini Wiring Manual GEN 31-51300 Contact Us For Availability
1
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
1
Refrigerator Energy Guide GEN SR1259 Contact Us For Availability
1
PM REPLACEMENT PARTS GEN SR3976 Contact Us For Availability
1
Sxs 24bis 28 GEN SR6194 Contact Us For Availability
3
Refrigerator Fastener Tub GEN WR02X8669 Contact Us For Availability
5
Dart Clip GEN WR02X10431 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10051 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Al Disp Trim GEN WR38X10060 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Door Stop GEN WR02X9244 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X0559 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X0561 Contact Us For Availability
15
Refrigerator Cam Closure GEN WR02X9235 Contact Us For Availability
15
Refrigerator Cam Closure GEN WR02X9247 Contact Us For Availability
15
Refrigerator Cam Closure GEN WR02X9250 Contact Us For Availability
16
Refrigerator Cam Closure GEN WR02X9234 Contact Us For Availability
16
Refrigerator Cam Closure GEN WR02X9246 Contact Us For Availability
16
Refrigerator Cam Closure GEN WR02X9249 Contact Us For Availability
19
Inner Door GEN WR77X10001 Contact Us For Availability
23
Refrigerator Module GEN WR71X2619 Contact Us For Availability
29
Harness Dr H GEN WR23X10118 Contact Us For Availability
29
Hrnesdrhngfz GEN WR23X10145 Contact Us For Availability
29
Hrnesdrhngfz GEN WR23X10146 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
31
Grill Rec Ad GEN WR17X4151 Contact Us For Availability
31
Grill Rec Bk GEN WR17X4152 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10514 Contact Us For Availability
32
Recess Disp GEN WR17X10191 Contact Us For Availability
33
Recessed Heater GEN WR51X0420 Contact Us For Availability
34
Harness Light Switch GEN WR23X0456 Contact Us For Availability
39
Mod Time Del GEN WR55X0129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8702 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8704 Contact Us For Availability
46
Pad Act Ad GEN WR02X8726 Contact Us For Availability
47
Sup Act Pad GEN WR02X8681 Contact Us For Availability
48
Refrigerator Knob Recess GEN WR02X8676 Contact Us For Availability
48
Knob Rec Dis GEN WR02X8696 Contact Us For Availability
48
Knob Rec Dis GEN WR02X9154 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10125 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10126 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10128 Contact Us For Availability
54
Recess Insul GEN WR17X4208 Contact Us For Availability
56
Refl Lp Skt GEN WR02X8686 Contact Us For Availability
56
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
58
Refrigerator Recessed Display Shield GEN WR17X3156 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3210 Contact Us For Availability
58
Recovery Shield GEN WR17X4126 Contact Us For Availability
60
Electronic Cover GEN WR02X8685 Contact Us For Availability
63
Refrigerator Spring GEN WR02X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funnel GEN WR02X8943 Contact Us For Availability
70
Supt Funnel GEN WR02X8954 Contact Us For Availability
70
Supt Funnel GEN WR02X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Sw Cradl Act GEN WR23X0366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4206 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Sleeve GEN WR02X8933 Contact Us For Availability
81
Refrigerator Button Plug GEN WR01X2077 Contact Us For Availability
89
Refrigerator Snugger Module GEN WR02X9444 Contact Us For Availability
103
Door Gasket GEN WR24X0560 Contact Us For Availability
103
Door Gasket GEN WR24X0562 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X0524 Contact Us For Availability
108
Refrigerator Inner Door GEN WR77X0675 Contact Us For Availability
109
Refrigerator Module Assembly GEN WR71X10061 Contact Us For Availability
115
Refrigerator Module Assembly GEN WR71X10057 Contact Us For Availability
118
Butter Glass Dish GEN WR19X0037 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10062 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10063 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10064 Contact Us For Availability
122
Refrigerator Module Assembly GEN WR71X10058 Contact Us For Availability
124
Refrigerator Module Assembly GEN WR71X10056 Contact Us For Availability
152
Refrigerator Screw GEN WR01X10038 Contact Us For Availability
166
Extrusion Cover GEN WR17X3836 Contact Us For Availability
167
Refrigerator Drain Pan Trough Cover (White) GEN WR17X10017 Contact Us For Availability
168
Stop Basket GEN WR01X2029 Contact Us For Availability
169
Track Cant S GEN WR72X10005 Contact Us For Availability
169
Refrigerator Cantilever Shelf Mounting Rail, GEN WR72X10006 Contact Us For Availability
170
Refrigerator Shelf Wire GEN WR71X2708 Contact Us For Availability
171
Refrigerator Wire Basket GEN WR71X2699 Contact Us For Availability
172
Shelf Freezer Wire GEN WR71X10005 Contact Us For Availability
173
Refrigerator Slide Basket GEN WR72X0276 Contact Us For Availability
173
Basket Fz Lh GEN WR72X0277 Contact Us For Availability
174
Slide Fz Rh GEN WR72X10001 Contact Us For Availability
174
Slide Fz Lh GEN WR72X10002 Contact Us For Availability
175
Refrigerator Screw GEN WR01X2023 Contact Us For Availability
176
Cantilever Basket GEN WR71X2698 Contact Us For Availability
211
Refrigerator Freezer Bin GEN WR71X2697 Contact Us For Availability
214
Refrigerator Evaporator Cover GEN WR17X10217 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
228
Lo Side Asm GEN WR85X0306 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10429 Contact Us For Availability
248
Refrigerator Gasket GEN WR14X0272 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X10401 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Pan Water Diode GEN WR32X10011 Contact Us For Availability
261
Thrust Washer GEN WR01X2033 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X0758 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X0759 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X0762 Contact Us For Availability
264
Mobility Wheel GEN WR02X8838 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR01X2050 Contact Us For Availability
267
Low Harness GEN WR23X10058 Contact Us For Availability
269
Refrigerator Water Tube GEN WR02X7927 Contact Us For Availability
274
Harness Ff L GEN WR23X10041 Contact Us For Availability
275
Cover Icemaker Plug GEN WR01X2018 Contact Us For Availability
279
Rail Mtg Asm GEN WR17X10484 Contact Us For Availability
306
Refrigerator Adjustment Screw GEN WR01X2146 Contact Us For Availability
307
Link Screw GEN WR01X2145 Contact Us For Availability
320
Refrigerator Nut GEN WR01X1585 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
326
Washer GEN WR01X1366 Contact Us For Availability
328
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
328
Refrigerator Spring GEN WR02X4561 Contact Us For Availability
329
Dispenser Wire GEN WR17X4210 Contact Us For Availability
330
Refrigerator Spring GEN WR02X4145 Contact Us For Availability
331
Refrigerator Retainer GEN WR02X4251 Contact Us For Availability
335
Refrigerator Spacer GEN WR02X4139 Contact Us For Availability
336
Refrigerator Blade GEN WR17X1009 Contact Us For Availability
338
Blade Rest GEN WR02X4140 Contact Us For Availability
339
Refrigerator Pin GEN WR02X4141 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
348
Blade In Dip GEN WR02X7351 Contact Us For Availability
349
Drive Cup GEN WR02X4550 Contact Us For Availability
350
Refrigerator Dispenser Auger GEN WR17X4204 Contact Us For Availability
354
Refrigerator Ice Container Assembly GEN WR17X10366 Contact Us For Availability
360
Ice Support GEN WR71X10180 Contact Us For Availability
361
Refrigerator Motor Cover GEN WR17X10431 Contact Us For Availability
364
Twist Support GEN WR02X7310 Contact Us For Availability
365
Hub Auger GEN WR02X4854 Contact Us For Availability
366
J Nut GEN WR01X1547 Contact Us For Availability
368
Refrigerator Bracket Ice Maker GEN WR02X10011 Contact Us For Availability
375
Harn Mtr Dis GEN WR23X0463 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10041 Contact Us For Availability
388
Dr Ice Stor GEN WR17X3838 Contact Us For Availability
403
Trck Can Shf GEN WR72X0249 Contact Us For Availability
408
Refrigerator Meat Pan GEN WR32X10035 Contact Us For Availability
409
Refrigerator Glass Shelf Cover GEN WR32X10033 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X0431 Contact Us For Availability
415
Refrigerator Deli Drawer Cover GEN WR32X1457 Contact Us For Availability
417
Gasket Shd GEN WR14X0482 Contact Us For Availability
426
Refrigerator Air Damper Control Assembly GEN WR09X10002 Contact Us For Availability
440
Wine Rack Pk GEN WR17X4094 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9433 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9434 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9435 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9436 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9437 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9438 Contact Us For Availability
448
Refrigerator Hinge GEN WR13X10034 Contact Us For Availability
448
Refrigerator Hinge GEN WR13X10035 Contact Us For Availability
451
Refrigerator Hinge GEN WR13X0761 Contact Us For Availability
451
Btm Hinge Ff GEN WR13X10004 Contact Us For Availability
451
Refrigerator Hinge GEN WR13X10008 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X7011 Contact Us For Availability
470
Pan Gasket GEN WR14X0420 Contact Us For Availability
471
Refrigerator Meat Pan GEN WR32X10036 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473
Alide Pan GEN WR72X0289 Contact Us For Availability
473
Slide Pan GEN WR72X0290 Contact Us For Availability
481
Slide Pan Foot GEN WR01X2079 Contact Us For Availability
500
Refrigerator Cantilever Shelf GEN WR71X10022 Contact Us For Availability
501
Refrigerator Slide Shelf GEN WR32X10034 Contact Us For Availability
504
Slide Out Seal GEN WR14X0469 Contact Us For Availability
505
Shelf Stop GEN WR01X2080 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
608
Switchlitefz GEN WR23X10144 Contact Us For Availability
609
Refrigerator Light Switch GEN WR23X10147 Contact Us For Availability
611
Refrigerator Condenser Fan Motor Bracket GEN WR02X10100 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X10101 Contact Us For Availability
613
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10050 Contact Us For Availability
627
Housing Condenser GEN WR17X10189 Contact Us For Availability
651
Blade Cond GEN WR60X0234 Contact Us For Availability
651
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
654
Condenser Grommet GEN WR01X2019 Contact Us For Availability
654
Leg Condenser Fan GEN WR02X9240 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0213 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
733
Refrigerator Protector GEN WR07X0277 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
735
Refrigerator Compressor Overload Protector GEN WR08X10006 Contact Us For Availability
736
Clip GEN WR02X8203 Contact Us For Availability
752
Refrigerator Insulation GEN WR82X10028 Contact Us For Availability
754
Refrigerator Floor GEN WR82X10054 Contact Us For Availability
756
Refrigerator Pad GEN WR01X2021 Contact Us For Availability
757
Refrigerator Push Fastener GEN WR01X2035 Contact Us For Availability
791
Refrigerator Water Filter Bypass GEN WR02X10173 Contact Us For Availability
792
Refrigerator Filter Head GEN WR17X10452 Contact Us For Availability
822
Refrigerator Screw GEN WR01X2122 Contact Us For Availability
840
Refrigerator Screw GEN WR01X2024 Contact Us For Availability
840
Mgnt&cvr Wh GEN WR11X0181 Contact Us For Availability
840
Magnet Blk GEN WR11X10001 Contact Us For Availability
840
Mgnt&cvr Ad GEN WR11X10002 Contact Us For Availability
842
Lever Asm Wh GEN WR11X0169 Contact Us For Availability
842
Lever Asm Bk GEN WR11X0172 Contact Us For Availability
842
Lever Asm Ad GEN WR11X0176 Contact Us For Availability
843
Lever Asm Wh GEN WR11X0170 Contact Us For Availability
843
Lever Asm Bk GEN WR11X0173 Contact Us For Availability
843
Lever Asm Ad GEN WR11X0177 Contact Us For Availability
850
Refrigerator Cover GEN WR29X0193 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
864
E Ring Pkg GEN WR29X0115 Contact Us For Availability
867
Refrigerator Fill Cup GEN WR29X0208 Contact Us For Availability
868
Mold Body GEN WR29X0204 Contact Us For Availability
870
Wire Harness GEN WR29X0186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
876
Refrigerator Button Plug GEN WR02X8483 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10131 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10133 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10135 Contact Us For Availability
901
Strike Mag GEN WR10X0125 Contact Us For Availability
901
Strkie Mag GEN WR10X0126 Contact Us For Availability
901
Strike Magnet GEN WR10X10004 Contact Us For Availability
903
Refrigerator Thimble Door GEN WR01X10155 Contact Us For Availability
903
Refrigerator Thimble Door GEN WR01X2030 Contact Us For Availability
903
Refrigerator Thimble Door GEN WR01X2039 Contact Us For Availability
904
Refrigerator Screw GEN WR01X2134 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10130 Contact Us For Availability
910
Refrigerator Door Assembly GEN WR78X10132 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10134 Contact Us For Availability
911
Refrigerator Thimble Door GEN WR01X10154 Contact Us For Availability
911
Refrigerator Thimble Door GEN WR01X2032 Contact Us For Availability
911
Refrigerator Thimble Door GEN WR01X2041 Contact Us For Availability
912
Refrigerator Thimble Door GEN WR01X10156 Contact Us For Availability
912
Thmbl Dr Bk GEN WR01X2132 Contact Us For Availability
912
Thmbl Dr Wh GEN WR01X2133 Contact Us For Availability
913
Corner Cover GEN WR01X2143 Contact Us For Availability
913
Corner Cover GEN WR01X2147 Contact Us For Availability
913
Corner Cover GEN WR01X2150 Contact Us For Availability
916
Corner Cover GEN WR01X2144 Contact Us For Availability
916
Corner Cover GEN WR01X2149 Contact Us For Availability
916
Corner Cover GEN WR01X2152 Contact Us For Availability
× ![]()
Login and Registration Form
