Model GE 363.58897896 Refrigerator (Kenmore 36358897896) – Common Parts & Diagrams

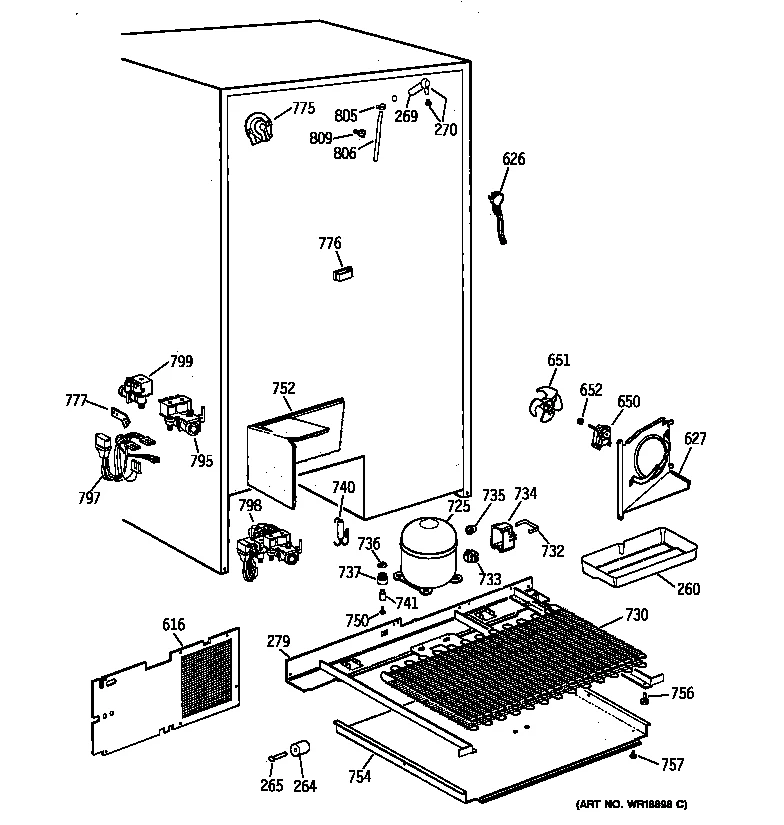

UNIT PARTS

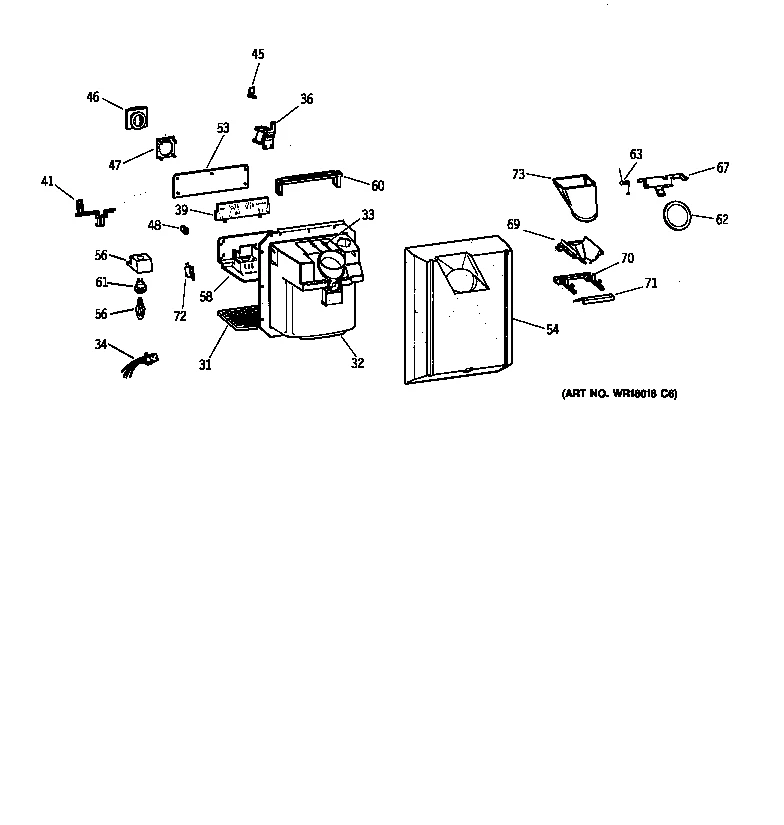

DISPENSER
FREEZER SHELVES
FRESH FOOD DOOR
ICEMAKER WR30X0328
All Parts
FRESH FOOD SECTION
FREEZER DOOR
FRESH FOOD SECTION
FREEZER SECTION
Common parts from model GE 363.58897896 Refrigerator (Kenmore 36358897896)
1A
Refrigerator Owner's Guide GEN SR619 Contact Us For Availability
1F
Refrigerator Mini Wiring Manual GEN 31-51282 Contact Us For Availability
3
Refrigerator Fastener GEN WR2X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10051 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Al Disp Trim GEN WR38X10060 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9244 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (Black) GEN WR24X561 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (White) GEN WR24X559 Contact Us For Availability
15
Cam Closu GEN WR2X9235 Contact Us For Availability
15
Cam Closu GEN WR2X9247 Contact Us For Availability
15
Cam Closu GEN WR2X9250 Contact Us For Availability
16
Refrigerator Freezer Door Closer Cam GEN WR2X9246 Contact Us For Availability
19
Inner Door GEN WR77X10001 Contact Us For Availability
23
Refrigerator Module GEN WR71X2619 Contact Us For Availability
29
Harness Dr H GEN WR23X10118 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X562 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X560 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10062 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10063 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10064 Contact Us For Availability
122
Refrigerator Module Assembly GEN WR71X10058 Contact Us For Availability
124
Refrigerator Module Assembly GEN WR71X10056 Contact Us For Availability
126B
Refrigerator Convenience Door Gasket GEN WR24X10002 Contact Us For Availability
129
Refrigerator Hinge Cap GEN WR2X10035 Contact Us For Availability
130
Refrigerator Switch Bracket GEN WR2X10032 Contact Us For Availability
131
Refrigerator Screw GEN WR1X1707 Contact Us For Availability
132
Hinge Stop GEN WR2X10037 Contact Us For Availability
133
Trigr Cmk GEN WR2X10033 Contact Us For Availability
134
Refrigerator Screw GEN WR1X10019 Contact Us For Availability
136
Hdle Dr Wh GEN WR12X10015 Contact Us For Availability
136
Handle Cmk D GEN WR12X10016 Contact Us For Availability
136
Handle Cmk D GEN WR12X10017 Contact Us For Availability
141A
Refrigerator Retainer Bracket GEN WR1X10018 Contact Us For Availability
141B
Refrigerator Retainer Bracket GEN WR1X10017 Contact Us For Availability
142
Bushing W GEN WR2X10036 Contact Us For Availability
142
Bushing C GEN WR2X10044 Contact Us For Availability
142
Bushing C GEN WR2X10045 Contact Us For Availability
143
Hinge Stud GEN WR2X10041 Contact Us For Availability
152
Scr 8-18 GEN WR1X10038 Contact Us For Availability
175A
Refrigerator Screw GEN WR1X2023 Contact Us For Availability
175B
Scr 8-18 GEN WR1X10035 Contact Us For Availability
177
Refrigerator Screw, 2-pack GEN WR1X5034 Contact Us For Availability
189
Refrigerator Lamp Socket GEN WR2X9243 Contact Us For Availability
214
Refrigerator Evaporator Cover GEN WR17X10217 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
228
Refrigerator Evaporator Assembly GEN WR85X306 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10429 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X10401 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X759 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X758 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X762 Contact Us For Availability
261
Refrigerator Freezer Door Hinge Thrust Washer GEN WR1X2033 Contact Us For Availability
267
Low Harness GEN WR23X10058 Contact Us For Availability
268
Screw Mobility GEN WR1X2025 Contact Us For Availability
269
Refrigerator Water Tubing GEN WR2X7927 Contact Us For Availability
274
Harness Ff L GEN WR23X10038 Contact Us For Availability
275
Cvr Im Pl GEN WR1X2018 Contact Us For Availability
278
Refrigerator Mobility GEN WR2X9241 Contact Us For Availability
288
Gril Base Ad GEN WR74X263 Contact Us For Availability
288
Gril Base Bk GEN WR74X264 Contact Us For Availability
288
Gril Base Wh GEN WR74X265 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
312
Mobility Wheel GEN WR2X10137 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328A
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
329
Actuator Wire GEN WR17X3853 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
331
Refrigerator Dispenser Pan Retainer GEN WR2X4251 Contact Us For Availability
335
Spacer GEN WR2X4139 Contact Us For Availability
336
Refrigerator Blade GEN WR17X1009 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
339
Refrigerator Ice Dispenser Cube Diverter Pin GEN WR2X4141 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
348
Blade Indisp GEN WR2X7351 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
350
Refrigerator Dispenser Auger GEN WR17X4314 Contact Us For Availability
352
Refrigerator Ice Bucket GEN WR30X313 Contact Us For Availability
354
Refrigerator Ice Container Assembly GEN WR17X10331 Contact Us For Availability
360
Ice Support GEN WR71X10154 Contact Us For Availability
361
Refrigerator Motor Cover GEN WR17X10431 Contact Us For Availability
364
Refrigerator Dispenser Bucket Support Stud GEN WR2X7310 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
368
Refrigerator Bracket Ice Maker GEN WR2X10011 Contact Us For Availability
375
Refrigerator Wire Harness GEN WR23X463 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10041 Contact Us For Availability
388
Dr Ice Stor GEN WR17X3838 Contact Us For Availability
403
Trck Can Shf GEN WR72X249 Contact Us For Availability
408
Meat Pan GEN WR32X10012 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X431 Contact Us For Availability
415
Refrigerator Deli Drawer Cover GEN WR32X1457 Contact Us For Availability
417
Gasket Shield GEN WR14X466 Contact Us For Availability
419
Bezel Control GEN WR17X10124 Contact Us For Availability
420
Extrusion Trim GEN WR38X1995 Contact Us For Availability
421A
Gkt Lgt Shld GEN WR14X433 Contact Us For Availability
421B
Refrigerator Light Shield GEN WR17X10075 Contact Us For Availability
422
Gkt Fm Block GEN WR14X429 Contact Us For Availability
423
Refrigerator Shelf Support GEN WR2X6347 Contact Us For Availability
424A
Refrigerator Temperature Control Thermostat GEN WR9X521 Contact Us For Availability
424B
Refrigerator Sleeve GEN WR2X8914 Contact Us For Availability
425
Refrigerator Control Knob GEN WR2X9439 Contact Us For Availability
426A
Refrigerator Foam Gasket GEN WR14X462 Contact Us For Availability
426B
Foam Nozzle GEN WR2X8831 Contact Us For Availability
426C
Refrigerator Damper Control GEN WR9X10002 Contact Us For Availability
427
Refrigerator Control Harness GEN WR23X10057 Contact Us For Availability
428A
Gr Pinion GEN WR2X8828 Contact Us For Availability
428B
Gr Pinion GEN WR2X8829 Contact Us For Availability
432
Duct Mullion GEN WR2X8654 Contact Us For Availability
433A
Refrigerator Socket GEN WR2X8202 Contact Us For Availability
433B
Housing L GEN WR2X9239 Contact Us For Availability
434
Grille Air R GEN WR17X10262 Contact Us For Availability
436A
Bx Ctrl T GEN WR2X8820 Contact Us For Availability
436B
Bx Ctrl B GEN WR2X8819 Contact Us For Availability
438A
Duct Mullion GEN WR2X7476 Contact Us For Availability
438B
Duct Mullion GEN WR2X8655 Contact Us For Availability
439
Refrigerator Slide Control GEN WR17X10306 Contact Us For Availability
440
Wine Rack Pk GEN WR17X4094 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443A
Control Rack Gear GEN WR17X3319 Contact Us For Availability
443B
Rk Gr Ctl Ls GEN WR17X3318 Contact Us For Availability
444
Refrigerator Light Housing GEN WR23X10069 Contact Us For Availability
446
Light Grille GEN WR17X10038 Contact Us For Availability
447A
Refrigerator Hinge Cover GEN WR2X9434 Contact Us For Availability
447A
Refrigerator Hinge Cover GEN WR2X9436 Contact Us For Availability
447A
Refrigerator Hinge Cover GEN WR2X9437 Contact Us For Availability
447B
Refrigerator Hinge Cover GEN WR2X9433 Contact Us For Availability
447B
Refrigerator Hinge Cover GEN WR2X9435 Contact Us For Availability
447B
Refrigerator Hinge Cover GEN WR2X9438 Contact Us For Availability
448A
Refrigerator Hinge GEN WR13X10034 Contact Us For Availability
448B
Refrigerator Hinge GEN WR13X10035 Contact Us For Availability
451
Btm Hinge Ff GEN WR13X10004 Contact Us For Availability
451
Refrigerator Hinge GEN WR13X10008 Contact Us For Availability
451
Refrigerator Hinge GEN WR13X761 Contact Us For Availability
470
203c3566p004 GEN WR14X420 Contact Us For Availability
471
Refrigerator Deli Drawer GEN WR32X1339 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473A
Refrigerator Snack Pan Slide Rail, Right GEN WR72X210 No Longer Available
473B
Refrigerator Snack Drawer Slide Rail, Left GEN WR72X211 Contact Us For Availability
481
Slide Pan GEN WR1X2079 Contact Us For Availability
500
Refrigerator Spillproof Cantilever Shelf Fram GEN WR71X2559 Contact Us For Availability
501
Refrigerator Shelf End Cap GEN WR32X10030 Contact Us For Availability
504
Slide Out Seal GEN WR14X469 Contact Us For Availability
505
Shelf Stop GEN WR1X2080 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
609
Sw Light Ff GEN WR23X426 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10050 Contact Us For Availability
650
Refrigerator Condenser Fan Motor GEN WR60X10024 Contact Us For Availability
651
Refrigerator Condenser Fan Blade GEN WR60X10030 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
791
Filter Pl GEN WR2X10173 Contact Us For Availability
792
Refrigerator Filter Head GEN WR17X10452 Contact Us For Availability
822
Refrigerator Screw GEN WR1X2122 Contact Us For Availability
840
Magnet Blk GEN WR11X10001 Contact Us For Availability
840
Mgnt&cvr Ad GEN WR11X10002 Contact Us For Availability
840
Mgnt&cvr Wh GEN WR11X181 Contact Us For Availability
840
Refrigerator Screw GEN WR1X2024 Contact Us For Availability
842
Lever Asm Wh GEN WR11X169 Contact Us For Availability
842
Lever Asm Bk GEN WR11X172 Contact Us For Availability
842
Refrigerator Door Closer Lever GEN WR11X176 Contact Us For Availability
843
Lever Asm Wh GEN WR11X170 Contact Us For Availability
843
Lever Asm Bk GEN WR11X173 Contact Us For Availability
843
Lever Asm Ad GEN WR11X177 Contact Us For Availability
850
Refrigerator Cover GEN WR29X193 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
864A
E Ring Pkg GEN WR29X115 Contact Us For Availability
867
Refrigerator Ice Maker Fill Cup GEN WR29X208 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
876
Refrigerator Button Plug GEN WR2X8483 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10131 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10133 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10135 Contact Us For Availability
901
162d8262g010 GEN WR10X125 Contact Us For Availability
901
162d8262g012 GEN WR10X126 Contact Us For Availability
901
162d8262g005 GEN WR10X127 Contact Us For Availability
903
Thimble D GEN WR1X2030 Contact Us For Availability
903
Thimble D GEN WR1X2039 Contact Us For Availability
903
Thimble D GEN WR1X2045 Contact Us For Availability
904
Refrigerator Screw GEN WR1X2134 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10136 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10137 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10138 Contact Us For Availability
911
Thimble D GEN WR1X2032 Contact Us For Availability
911
Refrigerator Door Hinge Bushing (Black) GEN WR1X2041 Contact Us For Availability
911
Thimble D GEN WR1X2047 Contact Us For Availability
912
Thmbl Dr GEN WR1X2131 Contact Us For Availability
912
Refrigerator Door Bottom Bushing (Black) GEN WR1X2132 Contact Us For Availability
912
Thmbl Dr GEN WR1X2133 Contact Us For Availability
913
Cover Cor GEN WR1X2143 Contact Us For Availability
913
Corner Cover GEN WR1X2147 Contact Us For Availability
913
Corner Cover GEN WR1X2150 Contact Us For Availability
916
Corner Cover GEN WR1X2144 Contact Us For Availability
916
Corner Cover GEN WR1X2149 Contact Us For Availability
916
Corner Cover GEN WR1X2152 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
NI
Refrigerator Screw GEN WH2X940 Contact Us For Availability
NI
Refrigerator Block GEN WB17X5059 Contact Us For Availability
NI
HOUSING TERMINAL GEN WD1X1440 Contact Us For Availability
NI
Refrigerator Foam Tape GEN WR14X264 Contact Us For Availability
NI
Scr 8-32 GEN WR1X10127 Contact Us For Availability
NI
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
× ![]()
Login and Registration Form
