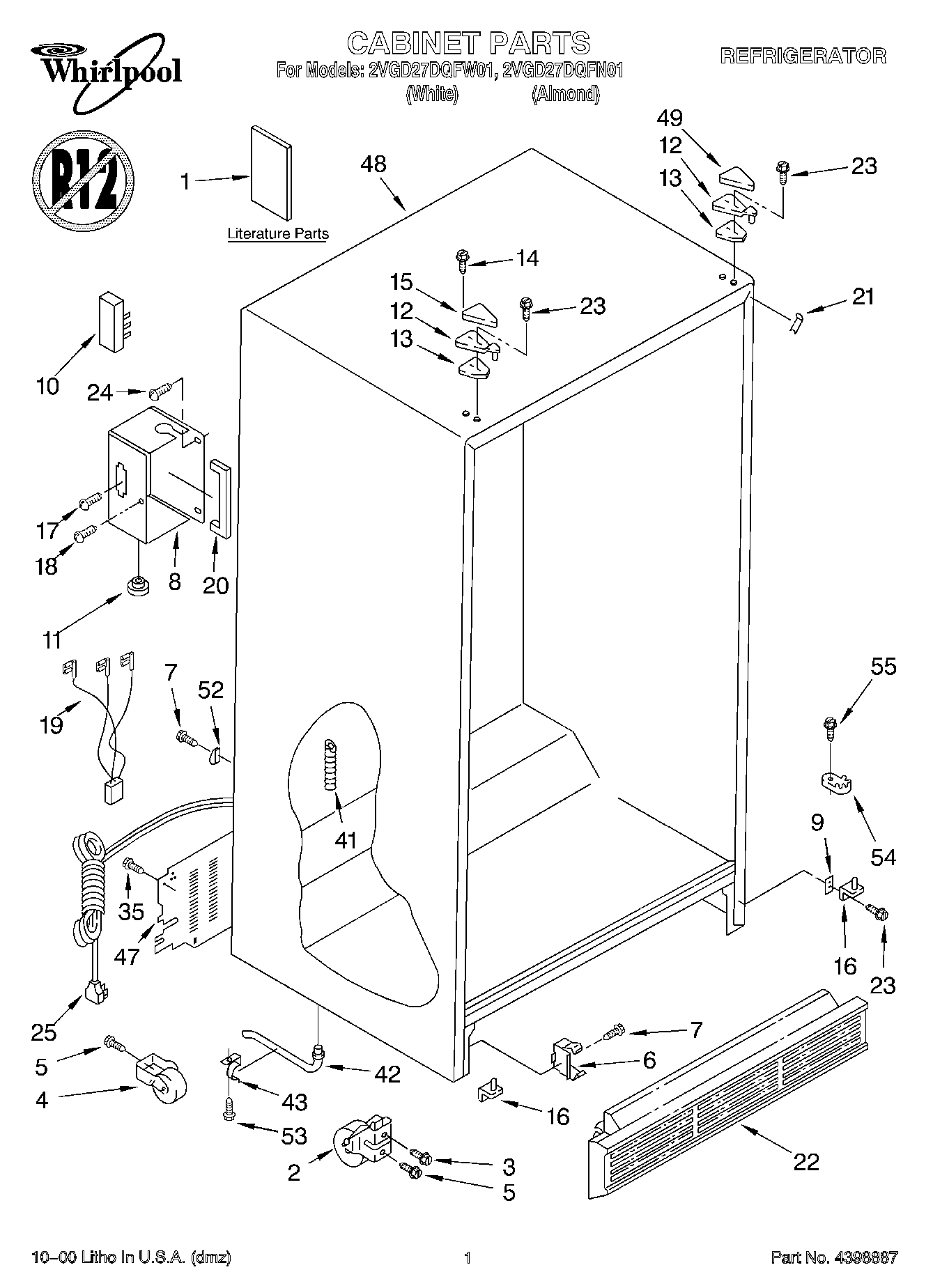

Model Whirlpool 2VGD27DQFN01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $173.34

1

Liner (Not A Seviceable Part) WPL ARI11676A7 Contact Us For Availability

1

Bracket, Motor WPL 2183726 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Motor, Dispenser WPL 2188386 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WPW10129867 Whirlpool Refrigerator Solenoid Backorder WPL WPW10129867 $82.75

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Gasket, Cover (Front) WPL 2174442 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $27.52

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Thermostat (FC) WPL 2187158 Contact Us For Availability

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

1129563 Whirlpool Shield Backorder WPL 1129563 $27.52

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $106.65

6

WP2209607 Whirlpool Gasket Assembly Backorder WPL WP2209607 $27.52

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

7

Fan Motor WPL 2187151 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $120.22

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP2209606 Whirlpool Gasket Assembly Backorder WPL WP2209606 $27.52

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Trim, Basket WPL 2195905 Contact Us For Availability

9

Frame, Shelf (2) WPL 2195975 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $81.31

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Basket, Tall WPL 2181765 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Basket, Slope WPL 2181764 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2206505 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

NLA:SCREW Backorder WPL WPW10141645 $3.70

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

Light Bar (RC) WPL 2179920 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Wiring Cover WPL 2155572 Contact Us For Availability

15

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

15

Hinge Cover (White) WPL 1129262 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

20

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

20

Control Box Harness WPL 2206509 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Stud, Rear WPL 2196207 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

CLIP, WIRING WPL 1115375 Contact Us For Availability

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2194297 Contact Us For Availability

Shelf, Slide (Side To Side) WPL 2194741 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Escutcheon, Control Box WPL 2175179 Contact Us For Availability

Hook, Shelf WPL 2169608 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

Light Bar (FC) WPL 2179921 Contact Us For Availability

Screw WPL 489419 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Window WPL 2172941 Contact Us For Availability

Track, Shelf WPL 2174422 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WPW10123653 Whirlpool Refrigerator Heater Backorder WPL WPW10123653 $68.53

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2200468 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

45

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

Screw WPL 488624 Contact Us For Availability

50

GUARD-FAN Backorder WPL 1110663 $25.31

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
