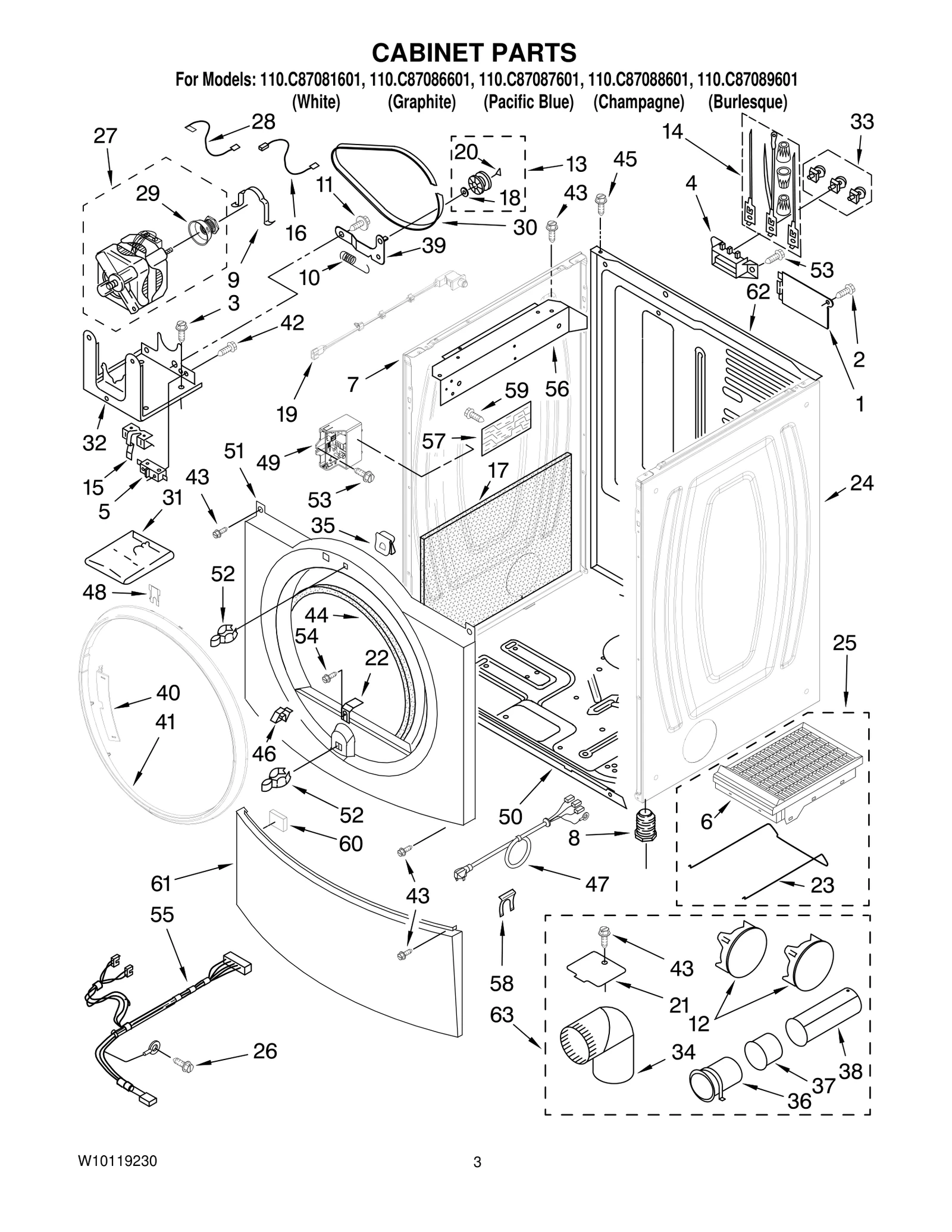

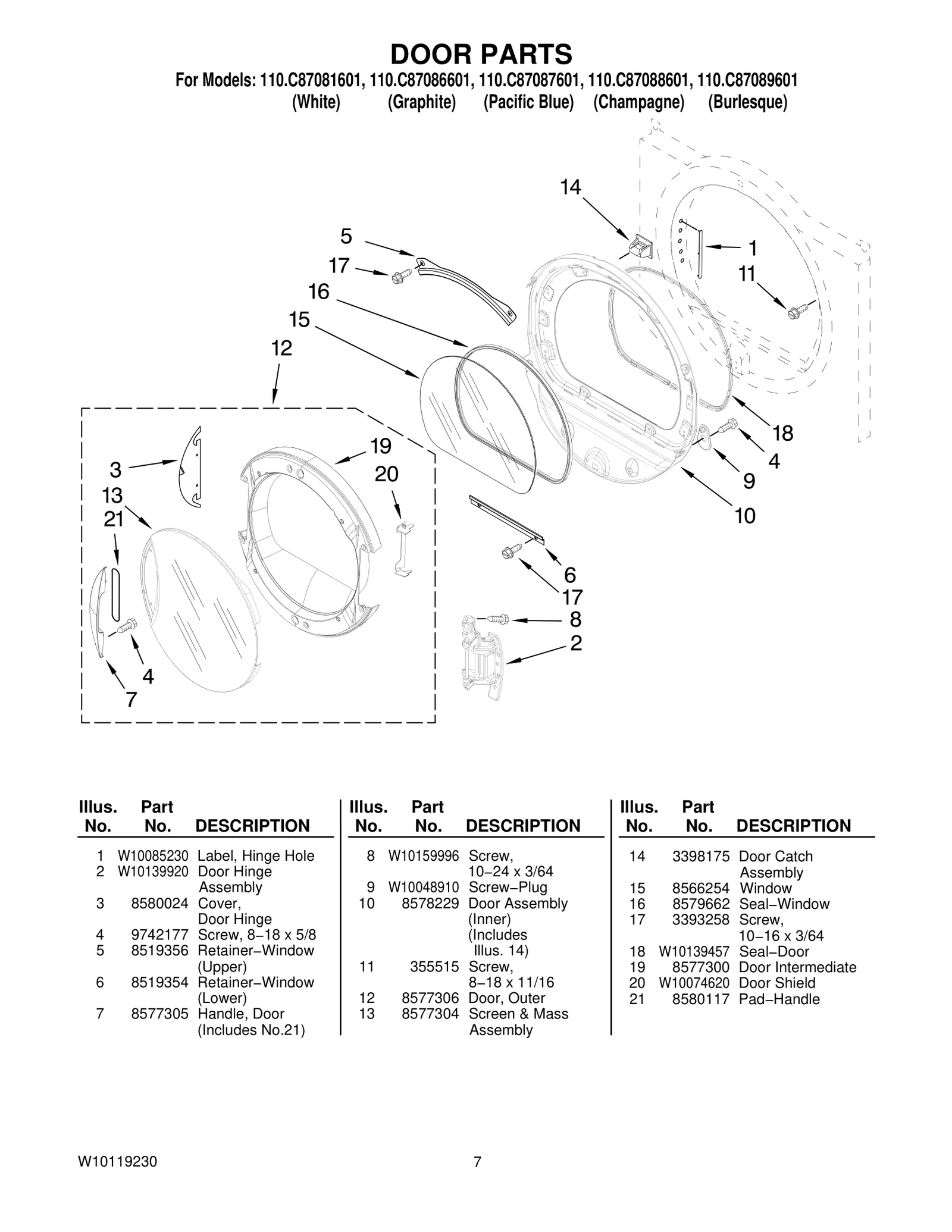

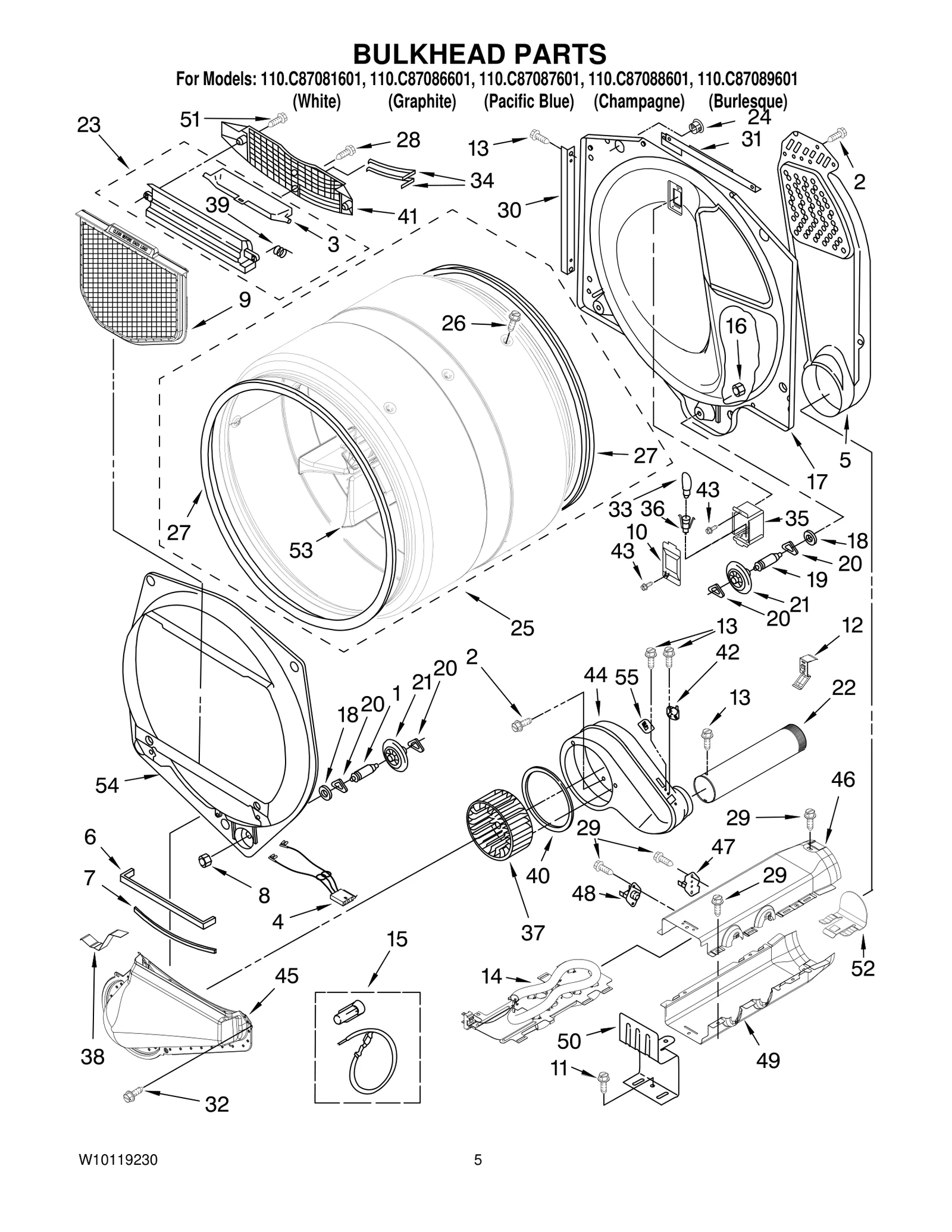

Model Whirlpool 110.C87088601 Electric Dryer – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $32.06

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $86.11

3

W11222846 Whirlpool Door Backorder WPL W11222846 $82.70

3

Cover, Door Hinge WPL 8580024 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $48.71

4

Screw, 8−18 x 5/8 WPL 9742177 Contact Us For Availability

5

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $141.23

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

6

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

7

Connector, Sensor WPL 353424 Contact Us For Availability

7

Handle, Door WPL 8577305 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.55

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

8

Nut,3/8 x 16(R.H.) WPL 3934666 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Screw−Plug WPL W10048910 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly Backorder WPL W11226088 $11.86

10

Door Assembly (Includes WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

12

Door, Outer WPL 8577306 Contact Us For Availability

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.55

13

Medallion WPL W10176673 Contact Us For Availability

13

Screen & Mass Assembly WPL 8577304 Contact Us For Availability

14

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

14

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $65.23

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $35.69

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

Window WPL 8566254 Contact Us For Availability

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

16

Seal−Window WPL 8579662 Contact Us For Availability

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $103.64

17

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $41.63

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $24.12

19

Door Intermediate WPL 8577300 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

20

Door Shield WPL W10074620 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $8.34

21

Pad−Handle WPL 8580117 Contact Us For Availability

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $52.61

22

WPW10023220 Whirlpool Adapter Backorder WPL WPW10023220 $3.70

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $23.71

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $29.17

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $26.94

28

3398948 Whirlpool Wire Backorder WPL 3398948 $42.36

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $26.26

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $69.12

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $49.90

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.31

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $74.50

35

Clip, S−Type (3) WPL 62825 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $31.26

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $32.74

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $32.06

38

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $34.48

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $12.68

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.34

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

40

Fixation−Plate WPL W10067020 Contact Us For Availability

41

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

41

Trim−Ring, Assembly (Includes: Item. 40 & 4 WPL W10071420 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $15.29

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $38.05

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $78.74

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $73.88

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $28.99

47

Power−Cord WPL 8529008 Contact Us For Availability

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $57.05

48

Trim−Clip, Metal WPL W10112671 Contact Us For Availability

49

Power Cube WPL 3407228 Contact Us For Availability

49

Housing−Tab, Heater Box WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

Base, Cabinet WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

Front Panel (Includes — White WPL 8578388 Contact Us For Availability

Front Panel (Includes — Graphite WPL 8578938 Contact Us For Availability

Front Panel (Includes — Pacific Blue WPL 8578942 Contact Us For Availability

Front Panel (Includes — Champagne WPL 8578941 Contact Us For Availability

Front Panel (Includes — Burlesque WPL 8578939 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

53

Baffle, Drum WPL W10113136 Contact Us For Availability

54

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

55

Harness, Digital Interface WPL W10110990 Contact Us For Availability

56

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $75.50

57

Control Board WPL W10110641 Contact Us For Availability

58

W11712577 Whirlpool Clip In Stock WPL W11712577 $2.58

59

Screw, 8−18 x 3/4 WPL 3400224 Contact Us For Availability

60

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

Toe, Panel — White WPL W10116271 Contact Us For Availability

Toe, Panel — Graphite WPL W10116275 Contact Us For Availability

Toe, Panel — Pacific Blue WPL W10116279 Contact Us For Availability

Toe, Panel — Champagne WPL W10116278 Contact Us For Availability

Toe, Panel — Burlesque WPL W10116276 Contact Us For Availability

62

Panel, Rear Dryer Exhaust Kit WPL W10133207 Contact Us For Availability

63

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

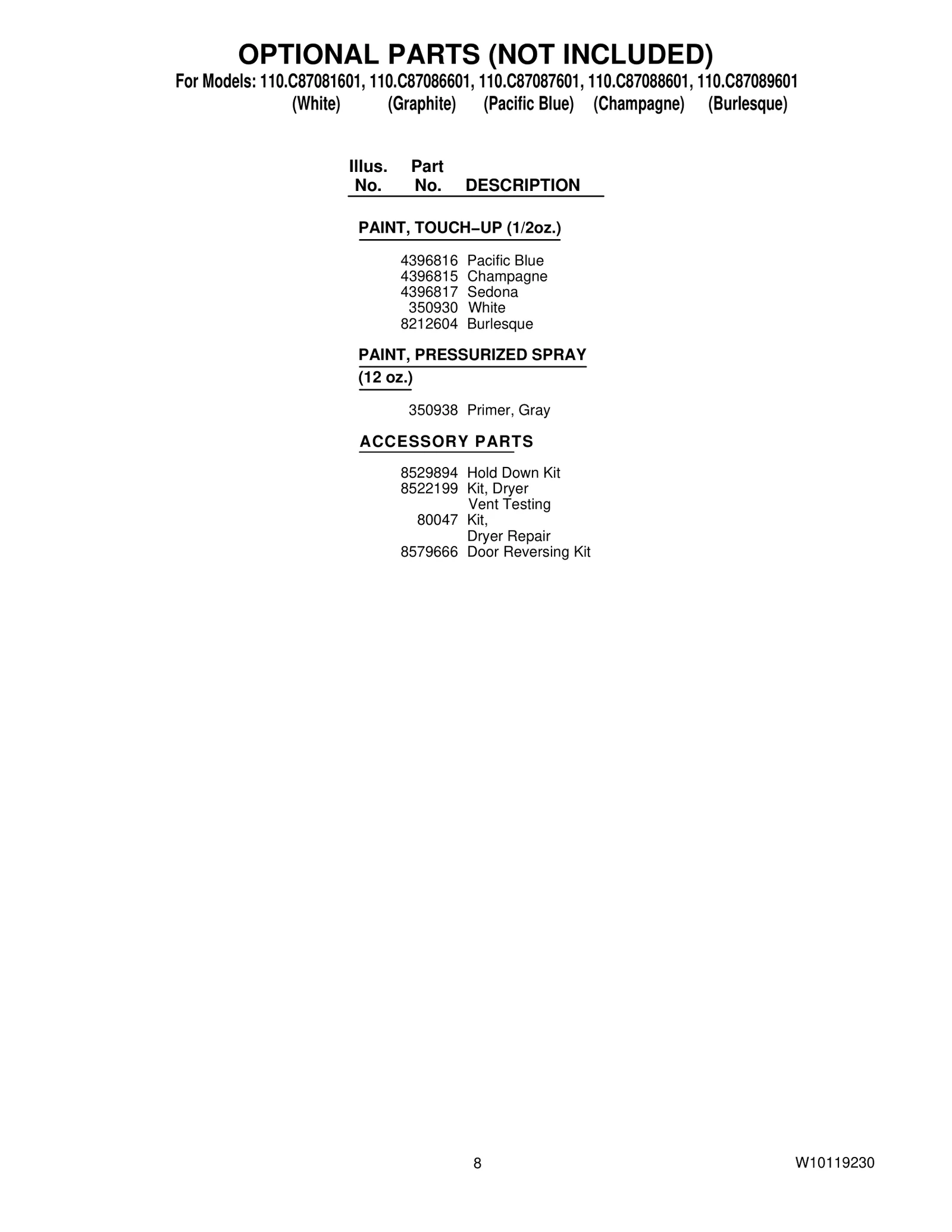

OPT-1

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $4.90

OPT-2

Champagne WPL 4396815 Contact Us For Availability

OPT-3

Sedona WPL 4396817 Contact Us For Availability

OPT-4

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-5

8212604 Whirlpool Red Merlot Touch-Up Paint Backorder WPL 8212604 $4.90

OPT-6

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

OPT-7

Hold Down Kit WPL 8529894 Contact Us For Availability

OPT-8

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.03

OPT-9

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $22.00

OPT-10

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $23.97
