Model Whirlpool 110.20272001 Automatic Washer – Common Parts &amp; Diagrams

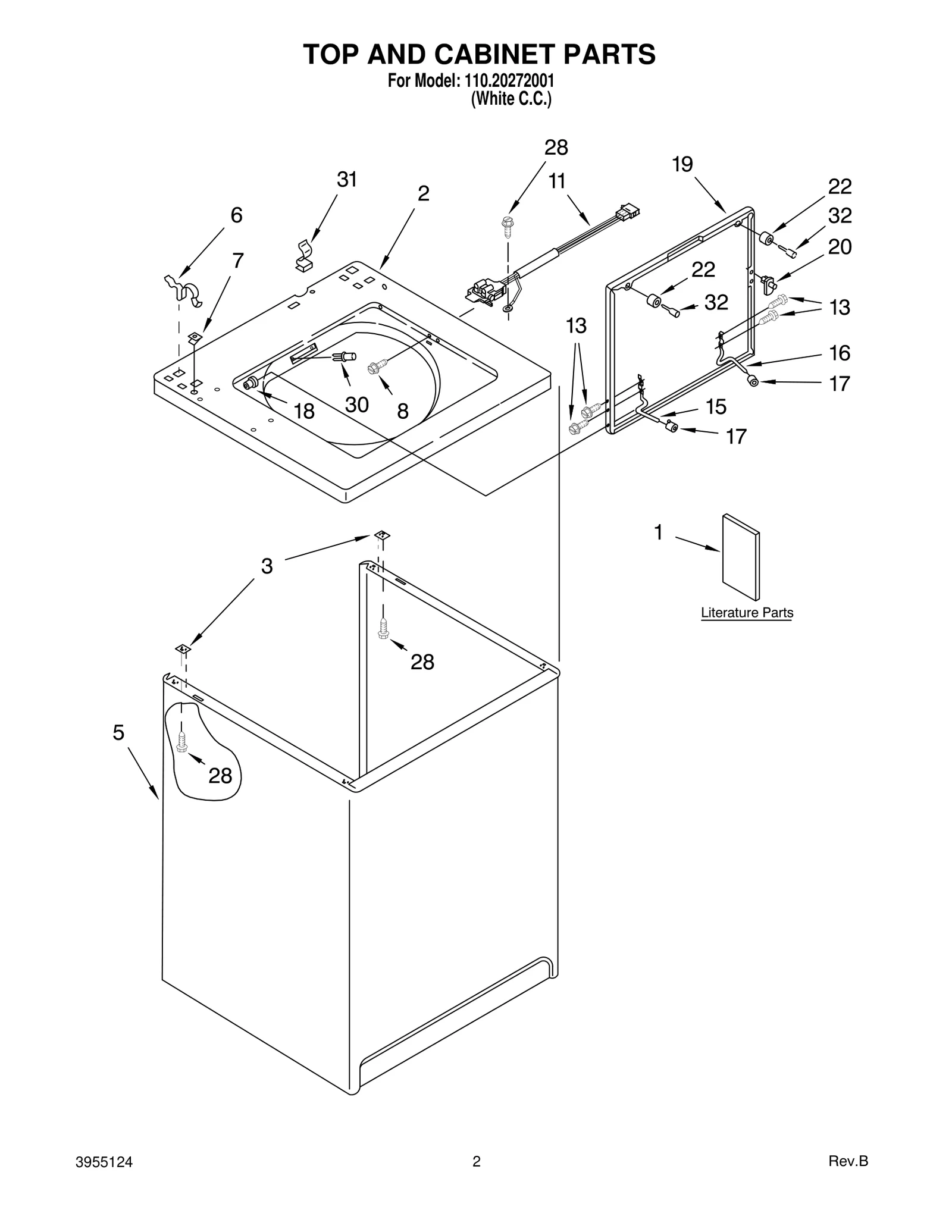

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $2.51

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $38.23

1

Harness, Console WPL 3955037 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976253 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $30.98

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Plug, Terminal (15 Way) Uses Terminal 94614) WPL 96894 Contact Us For Availability

3

339805 Whirlpool Screw Backorder WPL 339805 $9.59

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Plug,Terminal (3−Way) Female Power Cord WPL 353425 Contact Us For Availability

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $141.72

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Block,Connector Hot Valve WPL 3354926 Contact Us For Availability

6

285438 Whirlpool Brake Shoe In Stock WPL 285438 $83.51

6

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $2.58

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Tub Ring WPL 3360611 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Block, Connector Cold Valve WPL 3354925 Contact Us For Availability

7

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $32.06

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

7

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

7

Block, Connector Pressure Switch WPL 3360056 Contact Us For Availability

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $73.40

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

9

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

9

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

9

Light, Signal WPL 3349304 Contact Us For Availability

10

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

10

Light, Signal WPL 3349305 Contact Us For Availability

10

Spring, Agitate WPL 62676 Contact Us For Availability

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Tub WPL 63125 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP3955668 Whirlpool Timer In Stock WPL WP3955668 $188.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Knob WPL 359575 Contact Us For Availability

13

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

13

Harness, Wire WPL 3349073 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

15

Block, Disconnect (15 Way) Uses Terminal 9461 WPL 384474 Contact Us For Availability

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

Balance Ring WPL 3956205 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

3347825 Whirlpool Plate Backorder WPL 3347825 $2.40

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP8576635 Whirlpool Bolt In Stock WPL WP8576635 $29.74

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

Bumper, Lid (2) WPL 356908 Contact Us For Availability

23

WP3349091 Whirlpool Lock Cam Mechanism Backorder WPL WP3349091 $58.81

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $31.93

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

27

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-2

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

White (Uncut) WPL 799344 Contact Us For Availability

OPT-5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

OPT-6

Lubricant (Use WPL 285208 Contact Us For Availability

OPT-7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07
