Model Whirlpool 110.20132000 Commercial Washer (Kenmore 11020132000) – Common Parts &amp; Diagrams

1

Washer Control Panel Top WPL 3348051 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $30.98

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Bracket WPL 3348049 Contact Us For Availability

3

339805 Whirlpool Screw Backorder WPL 339805 $9.59

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

4

Washer Cycle Selector Switch WPL 3348112 Contact Us For Availability

5

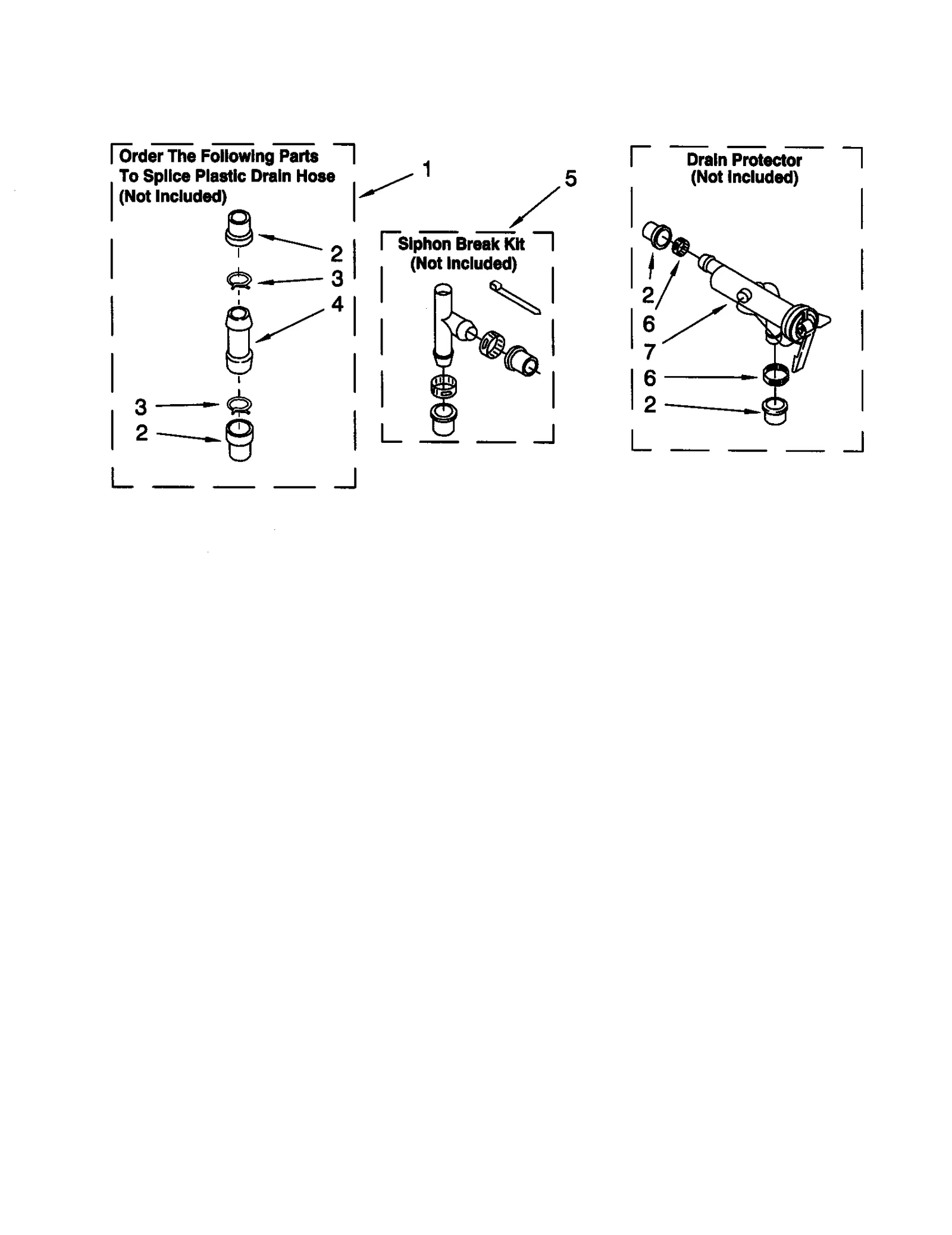

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

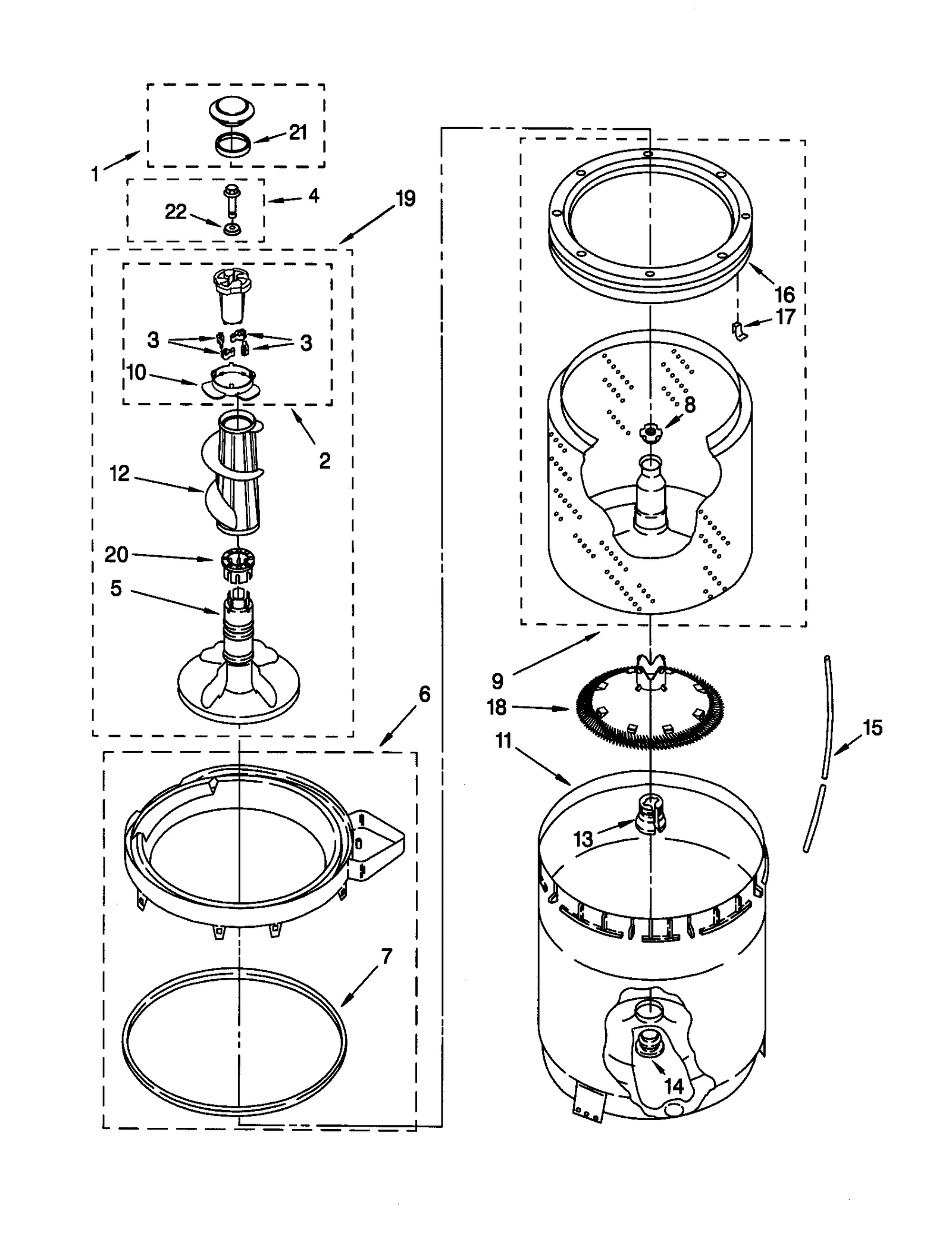

WP3350832 Whirlpool Agitator Backorder WPL WP3350832 $80.91

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Bracket WPL 64065 Contact Us For Availability

6

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $2.58

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Washer Tub Ring WPL 3360611 Contact Us For Availability

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

6

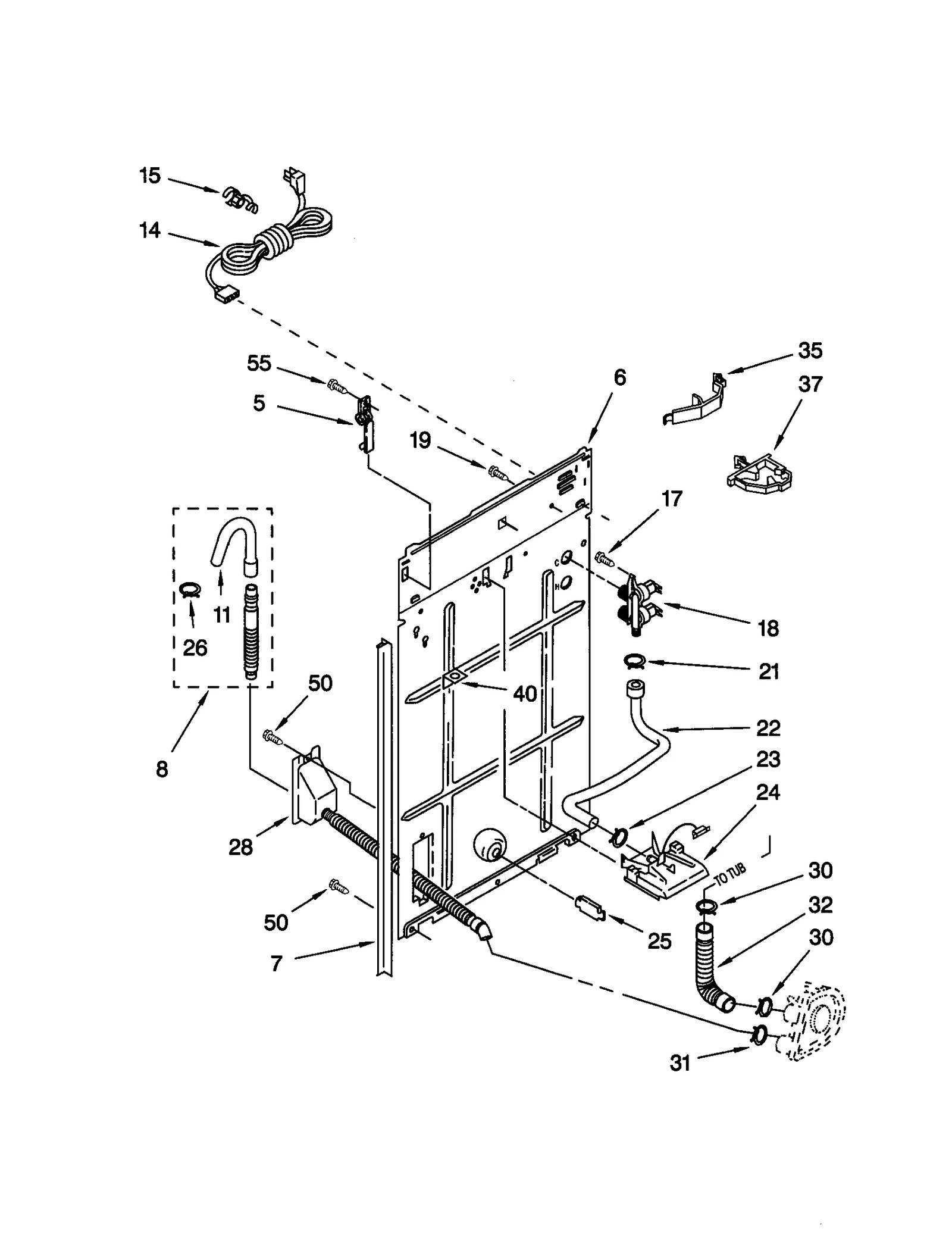

Rear Panel WPL 3976321 Contact Us For Availability

6

End Cap (White) WPL 388210 Contact Us For Availability

7

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $32.06

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Connector WPL 3360056 Contact Us For Availability

7

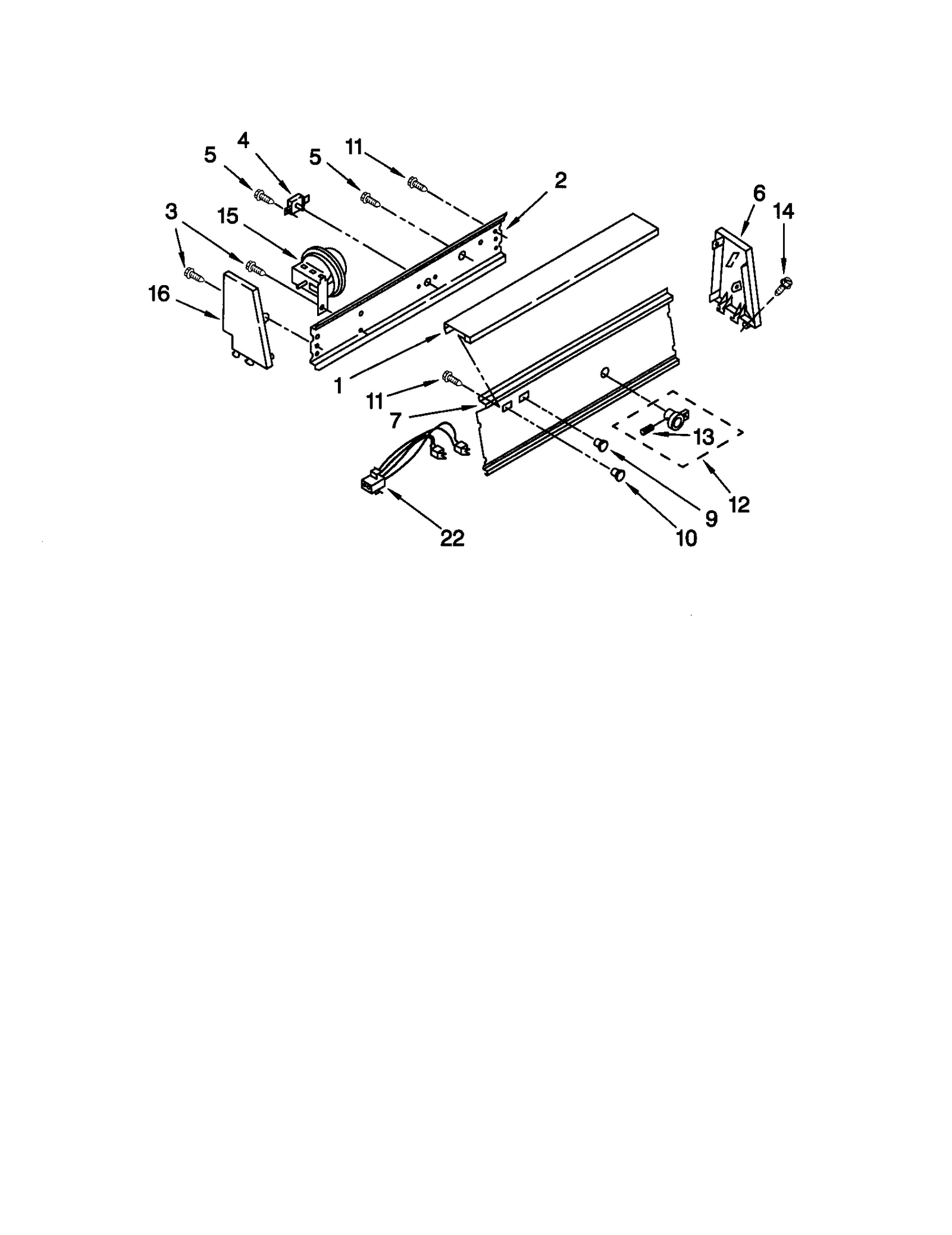

Control Panel WPL 8312803 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $73.40

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8B

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

9

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

9

Light Lens WPL 3349304 Contact Us For Availability

10

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

10

Light Lens WPL 3349305 Contact Us For Availability

11

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

11

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

11

Washer Outer Tub WPL 63125 Contact Us For Availability

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

12

Laundry Appliance Timer Knob WPL 359575 Contact Us For Availability

12

Washer Agitator Auger WPL 63901 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

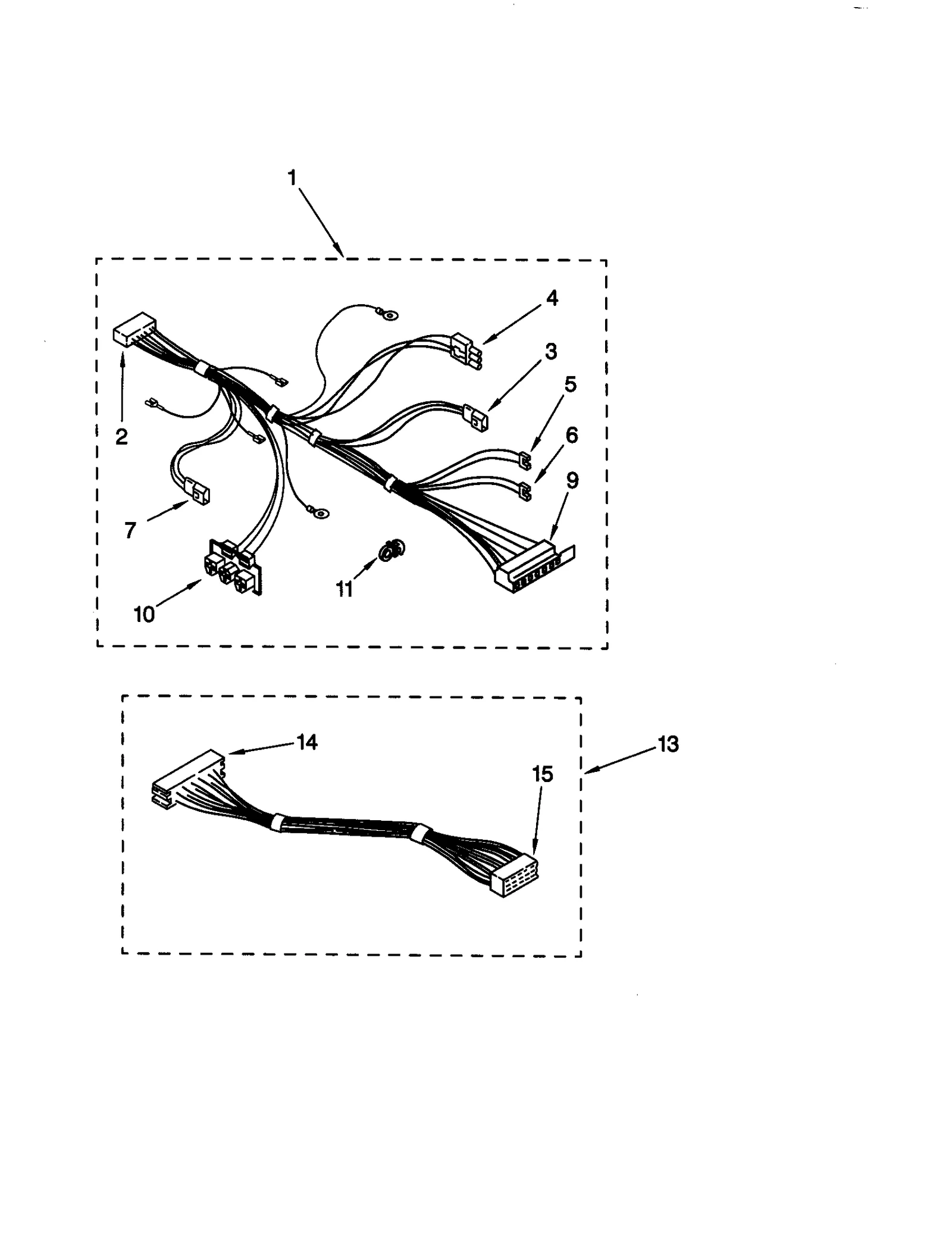

Washer Wire Harness WPL 3349076 Contact Us For Availability

Screw WPL 3349585 Contact Us For Availability

285928 Whirlpool Power Cord Assembly Backorder WPL 285928 $59.01

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Relief Stirrer WPL 3952821 Contact Us For Availability

Water-Level Switch WPL 3952719 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

16

Endcap Wht WPL 388204 Contact Us For Availability

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

17

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $17.06

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

19

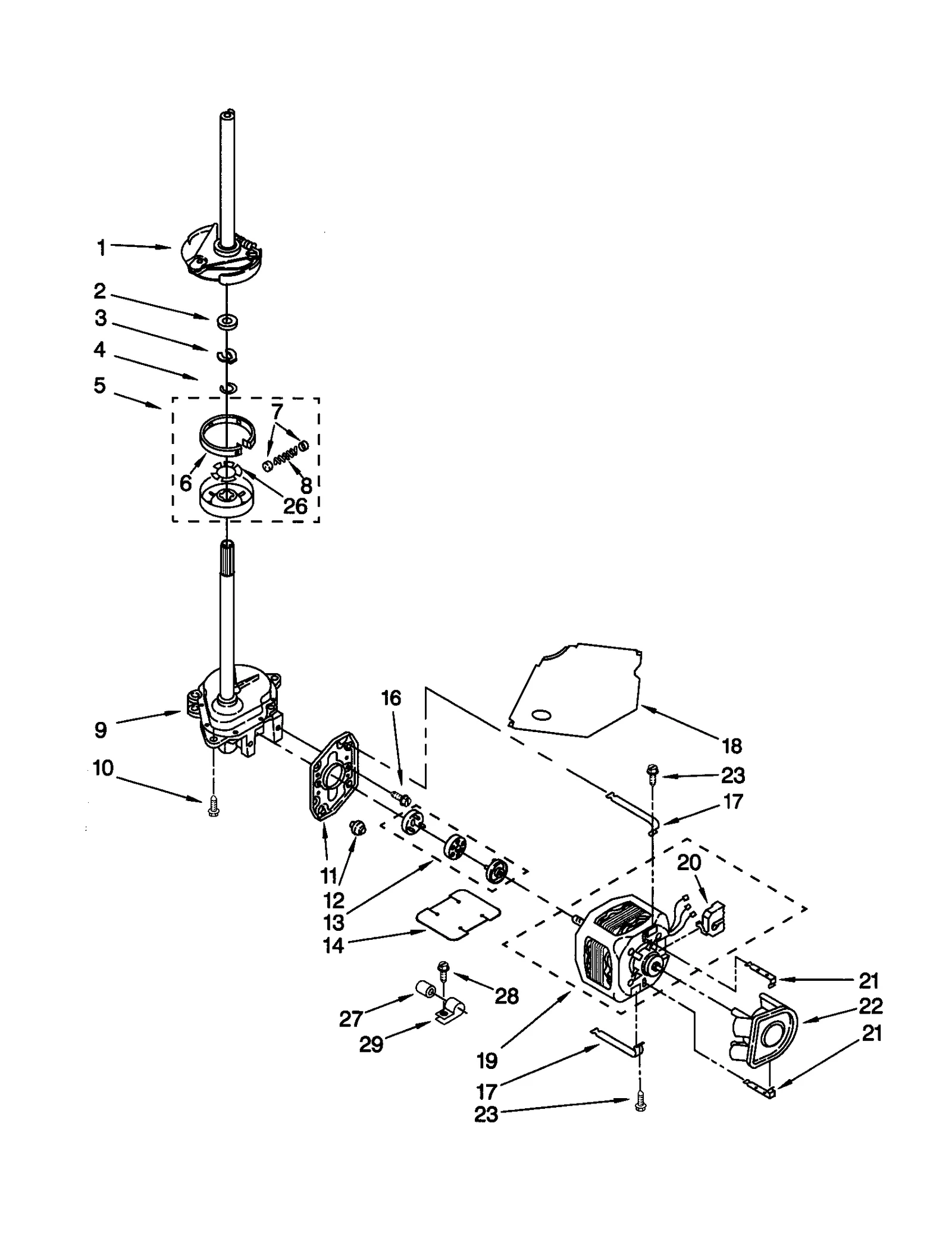

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

19

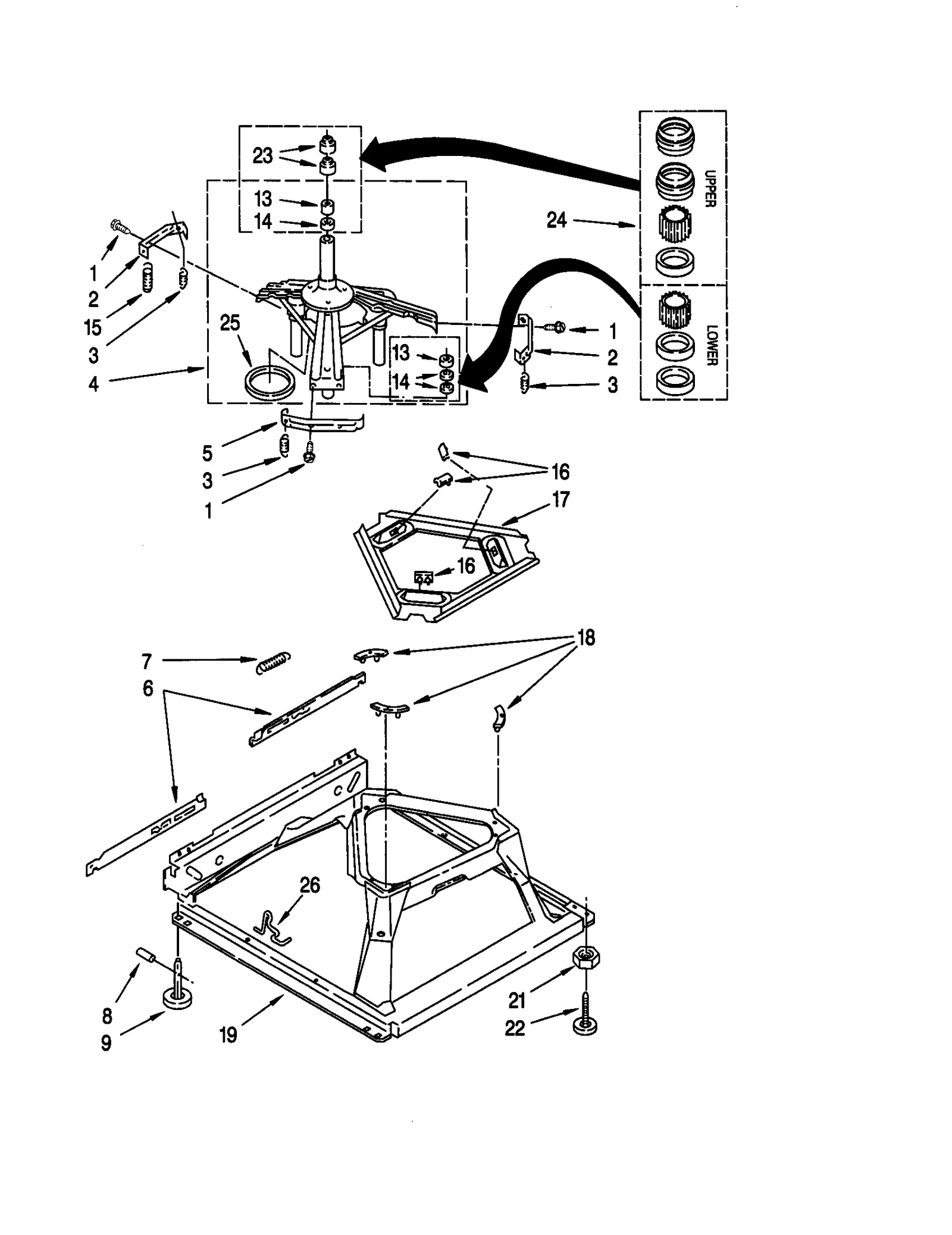

Base WPL 3946512 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.70

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8576635 Whirlpool Bolt In Stock WPL WP8576635 $29.74

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.40

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

Lid Bumper WPL 356908 Contact Us For Availability

Light WPL 3349306 Contact Us For Availability

23

WP3349091 Whirlpool Lock Cam Mechanism Backorder WPL WP3349091 $58.81

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $31.93

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

28

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $13.74

29

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.40

35

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

37

Harness Clip WPL 3352944 Contact Us For Availability

40

Bracket WPL 3347824 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
