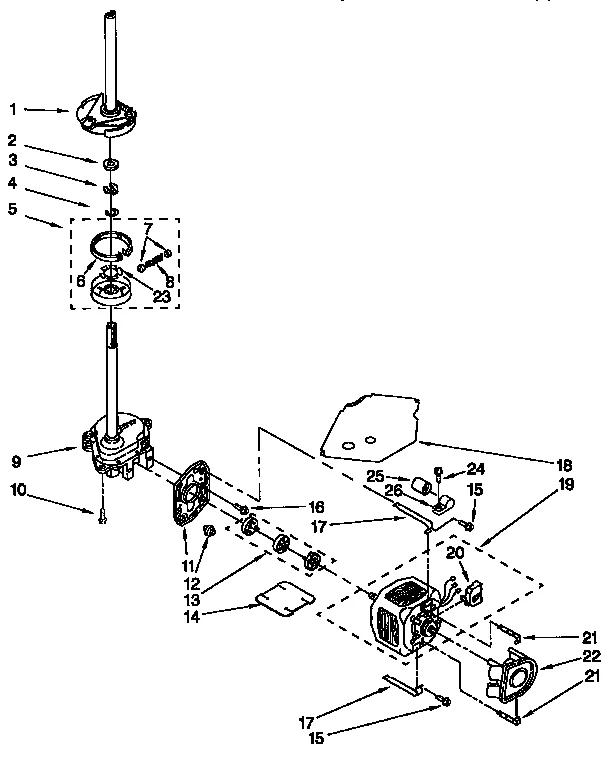

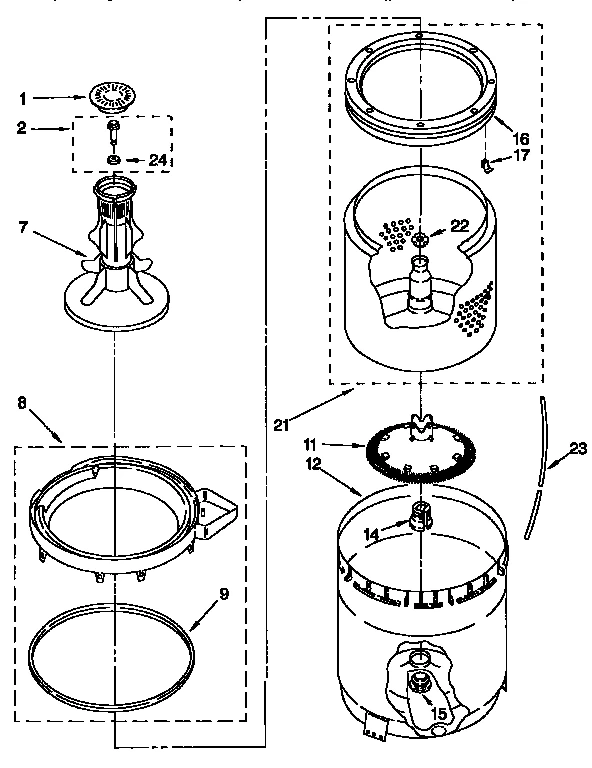

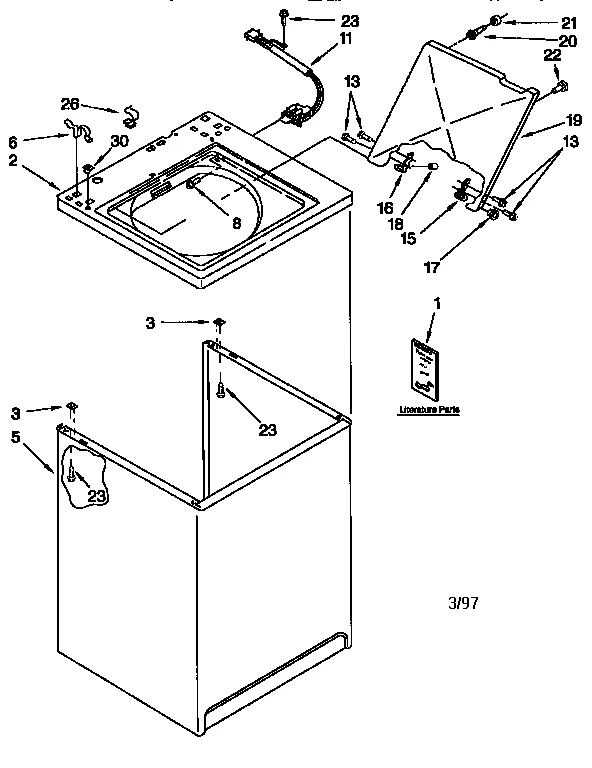

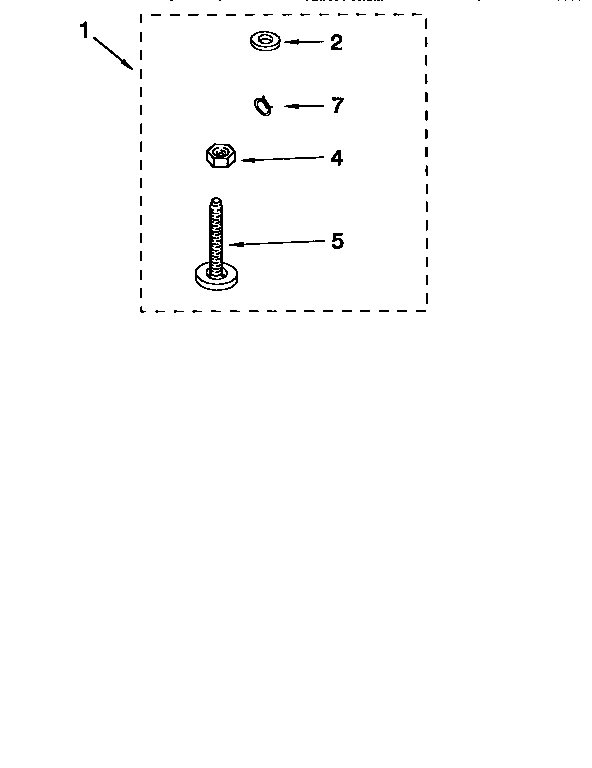

Model Whirlpool 110.16502691 Washer (Kenmore 11016502691) – Common Parts &amp; Diagrams

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $38.23

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Replacement Part WPL 3976254 Contact Us For Availability

2

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $80.00

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

3A

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $52.92

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

4

Support WPL 3362087 Contact Us For Availability

4

Bracket WPL 3948814 Contact Us For Availability

5

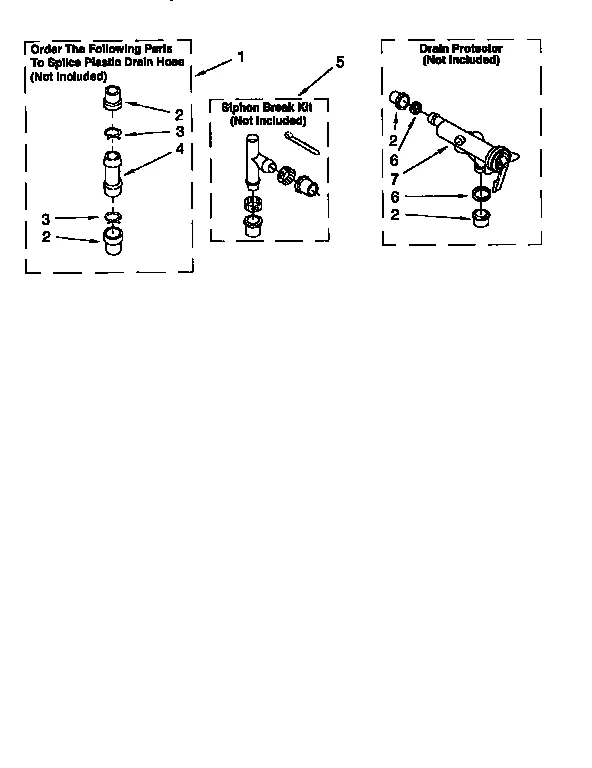

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Bracket WPL 64065 Contact Us For Availability

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Washer Leveling Link Assembly WPL 63138 Contact Us For Availability

6

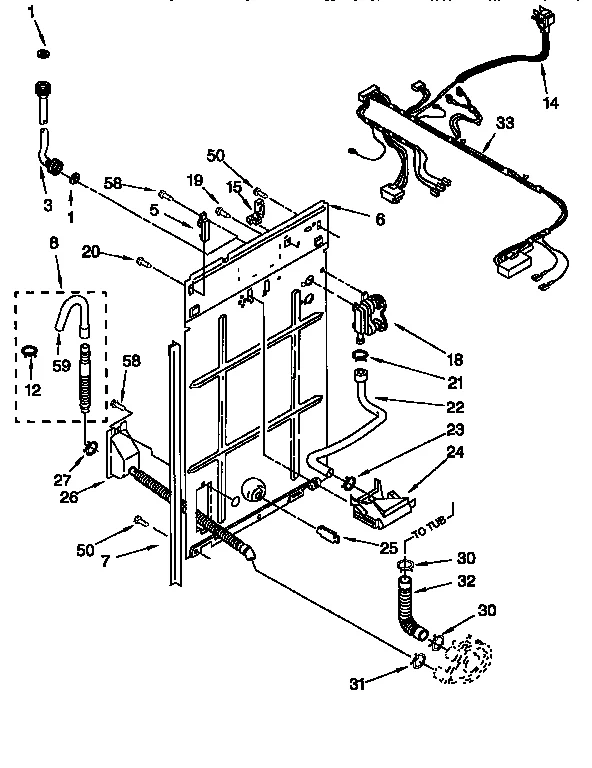

Rear Panel WPL 3363188 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $61.38

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Washer Tub Ring WPL 3360611 Contact Us For Availability

8A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8B

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $32.06

9

Washer Control Knob WPL 3402572 Contact Us For Availability

10

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $73.56

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $14.59

11

Washer Terminal Connector WPL 353424 Contact Us For Availability

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Washer Outer Tub WPL 63125 Contact Us For Availability

Washer Timer Dial WPL 3949428 Contact Us For Availability

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

13

Washer Control Knob WPL 3948412 Contact Us For Availability

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

14

Power Cord WPL 3949248 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Relief Stirrer WPL 3949468 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

16

Balance Ring WPL 387868 Contact Us For Availability

17

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

17

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $17.06

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

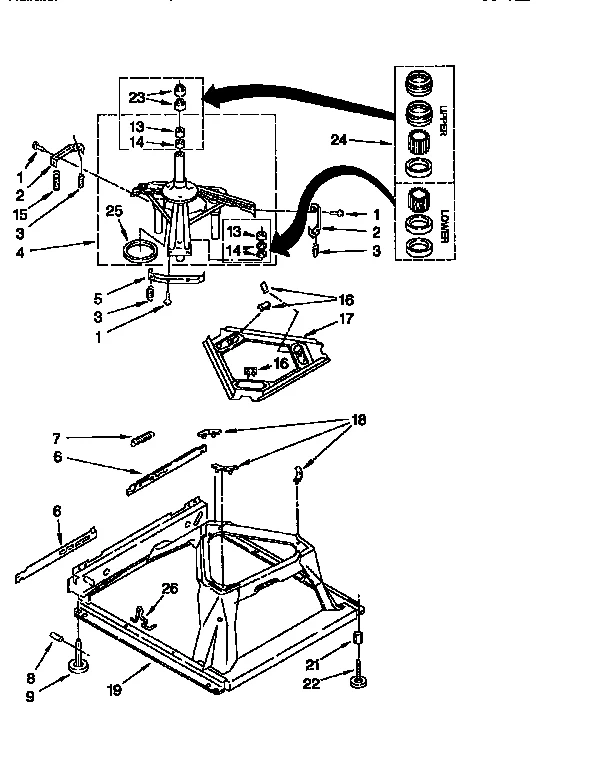

285459 Whirlpool Washer Base Backorder WPL 285459 $214.53

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Washer Timer WPL 3950227 Contact Us For Availability

20

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

21

Basket WPL 387713 Contact Us For Availability

22

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.40

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

23

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $31.93

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $13.74

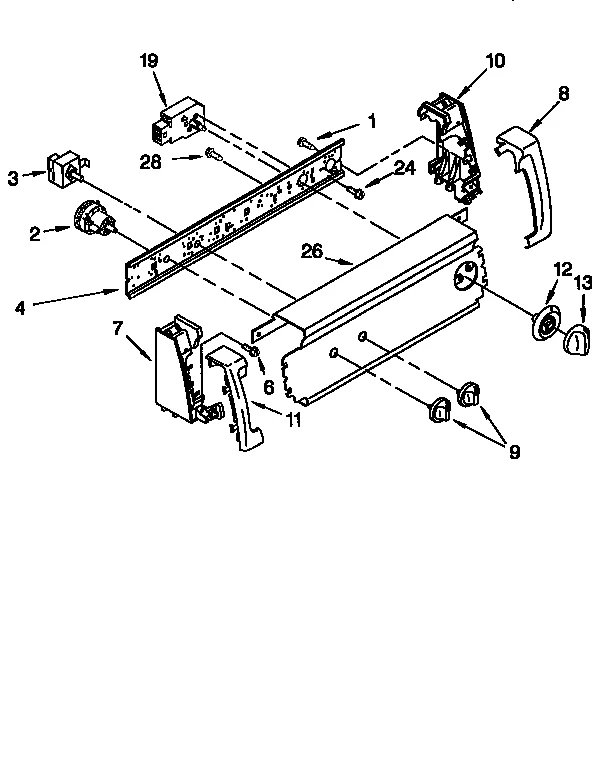

Control Panel WPL 3949661 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

27

Connector WPL 3360056 Contact Us For Availability

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.40

33

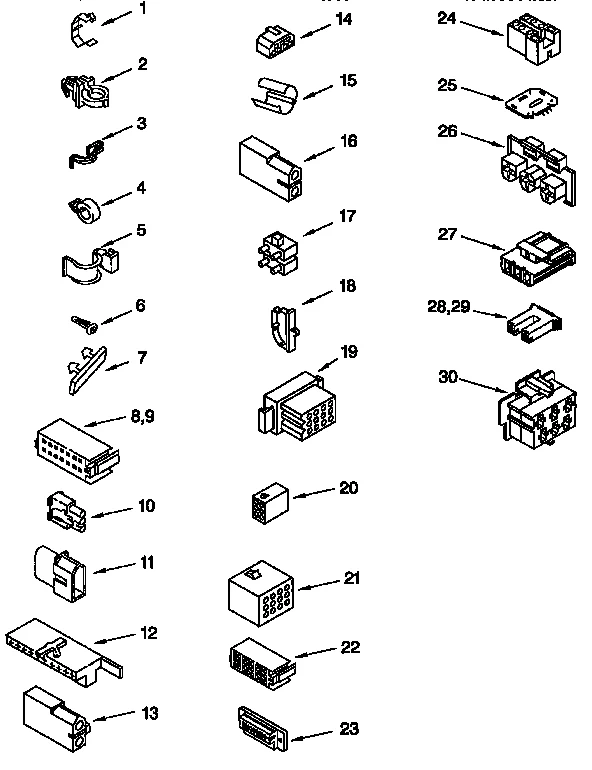

Wire Harness WPL 3950498 Contact Us For Availability

58

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

59

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.06

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint (White) WPL 799344 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
