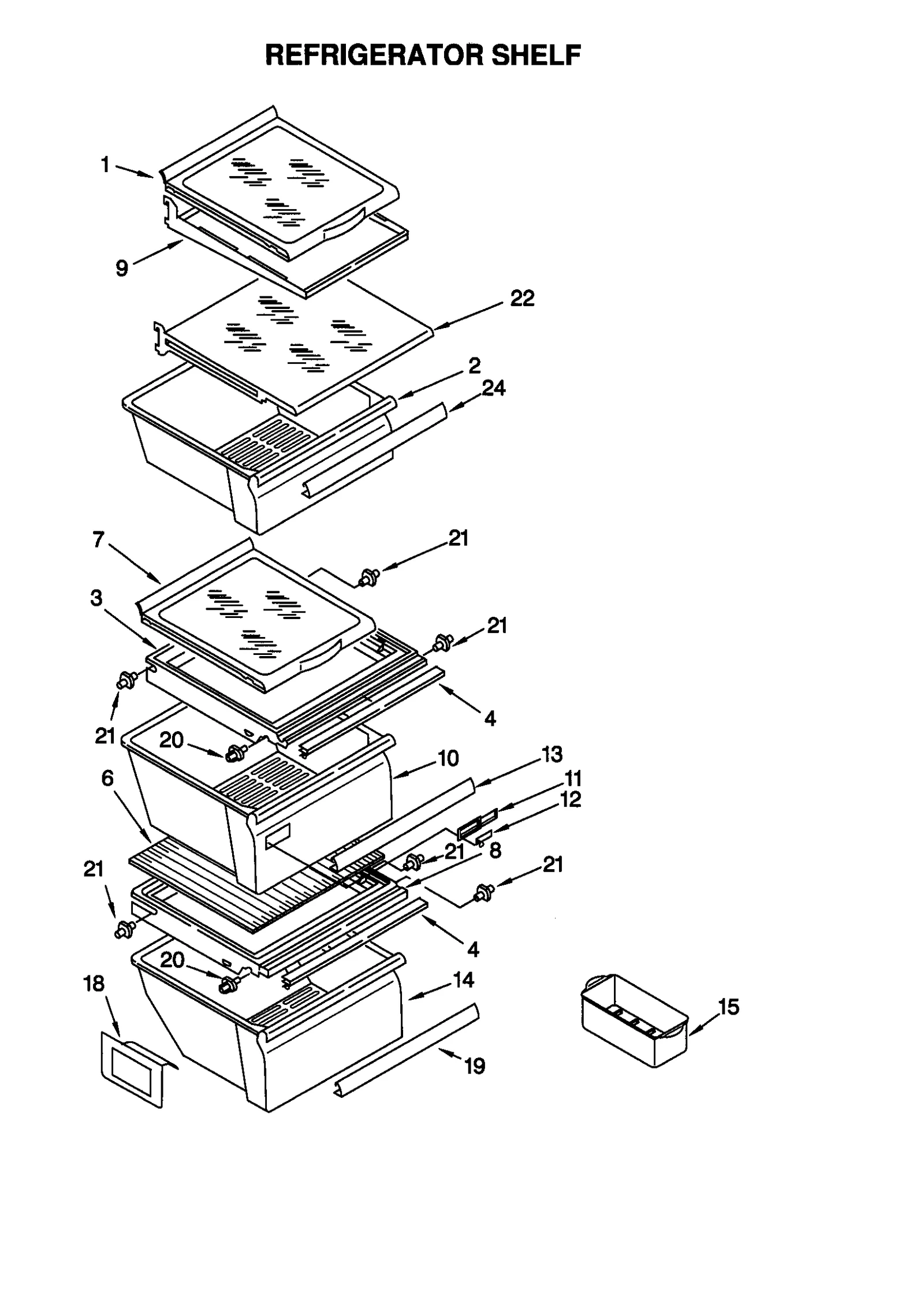

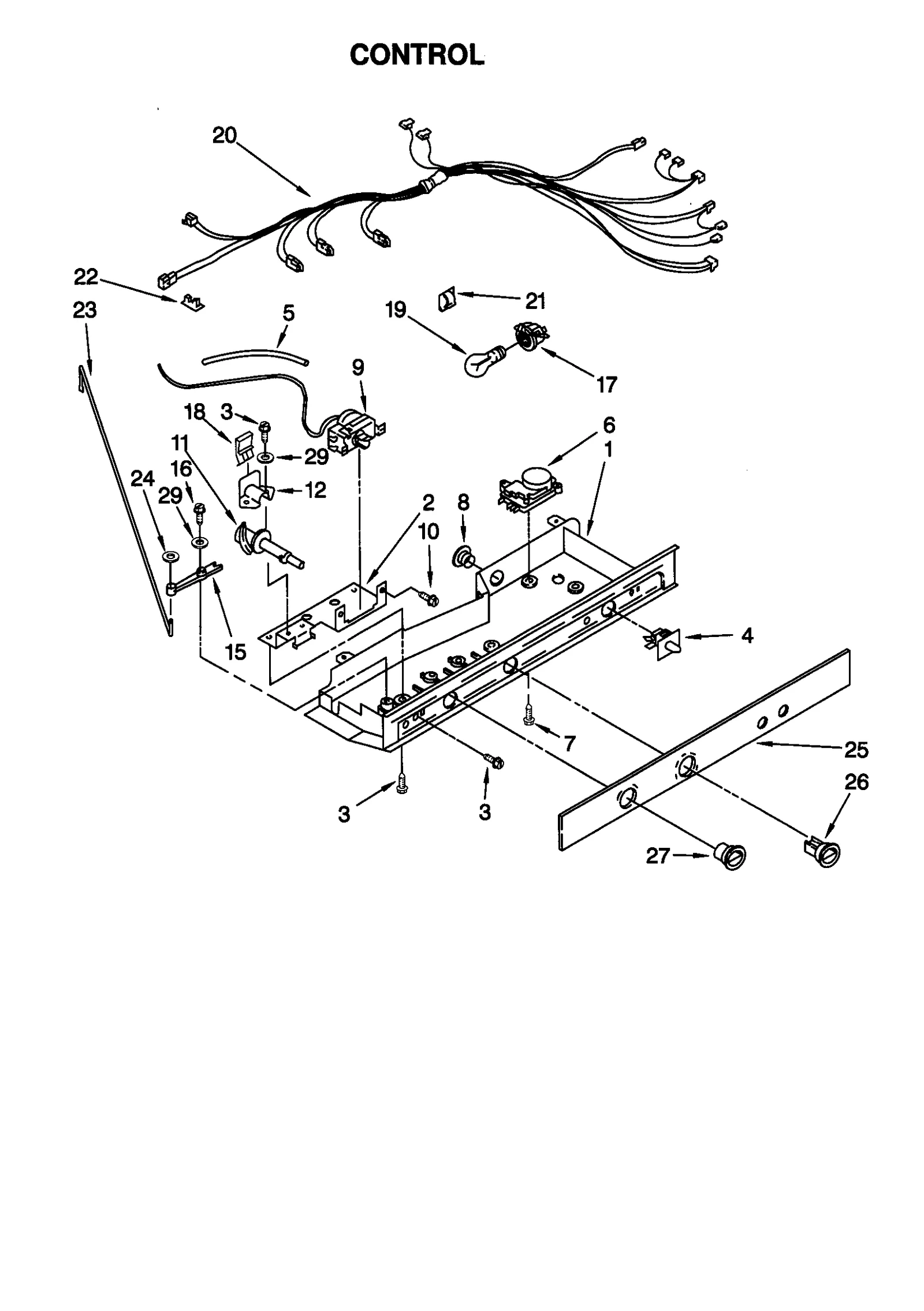

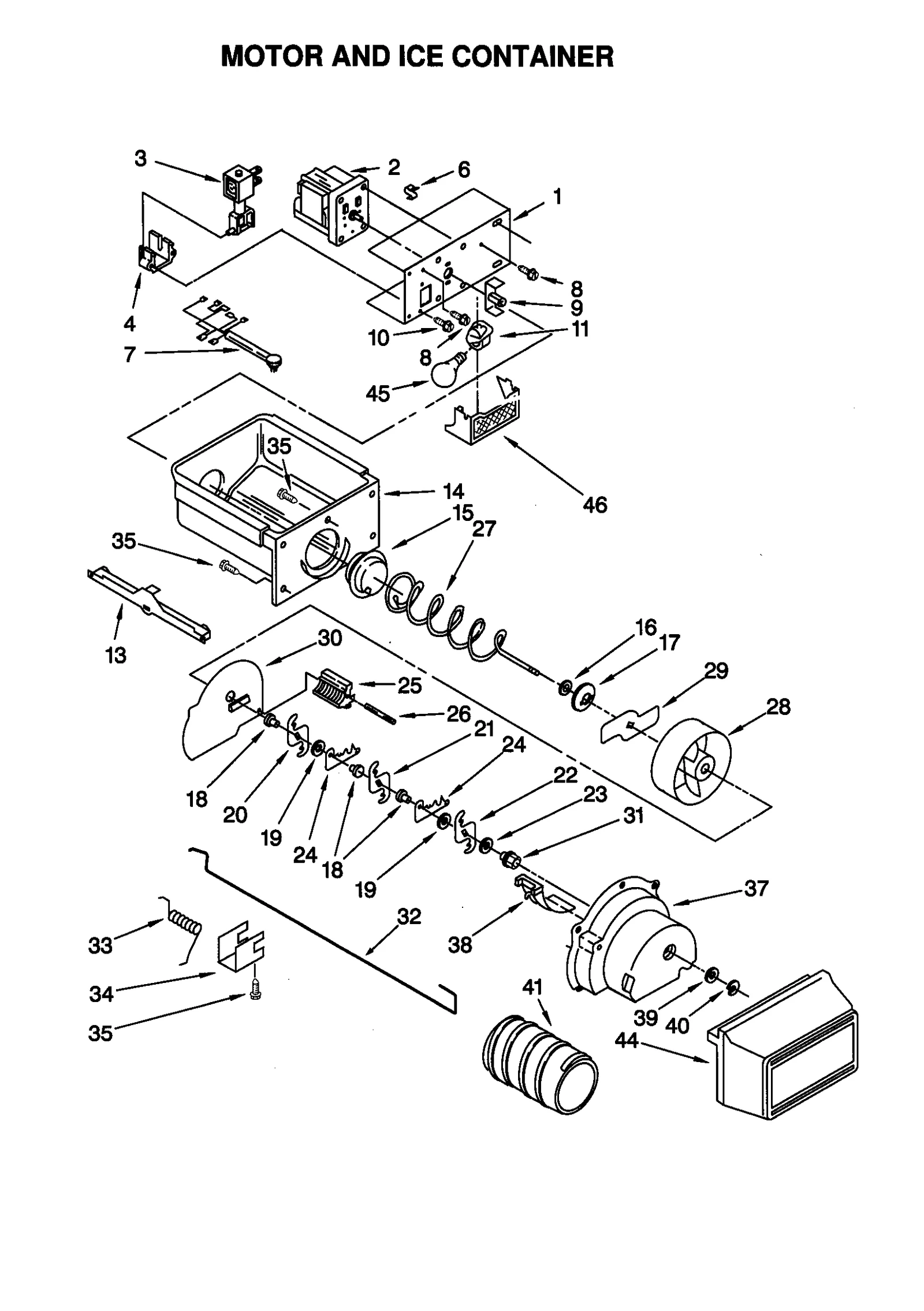

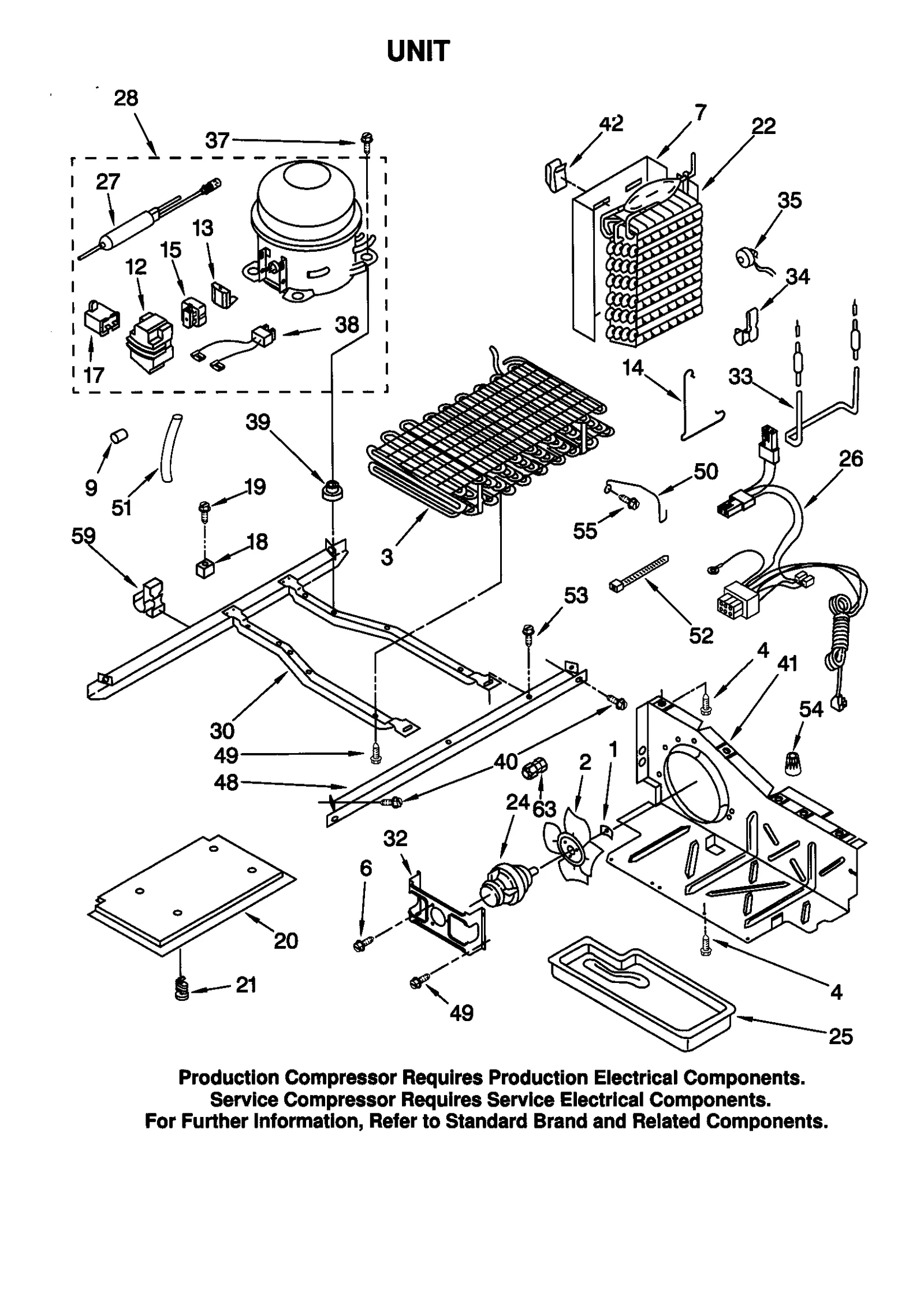

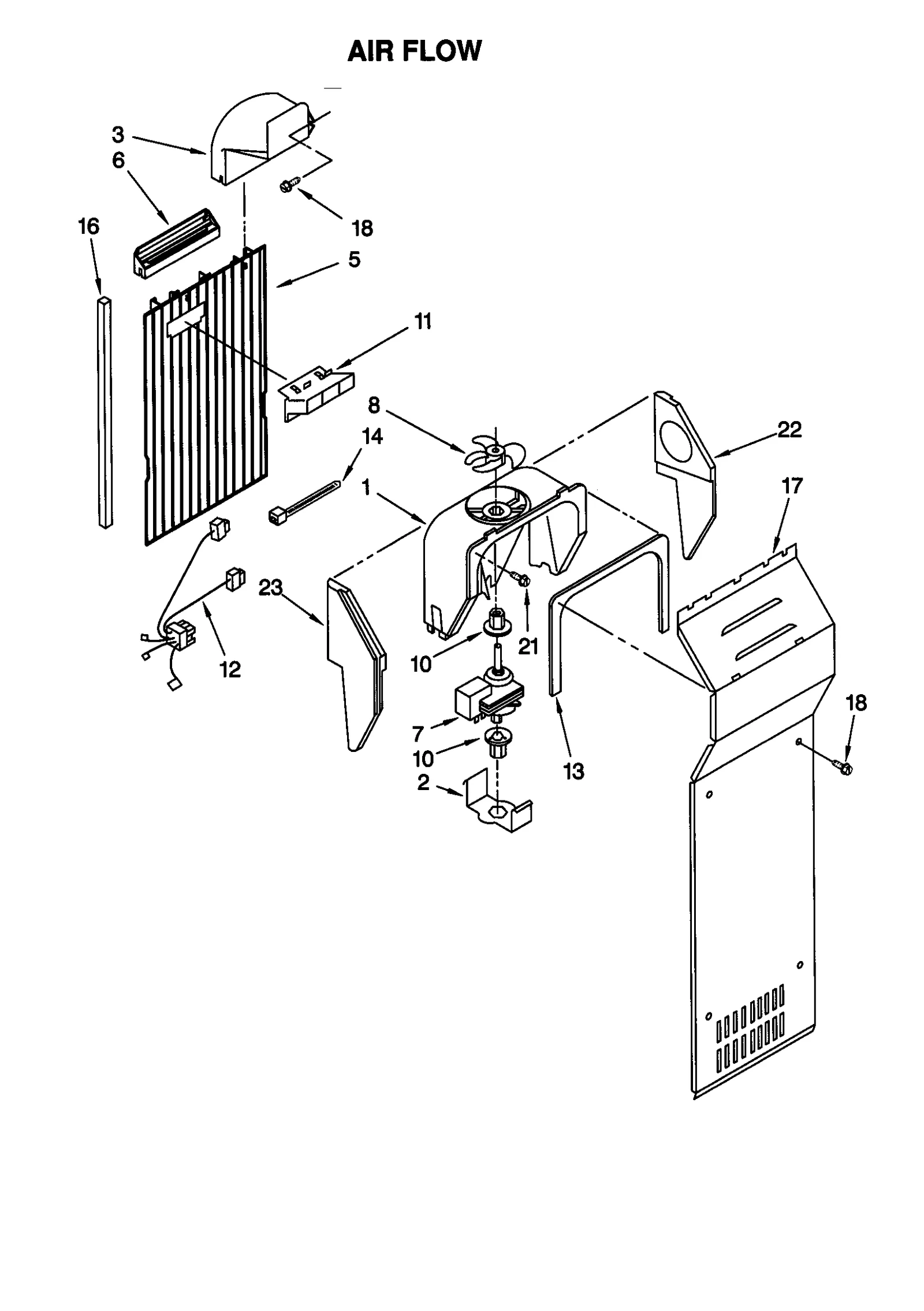

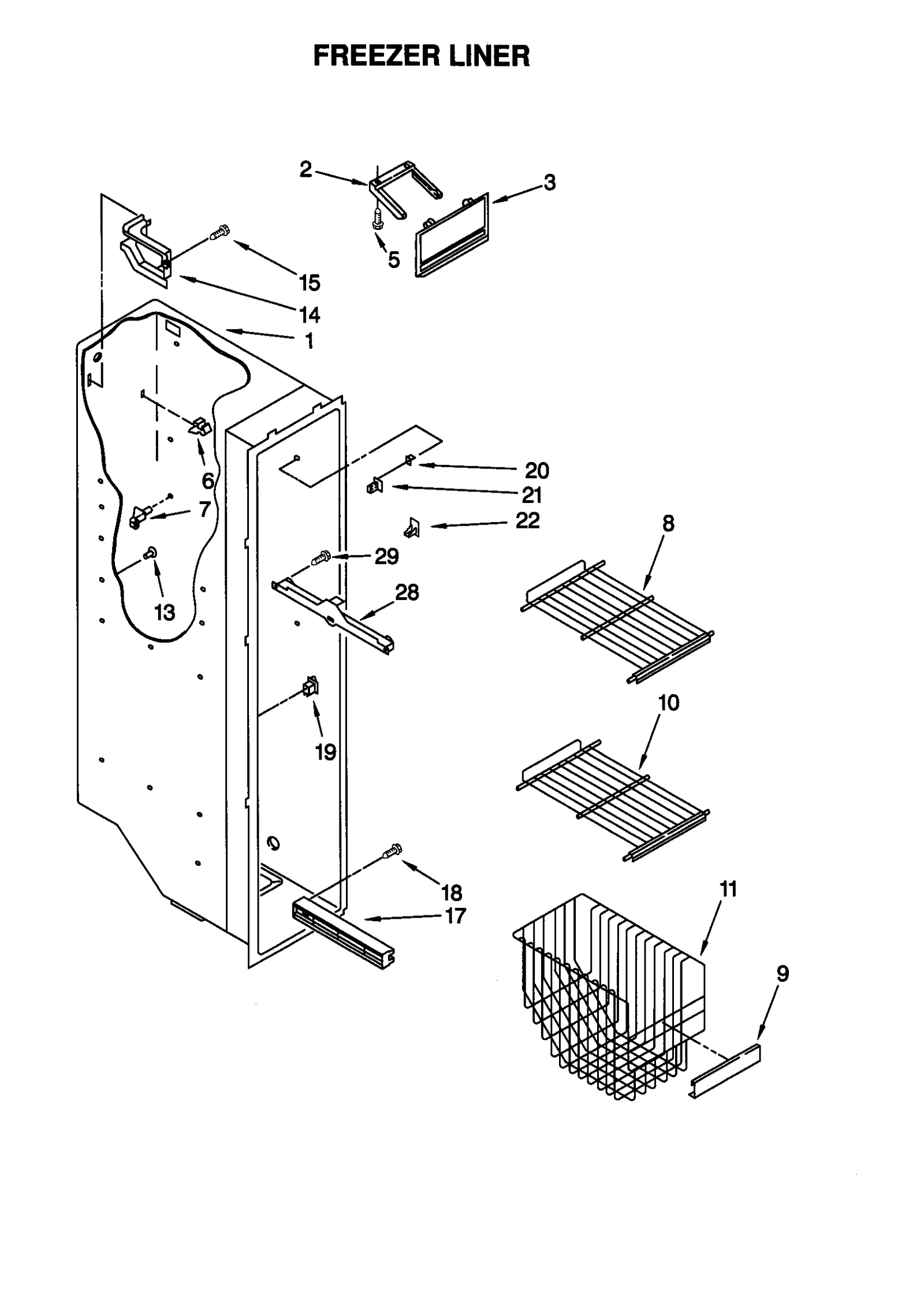

Model Whirlpool 106.59289990 Side-By-Side Refrigerator (Kenmore 10659289990) – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $181.67

1

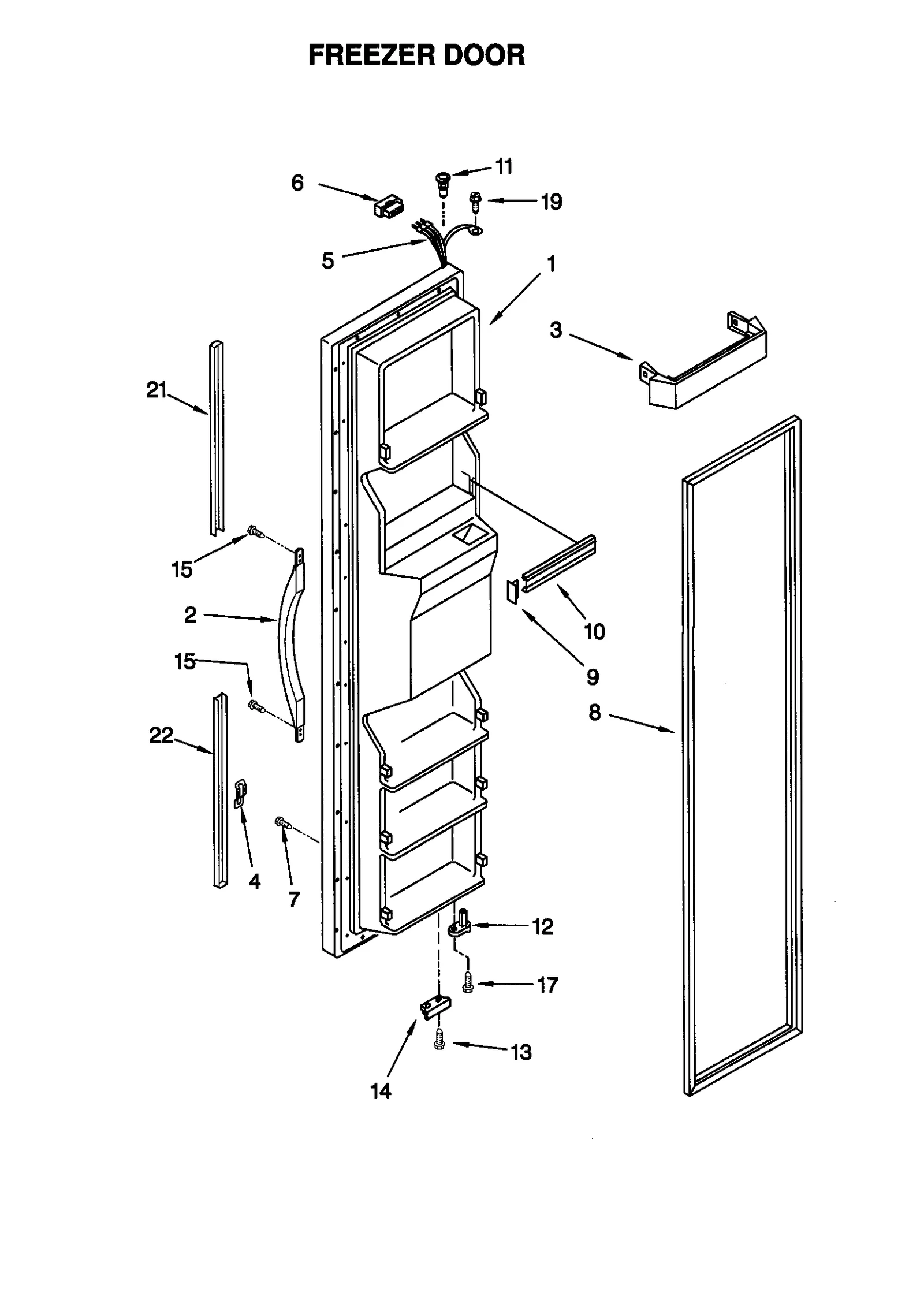

Freezer Door Assembly (White) WPL 2203912W Contact Us For Availability

1

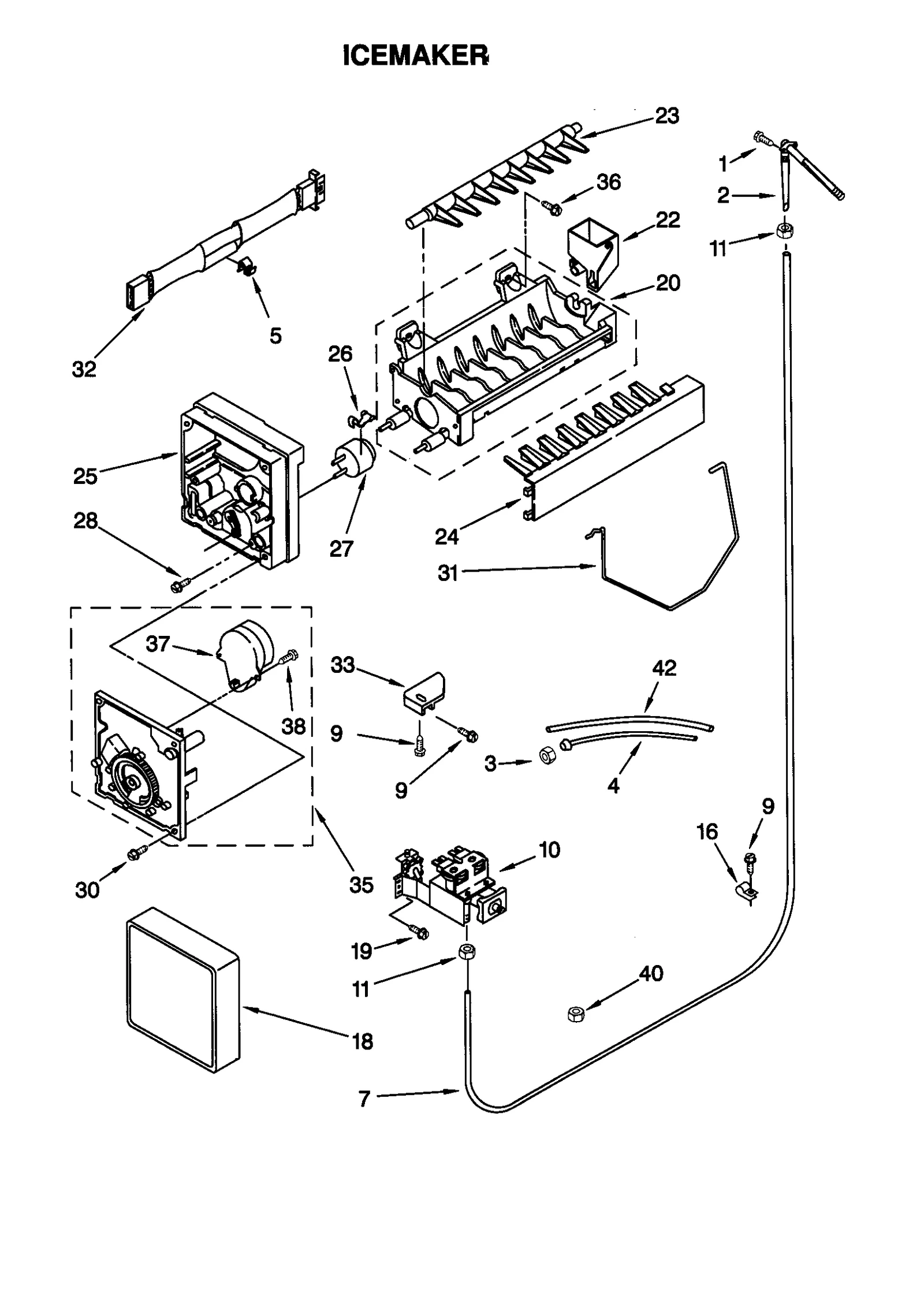

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1

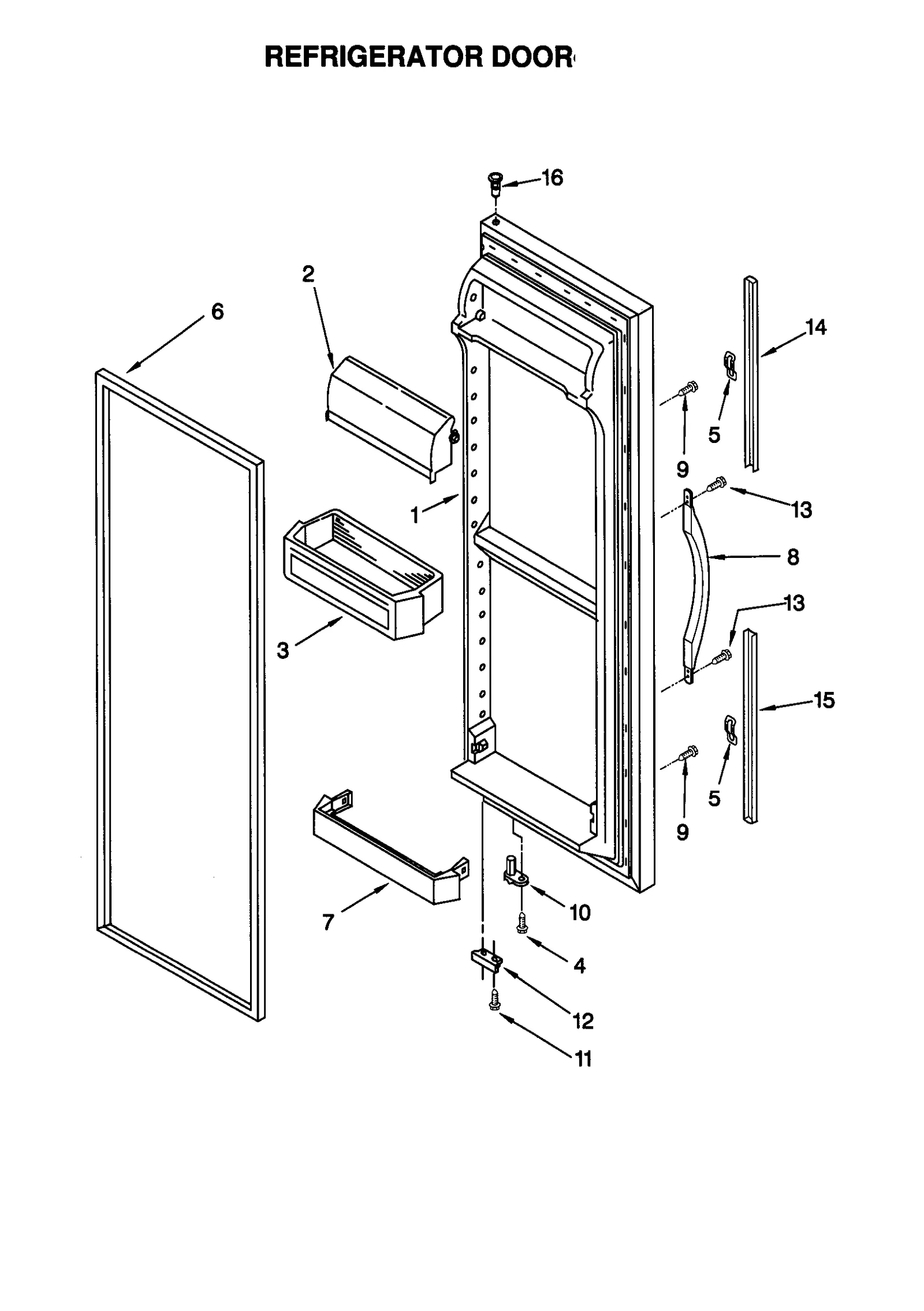

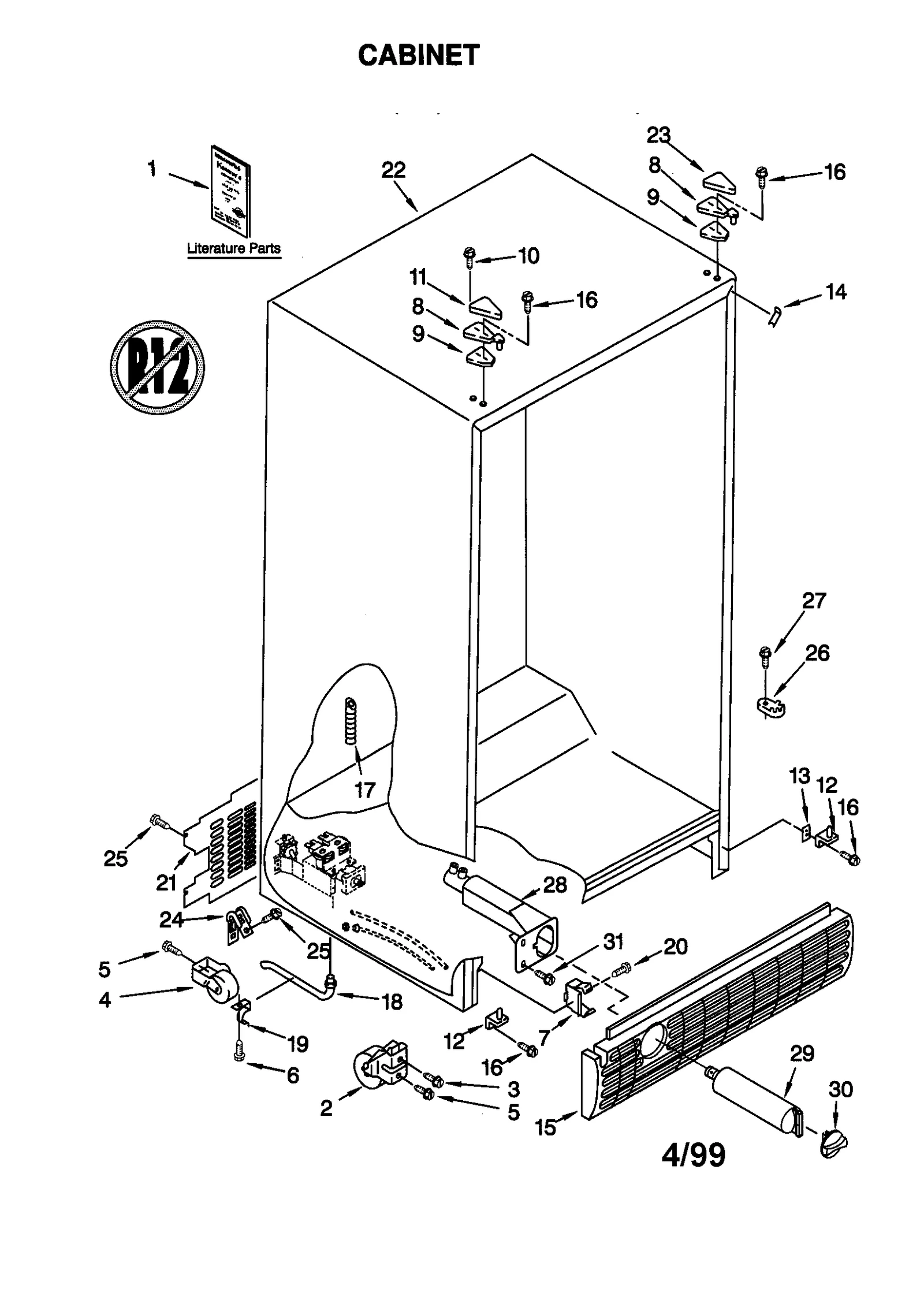

Refrigerator Motor Bracket WPL 2183728 Contact Us For Availability

1A

Freezer Door Assembly (Almond) WPL 2203912N Contact Us For Availability

1B

Freezer Door Assembly (Black) WPL 2203912B Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $145.08

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Thermistor Bracket WPL 1110629 Contact Us For Availability

2

Refrigerator Door Handle WPL 2194265W Contact Us For Availability

2

Ice Slide WPL 1115380 Contact Us For Availability

2A

Refrigerator Door Handle WPL 2194265N Contact Us For Availability

2B

Refrigerator Door Handle WPL 2194265B Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.62

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $106.45

3

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $44.49

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Refrigerator Pan Cover WPL 2179394 Contact Us For Availability

3

Refrigerator Air Scoop WPL 2161231 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Pan Gasket WPL 2174442 Contact Us For Availability

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Inglis Refrigerator Pressure Relief Valve WPL 2171846 Contact Us For Availability

5

Refrigerator Wire Harness WPL 2198271 Contact Us For Availability

6

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $87.85

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

6

Refrigerator Air Duct Diffuser WPL 2149544 Contact Us For Availability

6A

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $164.67

7

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $39.73

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

WP4389147 Whirlpool Refrigerator Evaporator M In Stock WPL WP4389147 $92.09

7

Refrigerator Glass Shelf WPL 2203235 Contact Us For Availability

7

Dispenser Harness WPL 2186815 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $97.61

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $123.34

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $120.17

8

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $37.79

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8A

2159080 Whirlpool Refrigerator Door Gasket Backorder WPL 2159080 $148.36

9

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $32.06

9

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Refrigerator Dispenser Overflow Grille WPL 2183787W Contact Us For Availability

9

Refrigerator Crisper Drawer Shelf Frame WPL 2195975 Contact Us For Availability

9B

Refrigerator Dispenser Drip Tray WPL 2183787B Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $60.28

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Refrigerator Shelf Wire WPL 2174265 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Refrigerator Freezer Door Upper Hinge Cover WPL 1129262 Contact Us For Availability

Refrigerator Basket WPL 2181762 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

Refrigerator Wire Harness WPL 2186800 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $38.32

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $83.13

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Refrigerator Door Bracket (Black) WPL 2195950 Contact Us For Availability

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

Refrigerator Wire Cover WPL 2155572 Contact Us For Availability

14A

Refrigerator Door Bracket (Black) WPL 2195952 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $29.77

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Cone Stop WPL 1118480 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Refrigerator Track WPL 2181760 Contact Us For Availability

Cone Feeder WPL 1119074 Contact Us For Availability

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

17A

Refrigerator Track WPL 2181759 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $96.94

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.76

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $30.18

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

4388539 Whirlpool Refrigerator Shelf Stud Backorder WPL 4388539 $9.30

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $33.71

20

Stud WPL 946355 Contact Us For Availability

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $33.73

Refrigerator Light Lens WPL 2203266 Contact Us For Availability

Refrigerator Extension WPL 2194706W Contact Us For Availability

Stud WPL 946356 Contact Us For Availability

21A

Refrigerator Extension WPL 2194706N Contact Us For Availability

21B

Refrigerator Extension WPL 2194706B Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $33.73

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Refrigerator Door Handle Trim WPL 2194705W Contact Us For Availability

Refrigerator Cantilever Shelf WPL 2203237 Contact Us For Availability

Refrigerator Shelf Stud WPL 1106982 Contact Us For Availability

22A

Refrigerator Door Handle Trim WPL 2194705N Contact Us For Availability

22B

Refrigerator Door Trim (Black) WPL 2194705B Contact Us For Availability

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

23

Inglis Refrigerator Door Hinge Cover WPL 1119787 Contact Us For Availability

23B

Refrigerator Door Hinge Cover WPL 2155938 Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $36.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Spacer WPL 625834 Contact Us For Availability

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

Refrigerator Ice Crusher Fixed Blade WPL 1119009 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

26

Refrigerator Temperature Control Knob WPL 2182111 Contact Us For Availability

27

W10422851 Whirlpool Ice Maker Bucket Auger In Stock WPL W10422851 $108.42

27

Refrigerator Temperature Control Knob WPL 2197871 Contact Us For Availability

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $56.13

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $38.23

28A

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

29

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $34.20

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $33.10

30B

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $21.50

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $57.34

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $91.80

44

Refrigerator Ice Bin Cover, Front WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Foam Slab WPL 876029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
