Model Whirlpool 106.53703202 Refrigerator (Kenmore 10653703202) – Common Parts &amp; Diagrams

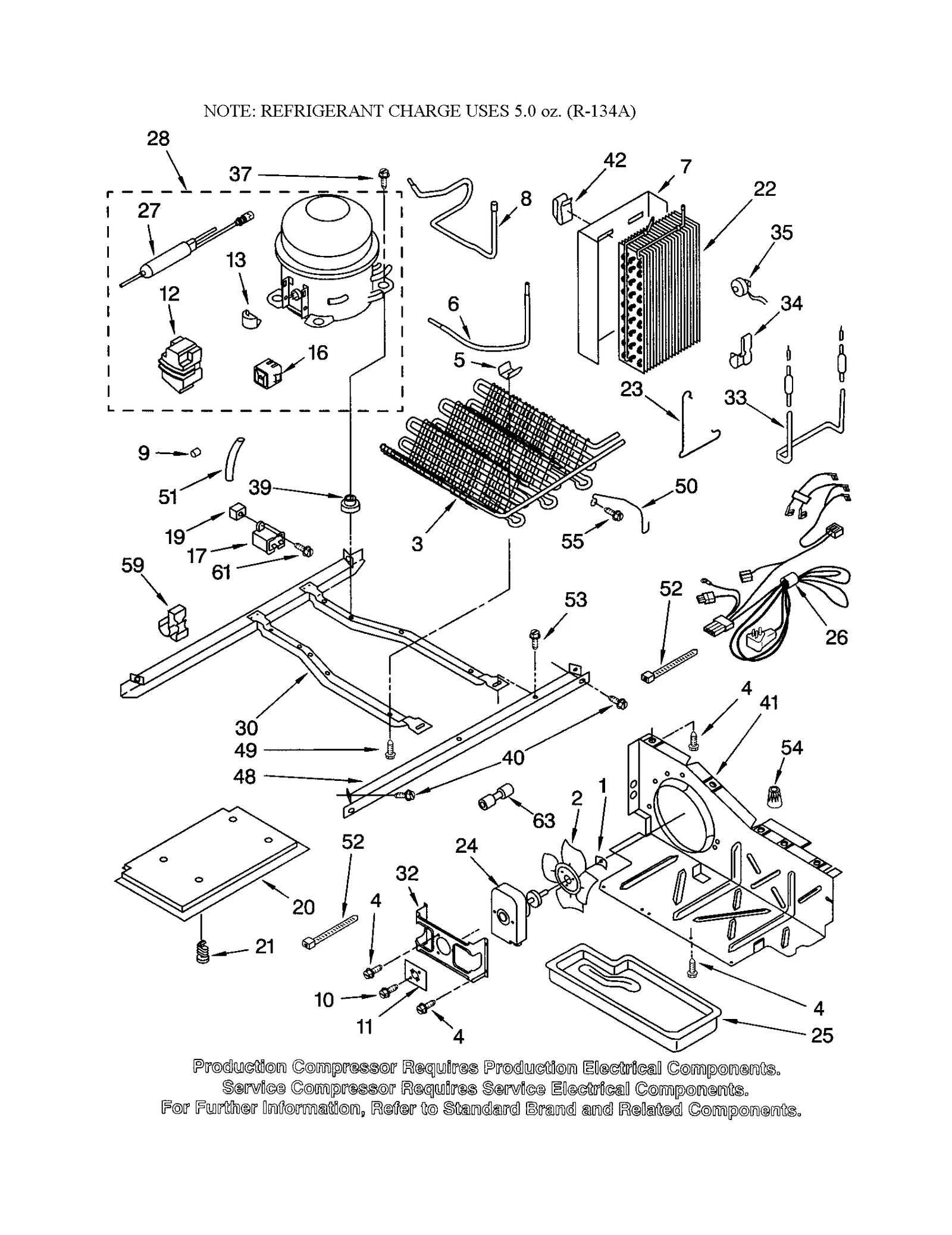

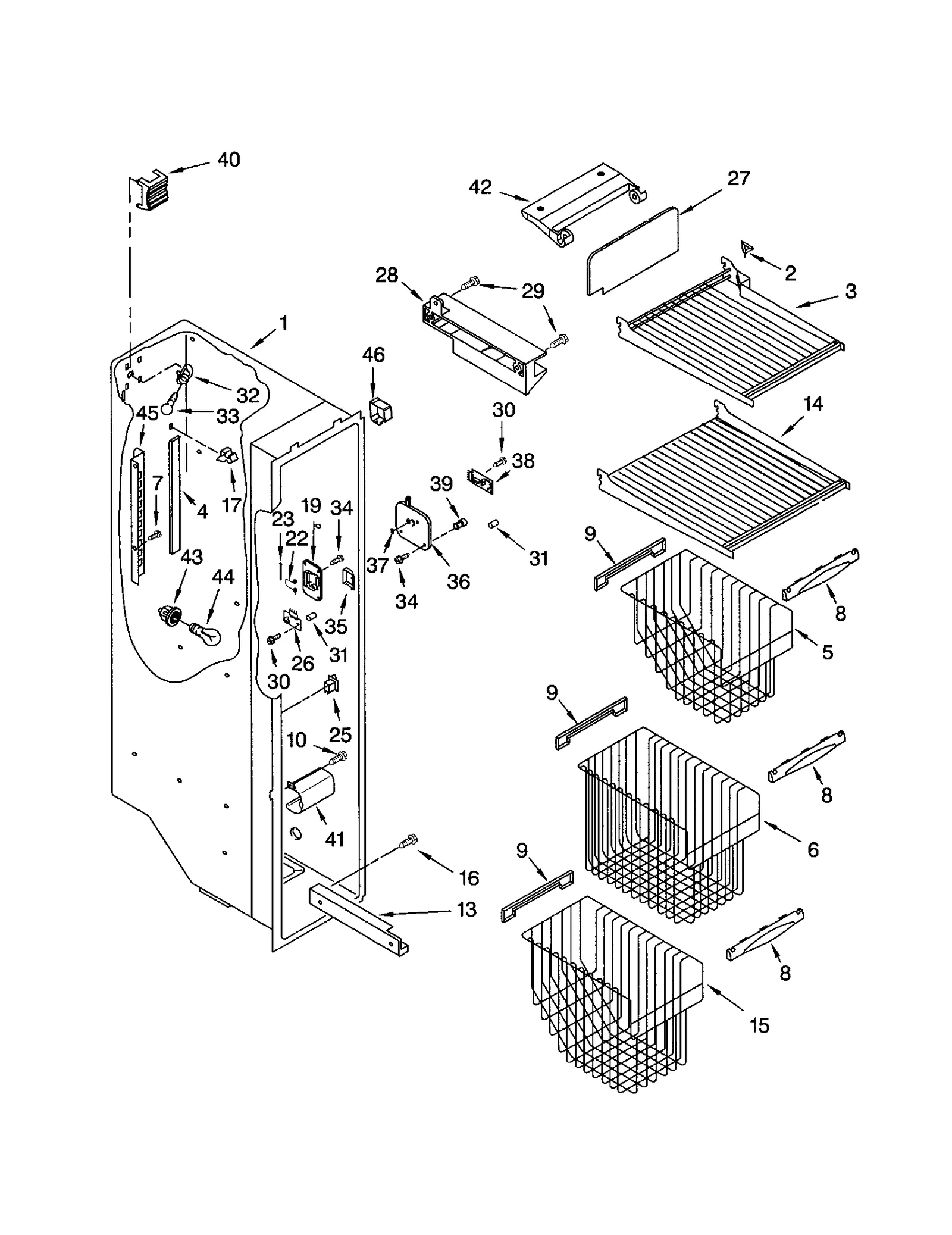

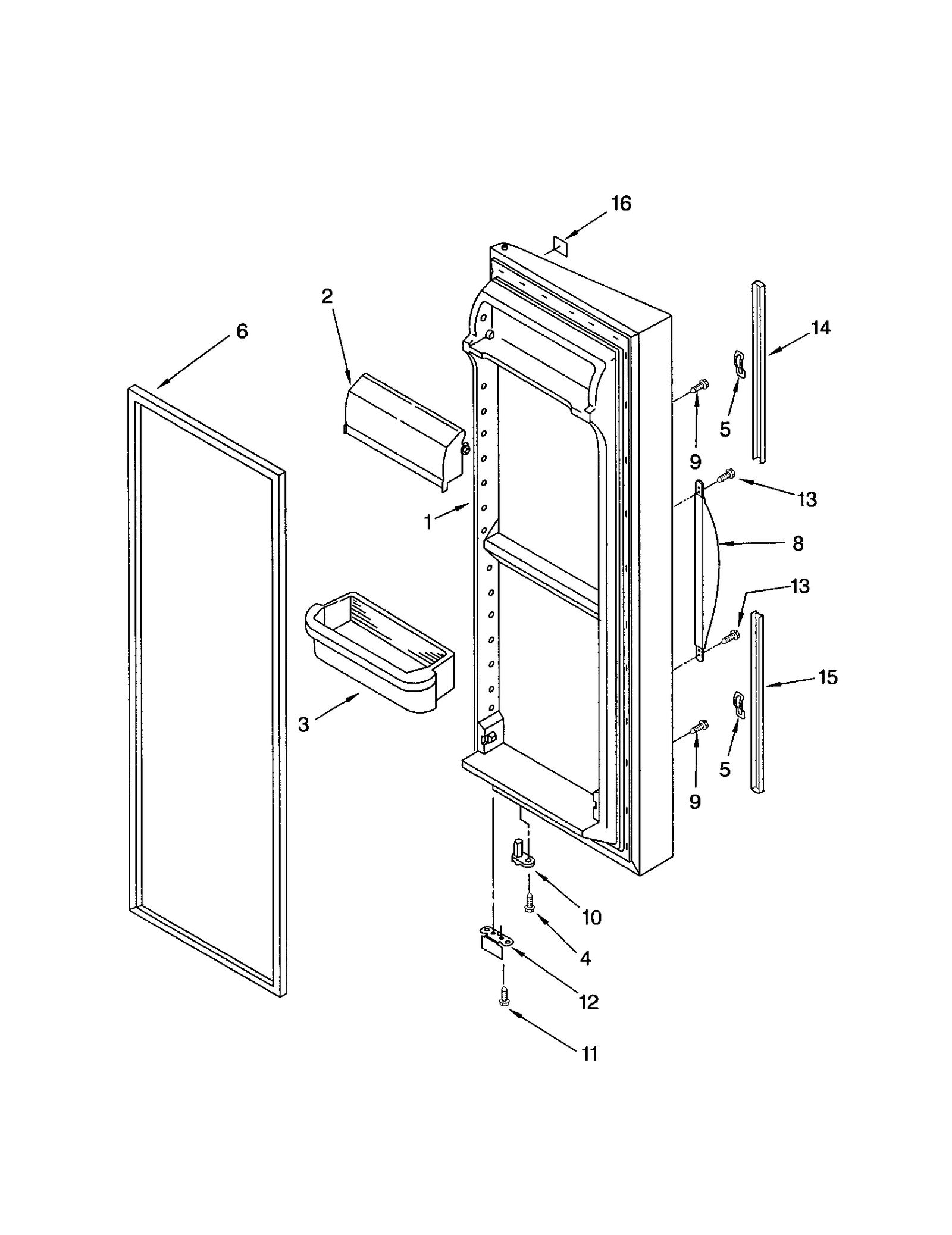

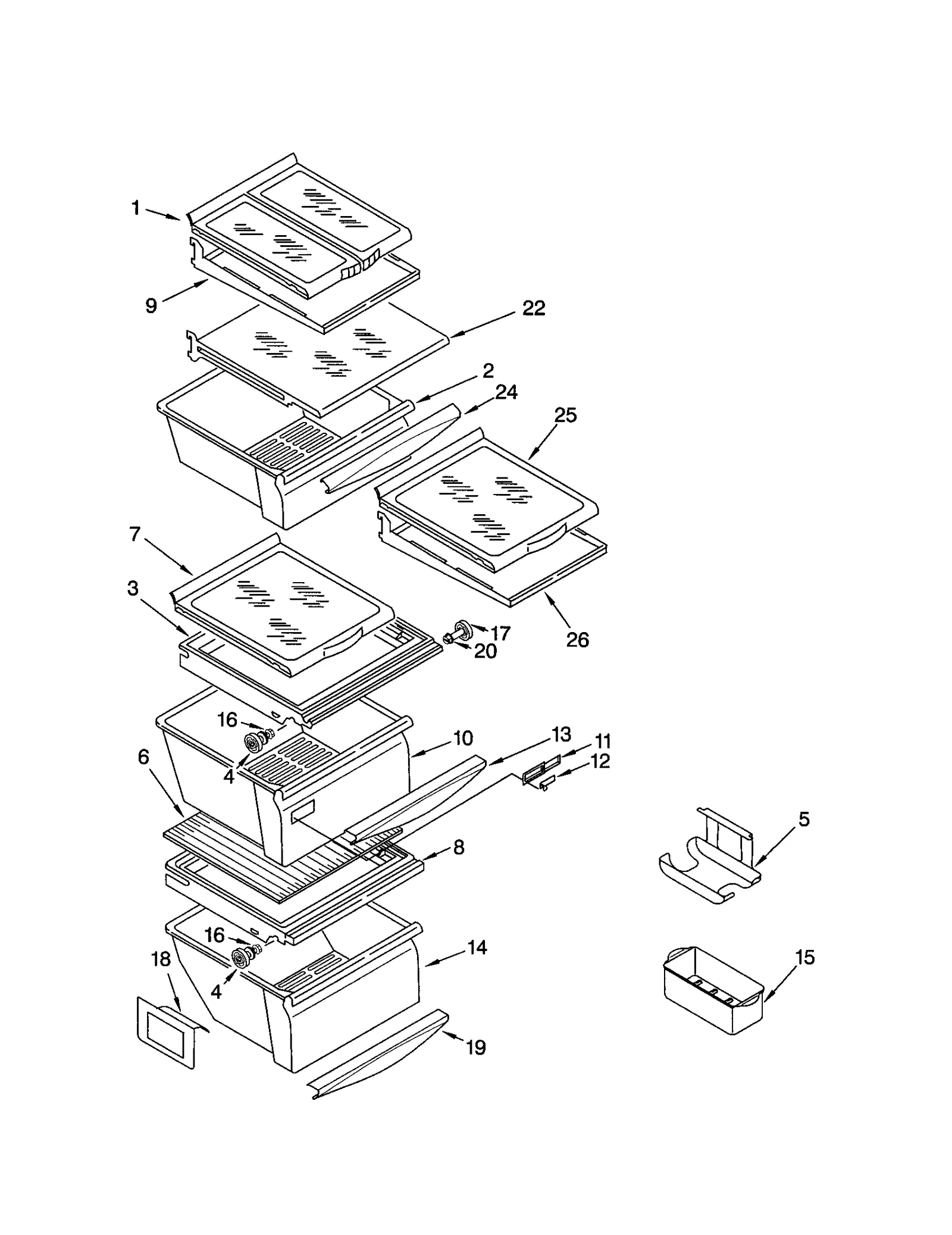

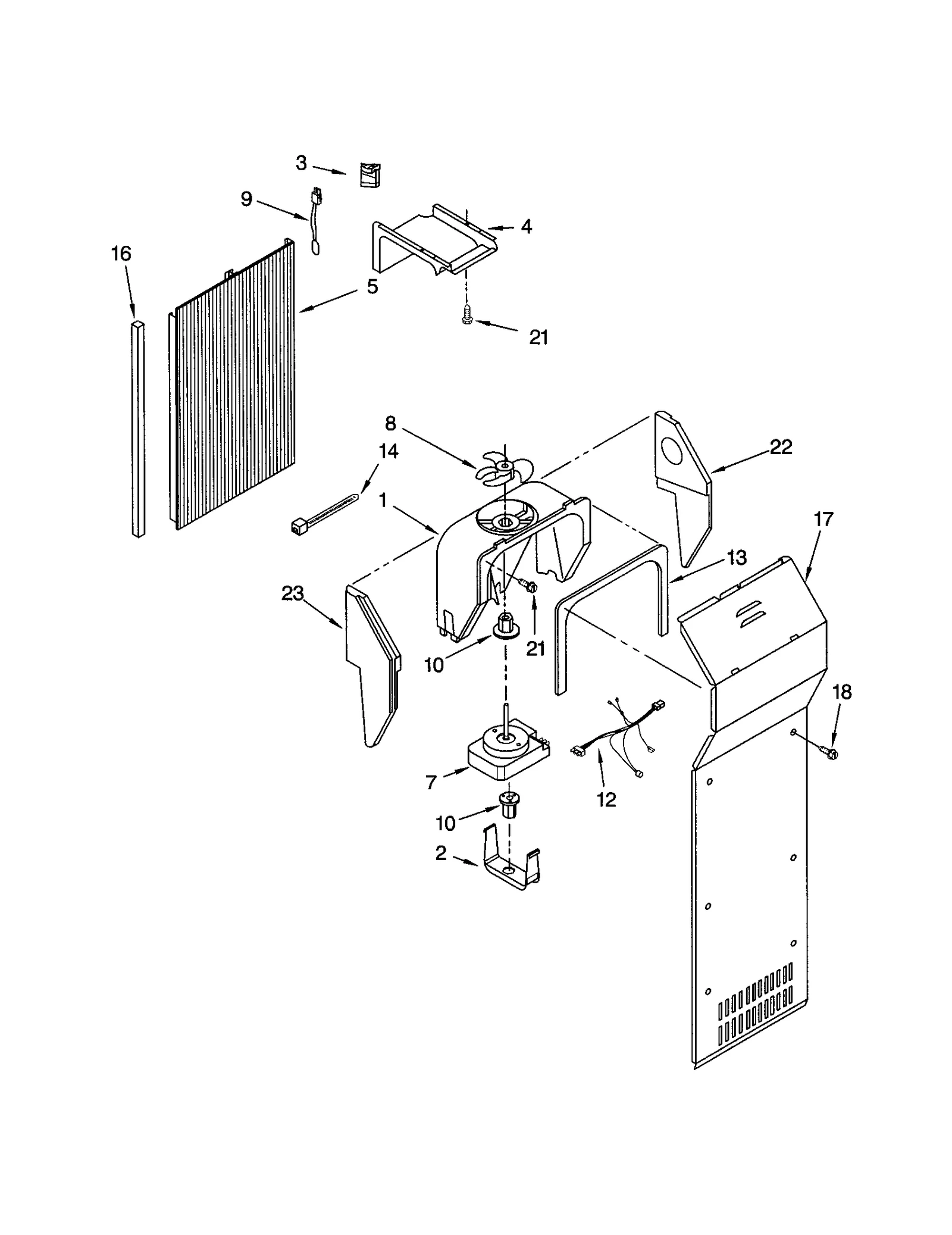

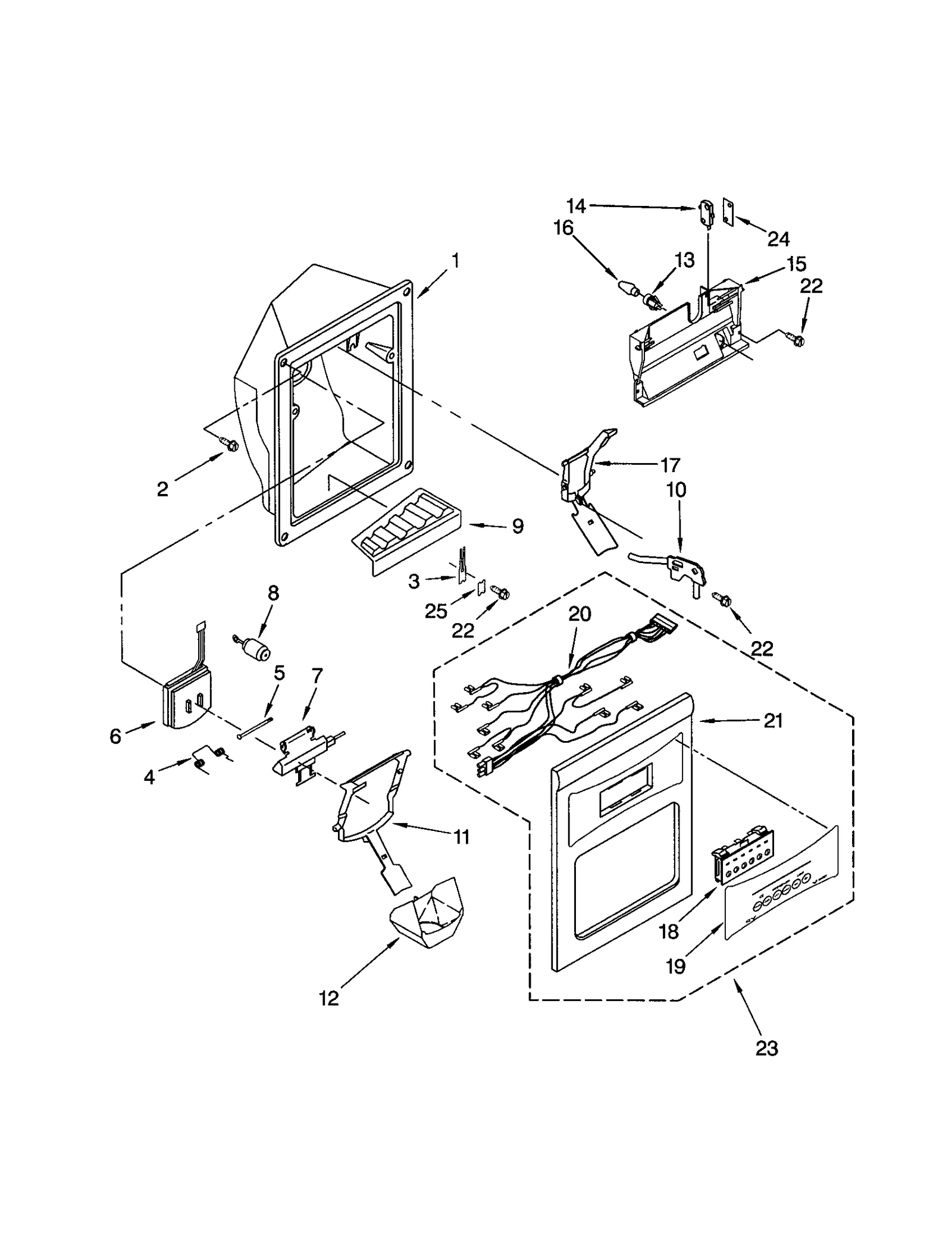

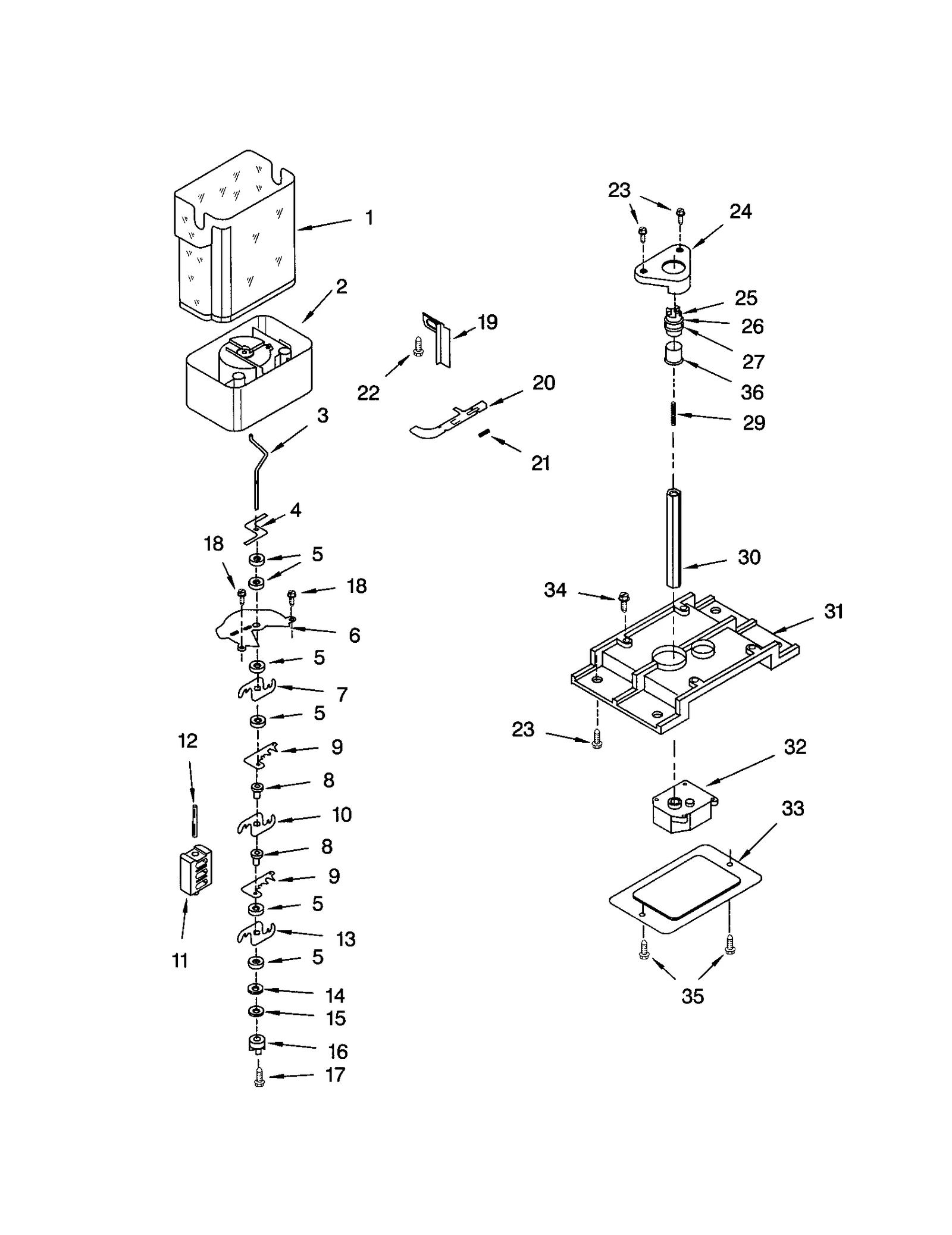

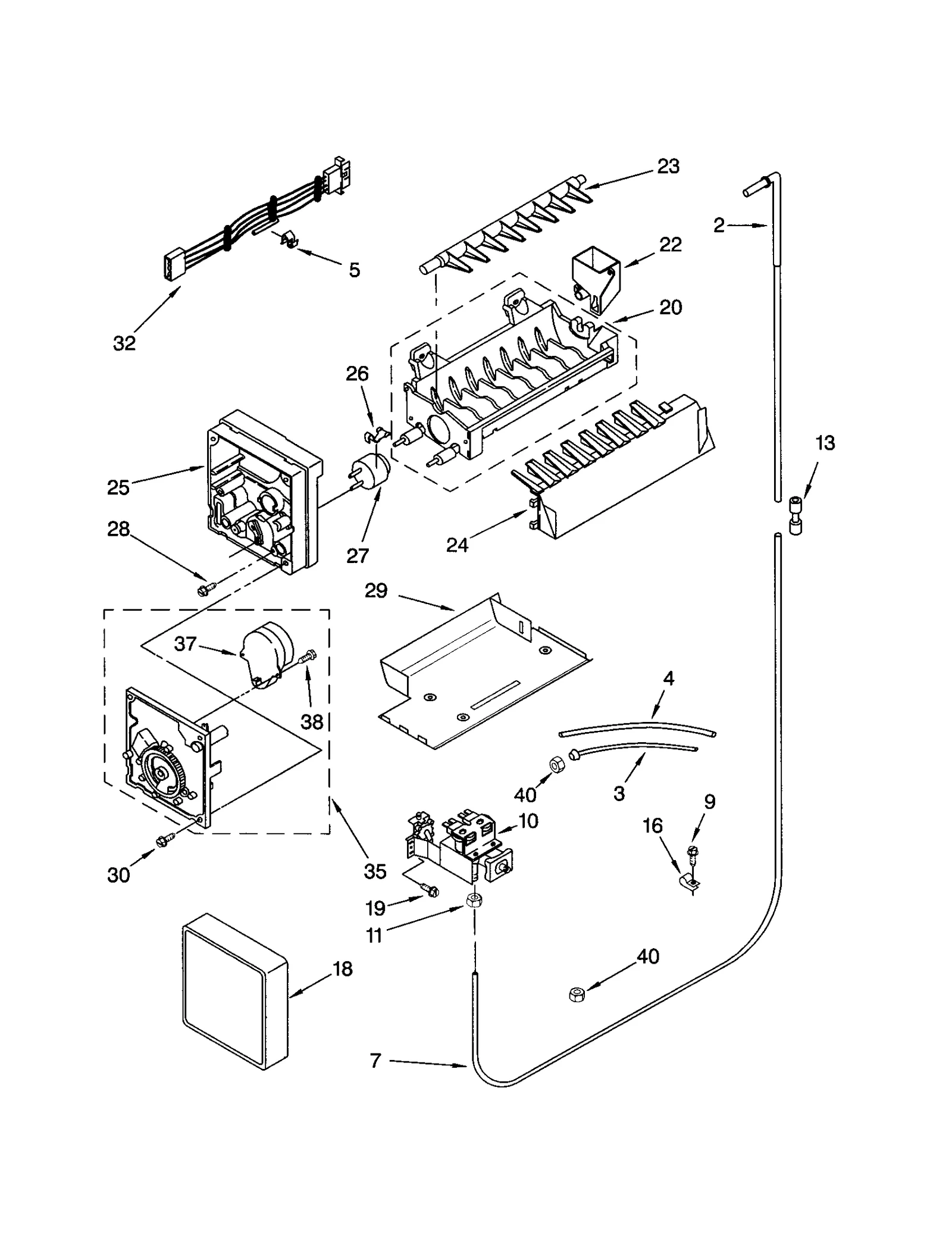

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Glass Shelf WPL 2203625 Contact Us For Availability

1

Refrigerator Energy Guide WPL LIT2220613 Contact Us For Availability

1

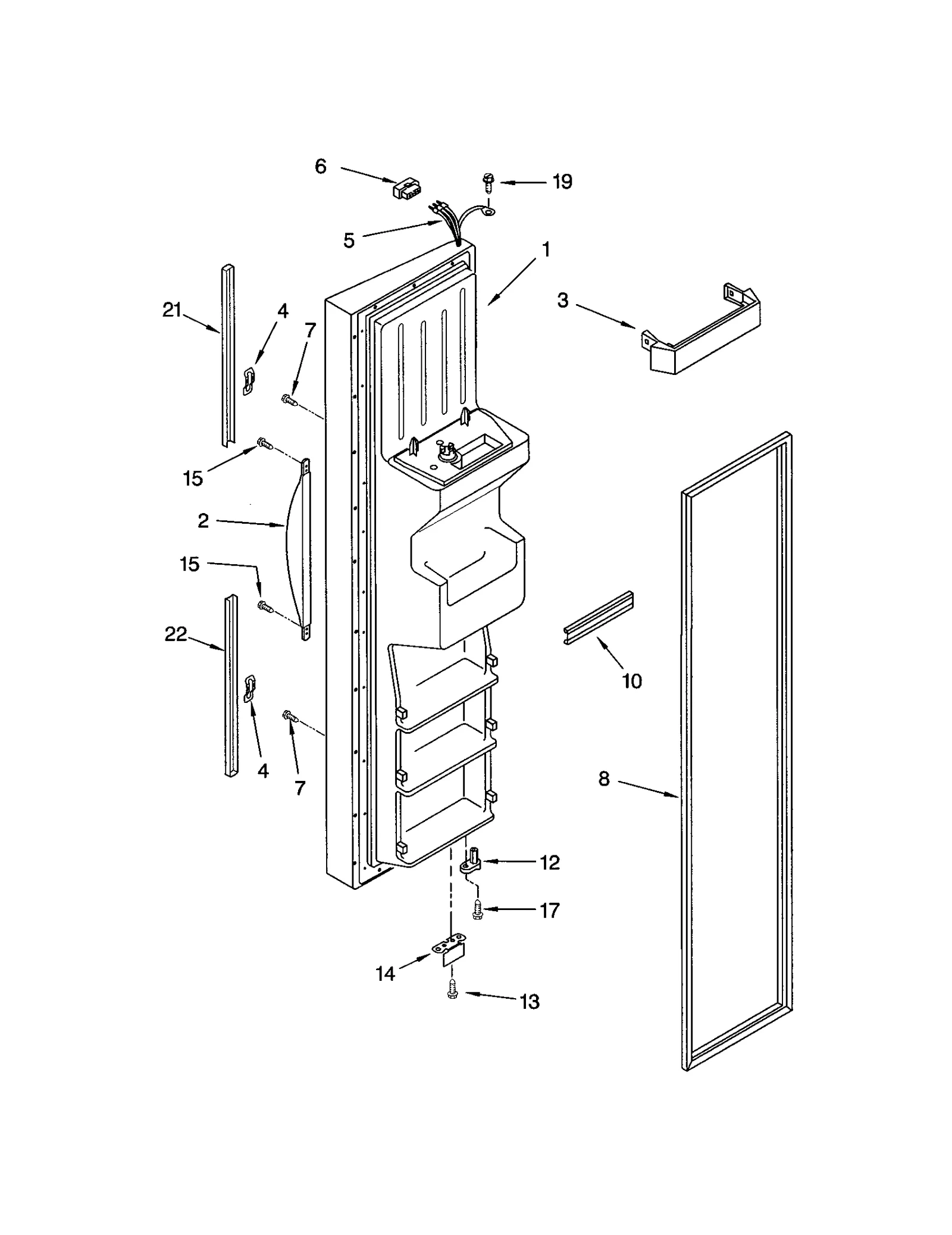

Freezer Door Assembly (White) WPL 2220580W Contact Us For Availability

1A

Refrigerator Energy Guide WPL LIT2220619 Contact Us For Availability

1A

Freezer Door Assembly (Bisque) WPL 2220580T Contact Us For Availability

1B

Refrigerator Owner's Manual WPL LIT2220693 Contact Us For Availability

1B

Freezer Door Assembly (Black) WPL 2220580B Contact Us For Availability

1C

Refrigerator Technical Sheet WPL LIT2255040 Contact Us For Availability

1C

Refrigerator Door Panel WPL 2220580SJ Contact Us For Availability

1D

Refrigerator Technical Sheet WPL LIT2220407 Contact Us For Availability

1D

Refrigerator Door Panel WPL 2220580LJ Contact Us For Availability

1E

Refrigerator Parts List WPL LIT2255006 Contact Us For Availability

1F

Owner's Manual WPL LIT787808 Contact Us For Availability

1G

Ice Maker Repair Manual WPL LIT787316 Contact Us For Availability

2

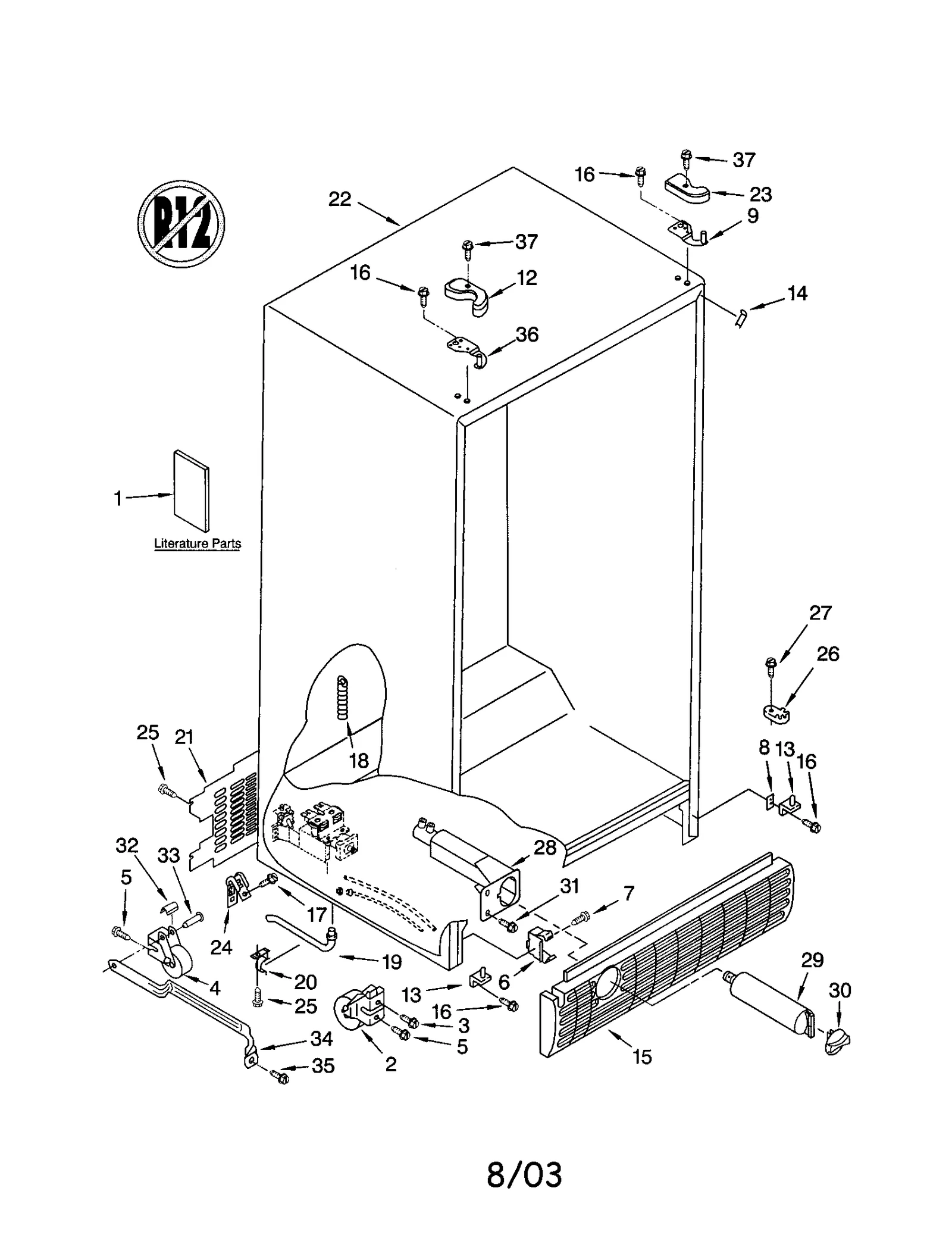

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

2A

Refrigerator Door Handle (Bisque) WPL 2206934T Contact Us For Availability

2C

Refrigerator Door Handle (Graphite) WPL 2206934J Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $35.54

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Refrigerator Cover WPL 2174484 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

Refrigerator Door Trim Clip WPL 2206905 Contact Us For Availability

4

Refrigerator Cabinet Roller WPL 2203619 Contact Us For Availability

4

Refrigerator Air Duct WPL 2212377 Contact Us For Availability

4A

Refrigerator Door Trim Clip, Upper WPL 2206904 Contact Us For Availability

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $58.44

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Refrigerator Beverage Rack WPL 2187254 Contact Us For Availability

5

Refrigerator Freezer Air Duct WPL 2198580 Contact Us For Availability

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Refrigerator Tube WPL 2211760 Contact Us For Availability

7

WP2315548 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315548 $82.41

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

Refrigerator Cantilever Shelf WPL 2223304 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $161.37

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2206934W Whirlpool Refrigerator Handle Backorder WPL WP2206934W $80.02

8

Refrigerator Suction Line WPL 2205765 Contact Us For Availability

8

Refrigerator Cover WPL 2217039 Contact Us For Availability

8A

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $141.10

8A

Refrigerator Shim WPL 2209697 Contact Us For Availability

8B

WP2206934B Whirlpool Refrigerator Handle In Stock WPL WP2206934B $81.11

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $15.49

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

9

Refrigerator Dispenser Drip Tray WPL 2200088W Contact Us For Availability

9

Refrigerator Shelf Frame WPL 2203467 Contact Us For Availability

9B

WP2200088B Whirlpool Refrigerator Grille In Stock WPL WP2200088B $43.61

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $60.28

10

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

11

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

11

Refrigerator Ice Dispenser Blade Rest WPL 2198602 Contact Us For Availability

11A

Refrigerator Dispenser Lever WPL 2203562T Contact Us For Availability

11B

Refrigerator Dispenser Lever (Black) WPL 2203562B Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Refrigerator Wire Harness WPL 2220150 Contact Us For Availability

12A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

12B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

12C

Refrigerator Cover WPL 2203407J Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $31.44

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $116.35

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.44

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Refrigerator Crisper Drawer Trim Handle WPL 2220061 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $38.32

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

Refrigerator Bracket WPL 2206910 Contact Us For Availability

14A

Refrigerator Filler WPL 2196150 Contact Us For Availability

14B

WP2203570B Whirlpool Refrigerator Extension Backorder WPL WP2203570B $58.32

14B

Refrigerator Filler WPL 2196097 Contact Us For Availability

14C

Refrigerator Filler WPL 2204164 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Refrigerator Door Handle Trim WPL 2203571W Contact Us For Availability

15A

Refrigerator Grille WPL 2198468T Contact Us For Availability

15B

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $51.95

15B

WP2203571B Whirlpool Refrigerator Extension Backorder WPL WP2203571B $60.38

15C

Refrigerator Grille WPL 2198468J Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $29.77

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $37.97

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Refrigerator Evaporator Cover WPL 2206314 Contact Us For Availability

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

17A

Refrigerator Dispenser Lever WPL 2203561T Contact Us For Availability

17B

Refrigerator Dispenser Lever WPL 2203561B Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.01

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $34.28

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Refrigerator Meat Pan Drawer Handle Trim WPL 2220062 Contact Us For Availability

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

20

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $75.44

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Refrigerator Door Top Trim WPL 2203568W Contact Us For Availability

21A

Refrigerator Extension WPL 2203568T Contact Us For Availability

21B

Refrigerator Door Handle Trim WPL 2203568B Contact Us For Availability

21C

Refrigerator Door Handle Trim WPL 2203568J Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $30.36

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Refrigerator Shelf WPL 2211581 Contact Us For Availability

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

Refrigerator Door Handle Trim, Lower (White) WPL 2203569W Contact Us For Availability

22A

Refrigerator Extension WPL 2203569T Contact Us For Availability

22B

Refrigerator Door Handle Trim WPL 2203569B Contact Us For Availability

22C

Refrigerator Door Handle Trim WPL 2203569J Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

23A

Refrigerator Cover WPL 2203408T Contact Us For Availability

23B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

23C

Refrigerator Cover WPL 2203408J Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Spacer WPL 625834 Contact Us For Availability

Refrigerator Holder WPL 2212369 Contact Us For Availability

Refrigerator Pan Handle WPL 2220064 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

NLA:SCREW Backorder WPL WPW10141645 $3.70

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $181.67

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $237.68

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.59

Refrigerator Crisper Drawer Shelf Frame WPL 2195975 Contact Us For Availability

27

WP2212370 Whirlpool Washer In Stock WPL WP2212370 $7.45

27

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $45.68

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $38.23

28

Refrigerator Ice Maker Cover Bracket, Right WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $39.69

29

Refrigerator Water Filter WPL 2203980 Contact Us For Availability

30

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

30

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $33.10

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $45.77

30A

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

30B

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $21.50

30C

Refrigerator Filter Cap WPL 2186494J Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

Refrigerator Wire Harness Retainer WPL 2198665 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $51.40

Refrigerator Clip WPL 2203576 Contact Us For Availability

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

33

Refrigerator Roller Pin WPL 2203575 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Adjustment Rod WPL 2204158 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.05

35

Refrigerator Bolt WPL 2204165 Contact Us For Availability

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Refrigerator Control Board Cover WPL 2198698 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

37

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

40

Refrigerator Light Lens WPL 2198589 Contact Us For Availability

41

Refrigerator Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $37.61

45

Refrigerator Ladder WPL 2198609 Contact Us For Availability

45A

Refrigerator Shelf Bracket WPL 2198610 Contact Us For Availability

46

Refrigerator Shield WPL 2219878 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

NI08

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

NI10

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

NI11

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

NI12

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

NI13

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

NI14

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

NI15

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

NI18

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

NI19

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI23

Foam Slab WPL 876029 Contact Us For Availability

NI24

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

NI25

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

NI26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

NI27

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

NI29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

NI31

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

NI34

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI37

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
