Model Whirlpool 106.50532100 Refrigerator (Kenmore 10650532100) – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Energy Guide WPL LIT2220011 Contact Us For Availability

1

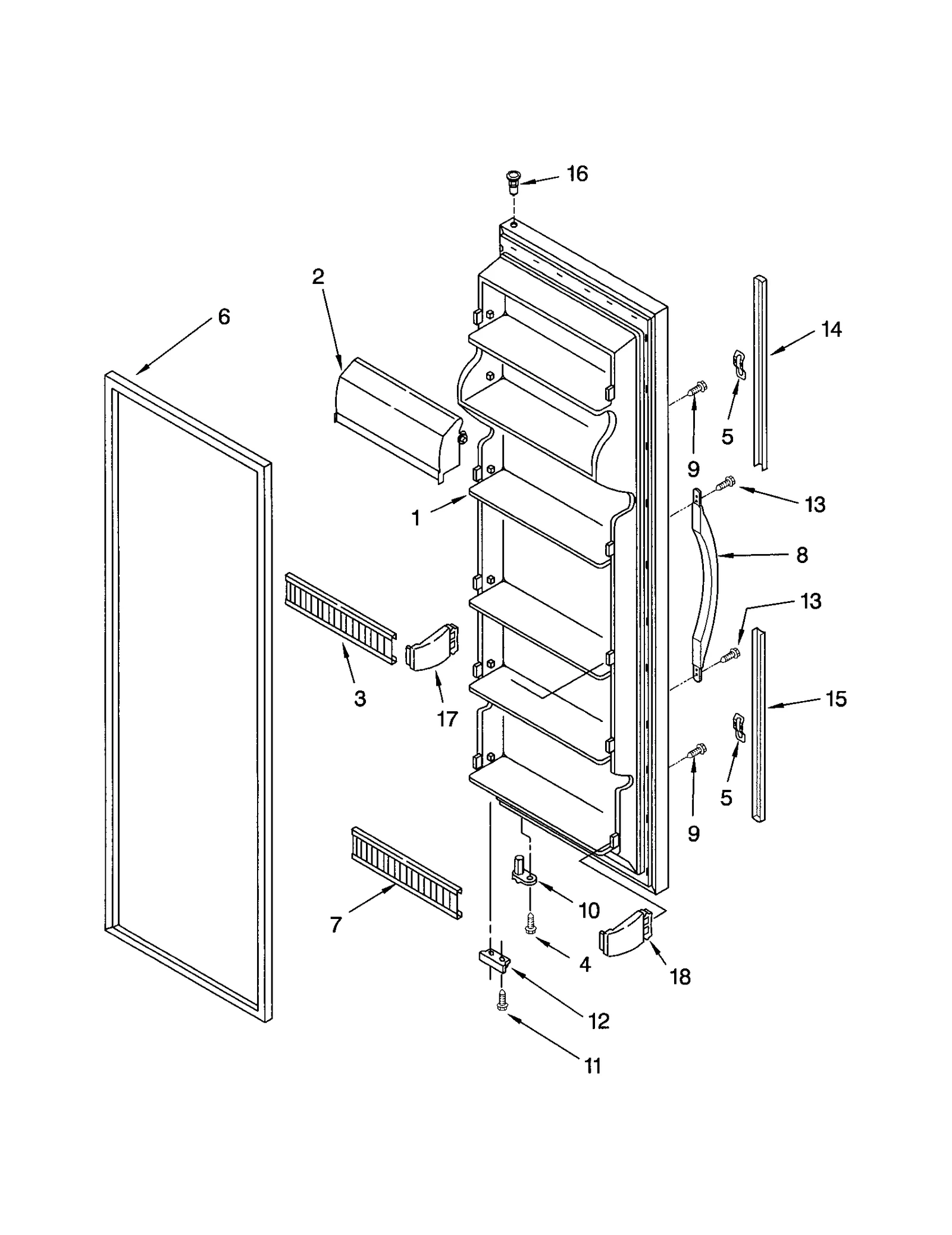

REFRIGERATOR DOOR (INCLUDES ITEM #6) WHITE WPL 22165501W Contact Us For Availability

1

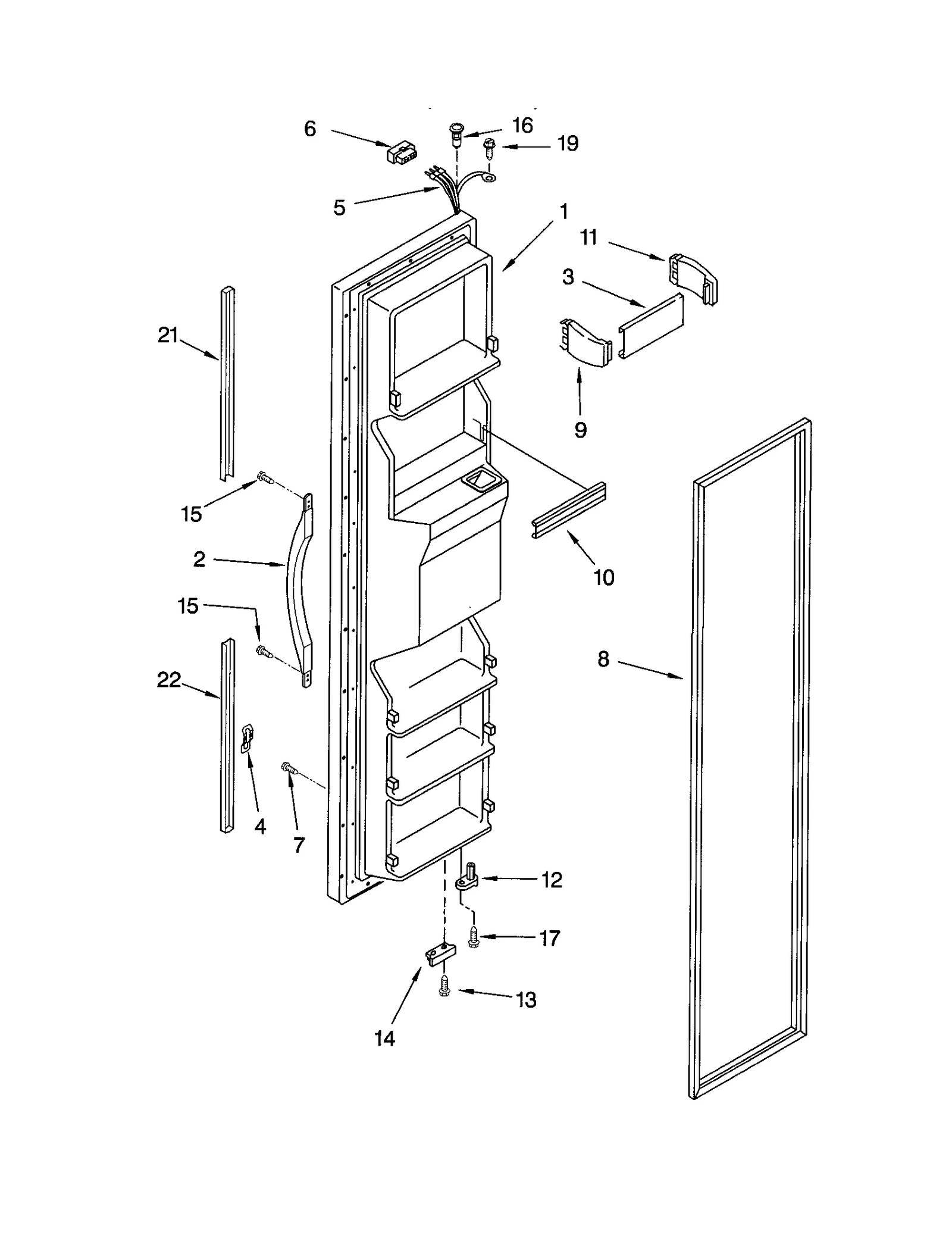

Freezer Door Assembly (White) WPL 2216340W Contact Us For Availability

1A

Refrigerator Energy Guide WPL LIT2220012 Contact Us For Availability

1A

Refrigerator Door Assembly (Biscuit) WPL 2216550T Contact Us For Availability

1A

Freezer Door Assembly (Bisque) WPL 2216340T Contact Us For Availability

1B

Refrigerator Owner's Manual WPL LIT2216992 Contact Us For Availability

1C

Refrigerator Technical Sheet WPL LIT2216962 Contact Us For Availability

1D

Service Sheet WPL LIT628370 Contact Us For Availability

1E

Refrigerator Parts List WPL LIT2220010 Contact Us For Availability

1F

Owner's Manual WPL LIT787808 Contact Us For Availability

1G

Ice Maker Repair Manual WPL LIT787316 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $44.17

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

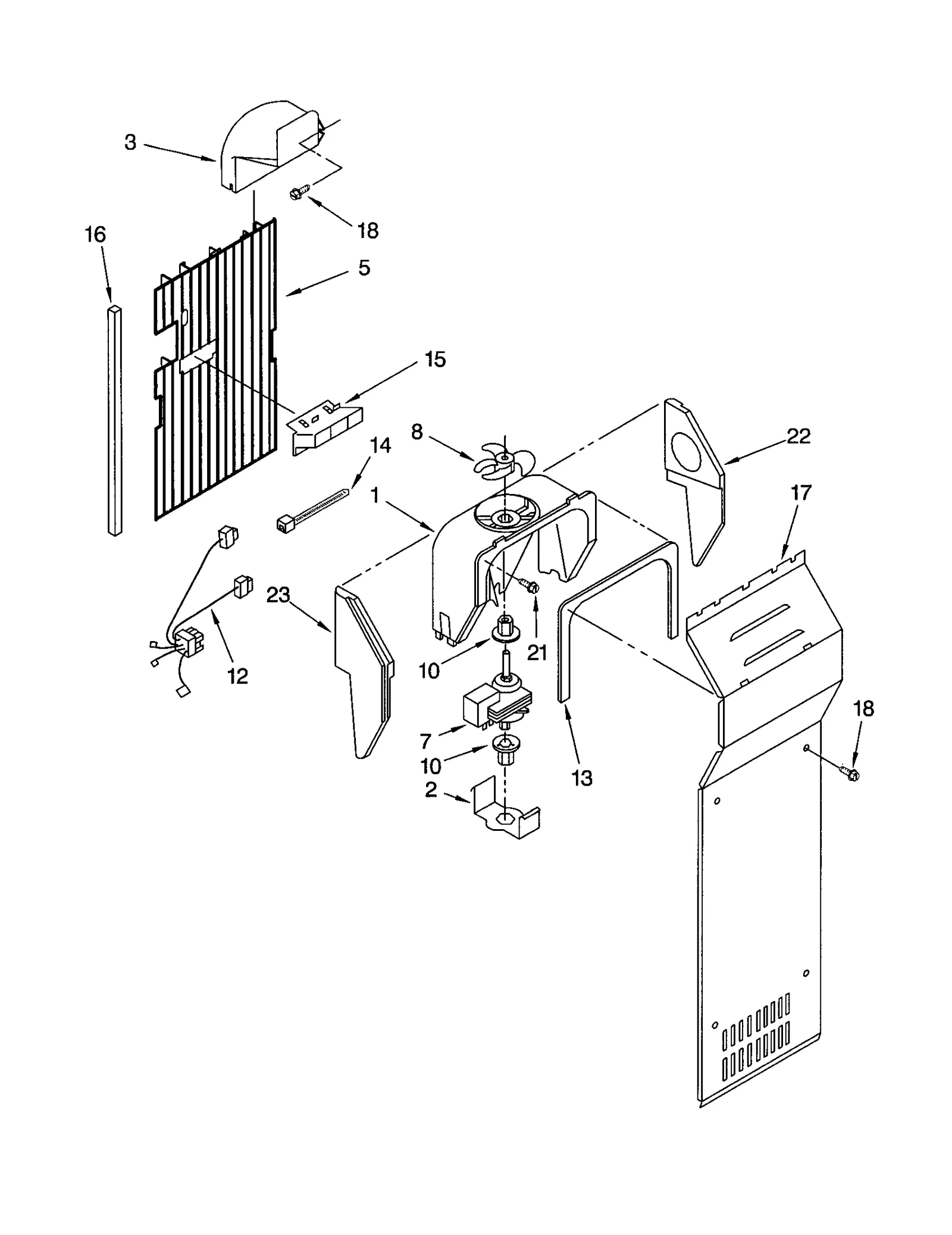

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Thermistor Bracket WPL 1110629 Contact Us For Availability

2

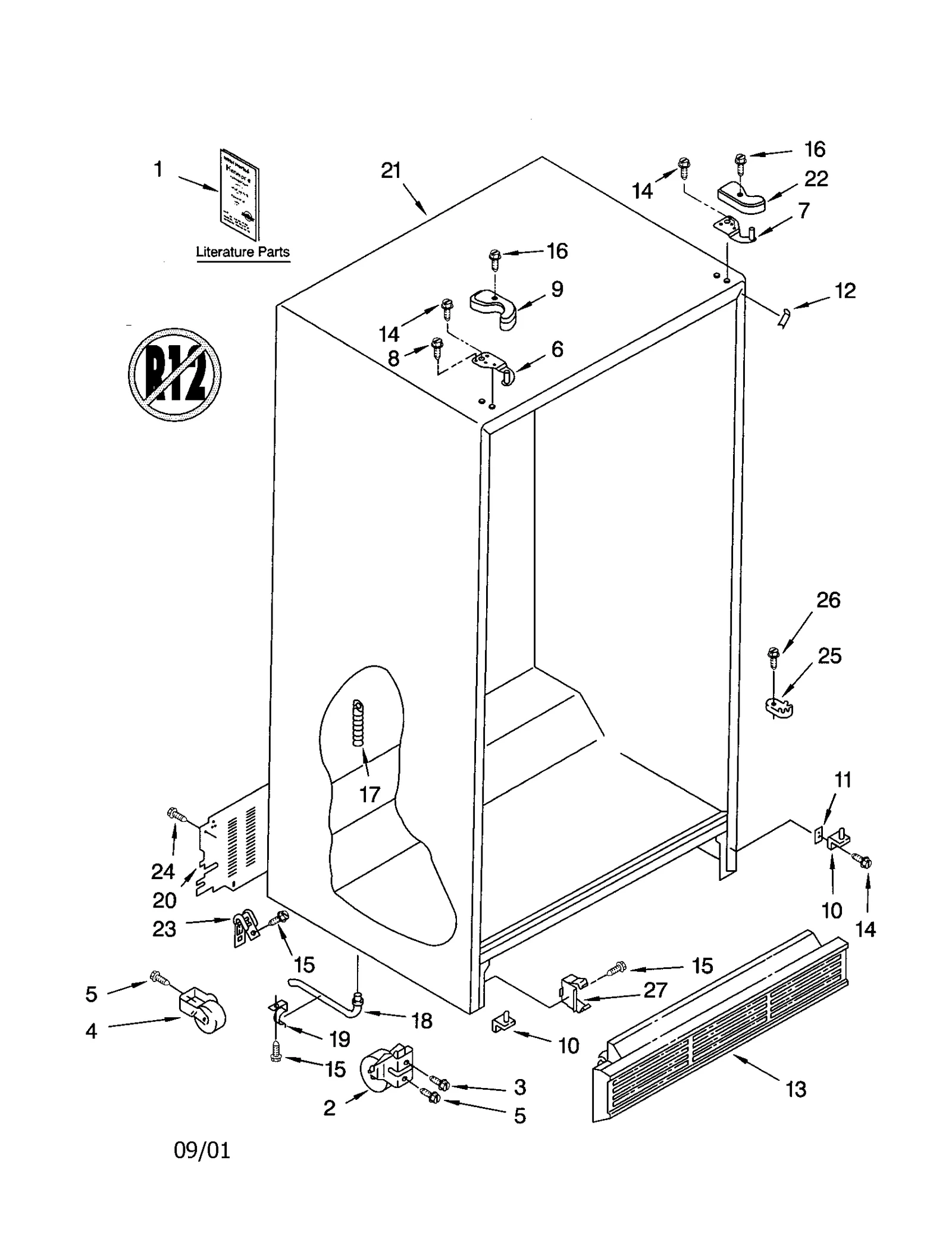

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

2

Refrigerator Door Handle Assembly WPL 2207206W Contact Us For Availability

2A

Refrigerator Handle (Off-White) WPL 2207206T Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

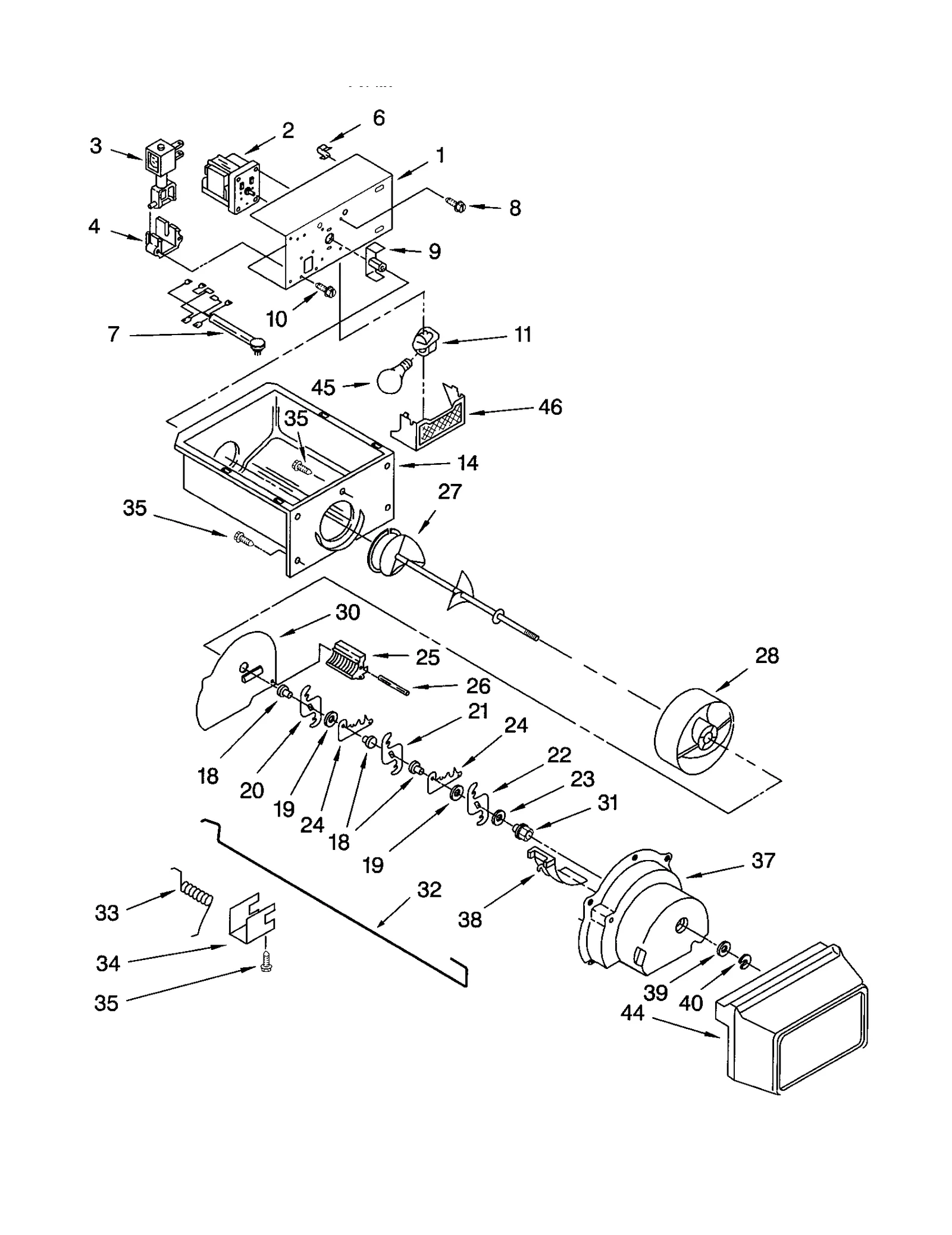

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $106.45

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

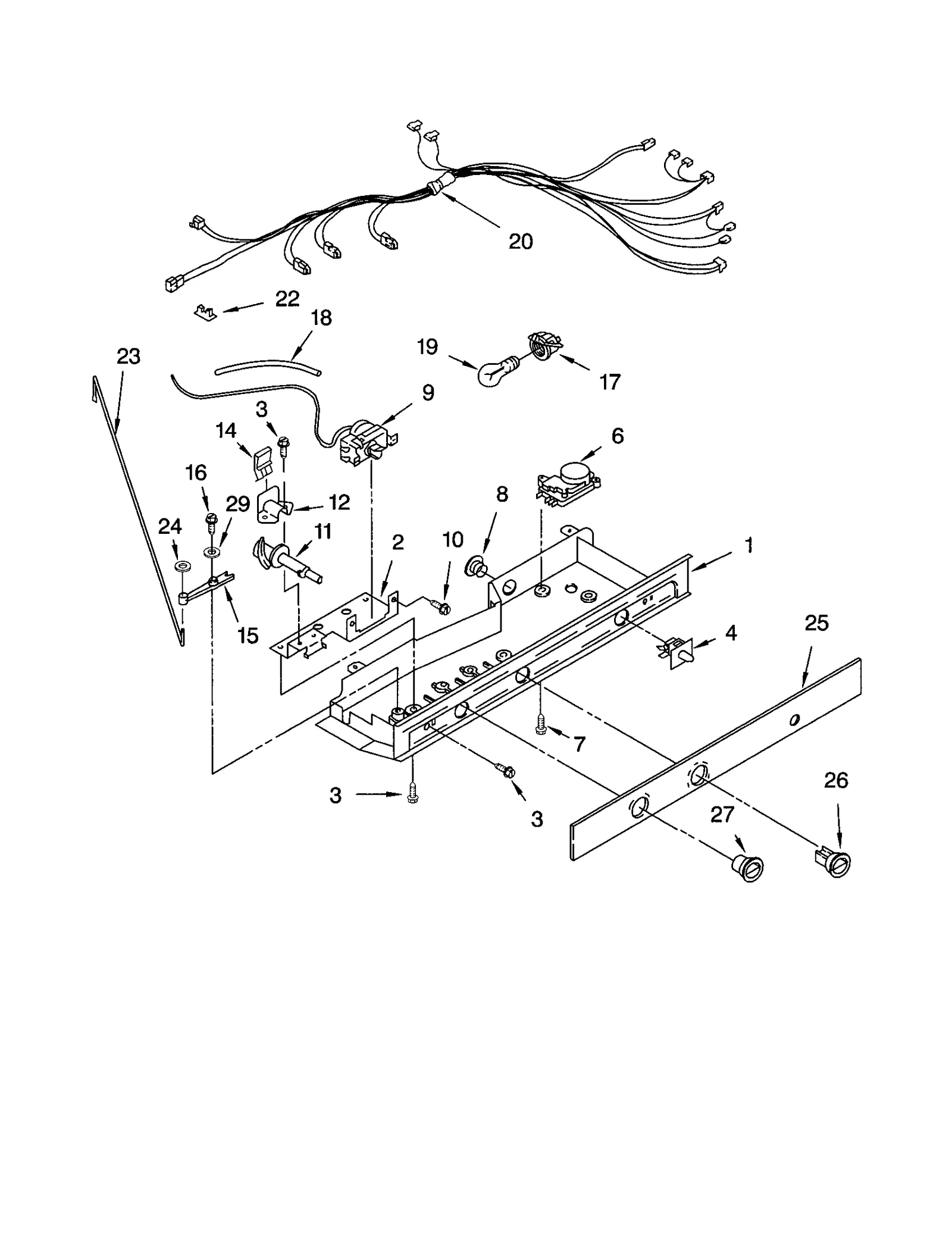

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Refrigerator Door Trim WPL 2182190 Contact Us For Availability

3

Refrigerator Door Trim WPL 2195927 Contact Us For Availability

4

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $96.56

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $129.84

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

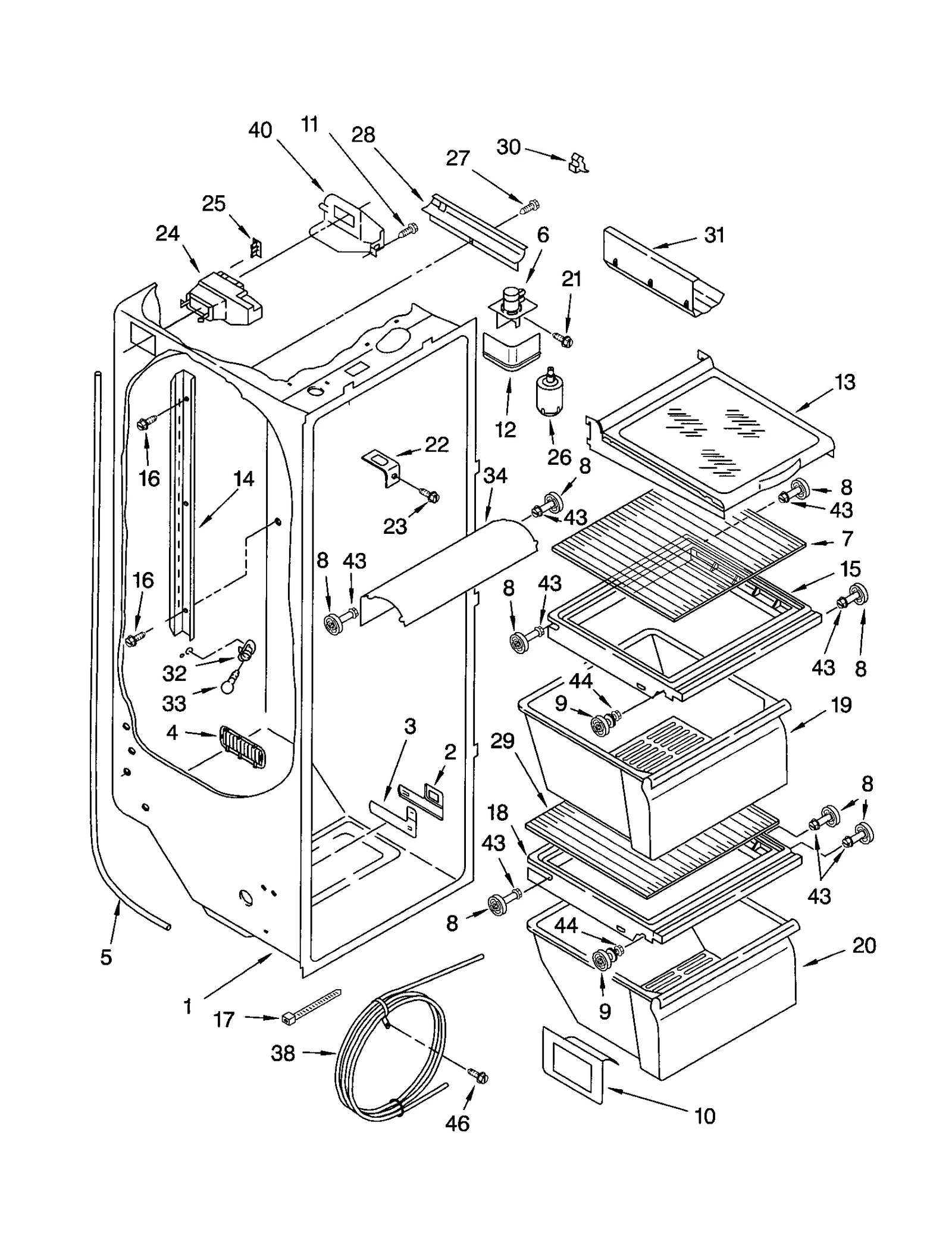

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $52.52

6

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

7

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

Refrigerator Door Trim WPL 2195934 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $161.37

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Refrigerator Shelf Stud WPL 2196207 Contact Us For Availability

8

Refrigerator Suction Line WPL 2205765 Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

9

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $30.76

9

Refrigerator Bracket WPL 2209674 Contact Us For Availability

9

Refrigerator End Cap WPL 2195917 Contact Us For Availability

9A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

9A

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $40.39

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $31.44

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Refrigerator Water Inlet Valve WPL 2206123 Contact Us For Availability

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

Refrigerator Tube WPL 2211760 Contact Us For Availability

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

11A

Refrigerator Dispenser Level WPL 2195089T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

12A

Refrigerator Filler WPL 2196150 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

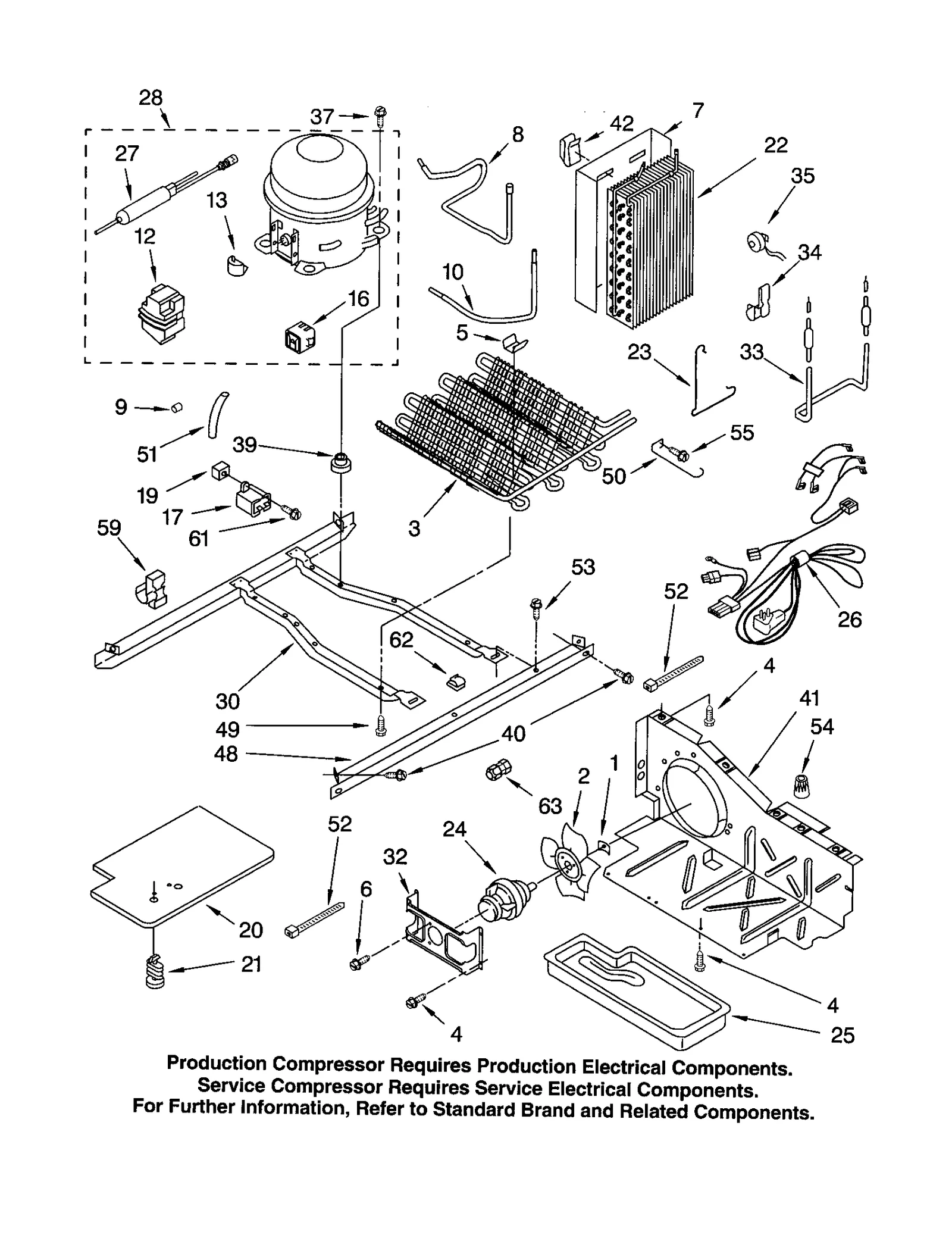

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.44

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $60.04

Refrigerator Track WPL 2181760 Contact Us For Availability

13A

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $52.10

13A

Refrigerator Track WPL 2181759 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Refrigerator Wire Shelf WPL 2174268 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

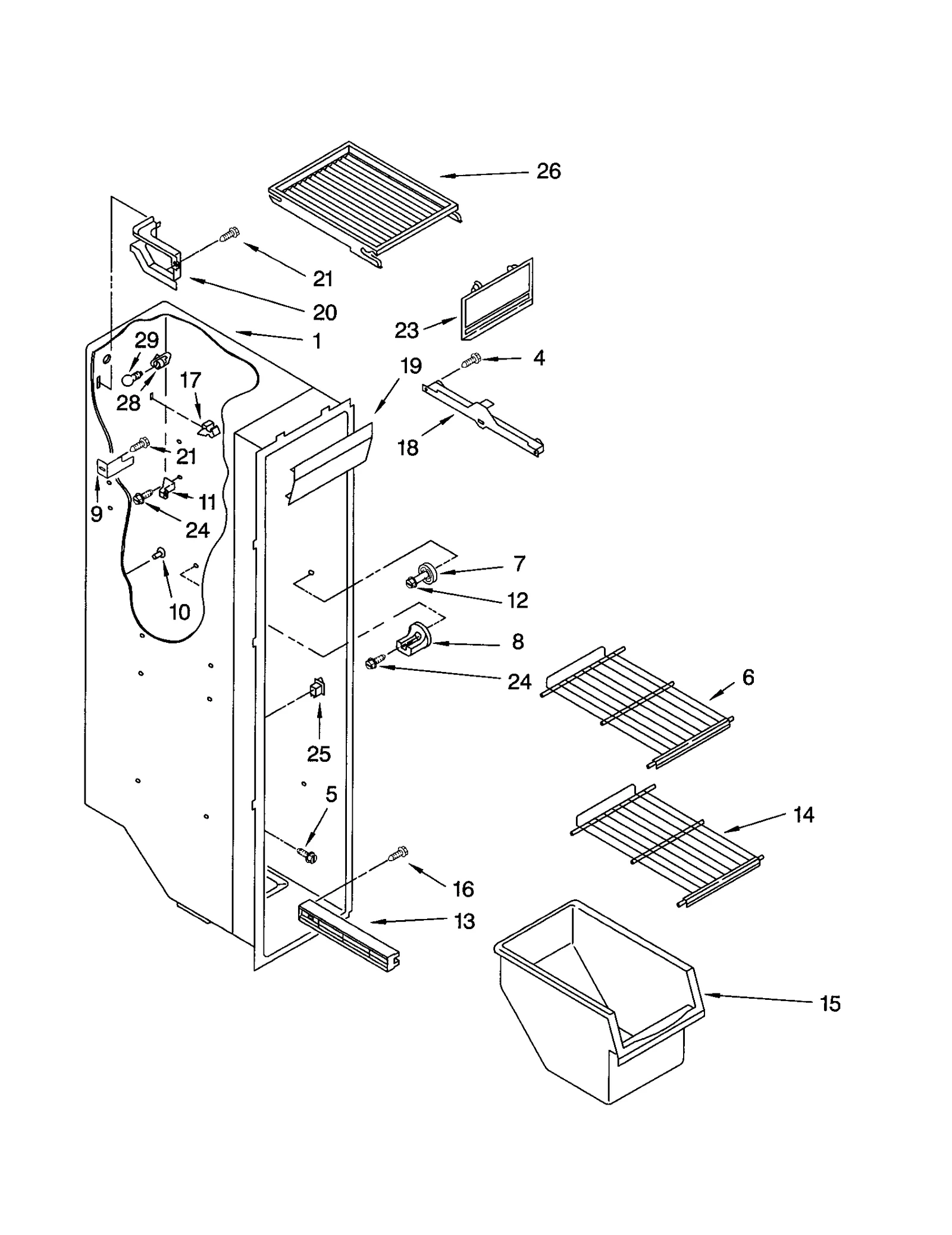

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $80.00

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

16

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

16

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

16

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

17

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

17

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.01

17

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

17A

Refrigerator Dispenser Level WPL 2195090T Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

18A

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $56.13

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Refrigerator Light Lens WPL 2171705 Contact Us For Availability

20

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $75.44

20

Refrigerator Wire Cover WPL 2155572 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Refrigerator Door Handle Trim WPL 2194707W Contact Us For Availability

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

21A

Refrigerator Extension WPL 2194707T Contact Us For Availability

22

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

22

Refrigerator Door Handle Trim WPL 2194705W Contact Us For Availability

22A

Refrigerator Cover WPL 2203408T Contact Us For Availability

22A

Refrigerator Extension WPL 2194705T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $45.71

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Spacer WPL 625834 Contact Us For Availability

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.59

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

26

Refrigerator Temperature Control Knob WPL 2182111 Contact Us For Availability

26

Refrigerator Shelf WPL 2194297 Contact Us For Availability

27

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

27

Refrigerator Temperature Control Knob WPL 2197871 Contact Us For Availability

28

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

28

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

29

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Foam Slab WPL 876029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
