Model Maytag YMEDX6STBW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER, 29 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

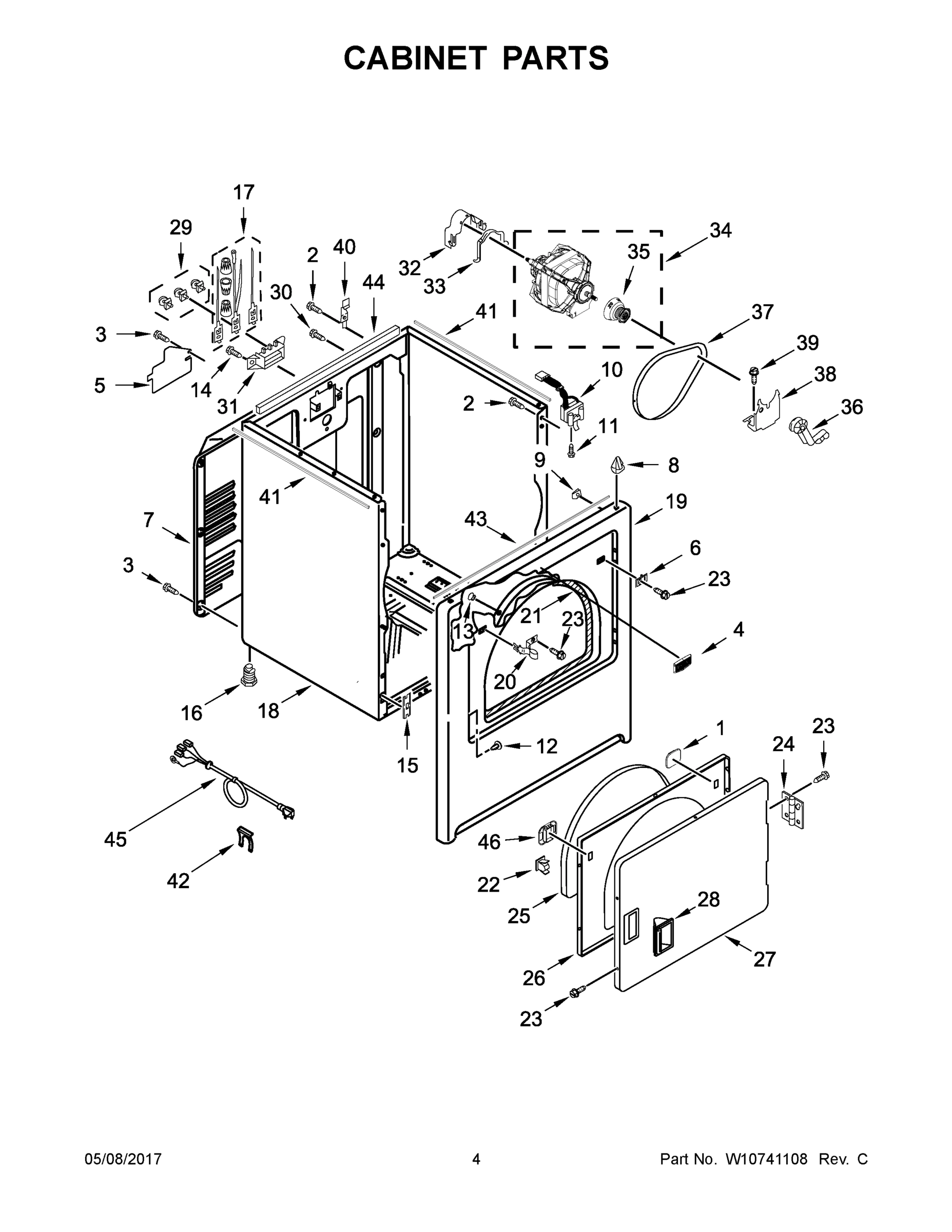

03 - CABINET PARTS

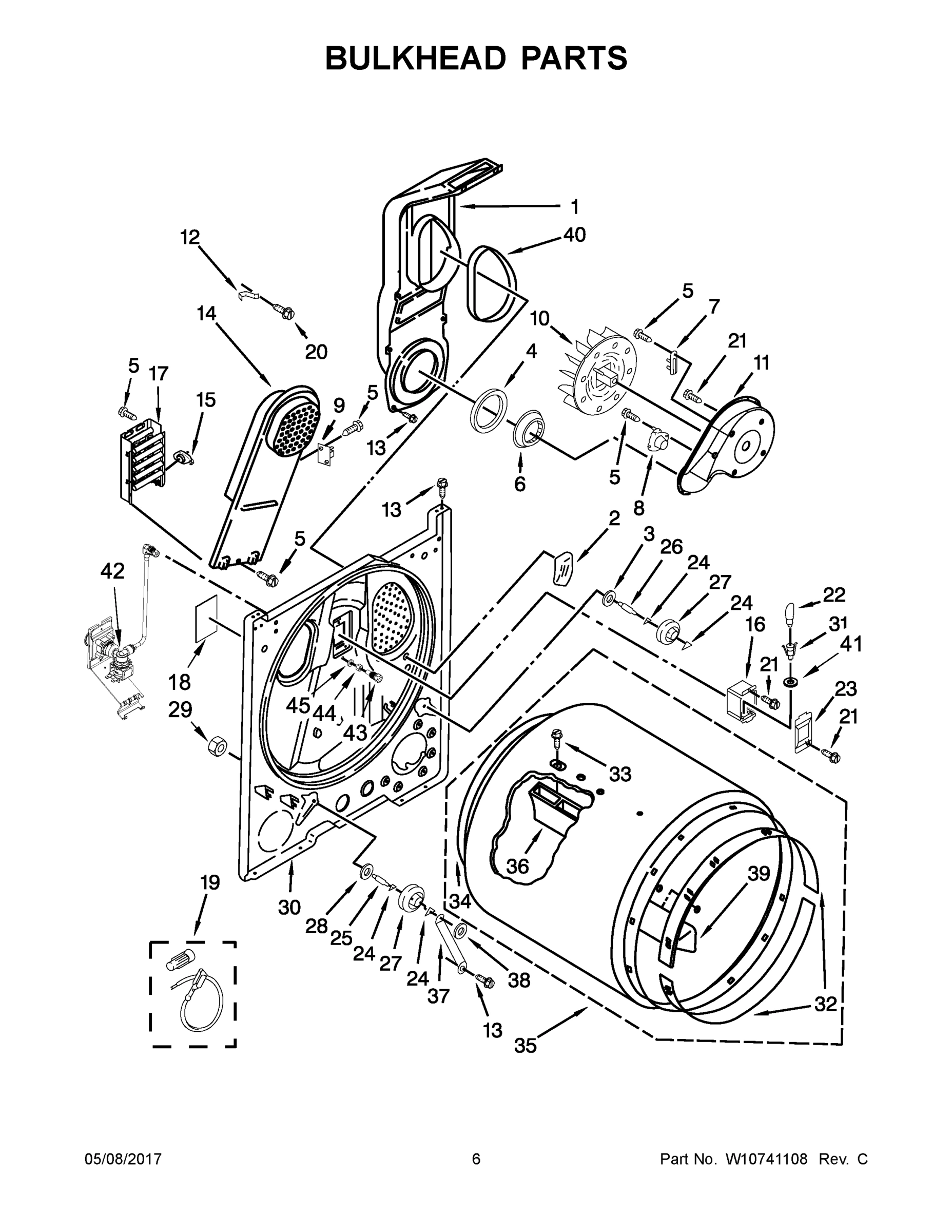

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDX6STBW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER, 29 INCH
1
USE AND CARE GUIDE MAY W10653997 Contact Us For Availability
1
COVER, DOOR CATCH MAY W10529198 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY 348368 Contact Us For Availability
1A
DIAGRAM, WIRING MAY W10634800 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS MAY W10646607 Contact Us For Availability
2
ASSEMBLY, PUSH-TO-START KNOB (GREY) MAY W10565871 Contact Us For Availability
2
PAD, SENSOR MAY 3976479 Contact Us For Availability
3
SWITCH, ROTARY (SIGNAL) MAY W10627711 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
4
SWITCH, ROTARY (WRINKLE CONTROL) MAY W10648593 Contact Us For Availability
4
BADGE MAY W10612925 Contact Us For Availability
4
SEAL, LINT CHUTE MAY 347139 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10476828 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY W10571619 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
6
PANEL, REAR CONSOLE MAY W10416486 Contact Us For Availability
6
PLUG, STRIKE MAY W10567345 Contact Us For Availability
6
SHIELD, EXHAUST MAY W10389567 Contact Us For Availability
7
WIRING HARNESS, MAIN MAY W10646808 Contact Us For Availability
7
PANEL, REAR MAY W10634729 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
8
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
8
LOCK, FRONT TOP MAY 8066092 Contact Us For Availability
8
THERMOSTAT MAY 8318268 Contact Us For Availability
9
CLIP, GROUND MAY 98234 Contact Us For Availability
9
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY W10900067 Contact Us For Availability
10
LINT SCREEN (WHITE) MAY W10508973 Contact Us For Availability
10
SWITCH, DOOR MAY W10569603 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
11
COLLAR, LINT CHUTE MAY W10662472 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
HOUSING, BLOWER MAY 8577230 Contact Us For Availability
12
SEAL, CONSOLE MAY W10588162 Contact Us For Availability
12
PLUG, HOLE (WHITE) MAY 3404413 Contact Us For Availability
12
CLIP, HEATER BOX MAY 3398161 Contact Us For Availability
13
SCREW MAY 688983 Contact Us For Availability
13
SCREW MAY 3390631 Contact Us For Availability
13
CLIP, FELT PAD MAY 685203 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10562155 Contact Us For Availability
14
SCREW MAY 343641 Contact Us For Availability
14
BOX, HEATER MAY 8541818 Contact Us For Availability
15
SCREW MAY 3348629 Contact Us For Availability
15
CLIP, FRONT PANEL MAY W10775448 Contact Us For Availability
15
THERMOSTAT, 221 F (105 C) MAY 3977767 Contact Us For Availability
16
TOP (WHITE) MAY W10695509 Contact Us For Availability
16
FOOT, DRYER MAY W10561321 Contact Us For Availability
16
BRACKET, DRUM LIGHT MAY 3977373 Contact Us For Availability
17
NUT, "U" MAY W10298336 Contact Us For Availability
17
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
17
ELEMENT, HEATER MAY W10724242 Contact Us For Availability
18
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
PAD, FOAM MAY W10653662 Contact Us For Availability
19
SWITCH, ROTARY (PUSH TO START) MAY W10563095 Contact Us For Availability
19
PANEL, FRONT (WHITE) MAY W10664697 Contact Us For Availability
19
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
20
ASSEMBLY, CONSOLE (WHITE) MAY W10647140 Contact Us For Availability
20
STRIKE, DOOR MAY 3403431 Contact Us For Availability
20
SCREW MAY 489463 Contact Us For Availability
21
ASSEMBLY, TIMER MAY W10648592 Contact Us For Availability
21
ASSEMBLY, SEAL AND BEARING MAY W10663510 Contact Us For Availability
21
SCREW MAY 3390647 Contact Us For Availability
22
SWITCH, ROTARY (TEMPERATURE) MAY W10648614 Contact Us For Availability
22
ASSEMBLY, DOOR CATCH MAY W10610880 Contact Us For Availability
22
BULB, LIGHT MAY 3406124 Contact Us For Availability
23
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
23
SCREW MAY 342055 Contact Us For Availability
23
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
24
ASSEMBLY, HINGE AND PIN MAY W10362431 Contact Us For Availability
24
WASHER, TRI RING MAY W10512946 Contact Us For Availability
25
SEAL, DOOR MAY W10730752 Contact Us For Availability
25
SHAFT, LEFT HAND MAY 3399506 Contact Us For Availability
26
DOOR, INNER MAY W10463967 Contact Us For Availability
26
SHAFT, RIGHT HAND MAY 3399507 Contact Us For Availability
27
DOOR, FRONT (WHITE) MAY 3402335 Contact Us For Availability
27
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
28
HANDLE, DOOR (WHITE) MAY W10549553 Contact Us For Availability
28
WASHER MAY 348197 Contact Us For Availability
29
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
29
NUT, HEX MAY W10298789 Contact Us For Availability
30
SCREW MAY 8533974 Contact Us For Availability
30
BULKHEAD MAY W10714471 Contact Us For Availability
31
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
31
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
32
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
32
BEARING, RING MAY 692526 Contact Us For Availability
33
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
33
SCREW MAY W10219342 Contact Us For Availability
34
ASSEMBLY, MOTOR MAY W10396032 Contact Us For Availability
34
SEAL, REAR DRUM MAY W10663495 Contact Us For Availability
35
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
35
ASSEMBLY, DRUM (COMPLETE) MAY W10389436 Contact Us For Availability
36
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
36
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
37
BELT, DRIVE MAY W10198086 Contact Us For Availability
37
BRACKET, SUPPORT MAY 3976434 Contact Us For Availability
38
BASE, MOTOR MAY 348780 Contact Us For Availability
38
NUT, PUSH ON MAY 90296 Contact Us For Availability
39
BOLT MAY 3400500 Contact Us For Availability
39
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
40
HINGE, TOP MAY 8066217 Contact Us For Availability
40
SEAL MAY 339956 Contact Us For Availability
41
SEAL, FOAM MAY W10316529 Contact Us For Availability
41
SEAL, DRUM LIGHT MAY W10709380 Contact Us For Availability
42
CLIP, STRAIN RELIEF MAY 694415 Contact Us For Availability
42
VALVE AND HOSE ASSEMBLY MAY W10562804 Contact Us For Availability
43
SEAL, SPILL GUARD MAY W10316619 Contact Us For Availability
43
NOZZLE STREAM MAY W10363169 Contact Us For Availability
44
SEAL, REAR PANEL MAY W10685675 Contact Us For Availability
44
NUT, BRASS MAY W10044628 Contact Us For Availability
45
CORD, POWER MAY W10712173 Contact Us For Availability
45
WASHER, NOZZLE MAY W10044579 Contact Us For Availability
46
BEZEL, DOOR CATCH MAY W10529197 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY W10636192 Contact Us For Availability
× ![]()
