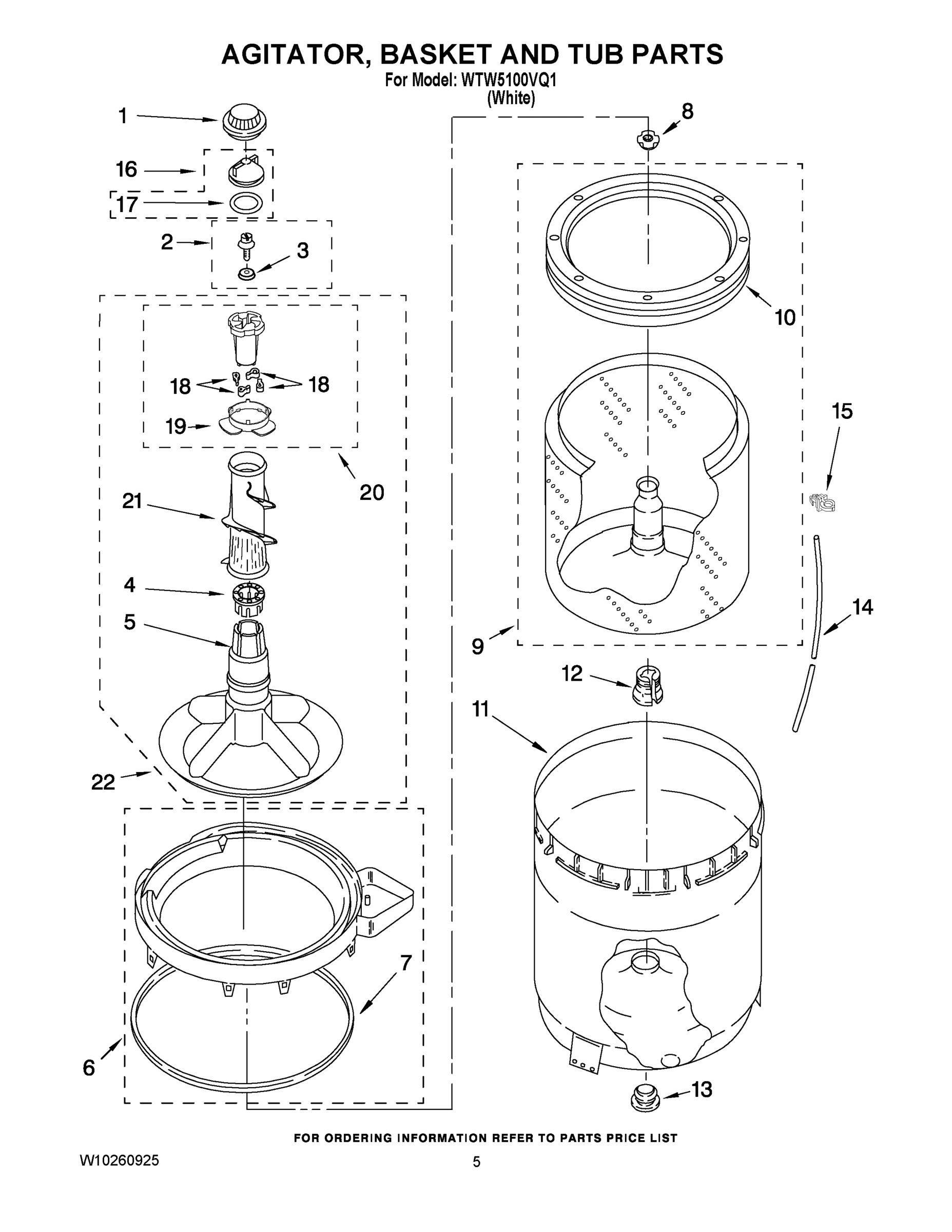

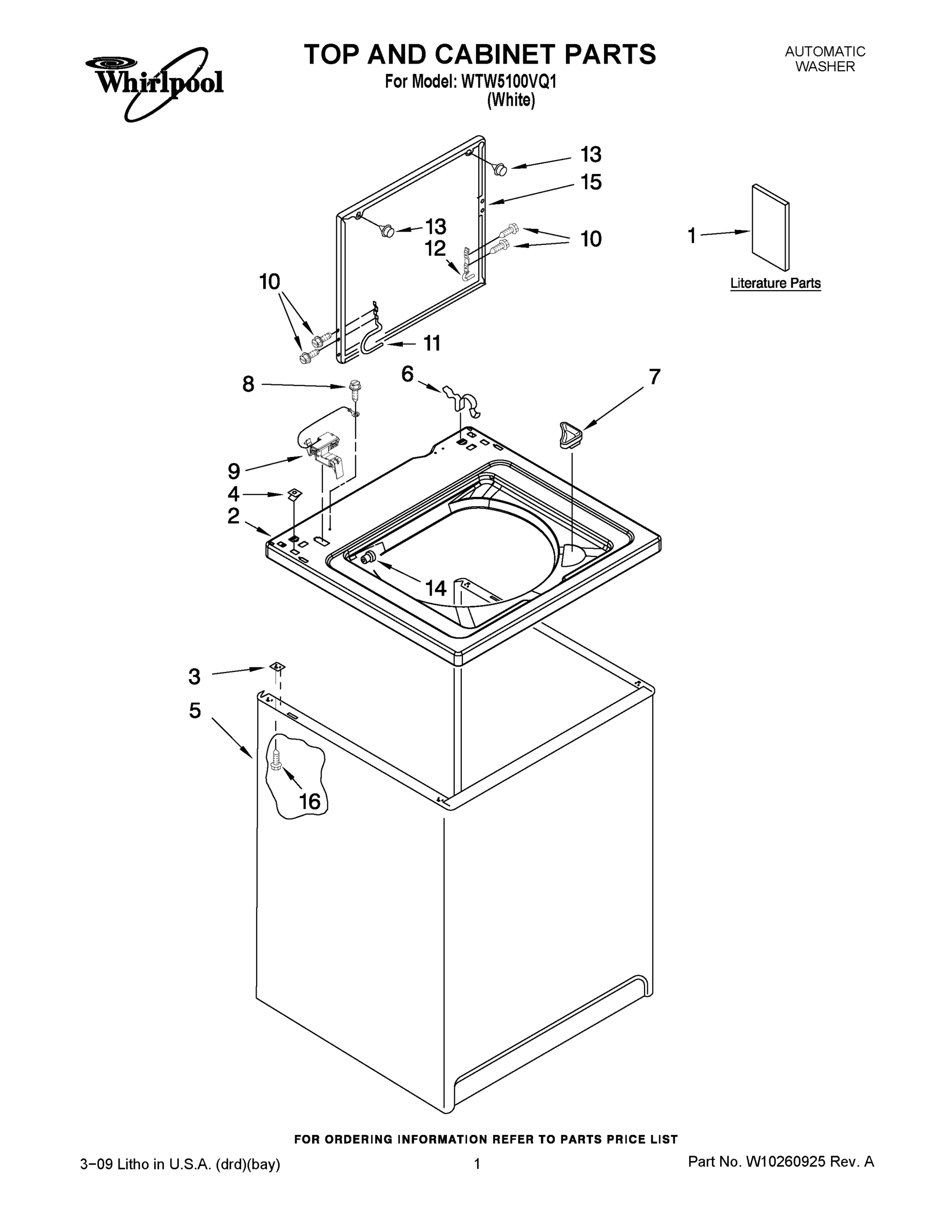

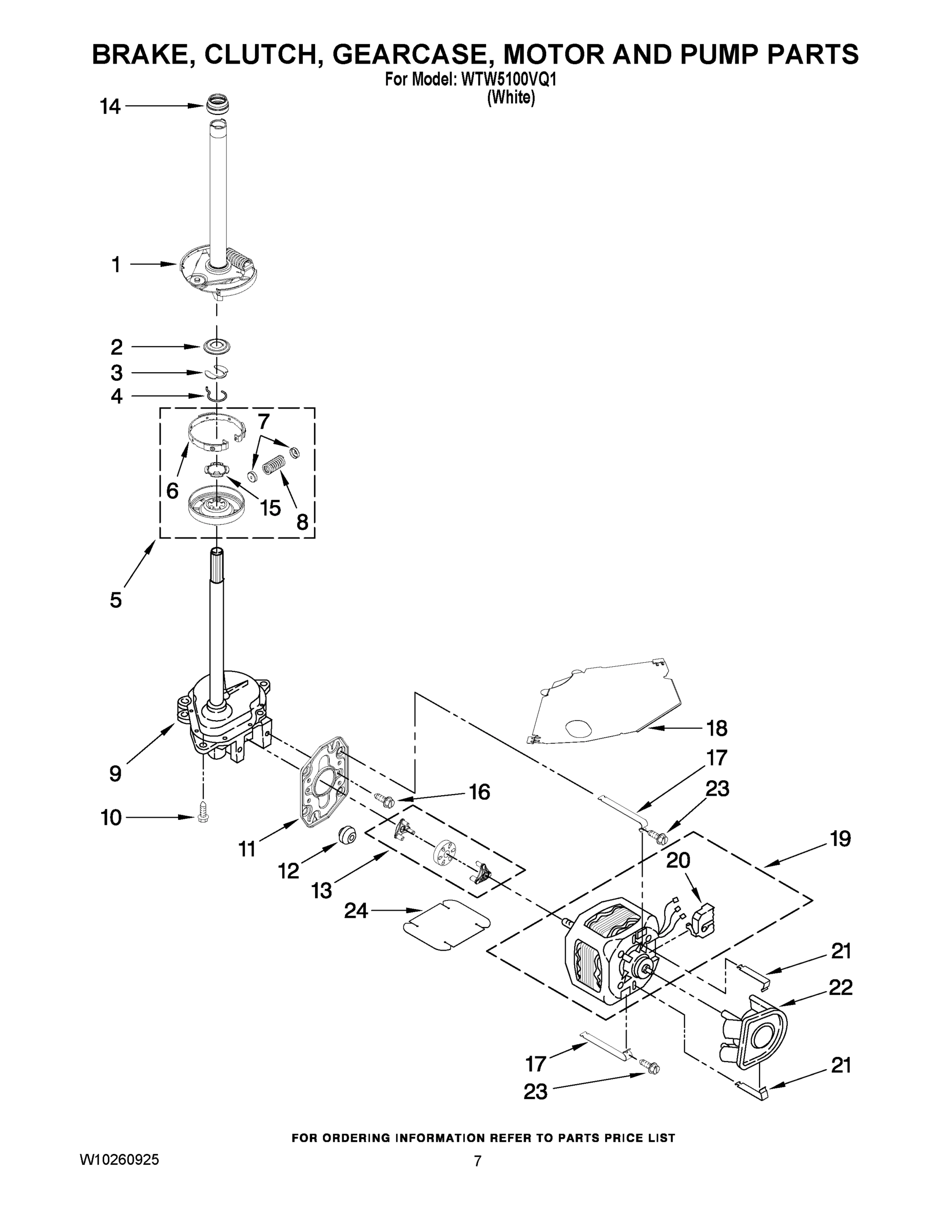

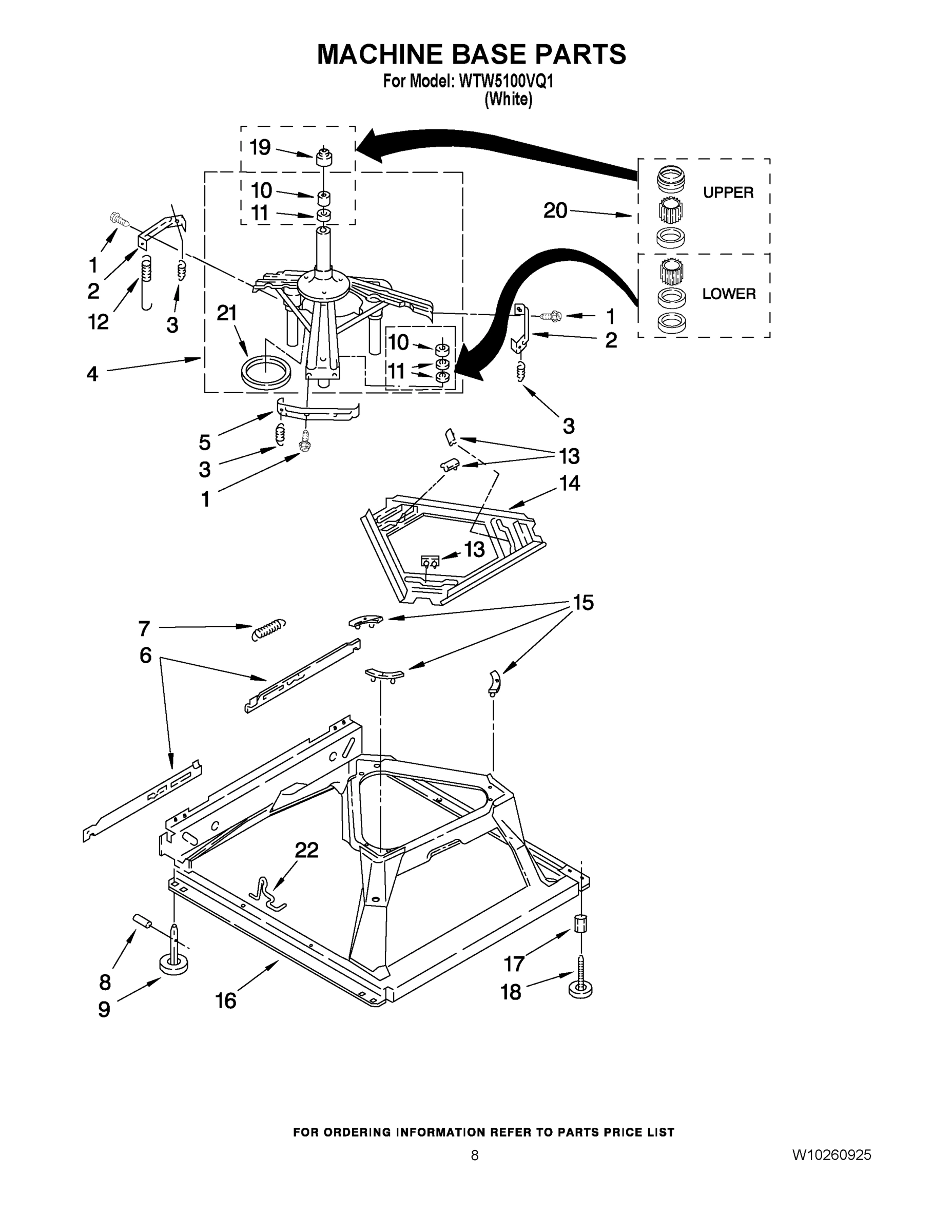

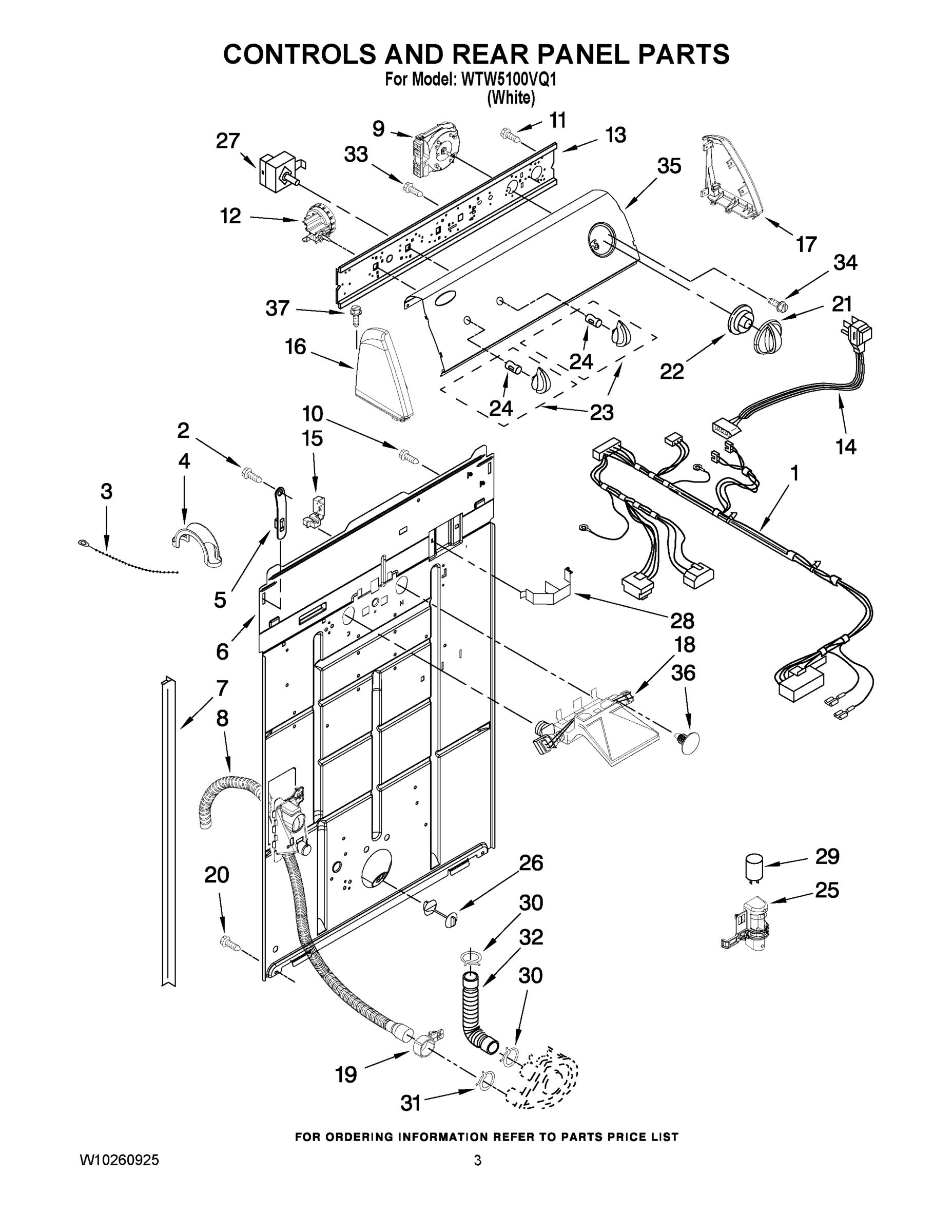

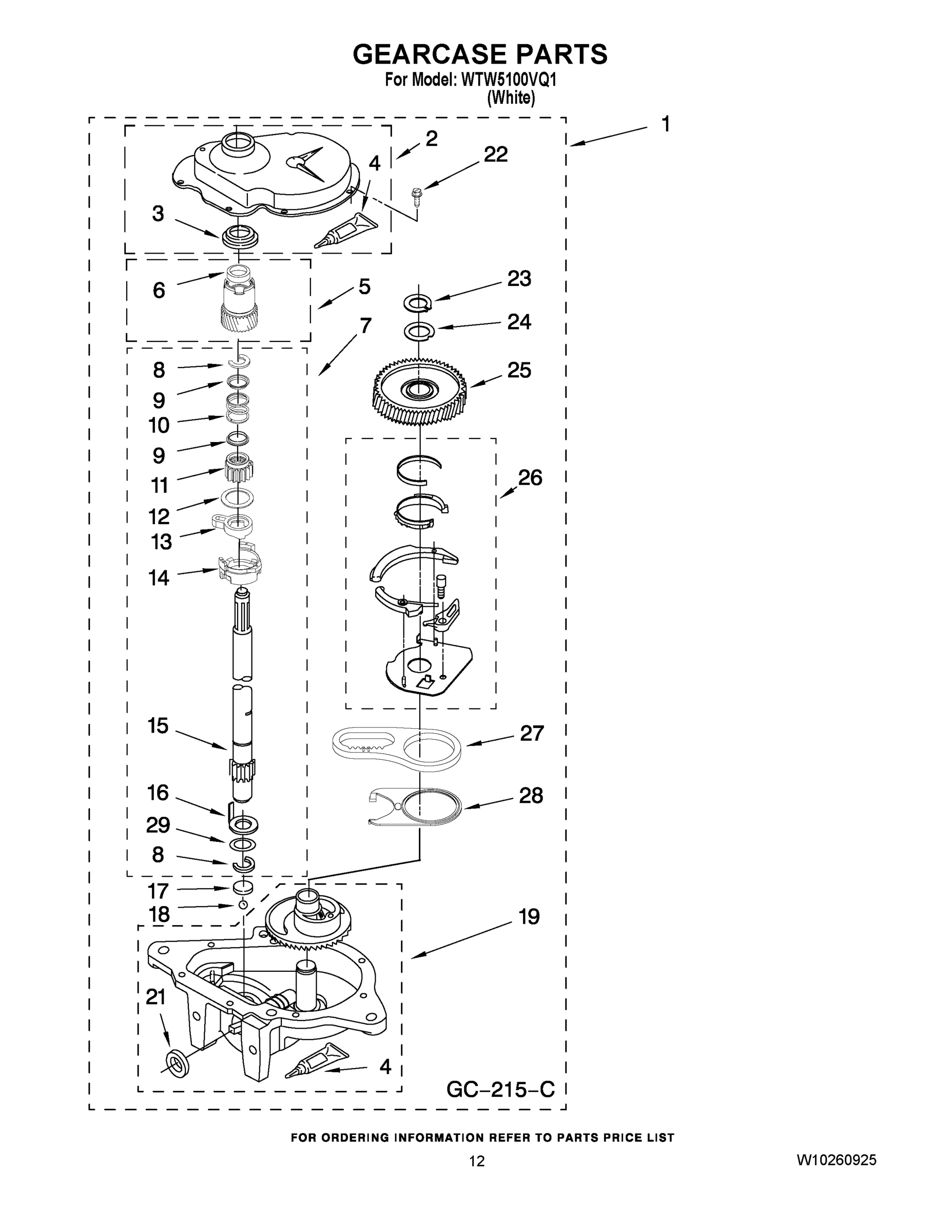

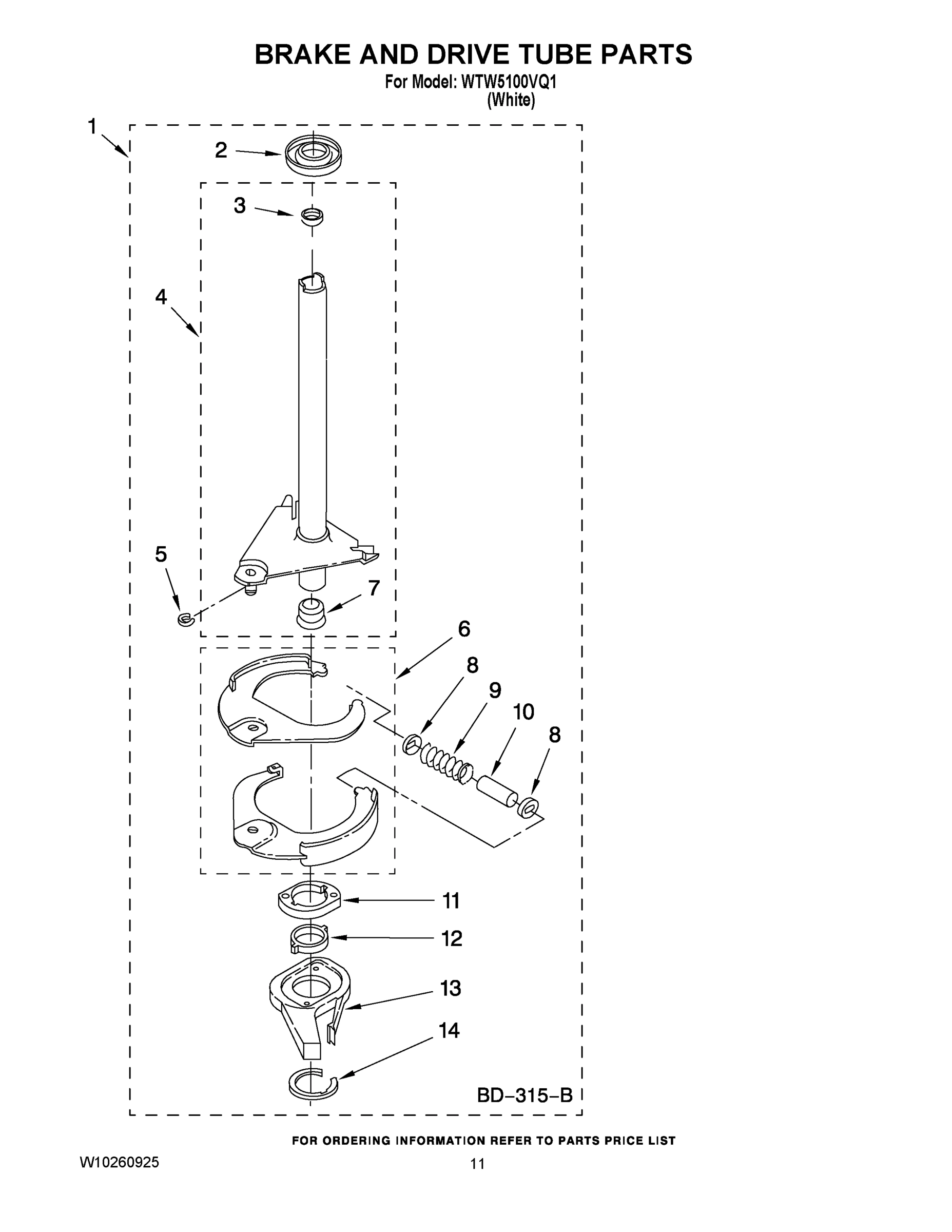

Model Whirlpool WTW5100VQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Manual, Washer WPL 4313896 Contact Us For Availability

1

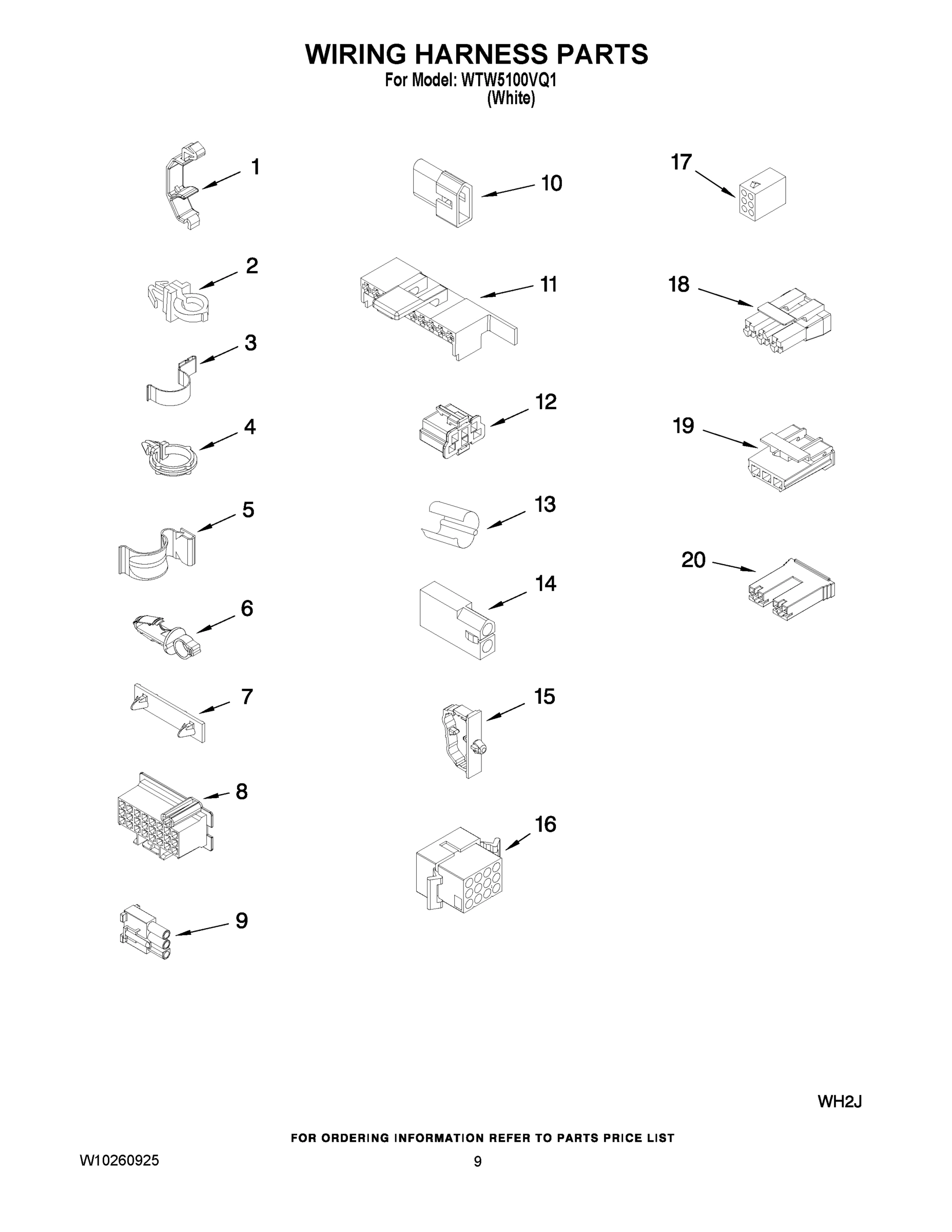

Harness, Wiring (For Detail See Pages 9 & 10) WPL W10211259 Contact Us For Availability

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $78.41

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10189267 Whirlpool Drain Hose In Stock WPL WPW10189267 $35.95

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $30.56

9

WPW10199989 Whirlpool Timer In Stock WPL WPW10199989 $151.94

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

11

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

13

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

14

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.70

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

16

W10165554 Whirlpool Screw Backorder WPL W10165554 $9.59

16

Block, Disconnect (12-Way) WPL 3390423 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.70

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Receptacle, 6 Way WPL 3347730 Contact Us For Availability

18

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

18

WPW10140917 Whirlpool Valve In Stock WPL WPW10140917 $109.63

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

Plug (T.P.A) (3-Circuit) (Pressure Switch) WPL 3360056 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

BLOCK, CONNECTOR (RED WPL 3354926 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

WP3348752 Whirlpool Agitator Mover In Stock WPL WP3348752 $90.19

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Knob, Timer WPL 8566022 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $29.74

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

23

Knob, Control WPL 8565944 Contact Us For Availability

24

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

25

Clip, Capacitor WPL 8318046 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

27

WP8578337 Whirlpool Water Temperature Switch Backorder WPL WP8578337 $50.73

29

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

37

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

285448A Whirlpool Washer In Stock WPL 285448A $3.55

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $3.46

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $22.44

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $12.35

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $14.75

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
