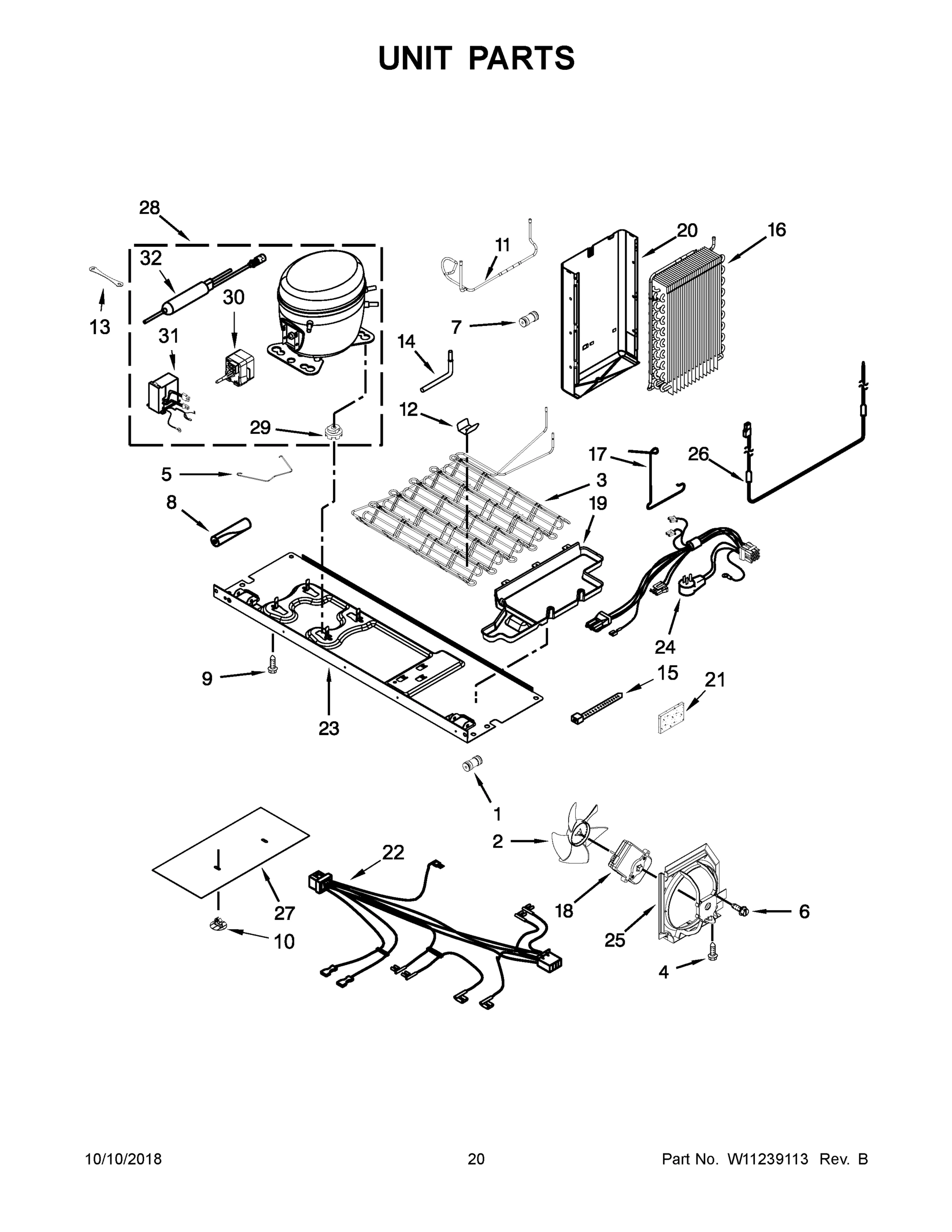

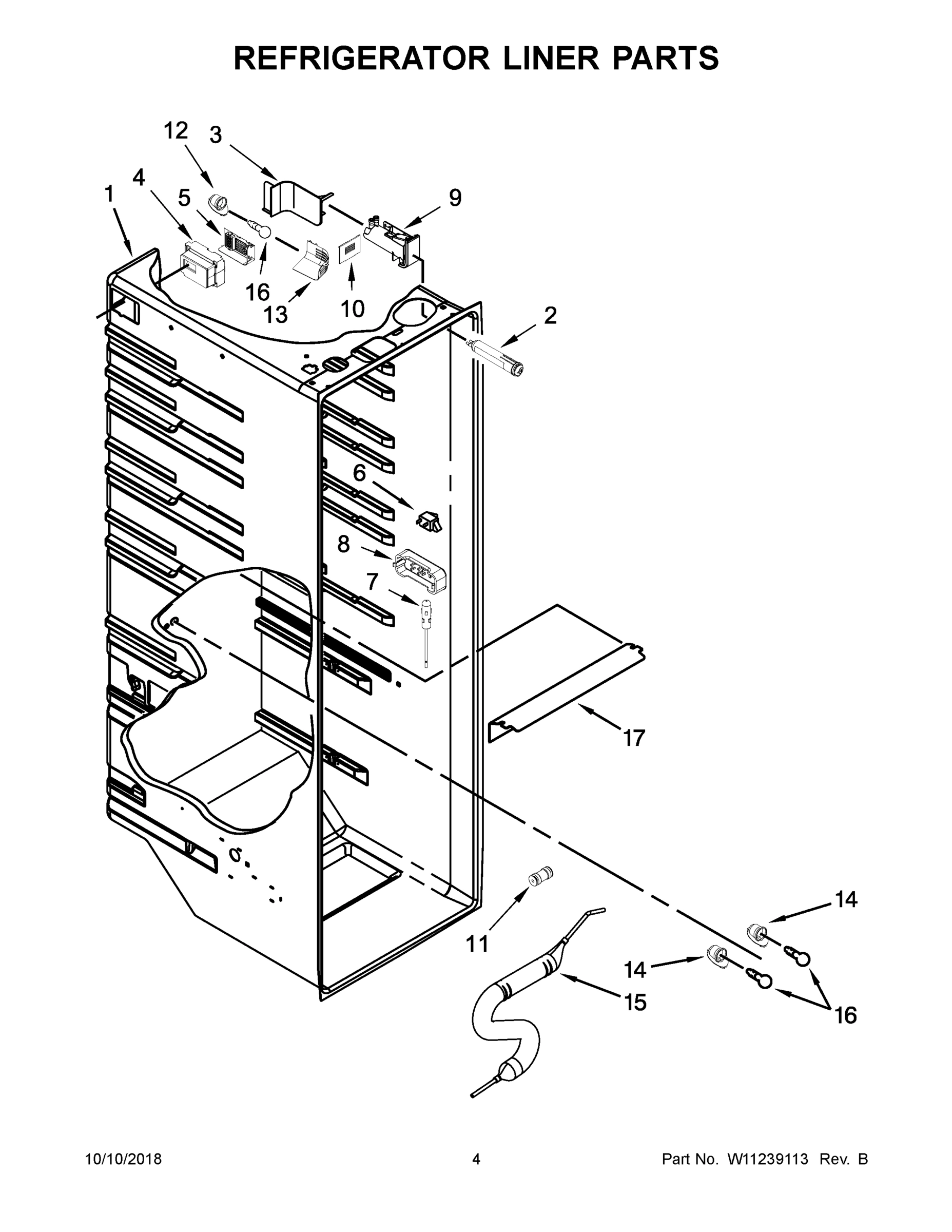

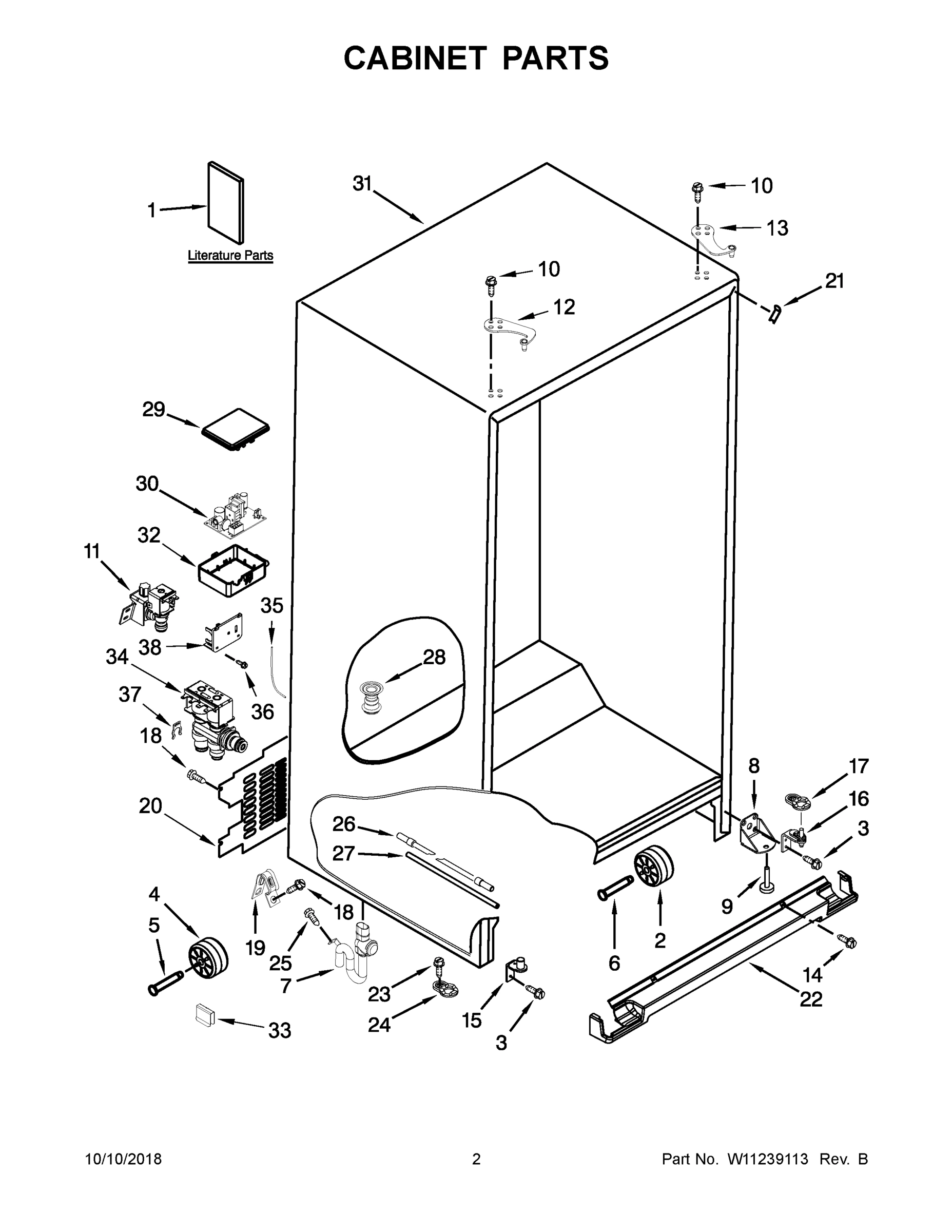

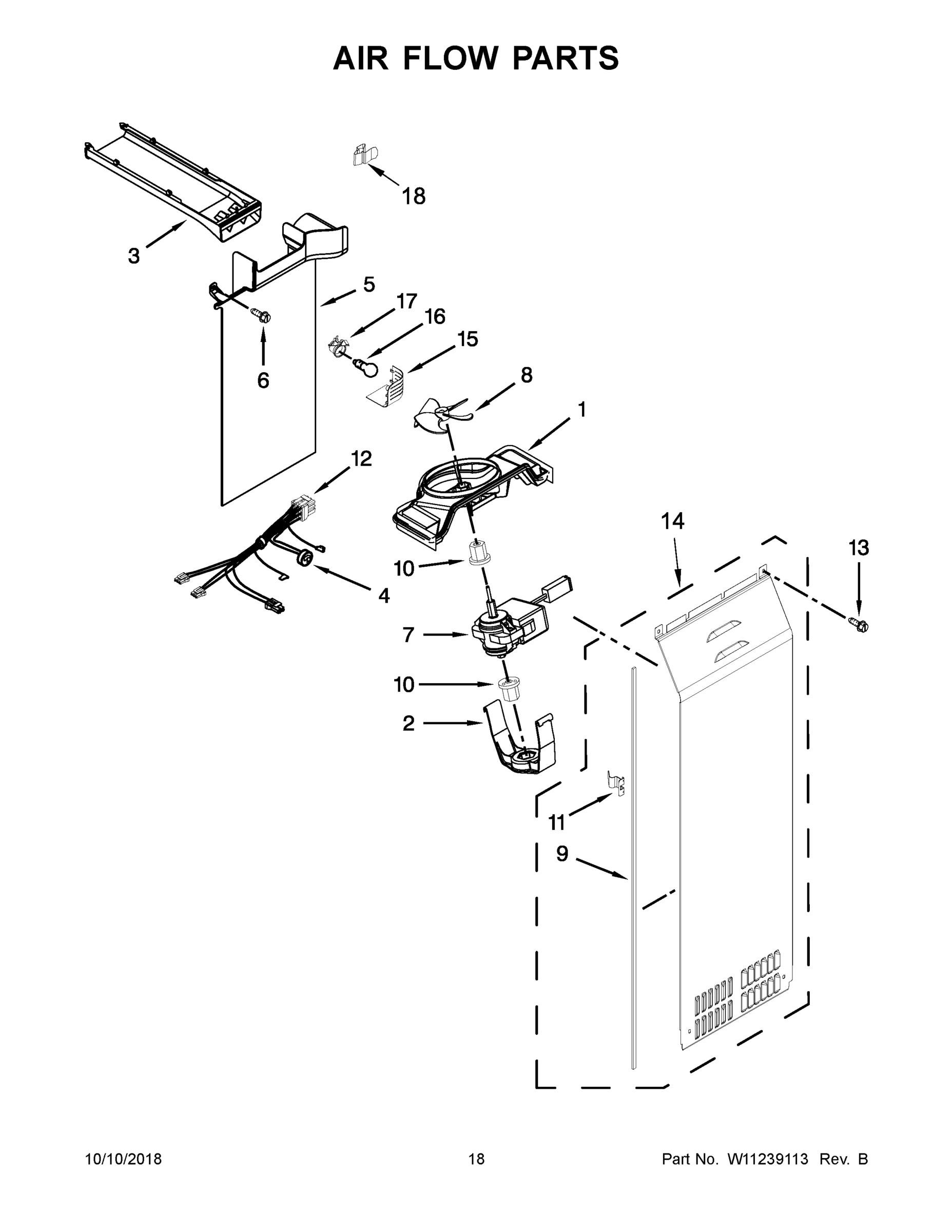

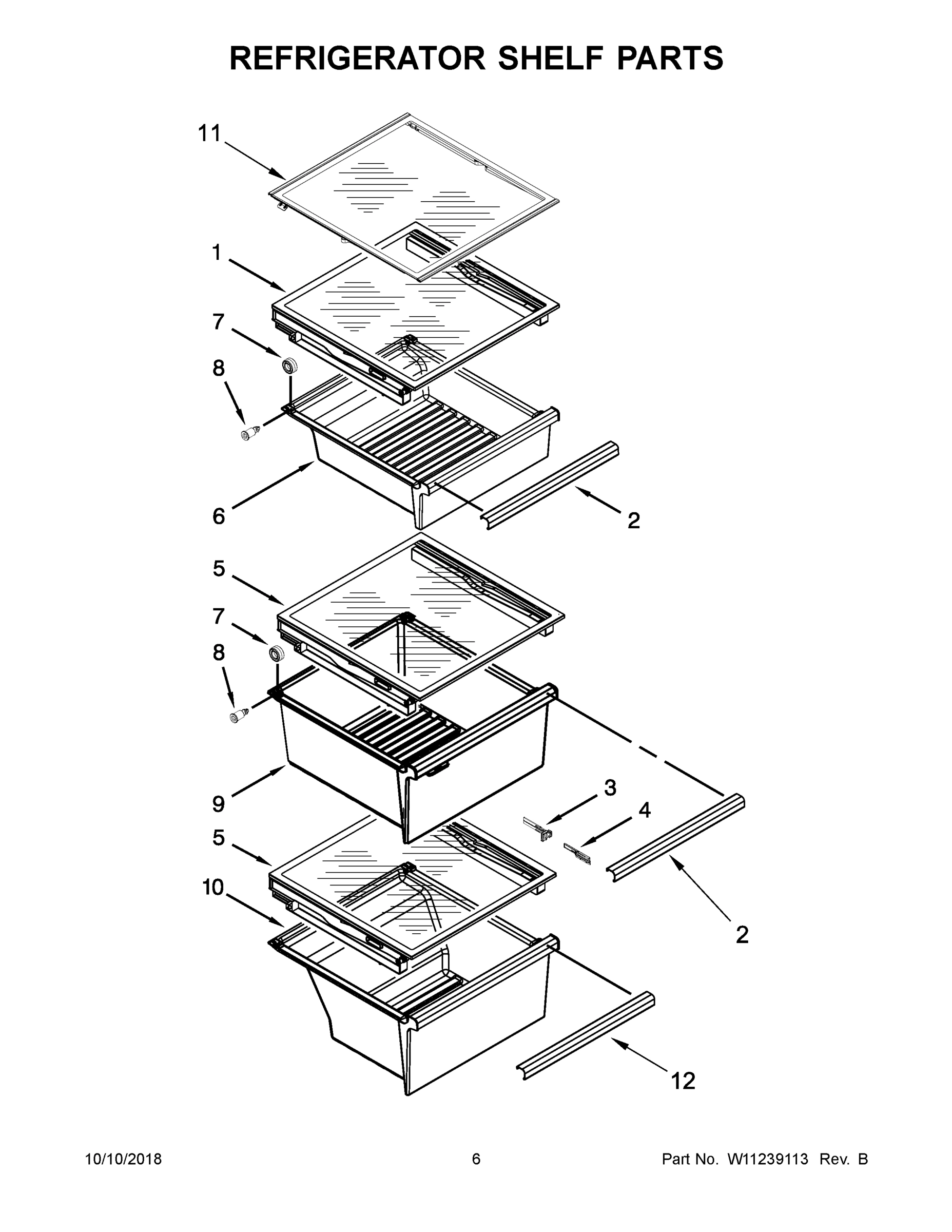

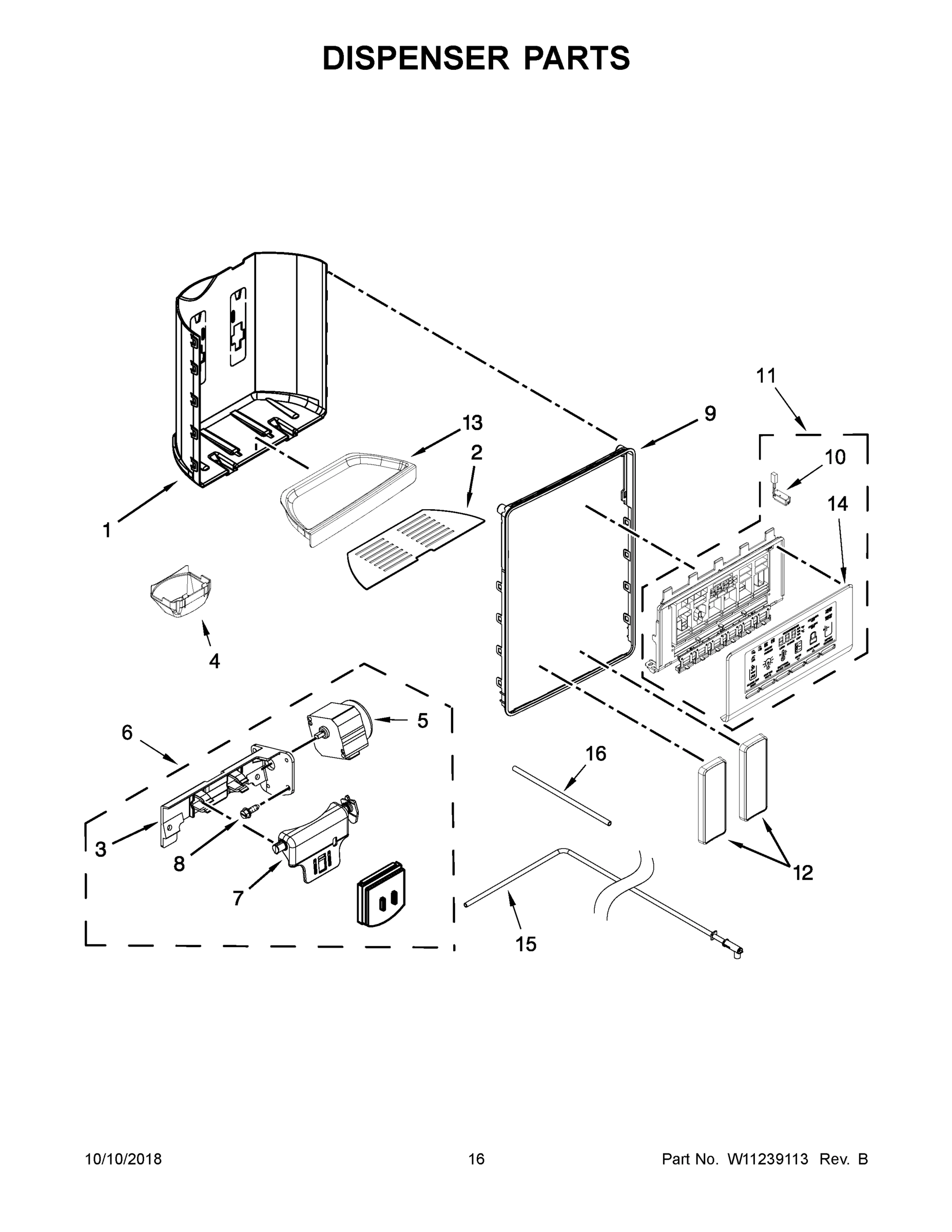

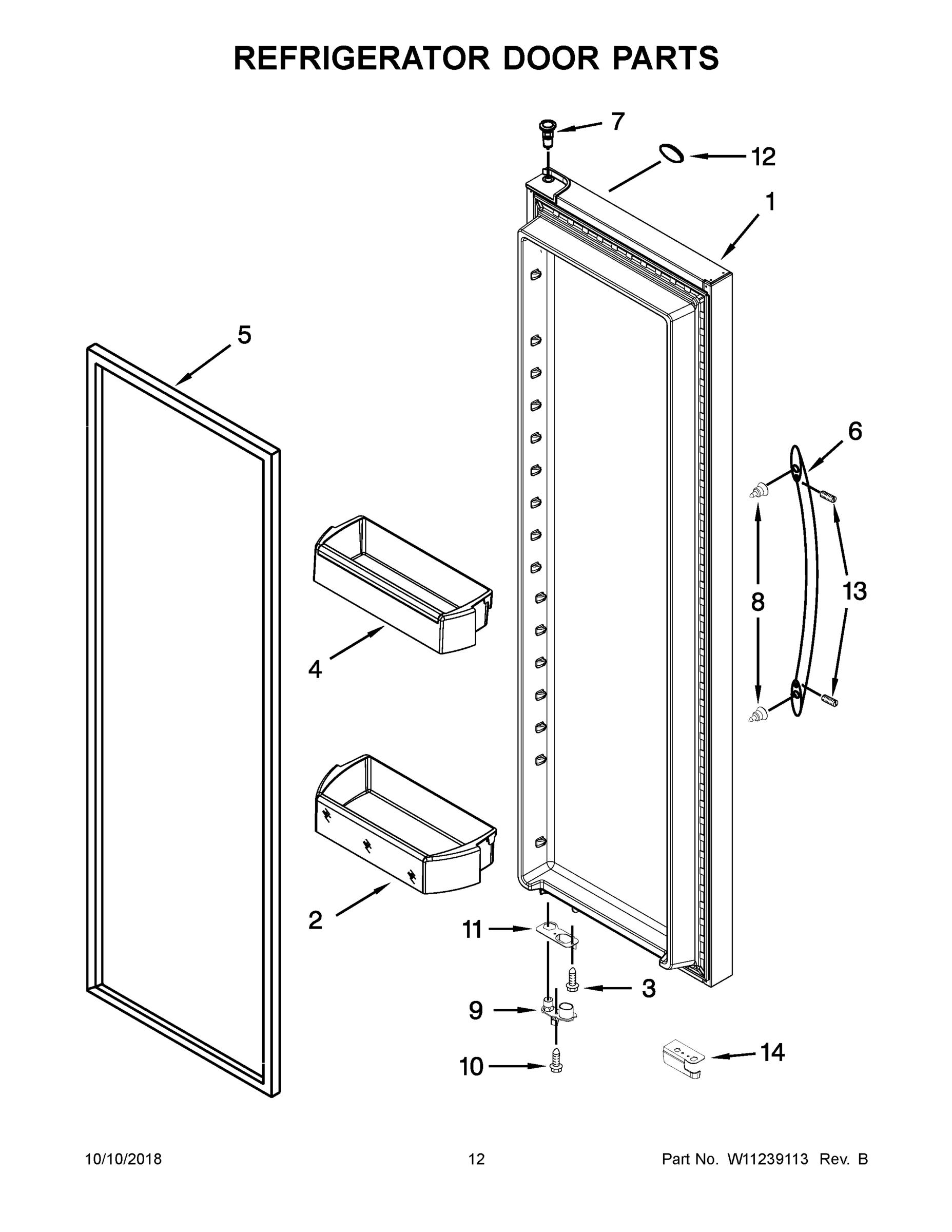

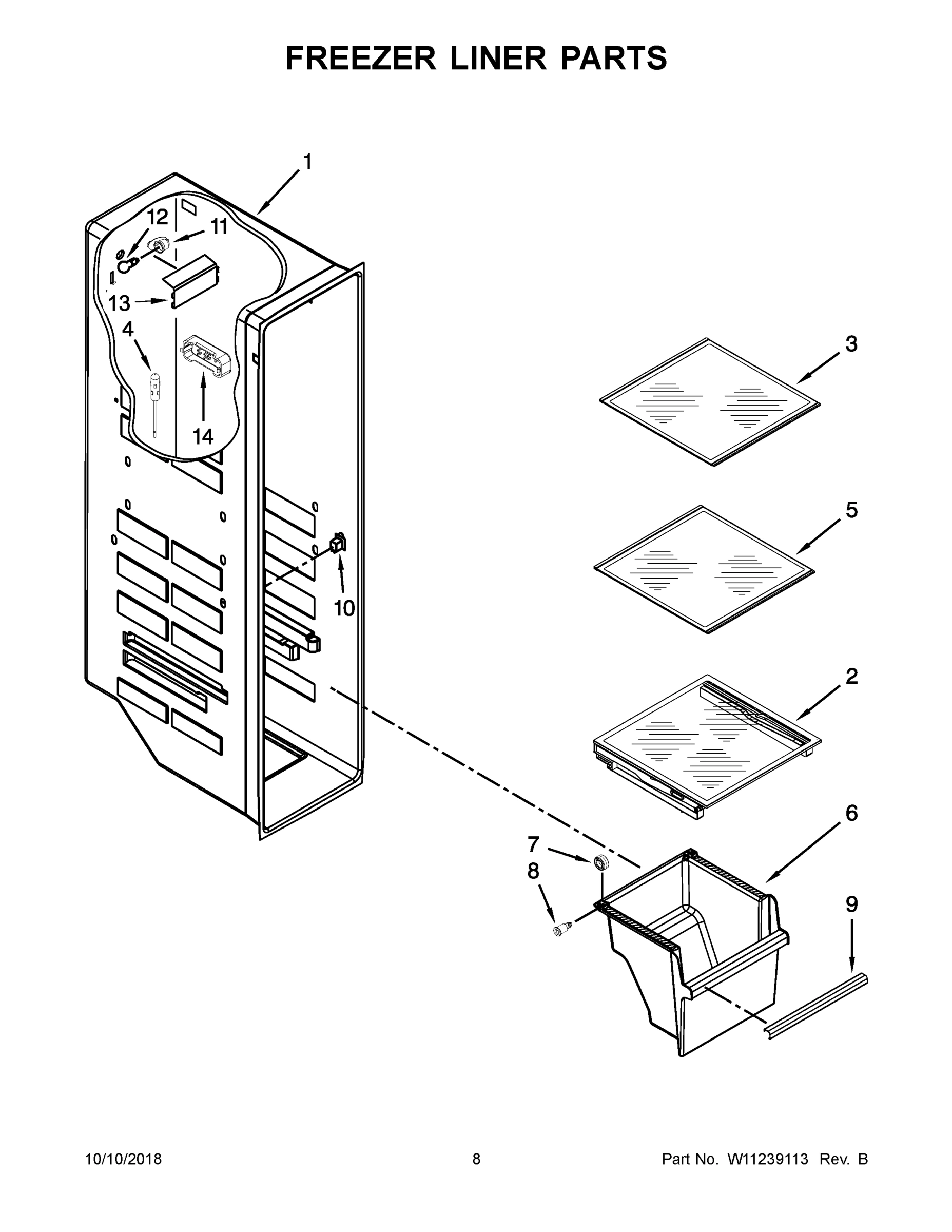

Model Whirlpool WRSA71CIHZ00 REFRIGERATOR, SIDE-BY-SIDE – Common Parts &amp; Diagrams

1

FAN-SCROLL Backorder WPL W11807265 $0.00

1A

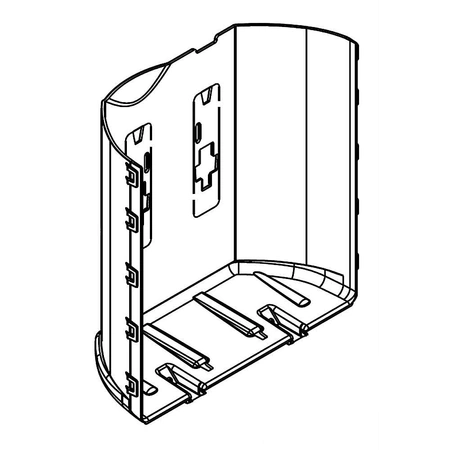

W10276226 Whirlpool Refrigerator Separator Backorder WPL W10276226 $52.59

2

W10836801 Whirlpool Refrigerator Drawer Cover Backorder WPL W10836801 $76.15

2

W11652042 Whirlpool Bin Latch Backorder WPL W11652042 $8.20

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WPW10276209 Whirlpool Grille Backorder WPL WPW10276209 $46.04

2

WPW10710203 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10710203 $29.85

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11501035 Whirlpool Refrigerator Filter Cover Backorder WPL W11501035 $7.94

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $103.17

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

3

DUCT, UPPER AIR WPL W10260380 Contact Us For Availability

4

WPW10258544 Whirlpool Refrigerator Shaft In Stock WPL WPW10258544 $14.53

4

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $9.28

4

WPW10451873 Whirlpool Door Shelf Bin In Stock WPL WPW10451873 $50.57

5

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

5

W10260378 Whirlpool Refrigerator Air Duct Backorder WPL W10260378 $51.48

5

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

5

WPW10457601 Whirlpool Refrigerator Support Backorder WPL WPW10457601 $68.65

5

WPW10508334 Whirlpool Refrigerator Cover Backorder WPL WPW10508334 $122.75

6

W11106313 Whirlpool Refrigerator Freezer Bin Backorder WPL W11106313 $71.88

6

W11208384 Whirlpool Refrigerator Rivet Backorder WPL W11208384 $7.03

6

W11551764 Whirlpool Snack Pan In Stock WPL W11551764 $68.15

6

W11573761 Whirlpool Mounting Bracket In Stock WPL W11573761 $22.23

6

WPW10430639 Whirlpool Cantilever Bin In Stock WPL WPW10430639 $82.05

7

W11164152 Whirlpool Drawer Roller In Stock WPL W11164152 $6.90

7

W11293072 Whirlpool Refrigerator Extension Backorder WPL W11293072 $13.03

7

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $5.01

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

7

WPW10277958 Whirlpool Refrigerator Fitting In Stock WPL WPW10277958 $31.44

7

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $15.94

8

W11175807 Whirlpool Axle Assembly In Stock WPL W11175807 $7.72

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $26.54

8

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $10.80

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $9.63

9

WPW10292504 Whirlpool Crisper Pan In Stock WPL WPW10292504 $85.64

9

WPW10394053 Whirlpool Refrigerator Housing In Stock WPL WPW10394053 $97.13

9

RING, TRIM (CHROMIUM FROST) WPL W11087882 Contact Us For Availability

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $6.90

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WPW10256854 Whirlpool Refrigerator Meat Pan In Stock WPL WPW10256854 $74.34

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

WPW10457603 Whirlpool Refrigerator Cover In Stock WPL WPW10457603 $30.27

11

W11126296 Whirlpool Refrigerator Front Cover Backorder WPL W11126296 $69.59

11

W11232019 Whirlpool Refrigerator Clip Backorder WPL W11232019 $4.39

11

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $14.24

W10691248 Whirlpool Refrigerator Plate Backorder WPL W10691248 $54.59

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

W11566475 Whirlpool Refrigerator Wire Harness In Stock WPL W11566475 $28.84

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $9.37

W11624941 Whirlpool Refrigerator Pad In Stock WPL W11624941 $26.17

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

W10918003 Whirlpool Refrigerator RKR Switch In Stock WPL W10918003 $31.70

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $26.74

WPW10269101 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269101 $40.39

13A

W10276225 Whirlpool Refrigerator Drip Tray Backorder WPL W10276225 $50.20

14

W10458867 Whirlpool Refrigerator Escutcheon Backorder WPL W10458867 $111.66

14

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $3.92

14

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $38.33

W10260382 Whirlpool Refrigerator Cover Backorder WPL W10260382 $37.20

W10749467 Whirlpool Refrigerator Insulation Backorder WPL W10749467 $60.74

W11613294 Whirlpool Refrigerator Reservoir Backorder WPL W11613294 $31.28

WPW10386778 Whirlpool Refrigerator Water Tube Backorder WPL WPW10386778 $54.68

16

W11292872 Whirlpool Refrigerator Door Hinge In Stock WPL W11292872 $28.71

16

W11684619 Whirlpool Refrigerator Jumper Wire Backorder WPL W11684619 $7.34

16

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

17

WPW10269099 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269099 $54.81

17

CLIP, DEFROST HEATER WPL 2161324 Contact Us For Availability

18

W11678273 Whirlpool Bracket Backorder WPL W11678273 $28.11

19

W10166854 Whirlpool Refrigerator Gasket Backorder WPL W10166854 $10.07

19

W10714793 Whirlpool Refrigerator Evaporator T In Stock WPL W10714793 $67.64

20

W10257238 Whirlpool Refrigerator Cover Unit Backorder WPL W10257238 $55.66

21

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

W11676780 Whirlpool Refrigerator Wire Harness Backorder WPL W11676780 $28.04

22

WPW10713153 Whirlpool Refrigerator Grille In Stock WPL WPW10713153 $61.32

23

BASEPAN WPL W10277704 Contact Us For Availability

24

WPW10242407 Whirlpool Refrigerator Power Cord Backorder WPL WPW10242407 $31.53

25

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $50.80

26

WPW10279882 Whirlpool Water Line In Stock WPL WPW10279882 $30.48

26

WPW10495967 Whirlpool Refrigerator Heater In Stock WPL WPW10495967 $61.32

27

WPW10279884 Whirlpool Water Tube In Stock WPL WPW10279884 $36.47

27

COVER, UNIT BOTTOM WPL W10284726 Contact Us For Availability

28

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $13.10

30

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $41.28

31

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $54.11

32

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

32

WPW10247993 Whirlpool Refrigerator Control Bo In Stock WPL WPW10247993 $47.78

33

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

34

WPW10341320 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10341320 $108.06

37

W11676611 Whirlpool Ring Backorder WPL W11676611 $8.11

37A

W11678575 Whirlpool Ring In Stock WPL W11678575 $8.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4318168 Whirlpool Refrigerator Primary Permag In Stock WPL 4318168 $26.79

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2OZ. GRAPHITE) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
