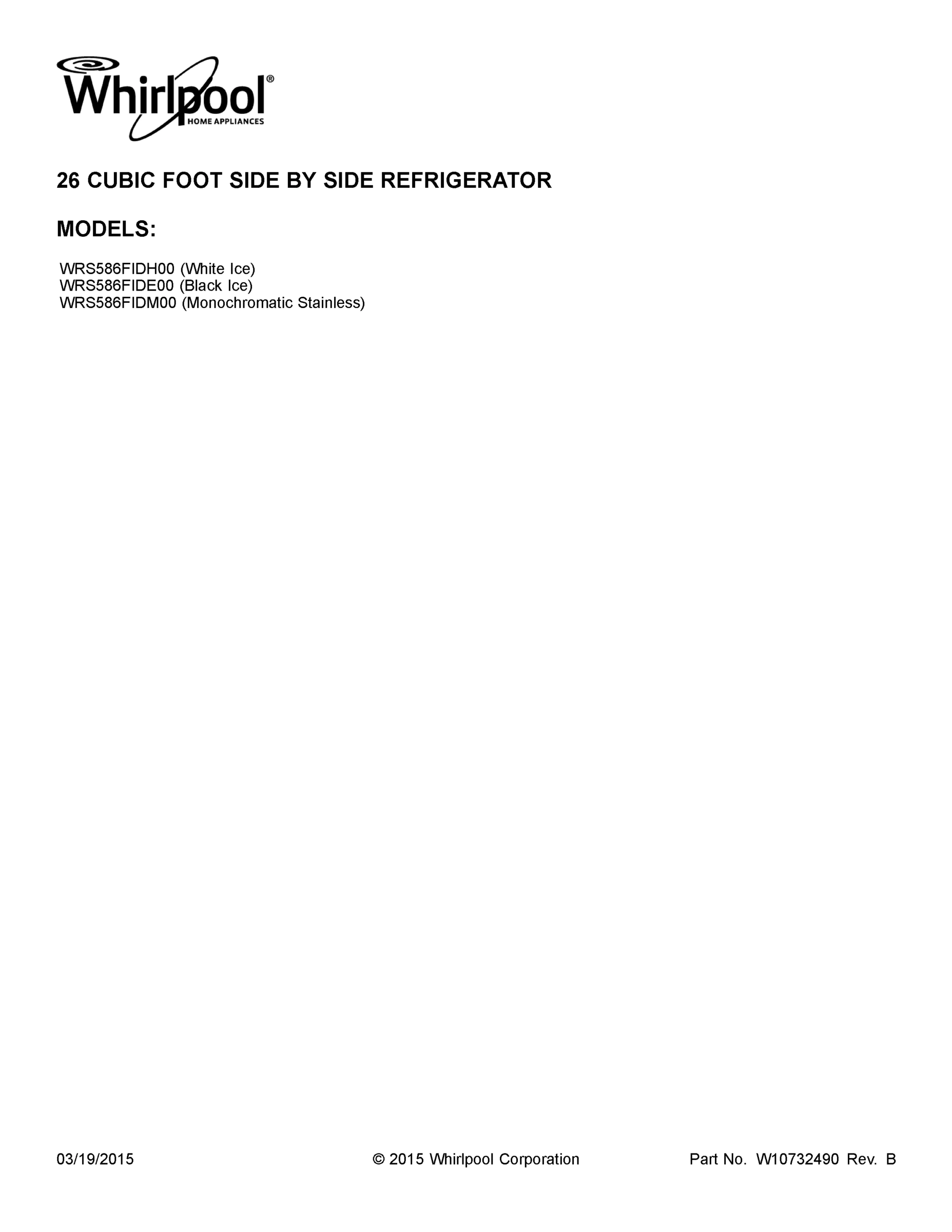

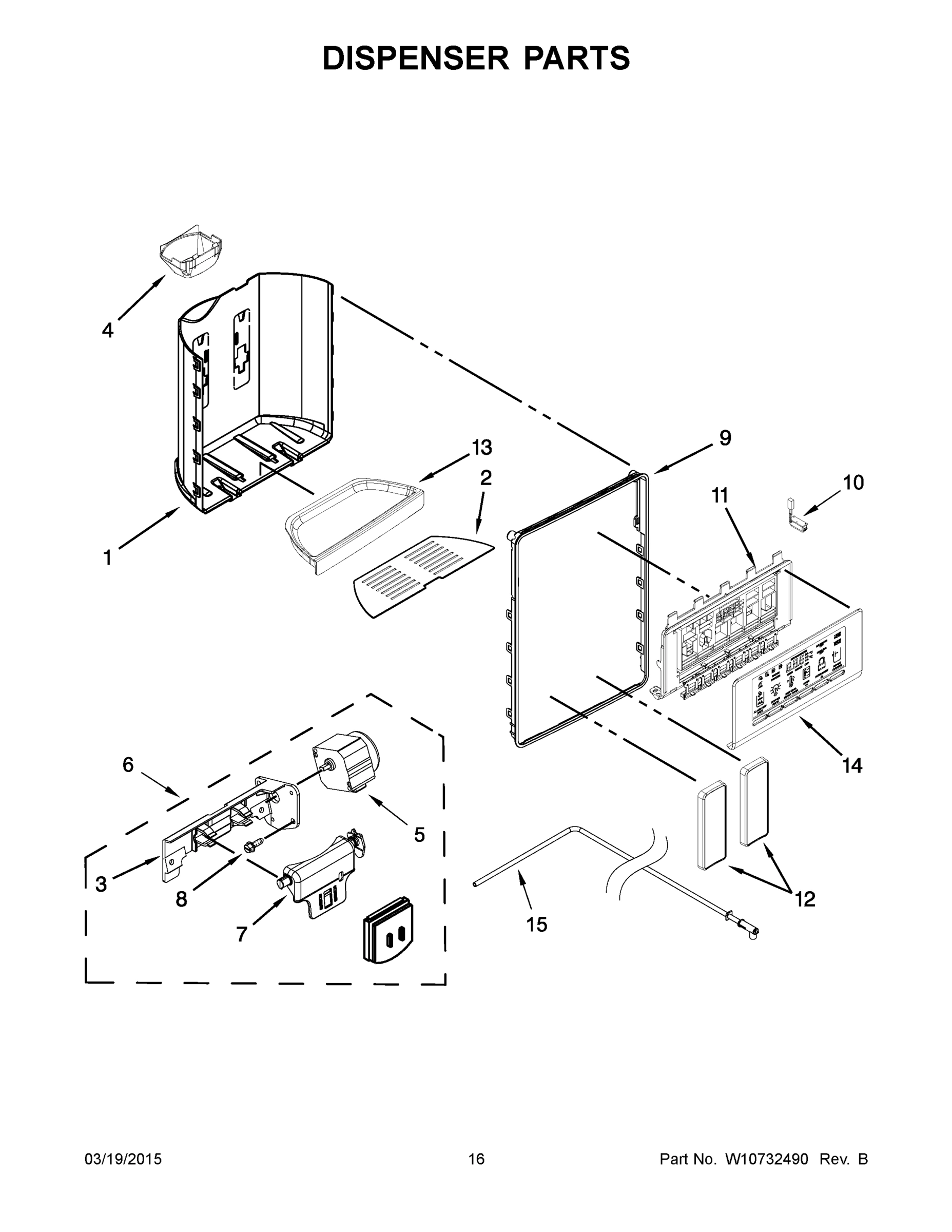

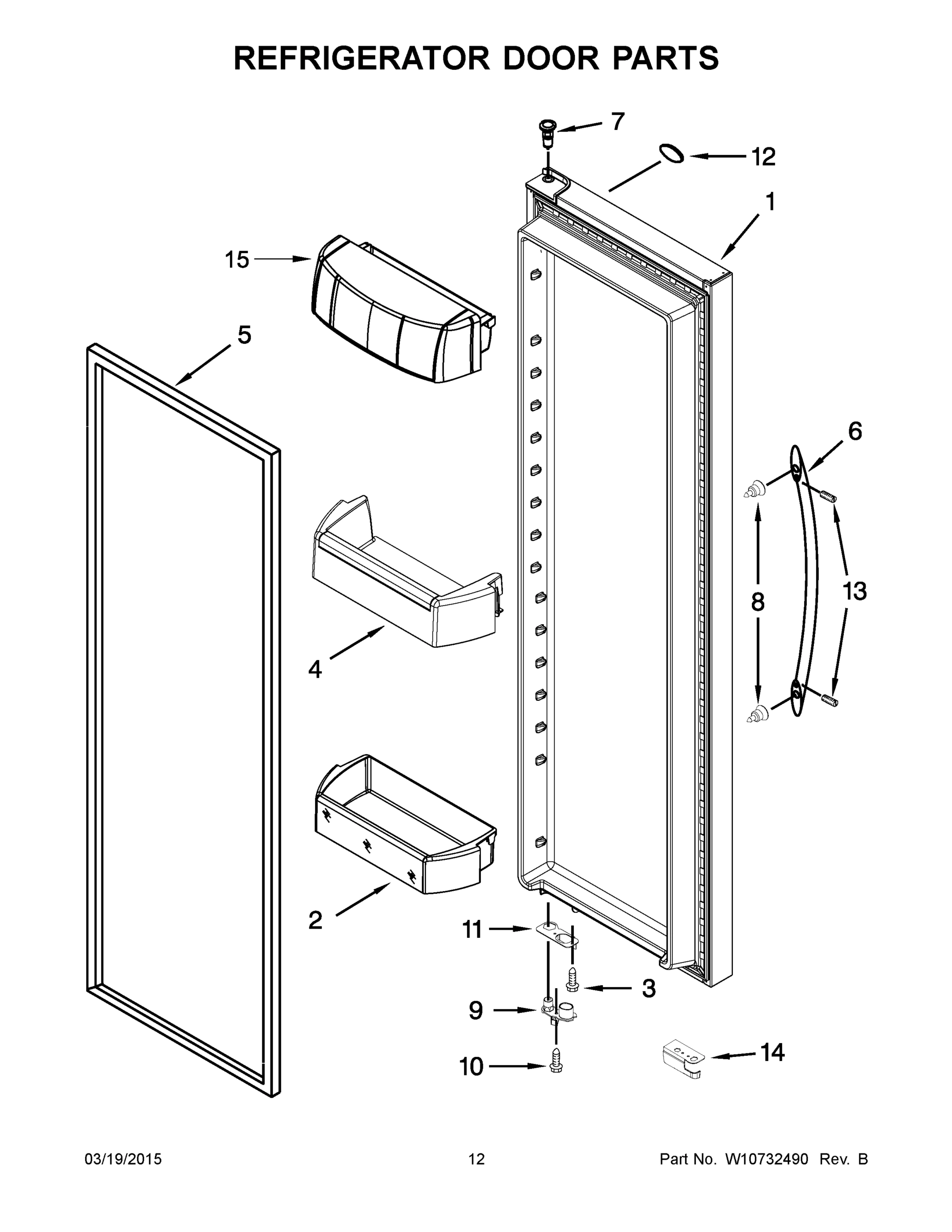

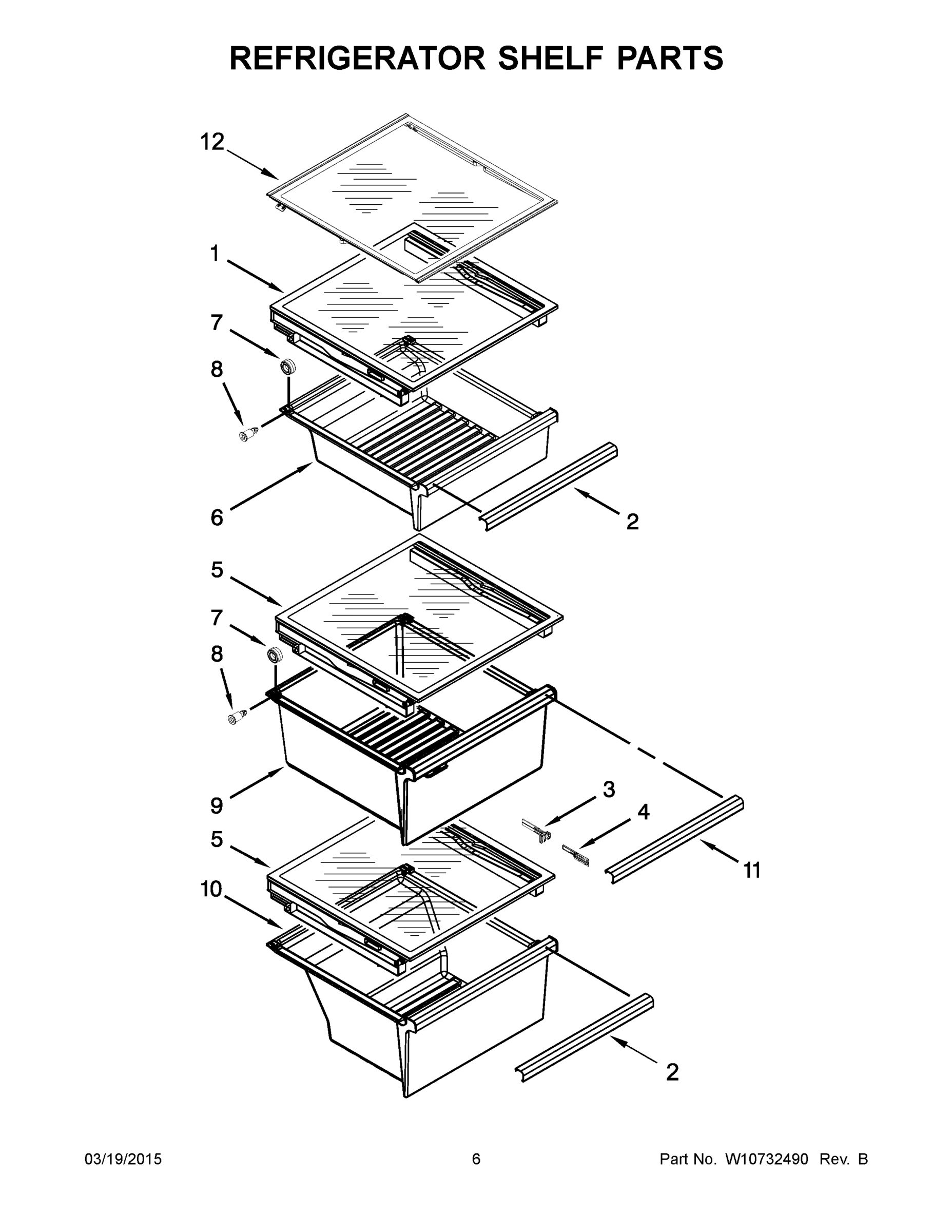

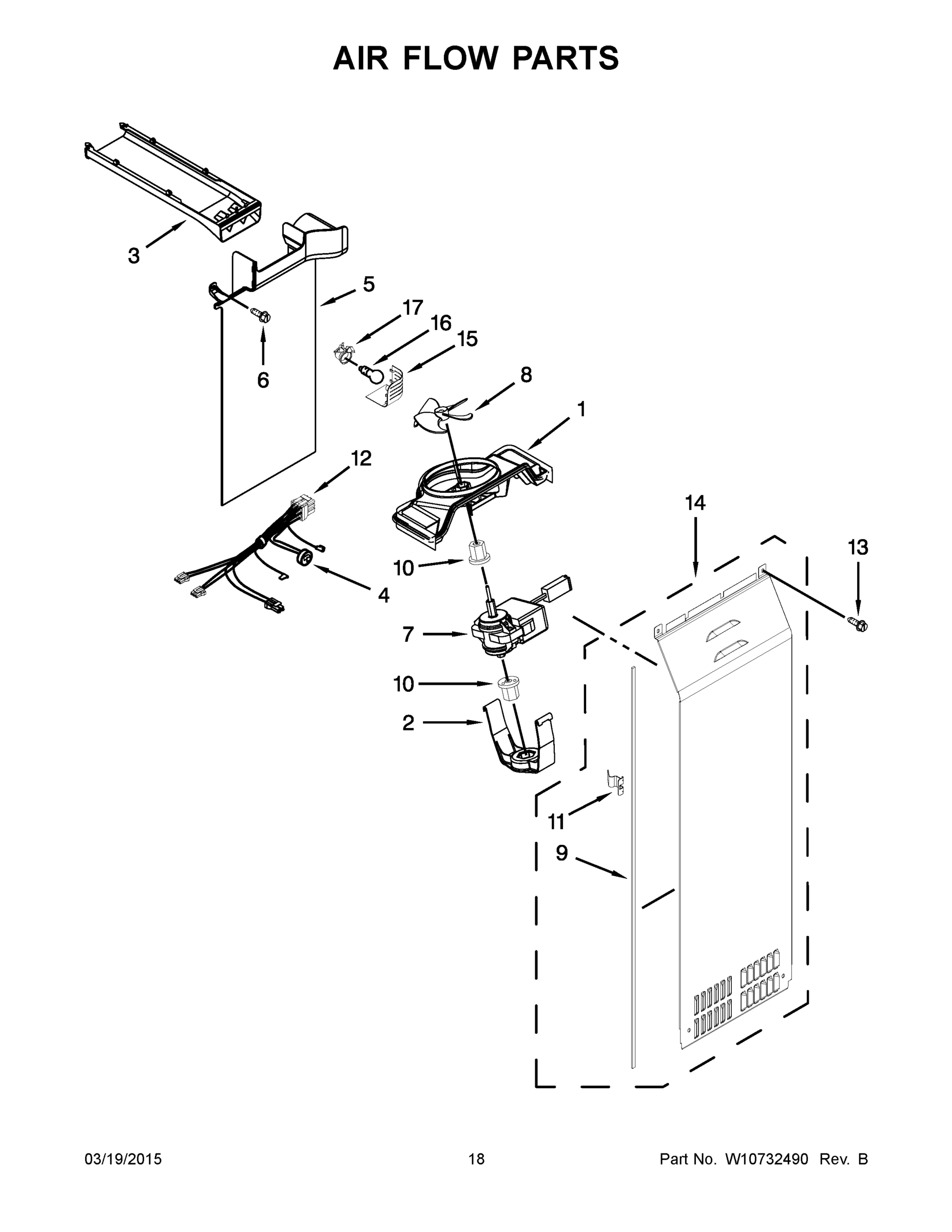

Model Whirlpool WRS586FIDE00 REFRIGERATOR – Common Parts &amp; Diagrams

2

W11193485 Whirlpool Refrigerator Cover Backorder WPL W11193485 $95.28

2

W11652042 Whirlpool Bin Latch Backorder WPL W11652042 $8.20

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $47.95

2

WPW10527271 Whirlpool Refrigerator Door Shelf Backorder WPL WPW10527271 $79.51

2A

WPW10276221 Whirlpool Refrigerator Grille Backorder WPL WPW10276221 $33.87

2B

WPW10276223 Whirlpool Refrigerator Grille Backorder WPL WPW10276223 $33.84

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11279693 Whirlpool Refrigerator Glass Shelf Backorder WPL W11279693 $133.54

3

W11501035 Whirlpool Refrigerator Filter Cover Backorder WPL W11501035 $7.94

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

3

WPW10238092 Whirlpool Refrigerator Water Tube In Stock WPL WPW10238092 $68.15

4

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

4

WPW10258544 Whirlpool Refrigerator Shaft In Stock WPL WPW10258544 $13.71

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $57.97

4

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

5

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

5

W10260378 Whirlpool Refrigerator Air Duct Backorder WPL W10260378 $51.48

5

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

5

W11097340 Whirlpool Glass Shelf In Stock WPL W11097340 $133.54

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.01

5

WPW10341320 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10341320 $107.26

5

WPW10457601 Whirlpool Refrigerator Support Backorder WPL WPW10457601 $68.65

5

WPW10463650 Whirlpool Refrigerator Cover Backorder WPL WPW10463650 $237.14

5A

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $144.80

6

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

6

W10899551 Whirlpool Door Handle In Stock WPL W10899551 $53.77

6

W11208384 Whirlpool Refrigerator Rivet Backorder WPL W11208384 $7.03

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

6

W11573761 Whirlpool Mounting Bracket In Stock WPL W11573761 $21.41

6

WPW10256770 Whirlpool Refrigerator Snack Pan In Stock WPL WPW10256770 $94.75

6

WPW10260985 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10260985 $93.36

6

WPW10296857 Whirlpool Refrigerator Cantilever In Stock WPL WPW10296857 $60.88

6

WPW10493172 Whirlpool Refrigerator Ice Door Backorder WPL WPW10493172 $92.35

7

W10253300 Whirlpool Refrigerator Wire Jumper Backorder WPL W10253300 $11.00

7

W11164152 Whirlpool Drawer Roller In Stock WPL W11164152 $6.08

7

W11293072 Whirlpool Refrigerator Extension Backorder WPL W11293072 $13.03

7

W11396715 Whirlpool Refrigerator Evaporator M In Stock WPL W11396715 $63.47

7

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

7

WPW10277958 Whirlpool Refrigerator Fitting In Stock WPL WPW10277958 $30.62

7

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $15.94

7

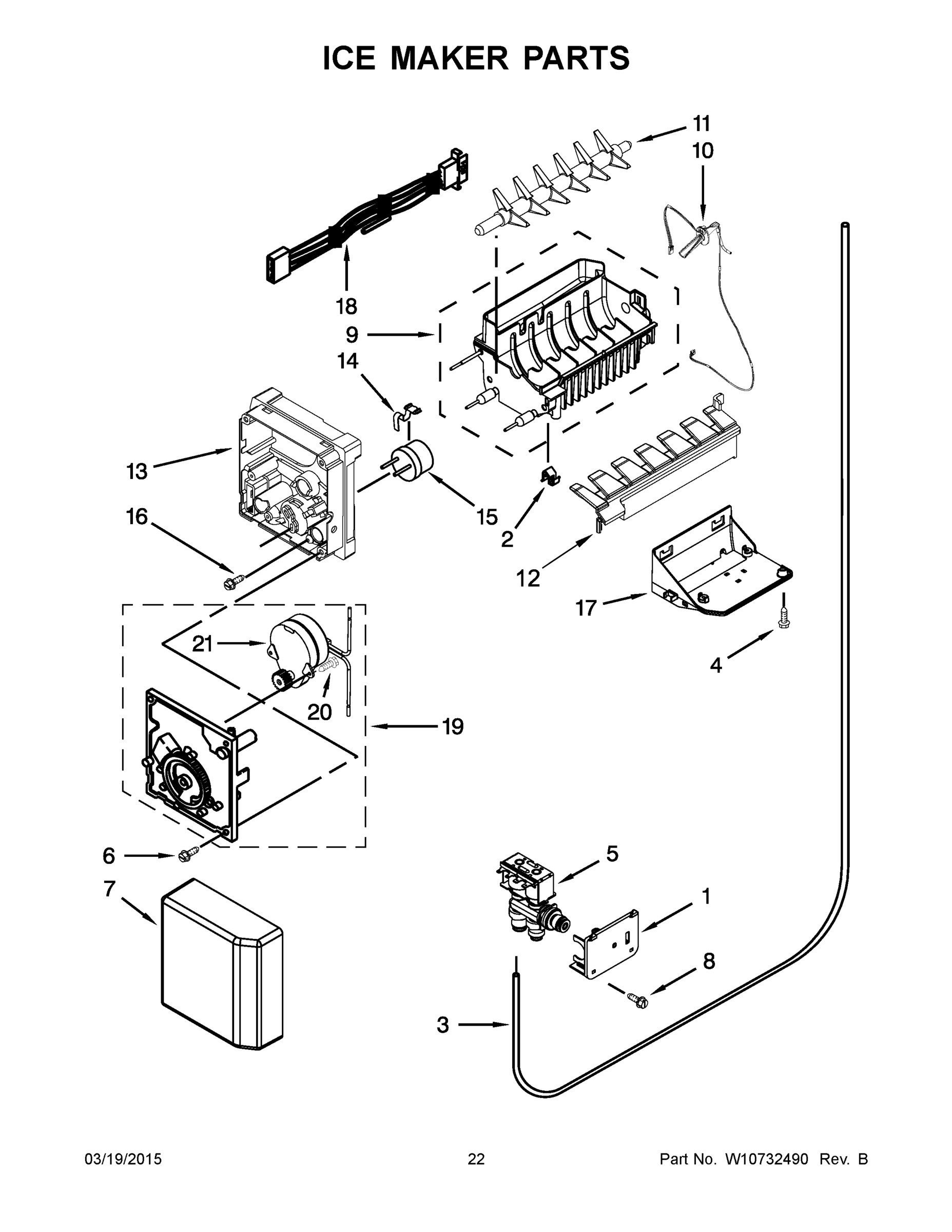

COVER, ICEMAKER WPL W10251088 Contact Us For Availability

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $26.54

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10247885 Whirlpool Door Gasket Backorder WPL WPW10247885 $151.09

8

WPW10257246 Whirlpool Refrigerator Axle Backorder WPL WPW10257246 $16.38

8

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

8A

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.07

9

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W11236850 Whirlpool Refrigerator Pan Trim Backorder WPL W11236850 $33.42

9

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

9

WPW10248011 Whirlpool Refrigerator White Door Backorder WPL WPW10248011 $8.78

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $9.35

9

WPW10278653 Whirlpool Refrigerator Crisper Pa In Stock WPL WPW10278653 $99.64

9

ASSEMBLY, MOLD AND HEATER (ALSO ORDER #542638 WPL W10251081 Contact Us For Availability

9A

W11607100 Whirlpool Refrigerator Thimble Cam In Stock WPL W11607100 $4.90

9A

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $12.46

9A

RING, TRIM (BLACK) WPL W10276187 Contact Us For Availability

9B

W10276227 Whirlpool Refrigerator Dispense Tri Backorder WPL W10276227 $32.65

9B

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $8.80

9B

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.17

W11202789 Whirlpool Auger Motor In Stock WPL W11202789 $124.07

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $25.49

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

WPW10256774 Whirlpool Refrigerator Meat Pan Backorder WPL WPW10256774 $107.25

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $27.52

ASSEMBLY, FILL TUBE WPL W10347034 Contact Us For Availability

W11037957 Whirlpool Refrigerator Bracket In Stock WPL W11037957 $31.52

W11232019 Whirlpool Refrigerator Clip Backorder WPL W11232019 $4.39

W11311688 Whirlpool Refrigerator Tube Backorder WPL W11311688 $54.52

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

WPW10287594 Whirlpool Refrigerator Front Cove Backorder WPL WPW10287594 $109.68

W10632059 Whirlpool Refrigerator Wire Cover Backorder WPL W10632059 $8.45

W10673330 Whirlpool Refrigerator Door Hinge Backorder WPL W10673330 $58.77

W11097338 Whirlpool Refrigerator Glass Shelf Backorder WPL W11097338 $133.54

W11449066 Whirlpool Refrigerator Evaporator F In Stock WPL W11449066 $36.00

W11661565 Whirlpool Refrigerator Socket In Stock WPL W11661565 $12.19

WPW10370593 Whirlpool Refrigerator Pad Backorder WPL WPW10370593 $125.70

WPW10511975 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511975 $39.91

12A

WPW10370592 Whirlpool Refrigerator Pad Backorder WPL WPW10370592 $125.88

12A

WPW10511972 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511972 $39.22

12B

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

12B

WPW10370594 Whirlpool Refrigerator Pad In Stock WPL WPW10370594 $125.26

12B

WPW10632062 Whirlpool Refrigerator Wire Cover Backorder WPL WPW10632062 $3.70

W10276193 Whirlpool Refrigerator Disp Tray Backorder WPL W10276193 $40.55

W10280420 Whirlpool Refrigerator Light Lens Backorder WPL W10280420 $42.00

W11123943 Whirlpool Refrigerator Switch In Stock WPL W11123943 $14.15

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

13A

W10276194 Whirlpool Refrigerator Drip Tray Backorder WPL W10276194 $40.50

13B

W11246841 Whirlpool Refrigerator Drip Tray Backorder WPL W11246841 $36.40

13B

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $25.91

W10276229 Whirlpool Refrigerator Escutcheon Backorder WPL W10276229 $130.94

W10789144 Whirlpool Refrigerator Wire Cover In Stock WPL W10789144 $11.11

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

14A

W10257216 Whirlpool Refrigerator Wire Cover Backorder WPL W10257216 $12.08

14B

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

14B

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $3.92

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $33.16

W10260382 Whirlpool Refrigerator Cover Backorder WPL W10260382 $37.20

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $26.85

W11613294 Whirlpool Refrigerator Reservoir Backorder WPL W11613294 $31.28

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $35.59

WPW10269101 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269101 $40.39

WPW10324760 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10324760 $62.66

WPW10386778 Whirlpool Refrigerator Water Tube Backorder WPL WPW10386778 $54.68

15A

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $37.20

15B

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $26.85

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.65

W10870822 Whirlpool Refrigerator Electronic C In Stock WPL W10870822 $131.95

W11518235 Whirlpool LED Light In Stock WPL W11518235 $13.01

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

W10747726 Whirlpool Refrigerator Bracket Backorder WPL W10747726 $34.72

W11311685 Whirlpool Refrigerator Door Cam Backorder WPL W11311685 $4.90

WPW10269099 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269099 $54.81

COVER, RECEIVER WPL W10258510 Contact Us For Availability

CLIP, DEFROST HEATER WPL 2161324 Contact Us For Availability

17A

W11311686 Whirlpool Closing Cam In Stock WPL W11311686 $4.90

18

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $199.02

18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

19

W10703218 Whirlpool Refrigerator Evaporator T Backorder WPL W10703218 $91.44

19

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $30.34

19

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $38.33

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10257238 Whirlpool Refrigerator Cover Unit Backorder WPL W10257238 $55.66

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.77

WPW10394053 Whirlpool Refrigerator Housing In Stock WPL WPW10394053 $97.13

21

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

21

W10411699 Whirlpool Refrigerator Wire Harness Backorder WPL W10411699 $60.83

21

WPW10457603 Whirlpool Refrigerator Cover In Stock WPL WPW10457603 $30.27

21B

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

W11700341 Whirlpool Wire Harness Backorder WPL W11700341 $39.36

22

WPW10713160 Whirlpool Refrigerator Grille Backorder WPL WPW10713160 $50.31

22A

WPW10713158 Whirlpool Refrigerator Grille Backorder WPL WPW10713158 $41.60

22B

WPW10713153 Whirlpool Refrigerator Grille In Stock WPL WPW10713153 $61.32

23

BASEPAN WPL W10277704 Contact Us For Availability

24

W10876198 Whirlpool Refrigerator Door Cam In Stock WPL W10876198 $5.09

24

WPW10242407 Whirlpool Refrigerator Power Cord Backorder WPL WPW10242407 $31.53

24B

W10876191 Whirlpool Refrigerator Door Cam In Stock WPL W10876191 $10.69

25

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $50.80

26

WPW10279882 Whirlpool Water Line In Stock WPL WPW10279882 $30.48

26

WPW10495967 Whirlpool Refrigerator Heater In Stock WPL WPW10495967 $60.51

27

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $49.50

27

WPW10279884 Whirlpool Water Tube In Stock WPL WPW10279884 $36.47

28

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $13.10

30

W11035839-includeCORE Whirlpool W11035839 Ref Backorder WPL W11035839-includeCORE $210.48

32

WPW10247993 Whirlpool Refrigerator Control Bo In Stock WPL WPW10247993 $46.96

100

W11109888 Whirlpool Refrigerator Ice Containe Backorder WPL W11109888 $181.72

100

WPW10251076 Whirlpool Icemaker Assembly In Stock WPL WPW10251076 $165.08

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2OZ. GRAPHITE) WPL 80051 Contact Us For Availability

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
