Model LG WM3570HVA.ASSEECI 4.3 cu. ft. Ultra Large Capacity TurboWash Washer w/ NFC Tag On – Common Parts & Diagrams

Common parts from model LG WM3570HVA.ASSEECI 4.3 cu. ft. Ultra Large Capacity TurboWash Washer w/ NFC Tag On

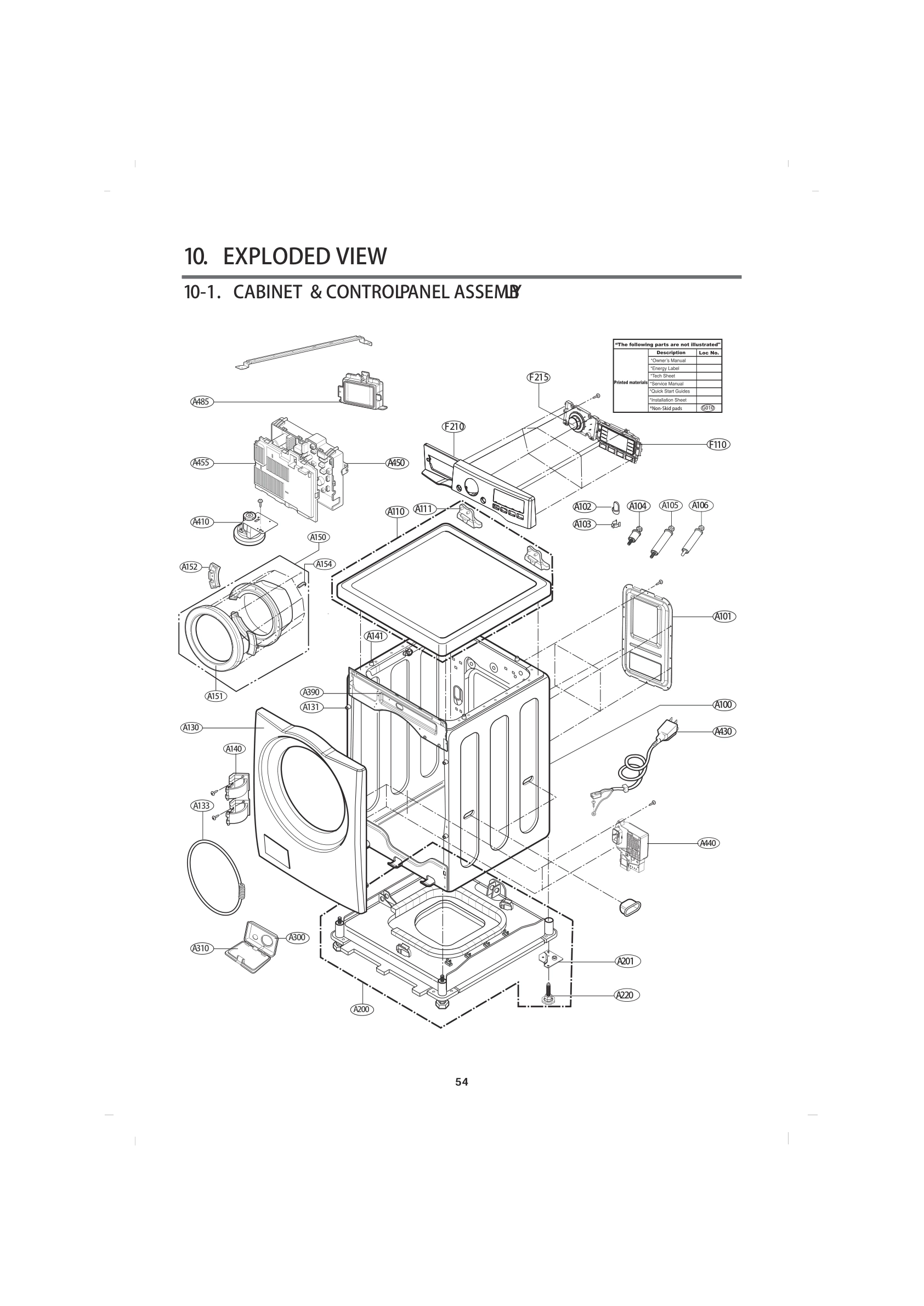

DIAGRAM 1

Print

• This Diagram
• All Diagrams

A104

FAA31690701 LG Washer Transit Shipping Bolt A Backorder LGE FAA31690701 View Details $14.79

View on Model

A105

FAA30992202 LG Washer Bolt Assembly In Stock LGE FAA30992202 View Details $12.10

View on Model

A106

FAA31690705 LG Washer Bolt Assembly Backorder LGE FAA31690705 View Details $20.35

View on Model

A111

MAZ63472802 LG Hinge Bracket Backorder LGE MAZ63472802 View Details $23.15

View on Model

A130

MCK67662703 LG Cabinet Cover Backorder LGE MCK67662703 View Details $153.83

View on Model

A131

AEJ33026601 LG Holder Assembly Backorder LGE AEJ33026601 View Details $6.19

View on Model

A133

ACA56078801 LG Washer Front Boot Seal Gasket In Stock LGE ACA56078801 View Details $9.86

View on Model

A140

AEH71610401 LG Washer Door Hinge Assembly Backorder LGE AEH71610401 View Details $153.83

View on Model

A141

AEJ33026401 LG Holder Assembly In Stock LGE AEJ33026401 View Details $6.19

View on Model

A150

ADC74545701 LG Door Panel Backorder LGE ADC74545701 View Details $321.92

View on Model

A152

MDQ62136701 LG Inner Door Frame Backorder LGE MDQ62136701 View Details $9.86

View on Model

A154

MFG63099101 LG Locker Hook In Stock LGE MFG63099101 View Details $14.00

View on Model

A220

AFC72909305 LG Washer Leg Assembly In Stock LGE AFC72909305 View Details $8.16

View on Model

A275

5215FD3715U LG Washer Hot Water Inlet Fill Ho Backorder LGE 5215FD3715U View Details $26.88

View on Model

A276

5215FD3715V LG Washer Cold Water Inlet Fill H Backorder LGE 5215FD3715V View Details $26.88

View on Model

A410

6601ER1006G LG Washer Pressure Switch Water L Backorder LGE 6601ER1006G View Details $49.19

View on Model

A430

EAD61246487 LG Power Cord Assembly Backorder LGE EAD61246487 View Details $72.49

View on Model

A440

EBF61315802 LG Washer Lid Lock Switch Assembl In Stock LGE EBF61315802 View Details $95.44

View on Model

A450

PCB Assembly,Main LGE EBR78534102 Contact Us For Availability

View on Model

A455

3550ER1032A LG Protective Cover Backorder LGE 3550ER1032A View Details $26.26

View on Model

A485

EAM60991301 LG Filter Assembly In Stock LGE EAM60991301 View Details $56.24

View on Model

A485

EAM60991302 LG Filter Assembly Backorder LGE EAM60991302 View Details $27.45

View on Model

F110

EBR78534402 LG Power Control Board Assembly D Backorder LGE EBR78534402 View Details $258.86

View on Model

F170

5220FR2006H LG Washer Hot Water Inlet Valve In Stock LGE 5220FR2006H View Details $16.93

View on Model

F210

Panel Assembly,Control LGE AGL74115105 Contact Us For Availability

View on Model

F215

4941ER3005A LG Dryer Control Knob In Stock LGE 4941ER3005A View Details $72.49

View on Model

F220

AGL74074307 LG Drawer Panel Assembly Backorder LGE AGL74074307 View Details $136.67

View on Model

F310

4738ER1004B LG Washer Fill Hose Bellows In Stock LGE 4738ER1004B View Details $22.42

View on Model

F315

4738ER2002A LG Washer Drain Bellows In Stock LGE 4738ER2002A View Details $26.26

View on Model

F321

MEJ62524901 LG Inlet Hose Backorder LGE MEJ62524901 View Details $14.79

View on Model

F323

MEJ62505602 LG Washer Inlet Hose Backorder LGE MEJ62505602 View Details $6.19

View on Model

F329

4932ER4008B LG Connector Hose Backorder LGE 4932ER4008B View Details $9.86

View on Model

F360

MEJ62505401 LG Hose Connector Backorder LGE MEJ62505401 View Details $26.55

View on Model

F365

Hose,Connector LGE MEJ62505402 Contact Us For Availability

View on Model

F430

5215ER2002G LG Washer Water Drain Hose In Stock LGE 5215ER2002G View Details $16.49

View on Model

F432

4991EN3002A LG Washer Pivot Hanger Assembly Backorder LGE 4991EN3002A View Details $2.31

View on Model

F464

4860EN3001E LG Tub Clamp Backorder LGE 4860EN3001E View Details $2.31

View on Model

K111

AFH72909001 LG Washer Lifter Assembly In Stock LGE AFH72909001 View Details $72.49

View on Model

K115

MHW61841105 LG Spider Backorder LGE MHW61841105 View Details $255.48

View on Model

K121

4280EN4001F LG Washer Rear Tub Bearing In Stock LGE 4280EN4001F View Details $53.56

View on Model

K121

4280FR4048N LG Washer Tub Ball Bearing Set In Stock LGE 4280FR4048N View Details $49.19

View on Model

K122

4280EN4001G LG Washer Rear Tub Bearing Backorder LGE 4280EN4001G View Details $72.49

View on Model

K122

4280FR4048Z LG Washer Tub Bearing Seal In Stock LGE 4280FR4048Z View Details $82.70

View on Model

K123

FAA30970901 LG Bolt Assembly Backorder LGE FAA30970901 View Details $8.16

View on Model

K125

MDS62058301 LG Washer Rear Tub Gasket Seal In Stock LGE MDS62058301 View Details $26.26

View on Model

K131

1SZZER4002A LG Customized Screw In Stock LGE 1SZZER4002A View Details $6.19

View on Model

K141

Gasket LGE MDS63974501 Contact Us For Availability

View on Model

K143

FAA30970801 LG Common Bolt Backorder LGE FAA30970801 View Details $2.31

View on Model

K190

4769ER4001B LG Washer Float Assembly In Stock LGE 4769ER4001B View Details $14.79

View on Model

K320

AEG33121501 LG Washer Heater Assembly In Stock LGE AEG33121501 View Details $107.42

View on Model

K350

4417EA1002Y LG Washer Stator Assembly In Stock LGE 4417EA1002Y View Details $173.04

View on Model

K360

AHL72914401 LG Washer Rotor Assembly In Stock LGE AHL72914401 View Details $182.23

View on Model

K410

MHY62964802 LG Washer Suspension Hinge Spring In Stock LGE MHY62964802 View Details $7.76

View on Model

K411

4930EN3004A LG Washer Holder Retainer In Stock LGE 4930EN3004A View Details $4.94

View on Model

K510

MDS47123602 LG Washer Door Boot Gasket In Stock LGE MDS47123602 View Details $73.73

View on Model

K520

4738ER1002A LG Washer Drain Hose Bellows In Stock LGE 4738ER1002A View Details $41.23

View on Model

K530

4861ER2001J LG Washer Door Boot Spring Clamp In Stock LGE 4861ER2001J View Details $20.35

View on Model

K550

MEJ62524801 LG Inlet Hose Backorder LGE MEJ62524801 View Details $11.51

View on Model

K570

5214FR4058Y LG Washer Tub to Pump Hose In Stock LGE 5214FR4058Y View Details $9.86

View on Model

K571

MCD54512102 LG Hose Connector Backorder LGE MCD54512102 View Details $4.94

View on Model

K572

4861FR3068C LG Clamp Backorder LGE 4861FR3068C View Details $6.19

View on Model

K610

ACV72909503 LG Washer Shock Absorber Damper A In Stock LGE ACV72909503 View Details $34.40

View on Model

K611

4774EN3002A LG Hinge In Stock LGE 4774EN3002A View Details $8.16

View on Model

×
