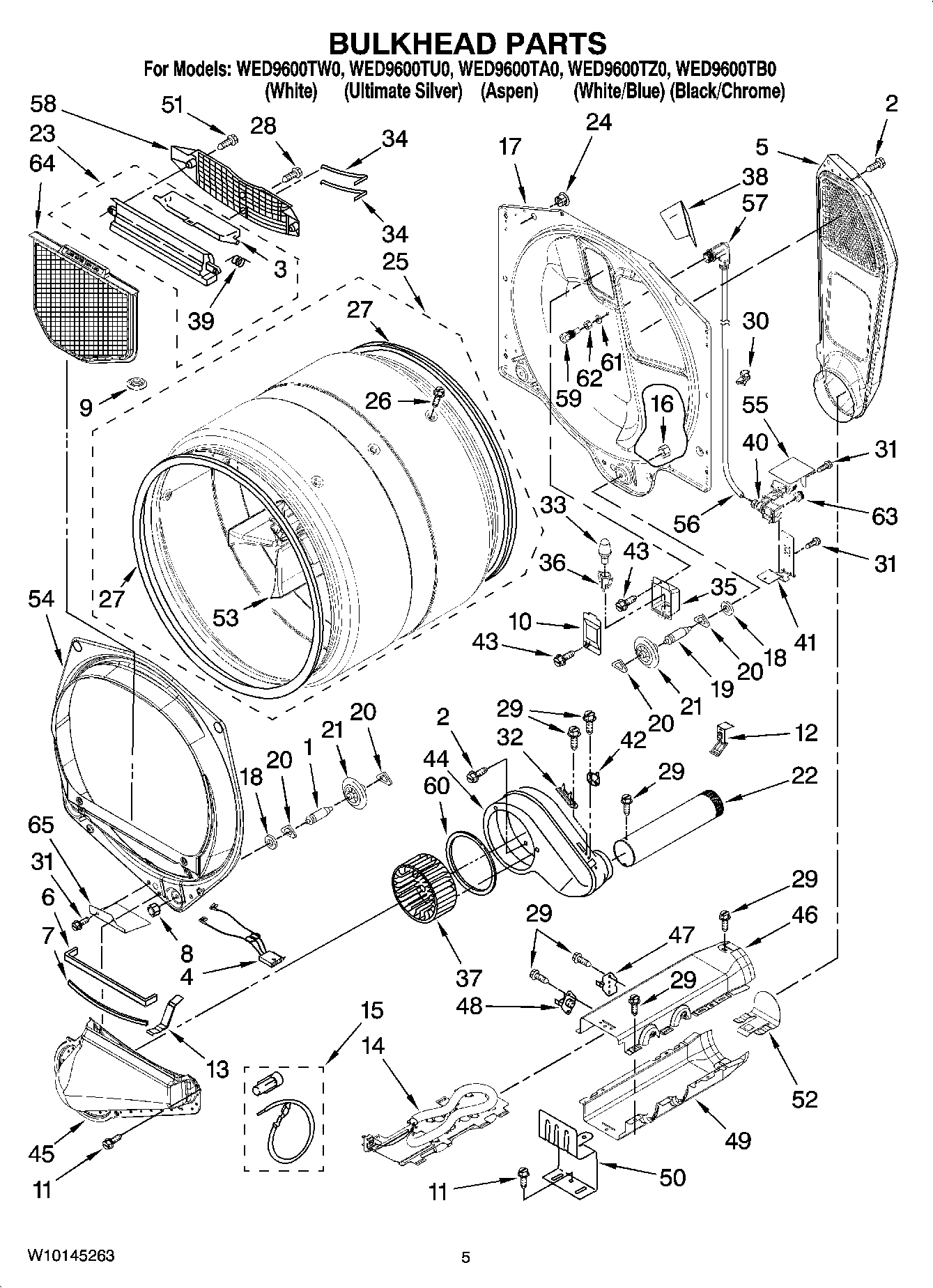

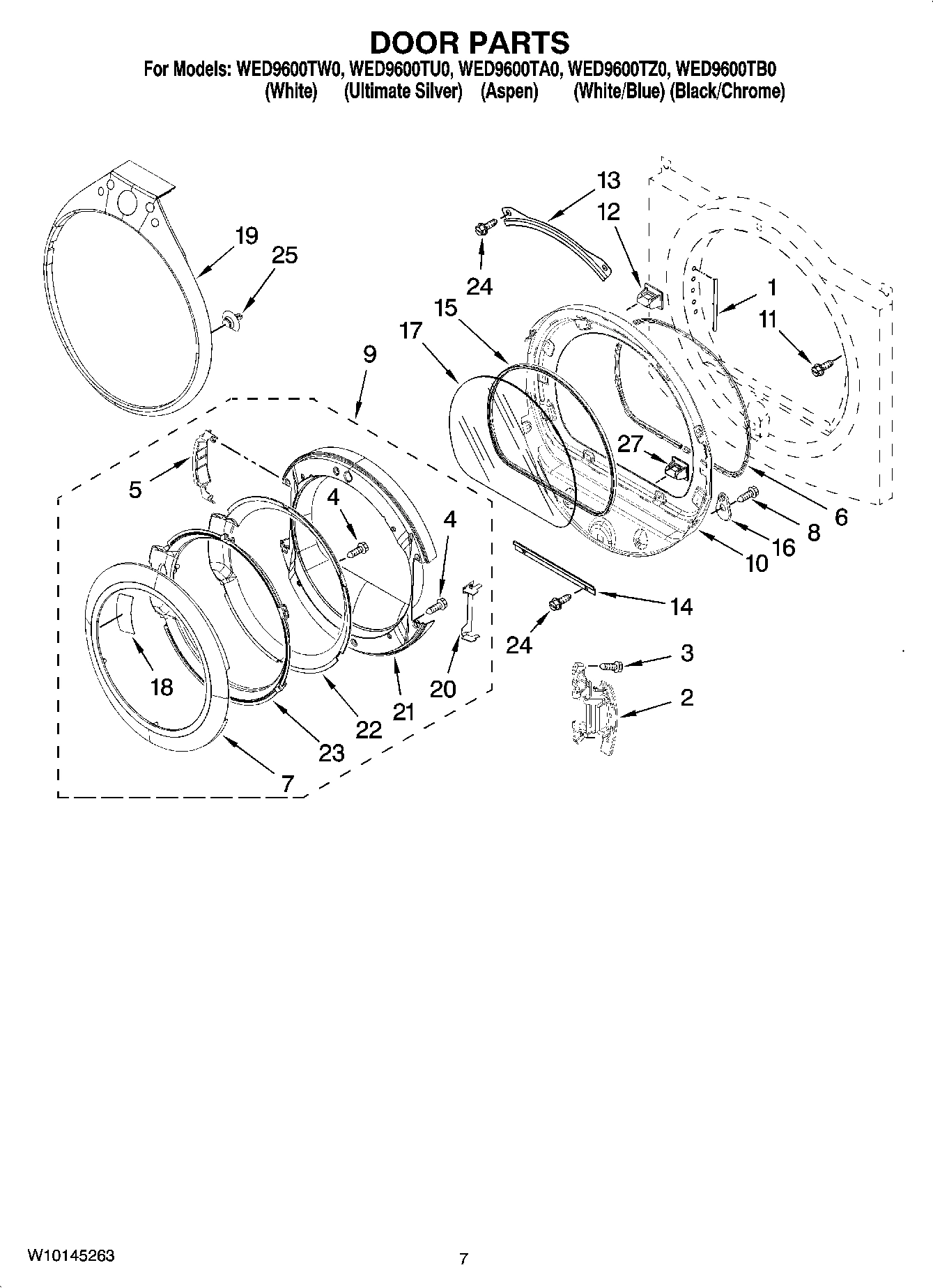

Model Whirlpool WED9600TZ0 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $18.78

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $23.97

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

WPL 8212605 WPL 8212605 Contact Us For Availability

WPL W10044603 WPL W10044603 Contact Us For Availability

WPL W10157756 WPL W10157756 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Black) WPL 72302 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Bl WPL 786020 Contact Us For Availability

WPL 786302 WPL 786302 Contact Us For Availability

WPL 8529894 WPL 8529894 Contact Us For Availability

WPL ARI164858A WPL ARI164858A Contact Us For Availability

WPL ARI164859A WPL ARI164859A Contact Us For Availability

1

W10085210 Whirlpool Label Backorder WPL W10085210 $29.06

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

3

Screw, 10-24 x 3/64 WPL W10017850 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $126.90

5

Cover-Hinge (R.H.) WPL 8578152 Contact Us For Availability

5

Cover-Hinge (L.H.) WPL 8578153 Contact Us For Availability

5

(Following Parts Not Included) WPL ARI164857A Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

7

Handle, Ring & Pad Assembly (Gold) WPL W10048010 Contact Us For Availability

7

Handle, Ring & Pad Assembly (Silver) WPL W10048070 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

WPW10080210 Whirlpool Nut Backorder WPL WPW10080210 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

W10665050 Whirlpool Plug Backorder WPL W10665050 $7.32

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

Door Assembly (Outer) WPL 8579520 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

Door Assembly (Inner) (Includes Illus. 12 & 2 WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

17

Bulkhead, Rear WPL W10124071 Contact Us For Availability

18

W10121607 Whirlpool Cushion Backorder WPL W10121607 $33.29

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

WPW10180500 Whirlpool Trim Backorder WPL WPW10180500 $129.76

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

Tear-Drop Trim & Clip Assembly (Black/Chrome) WPL W10133737 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Ultimate Silv WPL W10133739 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (White/Blue) WPL W10133741 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Door Shield WPL W10074630 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

21

Retainer-Snap WPL W10012440 Contact Us For Availability

21

Door-Intermediate WPL 8578157 Contact Us For Availability

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $47.27

Door Mask WPL 8578156 Contact Us For Availability

Ramp, Door WPL 8529053 Contact Us For Availability

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

23

Door Screen WPL 8578155 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $26.21

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

25

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

25

Harness, Communication WPL W10095960 Contact Us For Availability

25

Complete Drum Assembly WPL W10138031 Contact Us For Availability

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

WPL W10153663 WPL W10153663 Contact Us For Availability

27

Knob, WPL W10116702 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

WPL 280230 WPL 280230 Contact Us For Availability

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

32

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

Cover, Drum Light WPL W10044616 Contact Us For Availability

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

WPL W10141671 WPL W10141671 Contact Us For Availability

40

Valve, Water Inlet (Includes Illus. 31,41,55 WPL W10044596 Contact Us For Availability

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

41

Bracket-Valve WPL W10044597 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $34.18

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $70.75

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $30.27

47

WPL W10110990 WPL W10110990 Contact Us For Availability

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

WPL 8519207 WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WPL 8578388 WPL 8578388 Contact Us For Availability

WPL 8578936 WPL 8578936 Contact Us For Availability

WPL 8578940 WPL 8578940 Contact Us For Availability

WPL W10140574 WPL W10140574 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

52

WPL 3407228 WPL 3407228 Contact Us For Availability

53

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

54

WPL 62825 WPL 62825 Contact Us For Availability

54

WPL ARI164856A WPL ARI164856A Contact Us For Availability

54

WPL 8519245 WPL 8519245 Contact Us For Availability

55

W10184825 Whirlpool Cover Backorder WPL W10184825 $28.80

55

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

WPL W10044606 WPL W10044606 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WPL W10044629 WPL W10044629 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

65

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58
