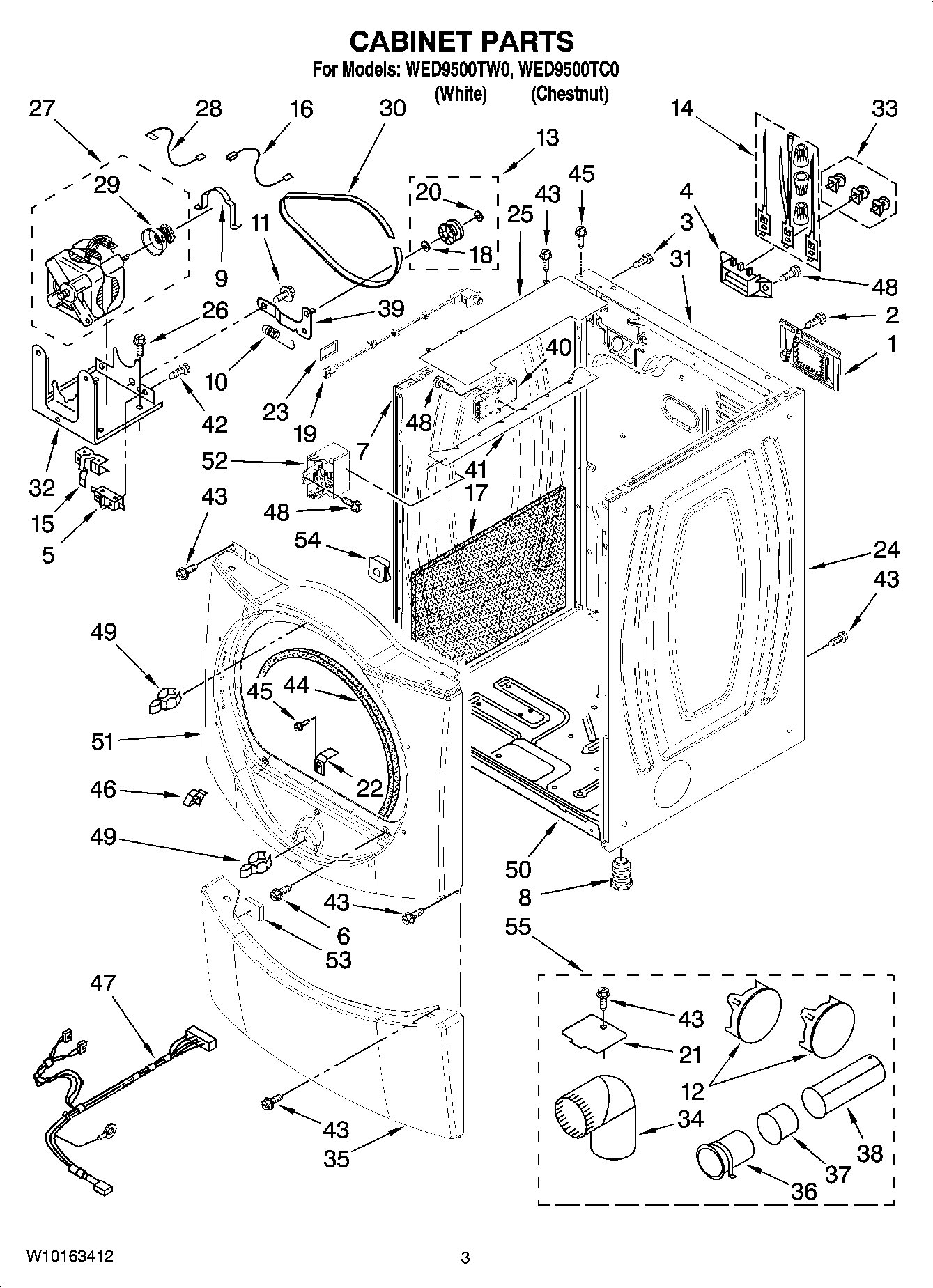

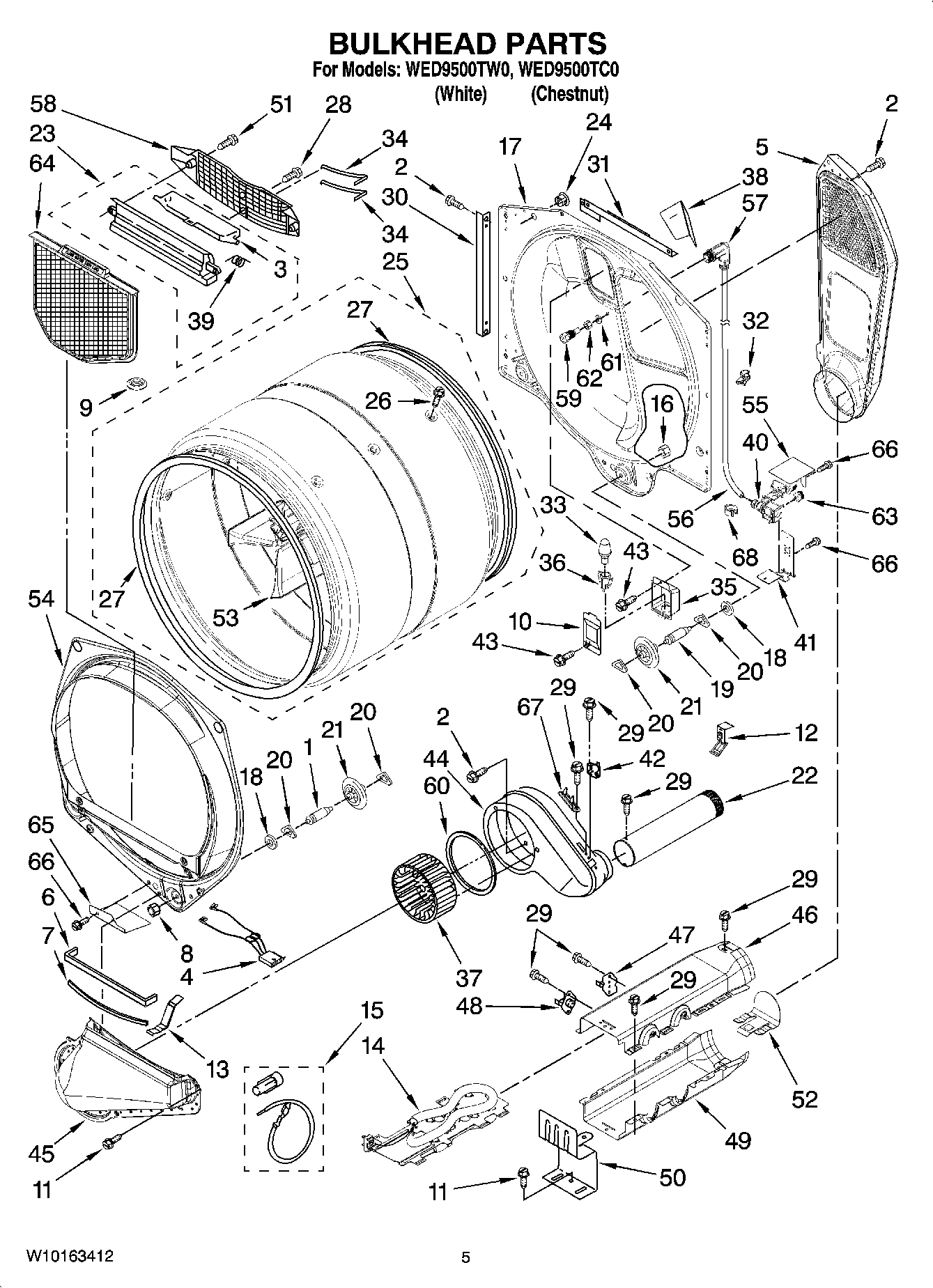

Model Whirlpool WED9500TC0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

WPL W10044603 WPL W10044603 Contact Us For Availability

1

W10085210 Whirlpool Label Backorder WPL W10085210 $29.06

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

3

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $126.90

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

WPW10080210 Whirlpool Nut Backorder WPL WPW10080210 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

W10665050 Whirlpool Plug Backorder WPL W10665050 $7.32

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

Door Assembly (Inner) (Includes Items. 12 & 2 WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

17

Sound Panel WPL W10128772 Contact Us For Availability

17

Bulkhead, Rear WPL W10124071 Contact Us For Availability

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $26.77

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Retainer-Snap WPL W10012440 Contact Us For Availability

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $47.27

Door Mask WPL 8578156 Contact Us For Availability

Ramp, Door WPL 8529053 Contact Us For Availability

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

23

Seal, Door Switch WPL W10118614 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $26.21

24

Panel, Side (R.H.) (White) WPL W10139003 Contact Us For Availability

24

Panel, Side (R.H.) (Chestnut) WPL W10139014 Contact Us For Availability

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

25

Harness, Communication WPL W10095960 Contact Us For Availability

25

Cover, Bracket Control WPL W10118470 Contact Us For Availability

26

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

Knob, Control (Includes: Illus. 21) (White) WPL W10116702 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $62.10

31

Panel, Rear WPL W10133213 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

32

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

35

Toe, Panel (White) WPL W10116271 Contact Us For Availability

35

Toe Panel (Chestnut) WPL W10140573 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

38

Cover, Drum Light WPL W10044616 Contact Us For Availability

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

Control Board WPL W10141671 Contact Us For Availability

40

Valve, Water Inlet (Includes Items 41, 55, 63 WPL W10044596 Contact Us For Availability

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

41

Bracket-Valve WPL W10044597 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $34.18

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $70.75

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $30.27

47

WPL W10110990 WPL W10110990 Contact Us For Availability

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

49

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

WPL 8519207 WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

51

WPL 8578388 WPL 8578388 Contact Us For Availability

51

WPL W10140575 WPL W10140575 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

52

WPL 3407228 WPL 3407228 Contact Us For Availability

53

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

54

WPL 62825 WPL 62825 Contact Us For Availability

54

WPL ARI164793A WPL ARI164793A Contact Us For Availability

54

WPL 8519245 WPL 8519245 Contact Us For Availability

55

W10184825 Whirlpool Cover Backorder WPL W10184825 $28.80

55

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

WPL W10044606 WPL W10044606 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WPL W10044629 WPL W10044629 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

65

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

67

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

68

W10044599 Whirlpool Clip Backorder WPL W10044599 $8.73
