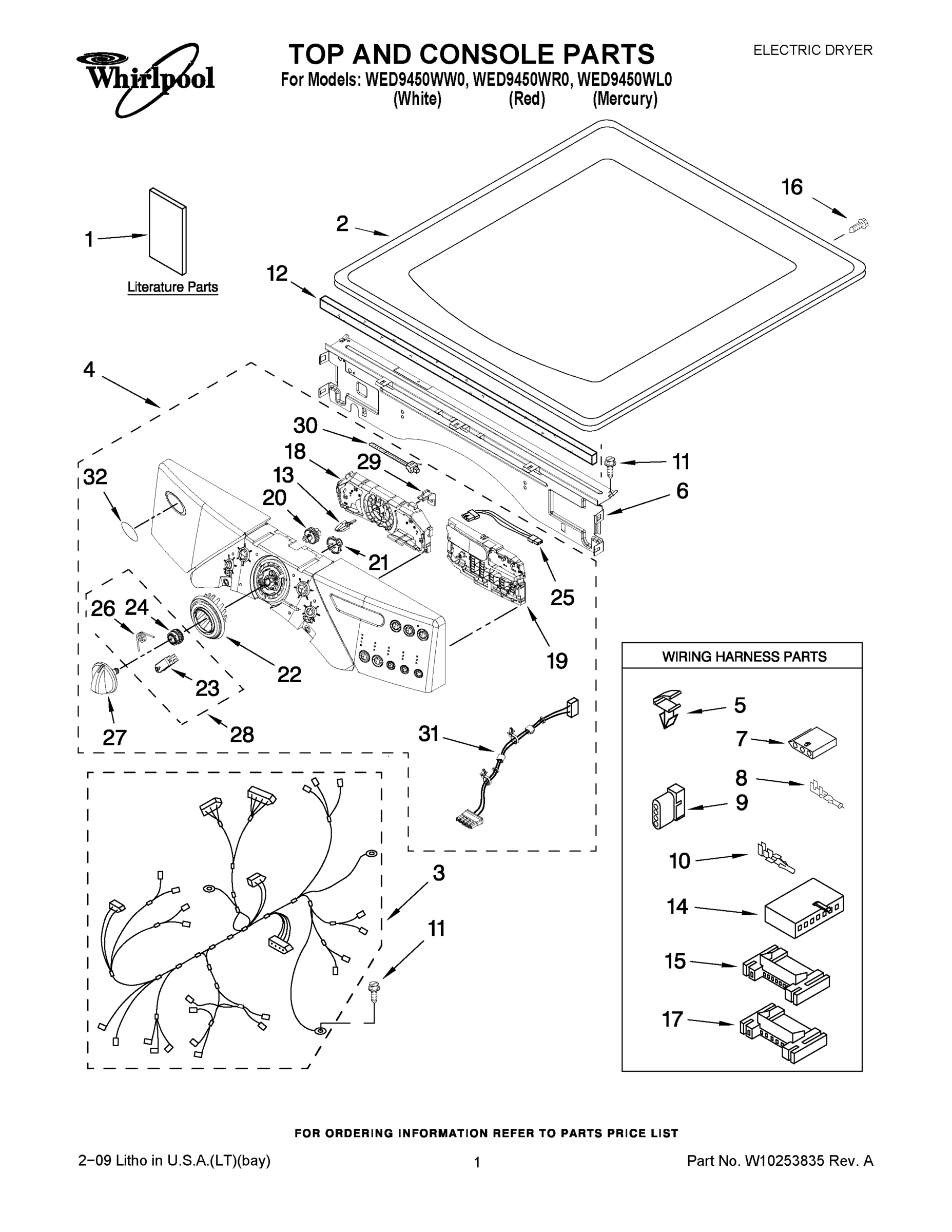

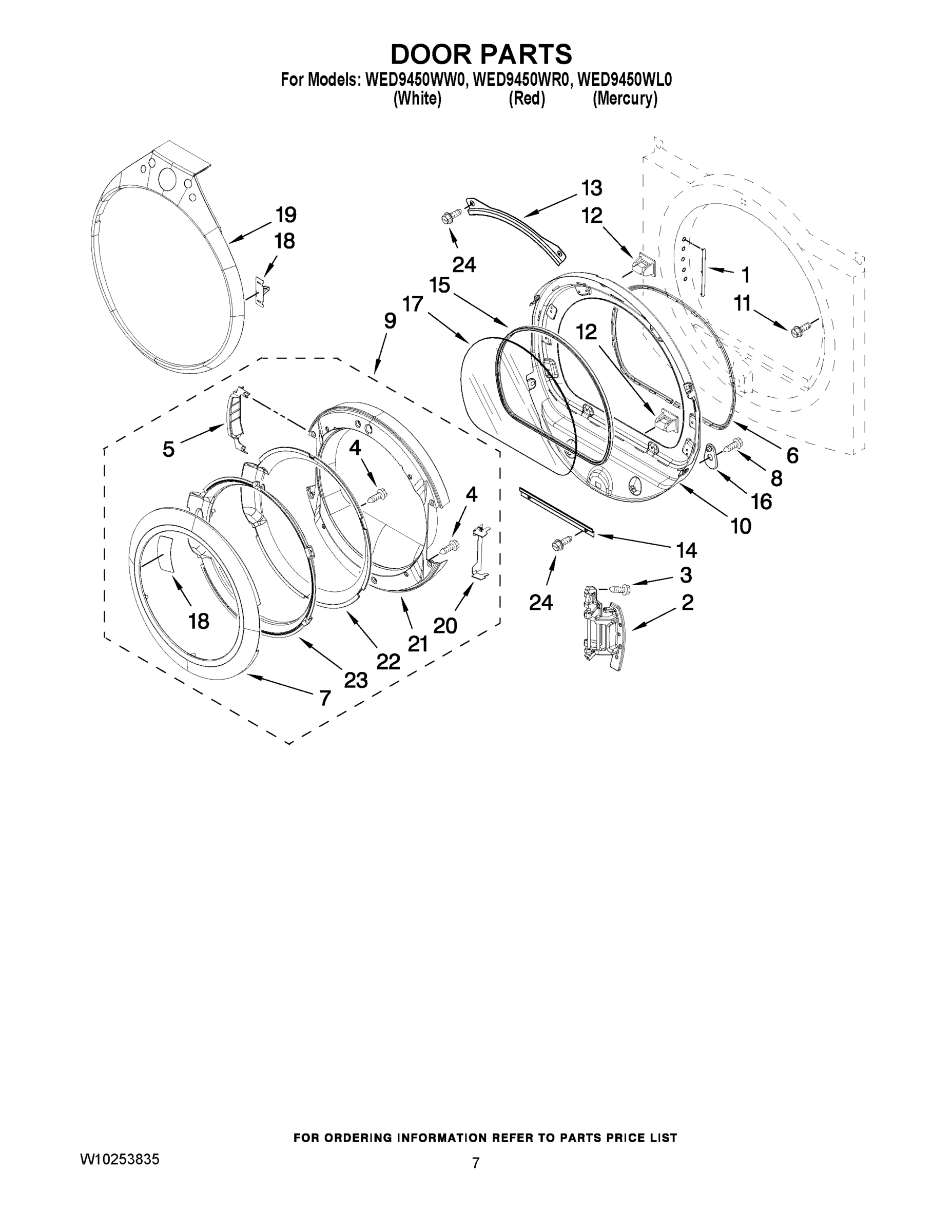

Model Whirlpool WED9450WW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

3

W11222846 Whirlpool Door Backorder WPL W11222846 $78.01

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

3

Harness, Main WPL W10111012 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $133.23

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $39.27

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

9

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

9

Bulkhead, Front WPL 8519245 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

DOOR ASSEMBLY (INNER) (INCLUDES ITEM 12.) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $67.38

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

Gasket, Window WPL 8579662 Contact Us For Availability

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

WPW10080170 Whirlpool Bulkhead Assembly Backorder WPL WPW10080170 $129.25

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

19

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249741 Contact Us For Availability

19

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246598 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $49.63

22

W10250089 Whirlpool Ring Backorder WPL W10250089 $9.13

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

23

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $71.22

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

25

CONTROL BOARD WPL W10169969 Contact Us For Availability

25

Harness, Communication WPL W10095960 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

26

Harness, Digital Interface WPL W10181463 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

W10190685 Whirlpool Knob Assembly In Stock WPL W10190685 $39.91

28

3398948 Whirlpool Wire Backorder WPL 3398948 $39.97

28

ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & WPL 280230 Contact Us For Availability

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

31

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

31

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

31

Clip-S Type WPL 62825 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

32

Baffle, Drum WPL 697693 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $29.48

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

41

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $35.89

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $74.28

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $31.79

47

WPL W10239098 WPL W10239098 Contact Us For Availability

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

WPL W10180423 WPL W10180423 Contact Us For Availability

WPL W10249726 WPL W10249726 Contact Us For Availability

WPL W10250670 WPL W10250670 Contact Us For Availability

49

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

51

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $26.26

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $23.97

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $10.07

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability
