Model WDF330PAHD0 – Common Parts & Diagrams

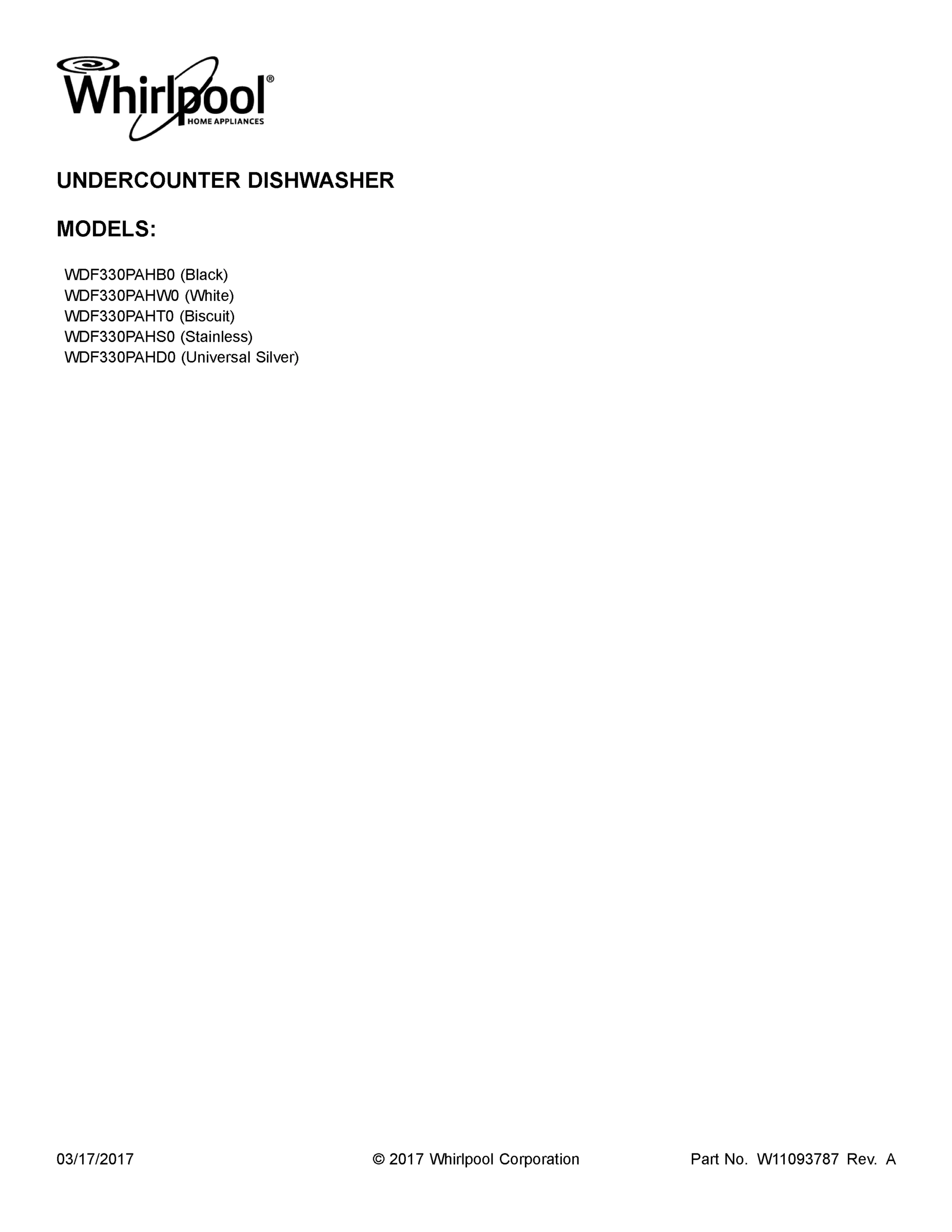

01 - COVER SHEET
02 - DOOR AND PANEL PARTS

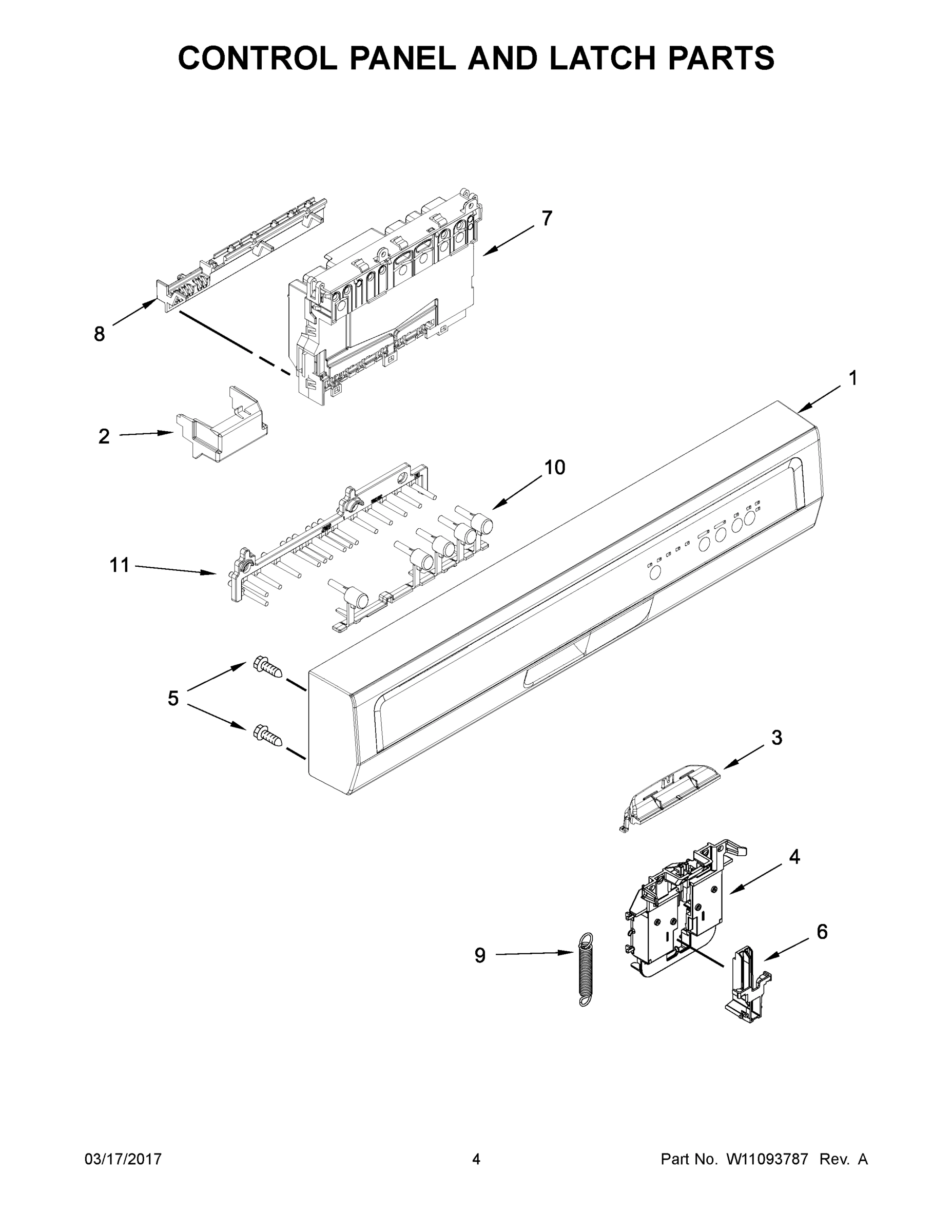

03 - CONTROL PANEL AND LATCH PARTS

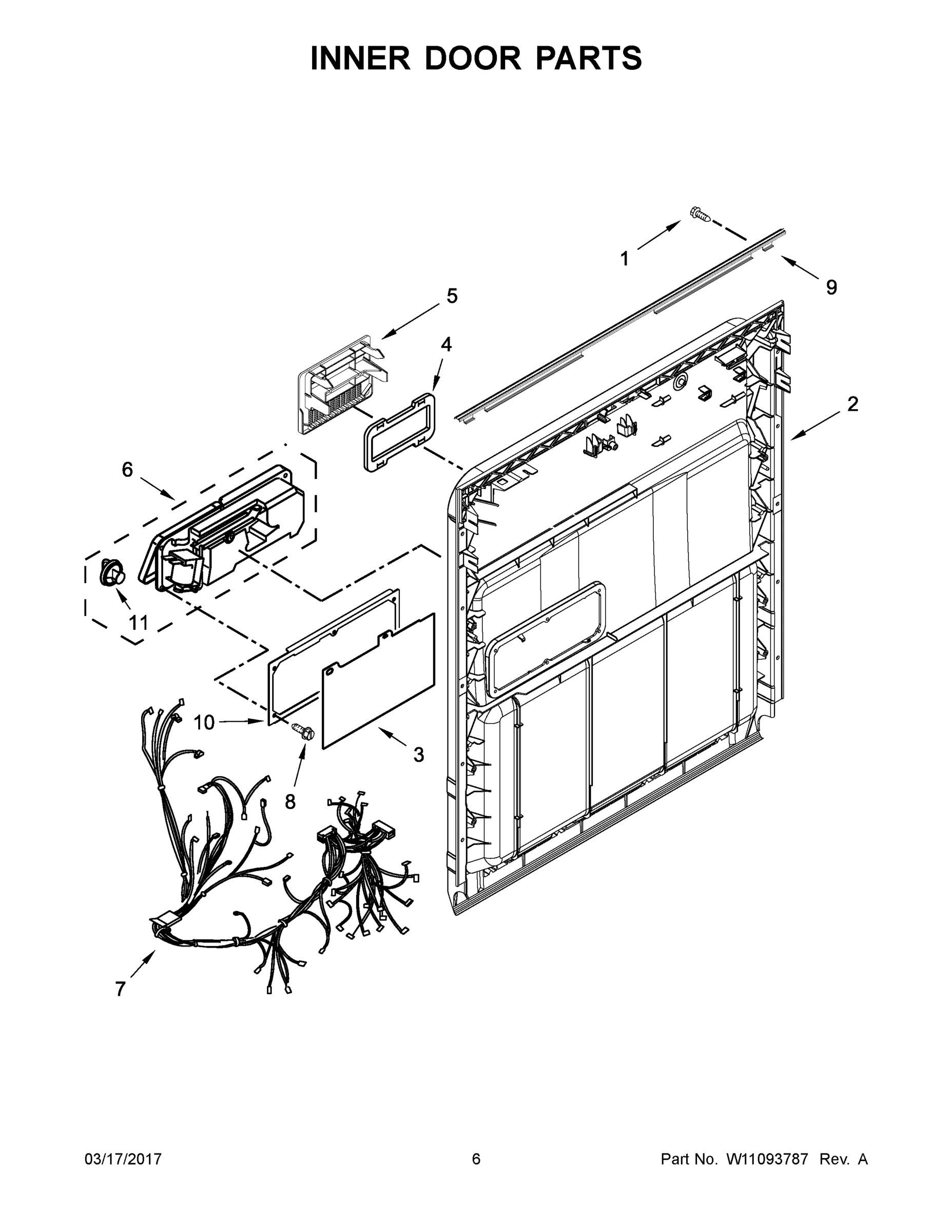

04 - INNER DOOR PARTS

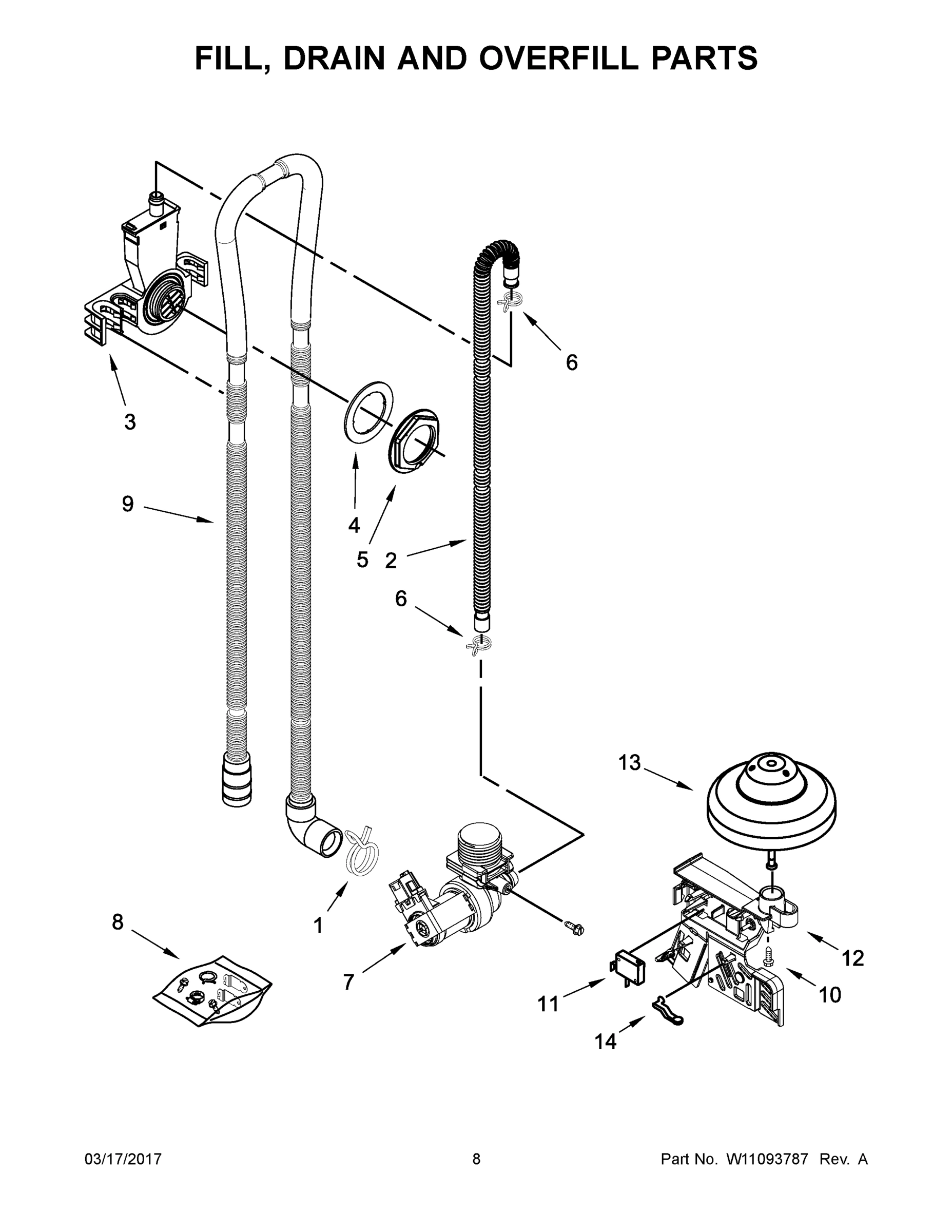

05 - FILL, DRAIN AND OVERFILL PARTS
06 - TUB AND FRAME PARTS

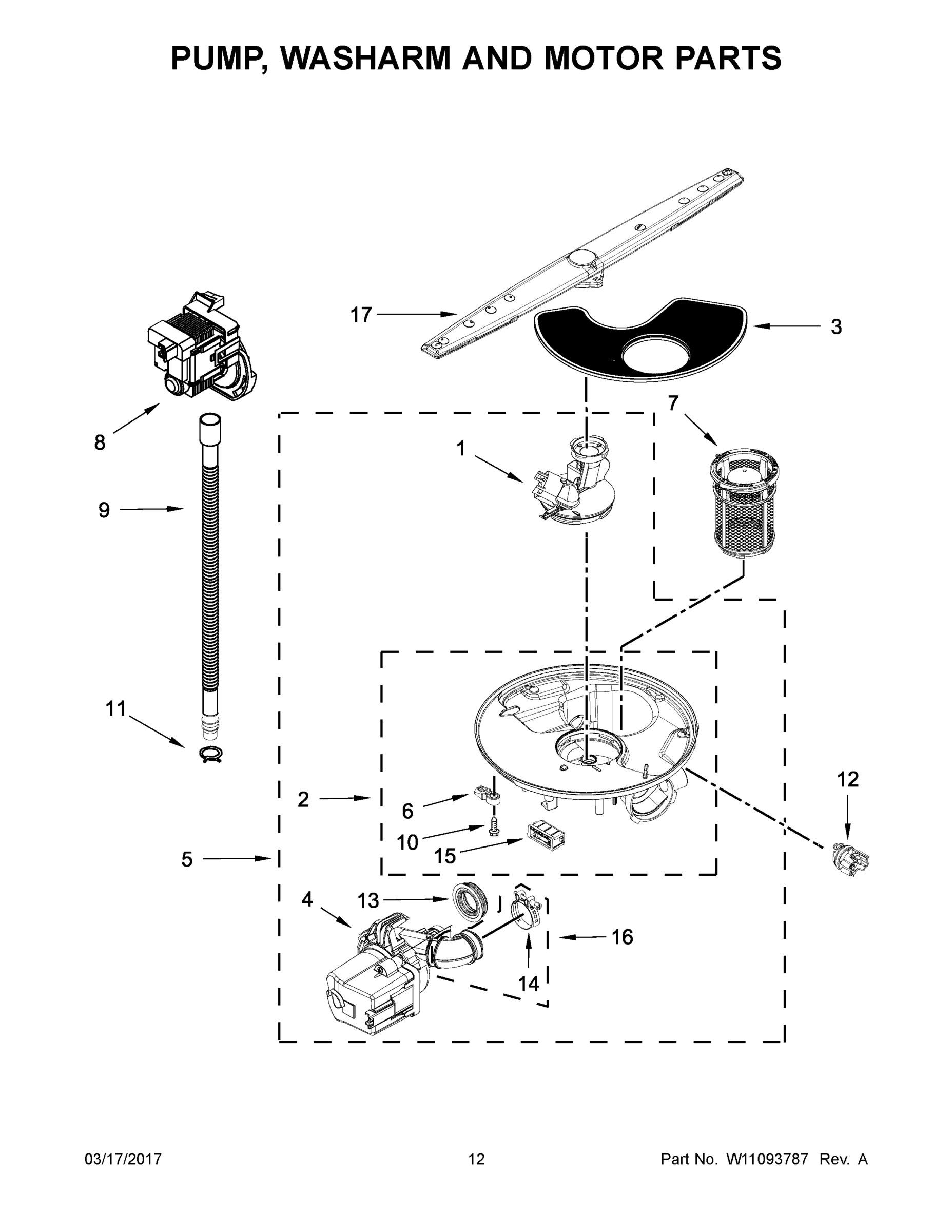

07 - PUMP, WASHARM AND MOTOR PARTS
08 - UPPER WASH AND RINSE PARTS

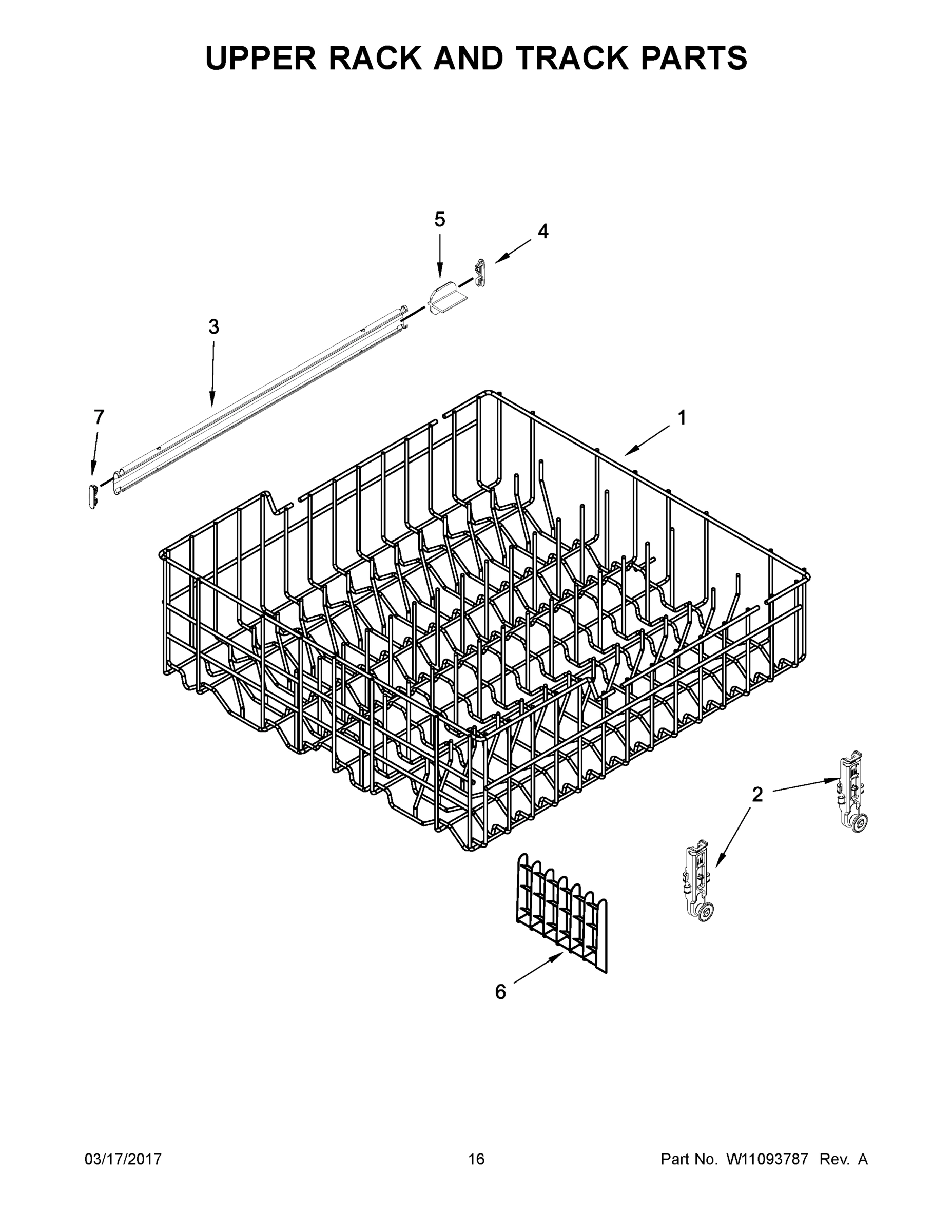

09 - UPPER RACK AND TRACK PARTS

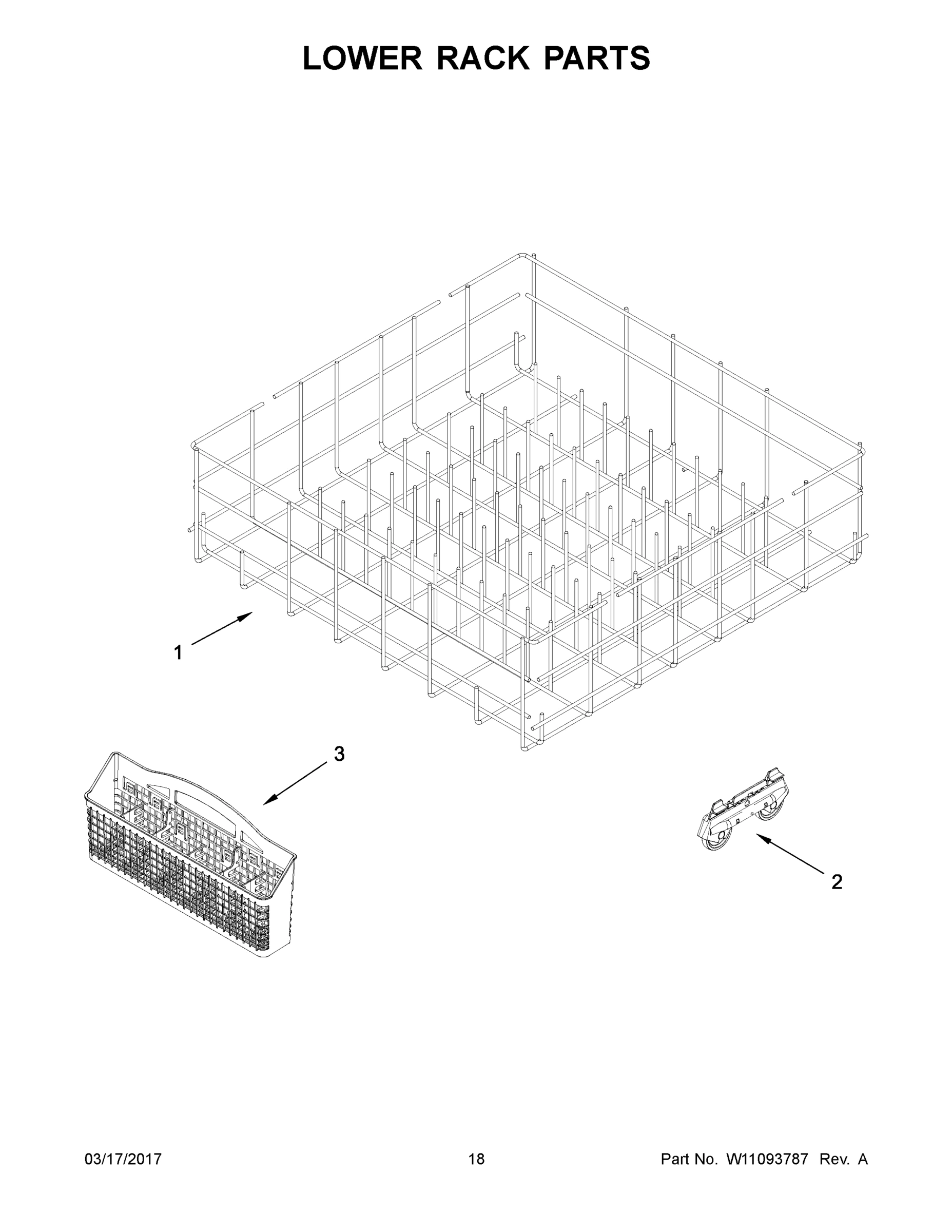

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
