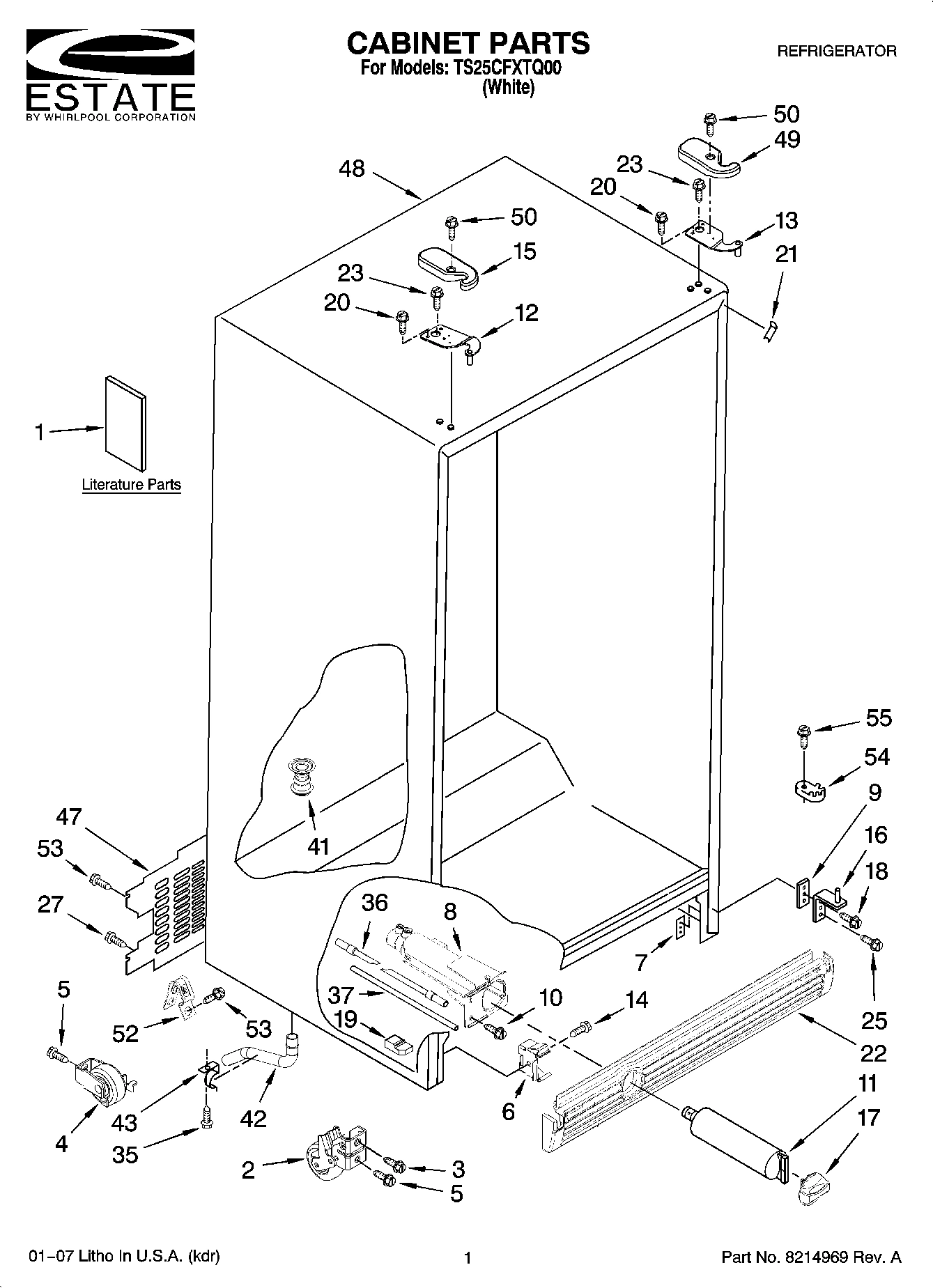

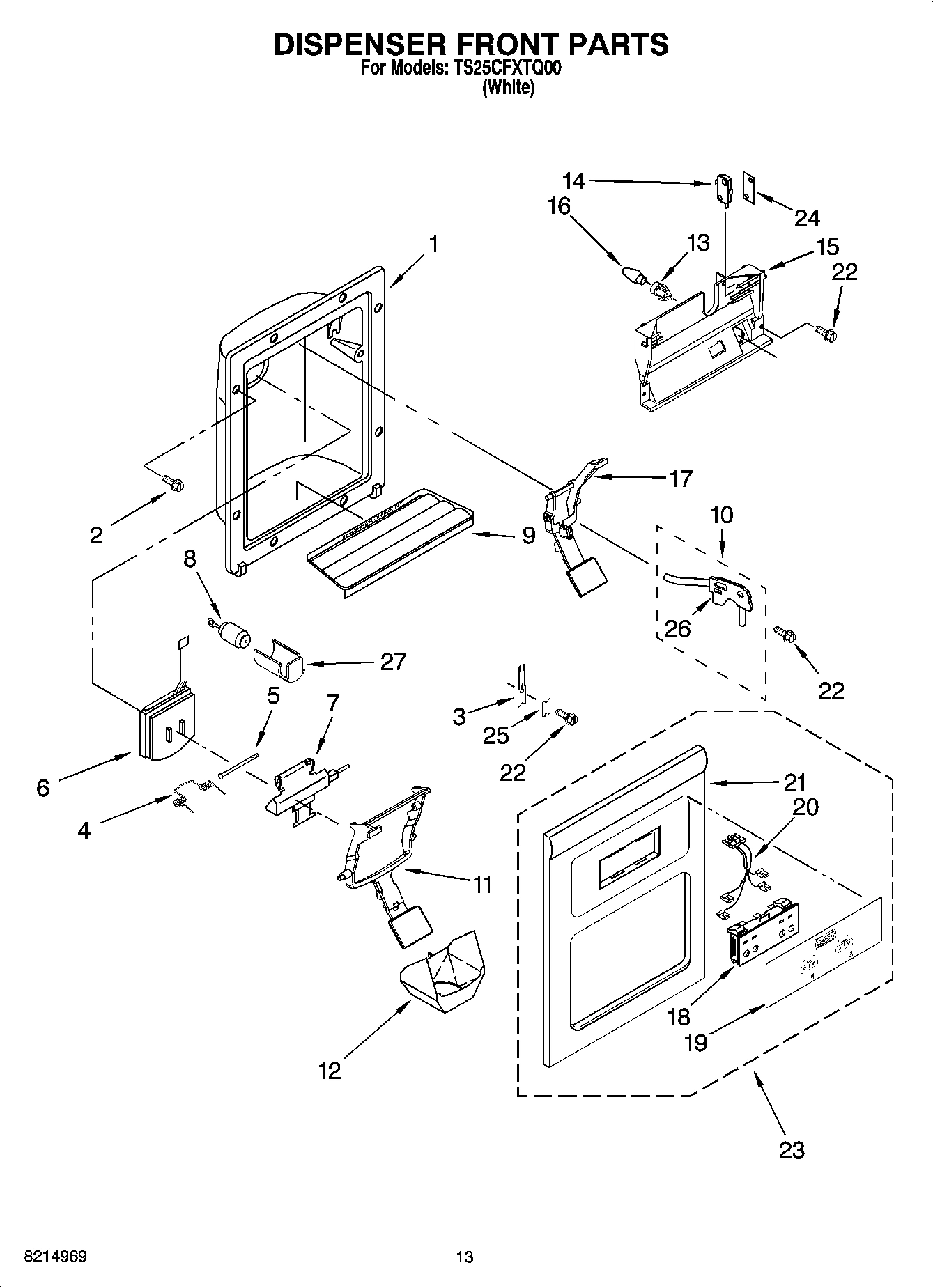

Model Whirlpool TS25CFXTQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Refrigerator Door (Includes Item 6) (White) WPL 2309525W Contact Us For Availability

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2309943W Contact Us For Availability

2

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Air Scoop WPL 2161231 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Trivet (4) WPL 2177963 Contact Us For Availability

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

Handle (White) WPL 2186649W Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Housing, Water Filter WPL 2255521 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Shim (2) WPL 2209697 Contact Us For Availability

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

10

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $91.10

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

TUBE, SUCTION WPL 2205765 Contact Us For Availability

15

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

17

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

17

Cover, Evaporator WPL 2203841 Contact Us For Availability

18

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

18

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

18

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $53.03

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $30.23

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $42.22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clip (2) WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

2311615 Whirlpool Refrigerator Knob In Stock WPL 2311615 $32.26

27

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI132393A Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI132394A Contact Us For Availability

100

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $183.83
