Model Whirlpool TS25AWXBW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
09 - UNIT

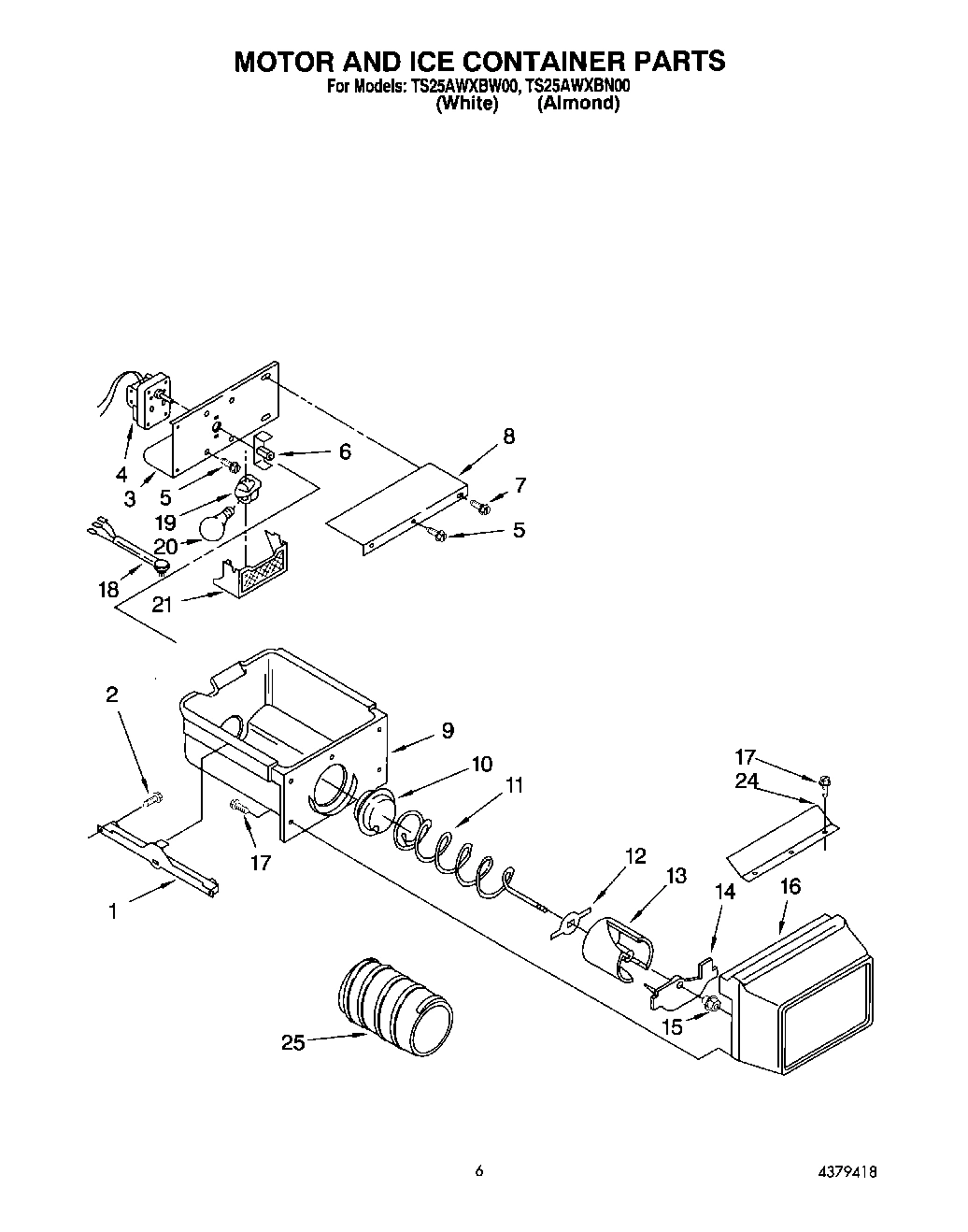

05 - MOTOR AND ICE CONTAINER

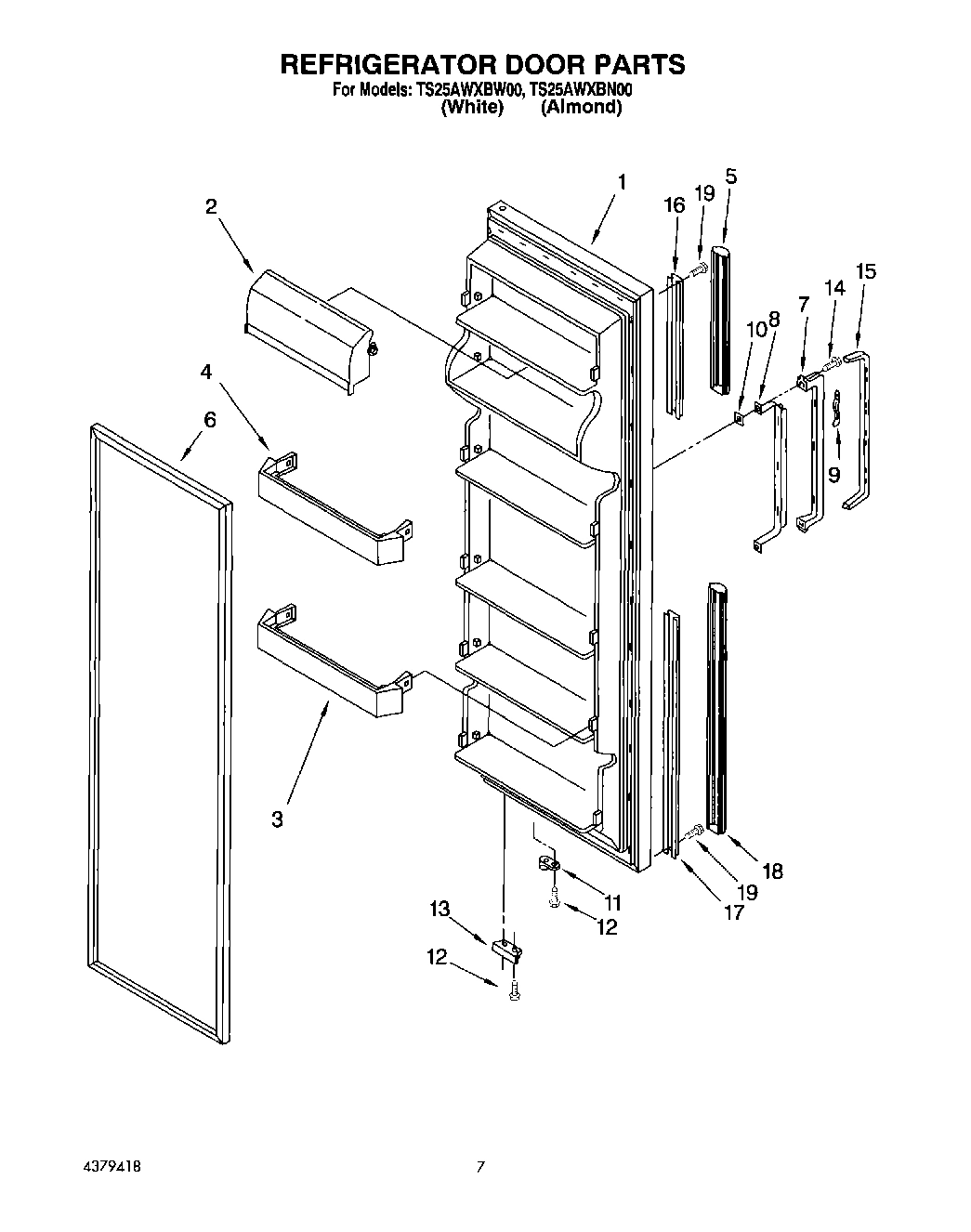

06 - REFRIGERATOR DOOR

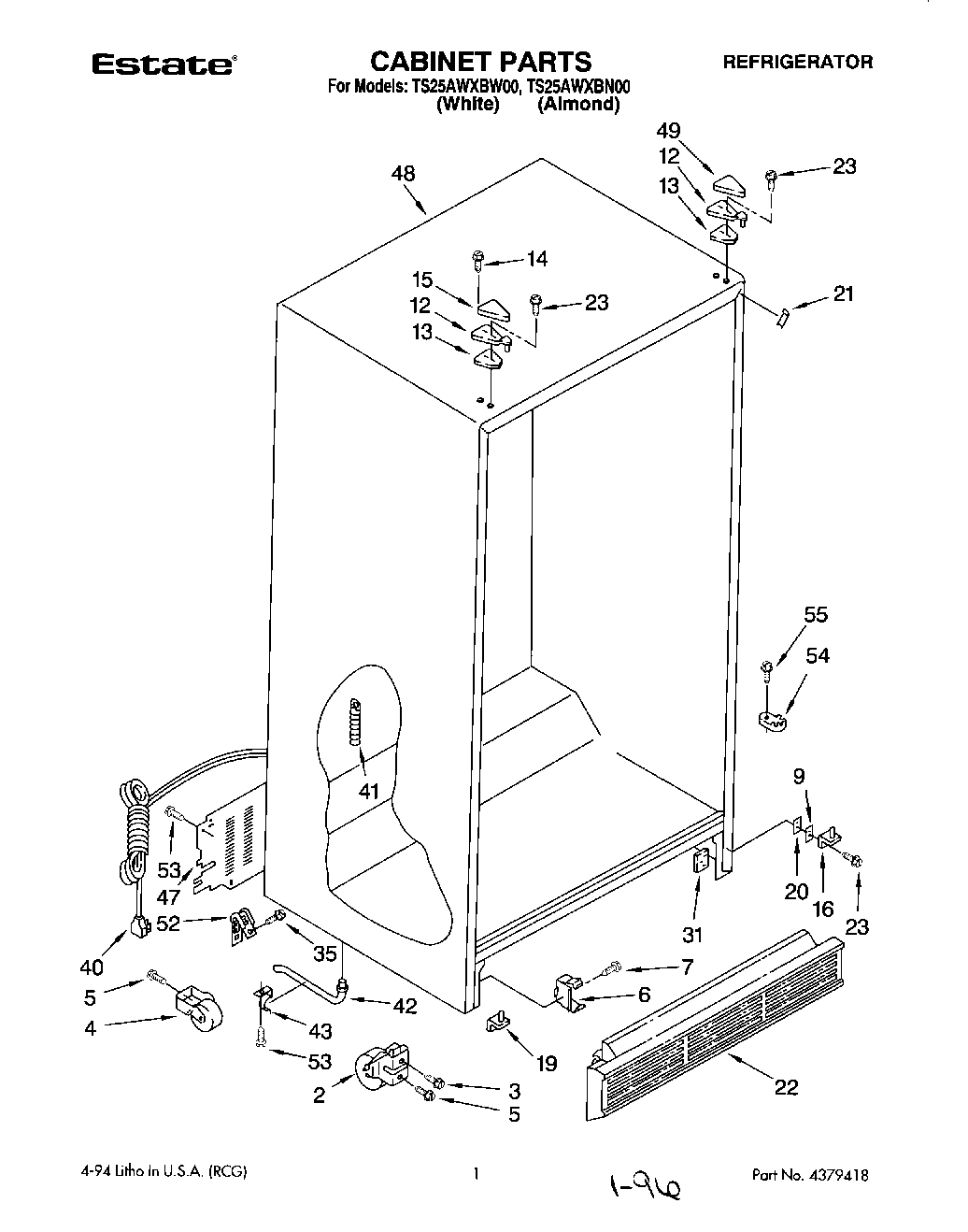

01 - CABINET

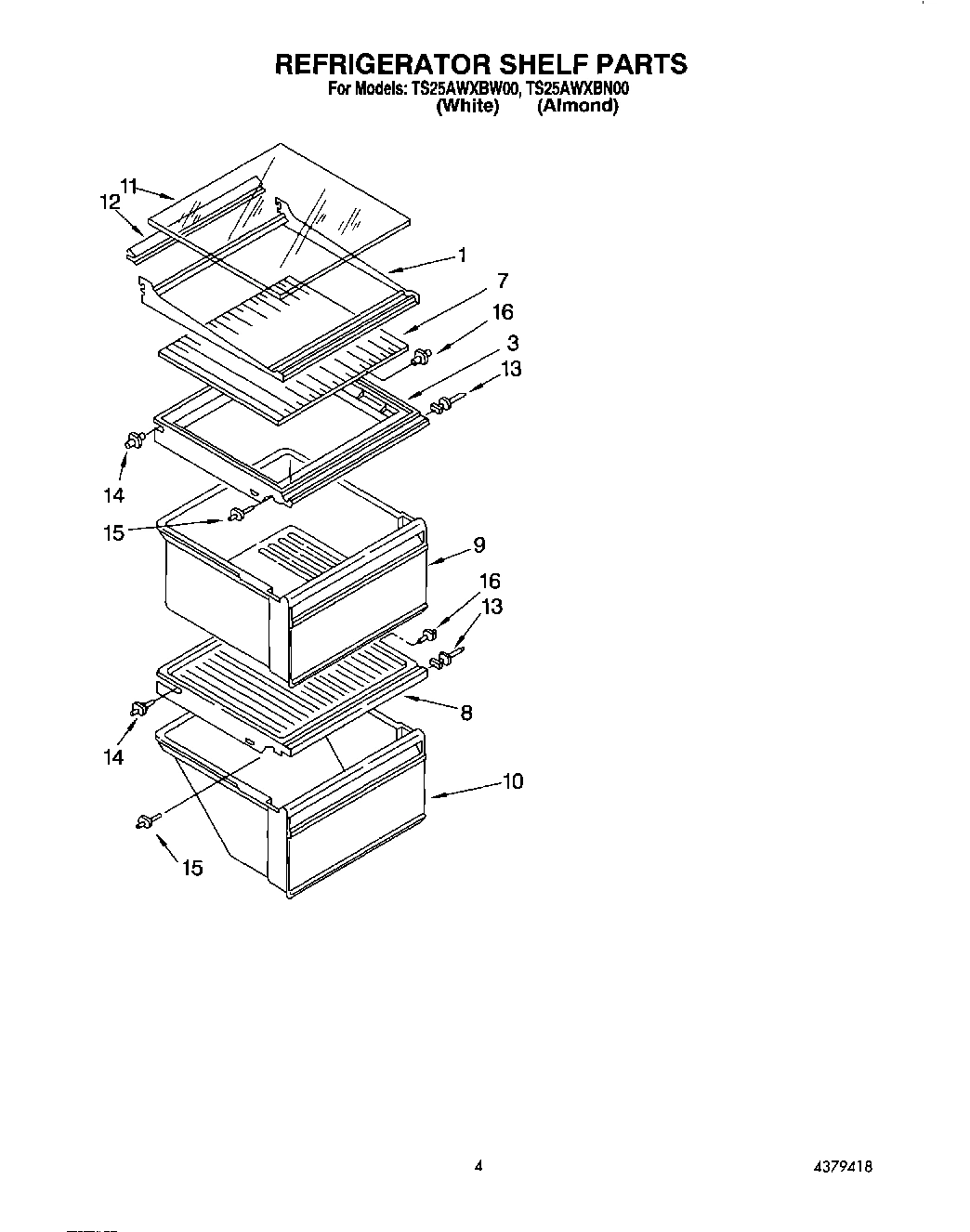

03 - REFRIGERATOR SHELF

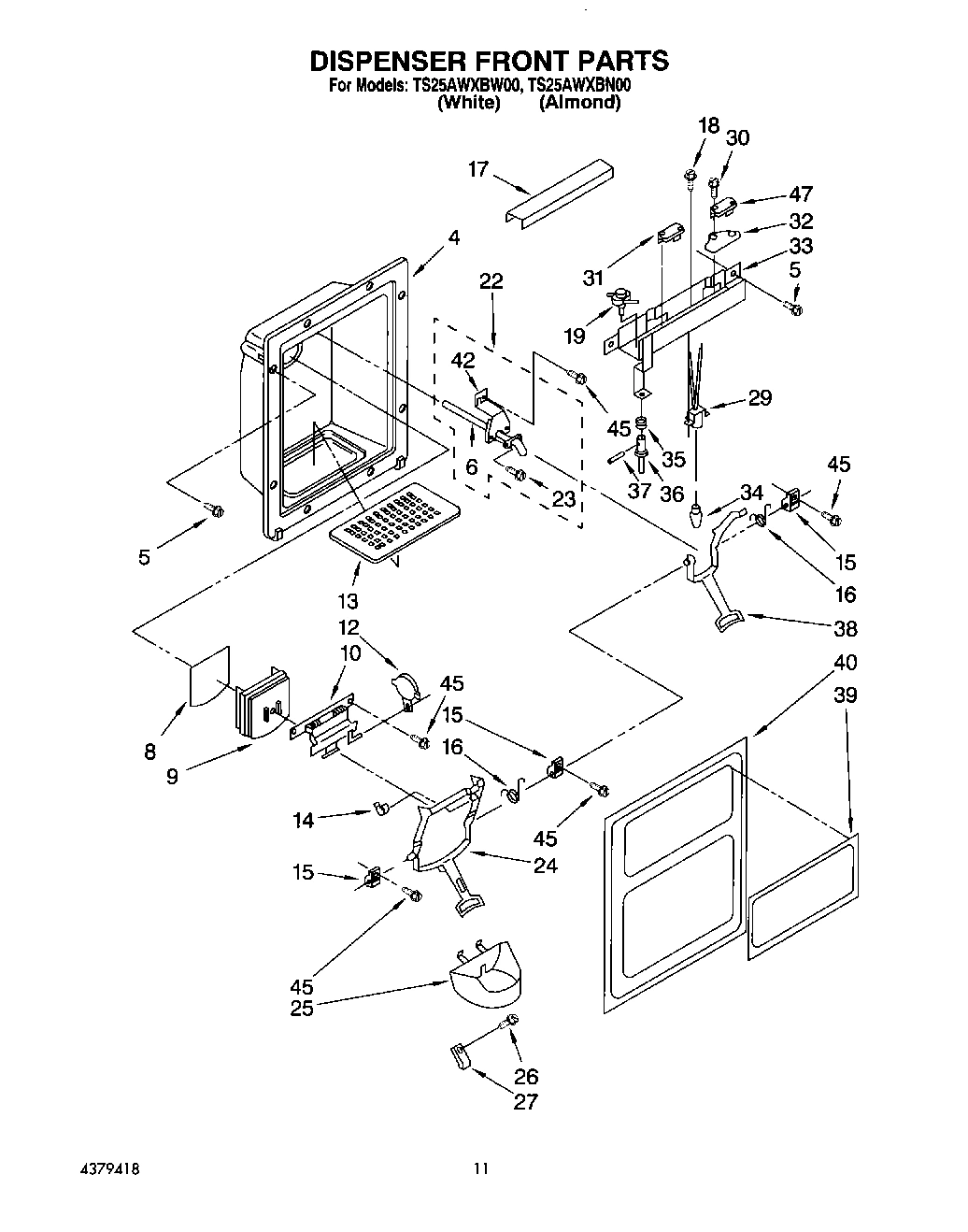

08 - DISPENSER FRONT

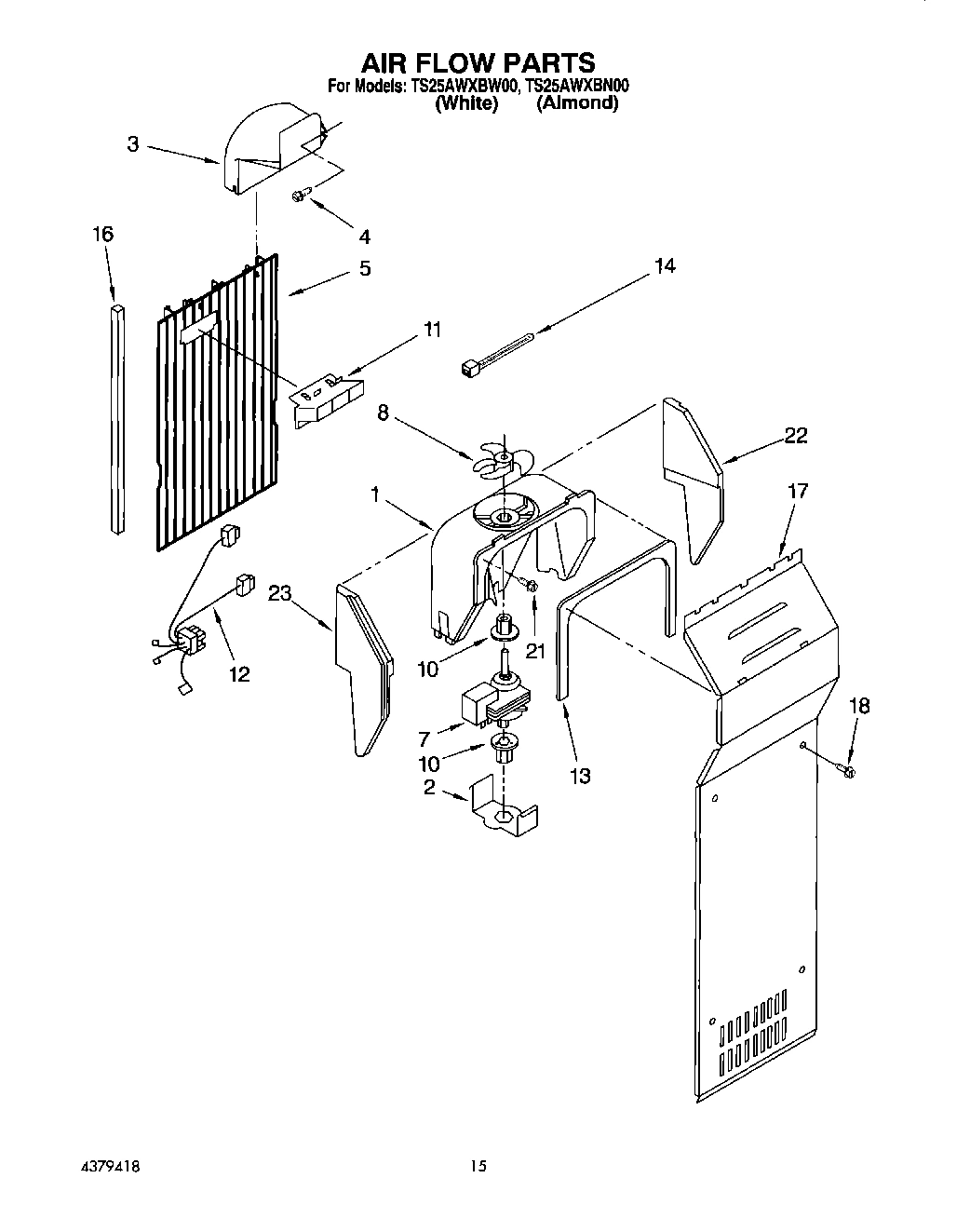

10 - AIR FLOW

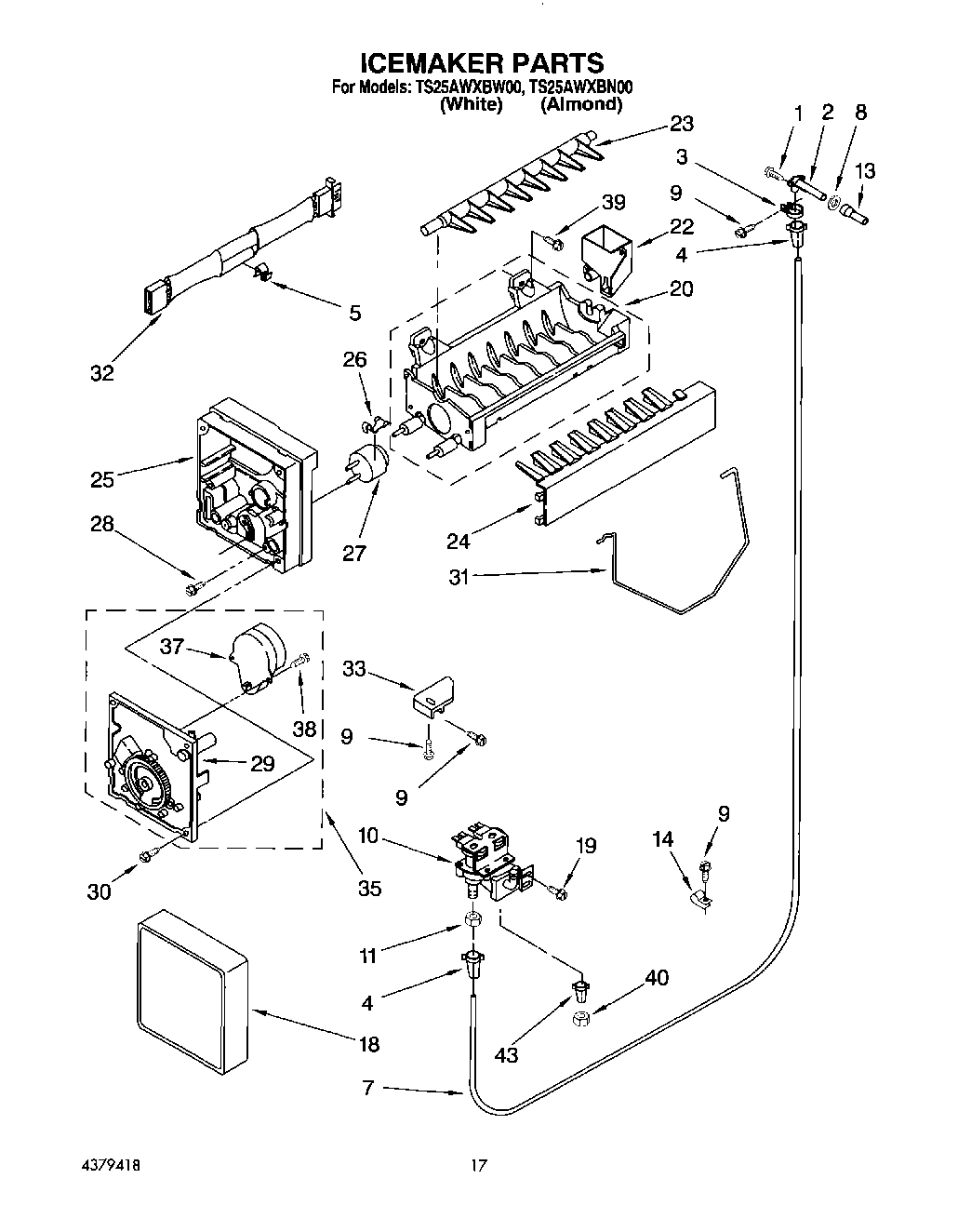

12 - ICEMAKER, LIT/OPTIONAL

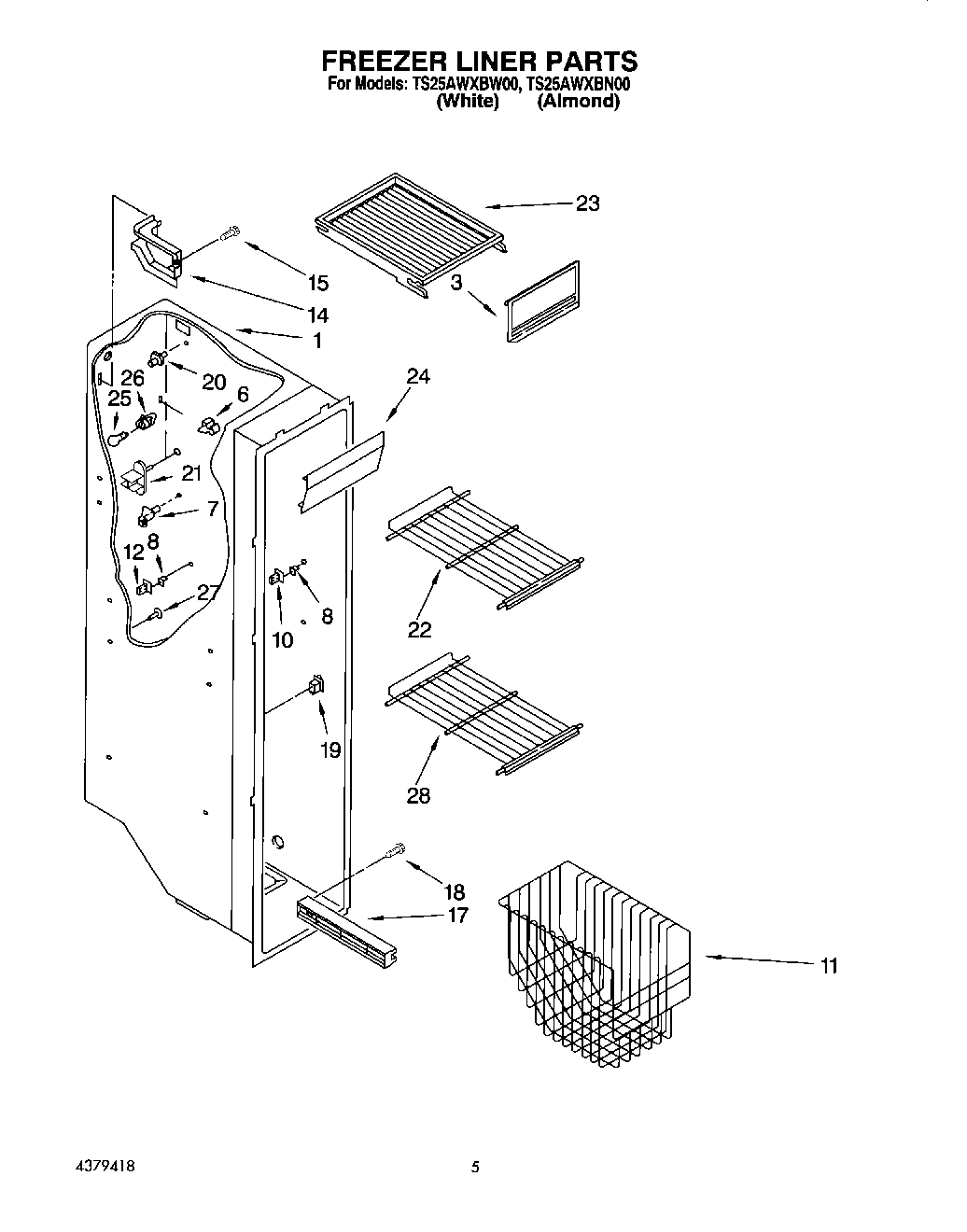

04 - FREEZER LINER

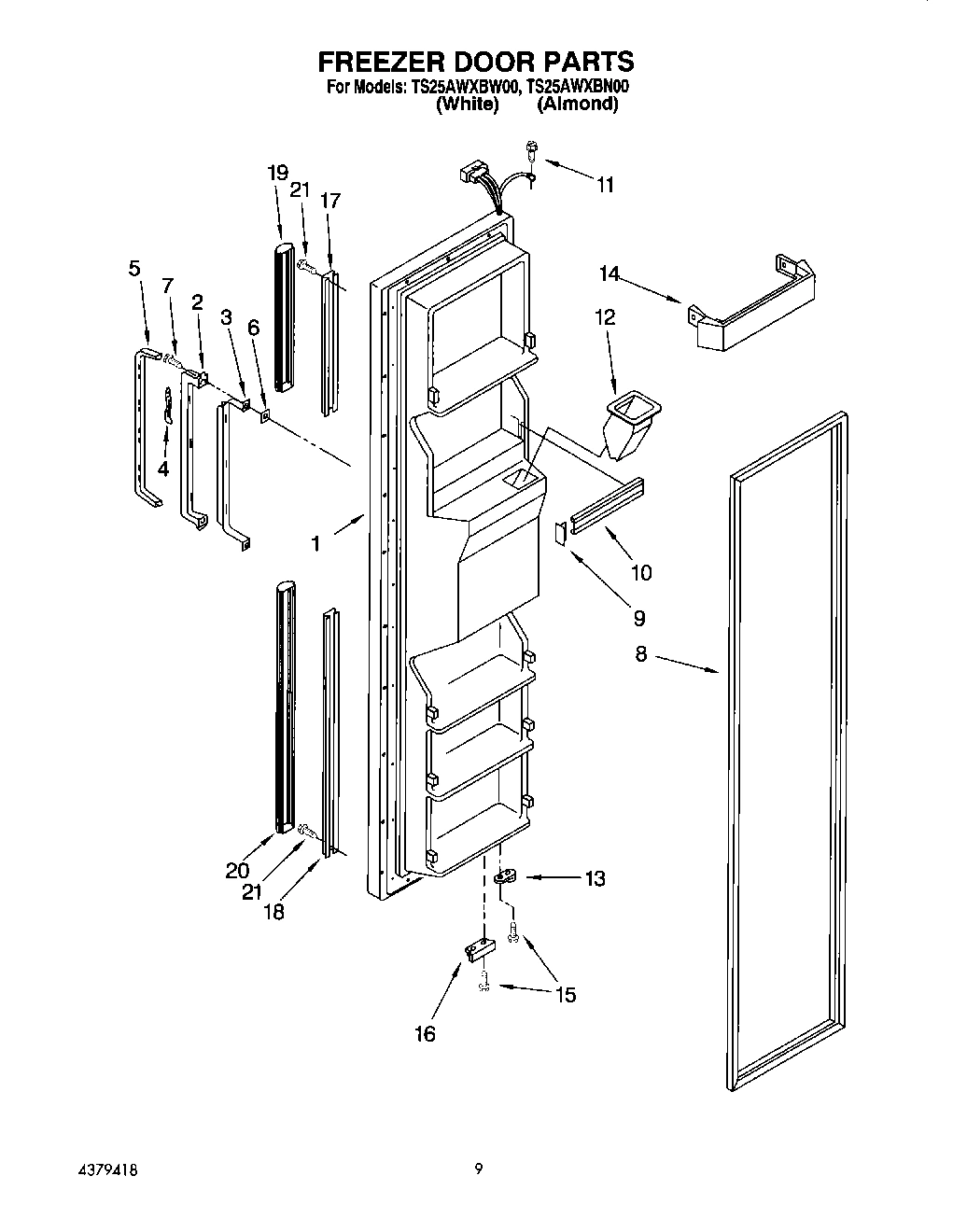

07 - FREEZER DOOR

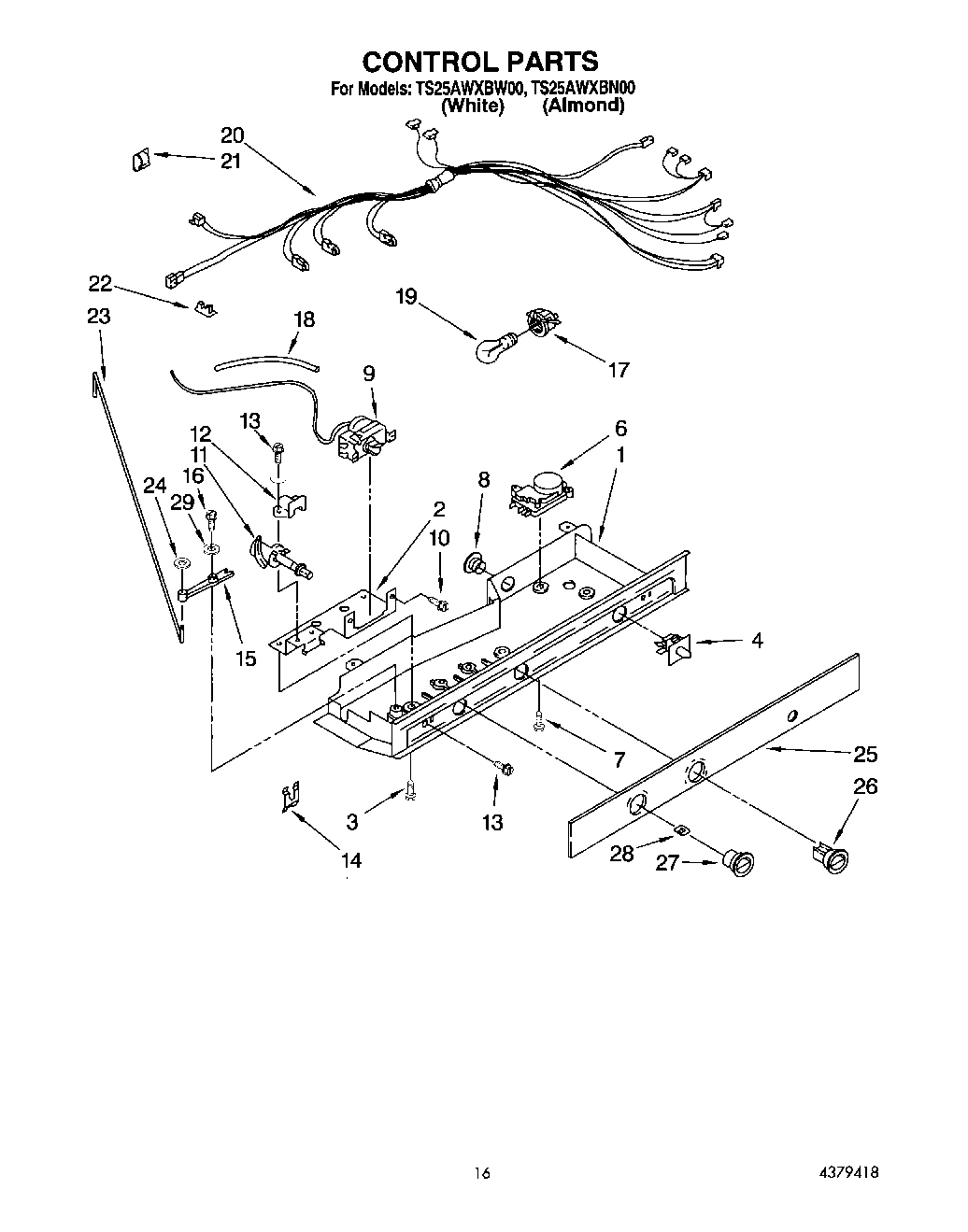

11 - CONTROL
Common parts from model Whirlpool TS25AWXBW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2157980 WPL LIT2157980 Contact Us For Availability
WPL LIT2169198 WPL LIT2169198 Contact Us For Availability
WPL LIT2173265 WPL LIT2173265 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2173160 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2173161 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2163572 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI132382A Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2173166 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2173167 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle (White) WPL 2147470 Contact Us For Availability
2
Handle (Almond) WPL 2170066 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Trivet, Small (3) WPL 2173173 Contact Us For Availability
3
Reinforcement, Handle WPL 1127465 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Ice Compartment WPL 2163423 Contact Us For Availability
3
Screw WPL 489397 Contact Us For Availability
4
Clip, Handle (3) WPL 849445 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI132383A Contact Us For Availability
5
Insert, Handle WPL 2147581 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
6
Shim, Handle (2) WPL 2147097 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI132384A Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Glass, Crisper Cover WPL 2163673 Contact Us For Availability
8
Impact, Shield WPL 987121 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Pan, Meat WPL 2173213 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Trim, Shelf WPL 2163651 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Glass, Shelf WPL 2163573 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Retainer, Glass WPL 1125594 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Chute, Ice WPL 2156146 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Shelf Stud WPL 1115290 No Longer Available
14
Baffle WPL 1115362 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Trivet, Shelf WPL 2173175 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever WPL 983696 Contact Us For Availability
16
Front Cover WPL 2163421 Contact Us For Availability
16
Bracket, Door Stop WPL 2155332 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Retainer (Top) WPL 2147895 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Retainer (Bottom) WPL 2147896 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Extension (Top) (White) WPL 2163432 Contact Us For Availability
19
Extension (Top) (Almond) WPL 2173176 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
20
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Stud, Shelf WPL 1115386 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Shelf WPL 2163571 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Deflector, Ice Container WPL 1119043 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2155816 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Shelf (2) WPL 2163570 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2159199 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2173146 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2163466 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2173096 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2163468 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173109 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Insert, Tube WPL 1129177 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI132380A Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
