Model Whirlpool TS25AQXBW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
10 - AIR FLOW
12 - ICEMAKER, LIT/OPTIONAL

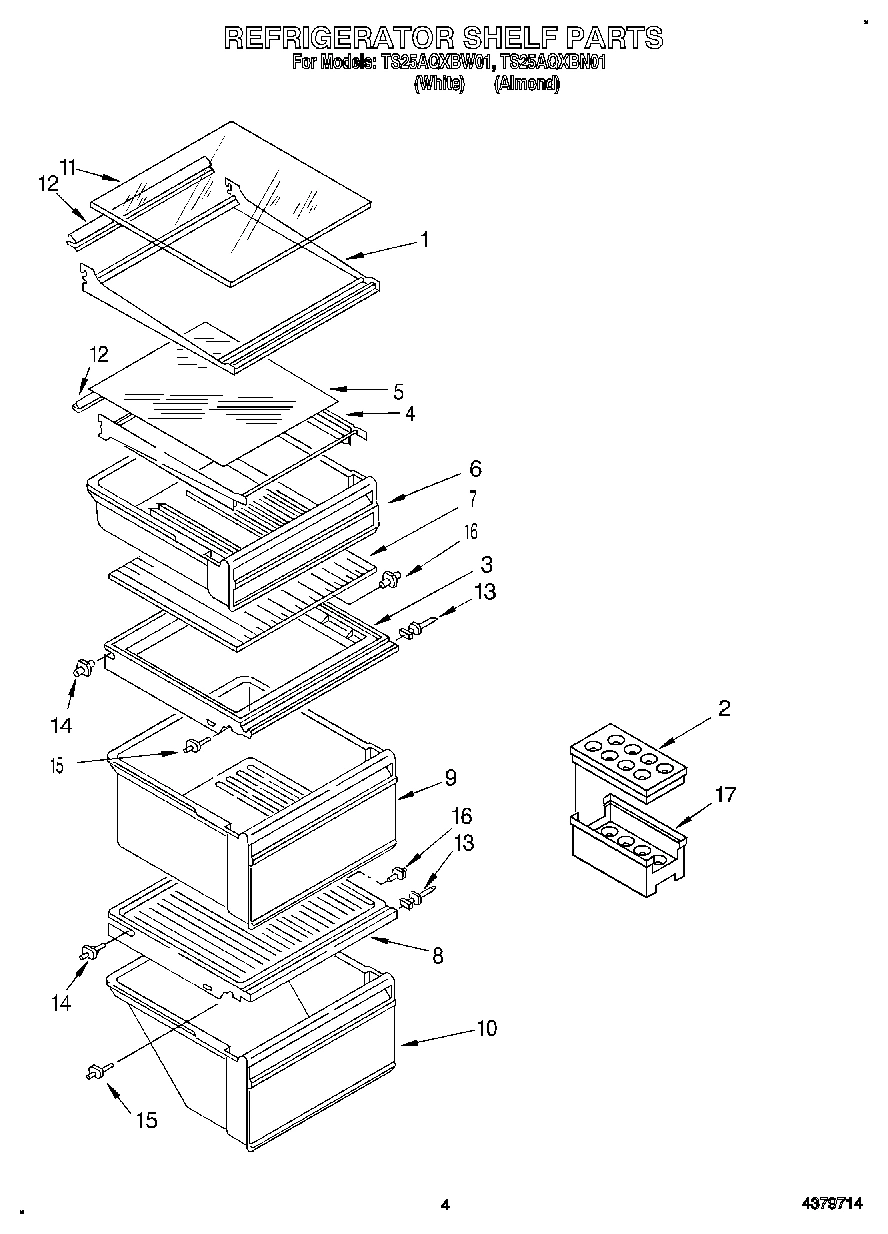

03 - REFRIGERATOR SHELF

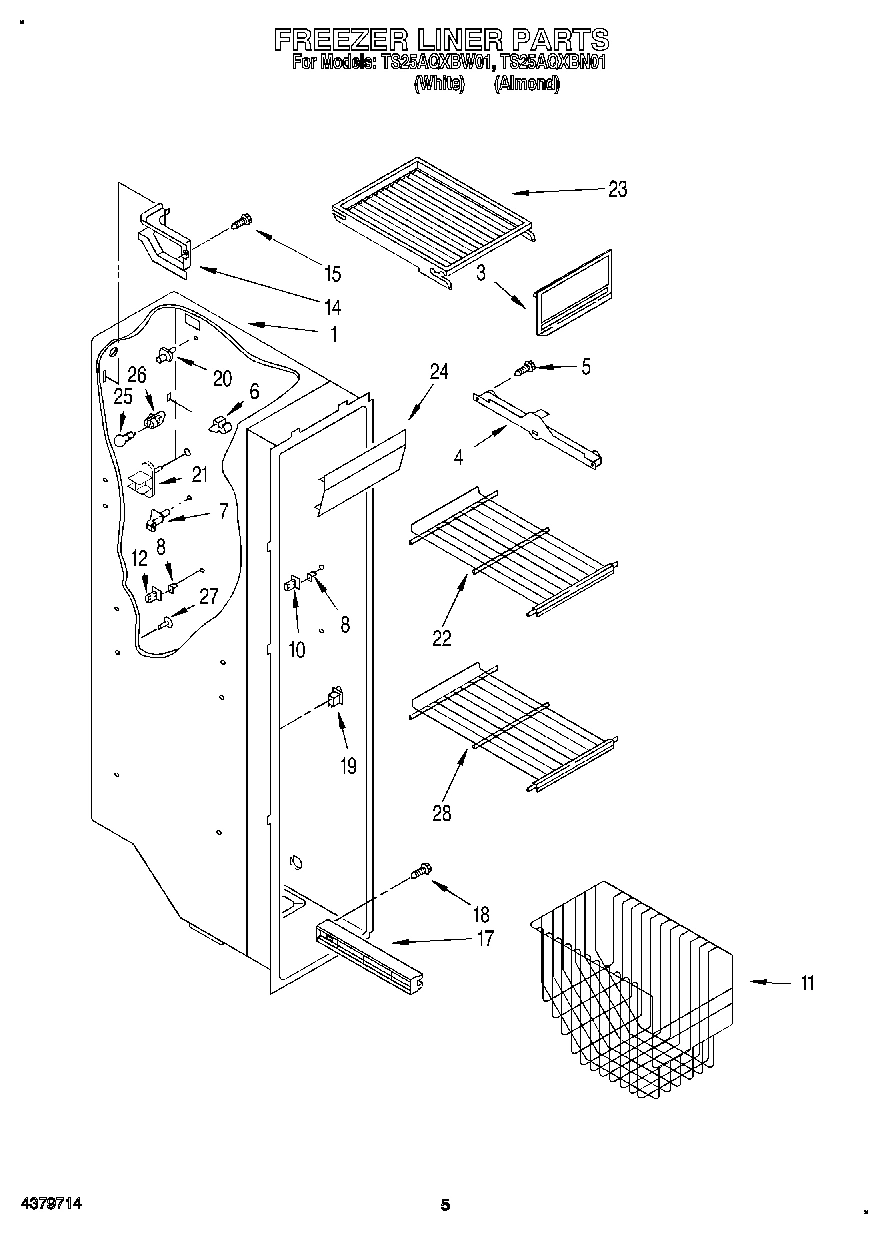

04 - FREEZER LINER

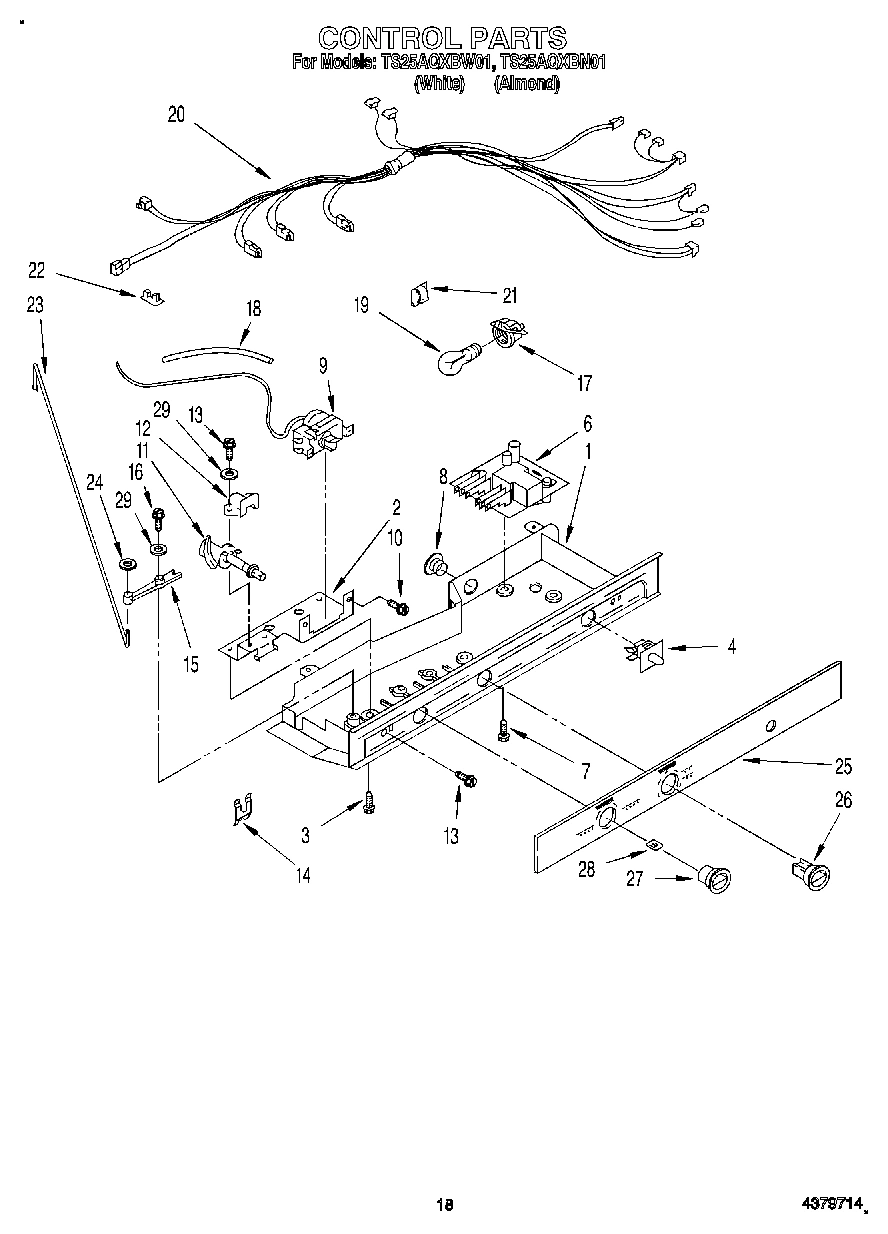

11 - CONTROL

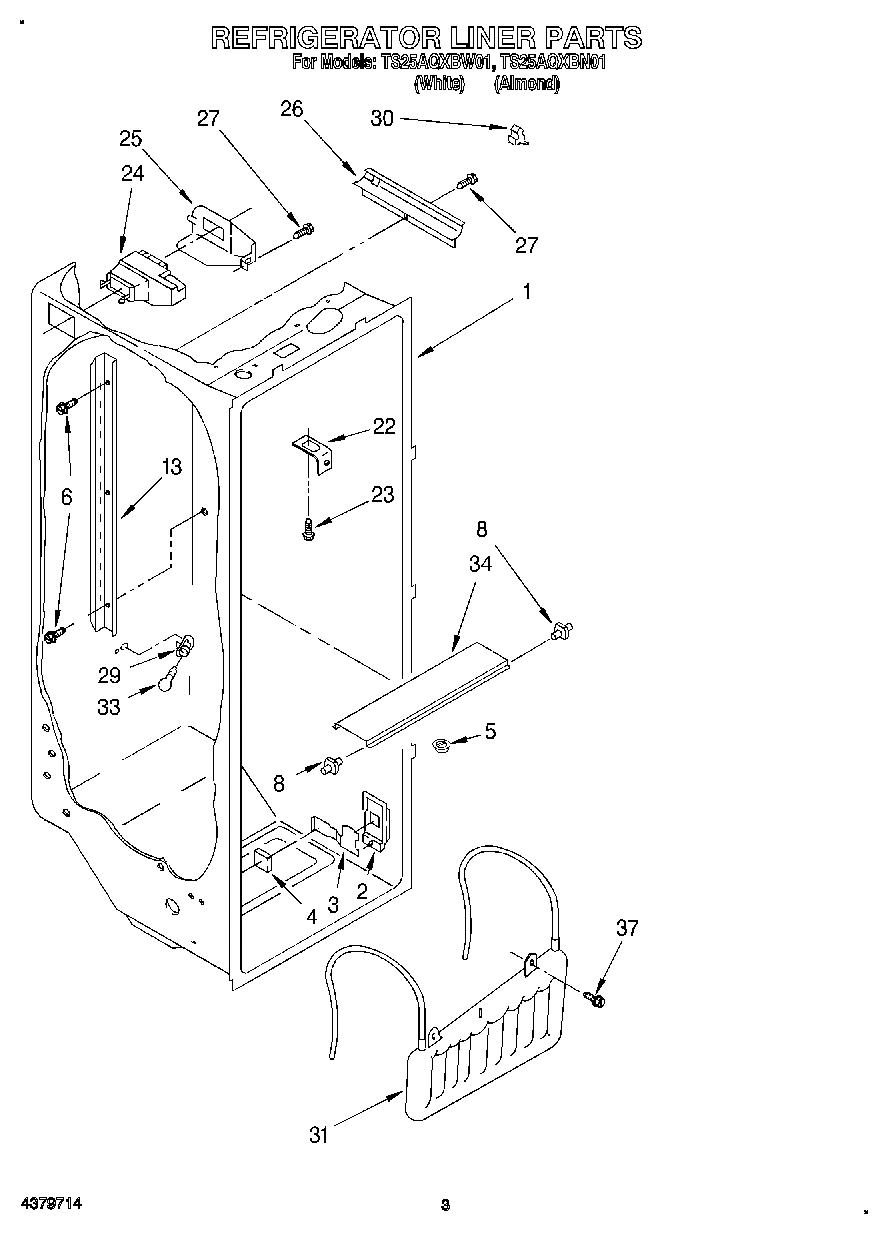

02 - REFRIGERATOR LINER

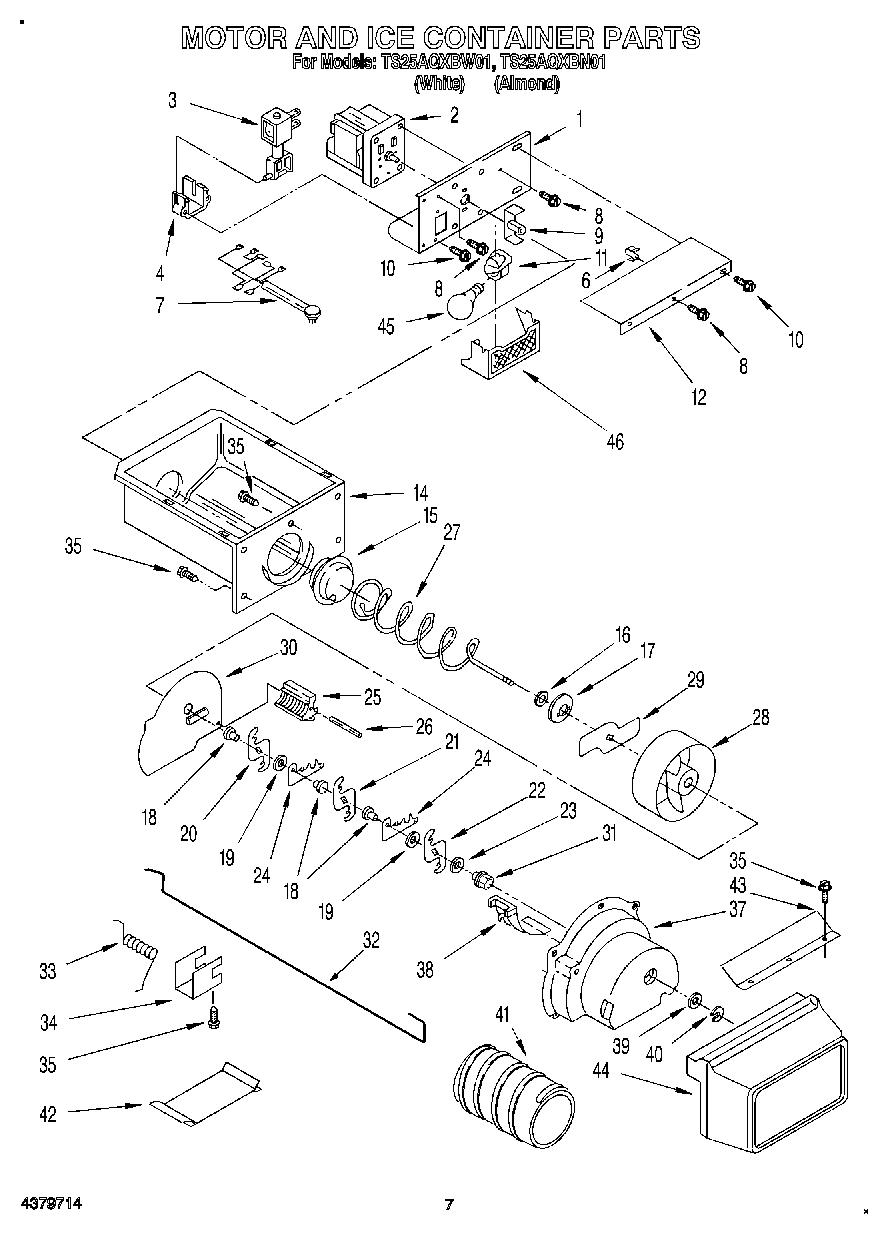

05 - MOTOR AND ICE CONTAINER

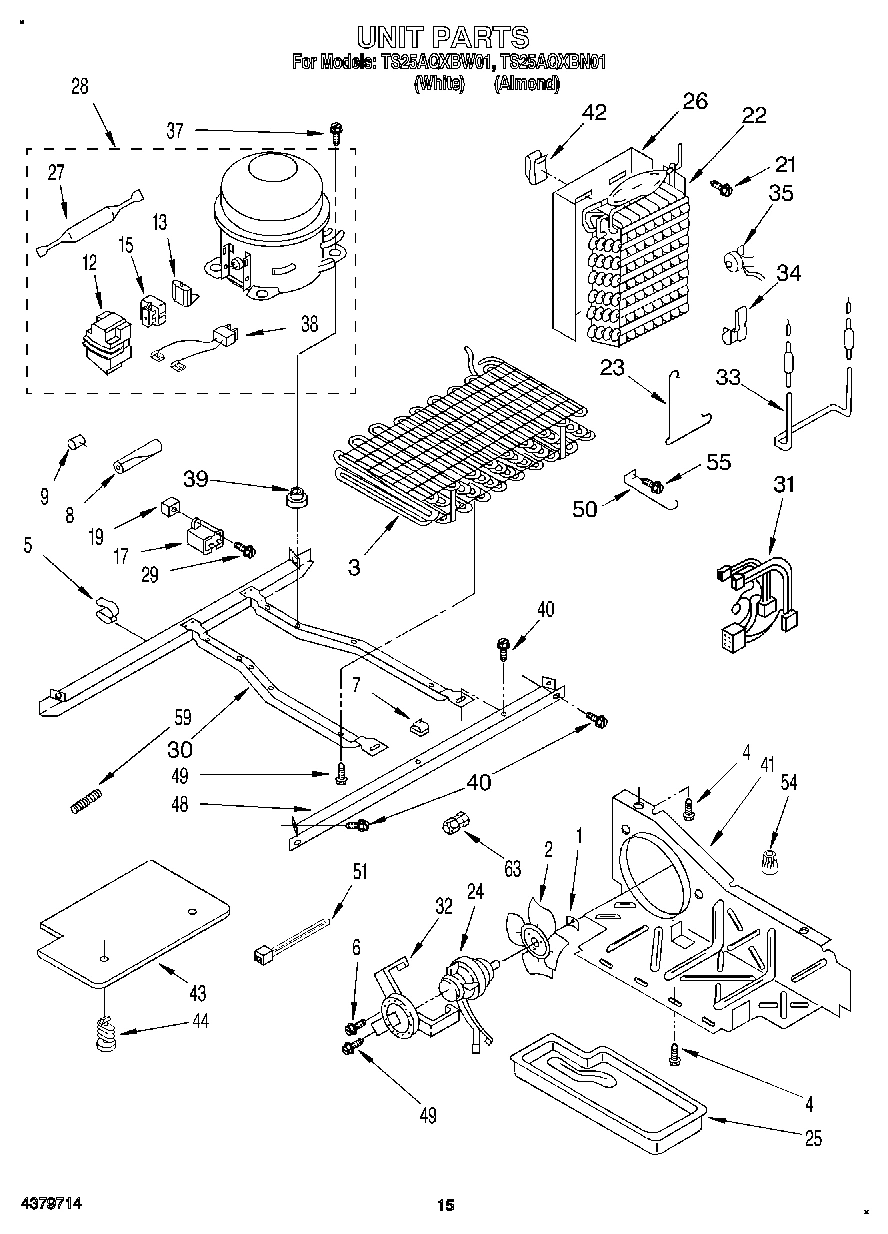

09 - UNIT

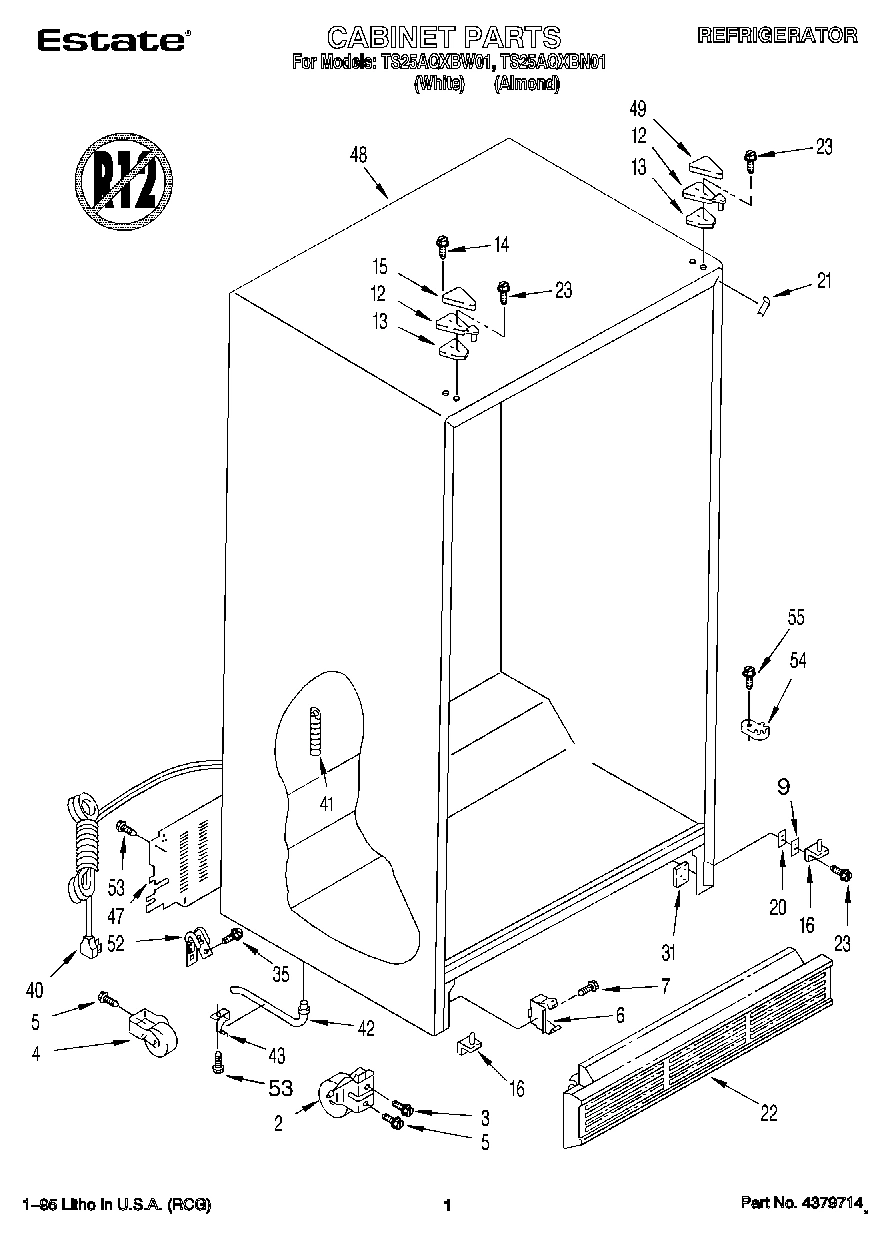

01 - CABINET

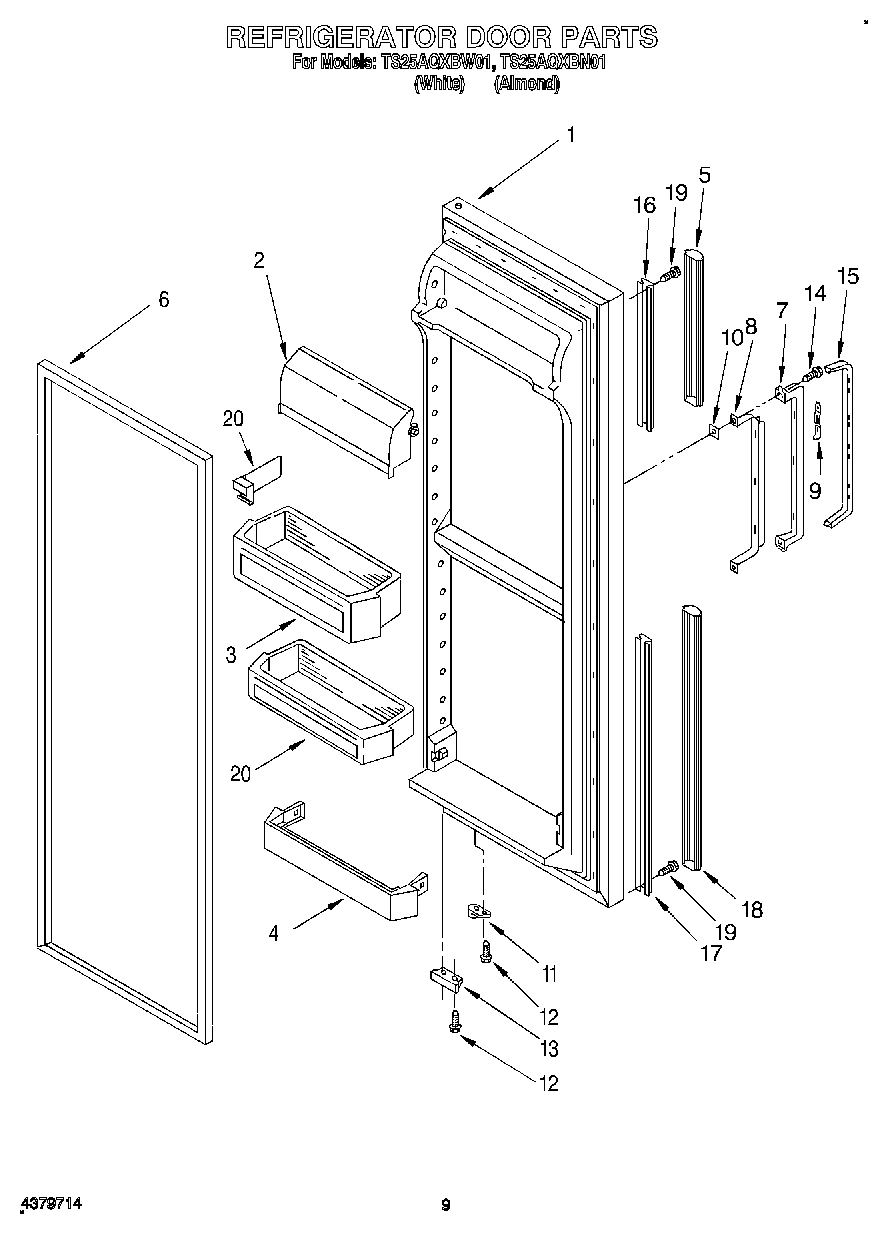

06 - REFRIGERATOR DOOR

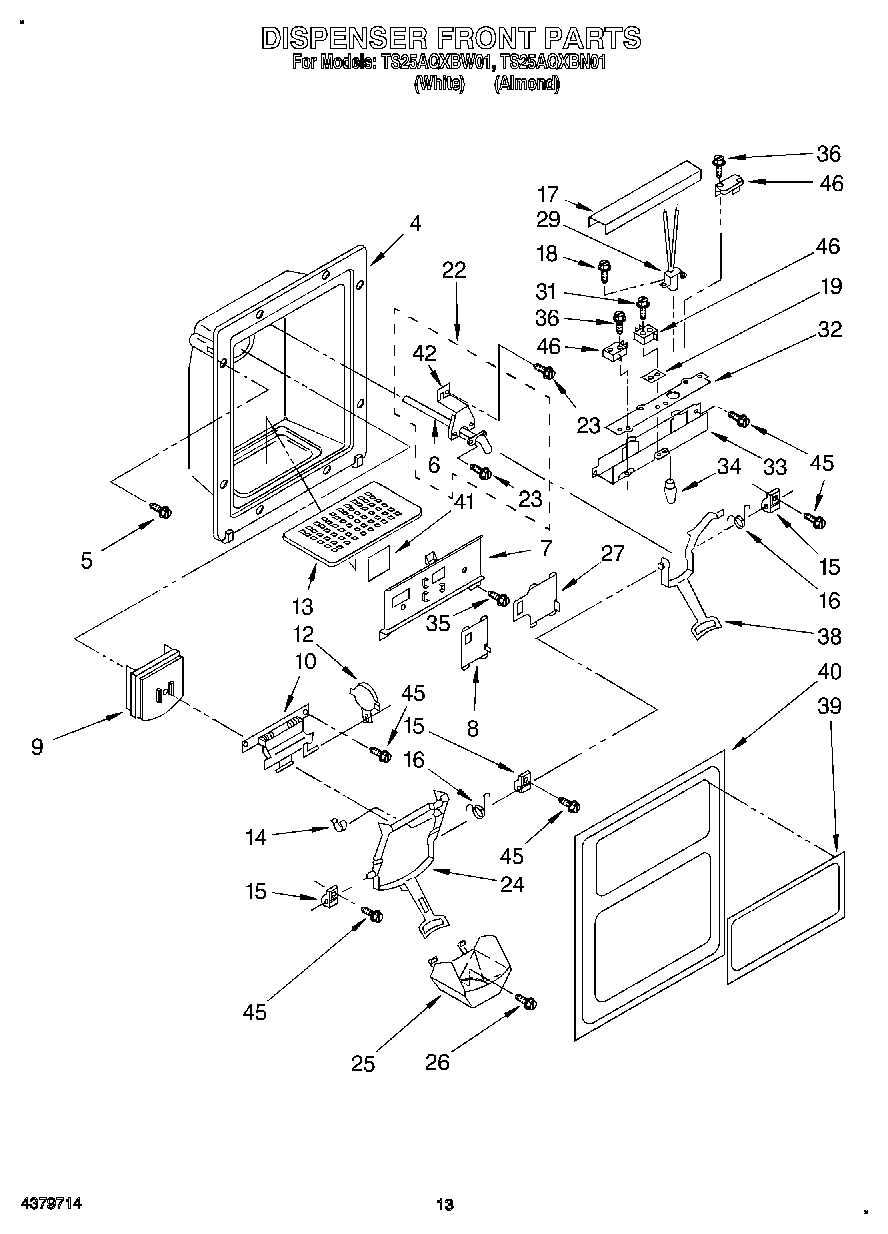

08 - DISPENSER FRONT
Common parts from model Whirlpool TS25AQXBW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI132361A Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2173268 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2173269 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Shelf Bin (2) WPL 2173230 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI132363A Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Extension (Top) (White) WPL 2163432 Contact Us For Availability
5
Extension (Top) (Almond) WPL 2173176 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI132364A Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Handle (White) WPL 2147470 Contact Us For Availability
7
Handle (Almond) WPL 2170066 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
8
Reinforcement, Handle WPL 1127465 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Clip, Handle WPL 849445 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Shim, Handle WPL 2147097 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Shelf Stud WPL 1115290 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI132365A Contact Us For Availability
15
Insert, Handle WPL 2147581 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer (Top) WPL 2147895 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Retainer (Bottom) WPL 2147896 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
18
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shelf Bin WPL 2173229 Contact Us For Availability
21
Stud, Shelf WPL 1115386 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Shelf WPL 2163571 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2155816 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Shelf (2) WPL 2163570 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2173146 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2173097 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2173098 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2173110 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173111 Contact Us For Availability
41
Heat Shie WPL 2147172 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2162949 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI132360A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
51
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
