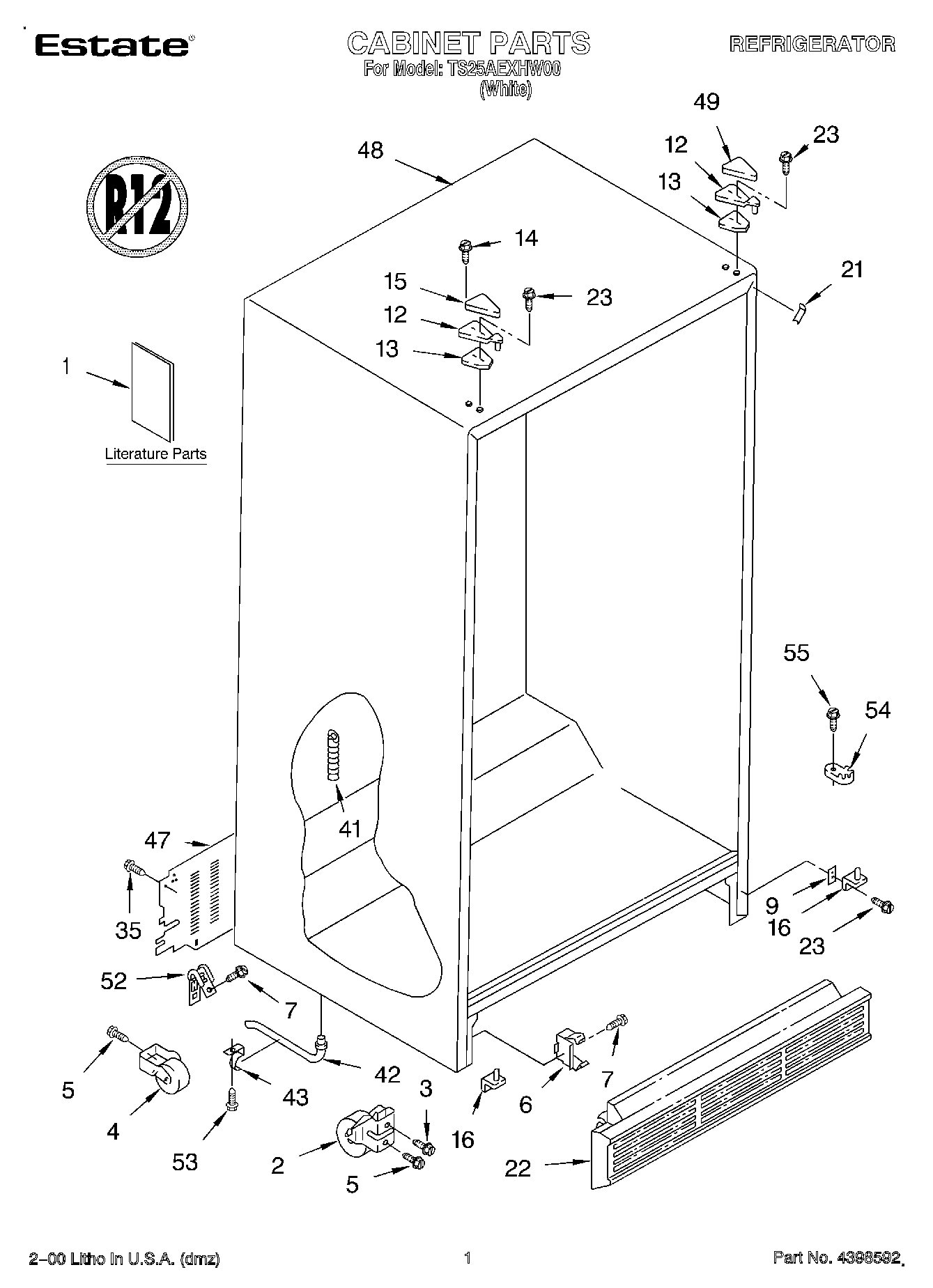

Model Whirlpool TS25AEXHW00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) WPL 2204313W Contact Us For Availability

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $88.09

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $41.66

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

Release Valve WPL 2171846 Contact Us For Availability

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Door Gasket, Magnetic (Repair) (Mist Beige) WPL 2159075 Contact Us For Availability

7

Handle, Center WPL 2186649W Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Door Gasket, Magnetic (Repair) (Mist Beige) WPL 2159074 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Grille, Overflow WPL 2183787W Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $94.79

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $45.77

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Duct, Icemaker WPL 2182146 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

Lamp Holder WPL 2180200 Contact Us For Availability

Bracket, Door Stop WPL 2195950 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

Glass (3) WPL 2177986 Contact Us For Availability

TUBE, SUCTION WPL 2205765 Contact Us For Availability

15

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

15

Hinge Cover WPL 1129262 Contact Us For Availability

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

17

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

17

Cover, Evaporator WPL 2203841 Contact Us For Availability

18

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

18

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $91.46

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Filler, Wrapper WPL 2196094 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $35.78

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Lens, Light WPL 2171705 Contact Us For Availability

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

BLOCK BLADE WPL 2157405 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

Knob, Thermostat WPL 2182111 Contact Us For Availability

26

Roll Pin WPL 489229 Contact Us For Availability

27

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear WPL 2196207 Contact Us For Availability

28

Tube Kit WPL 876765 Contact Us For Availability

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

31

Shelf (2) WPL 2174268 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

Spring, Return WPL 1119020 Contact Us For Availability

34

Light Lens WPL 2203266 Contact Us For Availability

34

Retainer Clip, Rod WPL 1119021 Contact Us For Availability

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

Washer, Plain WPL 489234 Contact Us For Availability

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

Hinge Cover WPL 1119787 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability

Valve, Access (5/16``) WPL 978026 Contact Us For Availability

Valve, Access (3/8``) WPL 978027 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Complete Icemaker Assembly WPL 4317943 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability

SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability

xEnamel, Almond (13 Oz. Spray Can) WPL 350956 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability

WPL 876370 WPL 876370 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

WPL 833938 WPL 833938 Contact Us For Availability

Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
