Model Whirlpool TS22AQXEW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
08 - DISPENSER FRONT
11 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL

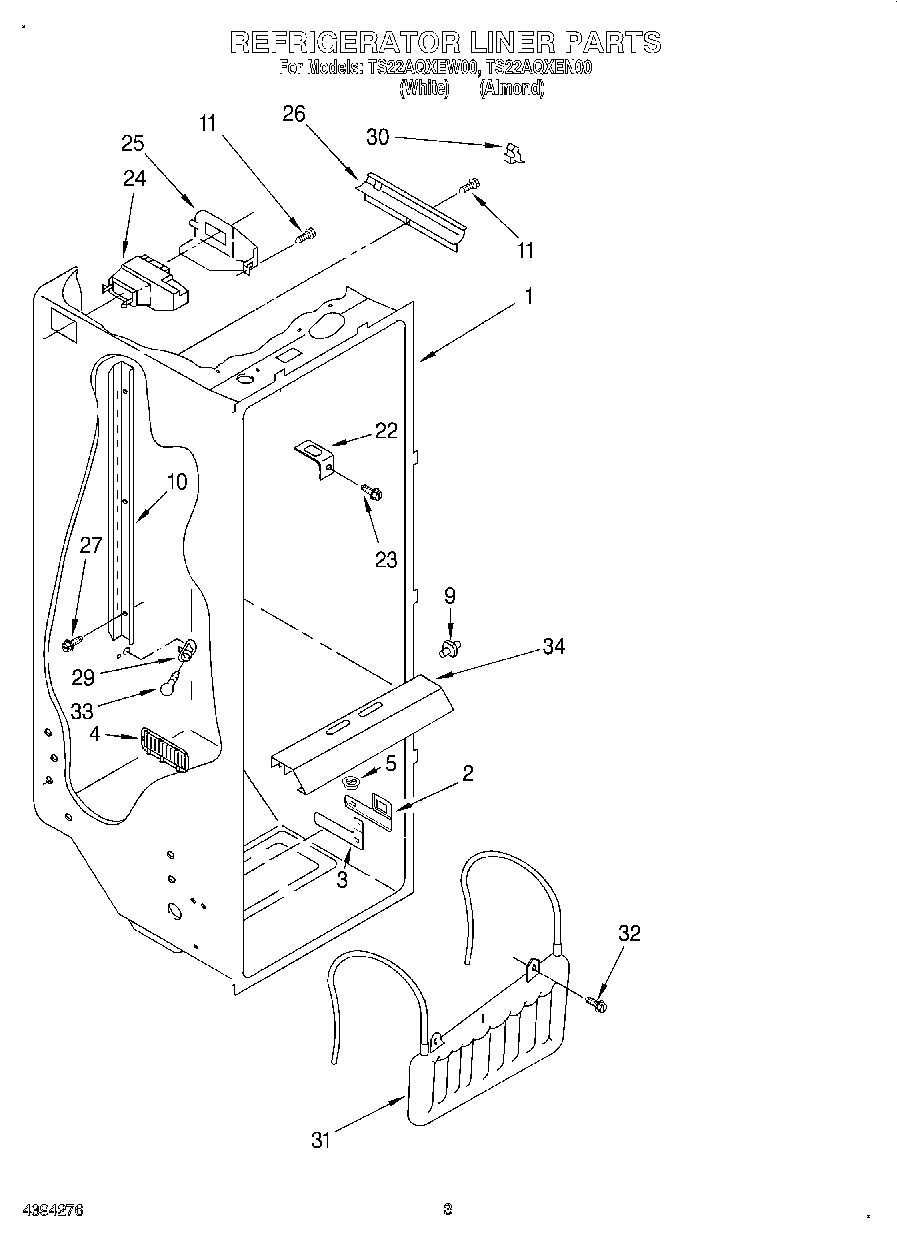

02 - REFRIGERATOR LINER

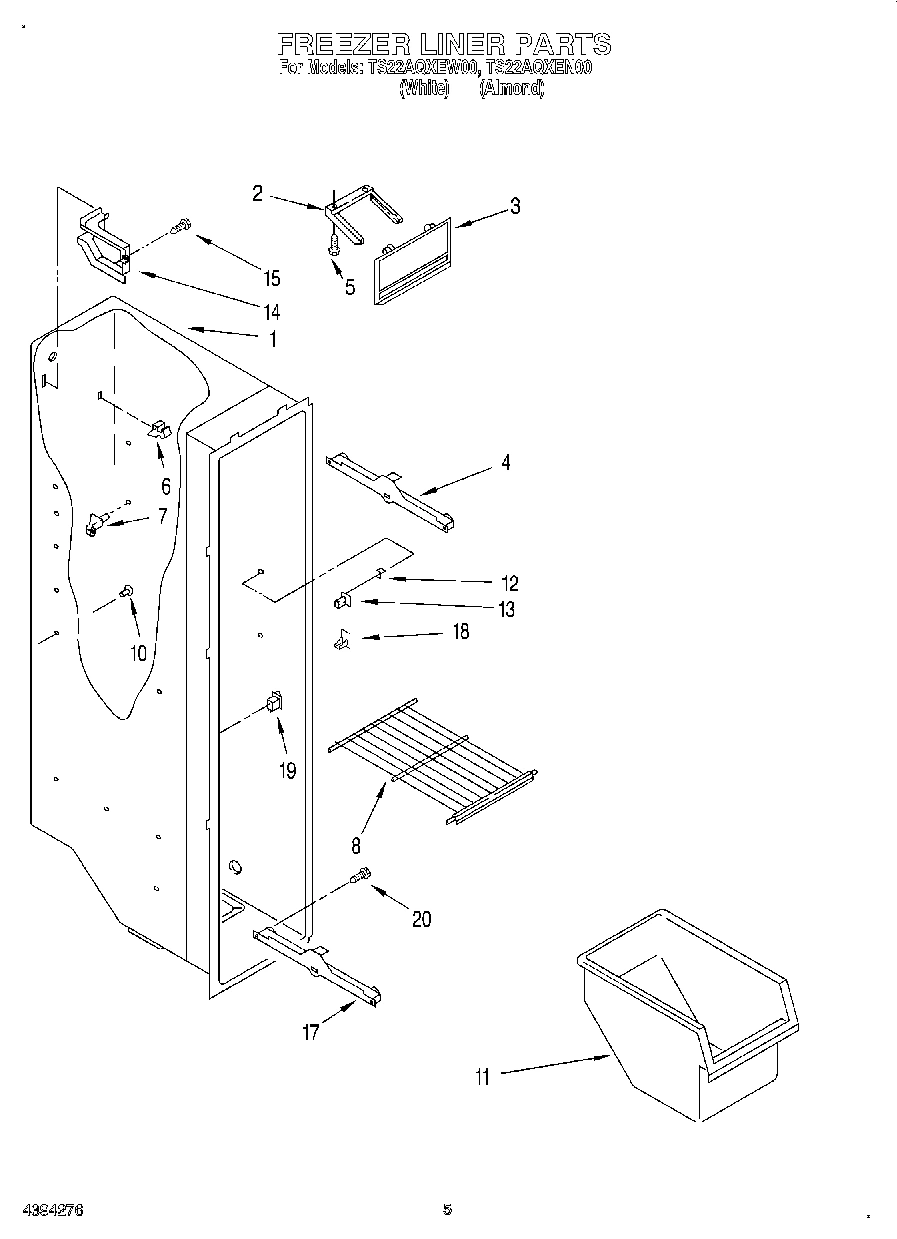

04 - FREEZER LINER

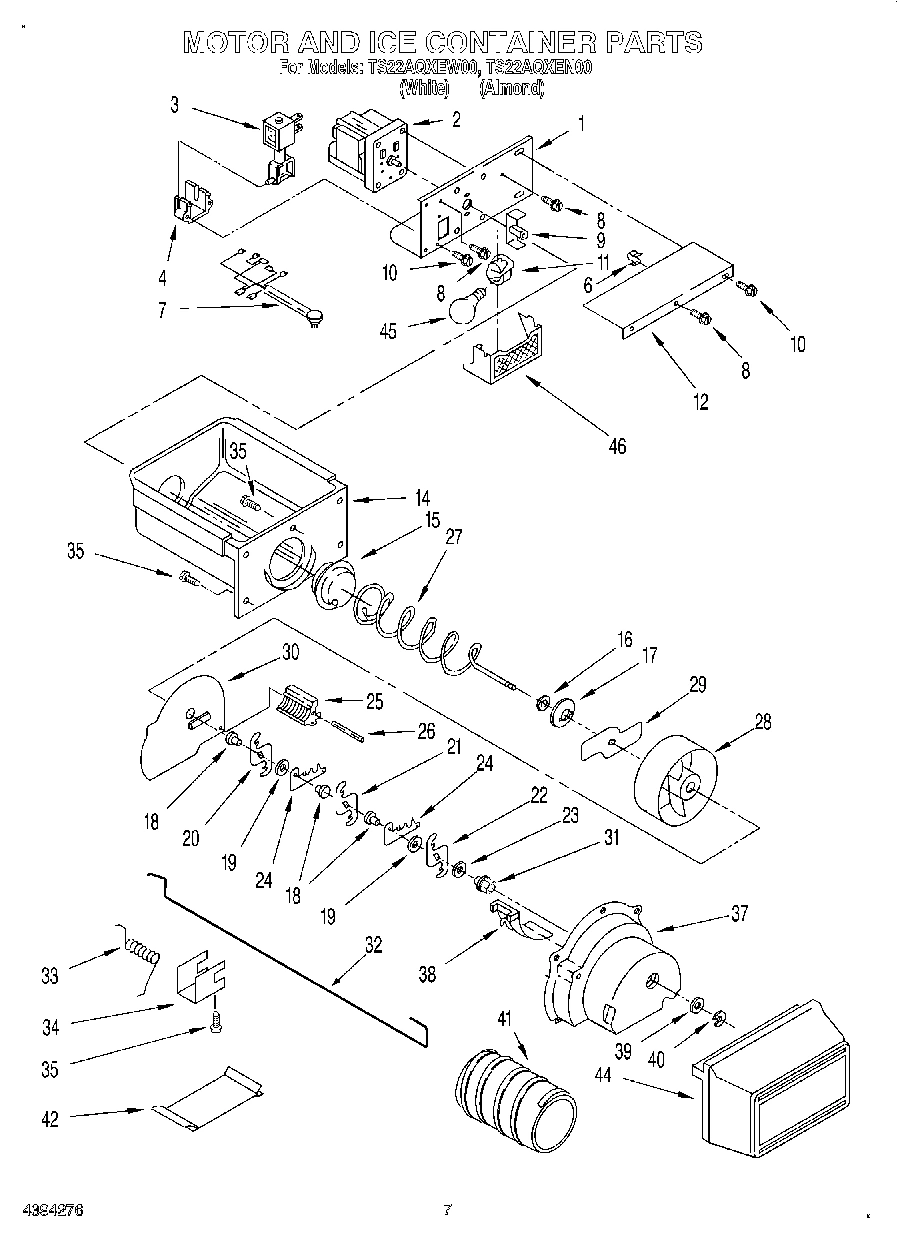

05 - MOTOR AND ICE CONTAINER

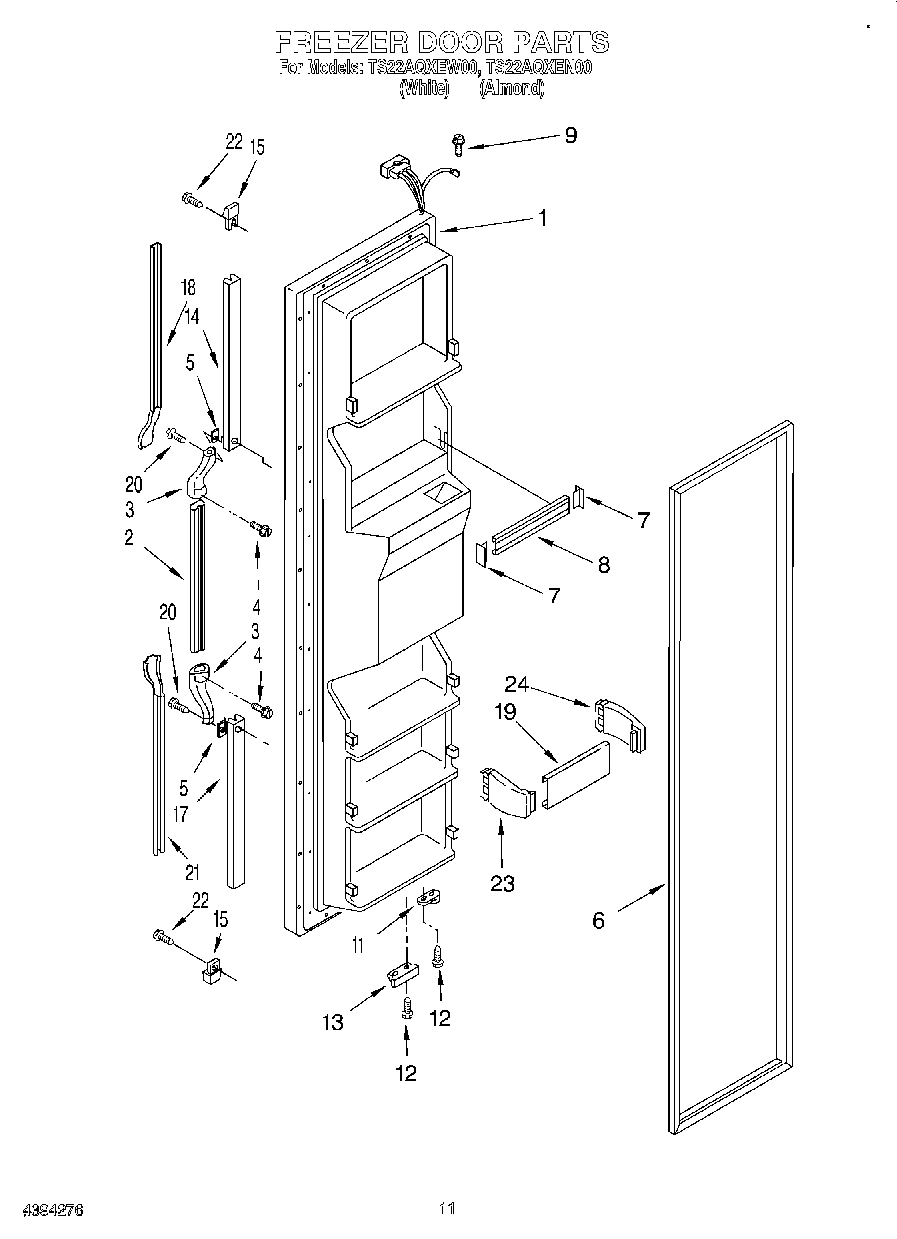

07 - FREEZER DOOR

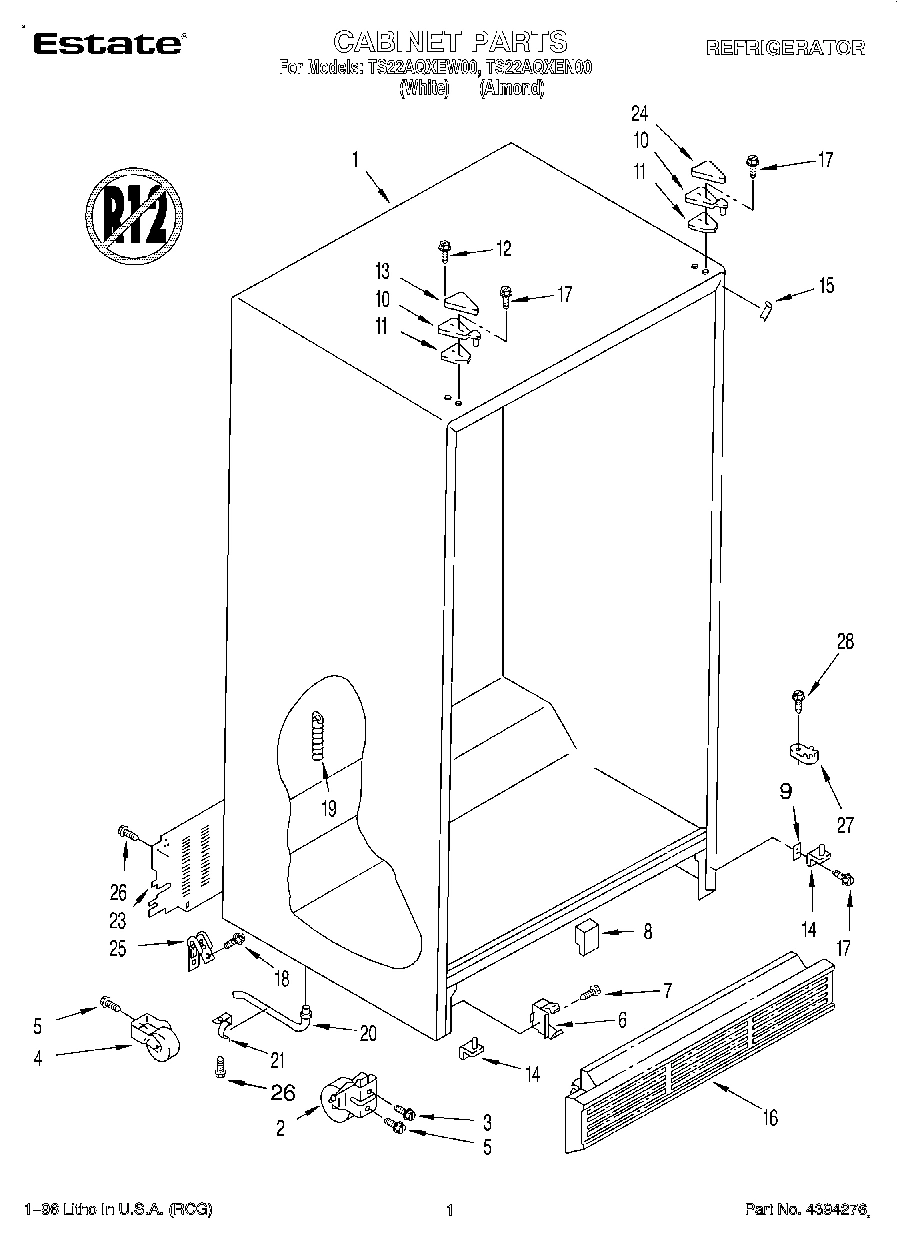

01 - CABINET

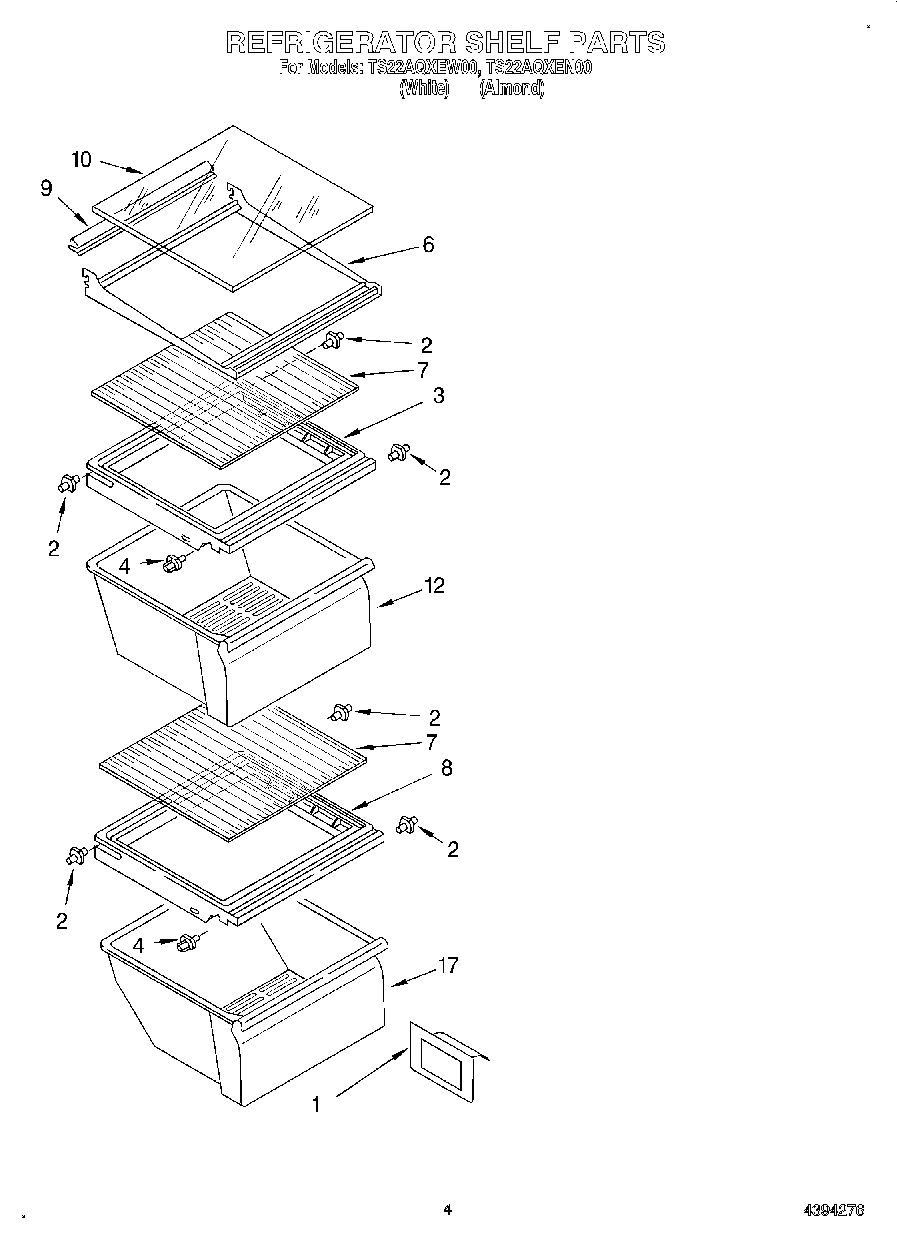

03 - REFRIGERATOR SHELF

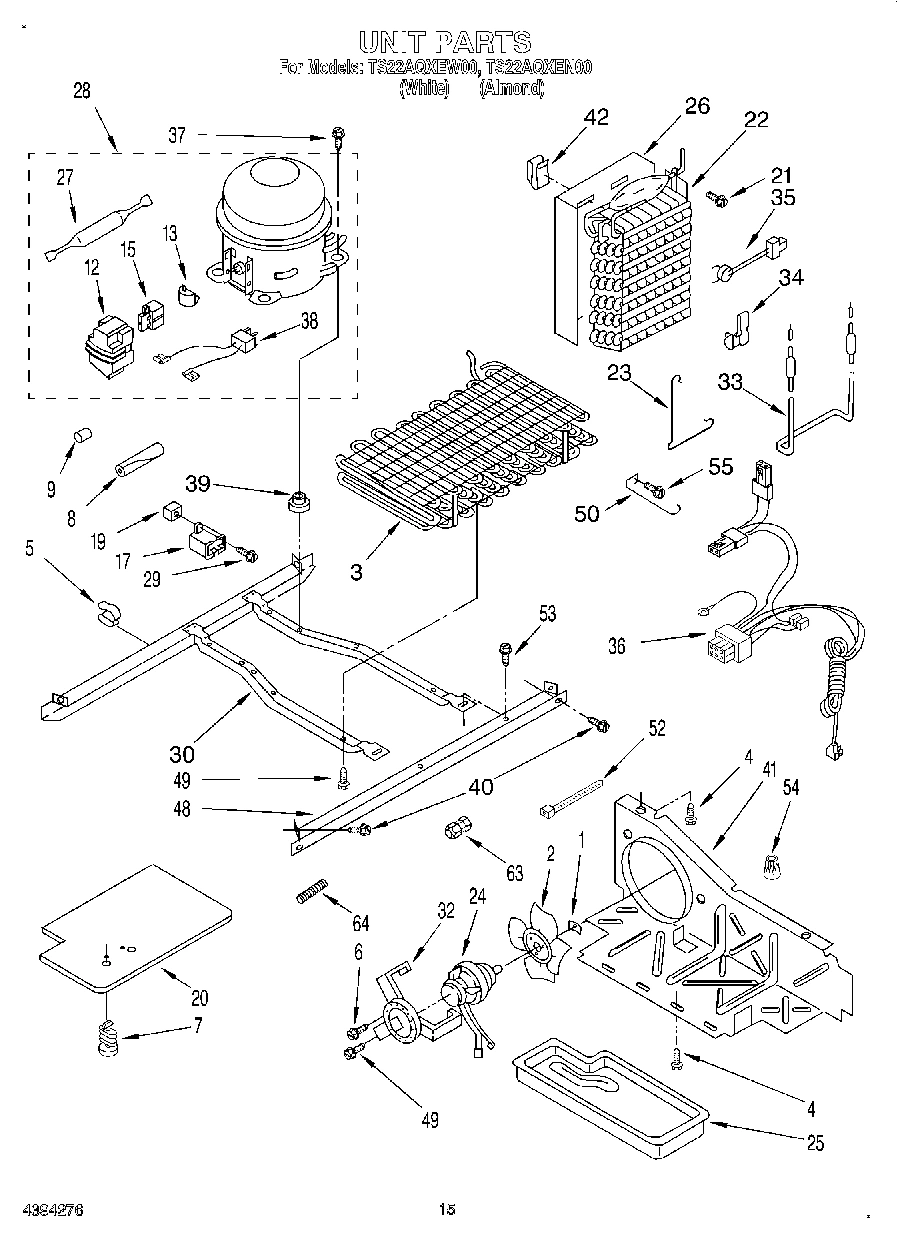

09 - UNIT

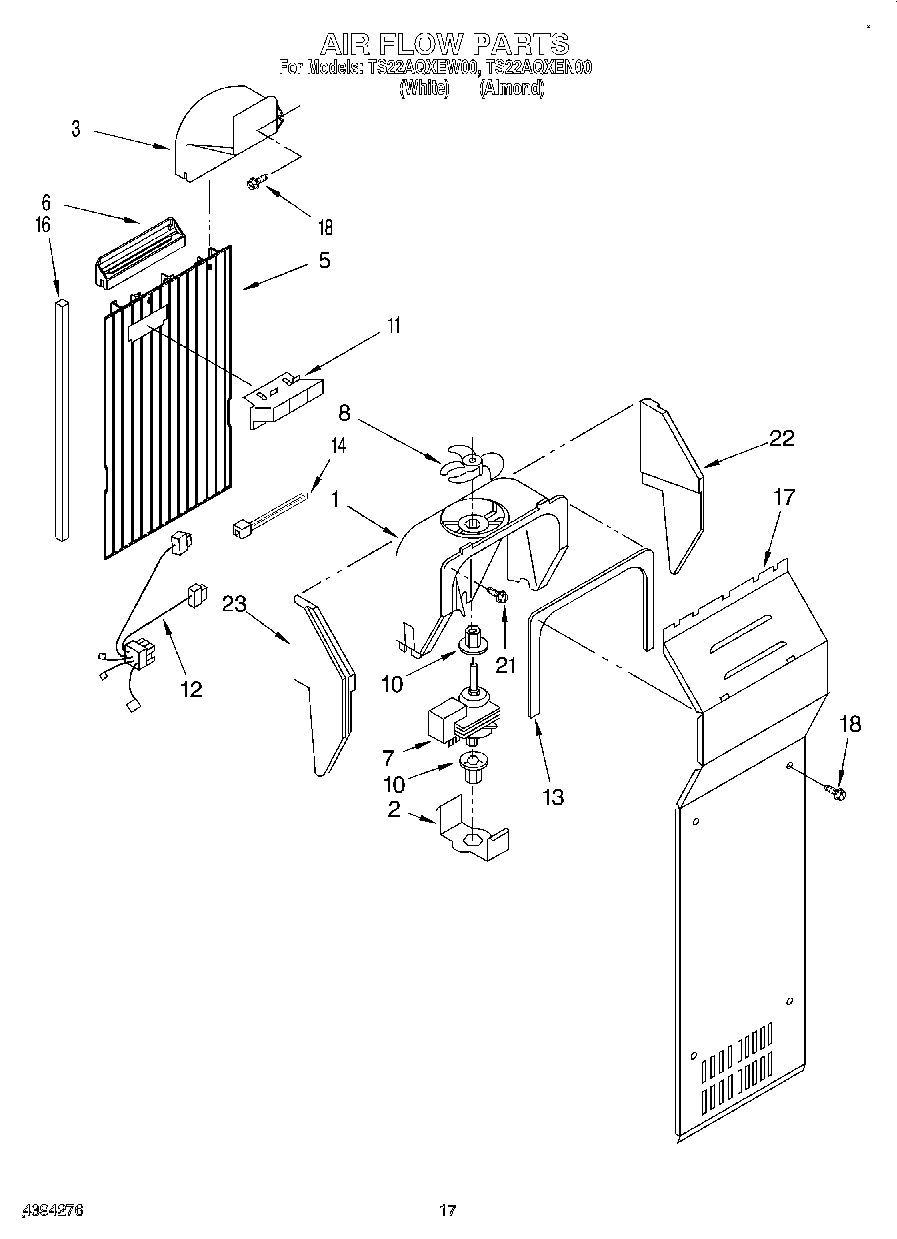

10 - AIR FLOW

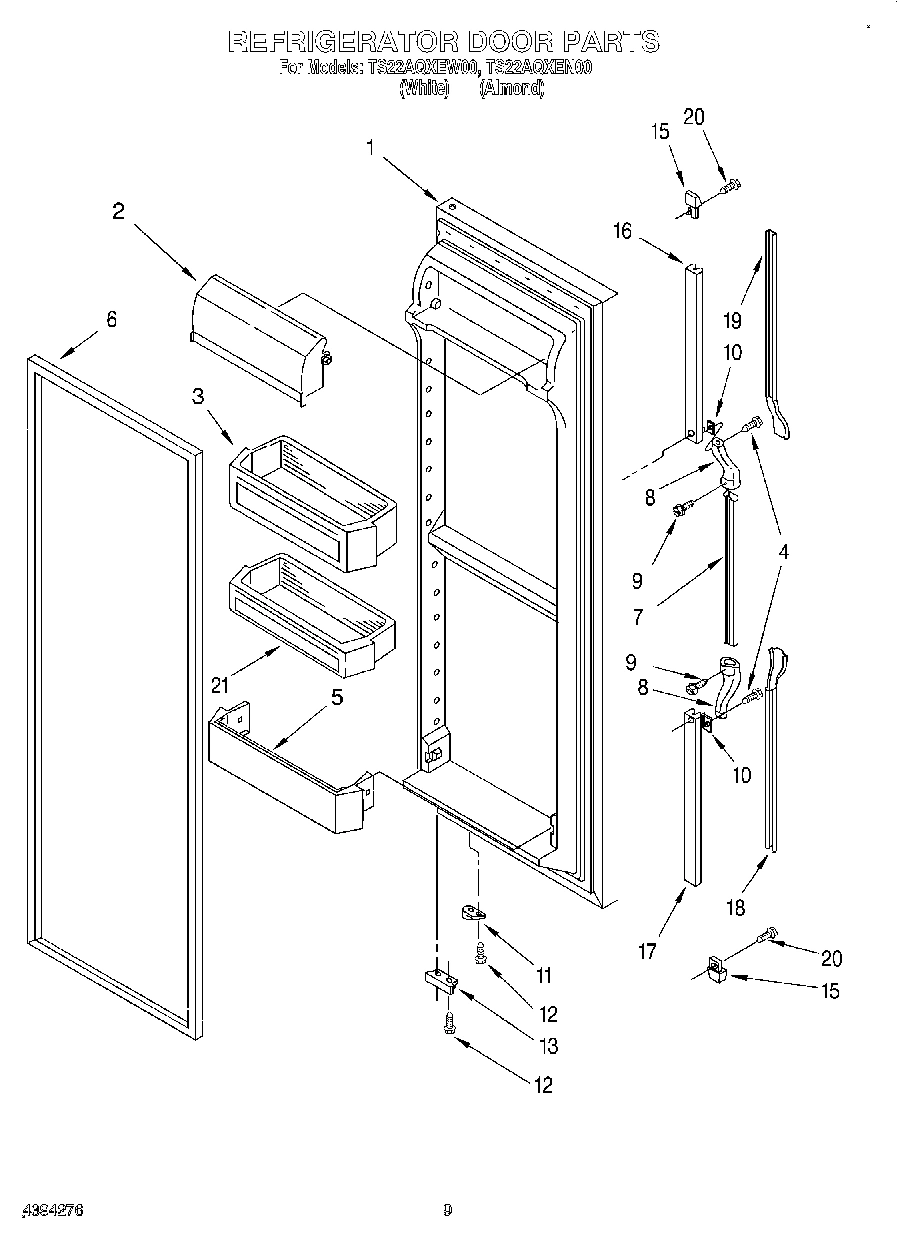

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool TS22AQXEW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (White) WPL 2182914 Contact Us For Availability
1
Freezer Door (Almond (Includes Item No.6 And WPL 2182915 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI131920A Contact Us For Availability
1
Refrigerator Door (White) WPL 2171082 Contact Us For Availability
1
Refrigerator Door (Almond (Includes Item No.6 WPL 2171083 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Shelf Bin (2) WPL 2177882 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Shelf Assembly, Cantilever (2) WPL 2163572 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Handle, Center (White) WPL 1124713 Contact Us For Availability
7
Handle, Center (Almond) WPL 943079 Contact Us For Availability
8
Shelf, Large (2) WPL 2174265 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Screw WPL 489022 Contact Us For Availability
9
Retainer, Glass WPL 1125594 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Shim WPL 935075 Contact Us For Availability
10
Glass (3) WPL 2163573 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Shim, Hinge Top WPL 2171868 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
End Cap (2) WPL 2156220 Contact Us For Availability
15
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
15
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
15
Relay (See Overload) WPL ARI131926A Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Top WPL 1119366 Contact Us For Availability
16
Grille (White) WPL 2155477 Contact Us For Availability
16
Grille (Almond) WPL 2155478 Contact Us For Availability
17
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Retainer, Bottom WPL 1119360 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
18
Extension, Bottom (White) WPL 1119361 Contact Us For Availability
18
Extension, Bottom (Almond) WPL 1119363 Contact Us For Availability
19
Extension, Top (White) WPL 1119367 Contact Us For Availability
19
Extension, Top (Almond) WPL 1119369 Contact Us For Availability
19
Door, Shelf (4) WPL 2182786 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Shelf Bin WPL 2177883 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Unit, Harness WPL 2181709 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Spring-Tube WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
