Model GE TPX24PPDBCC – Common Parts & Diagrams
FREEZER DOOR
FREEZER SECTION

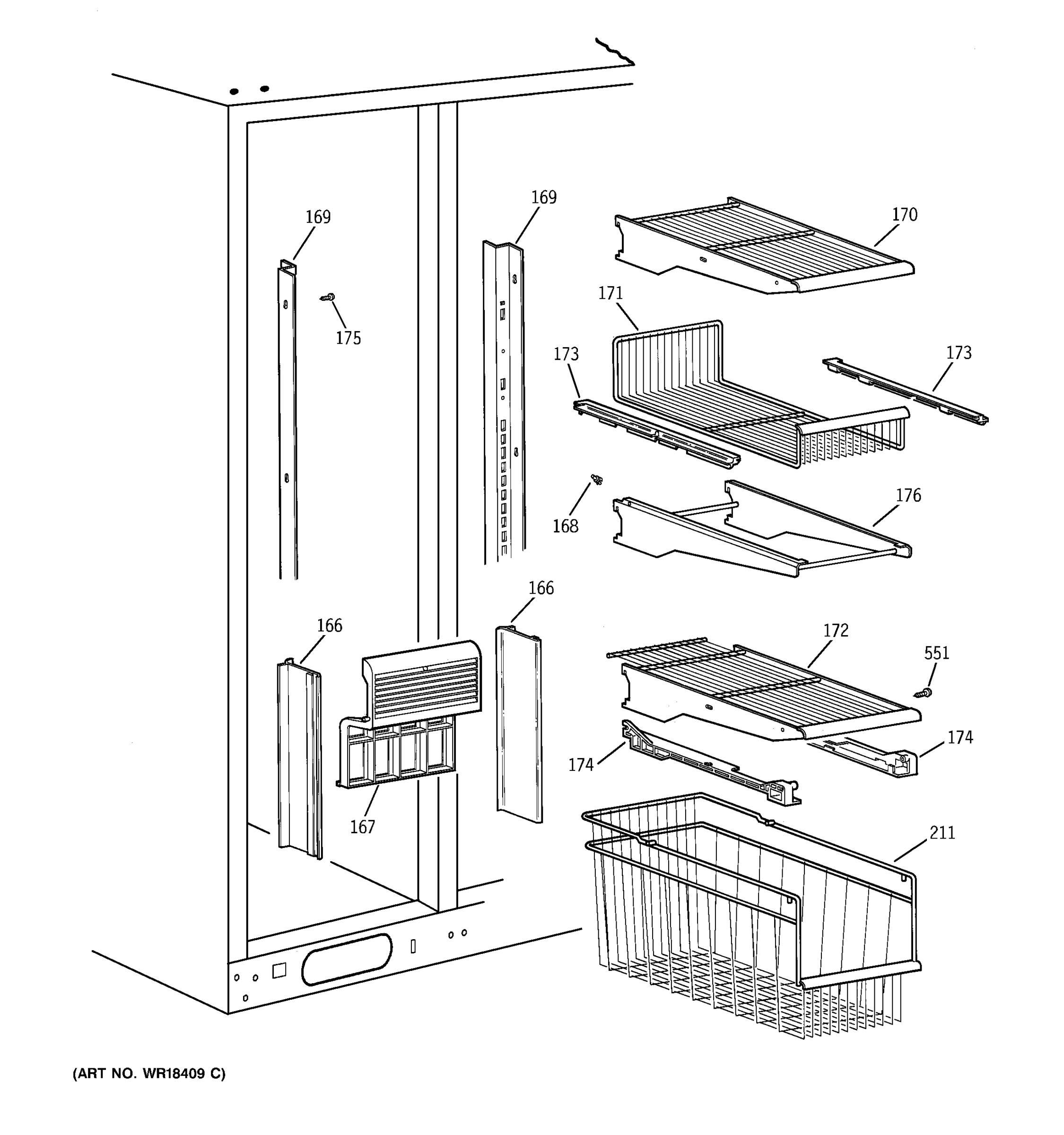

FREEZER SHELVES

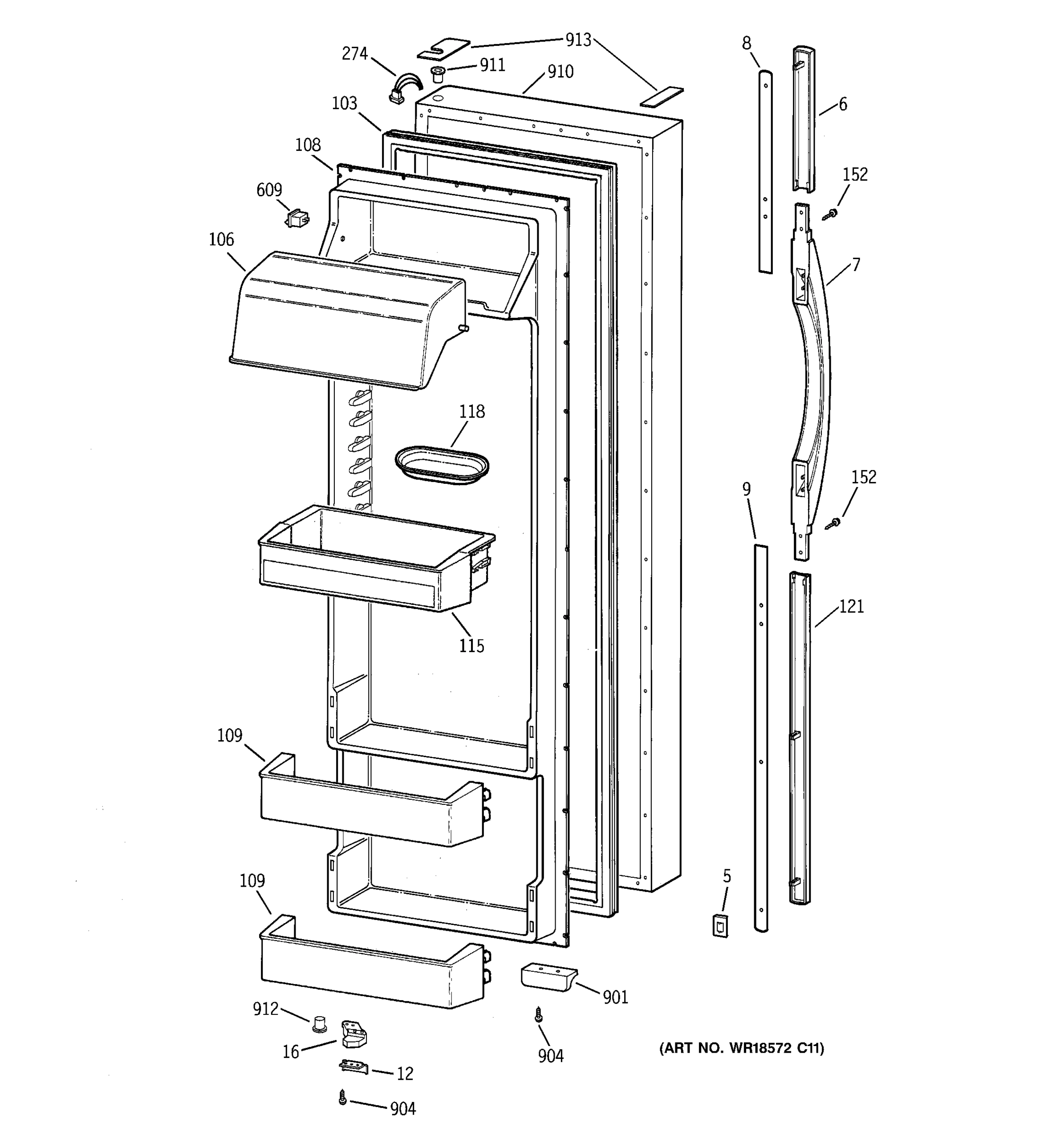

FRESH FOOD DOOR

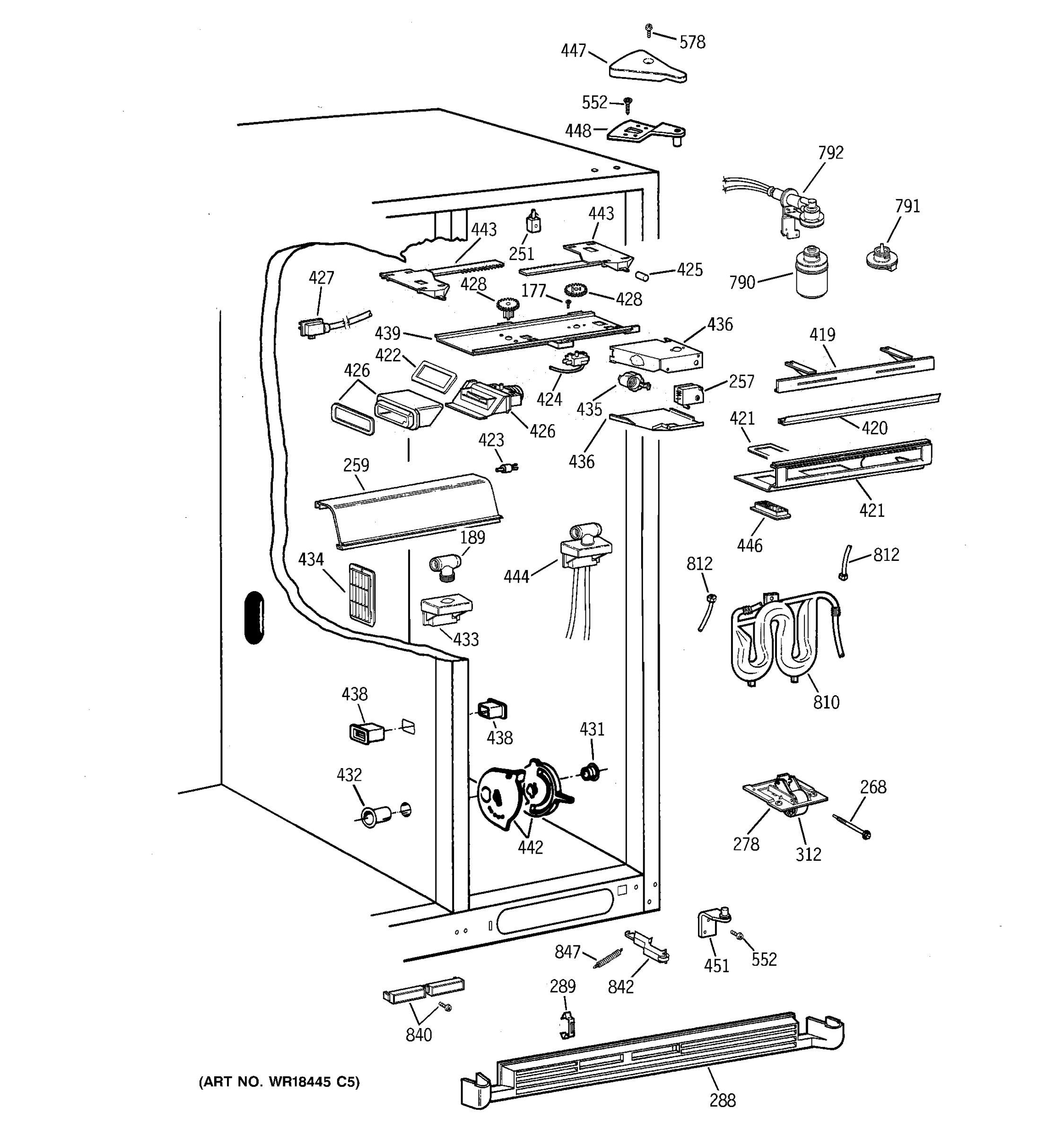

FRESH FOOD SECTION

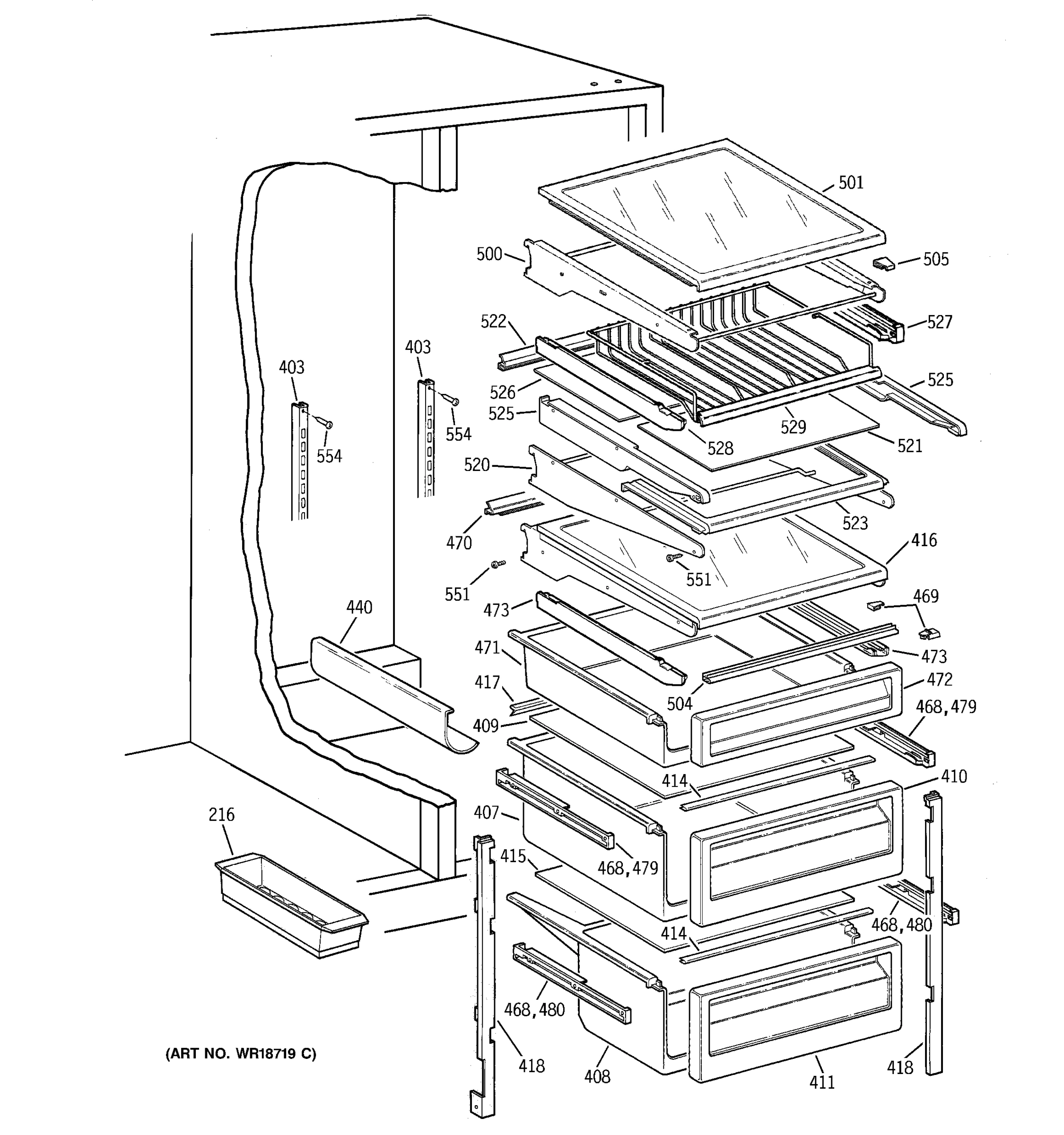

FRESH FOOD SHELVES

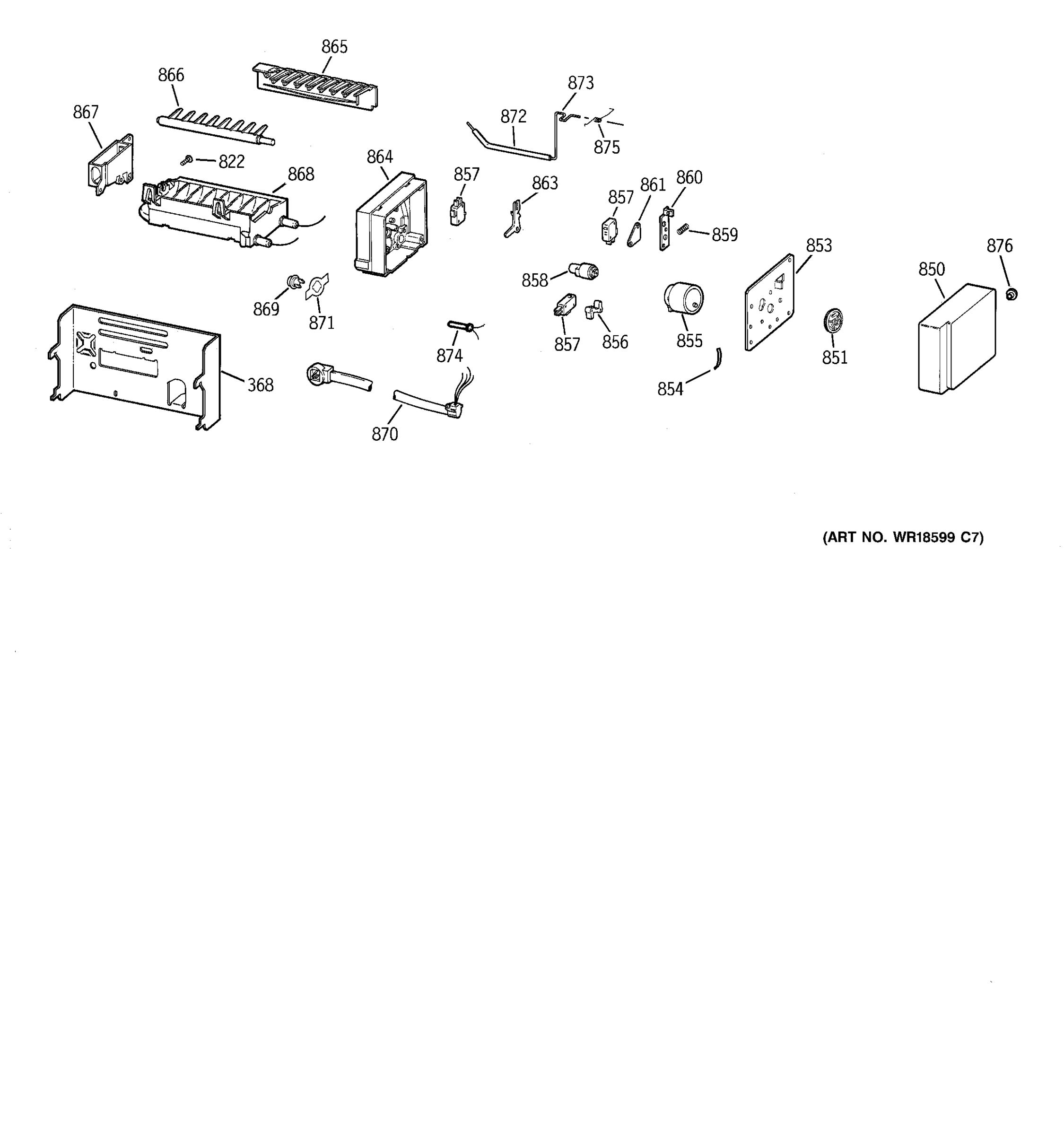

ICEMAKER WR30X0328

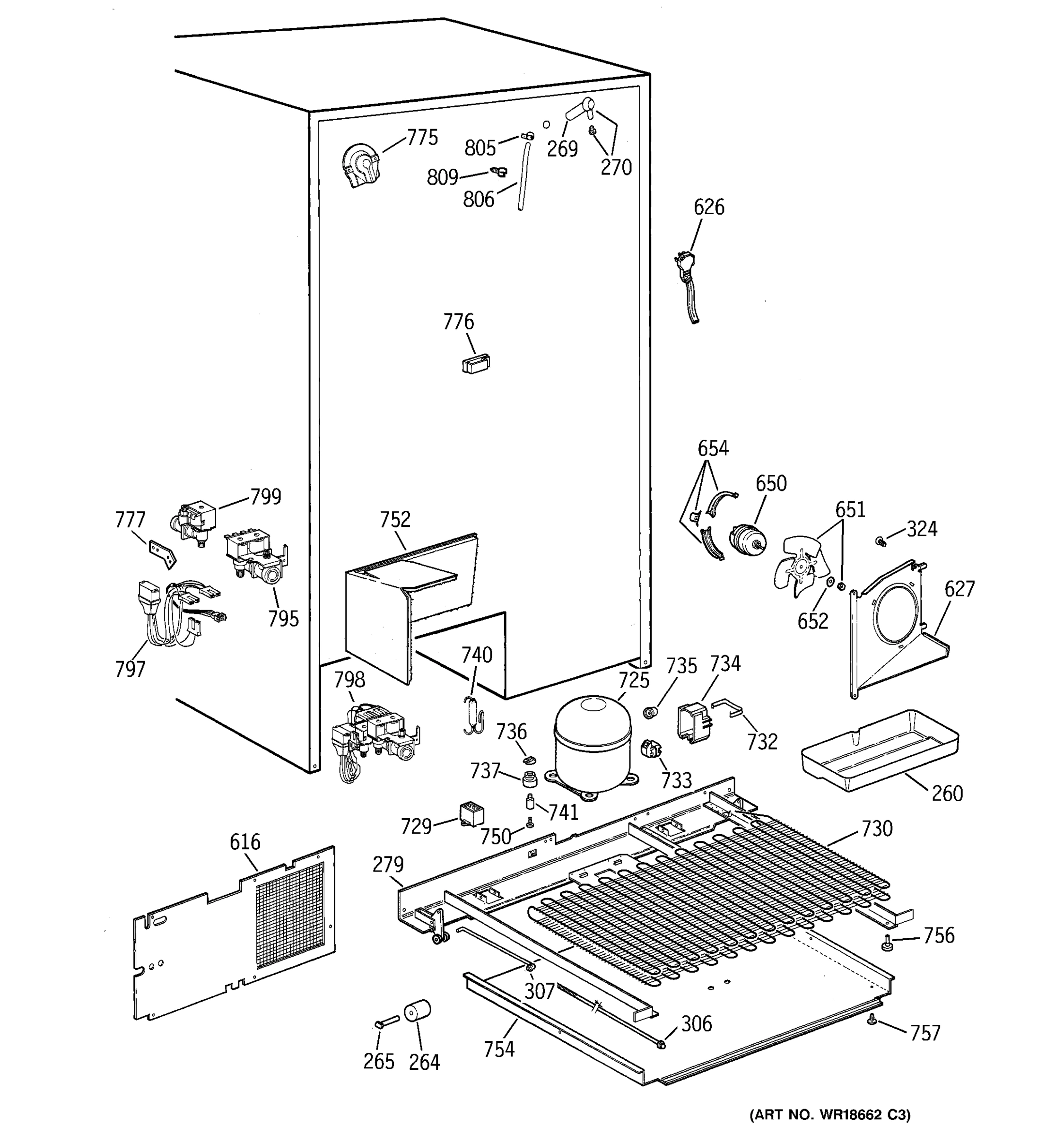

UNIT PARTS
Common parts from model GE TPX24PPDBCC
5
GEN WR02X10432 GEN WR02X10432 Contact Us For Availability
6
GEN WR12X10323 GEN WR12X10323 Contact Us For Availability
7
GEN WR12X10322 GEN WR12X10322 Contact Us For Availability
8
GEN WR12X10150 GEN WR12X10150 Contact Us For Availability
9
GEN WR12X10190 GEN WR12X10190 Contact Us For Availability
12
GEN WR02X9244 GEN WR02X9244 Contact Us For Availability
16
GEN WR02X10411 GEN WR02X10411 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
71
GEN WR17X10282 GEN WR17X10282 Contact Us For Availability
75
GEN WR17X3670 GEN WR17X3670 Contact Us For Availability
81
GEN WR01X2077 GEN WR01X2077 Contact Us For Availability
103
GEN WR24X0560 GEN WR24X0560 Contact Us For Availability
106
GEN WR22X0524 GEN WR22X0524 Contact Us For Availability
108
GEN WR77X0675 GEN WR77X0675 Contact Us For Availability
109
GEN WR71X10215 GEN WR71X10215 Contact Us For Availability
115
GEN WR71X10212 GEN WR71X10212 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
121
GEN WR12X10324 GEN WR12X10324 Contact Us For Availability
122
GEN WR71X10202 GEN WR71X10202 Contact Us For Availability
124
GEN WR71X10201 GEN WR71X10201 Contact Us For Availability
152
GEN WR01X10038 GEN WR01X10038 Contact Us For Availability
166
GEN WR17X3836 GEN WR17X3836 Contact Us For Availability
167
GEN WR17X10017 GEN WR17X10017 Contact Us For Availability
168
GEN WR01X2029 GEN WR01X2029 Contact Us For Availability
169
GEN WR72X10005 GEN WR72X10005 Contact Us For Availability
169
GEN WR72X10006 GEN WR72X10006 Contact Us For Availability
170
GEN WR71X2708 GEN WR71X2708 Contact Us For Availability
171
GEN WR71X2699 GEN WR71X2699 Contact Us For Availability
172
GEN WR71X10005 GEN WR71X10005 Contact Us For Availability
173
GEN WR72X0276 GEN WR72X0276 Contact Us For Availability
173
GEN WR72X0277 GEN WR72X0277 Contact Us For Availability
174
SLIDE BIN FZ RH GEN WR72X10001 Contact Us For Availability
174
GEN WR72X10002 GEN WR72X10002 Contact Us For Availability
175
SCR 8-18 AB IHW 5/8 S GEN WR01X2023 Contact Us For Availability
176
GEN WR71X2698 GEN WR71X2698 Contact Us For Availability
177
GEN WR01X5034 GEN WR01X5034 Contact Us For Availability
180
GEN WR01X1966 GEN WR01X1966 Contact Us For Availability
189
GEN WR02X9243 GEN WR02X9243 Contact Us For Availability
211
GEN WR71X2697 GEN WR71X2697 Contact Us For Availability
214
GEN WR17X10217 GEN WR17X10217 Contact Us For Availability
228
GEN WR85X0306 GEN WR85X0306 Contact Us For Availability
247
GEN WR17X10429 GEN WR17X10429 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X10401 GEN WR17X10401 Contact Us For Availability
259
GEN WR17X3909 GEN WR17X3909 Contact Us For Availability
260
GEN WR32X10011 GEN WR32X10011 Contact Us For Availability
261
GEN WR01X2033 GEN WR01X2033 Contact Us For Availability
261
GEN WR13X10069 GEN WR13X10069 Contact Us For Availability
264
WHEEL MOBILITY REAR GEN WR02X8838 Contact Us For Availability
265
GEN WR01X2050 GEN WR01X2050 Contact Us For Availability
267
GEN WR23X10058 GEN WR23X10058 Contact Us For Availability
268
GEN WR01X2025 GEN WR01X2025 Contact Us For Availability
269
TUBE WATER FILL I/M GEN WR02X7927 Contact Us For Availability
274
GEN WR23X10041 GEN WR23X10041 Contact Us For Availability
275
GEN WR01X2018 GEN WR01X2018 Contact Us For Availability
278
MOBILITY ASM FRONT GEN WR02X9241 Contact Us For Availability
279
GEN WR17X10484 GEN WR17X10484 Contact Us For Availability
288
GEN WR74X10038 GEN WR74X10038 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
306
GEN WR01X2146 GEN WR01X2146 Contact Us For Availability
307
GEN WR01X2145 GEN WR01X2145 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
GEN WR17X4210 GEN WR17X4210 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4204 GEN WR17X4204 Contact Us For Availability
354
GEN WR17X10366 GEN WR17X10366 Contact Us For Availability
360
GEN WR71X10180 GEN WR71X10180 Contact Us For Availability
361
GEN WR17X10431 GEN WR17X10431 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X10011 GEN WR02X10011 Contact Us For Availability
375
GEN WR23X0463 GEN WR23X0463 Contact Us For Availability
387
GEN WR17X10539 GEN WR17X10539 Contact Us For Availability
388
GEN WR17X3838 GEN WR17X3838 Contact Us For Availability
403
GEN WR72X0249 GEN WR72X0249 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
GEN WR32X10093 GEN WR32X10093 Contact Us For Availability
409
GEN WR32X1568 GEN WR32X1568 Contact Us For Availability
410
GEN WR17X10542 GEN WR17X10542 Contact Us For Availability
411
GEN WR17X10540 GEN WR17X10540 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR71X10214 GEN WR71X10214 Contact Us For Availability
417
GEN WR14X0482 GEN WR14X0482 Contact Us For Availability
418
GEN WR17X10538 GEN WR17X10538 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
419
GEN WR17X10574 GEN WR17X10574 Contact Us For Availability
420
GEN WR38X1995 GEN WR38X1995 Contact Us For Availability
421
GEN WR14X0433 GEN WR14X0433 Contact Us For Availability
421
GEN WR17X10075 GEN WR17X10075 Contact Us For Availability
422
GEN WR14X0429 GEN WR14X0429 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0521 GEN WR09X0521 Contact Us For Availability
425
GEN WR02X9439 GEN WR02X9439 Contact Us For Availability
426
GEN WR09X10002 GEN WR09X10002 Contact Us For Availability
426
GEN WR02X8831 GEN WR02X8831 Contact Us For Availability
426
GEN WR14X0462 GEN WR14X0462 Contact Us For Availability
427
GEN WR23X10057 GEN WR23X10057 Contact Us For Availability
428
GEN WR02X8828 GEN WR02X8828 Contact Us For Availability
428
GEN WR02X8829 GEN WR02X8829 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
SOCKET TERM WH GEN WR02X8202 Contact Us For Availability
433
GEN WR02X9239 GEN WR02X9239 Contact Us For Availability
434
GEN WR17X10262 GEN WR17X10262 Contact Us For Availability
436
GEN WR02X8819 GEN WR02X8819 Contact Us For Availability
436
GEN WR02X8820 GEN WR02X8820 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X10306 GEN WR17X10306 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X9432 GEN WR02X9432 Contact Us For Availability
443
GEN WR17X3318 GEN WR17X3318 Contact Us For Availability
443
GEN WR17X3319 GEN WR17X3319 Contact Us For Availability
444
GEN WR23X10069 GEN WR23X10069 Contact Us For Availability
446
GEN WR17X10635 GEN WR17X10635 Contact Us For Availability
447
GEN WR02X10414 GEN WR02X10414 Contact Us For Availability
447
GEN WR02X10415 GEN WR02X10415 Contact Us For Availability
448
GEN WR13X10034 GEN WR13X10034 Contact Us For Availability
448
GEN WR13X10035 GEN WR13X10035 Contact Us For Availability
451
GEN WR13X10068 GEN WR13X10068 Contact Us For Availability
452
SHIM HINGE BTM. .062 GEN WR02X7011 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X10541 GEN WR17X10541 Contact Us For Availability
473
GEN WR72X0282 GEN WR72X0282 Contact Us For Availability
473
GEN WR72X0283 GEN WR72X0283 Contact Us For Availability
500
GEN WR71X10022 GEN WR71X10022 Contact Us For Availability
501
GEN WR32X10112 GEN WR32X10112 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2706 GEN WR71X2706 Contact Us For Availability
521
GEN WR32X10106 GEN WR32X10106 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2638 GEN WR71X2638 Contact Us For Availability
525
GEN WR72X0280 GEN WR72X0280 Contact Us For Availability
525
GEN WR72X0281 GEN WR72X0281 Contact Us For Availability
526
GEN WR32X10111 GEN WR32X10111 Contact Us For Availability
527
GEN WR72X10041 GEN WR72X10041 Contact Us For Availability
529
GEN WR72X10040 GEN WR72X10040 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
608
GEN WR23X10144 GEN WR23X10144 Contact Us For Availability
609
GEN WR23X10147 GEN WR23X10147 Contact Us For Availability
611
BRACKET COND. FAN GEN WR02X10100 Contact Us For Availability
612
GEN WR02X10101 GEN WR02X10101 Contact Us For Availability
613
GEN WR60X10011 GEN WR60X10011 Contact Us For Availability
616
GEN WR82X10050 GEN WR82X10050 Contact Us For Availability
627
GEN WR17X10189 GEN WR17X10189 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0234 GEN WR60X0234 Contact Us For Availability
652
WASHER, CUSHION GEN WR01X1714 Contact Us For Availability
654
GEN WR01X2019 GEN WR01X2019 Contact Us For Availability
654
GEN WR02X9240 GEN WR02X9240 Contact Us For Availability
729
GEN WR62X10014 GEN WR62X10014 Contact Us For Availability
730
GEN WR84X0213 GEN WR84X0213 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X10006 GEN WR08X10006 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
752
GEN WR82X10028 GEN WR82X10028 Contact Us For Availability
754
GEN WR82X10054 GEN WR82X10054 Contact Us For Availability
756
GEN WR01X2021 GEN WR01X2021 Contact Us For Availability
757
GEN WR01X2035 GEN WR01X2035 Contact Us For Availability
791
GEN WR02X10173 GEN WR02X10173 Contact Us For Availability
792
GEN WR17X10452 GEN WR17X10452 Contact Us For Availability
822
GEN WR01X2122 GEN WR01X2122 Contact Us For Availability
840
SCR 8-32 T PA 7/8 S GEN WR01X2024 Contact Us For Availability
840
GEN WR11X10004 GEN WR11X10004 Contact Us For Availability
842
GEN WR11X10005 GEN WR11X10005 Contact Us For Availability
843
GEN WR11X10006 GEN WR11X10006 Contact Us For Availability
850
GEN WR29X0193 GEN WR29X0193 Contact Us For Availability
853
PLATE MOUNTING GEN WR29X5111 Contact Us For Availability
856
GEN WR29X5118 GEN WR29X5118 Contact Us For Availability
857
GEN WR29X5171 GEN WR29X5171 Contact Us For Availability
861
INSULATOR GEN WR29X5117 Contact Us For Availability
864
GEN WR29X0115 GEN WR29X0115 Contact Us For Availability
867
GEN WR29X0208 GEN WR29X0208 Contact Us For Availability
868
GEN WR29X0204 GEN WR29X0204 Contact Us For Availability
870
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
872
SLEEVE VINYL GEN WR29X5128 Contact Us For Availability
876
GEN WR02X8483 GEN WR02X8483 Contact Us For Availability
900
GEN WR78X10282 GEN WR78X10282 Contact Us For Availability
901
GEN WR10X10004 GEN WR10X10004 Contact Us For Availability
903
GEN WR01X10155 GEN WR01X10155 Contact Us For Availability
904
SCR 10-32 PNT 1.0 S LW GEN WR01X2134 Contact Us For Availability
910
GEN WR78X10281 GEN WR78X10281 Contact Us For Availability
911
GEN WR01X10154 GEN WR01X10154 Contact Us For Availability
912
GEN WR01X10156 GEN WR01X10156 Contact Us For Availability
913
GEN WR01X10157 GEN WR01X10157 Contact Us For Availability
916
GEN WR01X10158 GEN WR01X10158 Contact Us For Availability
× ![]()
