Model GE TPX24BIYEBB Refrigerator – Common Parts & Diagrams

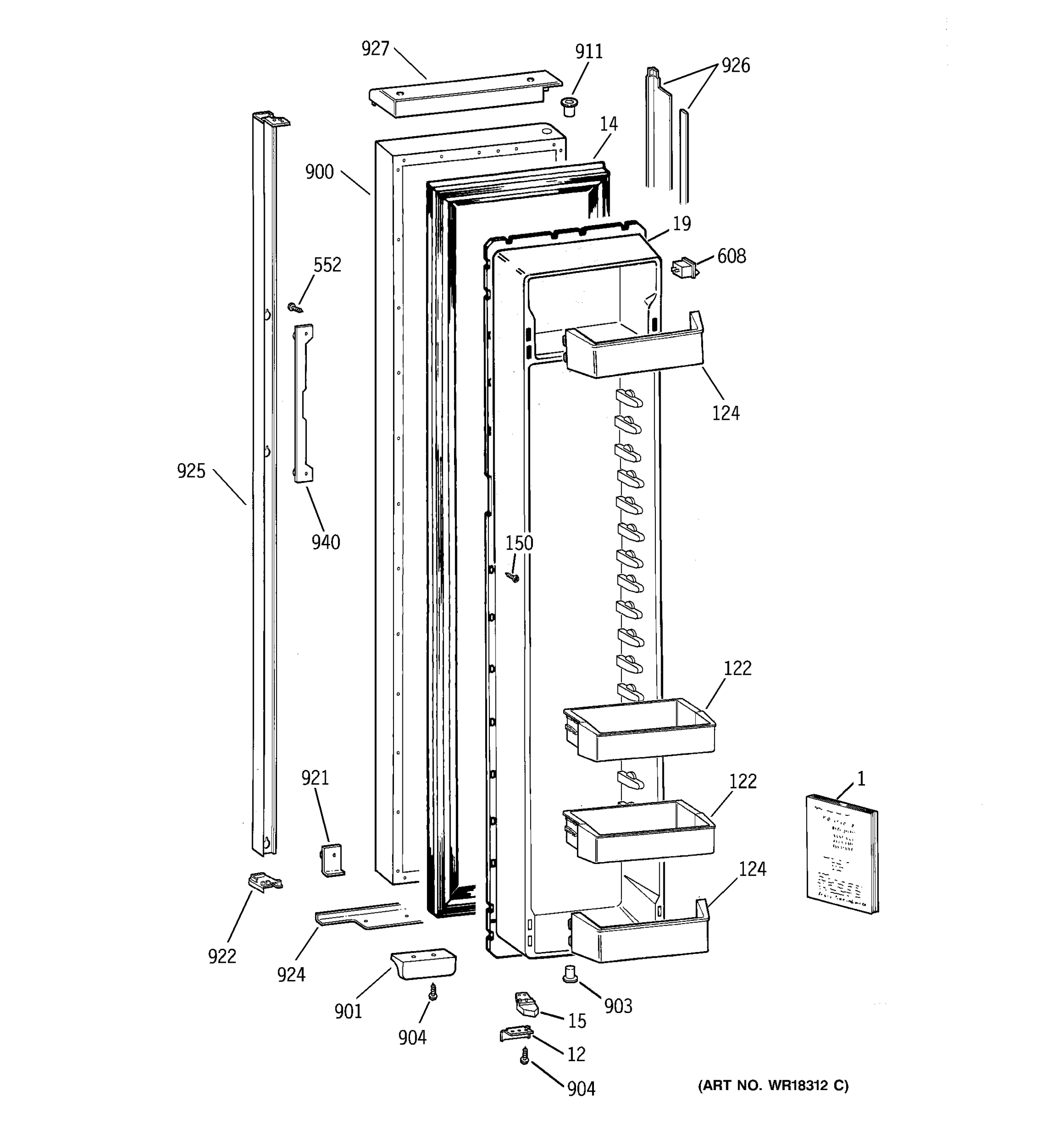

FREEZER DOOR

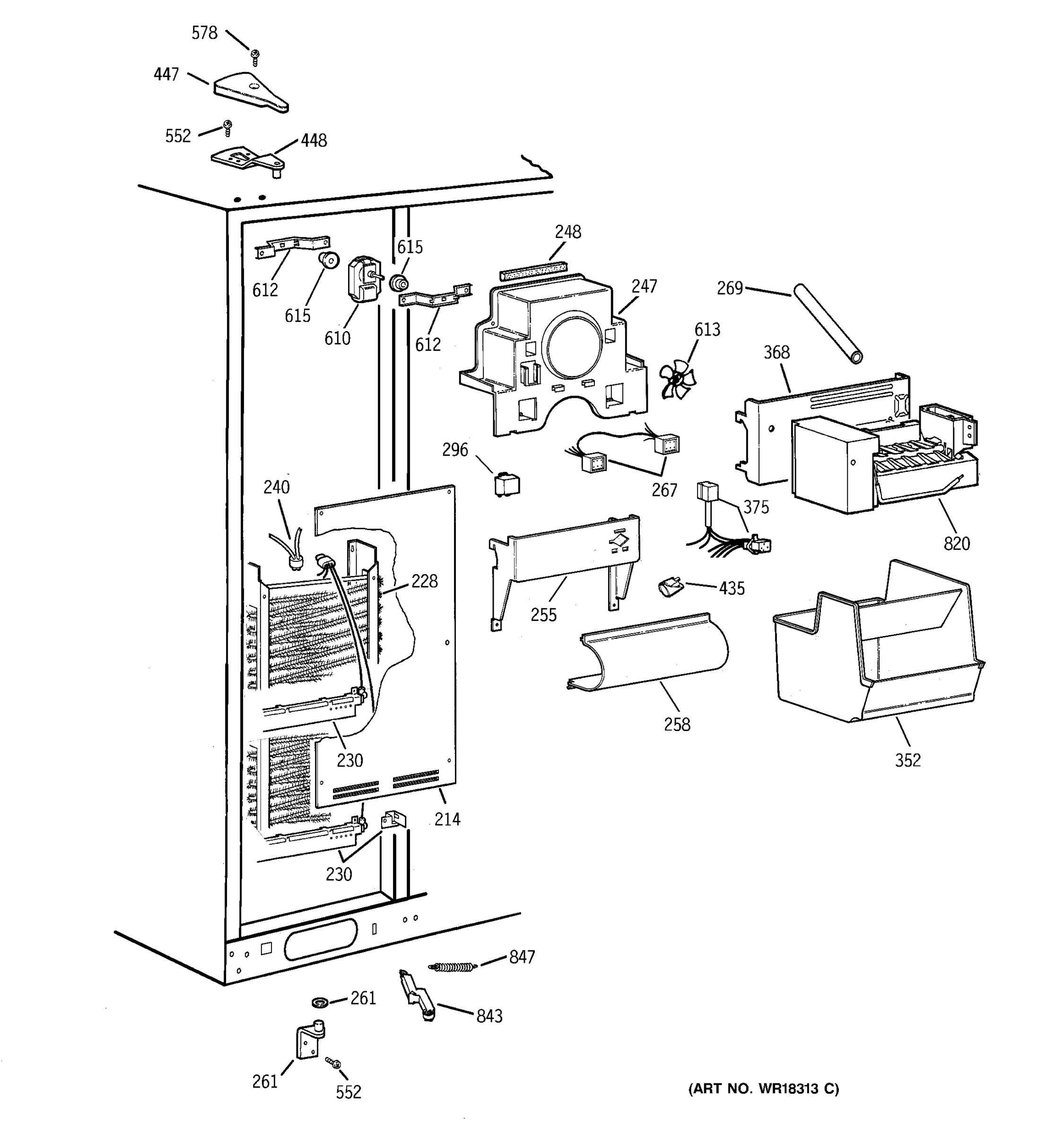

FREEZER SECTION

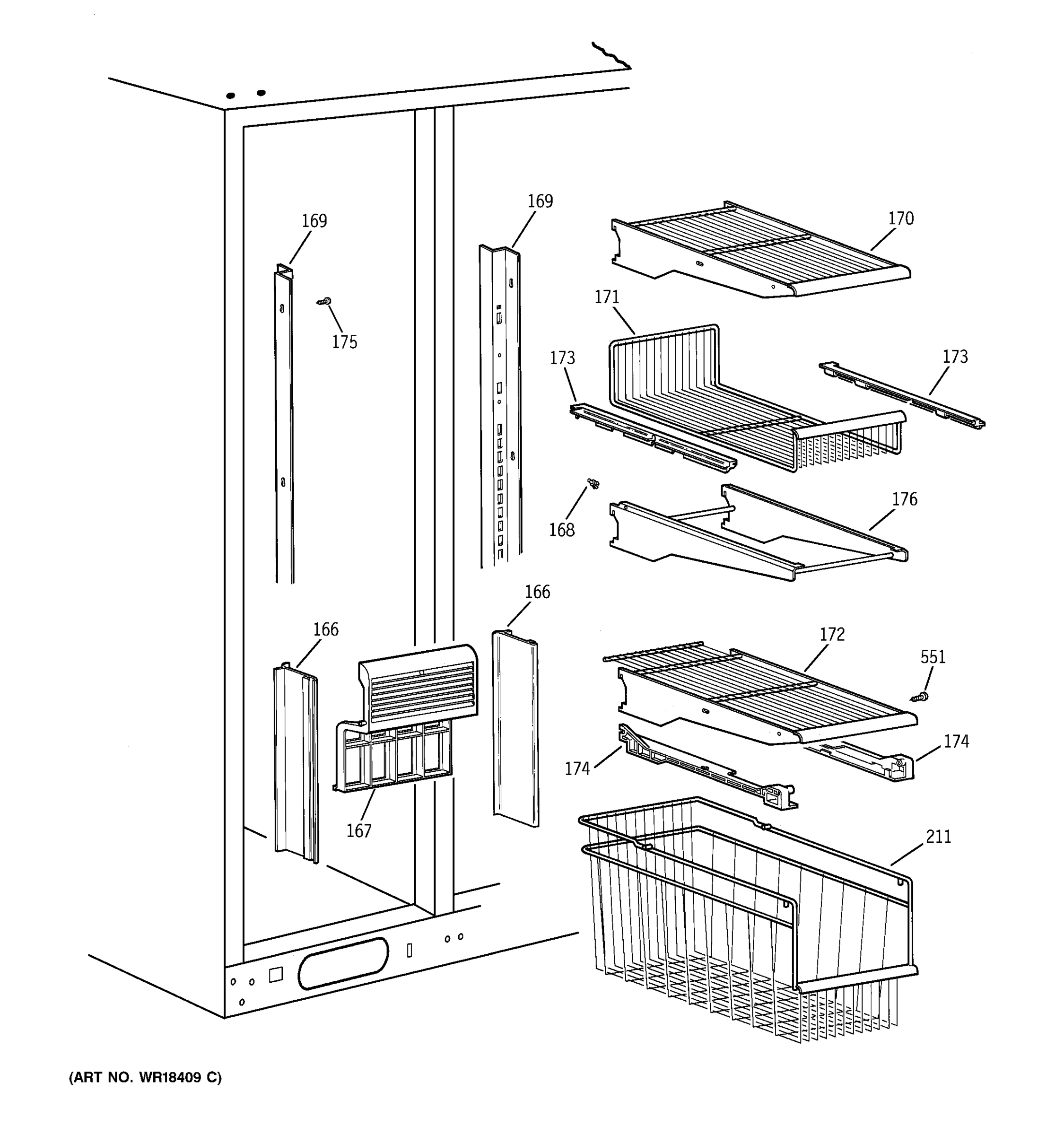

FREEZER SHELVES

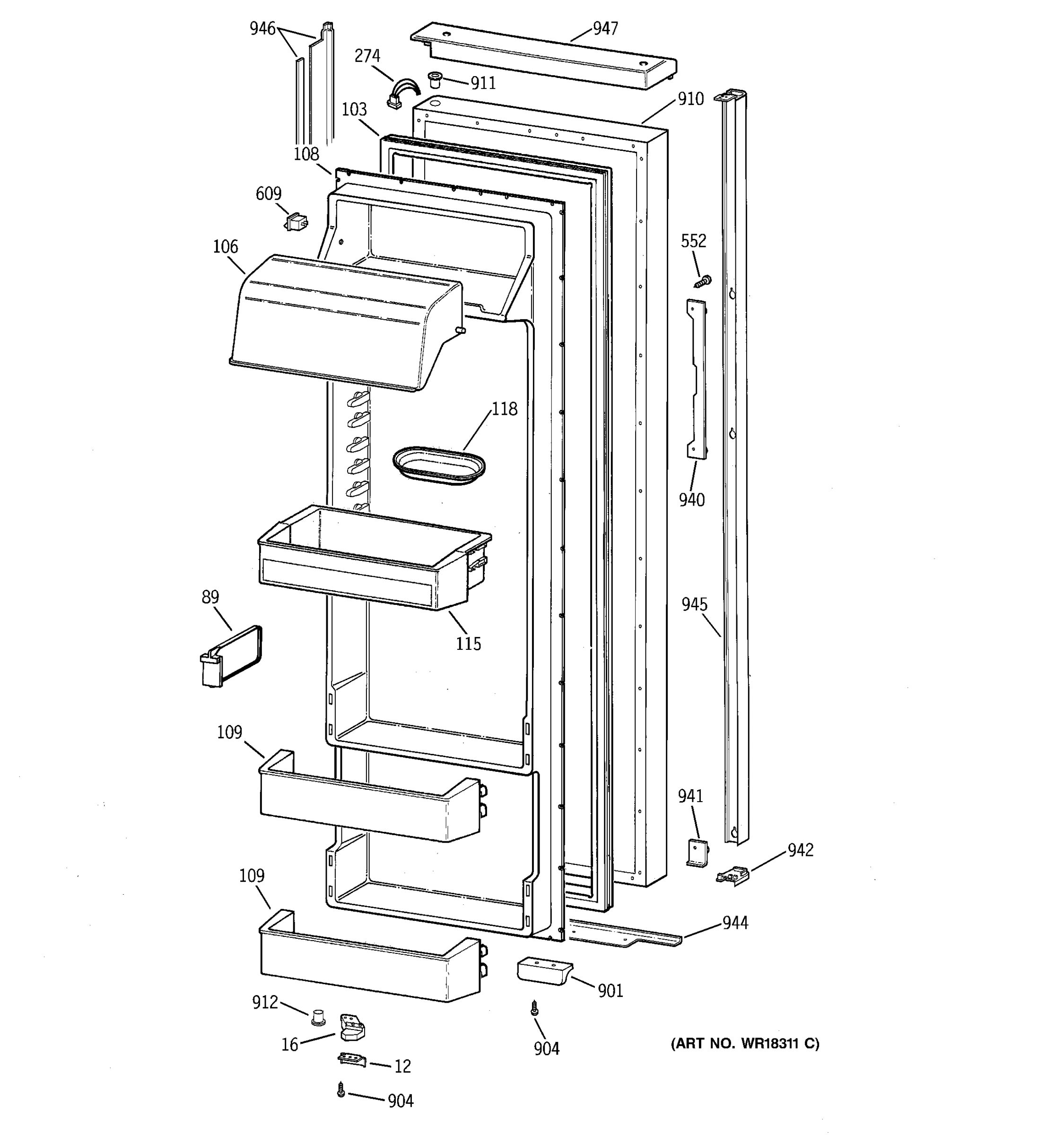

FRESH FOOD DOOR

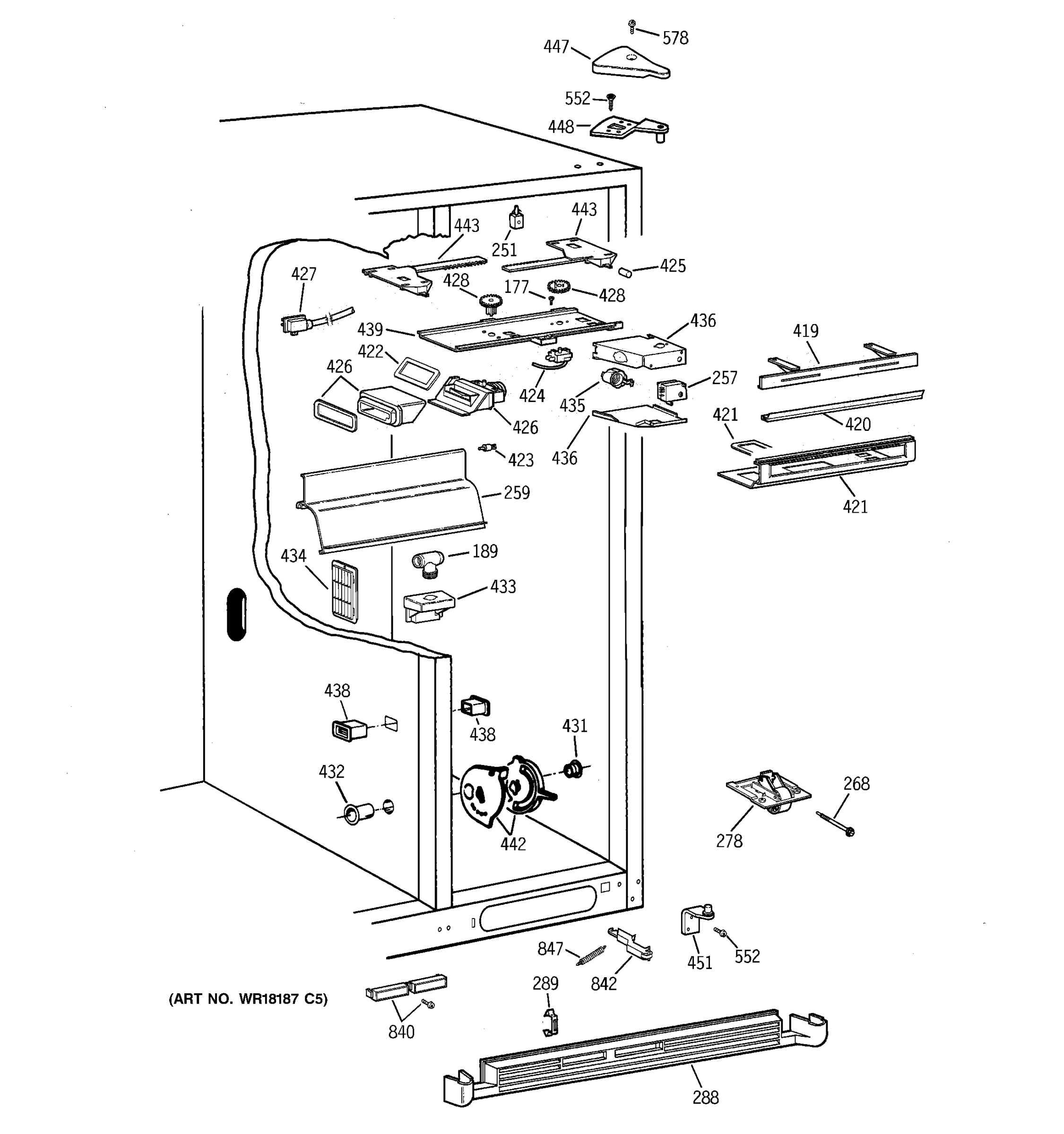

FRESH FOOD SECTION

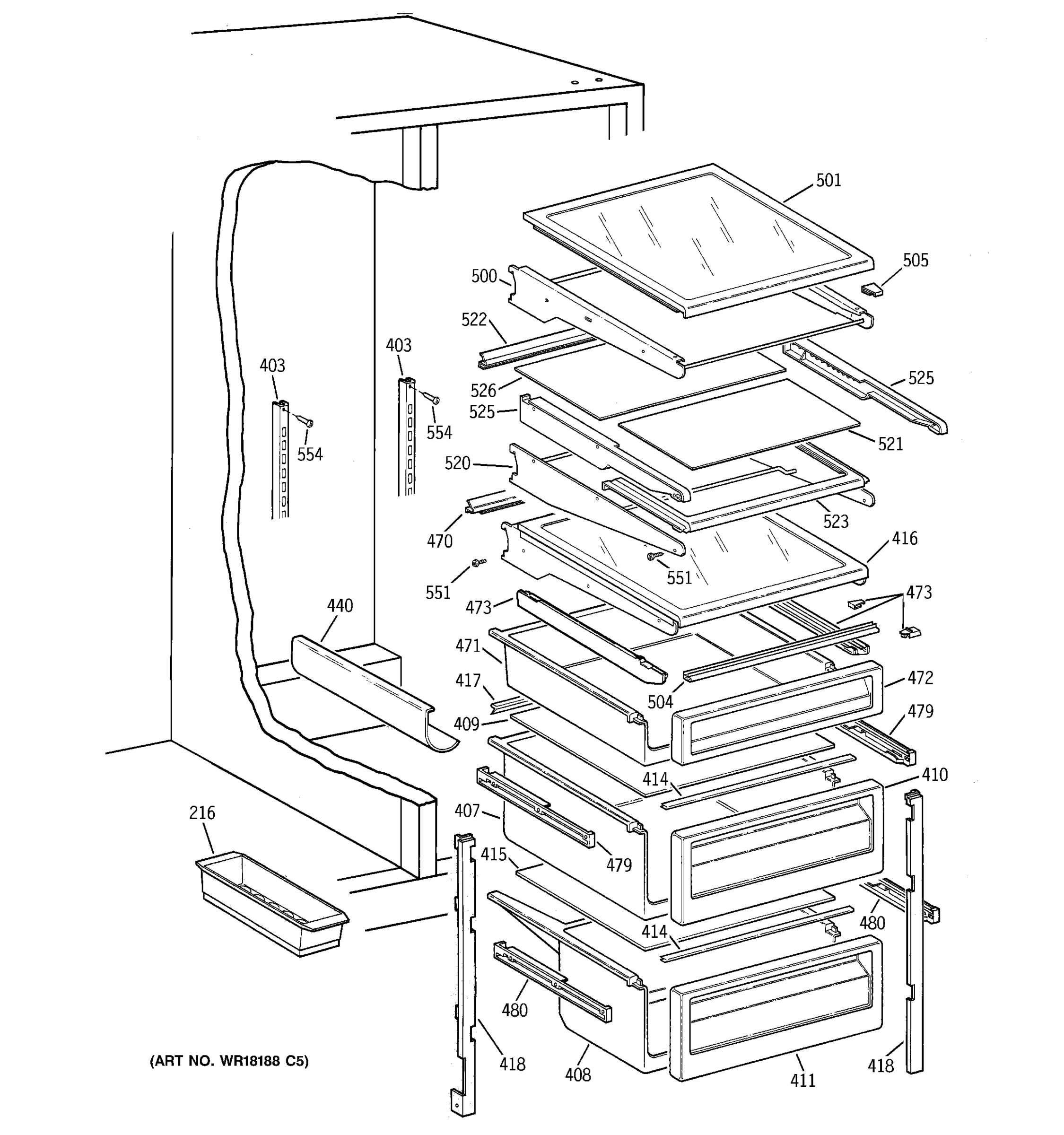

FRESH FOOD SHELVES

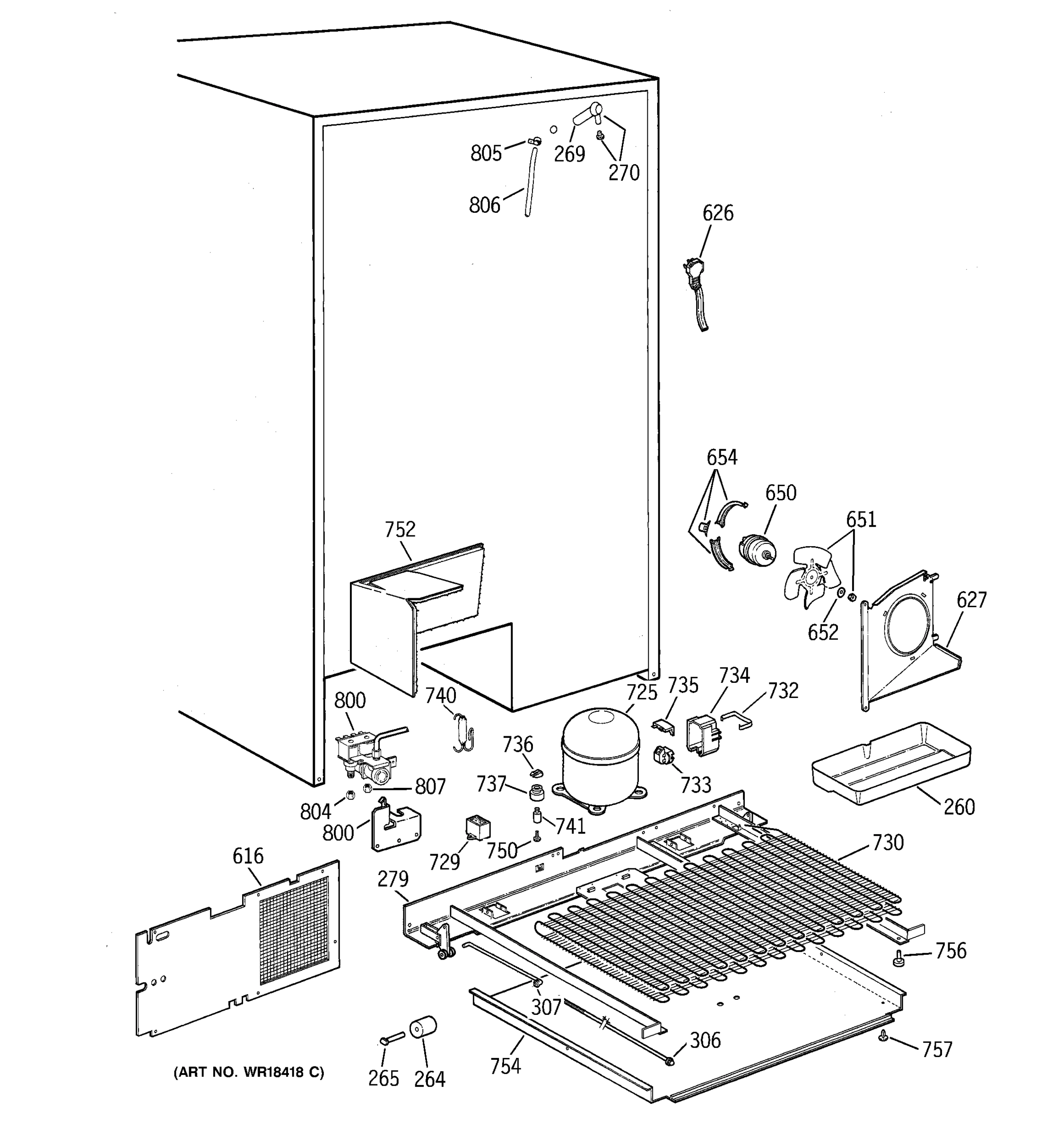

UNIT PARTS
Common parts from model GE TPX24BIYEBB Refrigerator
12
GEN WR02X9244 GEN WR02X9244 Contact Us For Availability
16
GEN WR02X9246 GEN WR02X9246 Contact Us For Availability
89
GEN WR02X9444 GEN WR02X9444 Contact Us For Availability
103
GEN WR24X0562 GEN WR24X0562 Contact Us For Availability
106
GEN WR22X0524 GEN WR22X0524 Contact Us For Availability
108
GEN WR77X0675 GEN WR77X0675 Contact Us For Availability
109
GEN WR71X2700 GEN WR71X2700 Contact Us For Availability
115
GEN WR71X2702 GEN WR71X2702 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
122
GEN WR71X2703 GEN WR71X2703 Contact Us For Availability
124
GEN WR71X2701 GEN WR71X2701 Contact Us For Availability
166
GEN WR17X3836 GEN WR17X3836 Contact Us For Availability
167
GEN WR17X10017 GEN WR17X10017 Contact Us For Availability
168
GEN WR01X2029 GEN WR01X2029 Contact Us For Availability
169
GEN WR72X0271 GEN WR72X0271 Contact Us For Availability
169
GEN WR72X0272 GEN WR72X0272 Contact Us For Availability
170
GEN WR71X2708 GEN WR71X2708 Contact Us For Availability
171
GEN WR71X2699 GEN WR71X2699 Contact Us For Availability
172
GEN WR71X10005 GEN WR71X10005 Contact Us For Availability
173
GEN WR72X0276 GEN WR72X0276 Contact Us For Availability
173
GEN WR72X0277 GEN WR72X0277 Contact Us For Availability
174
GEN WR72X0278 GEN WR72X0278 Contact Us For Availability
174
GEN WR72X0279 GEN WR72X0279 Contact Us For Availability
175
GEN WR01X2023 GEN WR01X2023 Contact Us For Availability
176
GEN WR71X2698 GEN WR71X2698 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
189
SOCKET LAMP GEN WR02X9243 Contact Us For Availability
211
GEN WR71X2697 GEN WR71X2697 Contact Us For Availability
214
GEN WR17X3835 GEN WR17X3835 Contact Us For Availability
228
GEN WR85X0306 GEN WR85X0306 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
247
GEN WR17X3846 GEN WR17X3846 Contact Us For Availability
248
GEN WR14X0460 GEN WR14X0460 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
255
GEN WR17X4226 GEN WR17X4226 Contact Us For Availability
258
GEN WR17X4227 GEN WR17X4227 Contact Us For Availability
259
SHIELD LIGHT LOWER GEN WR17X3909 Contact Us For Availability
260
GEN WR32X1462 GEN WR32X1462 Contact Us For Availability
261
GEN WR01X2033 GEN WR01X2033 Contact Us For Availability
261
HINGE BTM PIN ASM BK GEN WR13X0759 Contact Us For Availability
264
GEN WR02X8838 GEN WR02X8838 Contact Us For Availability
265
GEN WR01X2050 GEN WR01X2050 Contact Us For Availability
267
GEN WR23X0471 GEN WR23X0471 Contact Us For Availability
268
GEN WR01X2025 GEN WR01X2025 Contact Us For Availability
269
GEN WR02X7927 GEN WR02X7927 Contact Us For Availability
274
GEN WR23X10004 GEN WR23X10004 Contact Us For Availability
278
GEN WR02X9241 GEN WR02X9241 Contact Us For Availability
279
GEN WR17X10019 GEN WR17X10019 Contact Us For Availability
288
GEN WR74X0264 GEN WR74X0264 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
296
GEN WR02X10018 GEN WR02X10018 Contact Us For Availability
306
GEN WR01X2146 GEN WR01X2146 Contact Us For Availability
307
GEN WR01X2145 GEN WR01X2145 Contact Us For Availability
352
GEN WR30X0323 GEN WR30X0323 Contact Us For Availability
368
GEN WR02X10011 GEN WR02X10011 Contact Us For Availability
370
SCREW GEN WR01X1858 Contact Us For Availability
375
HARN IM FZ LIGHT GEN WR23X0472 Contact Us For Availability
403
GEN WR72X0249 GEN WR72X0249 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
PAN MEAT CLEAR GEN WR32X1569 Contact Us For Availability
409
GEN WR32X1568 GEN WR32X1568 Contact Us For Availability
410
GEN WR17X3840 GEN WR17X3840 Contact Us For Availability
411
GEN WR17X3841 GEN WR17X3841 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR71X2707 GEN WR71X2707 Contact Us For Availability
417
GEN WR14X0482 GEN WR14X0482 Contact Us For Availability
418
GEN WR17X4085 GEN WR17X4085 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
419
GEN WR17X3308 GEN WR17X3308 Contact Us For Availability
420
GEN WR38X1995 GEN WR38X1995 Contact Us For Availability
421
GEN WR14X0433 GEN WR14X0433 Contact Us For Availability
421
GEN WR17X3981 GEN WR17X3981 Contact Us For Availability
422
GEN WR14X0429 GEN WR14X0429 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0571 GEN WR09X0571 Contact Us For Availability
425
GEN WR02X9439 GEN WR02X9439 Contact Us For Availability
426
GEN WR02X8826 GEN WR02X8826 Contact Us For Availability
426
GEN WR02X8831 GEN WR02X8831 Contact Us For Availability
426
GEN WR14X0462 GEN WR14X0462 Contact Us For Availability
427
GEN WR23X0462 GEN WR23X0462 Contact Us For Availability
428
GEN WR02X8828 GEN WR02X8828 Contact Us For Availability
428
GEN WR02X8829 GEN WR02X8829 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
SOCKET TERMINAL FF GEN WR02X8202 Contact Us For Availability
433
GEN WR02X9239 GEN WR02X9239 Contact Us For Availability
434
GEN WR17X3842 GEN WR17X3842 Contact Us For Availability
436
GEN WR02X8819 GEN WR02X8819 Contact Us For Availability
436
GEN WR02X8820 GEN WR02X8820 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X3323 GEN WR17X3323 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X8840 GEN WR02X8840 Contact Us For Availability
443
GEN WR17X3318 GEN WR17X3318 Contact Us For Availability
443
GEN WR17X3319 GEN WR17X3319 Contact Us For Availability
447
GEN WR02X9435 GEN WR02X9435 Contact Us For Availability
447
COVER HINGE BK FF GEN WR02X9436 Contact Us For Availability
448
HINGE TOP & PIN ASM FZ GEN WR13X0754 Contact Us For Availability
448
HINGE TOP & PIN ASM FF GEN WR13X0755 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
451
BTM HINGE PIN ADJ BK GEN WR13X0760 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X3839 GEN WR17X3839 Contact Us For Availability
473
GEN WR72X0282 GEN WR72X0282 Contact Us For Availability
473
GEN WR72X0283 GEN WR72X0283 Contact Us For Availability
500
GEN WR71X2705 GEN WR71X2705 Contact Us For Availability
501
GEN WR32X1570 GEN WR32X1570 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2706 GEN WR71X2706 Contact Us For Availability
521
GEN WR32X1529 GEN WR32X1529 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2638 GEN WR71X2638 Contact Us For Availability
525
GEN WR72X0280 GEN WR72X0280 Contact Us For Availability
525
GEN WR72X0281 GEN WR72X0281 Contact Us For Availability
526
GEN WR32X1571 GEN WR32X1571 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
608
GEN WR23X0473 GEN WR23X0473 Contact Us For Availability
609
GEN WR23X0426 GEN WR23X0426 Contact Us For Availability
610
GEN WR60X0253 GEN WR60X0253 Contact Us For Availability
612
GEN WR02X9319 GEN WR02X9319 Contact Us For Availability
613
GEN WR60X0255 GEN WR60X0255 Contact Us For Availability
615
GROMMET EVAP FAN GEN WR02X7391 Contact Us For Availability
616
GEN WR82X10003 GEN WR82X10003 Contact Us For Availability
627
GEN WR17X10005 GEN WR17X10005 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0234 GEN WR60X0234 Contact Us For Availability
652
WASHER COND MTR GEN WR01X1714 Contact Us For Availability
654
GEN WR01X2019 GEN WR01X2019 Contact Us For Availability
654
GEN WR02X9240 GEN WR02X9240 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
690
GEN WR01X1790 GEN WR01X1790 Contact Us For Availability
692
SCR 8-18 HXW 3/4 GEN WZ04X0416 Contact Us For Availability
730
GEN WR84X0213 GEN WR84X0213 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
737
GEN WR02X9237 GEN WR02X9237 Contact Us For Availability
752
GEN WR82X0359 GEN WR82X0359 Contact Us For Availability
754
GEN WR82X0387 GEN WR82X0387 Contact Us For Availability
756
GEN WR01X2021 GEN WR01X2021 Contact Us For Availability
757
GEN WR01X2035 GEN WR01X2035 Contact Us For Availability
764
GEN WB01X5755 GEN WB01X5755 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
806
GEN WR02X10013 GEN WR02X10013 Contact Us For Availability
807
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
822
GEN WR01X2122 GEN WR01X2122 Contact Us For Availability
840
GEN WR01X2024 GEN WR01X2024 Contact Us For Availability
840
MAGNET COVER ASM BK GEN WR11X0180 Contact Us For Availability
842
GEN WR11X0172 GEN WR11X0172 Contact Us For Availability
843
GEN WR11X0173 GEN WR11X0173 Contact Us For Availability
900
GEN WR78X8793 GEN WR78X8793 Contact Us For Availability
901
GEN WR10X0126 GEN WR10X0126 Contact Us For Availability
903
GEN WR01X2039 GEN WR01X2039 Contact Us For Availability
904
GEN WR01X2134 GEN WR01X2134 Contact Us For Availability
910
GEN WR78X8792 GEN WR78X8792 Contact Us For Availability
911
GEN WR01X2041 GEN WR01X2041 Contact Us For Availability
912
GEN WR01X2132 GEN WR01X2132 Contact Us For Availability
921
GEN WR17X4220 GEN WR17X4220 Contact Us For Availability
922
GEN WR17X4223 GEN WR17X4223 Contact Us For Availability
924
GEN WR17X4228 GEN WR17X4228 Contact Us For Availability
925
GEN WR12X10005 GEN WR12X10005 Contact Us For Availability
926
GEN WR17X4231 GEN WR17X4231 Contact Us For Availability
927
TRIM DOOR TOP BK GEN WR17X4233 Contact Us For Availability
940
GEN WR17X4219 GEN WR17X4219 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
941
GEN WR17X4221 GEN WR17X4221 Contact Us For Availability
942
GEN WR17X4222 GEN WR17X4222 Contact Us For Availability
944
GEN WR17X4229 GEN WR17X4229 Contact Us For Availability
945
GEN WR12X10004 GEN WR12X10004 Contact Us For Availability
946
GEN WR17X4230 GEN WR17X4230 Contact Us For Availability
947
GEN WR17X4232 GEN WR17X4232 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
