Model GE TFX30PRYFBB – Common Parts & Diagrams

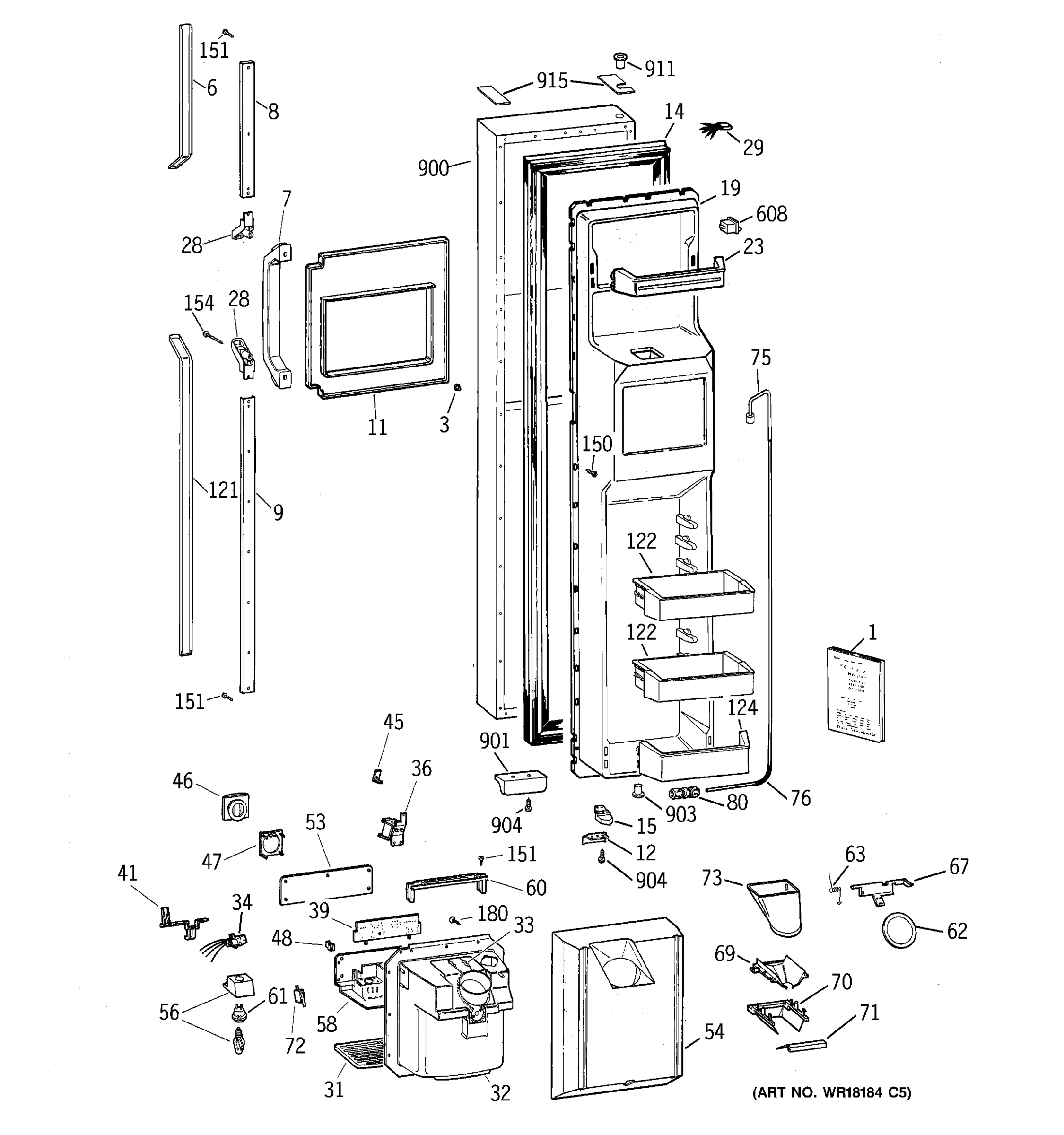

FREEZER DOOR
FREEZER SECTION
FREEZER SHELVES
FRESH FOOD DOOR
FRESH FOOD SECTION
FRESH FOOD SHELVES

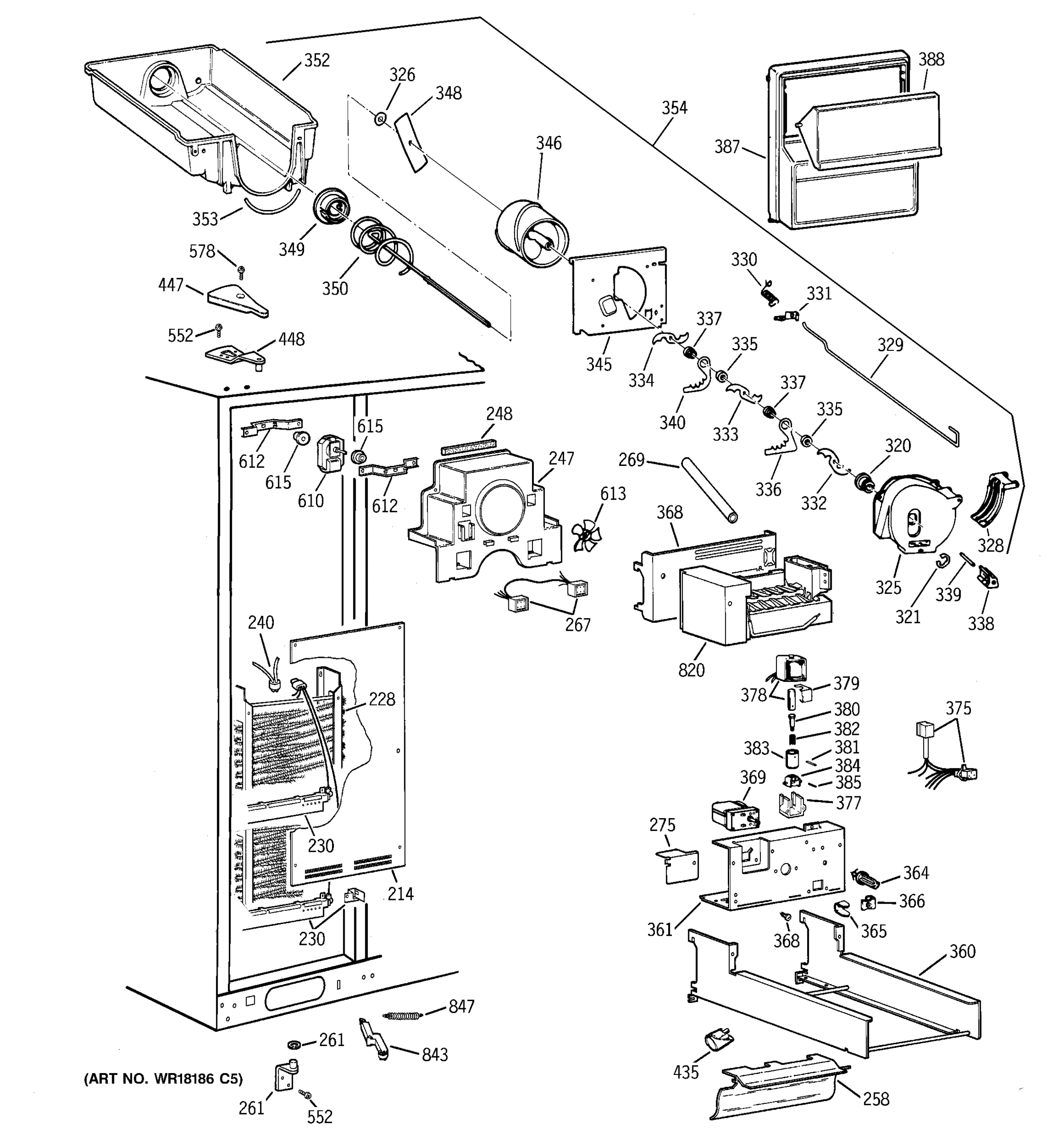

UNIT PARTS
Common parts from model GE TFX30PRYFBB
6
GEN WR12X1040 GEN WR12X1040 Contact Us For Availability
7
GEN WR12X0871 GEN WR12X0871 Contact Us For Availability
8
CHANNEL HANDLE PLASTIC GEN WR12X1062 Contact Us For Availability
9
GEN WR12X1063 GEN WR12X1063 Contact Us For Availability
12
GEN WR02X9244 GEN WR02X9244 Contact Us For Availability
16
GEN WR02X9246 GEN WR02X9246 Contact Us For Availability
28
GEN WR02X8576 GEN WR02X8576 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8702 GEN WR02X8702 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X4211 GEN WR17X4211 Contact Us For Availability
54
GEN WR17X3980 GEN WR17X3980 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
58
GEN WR17X3139 GEN WR17X3139 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL GUARD BK GEN WR02X8943 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
73
GEN WR17X3832 GEN WR17X3832 Contact Us For Availability
75
GROMMET TUBE ASM GEN WR17X3611 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
89
GEN WR02X9347 GEN WR02X9347 Contact Us For Availability
103
GEN WR24X0562 GEN WR24X0562 Contact Us For Availability
106
GEN WR22X0498 GEN WR22X0498 Contact Us For Availability
108
GEN WR77X0650 GEN WR77X0650 Contact Us For Availability
109
GEN WR71X2525 GEN WR71X2525 Contact Us For Availability
115
GEN WR71X2713 GEN WR71X2713 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
121
GEN WR12X1056 GEN WR12X1056 Contact Us For Availability
122
GEN WR71X2712 GEN WR71X2712 Contact Us For Availability
124
GEN WR71X2701 GEN WR71X2701 Contact Us For Availability
154
GEN WR01X2085 GEN WR01X2085 Contact Us For Availability
154
GEN WR01X2127 GEN WR01X2127 Contact Us For Availability
166
GEN WR17X3836 GEN WR17X3836 Contact Us For Availability
167
GEN WR17X10017 GEN WR17X10017 Contact Us For Availability
168
GEN WR01X2029 GEN WR01X2029 Contact Us For Availability
169
GEN WR72X0271 GEN WR72X0271 Contact Us For Availability
169
GEN WR72X0272 GEN WR72X0272 Contact Us For Availability
170
GEN WR71X2530 GEN WR71X2530 Contact Us For Availability
171
GEN WR71X2521 GEN WR71X2521 Contact Us For Availability
172
GEN WR71X10003 GEN WR71X10003 Contact Us For Availability
173
GEN WR72X0243 GEN WR72X0243 Contact Us For Availability
173
GEN WR72X0244 GEN WR72X0244 Contact Us For Availability
174
GEN WR72X10003 GEN WR72X10003 Contact Us For Availability
174
GEN WR72X10004 GEN WR72X10004 Contact Us For Availability
175
GEN WR01X2023 GEN WR01X2023 Contact Us For Availability
176
GEN WR71X2523 GEN WR71X2523 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
180
SCREW GEN WR01X1966 Contact Us For Availability
189
SOCKET LAMP GEN WR02X9243 Contact Us For Availability
211
GEN WR71X2522 GEN WR71X2522 Contact Us For Availability
214
GEN WR17X3835 GEN WR17X3835 Contact Us For Availability
228
GEN WR85X0306 GEN WR85X0306 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
247
GEN WR17X3846 GEN WR17X3846 Contact Us For Availability
248
GEN WR14X0460 GEN WR14X0460 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X10043 GEN WR17X10043 Contact Us For Availability
259
GEN WR17X3909 GEN WR17X3909 Contact Us For Availability
260
GEN WR32X10011 GEN WR32X10011 Contact Us For Availability
261
GEN WR01X2033 GEN WR01X2033 Contact Us For Availability
261
GEN WR13X0699 GEN WR13X0699 Contact Us For Availability
264
GEN WR02X8838 GEN WR02X8838 Contact Us For Availability
265
GEN WR01X2050 GEN WR01X2050 Contact Us For Availability
267
GEN WR23X0424 GEN WR23X0424 Contact Us For Availability
268
GEN WR01X2025 GEN WR01X2025 Contact Us For Availability
269
GEN WR02X7927 GEN WR02X7927 Contact Us For Availability
274
GEN WR23X10041 GEN WR23X10041 Contact Us For Availability
275
GEN WR01X2018 GEN WR01X2018 Contact Us For Availability
278
GEN WR02X9241 GEN WR02X9241 Contact Us For Availability
279
GEN WR17X10016 GEN WR17X10016 Contact Us For Availability
288
GEN WR74X0264 GEN WR74X0264 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
GEN WR17X3853 GEN WR17X3853 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4314 GEN WR17X4314 Contact Us For Availability
352
GEN WR30X0313 GEN WR30X0313 Contact Us For Availability
354
GEN WR17X4313 GEN WR17X4313 Contact Us For Availability
360
GEN WR71X2529 GEN WR71X2529 Contact Us For Availability
361
GEN WR17X10070 GEN WR17X10070 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X10011 GEN WR02X10011 Contact Us For Availability
375
GEN WR23X0463 GEN WR23X0463 Contact Us For Availability
387
GEN WR17X10041 GEN WR17X10041 Contact Us For Availability
388
GEN WR17X3838 GEN WR17X3838 Contact Us For Availability
403
GEN WR72X0249 GEN WR72X0249 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
GEN WR32X1459 GEN WR32X1459 Contact Us For Availability
409
GEN WR32X1456 GEN WR32X1456 Contact Us For Availability
410
GEN WR17X3840 GEN WR17X3840 Contact Us For Availability
411
GEN WR17X3841 GEN WR17X3841 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR32X1572 GEN WR32X1572 Contact Us For Availability
417
GEN WR14X0466 GEN WR14X0466 Contact Us For Availability
418
GEN WR17X4085 GEN WR17X4085 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
419
GEN WR17X3308 GEN WR17X3308 Contact Us For Availability
420
GEN WR38X1995 GEN WR38X1995 Contact Us For Availability
421
GEN WR14X0433 GEN WR14X0433 Contact Us For Availability
421
GEN WR17X10071 GEN WR17X10071 Contact Us For Availability
421
GEN WR17X10130 GEN WR17X10130 Contact Us For Availability
422
GEN WR14X0429 GEN WR14X0429 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0521 GEN WR09X0521 Contact Us For Availability
425
GEN WR02X9439 GEN WR02X9439 Contact Us For Availability
426
GEN WR09X10006 GEN WR09X10006 Contact Us For Availability
426
GEN WR02X8831 GEN WR02X8831 Contact Us For Availability
426
GEN WR14X0462 GEN WR14X0462 Contact Us For Availability
427
GEN WR23X10023 GEN WR23X10023 Contact Us For Availability
428
GEN WR02X8828 GEN WR02X8828 Contact Us For Availability
428
GEN WR02X8829 GEN WR02X8829 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
SOCKET TERM WH GEN WR02X8202 Contact Us For Availability
433
GEN WR02X9239 GEN WR02X9239 Contact Us For Availability
434
GEN WR17X3842 GEN WR17X3842 Contact Us For Availability
436
GEN WR02X8819 GEN WR02X8819 Contact Us For Availability
436
GEN WR02X8820 GEN WR02X8820 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X3323 GEN WR17X3323 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X9432 GEN WR02X9432 Contact Us For Availability
443
GEN WR17X3318 GEN WR17X3318 Contact Us For Availability
443
GEN WR17X3319 GEN WR17X3319 Contact Us For Availability
446
GEN WR17X10038 GEN WR17X10038 Contact Us For Availability
447
GEN WR02X9435 GEN WR02X9435 Contact Us For Availability
447
COVER HINGE BK FF GEN WR02X9436 Contact Us For Availability
448
GEN WR13X10014 GEN WR13X10014 Contact Us For Availability
448
GEN WR13X10015 GEN WR13X10015 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
451
HINGE BTM ADJ ASM BK GEN WR13X10009 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X3839 GEN WR17X3839 Contact Us For Availability
473
GEN WR72X0282 GEN WR72X0282 Contact Us For Availability
473
GEN WR72X0283 GEN WR72X0283 Contact Us For Availability
500
GEN WR71X2559 GEN WR71X2559 Contact Us For Availability
501
GEN WR32X1561 GEN WR32X1561 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2246 GEN WR71X2246 Contact Us For Availability
521
GEN WR32X1503 GEN WR32X1503 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0218 GEN WR72X0218 Contact Us For Availability
525
GEN WR72X0219 GEN WR72X0219 Contact Us For Availability
526
GEN WR32X1268 GEN WR32X1268 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
609
GEN WR23X0426 GEN WR23X0426 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
612
GEN WR02X8549 GEN WR02X8549 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
616
GEN WR82X10007 GEN WR82X10007 Contact Us For Availability
627
GEN WR17X10005 GEN WR17X10005 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0234 GEN WR60X0234 Contact Us For Availability
652
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
654
GEN WR01X2019 GEN WR01X2019 Contact Us For Availability
654
GEN WR02X9240 GEN WR02X9240 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
730
GEN WR84X0206 GEN WR84X0206 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0253 GEN WR07X0253 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0172 GEN WR08X0172 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
752
GEN WR82X10028 GEN WR82X10028 Contact Us For Availability
754
GEN WR82X0358 GEN WR82X0358 Contact Us For Availability
756
GEN WR01X2021 GEN WR01X2021 Contact Us For Availability
757
GEN WR01X2035 GEN WR01X2035 Contact Us For Availability
782
TERMINAL BLK ASM GEN WB17X5060 Contact Us For Availability
800
GEN WR02X9232 GEN WR02X9232 Contact Us For Availability
806
GEN WR02X9245 GEN WR02X9245 Contact Us For Availability
807
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
815
GEN WR57X10001 GEN WR57X10001 Contact Us For Availability
816
GEN WR57X10002 GEN WR57X10002 Contact Us For Availability
822
GEN WR01X2122 GEN WR01X2122 Contact Us For Availability
840
GEN WR01X2024 GEN WR01X2024 Contact Us For Availability
840
GEN WR11X10001 GEN WR11X10001 Contact Us For Availability
842
GEN WR11X0172 GEN WR11X0172 Contact Us For Availability
843
GEN WR11X0173 GEN WR11X0173 Contact Us For Availability
864
GEN WR29X0115 GEN WR29X0115 Contact Us For Availability
900
GEN WR78X8703 GEN WR78X8703 Contact Us For Availability
901
GEN WR10X0126 GEN WR10X0126 Contact Us For Availability
903
GEN WR01X2039 GEN WR01X2039 Contact Us For Availability
904
GEN WR01X2134 GEN WR01X2134 Contact Us For Availability
910
GEN WR78X8704 GEN WR78X8704 Contact Us For Availability
911
GEN WR01X2041 GEN WR01X2041 Contact Us For Availability
912
GEN WR01X2132 GEN WR01X2132 Contact Us For Availability
913
CORNER COVER BK FF GEN WR01X2037 Contact Us For Availability
915
GEN WR01X2038 GEN WR01X2038 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
