Model GE TFT27PRBCWW – Common Parts & Diagrams

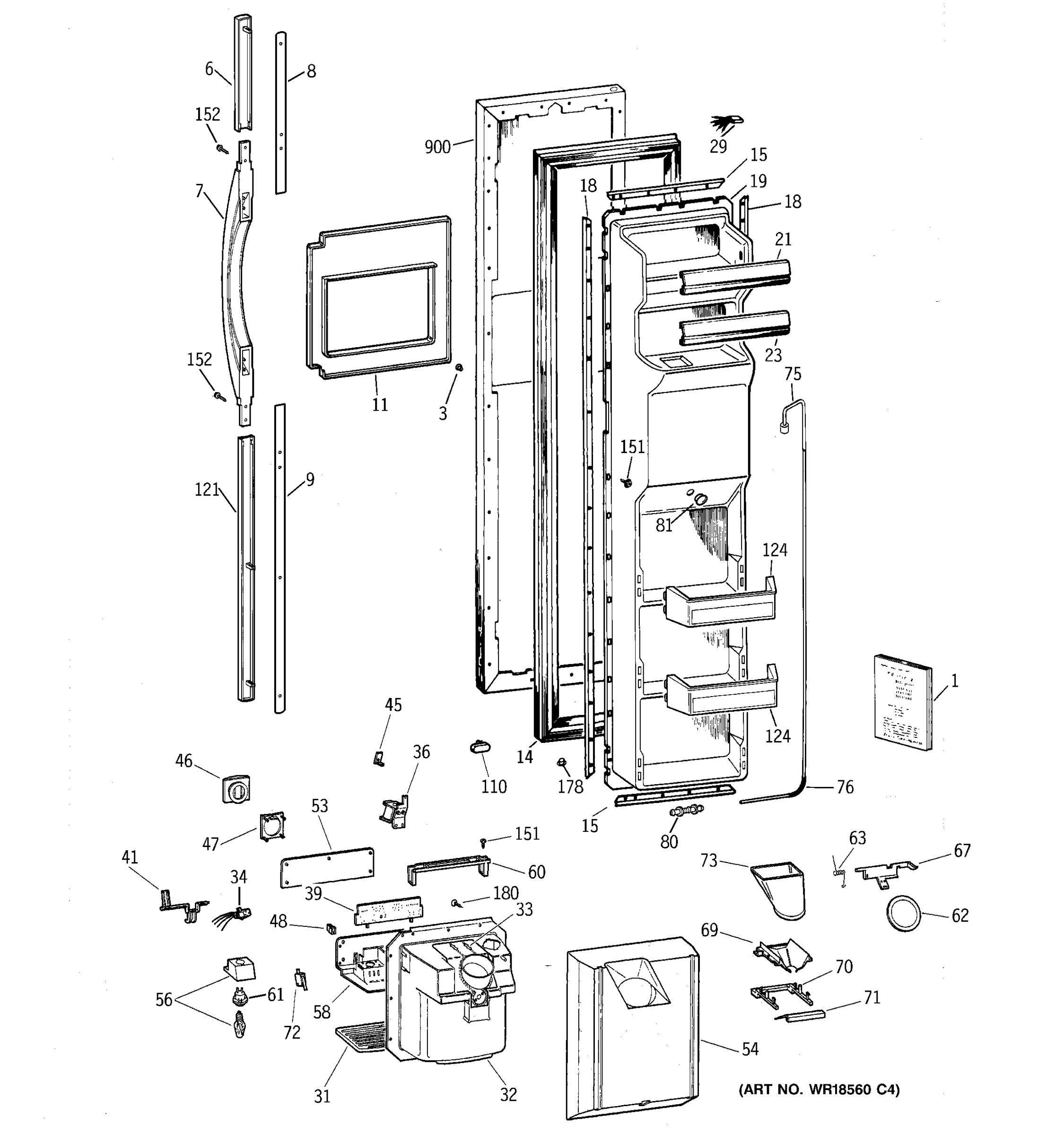

FREEZER DOOR

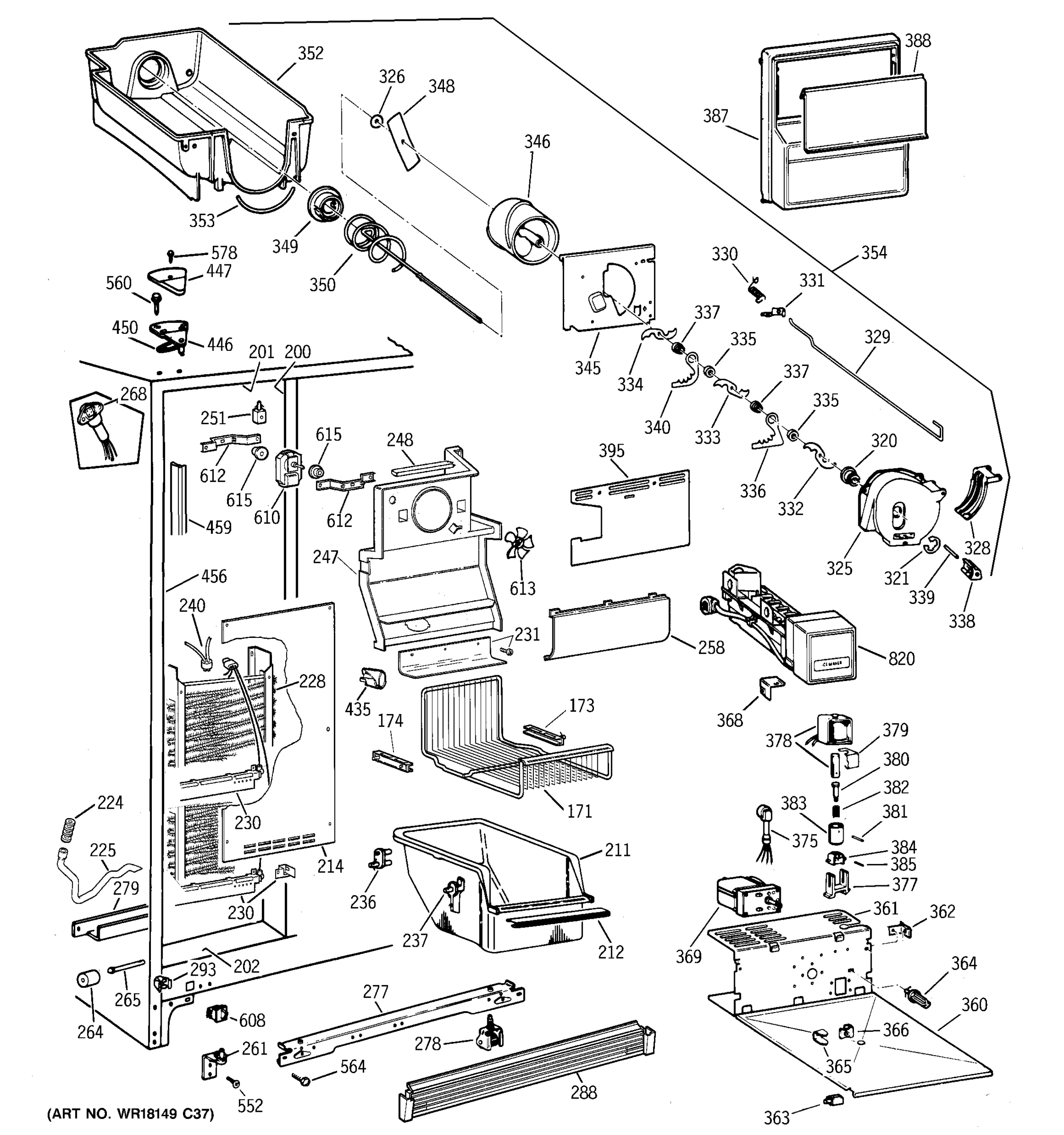

FREEZER SECTION

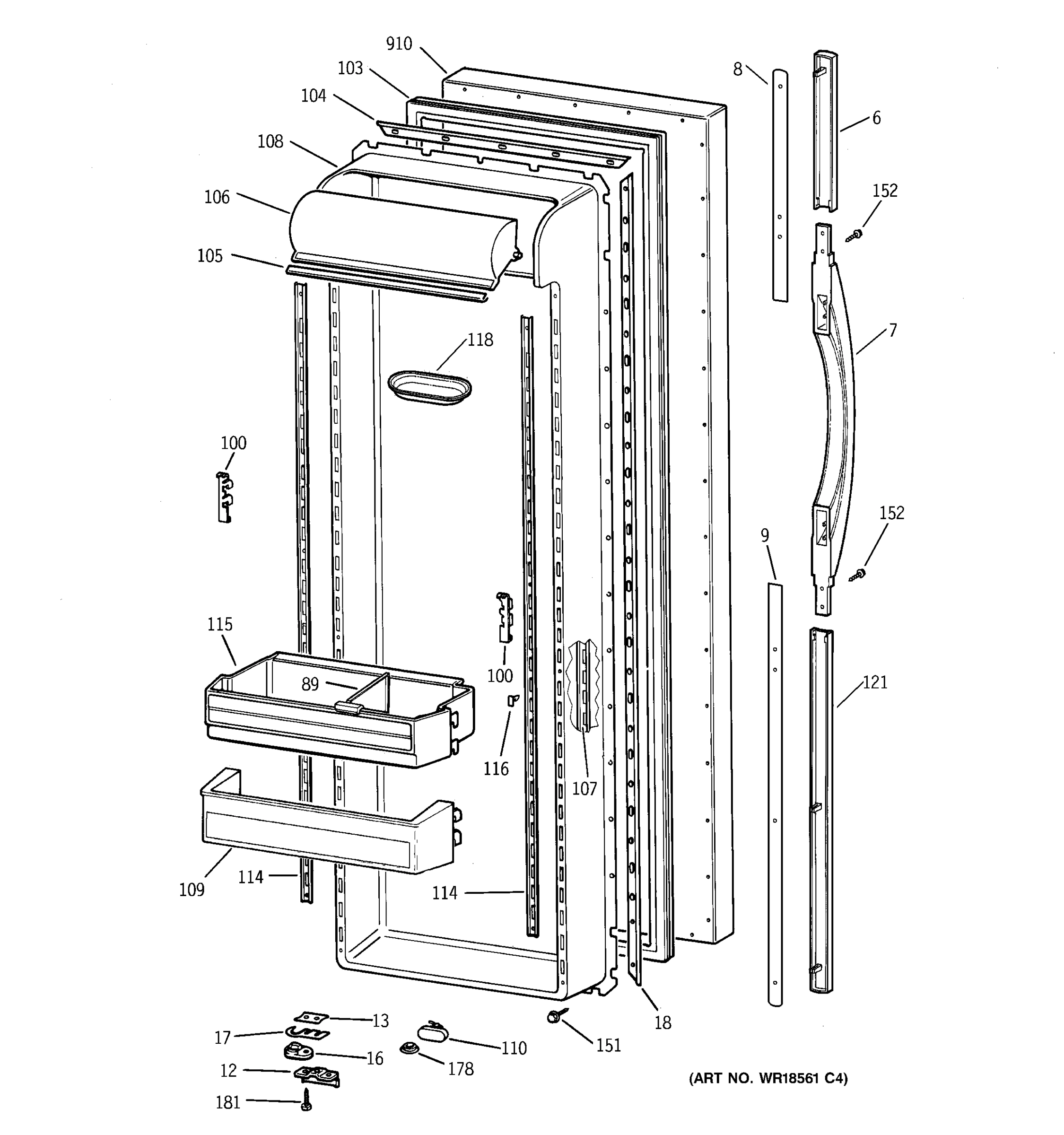

FRESH FOOD DOOR

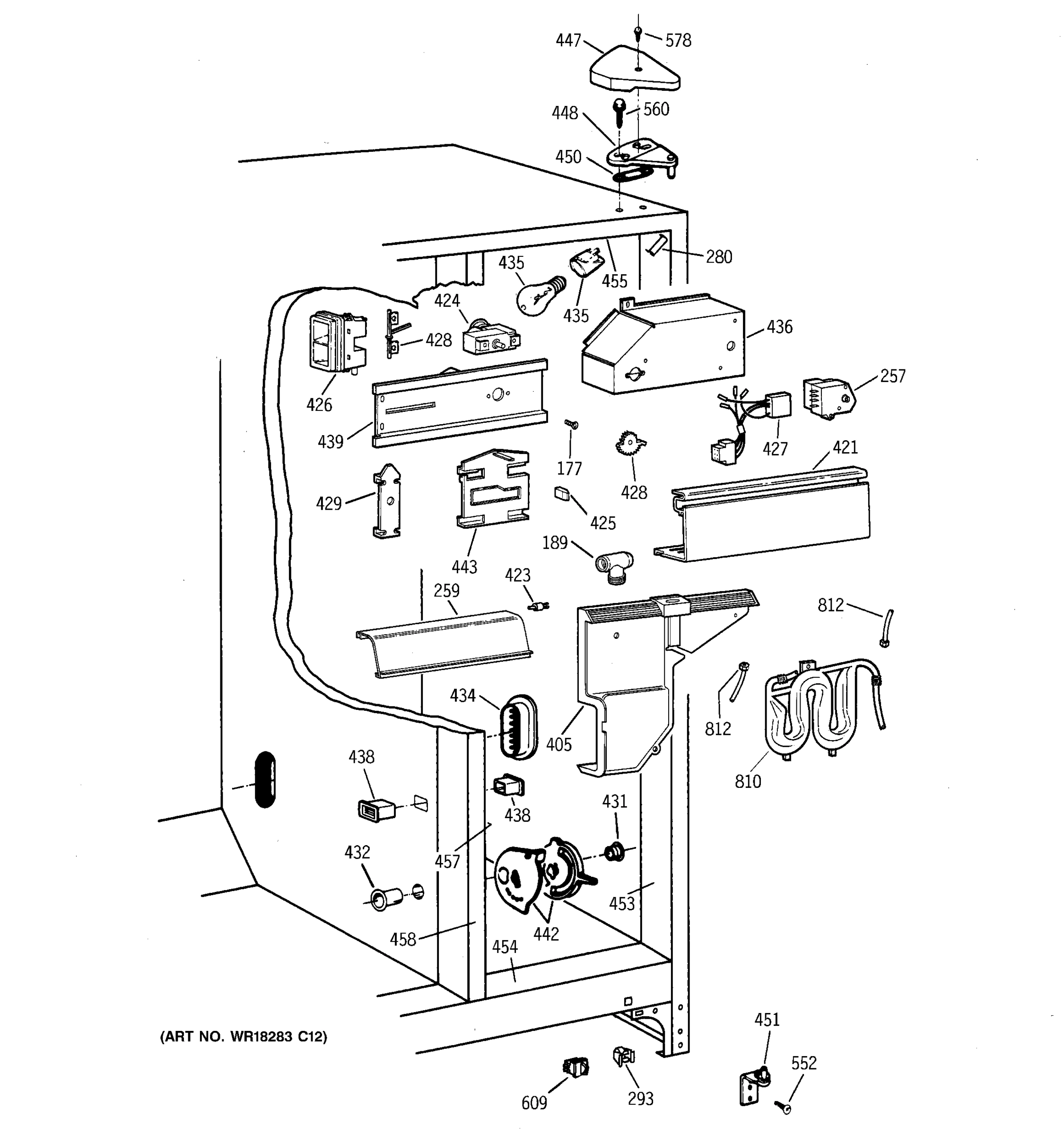

FRESH FOOD SECTION

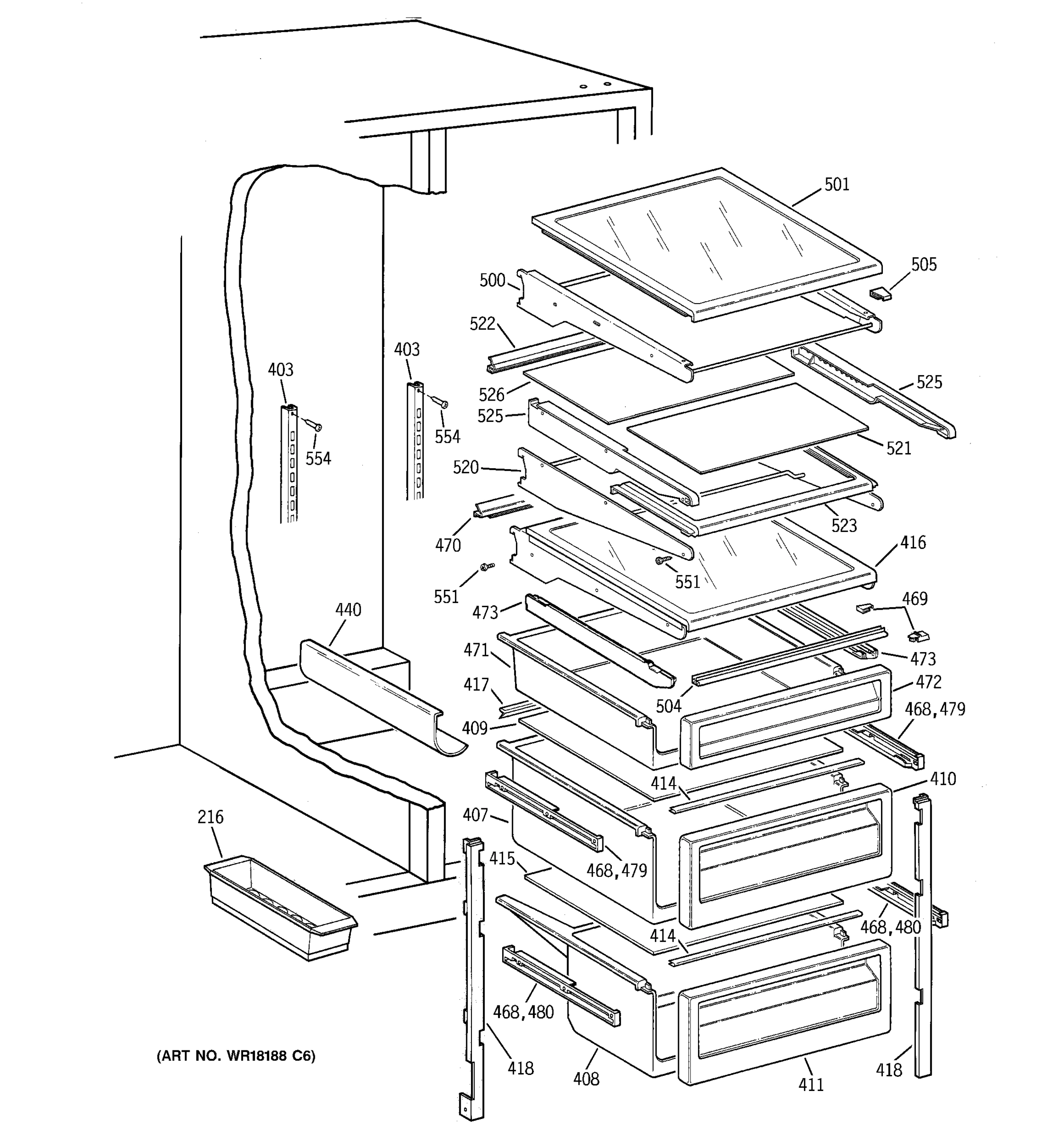

FRESH FOOD SHELVES

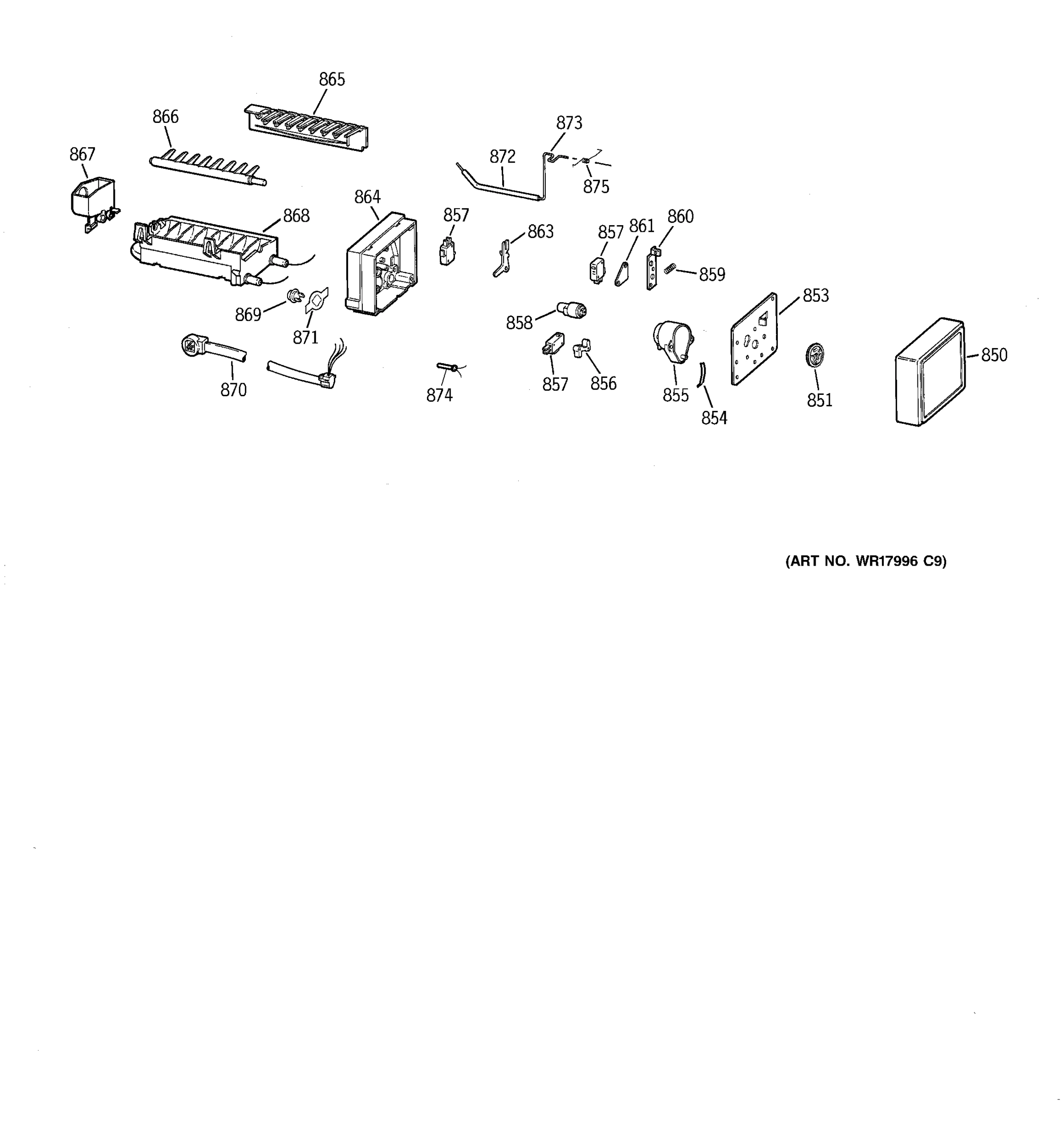

ICEMAKER WR30X0327

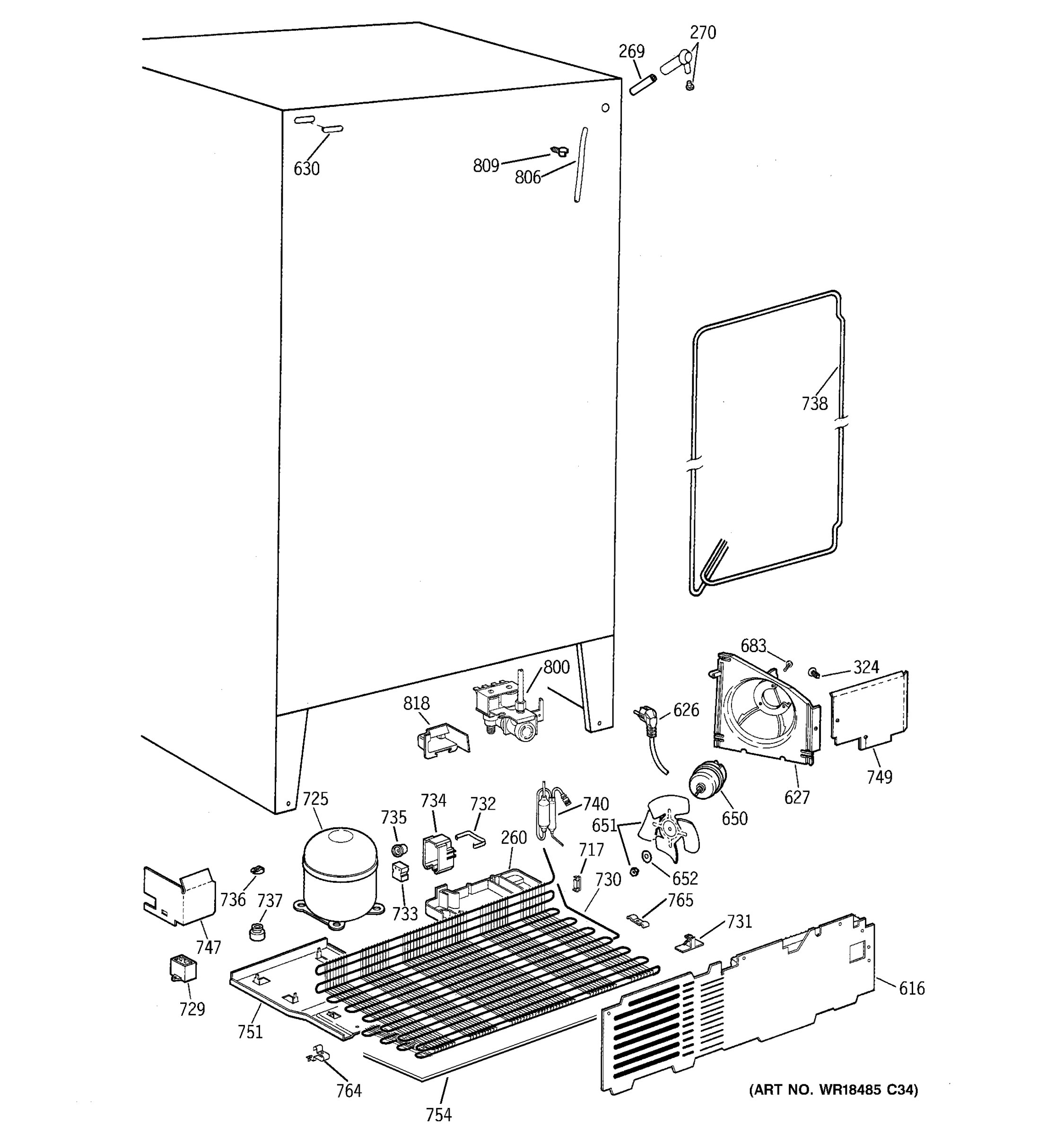

UNIT PARTS
Common parts from model GE TFT27PRBCWW
6
GEN WR12X10152 GEN WR12X10152 Contact Us For Availability
7
GEN WR12X10121 GEN WR12X10121 Contact Us For Availability
8
GEN WR12X10150 GEN WR12X10150 Contact Us For Availability
9
GEN WR12X10120 GEN WR12X10120 Contact Us For Availability
12
GEN WR02X9300 GEN WR02X9300 Contact Us For Availability
13
GEN WR02X7489 GEN WR02X7489 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X7490 Contact Us For Availability
16
GEN WR02X7512 GEN WR02X7512 Contact Us For Availability
18
GEN WR17X2092 GEN WR17X2092 Contact Us For Availability
31
GEN WR17X4153 GEN WR17X4153 Contact Us For Availability
32
GEN WR17X10190 GEN WR17X10190 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
GEN WR02X8954 GEN WR02X8954 Contact Us For Availability
71
GEN WR17X10282 GEN WR17X10282 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
73
GEN WR17X3086 GEN WR17X3086 Contact Us For Availability
75
GEN WR17X3670 GEN WR17X3670 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
81
GEN WR01X2077 GEN WR01X2077 Contact Us For Availability
89
GEN WR02X7957 GEN WR02X7957 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GEN WR24X0526 GEN WR24X0526 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2067 GEN WR38X2067 Contact Us For Availability
106
GEN WR22X0378 GEN WR22X0378 Contact Us For Availability
107
GEN WR72X0091 GEN WR72X0091 Contact Us For Availability
108
GEN WR77X0506 GEN WR77X0506 Contact Us For Availability
109
GEN WR71X2631 GEN WR71X2631 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
114
GEN WR72X0092 GEN WR72X0092 Contact Us For Availability
115
GEN WR71X2629 GEN WR71X2629 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
121
GEN WR12X10123 GEN WR12X10123 Contact Us For Availability
124
GEN WR71X2628 GEN WR71X2628 Contact Us For Availability
152
GEN WR01X10038 GEN WR01X10038 Contact Us For Availability
171
GEN WR71X10147 GEN WR71X10147 Contact Us For Availability
174
GEN WR02X8667 GEN WR02X8667 Contact Us For Availability
177
GEN WR01X5034 GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
181
SCREW 10-32 MA HX 1 S GEN WZ06X0105 Contact Us For Availability
189
GEN WR02X9243 GEN WR02X9243 Contact Us For Availability
200
GEN WR40X1730 GEN WR40X1730 Contact Us For Availability
201
GEN WR40X1731 GEN WR40X1731 Contact Us For Availability
202
GEN WR40X1732 GEN WR40X1732 Contact Us For Availability
211
GEN WR21X0190 GEN WR21X0190 Contact Us For Availability
212
GEN WR17X3103 GEN WR17X3103 Contact Us For Availability
214
GEN WR01X10064 GEN WR01X10064 Contact Us For Availability
214
GEN WR14X0456 GEN WR14X0456 Contact Us For Availability
214
GEN WR17X4091 GEN WR17X4091 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
231
GEN WR17X3651 GEN WR17X3651 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X3488 GEN WR17X3488 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
248
GEN WR14X0493 GEN WR14X0493 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3489 No Longer Available
259
GEN WR17X4077 GEN WR17X4077 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
261
GEN WR13X0745 GEN WR13X0745 Contact Us For Availability
265
AXLE WHEEL FRONT GEN WR02X3595 Contact Us For Availability
265
AXLE WHEEL REAR GEN WR02X4742 Contact Us For Availability
268
IM RECEPTACLE GEN WR23X0312 Contact Us For Availability
269
GEN WR02X8668 GEN WR02X8668 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X10434 GEN WR17X10434 Contact Us For Availability
280
GEN WR02X8518 GEN WR02X8518 Contact Us For Availability
288
GEN WR74X0205 GEN WR74X0205 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
321
GEN WR01X1990 GEN WR01X1990 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1991 GEN WR01X1991 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
328
GEN WR02X9164 GEN WR02X9164 Contact Us For Availability
329
GEN WR17X3737 GEN WR17X3737 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X9165 GEN WR02X9165 Contact Us For Availability
332
GEN WR17X3740 GEN WR17X3740 Contact Us For Availability
333
GEN WR17X3741 GEN WR17X3741 Contact Us For Availability
334
GEN WR17X3742 GEN WR17X3742 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X3739 GEN WR17X3739 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
340
GEN WR17X3738 GEN WR17X3738 Contact Us For Availability
345
GEN WR17X3733 GEN WR17X3733 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4341 GEN WR17X4341 Contact Us For Availability
354
GEN WR17X4342 GEN WR17X4342 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2510 GEN WR71X2510 Contact Us For Availability
361
COVER MOTOR SOLENOID GEN WR71X2517 Contact Us For Availability
362
GEN WR02X9166 GEN WR02X9166 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0415 GEN WR23X0415 Contact Us For Availability
387
GEN WR17X10330 GEN WR17X10330 Contact Us For Availability
388
GEN WR17X10275 GEN WR17X10275 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
405
GEN WR17X3890 GEN WR17X3890 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
GEN WR32X1459 GEN WR32X1459 Contact Us For Availability
409
GEN WR32X1456 GEN WR32X1456 Contact Us For Availability
410
GEN WR17X4083 GEN WR17X4083 Contact Us For Availability
411
GEN WR17X4081 GEN WR17X4081 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR32X1572 GEN WR32X1572 Contact Us For Availability
417
GEN WR14X10006 GEN WR14X10006 Contact Us For Availability
418
GEN WR17X4085 GEN WR17X4085 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
421
GEN WR17X4124 GEN WR17X4124 Contact Us For Availability
423
GEN WR02X10050 GEN WR02X10050 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0570 GEN WR09X0570 Contact Us For Availability
425
GEN WR02X8398 GEN WR02X8398 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0469 GEN WR23X0469 Contact Us For Availability
428
GEN WR02X8513 GEN WR02X8513 Contact Us For Availability
428
GEN WR02X9396 GEN WR02X9396 Contact Us For Availability
429
GEN WR02X8516 GEN WR02X8516 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X9431 GEN WR02X9431 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X2922 GEN WR17X2922 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X9432 GEN WR02X9432 Contact Us For Availability
443
GEN WR02X8570 GEN WR02X8570 Contact Us For Availability
446
GEN WR13X10057 GEN WR13X10057 Contact Us For Availability
447
GEN WR02X8333 GEN WR02X8333 Contact Us For Availability
448
GEN WR13X10056 GEN WR13X10056 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
451
GEN WR13X0746 GEN WR13X0746 Contact Us For Availability
453
GEN WR40X1734 GEN WR40X1734 Contact Us For Availability
454
GEN WR40X1735 GEN WR40X1735 Contact Us For Availability
455
GEN WR40X1736 GEN WR40X1736 Contact Us For Availability
456
GEN WR40X1733 GEN WR40X1733 Contact Us For Availability
457
GEN WR40X1737 GEN WR40X1737 Contact Us For Availability
458
GEN WR02X10334 GEN WR02X10334 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1738 GEN WR40X1738 Contact Us For Availability
459
GEN WR14X0481 GEN WR14X0481 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X4082 GEN WR17X4082 Contact Us For Availability
473
GEN WR72X0282 GEN WR72X0282 Contact Us For Availability
473
GEN WR72X0283 GEN WR72X0283 Contact Us For Availability
500
GEN WR71X2559 GEN WR71X2559 Contact Us For Availability
501
GEN WR32X1561 GEN WR32X1561 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2246 GEN WR71X2246 Contact Us For Availability
521
GEN WR32X1503 GEN WR32X1503 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0218 GEN WR72X0218 Contact Us For Availability
525
GEN WR72X0219 GEN WR72X0219 Contact Us For Availability
526
GEN WR32X1268 GEN WR32X1268 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
560
GEN WR01X2140 GEN WR01X2140 Contact Us For Availability
564
SCR 1/4 14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
610
GEN WR60X0188 GEN WR60X0188 Contact Us For Availability
612
GEN WR02X85 GEN WR02X85 Contact Us For Availability
616
GEN WR82X10042 GEN WR82X10042 Contact Us For Availability
627
GEN WR17X4356 GEN WR17X4356 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X10002 GEN WR60X10002 Contact Us For Availability
652
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
717
GEN WR02X10335 GEN WR02X10335 Contact Us For Availability
730
GEN WR84X0207 GEN WR84X0207 Contact Us For Availability
731
GEN WR02X10069 GEN WR02X10069 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0253 GEN WR07X0253 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0172 GEN WR08X0172 Contact Us For Availability
738
GEN WR84X0168 GEN WR84X0168 Contact Us For Availability
747
GEN WR17X10427 GEN WR17X10427 Contact Us For Availability
749
GEN WR17X4148 GEN WR17X4148 Contact Us For Availability
754
GEN WR82X10061 GEN WR82X10061 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
818
GEN WR02X10181 GEN WR02X10181 Contact Us For Availability
850
GEN WR29X0182 GEN WR29X0182 Contact Us For Availability
853
PLATE MOUNTING GEN WR29X5111 Contact Us For Availability
856
GEN WR29X5118 GEN WR29X5118 Contact Us For Availability
857
GEN WR29X5171 GEN WR29X5171 Contact Us For Availability
861
INSULATOR GEN WR29X5117 Contact Us For Availability
867
GEN WR29X0153 GEN WR29X0153 Contact Us For Availability
868
GEN WR29X0204 GEN WR29X0204 Contact Us For Availability
870
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
872
SLEEVE VINYL GEN WR29X5128 Contact Us For Availability
900
GEN WR78X10106 GEN WR78X10106 Contact Us For Availability
910
GEN WR78X10107 GEN WR78X10107 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
