Model Speed Queen SFNNXASG303AN12 Washer – Common Parts & Diagrams

Control Panel and Controls (Drawing 1 of 3)

Control Panel and Controls (Drawing 2 of 3)

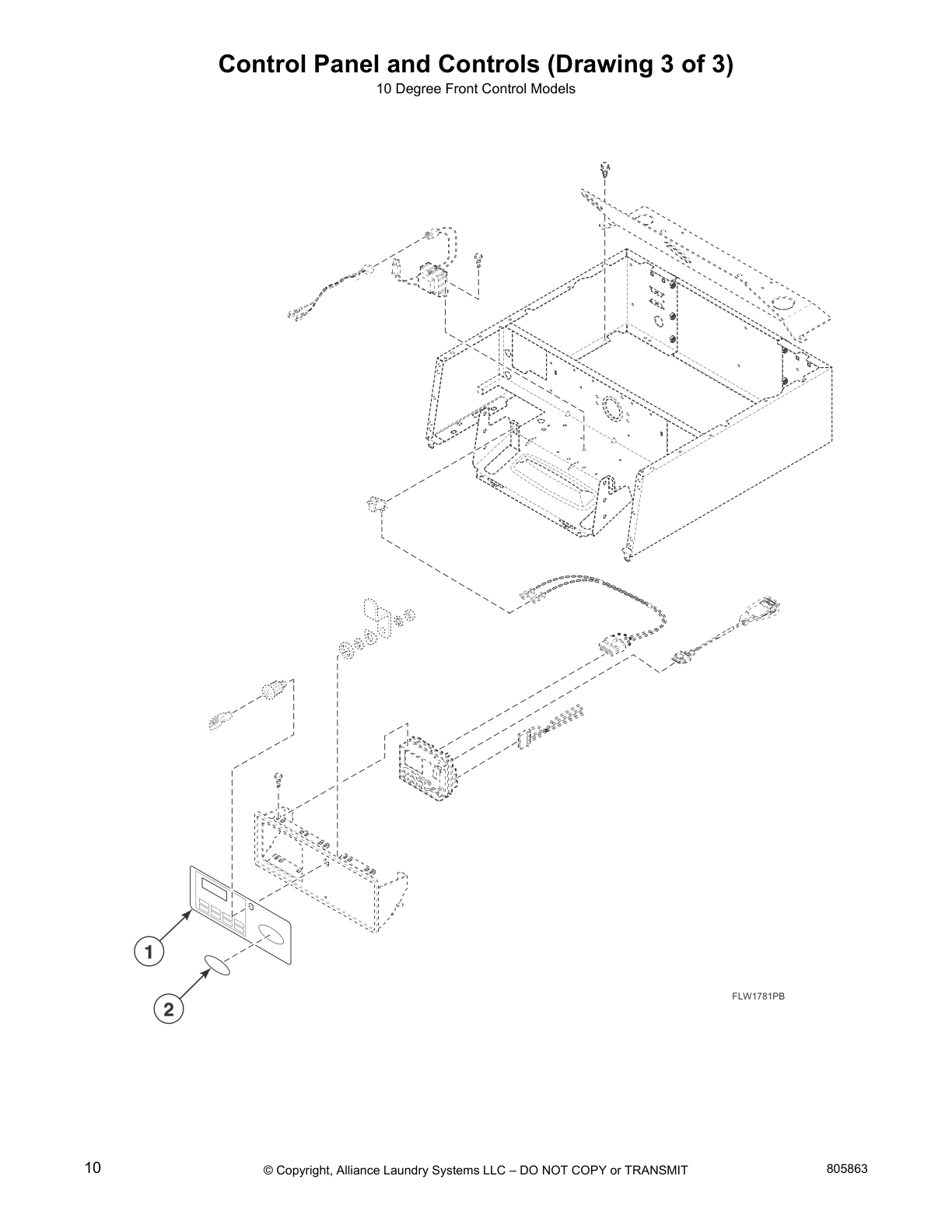

Control Panel and Controls (Drawing 3 of 3)

Top Assembly

Network Board Assembly

Electrical Access Panel, Filters and Terminal Block (Drawing 1 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 2 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 3 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 4 of 4)

Control Cabinet - Front Control Coin Drop Models (Drawing 1 of 2)

Control Cabinet - Front Control Coin Drop Models (Drawing 2 of 2)

Control Cabinet - Front Control Bill Acceptor Models

Non-Electronic Coin Drop, Cabinet Front and Wrapper Assembly

Electronic Coin Drop

Control Cabinet Controls - Front Control Card Reader Ready and OPL Models

Control Cabinet (Drawing 1 of 3)

Control Cabinet (Drawing 2 of 3)

Control Cabinet (Drawing 3 of 3)

Coin Drop, Meter Case and Cabinet Top

Control Panel, Control Hood and Controls

Front Panel, Door Assembly and Door Seal

Dispenser Inlet Hose

Dispenser Assembly (Drawing 1 of 2)

Dispenser Assembly (Drawing 2 of 2)

Mixing Valve

Fill Hose

Outer Tub, Clamp Ring and Shock Absorbers

Inner Basket, Trunnion, Bearing Housing and Pulley

Motor and Belt

Drain Hoses and Valve

Drain Hose and Pump

Side, Base and Rear Panels

Junction Box

Junction Box and Power Cord

Shipping Materials

Wire Ties, Harness Clips and Lead-In Cord

Special Tools

Washer Labels

Wire Harnesses and Wires - Through Serial No. 2012999999

Wire Harnesses and Wires - Starting Serial No. 2101000001

Common parts from model Speed Queen SFNNXASG303AN12 Washer

122P4P Speed Queen Paint, Porcelain Touch Backorder SPQ 122P4P $36.22

View on Model

203720 Speed Queen Hose Inlet Water IEC (3/8 In Stock SPQ 203720 $16.65

View on Model

38462P Speed Queen Coin Drop Token Assembly S Backorder SPQ 38462P $271.06

View on Model

685847 Speed Queen Dome HD .156 Steel Pop Riv Backorder SPQ 685847 $4.70

View on Model

802695P Speed Queen Door Glass Backorder SPQ 802695P $116.61

View on Model

802905 Speed Queen Dual Coin Harness Assembly Backorder SPQ 802905 $33.45

View on Model

803789 Speed Queen Removable Rear Panel Backorder SPQ 803789 $44.82

View on Model

806827 Speed Queen Dual Coin Drop Harness Backorder SPQ 806827 $39.67

View on Model

808067P Speed Queen Motor and Rod Assembly Ki Backorder SPQ 808067P $256.01

View on Model

808095 Speed Queen Washer Dryer Inner Door Be In Stock SPQ 808095 $39.09

View on Model

SPQ 805962 SPQ 805962 Contact Us For Availability

View on Model

SPQ 804500 SPQ 804500 Contact Us For Availability

View on Model

SPQ 801706 SPQ 801706 Contact Us For Availability

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O Backorder SPQ 20290 $4.70

View on Model

803667 Speed Queen Dispenser Drawer Backorder SPQ 803667 $17.26

View on Model

803843 Speed Queen Dispenser Plate Backorder SPQ 803843 $6.22

View on Model

806031 Speed Queen Flow Control Harness Backorder SPQ 806031 $94.37

View on Model

807384 Speed Queen Switch,ROCKER,SILVER,MOM,S In Stock SPQ 807384 $4.74

View on Model

807396W Speed Queen Meter Case Prep for Coin In Stock SPQ 807396W $199.55

View on Model

CK096 Speed Queen Mounting Tool Kit Backorder SPQ CK096 $5.49

View on Model

CK110 Speed Queen Drop Kit Munz Ecuador Mexic Backorder SPQ CK110 $171.77

View on Model

Nut SPQ 804418 Contact Us For Availability

View on Model

Junction Box Cover SPQ 803820 Contact Us For Availability

View on Model

Cable Tie SPQ M405829 Contact Us For Availability

View on Model

Notice Label SPQ 807222 Contact Us For Availability

View on Model

24122 Speed Queen Mixing Valve Screen Backorder SPQ 24122 $4.70

View on Model

29786 Speed Queen 1/4-20 Hex Keps Nut Backorder SPQ 29786 $4.70

View on Model

310P4 Speed Queen Washer Dryer Ratchet Extens In Stock SPQ 310P4 $39.22

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.70

View on Model

70529301 Speed Queen Silver Rocker Switch MOM Backorder SPQ 70529301 $6.20

View on Model

801001 Speed Queen T-20 Torx Plastic Screw 10 Backorder SPQ 801001 $1.81

View on Model

803770 Speed Queen Outer Tub Front Backorder SPQ 803770 $44.36

View on Model

804339P Speed Queen Complete Flow Lock Assemb Backorder SPQ 804339P $20.70

View on Model

804393 Speed Queen Balance Ring Assembly (Flo In Stock SPQ 804393 $49.10

View on Model

804433 Speed Queen Pressure Sensor Harness Backorder SPQ 804433 $15.24

View on Model

806466 Speed Queen French Top Assembly - Pro In Stock SPQ 806466 $2.85

View on Model

808149 Speed Queen Control Assembly, Flow Out In Stock SPQ 808149 $239.76

View on Model

M400014 Speed Queen Washer Lock Regulator Spr Backorder SPQ M400014 $4.70

View on Model

801045 Speed Queen Hex Screw WA HD SMS 10-24 Backorder SPQ 801045 $2.85

View on Model

802336 Speed Queen Fixture,Pulley BOLT TIGHTE Backorder SPQ 802336 $2.84

View on Model

803868WP Speed Queen Top Porcelain Panel Backorder SPQ 803868WP $247.90

View on Model

804227WP Speed Queen Dispenser Handle (White) Backorder SPQ 804227WP $14.15

View on Model

804382 Speed Queen Cobra Lifter Backorder SPQ 804382 $10.30

View on Model

805548 Speed Queen Clothes Guard Deflector Backorder SPQ 805548 $9.61

View on Model

805729 Speed Queen Jet Holder LP 9.2K In Stock SPQ 805729 $18.15

View on Model

806029 Speed Queen Motor Harness FLW Backorder SPQ 806029 $20.66

View on Model

807175P Speed Queen 1HP SVI ALT IPM Control A In Stock SPQ 807175P $836.76

View on Model

Hose Clamp SPQ 685725 Contact Us For Availability

View on Model

Power Cord Assembly SPQ 808047 Contact Us For Availability

View on Model

Warning Label SPQ 802367 Contact Us For Availability

View on Model

392P4 Speed Queen Horizon TL Locknut Wrench T Backorder SPQ 392P4 $11.90

View on Model

70441602 Speed Queen Dual Coindrop Can Assemb Backorder SPQ 70441602 $552.36

View on Model

803669 Speed Queen Prewash Compartment Cover Backorder SPQ 803669 $13.19

View on Model

803849 Speed Queen Inlet Dispenser Hose Backorder SPQ 803849 $3.40

View on Model

803876 Speed Queen Complete Base Backorder SPQ 803876 $187.88

View on Model

804467 Speed Queen Clothes Guard Deflector Backorder SPQ 804467 $8.24

View on Model

804878 Speed Queen Motor Control Drip Shield Backorder SPQ 804878 $5.82

View on Model

806028 Speed Queen Door Lock Harness Backorder SPQ 806028 $24.56

View on Model

Bearing Kit SPQ 805485 Contact Us For Availability

View on Model

Gravity Drain Bracket SPQ 803291 Contact Us For Availability

View on Model

Cable Connection Box SPQ 39922 Contact Us For Availability

View on Model

Shipping Bracket Label SPQ 807552 Contact Us For Availability

View on Model

Wire Clip SPQ F8449502 Contact Us For Availability

View on Model

Caution Label SPQ 806550 Contact Us For Availability

View on Model

03673 Speed Queen Hex Nut 10-24 Machine UNC Z Backorder SPQ 03673 $1.65

View on Model

203423 Speed Queen 120V Transformer Kit ACAS Backorder SPQ 203423 $146.07

View on Model

203843 Speed Queen Water Pressure Sensor 0-40 In Stock SPQ 203843 $8.16

View on Model

803879 Speed Queen Tub Front Assembly Backorder SPQ 803879 $99.22

View on Model

804374P Speed Queen Inner Basket Assembly Backorder SPQ 804374P $1,017.74

View on Model

804617W Speed Queen Access Panel Assembly Backorder SPQ 804617W $58.59

View on Model

806267P Speed Queen Control Assembly, ACA H7S In Stock SPQ 806267P $365.24

View on Model

D511036 Speed Queen Door Hinge In Stock SPQ D511036 $2.85

View on Model

F976P3 Speed Queen 220V Drain Valve Kit Backorder SPQ F976P3 $302.74

View on Model

Washer SPQ D501524 Contact Us For Availability

View on Model

Left Hand Thread Label SPQ 805966 Contact Us For Availability

View on Model

03815 Speed Queen #10 Lockwasher External Shk Backorder SPQ 03815 $2.21

View on Model

800004WP Speed Queen Left Hand Cabinet Panel Backorder SPQ 800004WP $156.76

View on Model

802343 Speed Queen Locknut #10-24 UNF-SS Backorder SPQ 802343 $4.70

View on Model

803292P Speed Queen Gravity Drain Valve Kit ( In Stock SPQ 803292P $308.28

View on Model

M400057 Speed Queen Hex Head Bolt 5/16-18 x 3 Backorder SPQ M400057 $4.70

View on Model

SPQ 804699 SPQ 804699 Contact Us For Availability

View on Model

Screw SPQ 803818 Contact Us For Availability

View on Model

SPQ 805965 SPQ 805965 Contact Us For Availability

View on Model

800903 Speed Queen Gravity Drain Hose to Cabi Backorder SPQ 800903 $39.22

View on Model

804717 Speed Queen Detergent Hose (Dispense t Backorder SPQ 804717 $34.46

View on Model

SPQ 804458 SPQ 804458 Contact Us For Availability

View on Model

SPQ 806831 SPQ 806831 Contact Us For Availability

View on Model

Screw SPQ 800004QP Contact Us For Availability

View on Model

Screw SPQ 20530 Contact Us For Availability

View on Model

02834 Speed Queen Washer Lock Extension Tooth Backorder SPQ 02834 $5.97

View on Model

38384 Speed Queen Strain Relief Backorder SPQ 38384 $1.81

View on Model

802288P Speed Queen Right Hinge Front Panel S Backorder SPQ 802288P $526.24

View on Model

804399 Speed Queen Tapping Hex Flange Screw Backorder SPQ 804399 $0.49

View on Model

Snap Bushing SPQ D503235 Contact Us For Availability

View on Model

Rear Panel SPQ 800004DG Contact Us For Availability

View on Model

02916 Speed Queen Cap Screw 1/4-20 X 0.62 FT Backorder SPQ 02916 $4.58

View on Model

803698 Speed Queen Top Cover Weldment, Bottom Backorder SPQ 803698 $45.68

View on Model

M400080 Speed Queen Washer Flat 5/16 Standard Backorder SPQ M400080 $4.70

View on Model

SPQ 804457 SPQ 804457 Contact Us For Availability

View on Model

803415 Speed Queen SPST Switch O.B.L W/AU In Stock SPQ 803415 $8.16

View on Model

803819 Speed Queen Junction Box Lower Backorder SPQ 803819 $28.57

View on Model

803861 Speed Queen Motor Rod 5/16 Backorder SPQ 803861 $20.37

View on Model

803874 Speed Queen Drain Hose Tub to Gravity Backorder SPQ 803874 $25.36

View on Model

Shipping Plate SPQ 803851 Contact Us For Availability

View on Model

36985 Speed Queen Pressure Hose Clip Backorder SPQ 36985 $1.70

View on Model

807679 Speed Queen Flat Washer (.406 ID x 1.5 Backorder SPQ 807679 $1.98

View on Model

Gravity Drain Bracket SPQ 803833 Contact Us For Availability

View on Model

54612 Speed Queen Key GR 800 In Stock SPQ 54612 $5.25

View on Model

685831 Speed Queen 3/8-24 Nylon Left-Hand Scr Backorder SPQ 685831 $4.70

View on Model

804483 Speed Queen Tub Pressure Sensor Assemb Backorder SPQ 804483 $9.74

View on Model

Cabinet Side Panel SPQ 800005DG Contact Us For Availability

View on Model

806492 Speed Queen Right Side Panel and Dispe Backorder SPQ 806492 $198.33

View on Model

M403958 Speed Queen 3/8 Ext Tooth Lock Washer Backorder SPQ M403958 $1.70

View on Model

Grommet SPQ 803891 Contact Us For Availability

View on Model

29175 Speed Queen Grommet Backorder SPQ 29175 $5.78

View on Model

802934 Speed Queen Door Hinge In Stock SPQ 802934 $51.44

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $5.71

View on Model

M400043 Speed Queen Hex Cap Screw 3/8-16 X 1. In Stock SPQ M400043 $4.58

View on Model

23951 Speed Queen Hex Keps Nut 10-24 STL In Stock SPQ 23951 $4.70

View on Model

34318 Speed Queen Washer/Dryer Rubber Foot Pa Backorder SPQ 34318 $2.85

View on Model

800457 Speed Queen Washer Flat Backorder SPQ 800457 $1.70

View on Model

802700 Speed Queen Glass Mounting Clip Backorder SPQ 802700 $4.70

View on Model

802844P Speed Queen Floor Mount Anchor Assemb Backorder SPQ 802844P $36.22

View on Model

805525 Speed Queen Bearing Housing & Hardware Backorder SPQ 805525 $409.97

View on Model

155P3 Speed Queen Anchor, 4 Pack - 4051A In Stock SPQ 155P3 $43.97

View on Model

800452 Speed Queen Hex Nut 3/8-16 STD UNC Zin Backorder SPQ 800452 $1.70

View on Model

803864 Speed Queen Outer Tub Complete Assembl Backorder SPQ 803864 $1,153.75

View on Model

806086 Speed Queen Self-Tapping Screw Pan Hea Backorder SPQ 806086 $0.90

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $4.70

View on Model

803920 Speed Queen Washer Door Lock and Switc In Stock SPQ 803920 $139.27

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $4.70

View on Model

800461 Speed Queen Cap Screw HX 3/8-16 x 1.25 Backorder SPQ 800461 $1.81

View on Model

802281 Speed Queen Clamp,Hose (LARGE Door BOO Backorder SPQ 802281 $20.79

View on Model

27615T Speed Queen 3M-800 Sealant 5 Oz Tube Backorder SPQ 27615T $104.62

View on Model

804429P Speed Queen Door Seal Assembly (Gray) In Stock SPQ 804429P $165.72

View on Model

806361 Speed Queen COBRA Gray Deflector (Tall Backorder SPQ 806361 $36.14

View on Model

804428P Speed Queen Door Seal Assembly Black In Stock SPQ 804428P $136.13

View on Model

806313 Speed Queen Foreign Object Deflector K Backorder SPQ 806313 $38.23

View on Model

800548 Speed Queen Front Load Washer Door Han Backorder SPQ 800548 $2.64

View on Model

806308 Speed Queen Black Deflector Foreign Ob In Stock SPQ 806308 $33.49

View on Model

802206 Speed Queen Function Selector Bezel, C Backorder SPQ 802206 $17.84

View on Model

803801 Speed Queen Outer Front Tub Seal Backorder SPQ 803801 $10.76

View on Model

201595P Speed Queen Wire Guard Backorder SPQ 201595P $26.21

View on Model

36020 Speed Queen U-Type Nut #10-24 In Stock SPQ 36020 $4.36

View on Model

803802 Speed Queen Flanged Flowed Clamp Ring Backorder SPQ 803802 $48.17

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $1.87

View on Model

F430218 Speed Queen Hex Lock Nut 3/8-16 Poly Backorder SPQ F430218 $4.70

View on Model

M400081 Speed Queen Washer Flat 3/8" Backorder SPQ M400081 $2.16

View on Model

800462 Speed Queen Hex Cap Screw 3/8-16 x 4.0 Backorder SPQ 800462 $4.70

View on Model

802596 Speed Queen Phillips Head Screw 10X24X In Stock SPQ 802596 $4.70

View on Model

200674P Speed Queen Opto I Coupler 12 Backorder SPQ 200674P $101.12

View on Model

201375P Speed Queen Transformer 120V Dual Sec Backorder SPQ 201375P $72.60

View on Model

203719 Speed Queen Water Inlet Hose IEC (3/8 In Stock SPQ 203719 $16.65

View on Model

23008 Speed Queen Screw,HEX WA HD SEMS 10-24 In Stock SPQ 23008 $4.19

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $4.78

View on Model

36226 Speed Queen Bumper Pad .25 Backorder SPQ 36226 $1.70

View on Model

38717 Speed Queen Single Munz Overlay Backorder SPQ 38717 $8.16

View on Model

38725 Speed Queen Coin Identifier Paper Backorder SPQ 38725 $4.70

View on Model

44087201 Speed Queen Hex Flange Nut 5/16-18 Backorder SPQ 44087201 $4.70

View on Model

45001 Speed Queen 18GA Black Wire Backorder SPQ 45001 $0.44

View on Model

685846 Speed Queen #10-32 UNF Nylon Lock Nut Backorder SPQ 685846 $4.70

View on Model

70240301 Speed Queen Tap Screw HXWAHD 10AB-16 Backorder SPQ 70240301 $4.70

View on Model

70441601P Speed Queen COINDROP USA .25 MUNZ L Backorder SPQ 70441601P $212.59

View on Model

70441603 Speed Queen Dual Coin Drop Assembly Backorder SPQ 70441603 $680.93

View on Model

800553 Speed Queen Pressure Hose Mount Clip Backorder SPQ 800553 $2.27

View on Model

801993 Speed Queen Hex Head Machine Screw 10- In Stock SPQ 801993 $4.70

View on Model

802254 Speed Queen Washer Flow Restrictor Red In Stock SPQ 802254 $20.13

View on Model

802277WP Speed Queen Front Washer Panel Backorder SPQ 802277WP $137.27

View on Model

802803 Speed Queen Washer Dryer Door Catch As In Stock SPQ 802803 $5.71

View on Model

803615 Speed Queen Washer Filter In Stock SPQ 803615 $2.85

View on Model

803859 Speed Queen Shipping Plug Backorder SPQ 803859 $1.06

View on Model

804985 Speed Queen Micro-V Drive Belt In Stock SPQ 804985 $31.82

View on Model

805726P Speed Queen Motor and Rod Assembly Ki Backorder SPQ 805726P $222.41

View on Model

805730 Speed Queen Jet Holder Natural 9.2K DF Backorder SPQ 805730 $70.34

View on Model

806716 Speed Queen Rear Panel Fixed Backorder SPQ 806716 $26.37

View on Model

807429P Speed Queen Poly-V Belt Kit (56.700) In Stock SPQ 807429P $26.68

View on Model

808013 Speed Queen Pressure Bulb Backorder SPQ 808013 $6.68

View on Model

808465WP Speed Queen Assy Door-Comp-Standard Backorder SPQ 808465WP $300.78

View on Model

CK078 Speed Queen Kit Munz U.S.A. Backorder SPQ CK078 $200.64

View on Model

CK115 Speed Queen EC Drop Munz Kit In Stock SPQ CK115 $279.84

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $4.70

View on Model

D512973 Speed Queen Washer Dryer Push Button In Stock SPQ D512973 $8.56

View on Model

SPQ F8206901 SPQ F8206901 Contact Us For Availability

View on Model

SPQ M400017 SPQ M400017 Contact Us For Availability

View on Model

SPQ 806436P SPQ 806436P Contact Us For Availability

View on Model

SPQ 805964 SPQ 805964 Contact Us For Availability

View on Model

SPQ 804924 SPQ 804924 Contact Us For Availability

View on Model

SPQ D516073 SPQ D516073 Contact Us For Availability

View on Model

SPQ 804949 SPQ 804949 Contact Us For Availability

View on Model

All Categories

Brands

Model Speed Queen SFNNXASG303AN12 Washer – Common Parts & Diagrams

Common parts from model Speed Queen SFNNXASG303AN12 Washer

Search result for :
