Model Speed Queen SDGNXRGS303AW01 Dryer – Common Parts & Diagrams

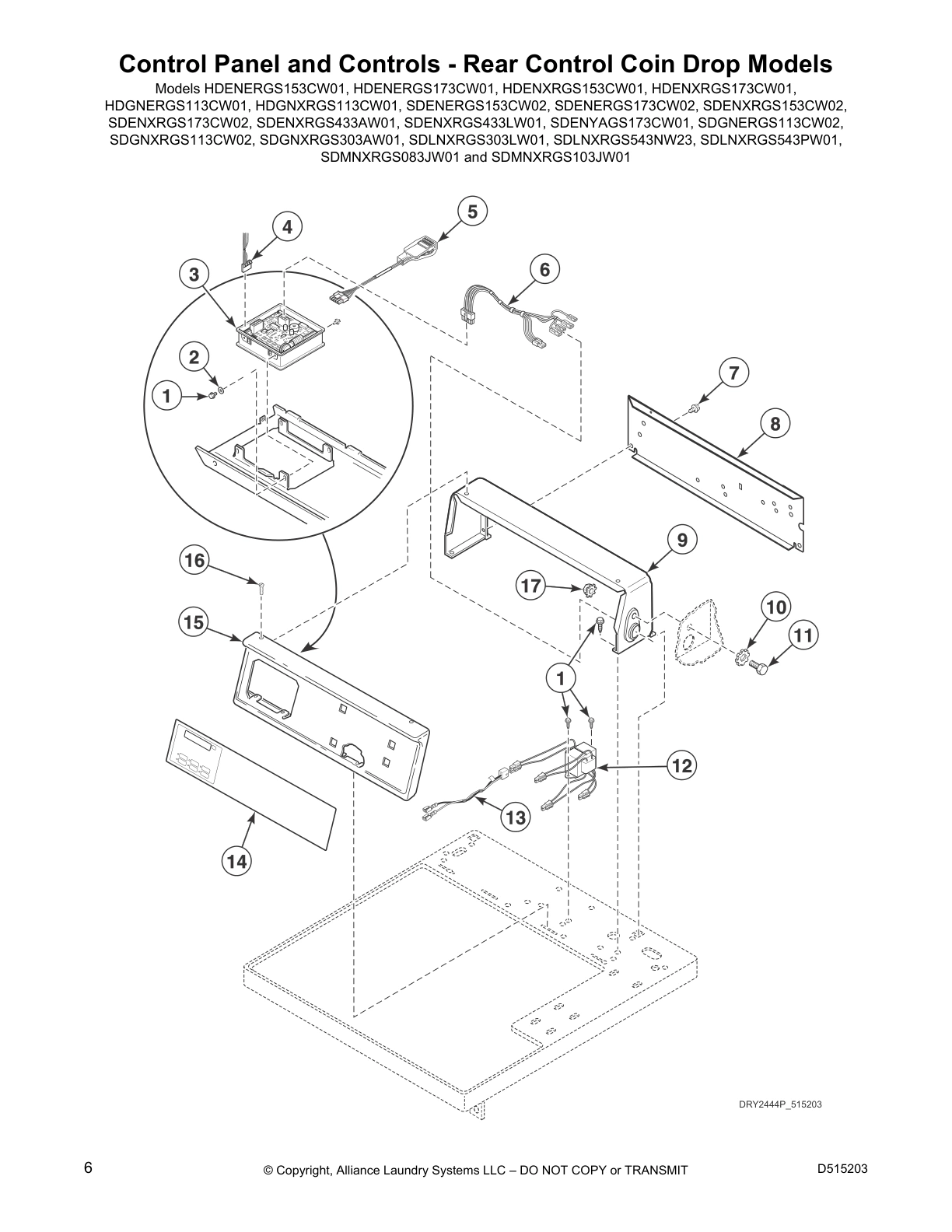

Control Panel and Controls - Rear Control Coin Drop Models

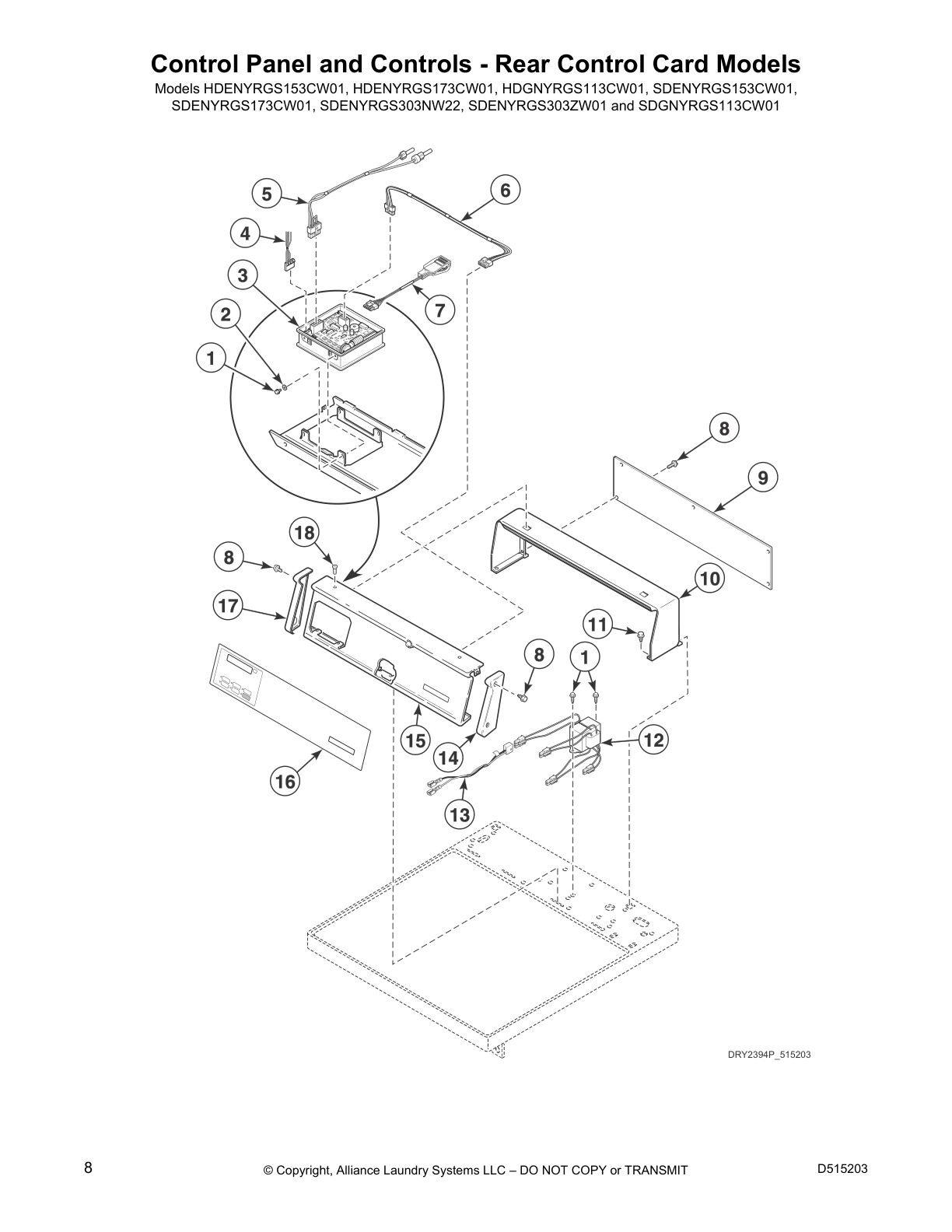

Control Panel and Controls - Rear Control Card Models

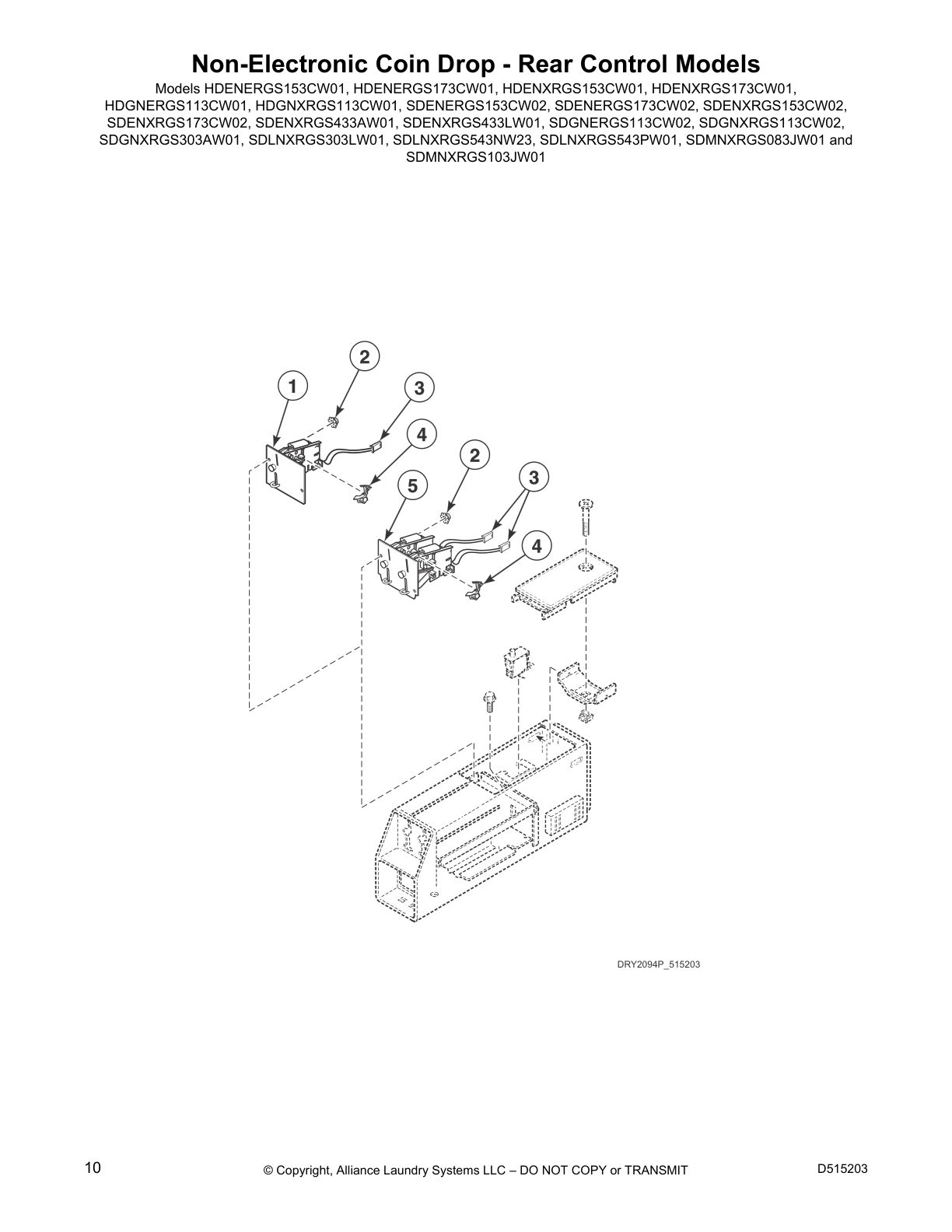

Non-Electronic Coin Drop - Rear Control Models

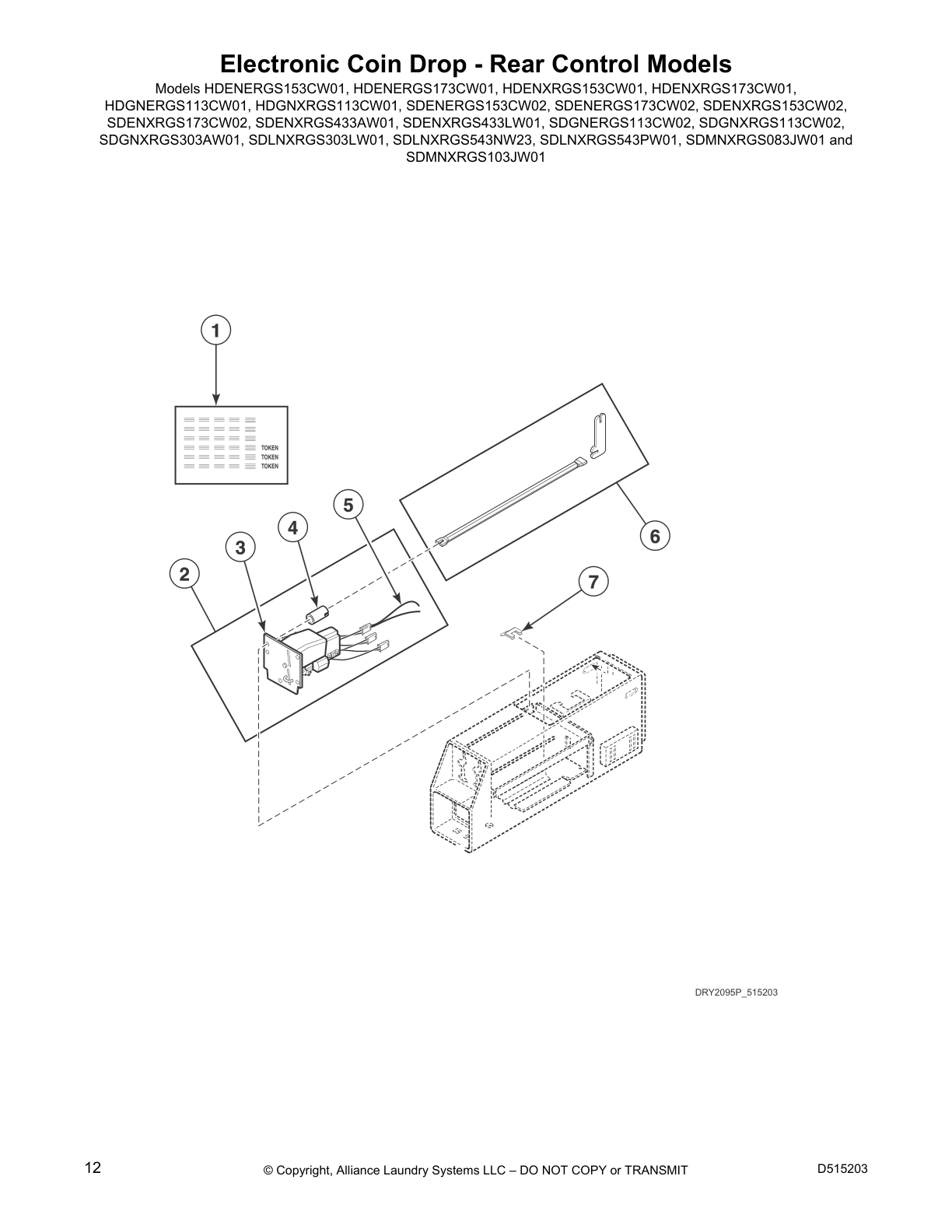

Electronic Coin Drop - Rear Control Models

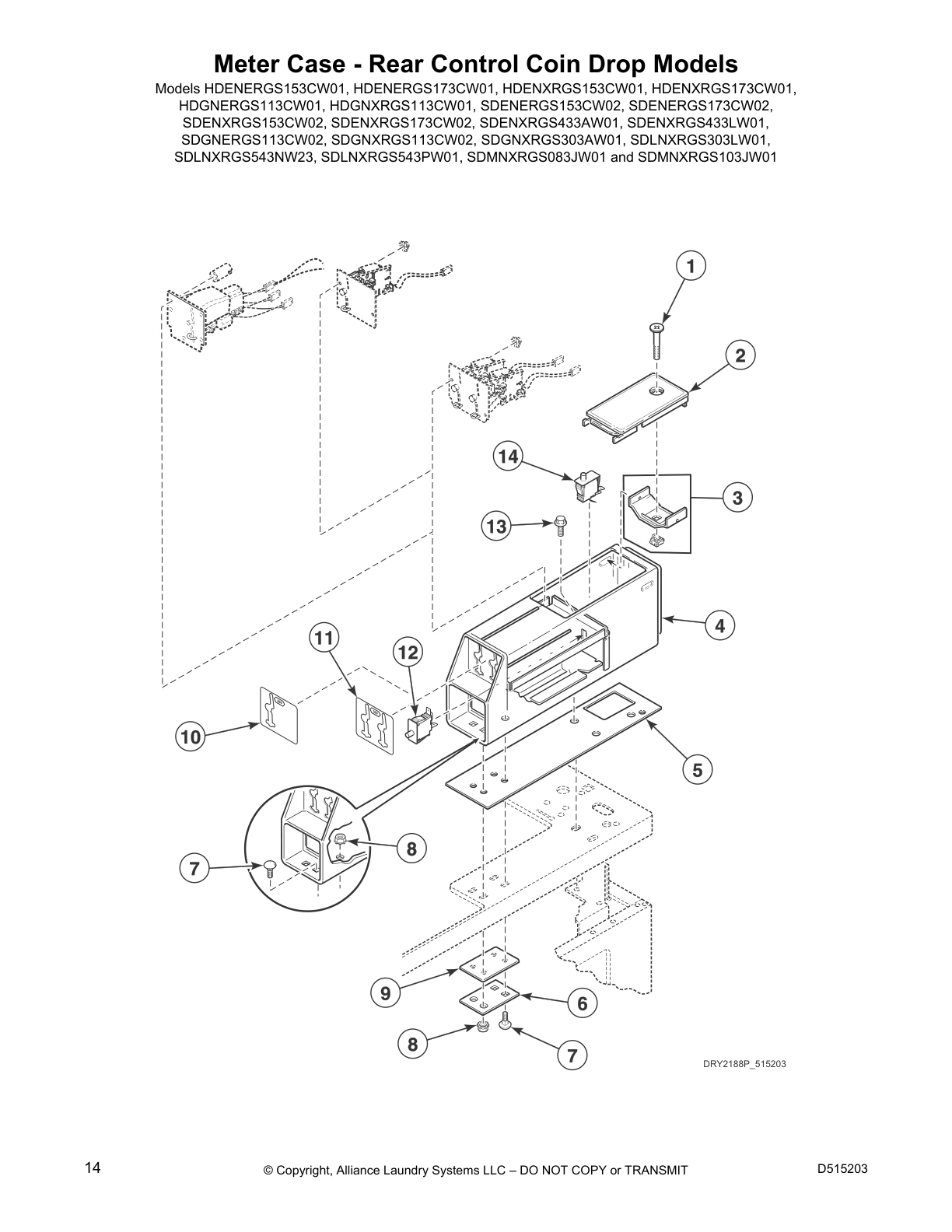

Meter Case - Rear Control Coin Drop Models

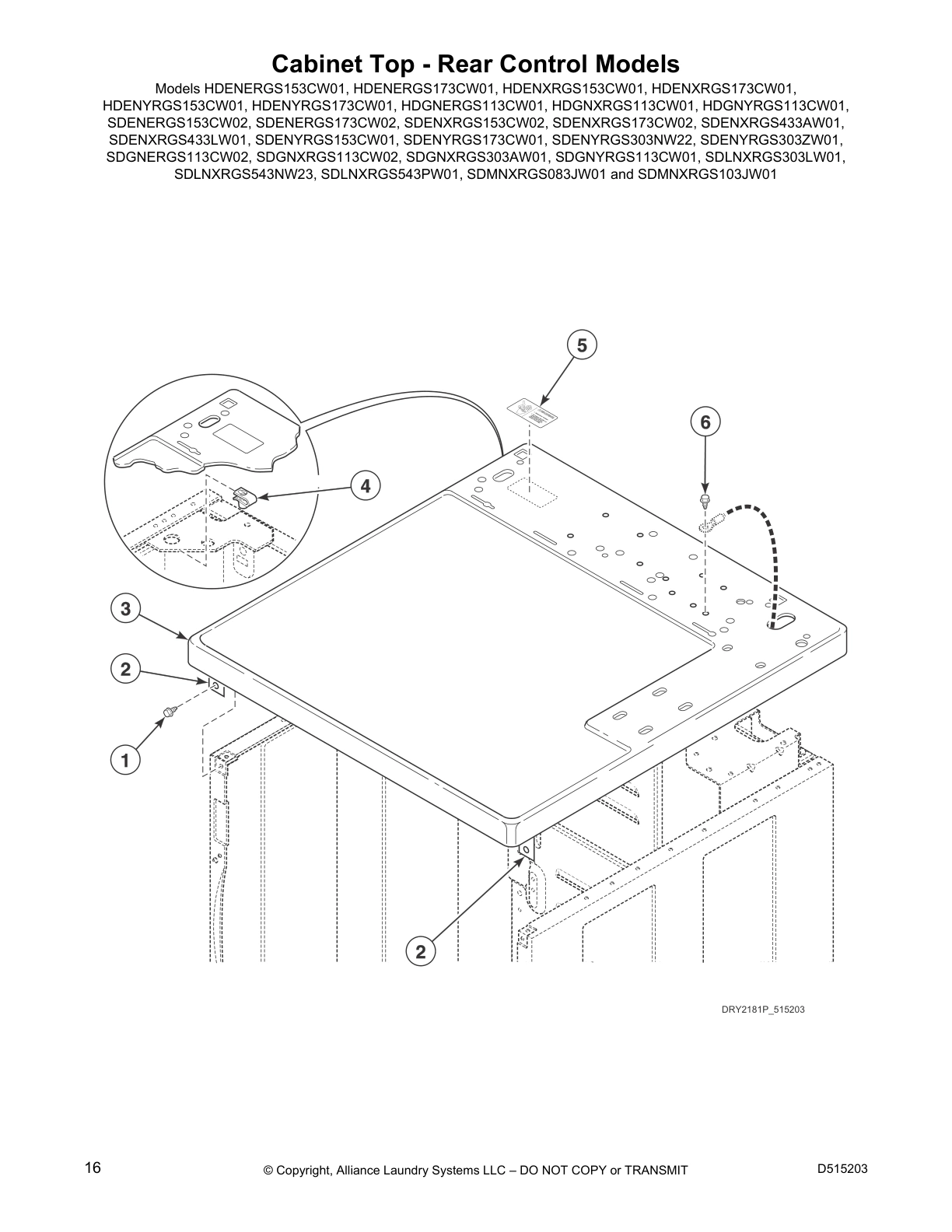

Cabinet Top - Rear Control Models

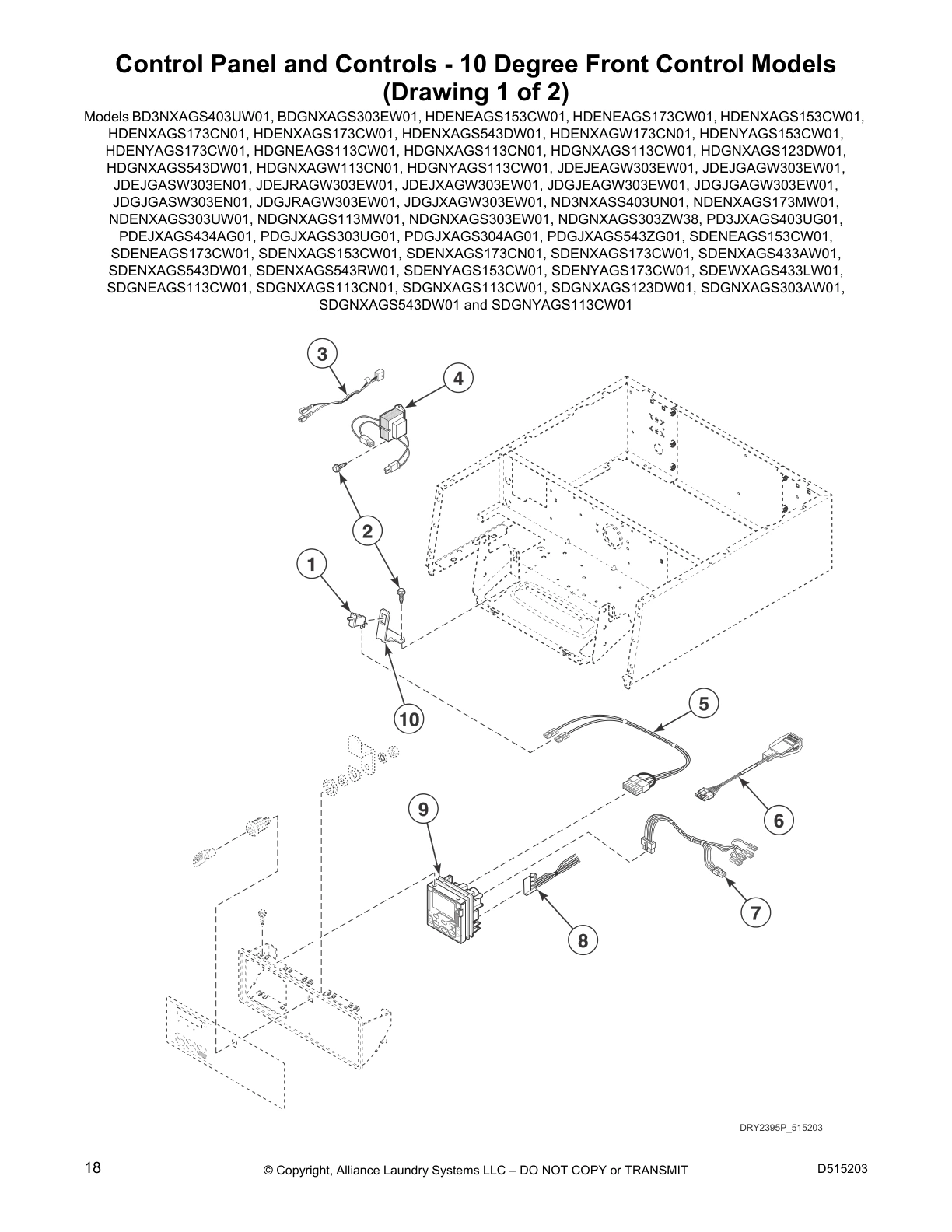

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 10 Degree Front Control Models

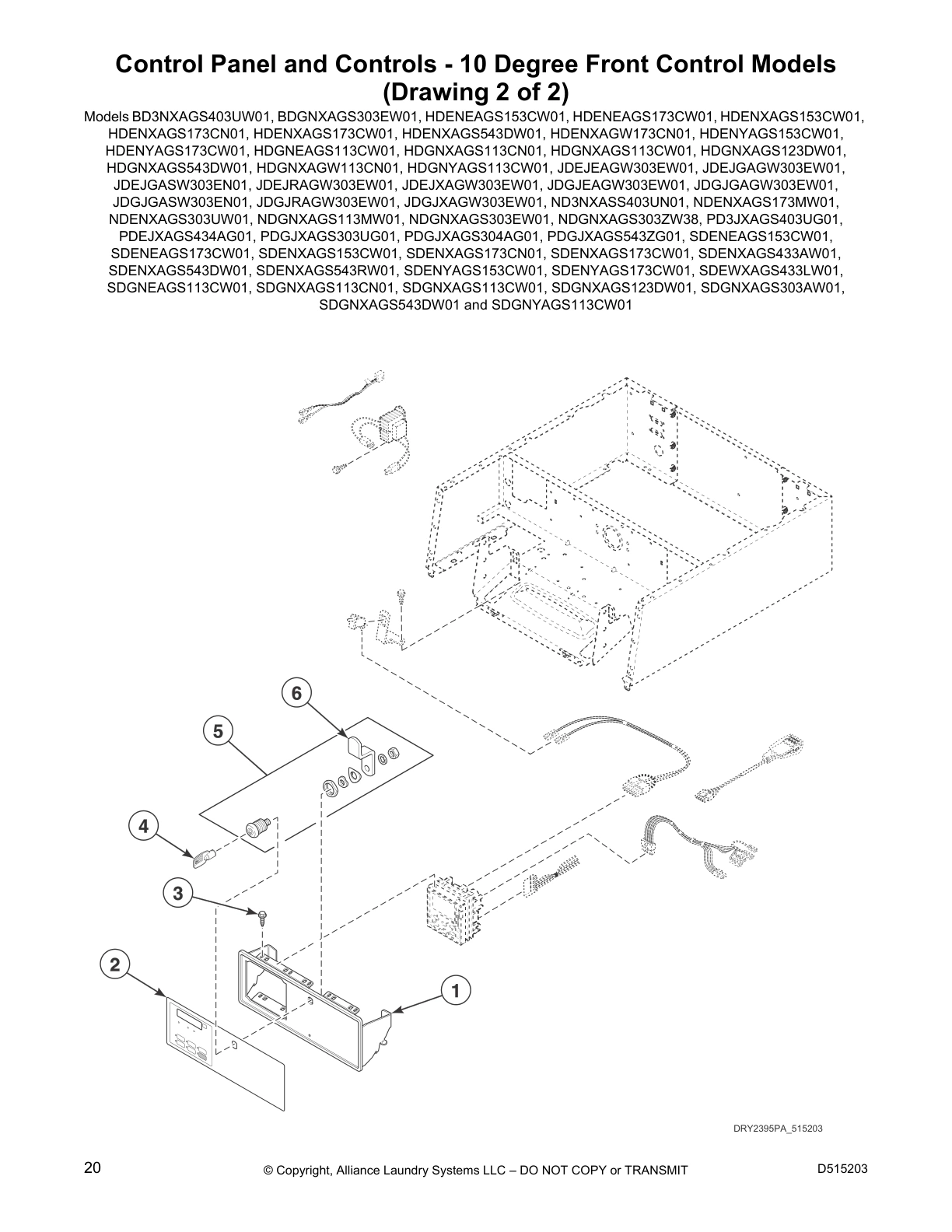

(Drawing 2 of 2)

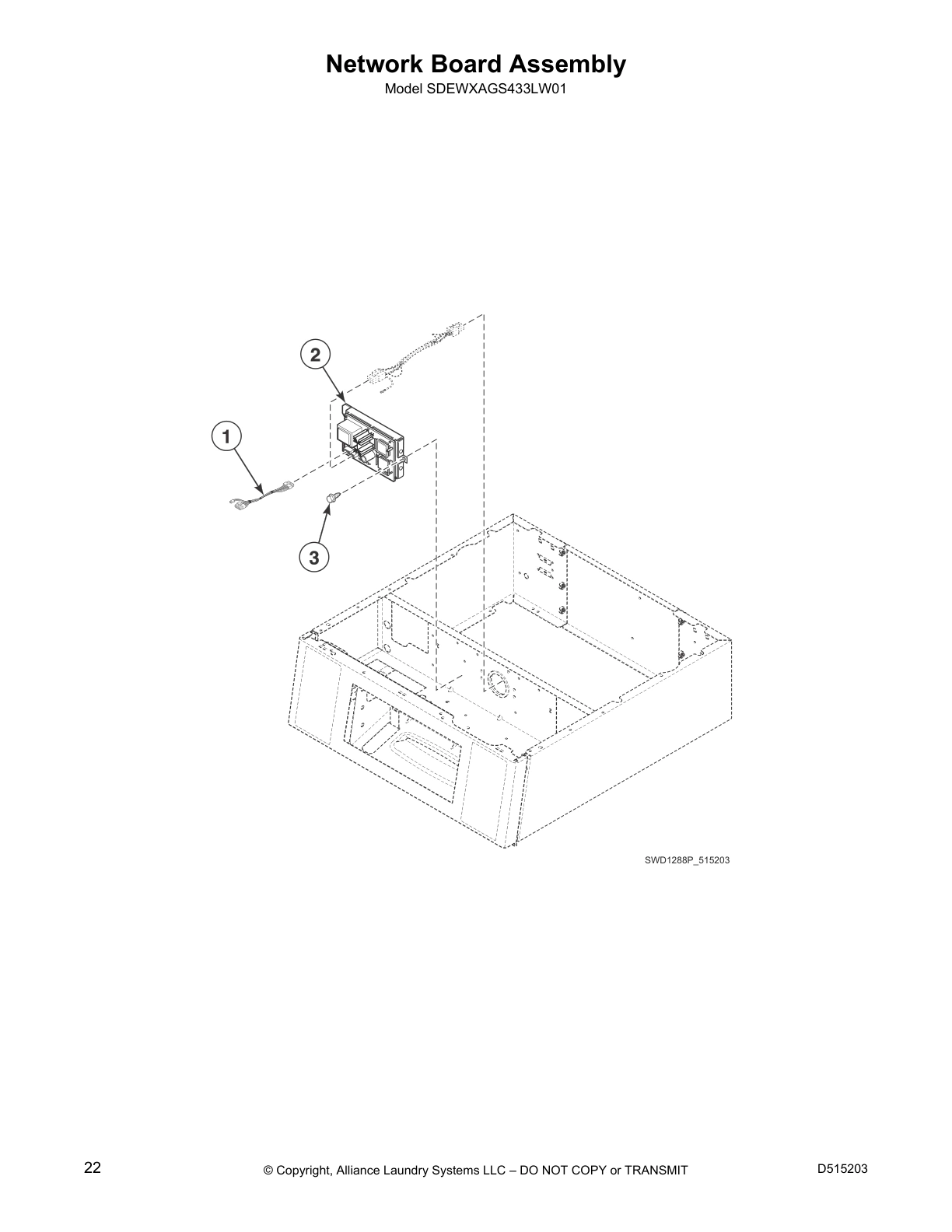

Network Board Assembly

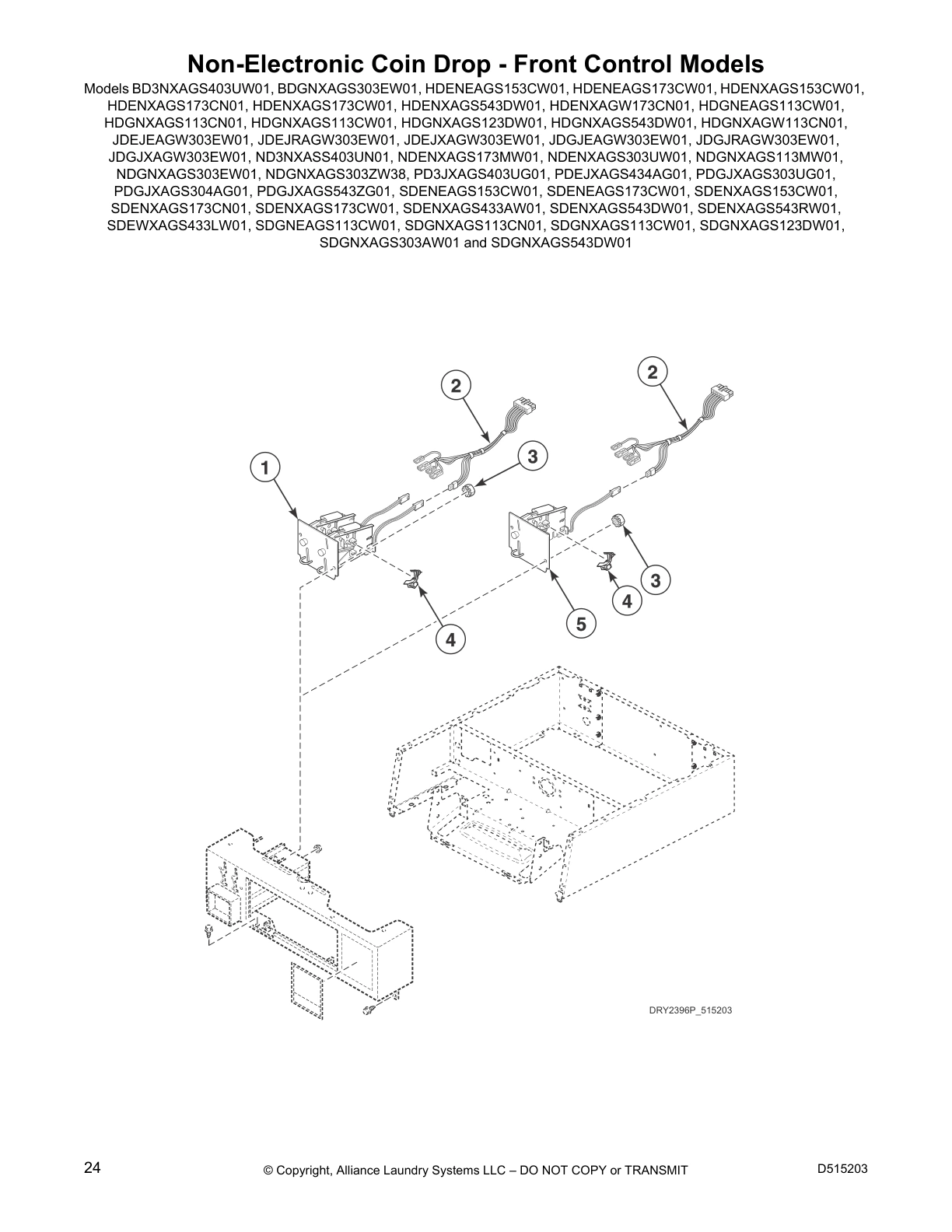

Non-Electronic Coin Drop - Front Control Models

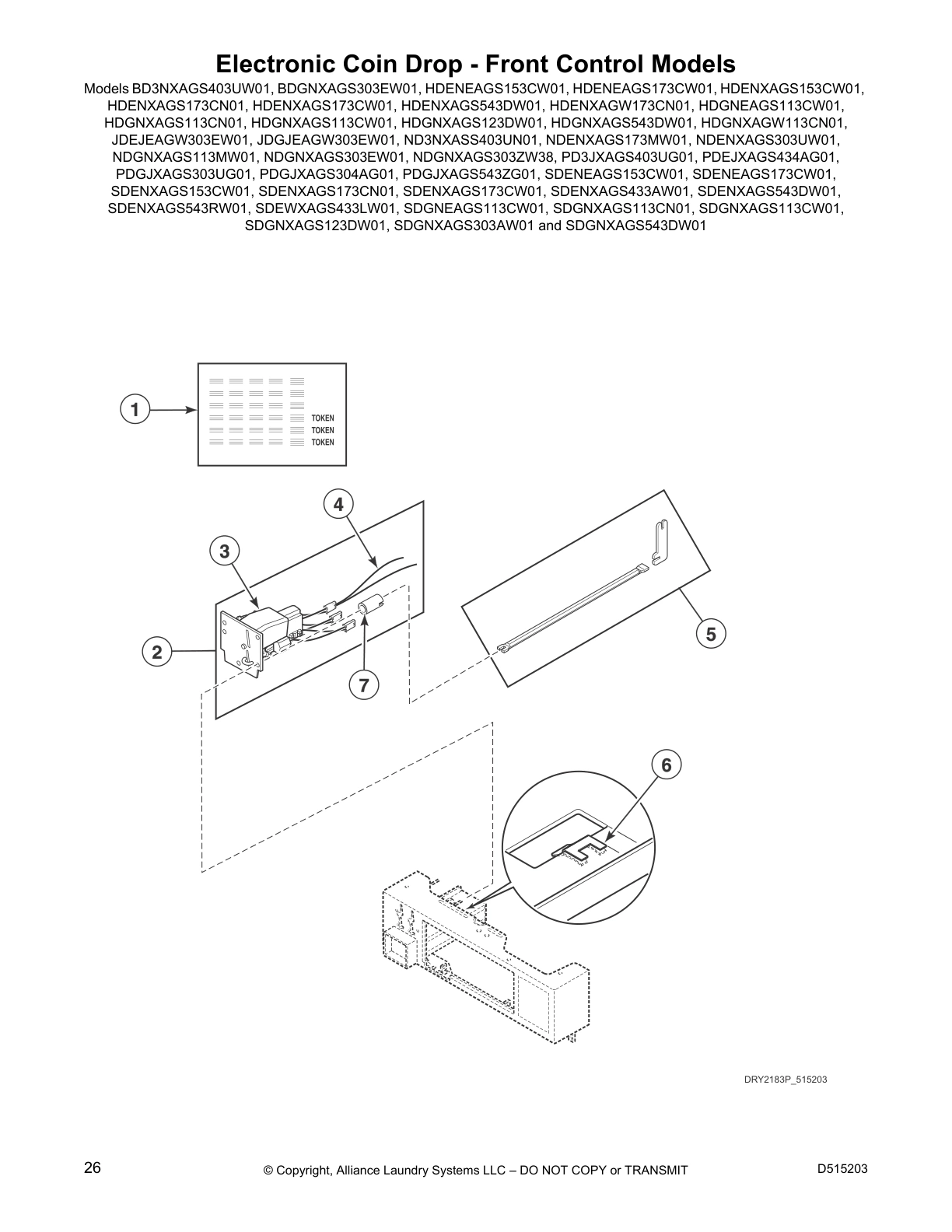

Electronic Coin Drop - Front Control Models

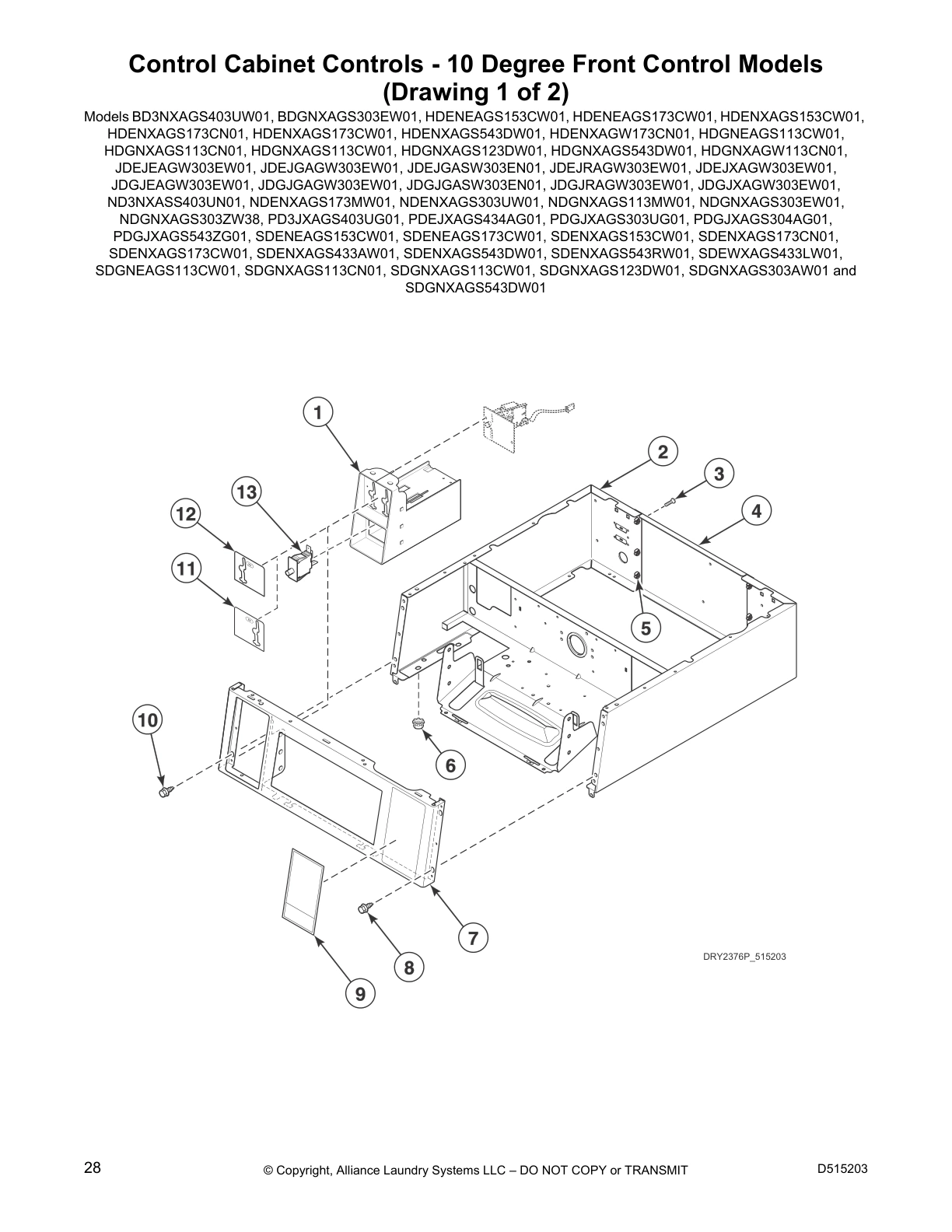

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

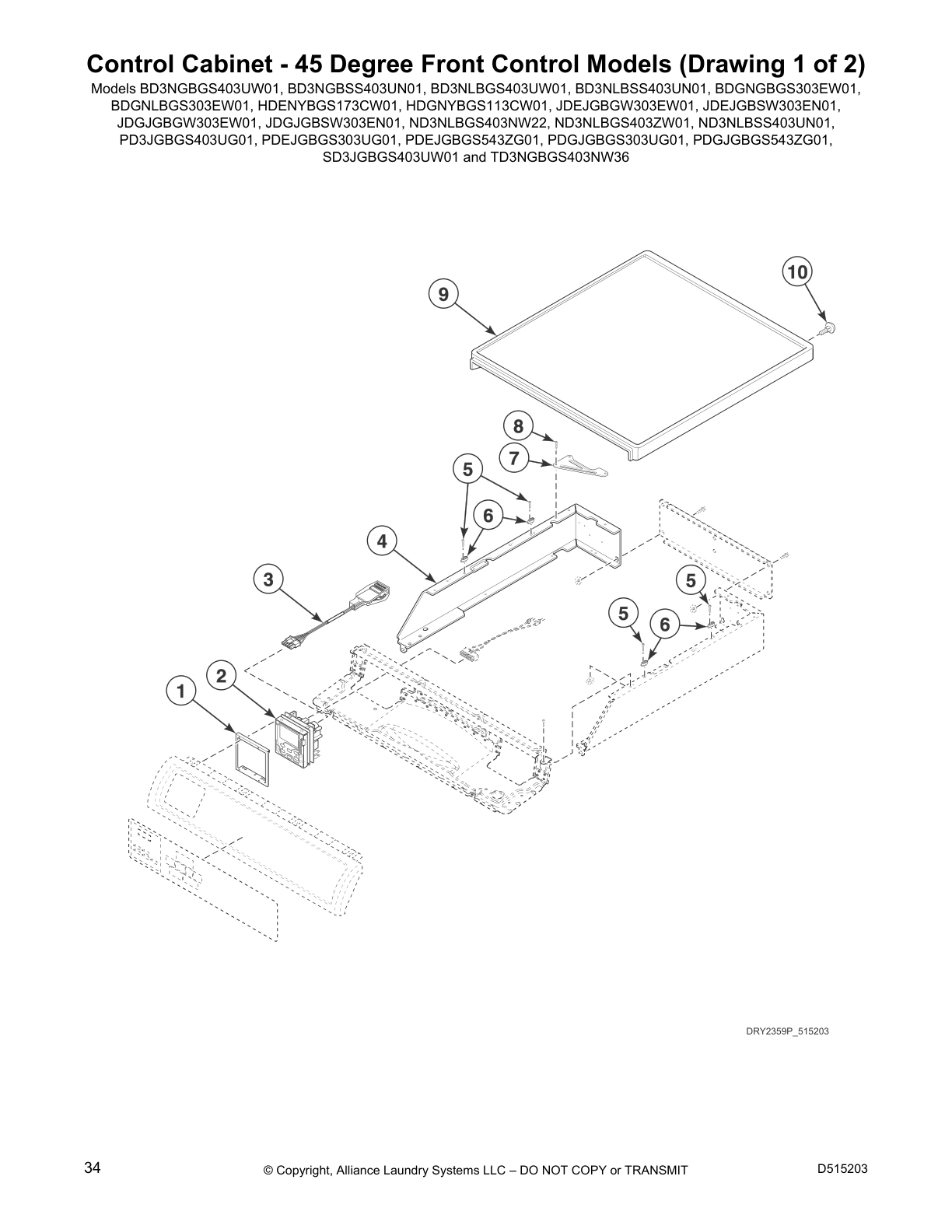

Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)

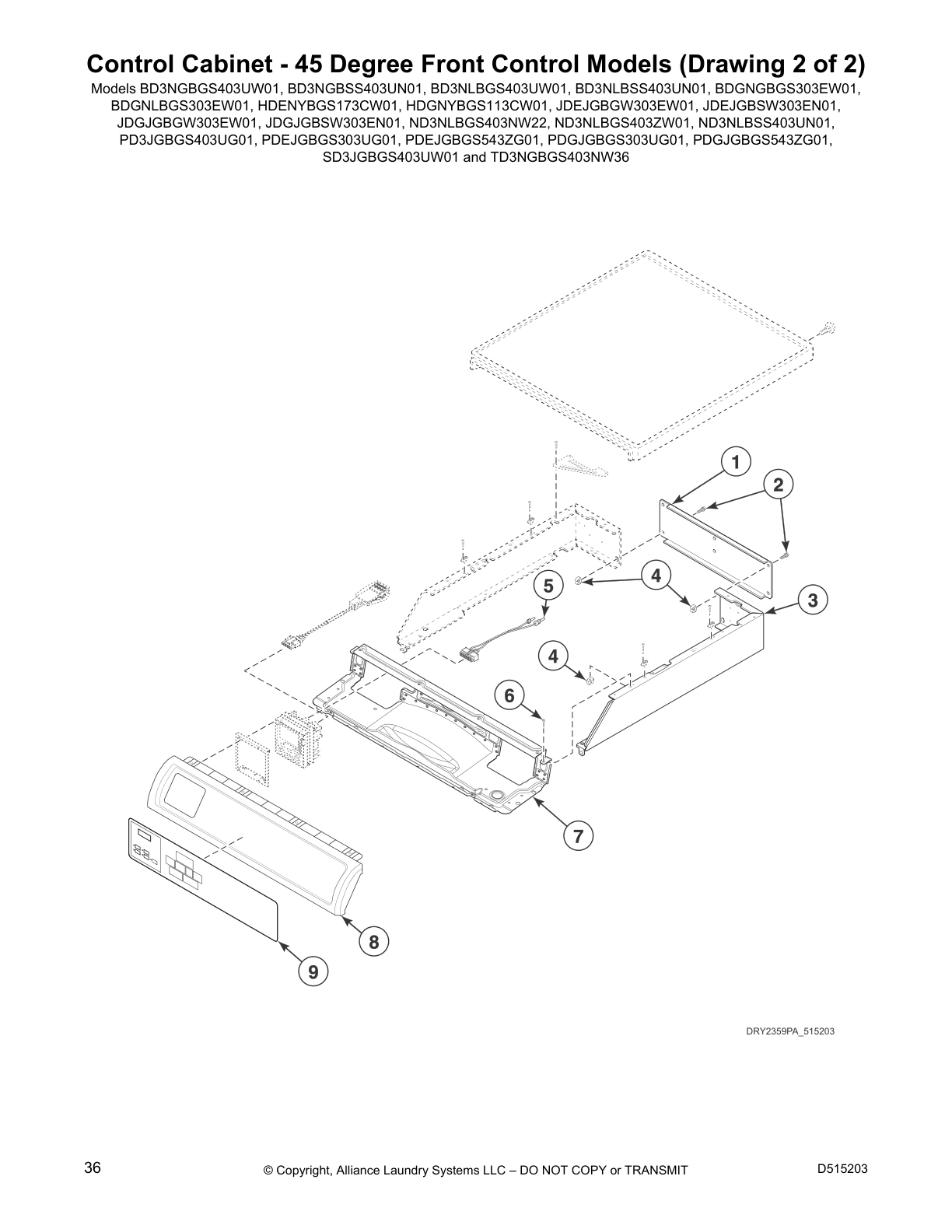

Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)

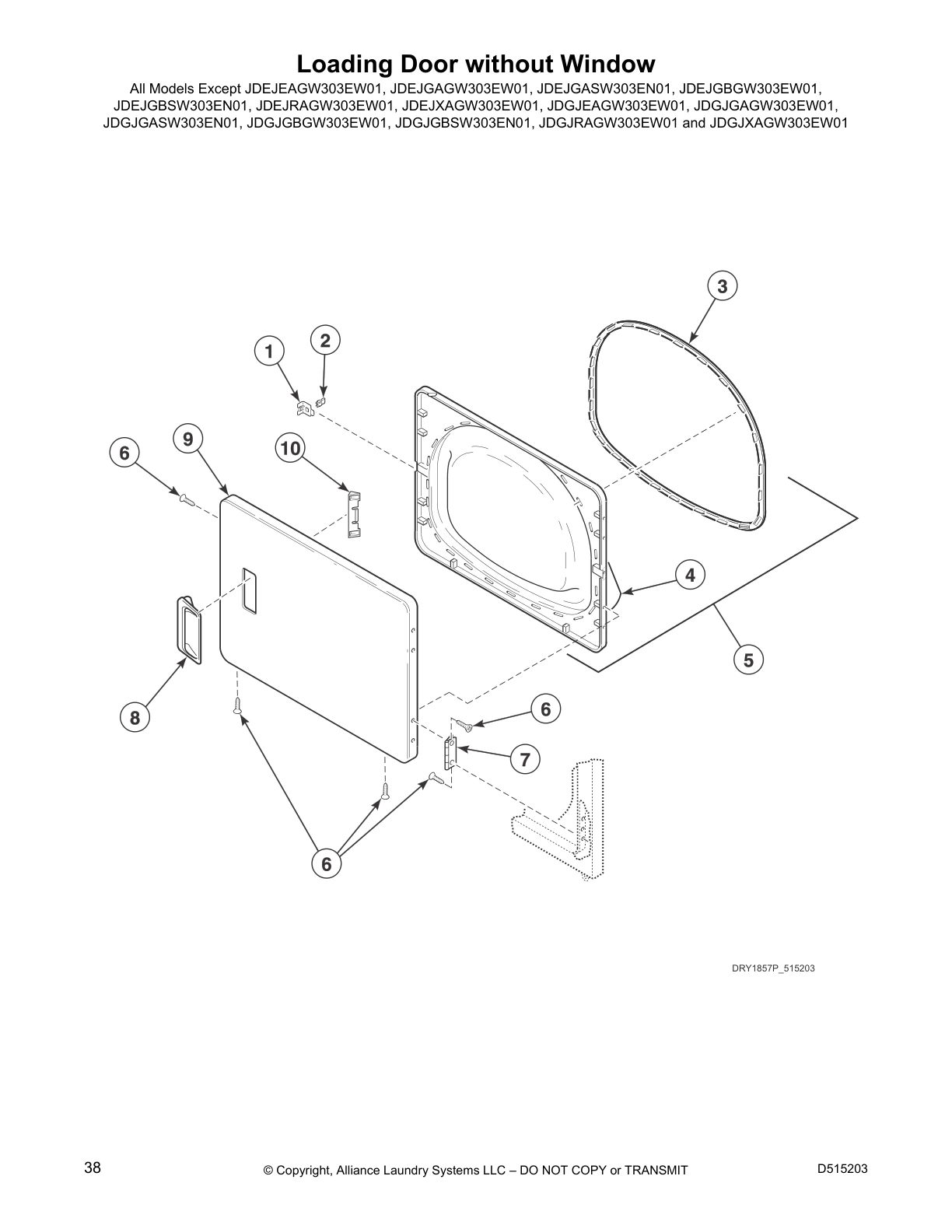

Loading Door without Window

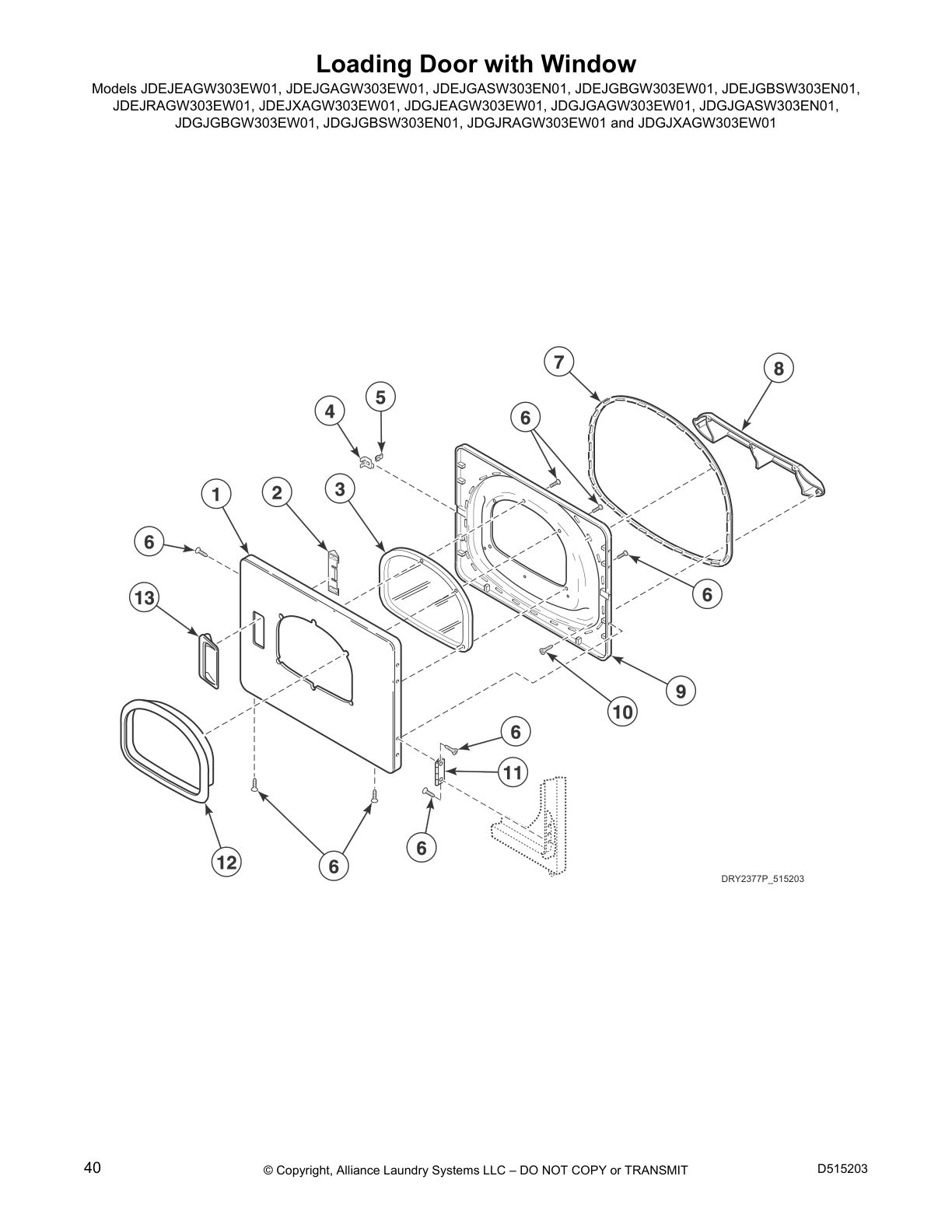

Loading Door with Window

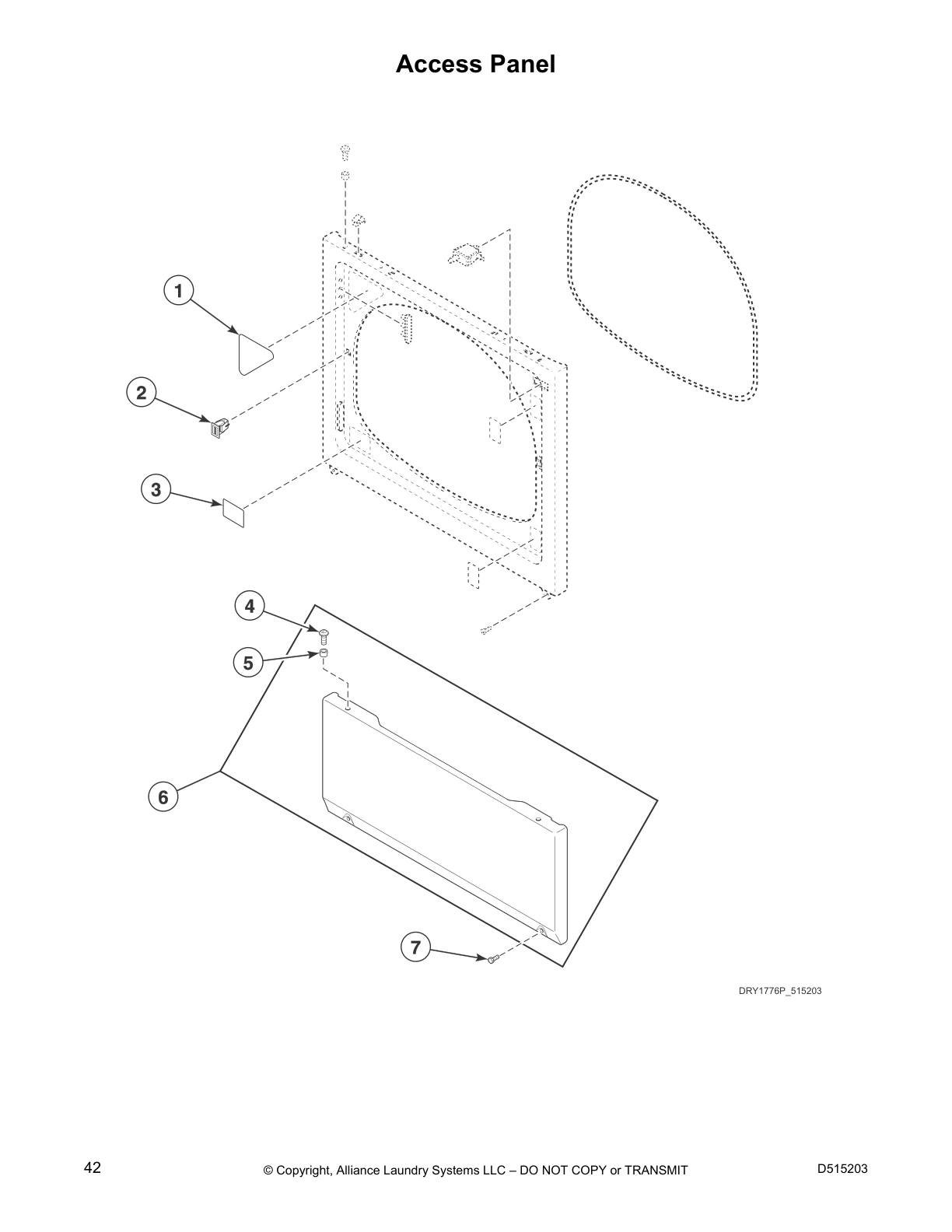

Access Panel

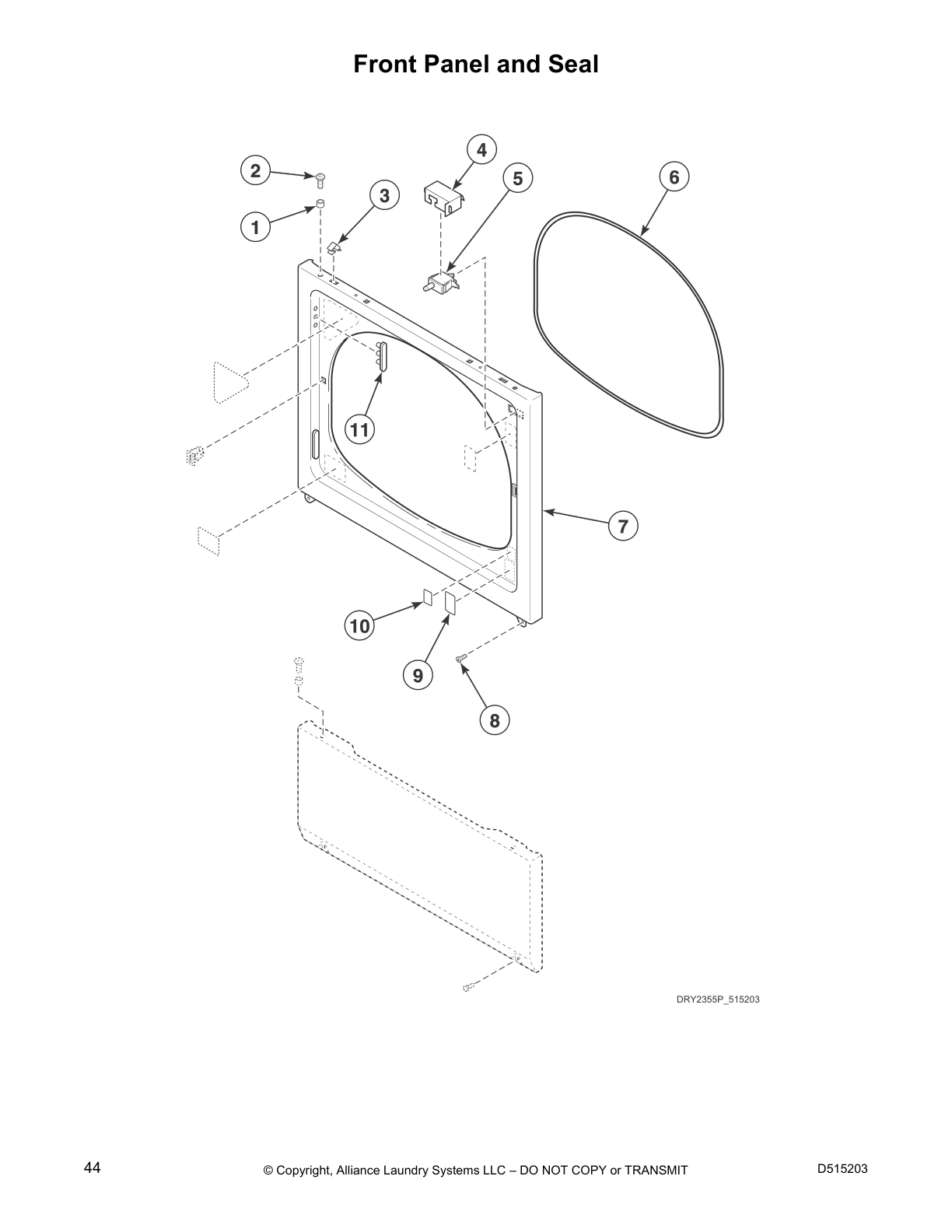

Front Panel and Seal
Motor and Belt

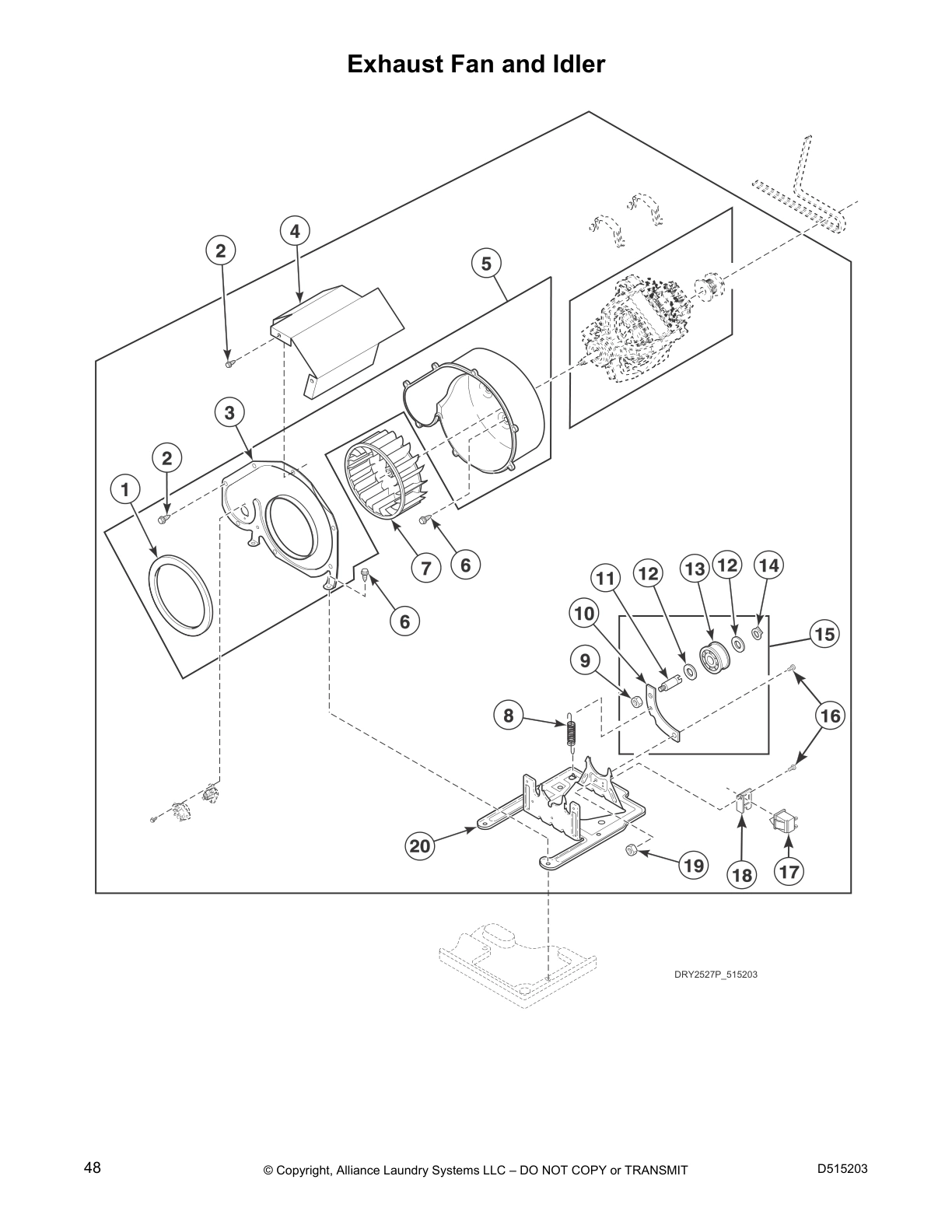

Exhaust Fan and Idler
Thermistor

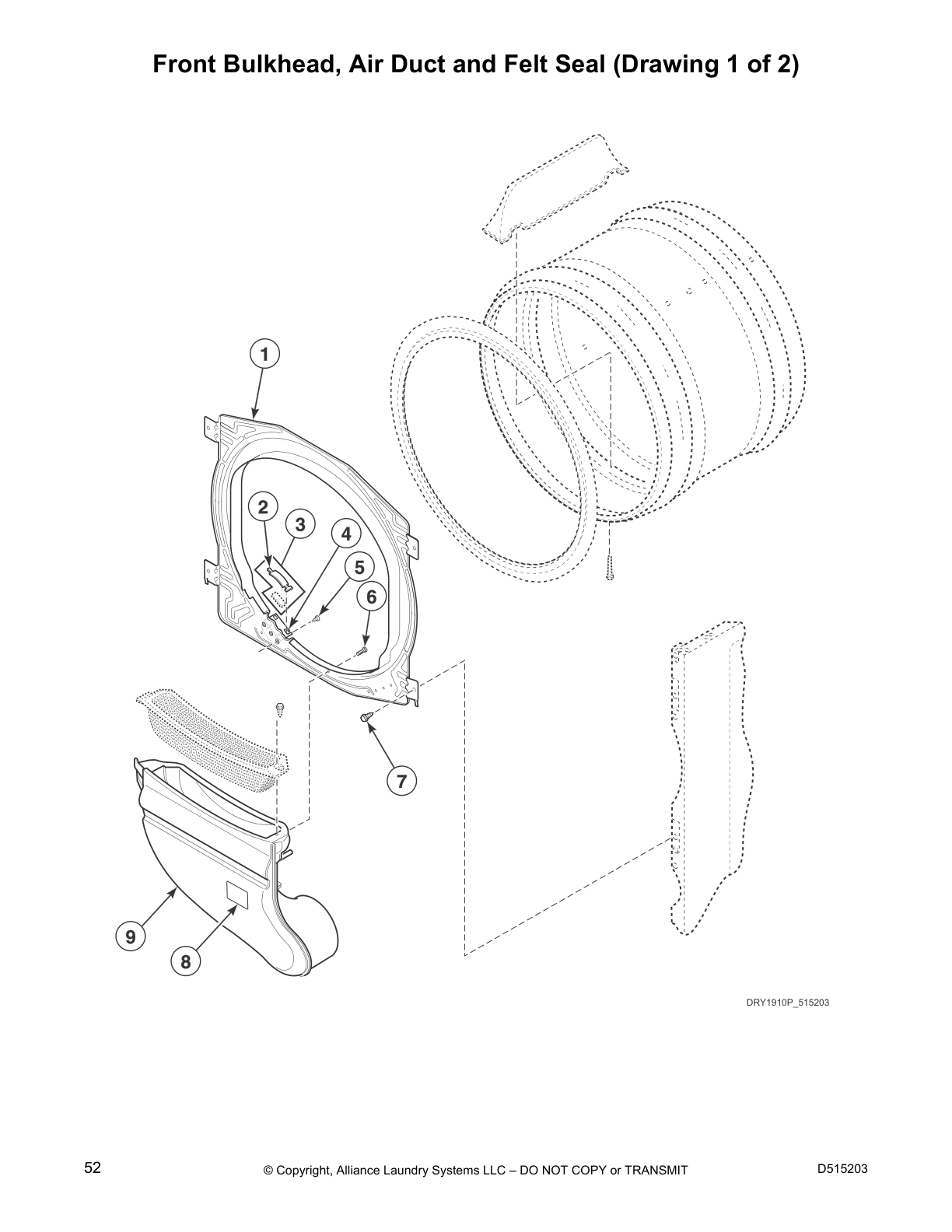

Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)

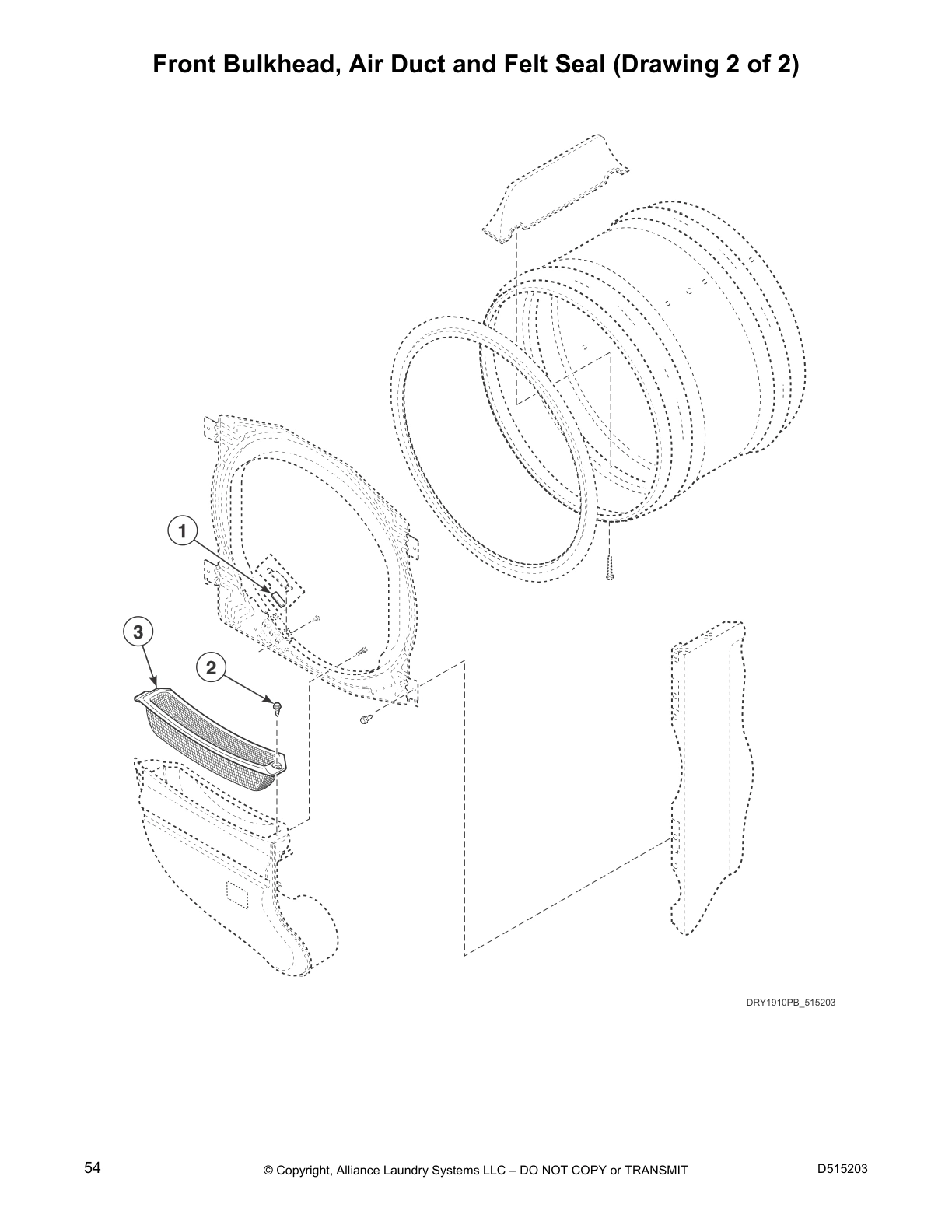

Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

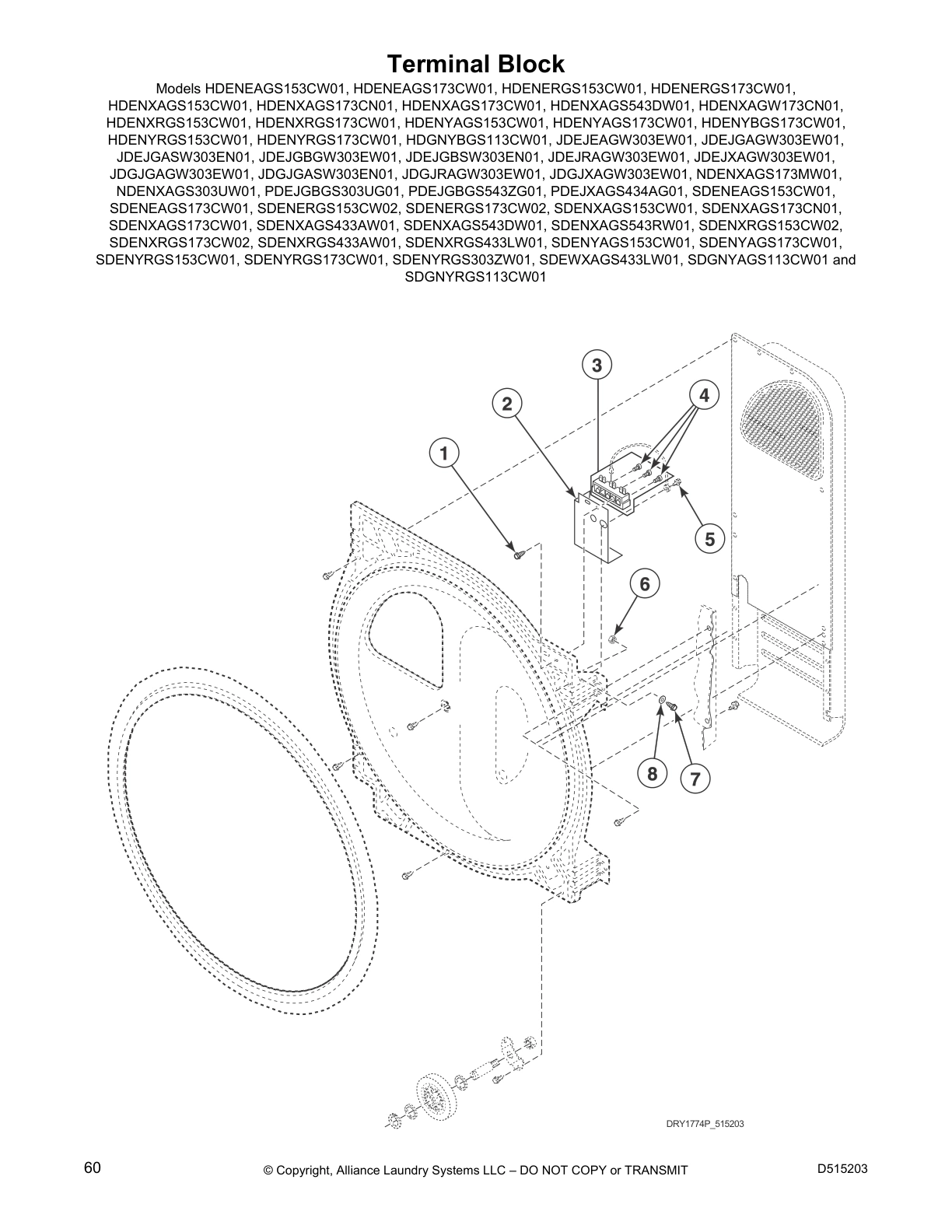

Terminal Block

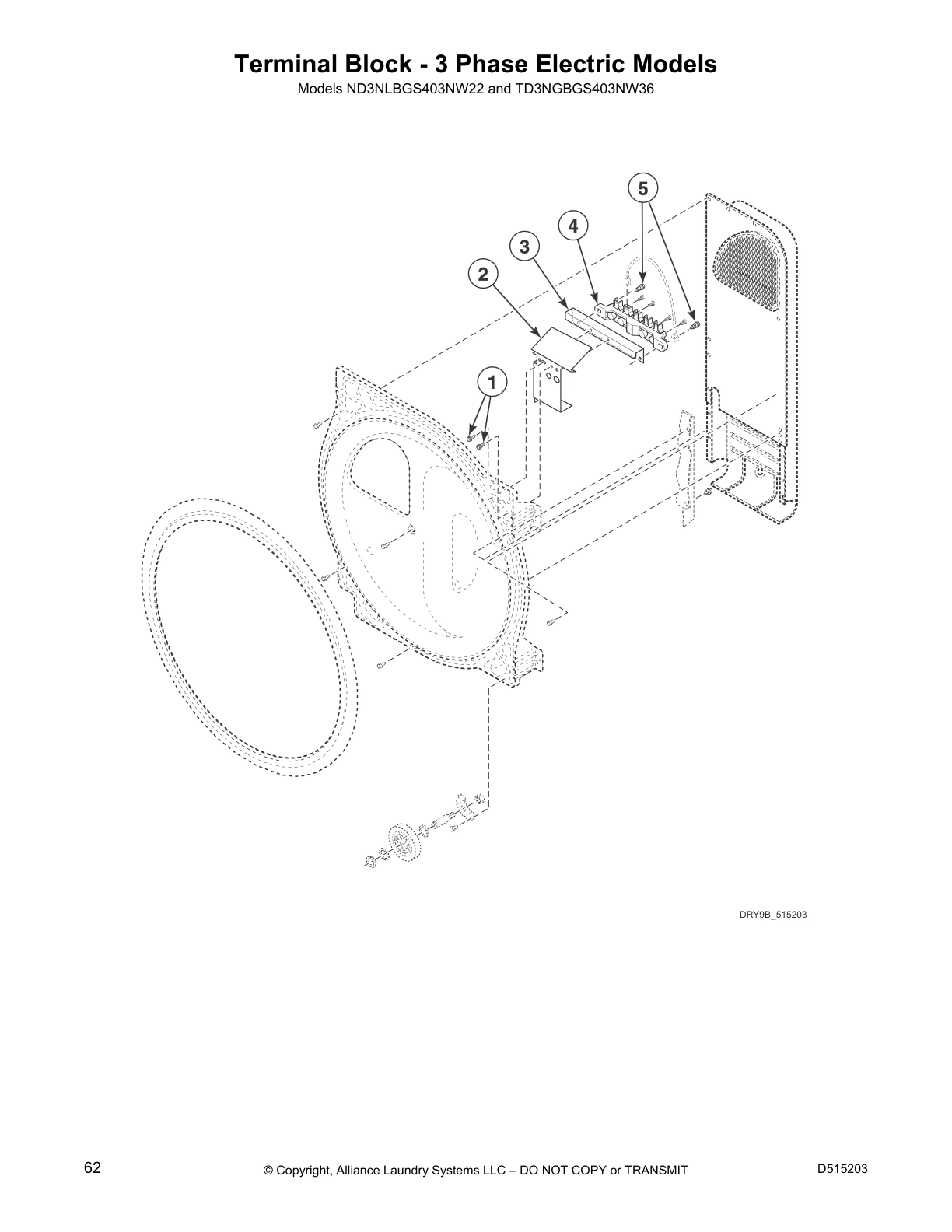

Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models

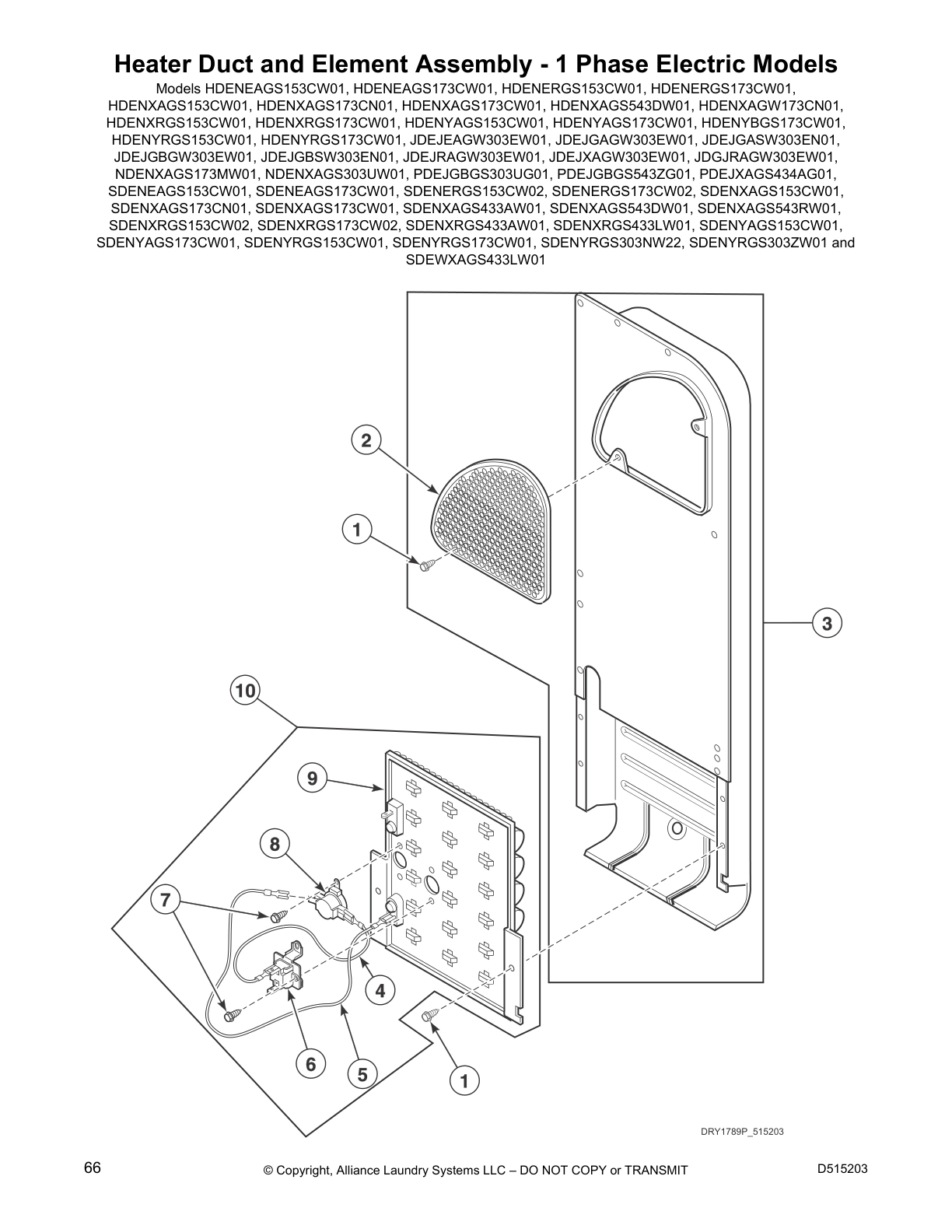

Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly

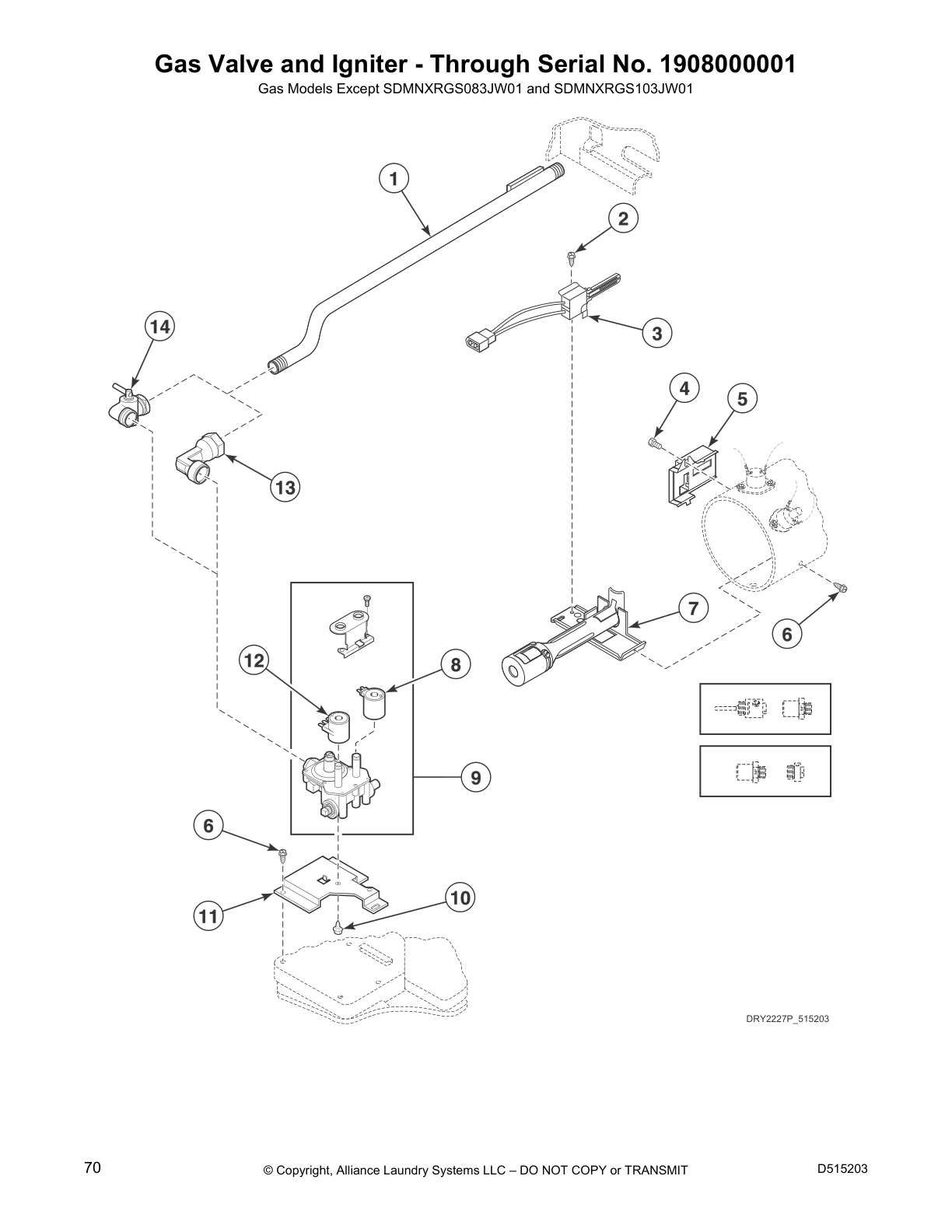

Gas Valve and Igniter - Through Serial No. 1908000001

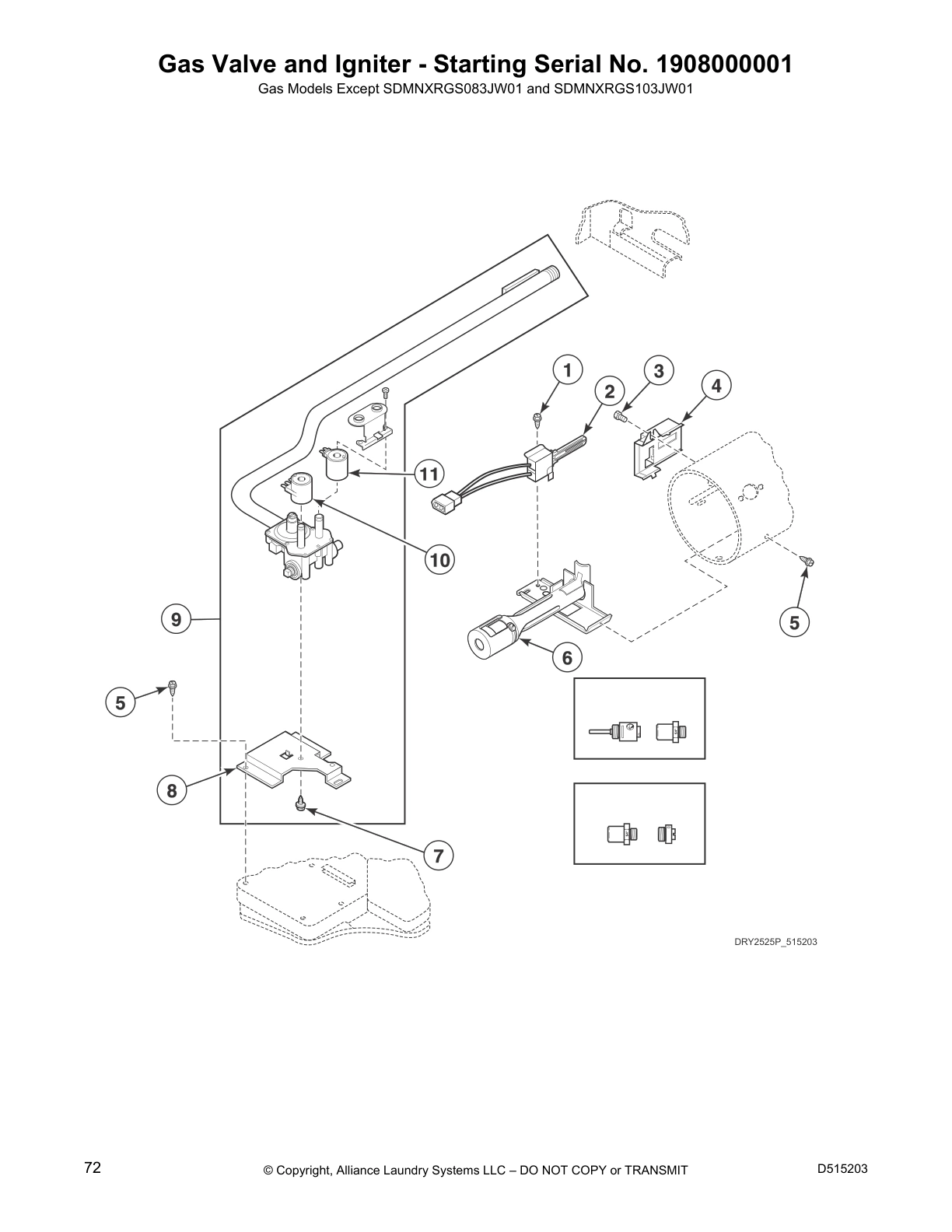

Gas Valve and Igniter - Starting Serial No. 1908000001

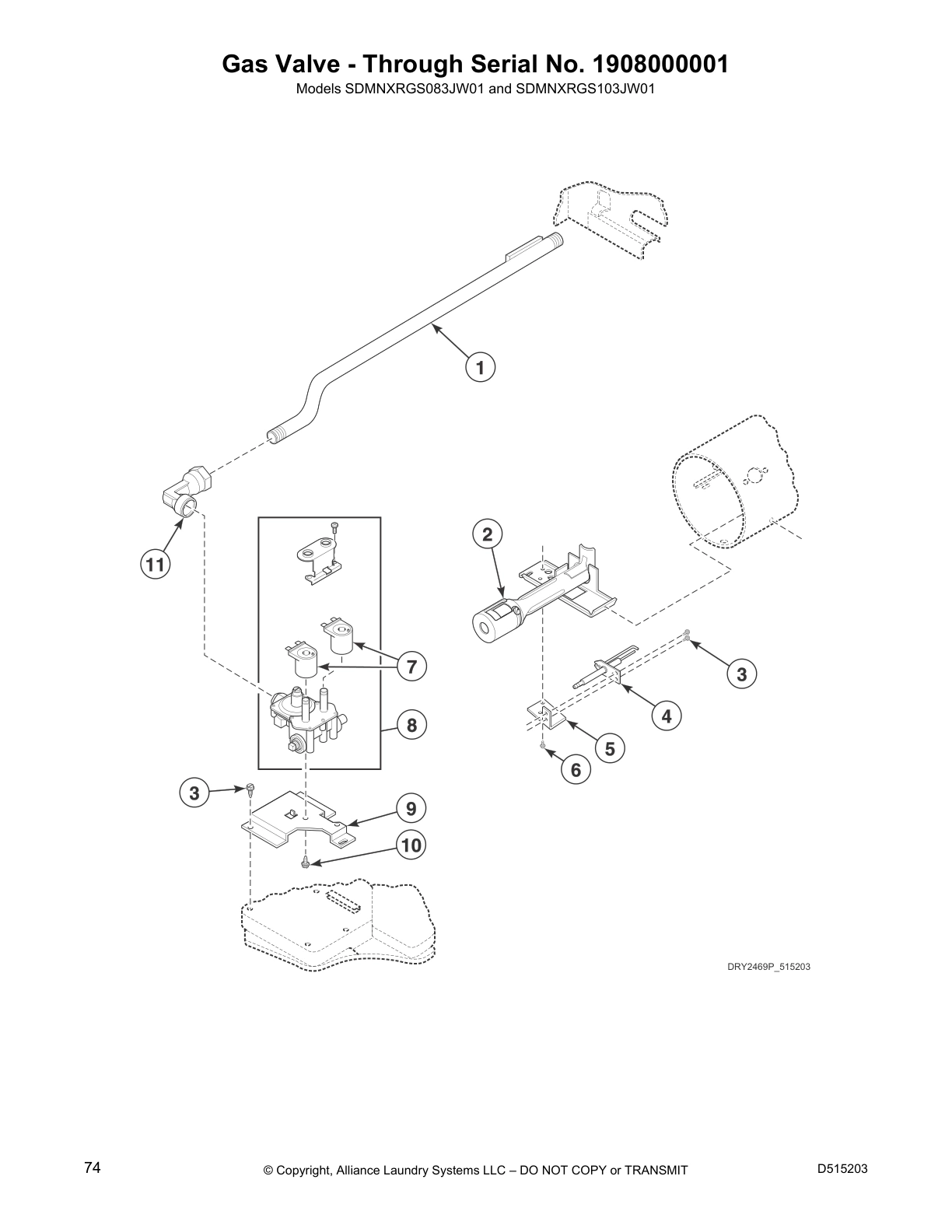

Gas Valve - Through Serial No. 1908000001

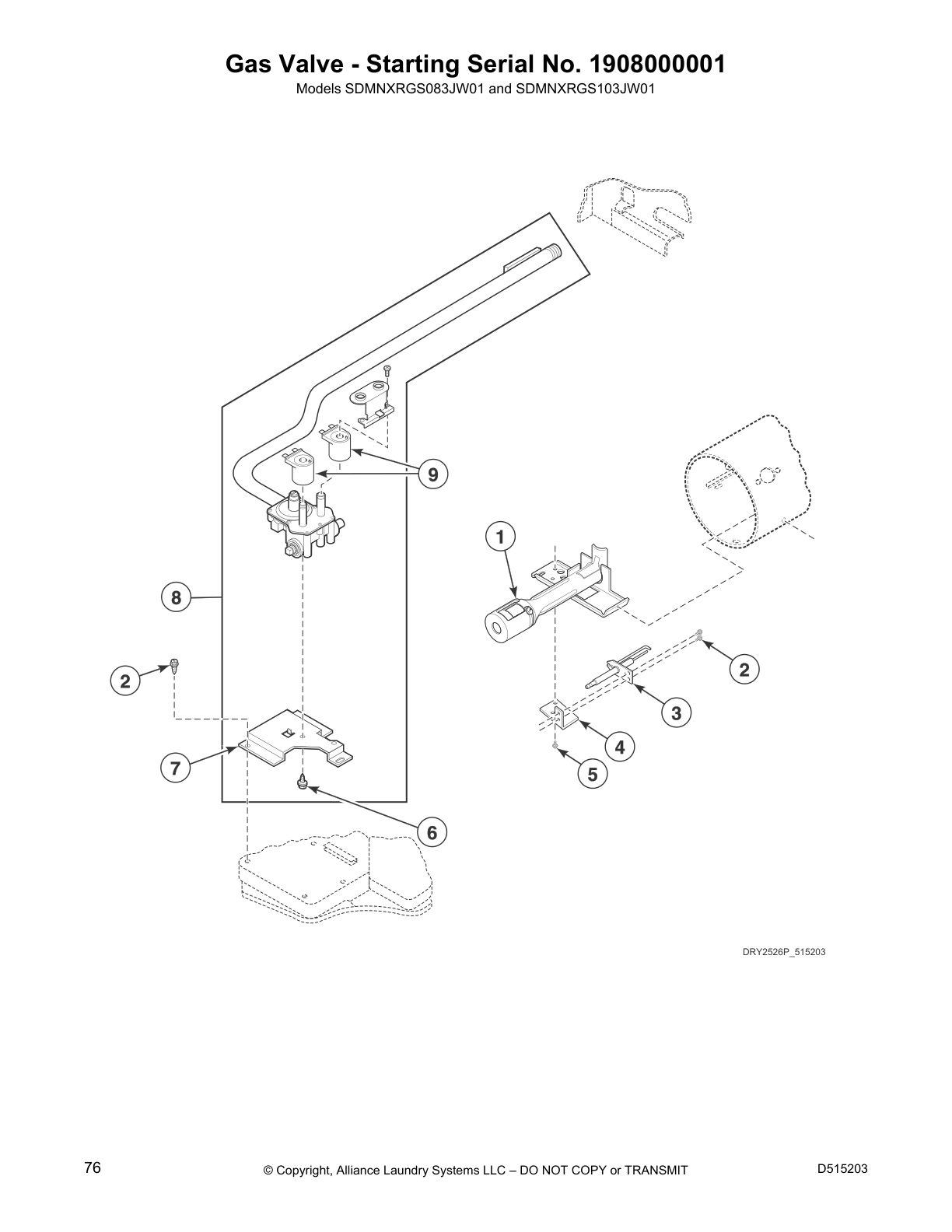

Gas Valve - Starting Serial No. 1908000001

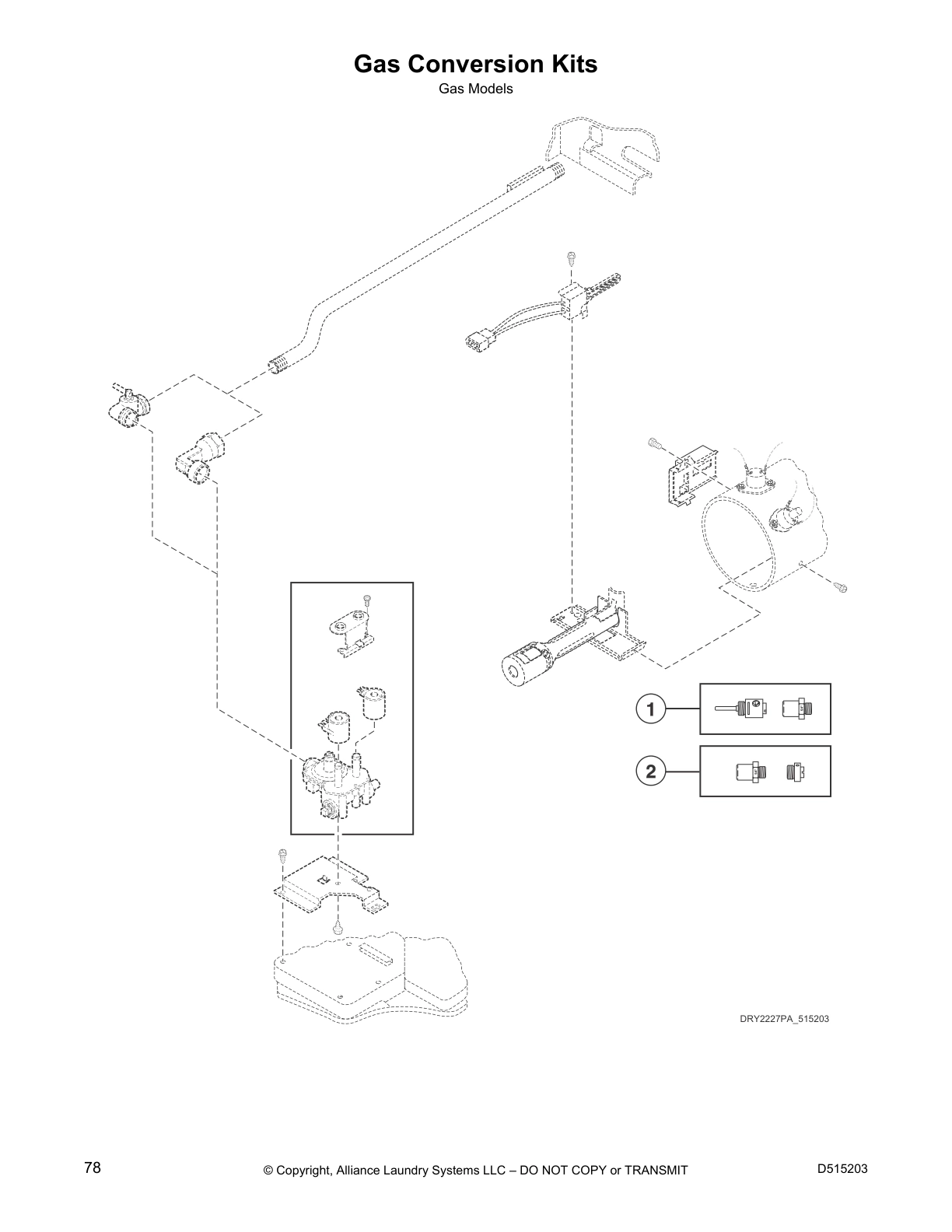

Gas Conversion Kits

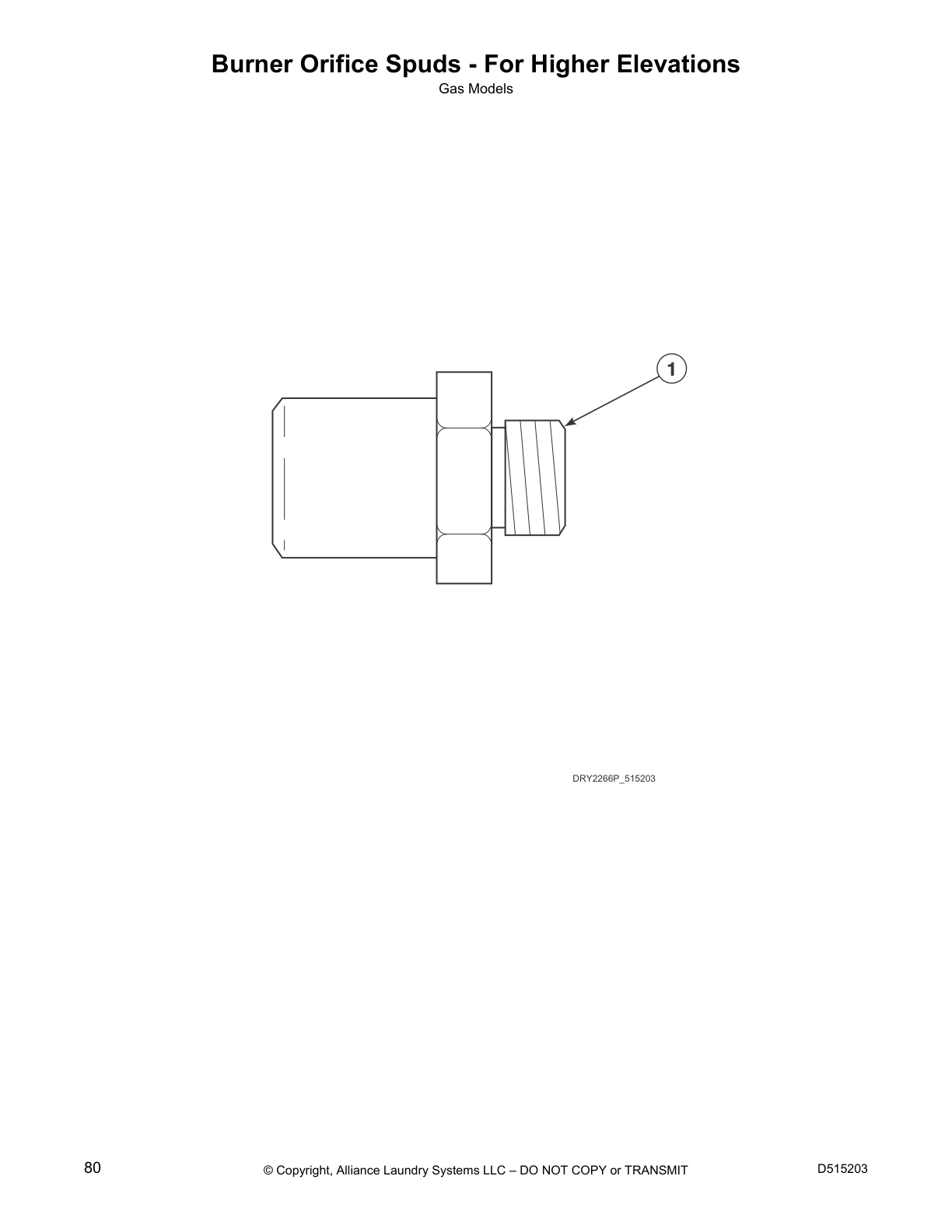

Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base

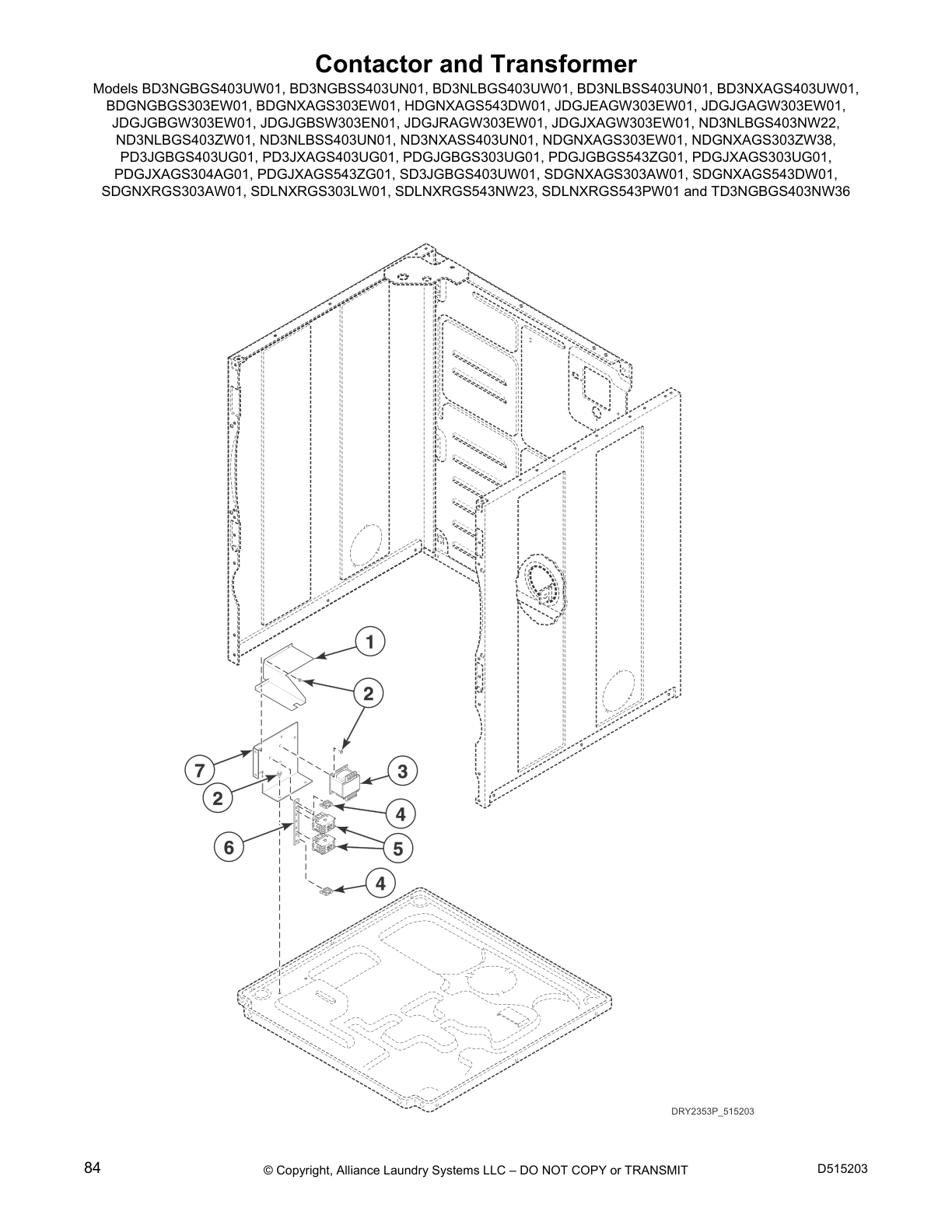

Contactor and Transformer

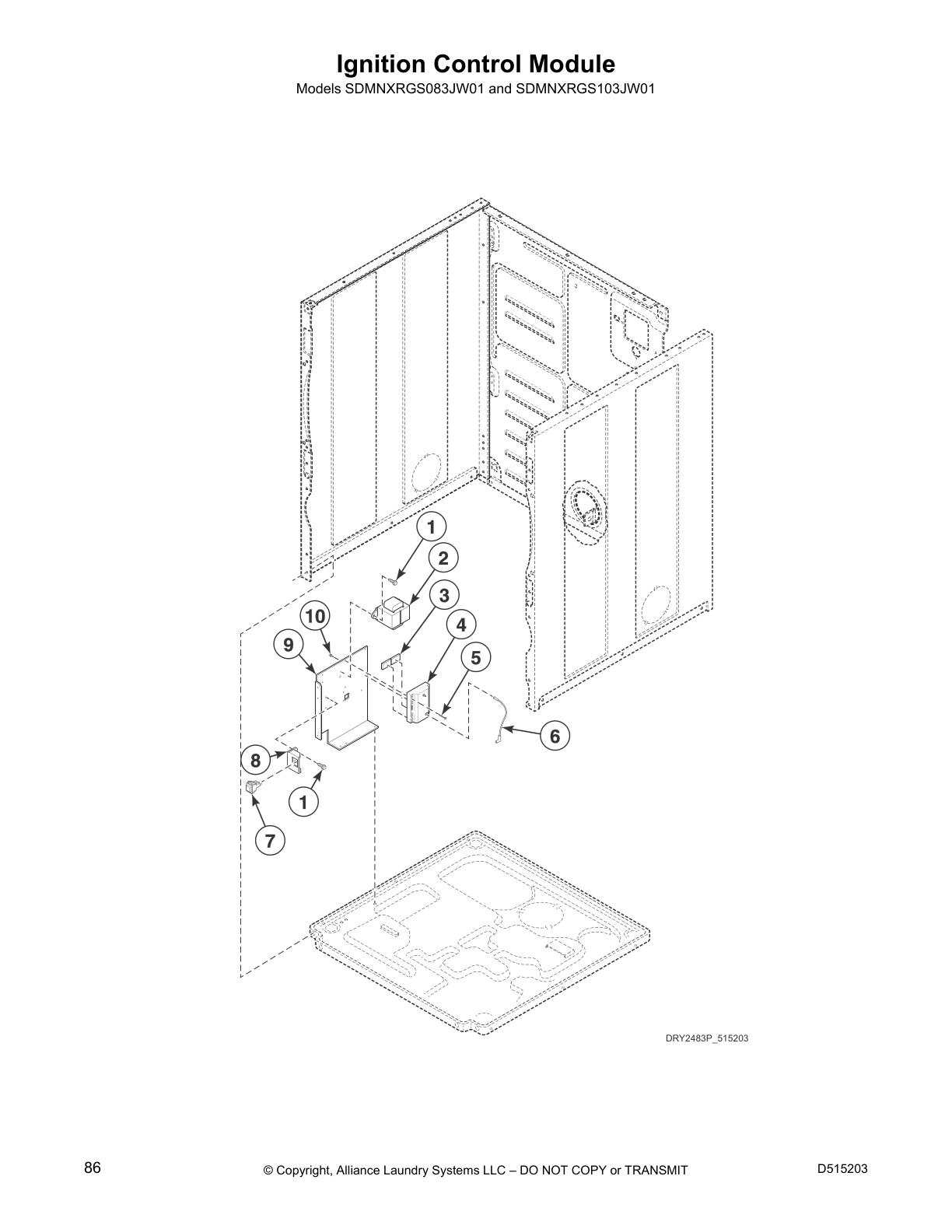

Ignition Control Module

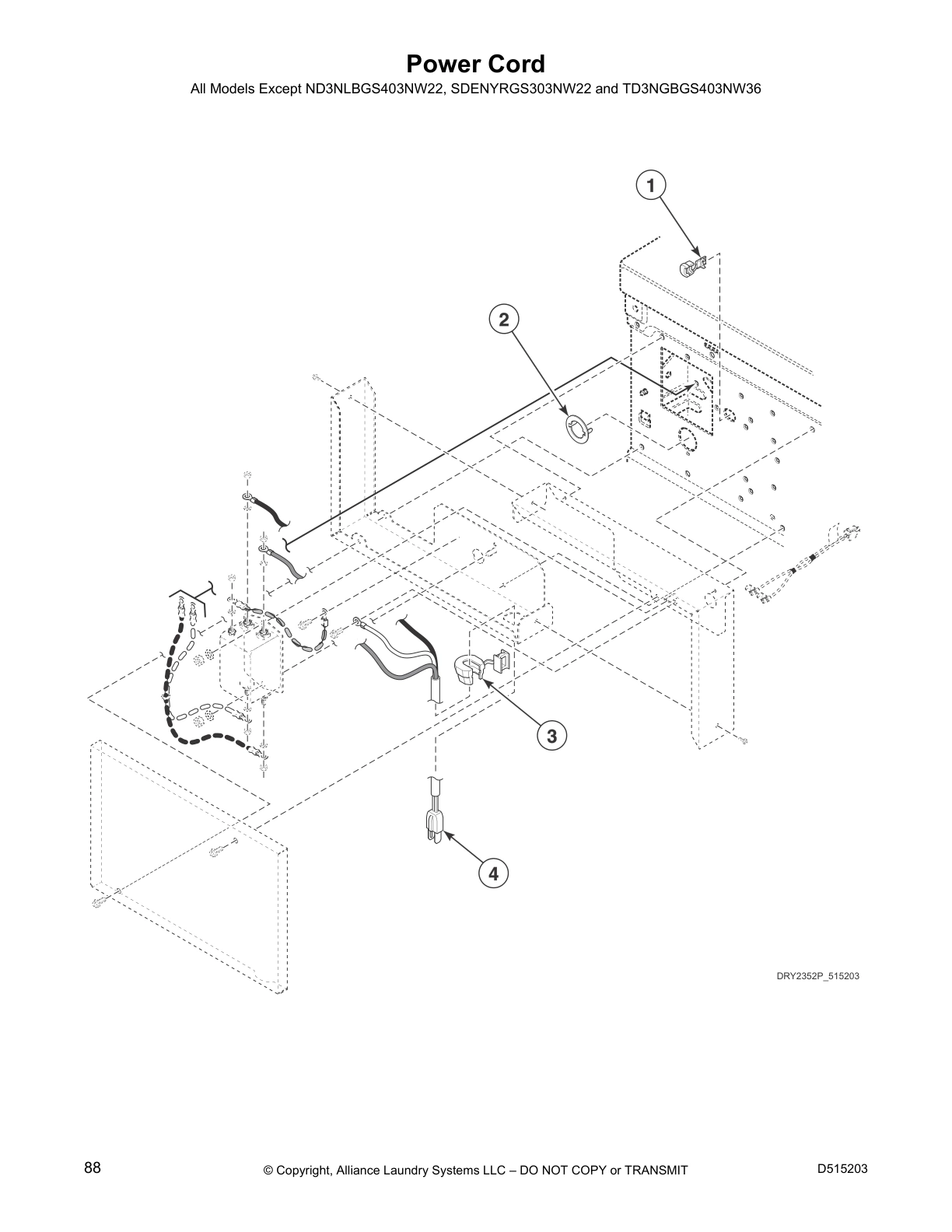

Power Cord

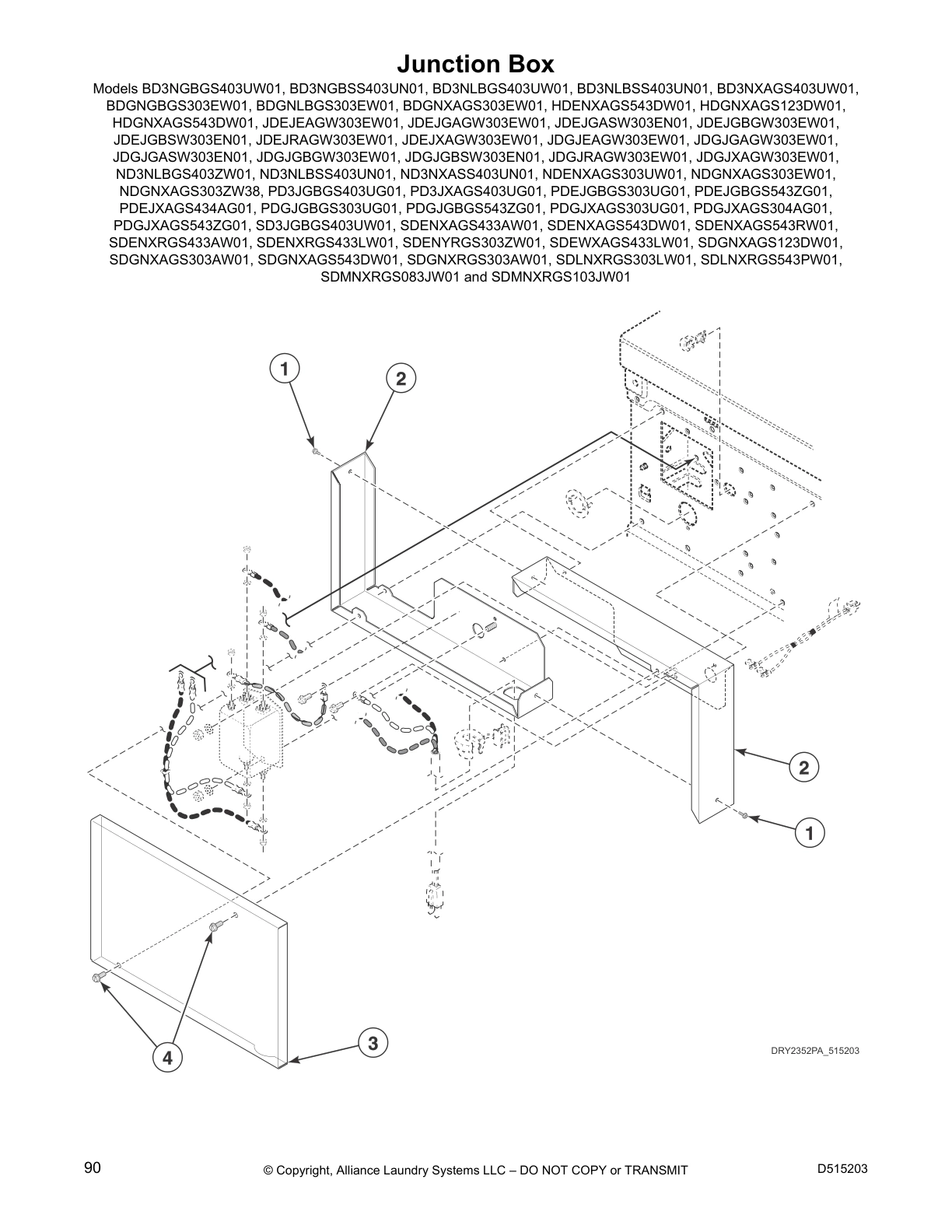

Junction Box

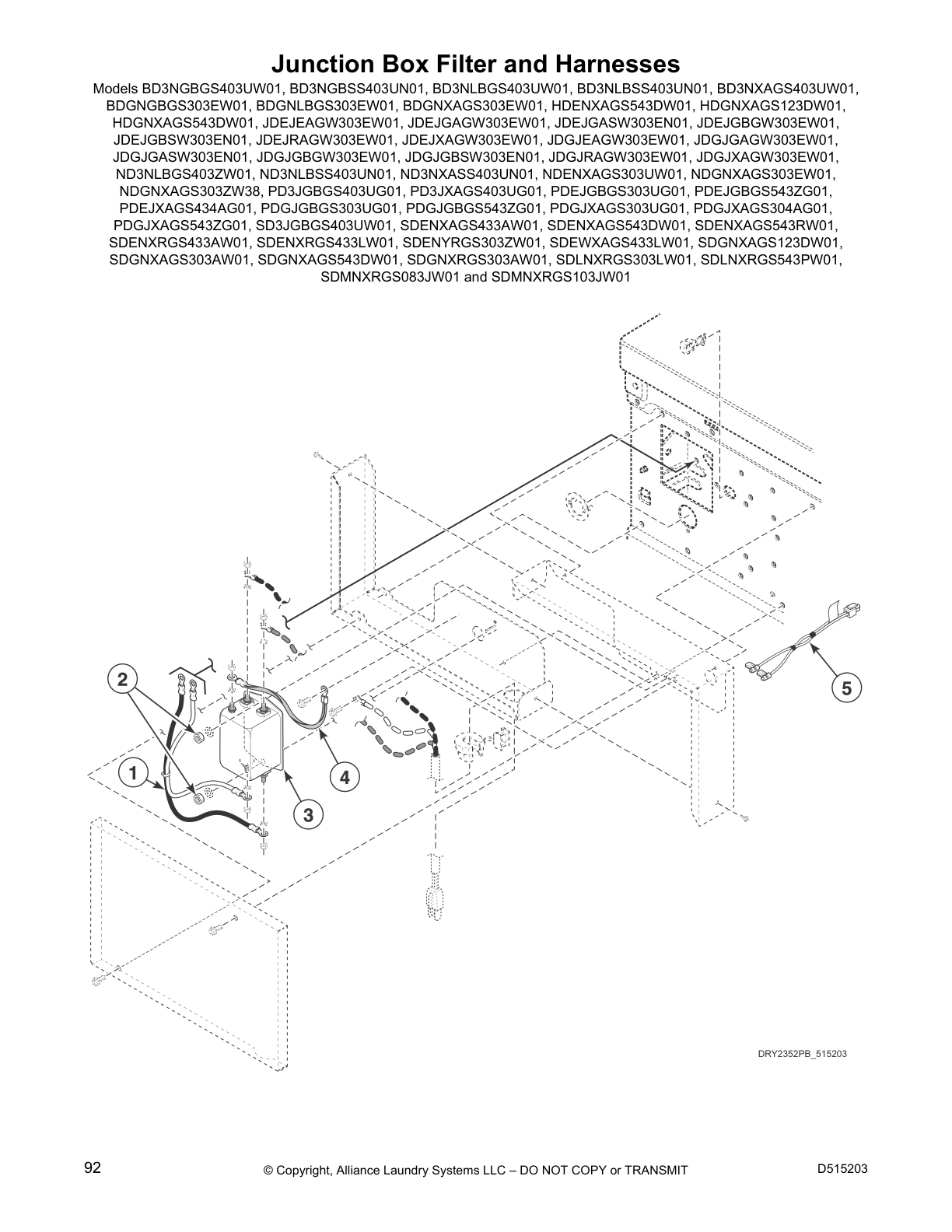

Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

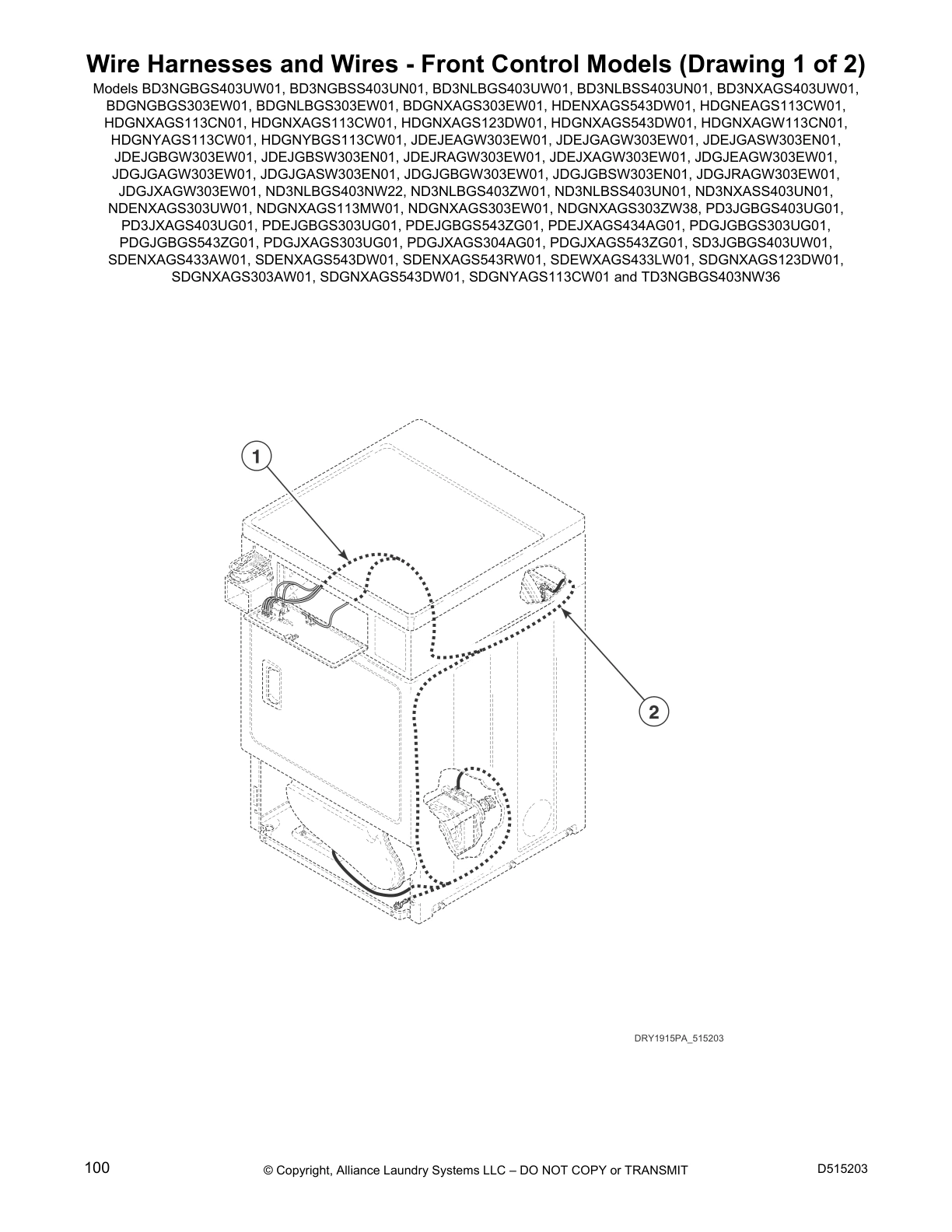

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)

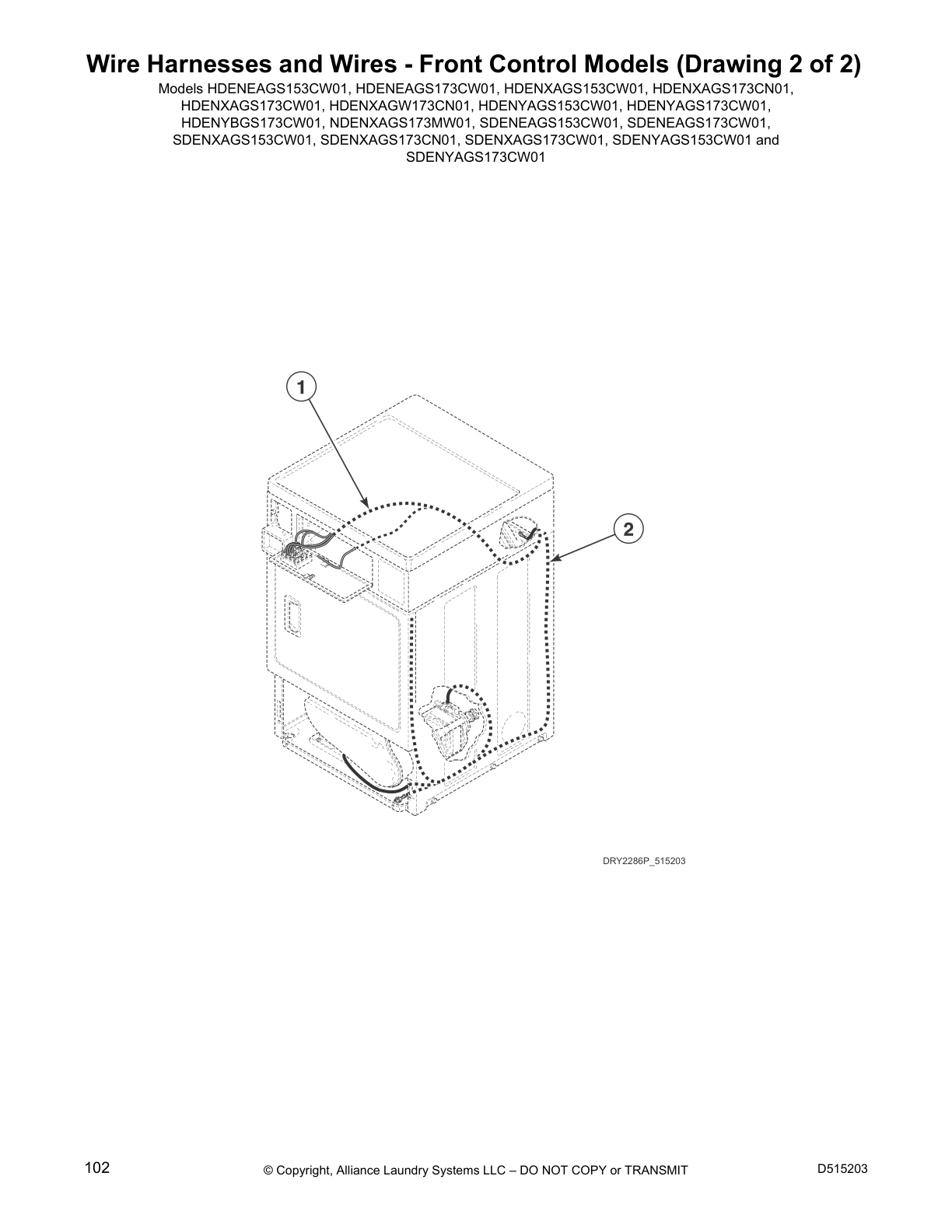

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)

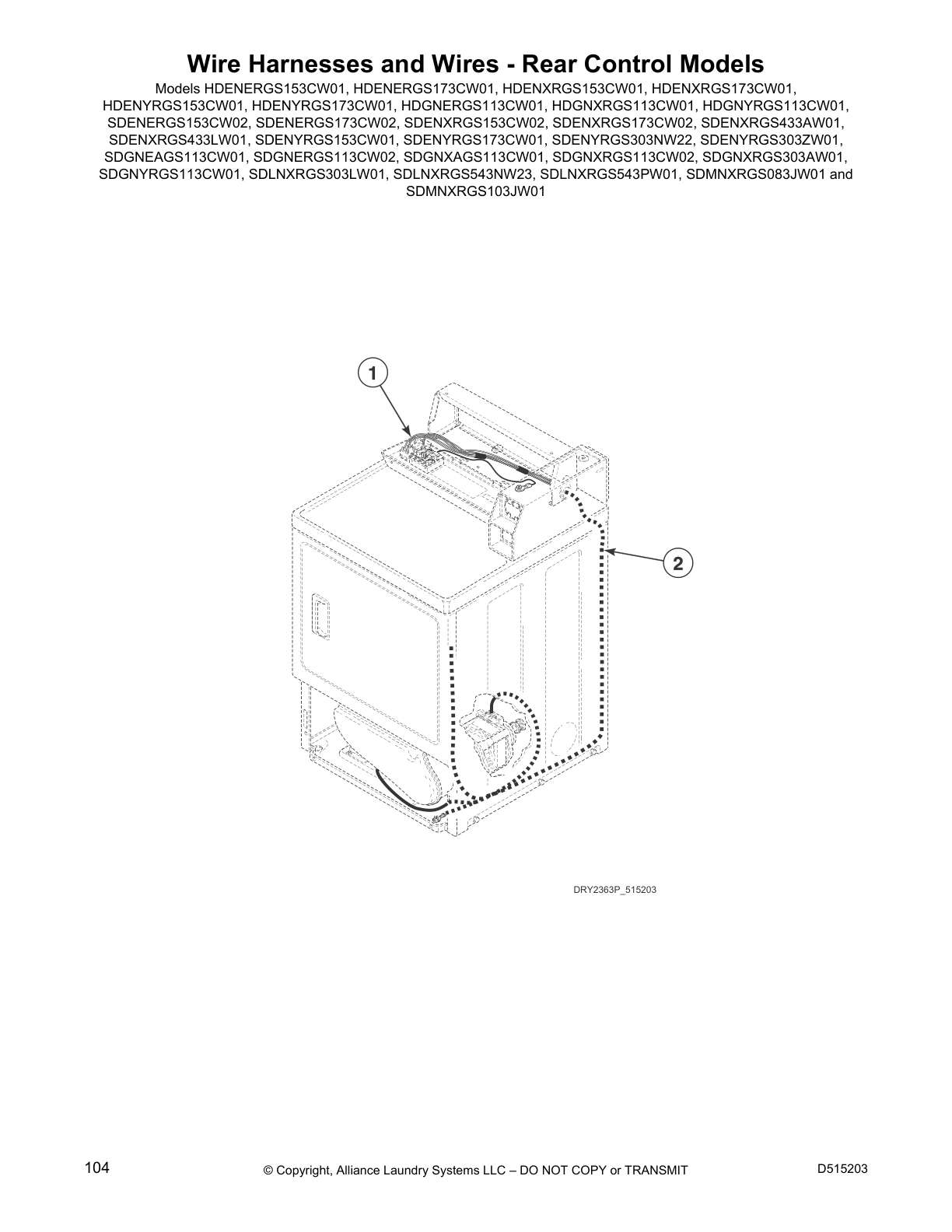

Wire Harnesses and Wires - Rear Control Models
Front Panel And Seal
Cabinet, Exhaust Duct And Base
Access Panel
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Terminal Block And Terminals
Terminals
Burner Orifice Spuds - For Higher Elevations (gas Models)
Cabinet, Exhaust Duct And Base
Terminals
Terminal Block And Terminals
Power Cord
Cylinder Assembly
Access Panel
Terminals
Motor Connection Block And Tools
Control Panel And Controls - Rear Control Coin Drop Models
Meter Case - Rear Control Coin Drop Models
Electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Power Cord
Control Panel And Controls - Rear Control Coin Drop Models
Meter Case - Rear Control Coin Drop Models
Control Panel And Controls - Rear Control Coin Drop Models
Terminal Block And Terminals
Label Location On Rear Of Cabinet
Cabinet, Exhaust Duct And Base
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Cabinet, Exhaust Duct And Base
Motor Connection Block And Tools
Non-electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Motor And Belt
Exhaust Fan And Idler
Motor Connection Block And Tools
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Burner Orifice Spuds - For Higher Elevations (gas Models)
Gas Conversion Kits (gas Models)
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Gas Valve And Igniter (gas Models)
Motor And Belt
Gas Valve And Igniter (gas Models)
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Non-electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Motor And Belt
Loading Door Without Window
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Access Panel
Motor Connection Block And Tools
Label Location On Rear Of Cabinet
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Label Location On Rear Of Cabinet
Terminals
Cabinet, Exhaust Duct And Base
Thermistor
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Access Panel
Junction Box
Meter Case - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Junction Box
Heater Duct Assembly (gas Models)
Gas Valve And Igniter (gas Models)
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Contactor And Transformer
Cabinet Top - Rear Control Models
Cabinet, Exhaust Duct And Base
Burner Orifice Spuds - For Higher Elevations (gas Models)
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Terminal Block And Terminals
Rear Bulkhead, Felt Seal And Cylinder Roller
Label Location On Rear Of Cabinet
Cabinet Top - Rear Control Models
Motor And Belt
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Front Panel And Seal
Control Panel And Controls - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Heater Duct Assembly (gas Models)
Cylinder Assembly
Loading Door Without Window
Gas Valve And Igniter (gas Models)
Loading Door Without Window
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Exhaust Fan And Idler
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Cabinet Top - Rear Control Models
Loading Door Without Window
Gas Valve And Igniter (gas Models)
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Loading Door Without Window
Access Panel
Motor And Belt
Loading Door Without Window
Gas Valve And Igniter (gas Models)
Exhaust Fan And Idler
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Gas Valve And Igniter (gas Models)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Gas Valve And Igniter (gas Models)
Exhaust Fan And Idler
Cylinder Assembly
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Burner Orifice Spuds - For Higher Elevations (gas Models)
Heater Duct Assembly (gas Models)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Front Panel And Seal
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor And Belt
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Exhaust Fan And Idler
Front Panel And Seal
Wire Harnesses And Wires - Rear Control Models
Cabinet, Exhaust Duct And Base
Meter Case - Rear Control Coin Drop Models
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Contactor And Transformer
Cabinet, Exhaust Duct And Base
Wire Harnesses And Wires - Rear Control Models
Junction Box
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet, Exhaust Duct And Base
Access Panel
Contactor And Transformer
Junction Box
Control Panel And Controls - Rear Control Coin Drop Models
Junction Box
Cabinet, Exhaust Duct And Base
Exhaust Fan And Idler
Heater Duct Assembly (gas Models)
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Control Panel And Controls - Rear Control Coin Drop Models
Front Panel And Seal
Control Panel And Controls - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Gas Valve And Igniter (gas Models)
Power Cord
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Gas Valve And Igniter (gas Models)
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Common parts from model Speed Queen SDGNXRGS303AW01 Dryer
SPQ 70441601P SPQ 70441601P Contact Us For Availability
4
SCREW SPQ WP3177991 Contact Us For Availability
7
Screw (comment: Torx Head, Optional For Added SPQ 62853 Contact Us For Availability
9
NUT SPQ WP487939 Contact Us For Availability
10
SCREW SPQ WP489128 Contact Us For Availability
17
NUT SPQ WPW10139757 Contact Us For Availability
NA
Junction Box Seal SPQ D514379P Contact Us For Availability
NA
Pinched Fingers Label (comment: Icon, Crush H SPQ F8211301 Contact Us For Availability
NA
Network Controller Kit (comment: Wired) SPQ NK220 Contact Us For Availability
NA
Ethernet Gateway Kit (comment: Wireless) SPQ NK320 Contact Us For Availability
NA
Usb Gateway Kit (comment: Wireless) SPQ NK330 Contact Us For Availability
NA
SCREW SPQ WP3351614 Contact Us For Availability
NI
SPQ 70294106 SPQ 70294106 Contact Us For Availability
× ![]()
