Model Speed Queen SDGDYRGS113CW01 Dryer – Common Parts & Diagrams
Control and Control Panel - Rear Control Coin Drop Models
Control and Control Panel - Rear Control Card Ready Models

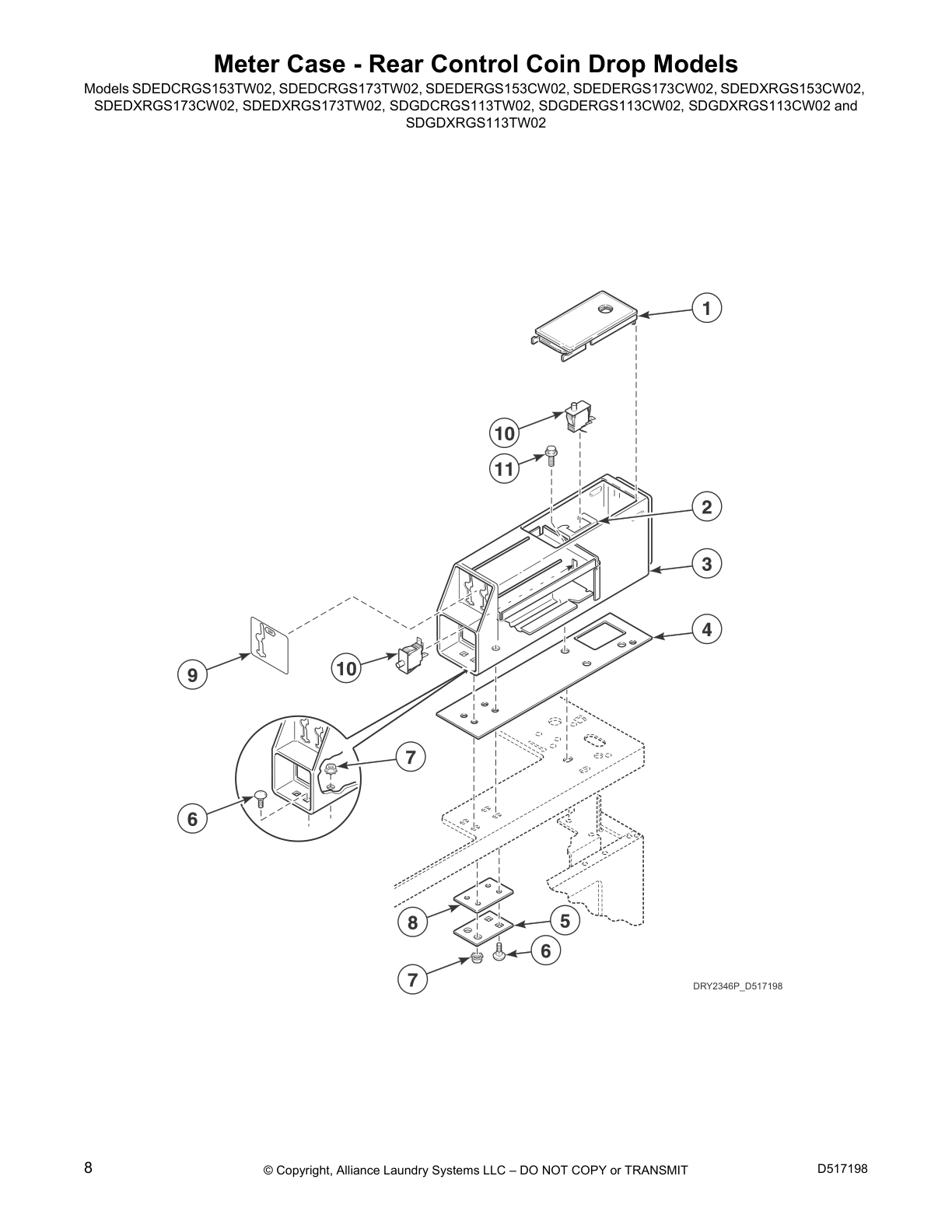

Meter Case - Rear Control Coin Drop Models

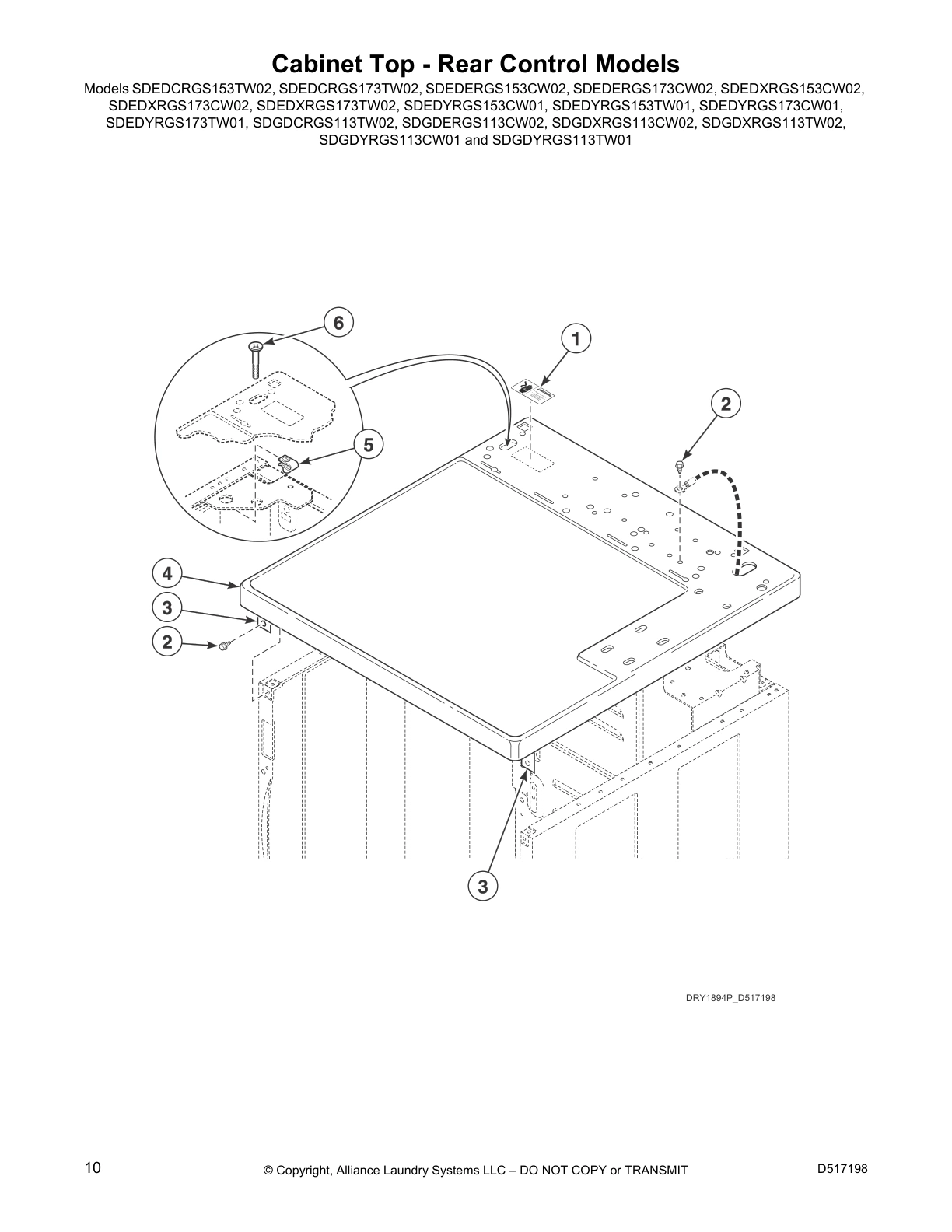

Cabinet Top - Rear Control Models

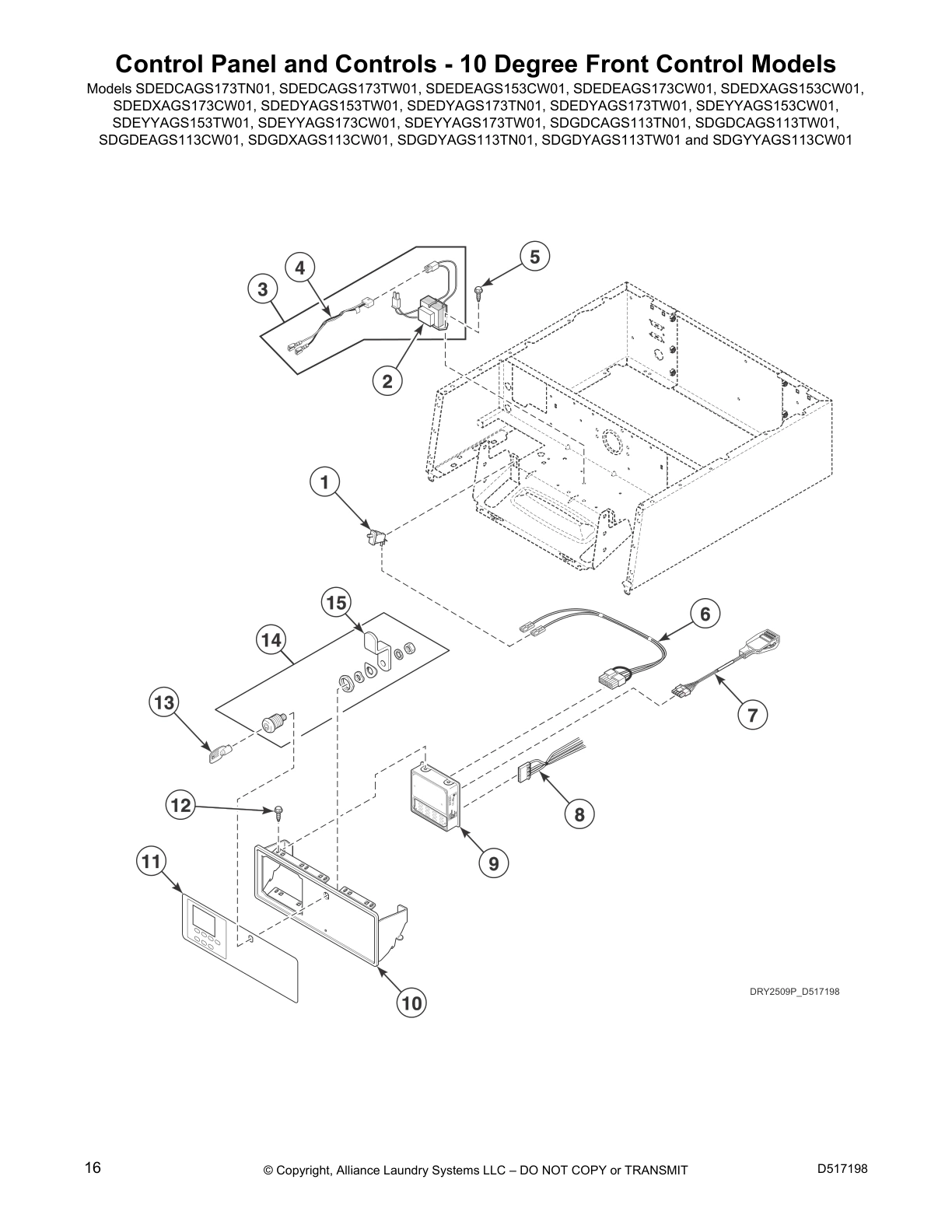

Control Panel and Controls - 10 Degree Front Control Models
Control Cabinet - Front Control Coin Drop Models

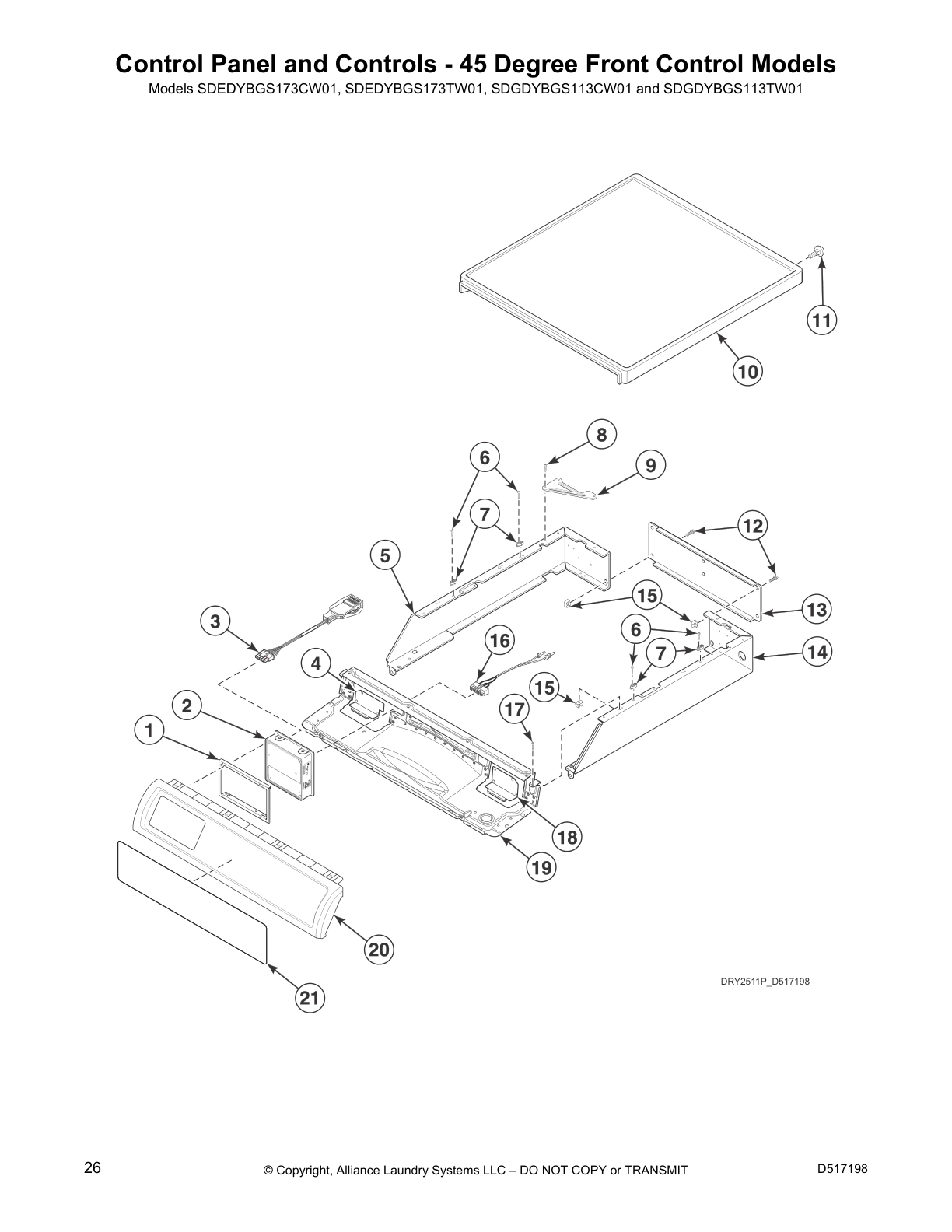

Control Panel and Controls - 45 Degree Front Control Models

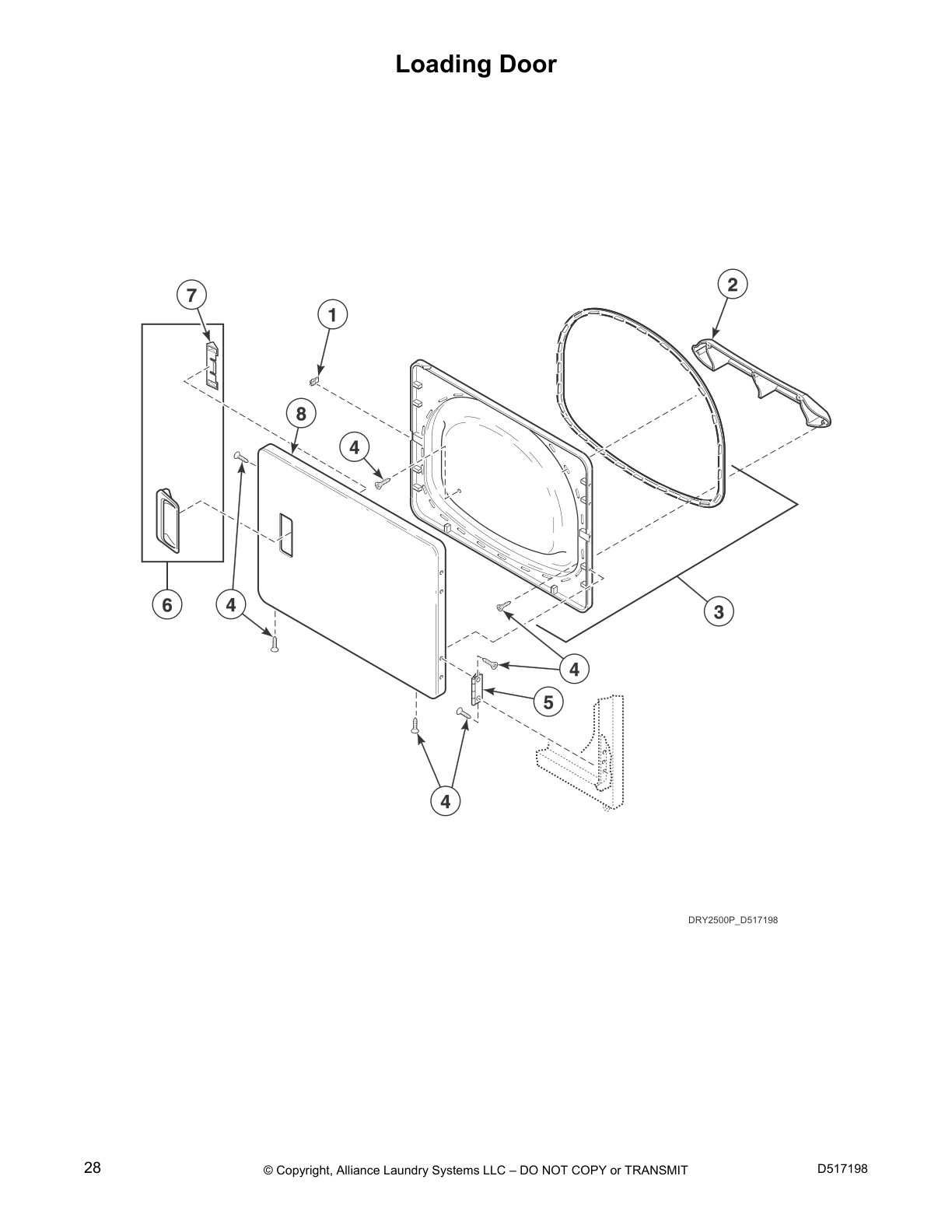

Loading Door

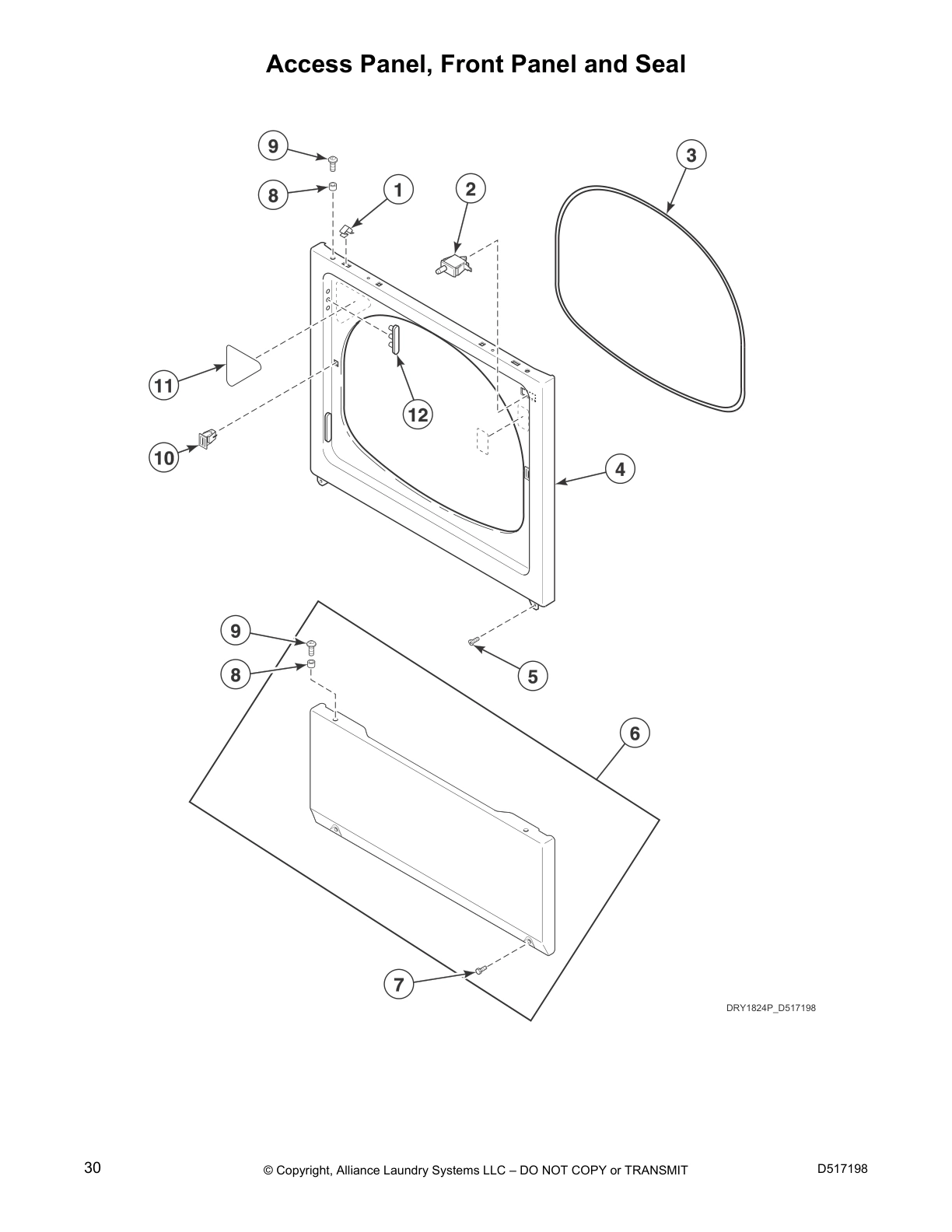

Access Panel, Front Panel and Seal

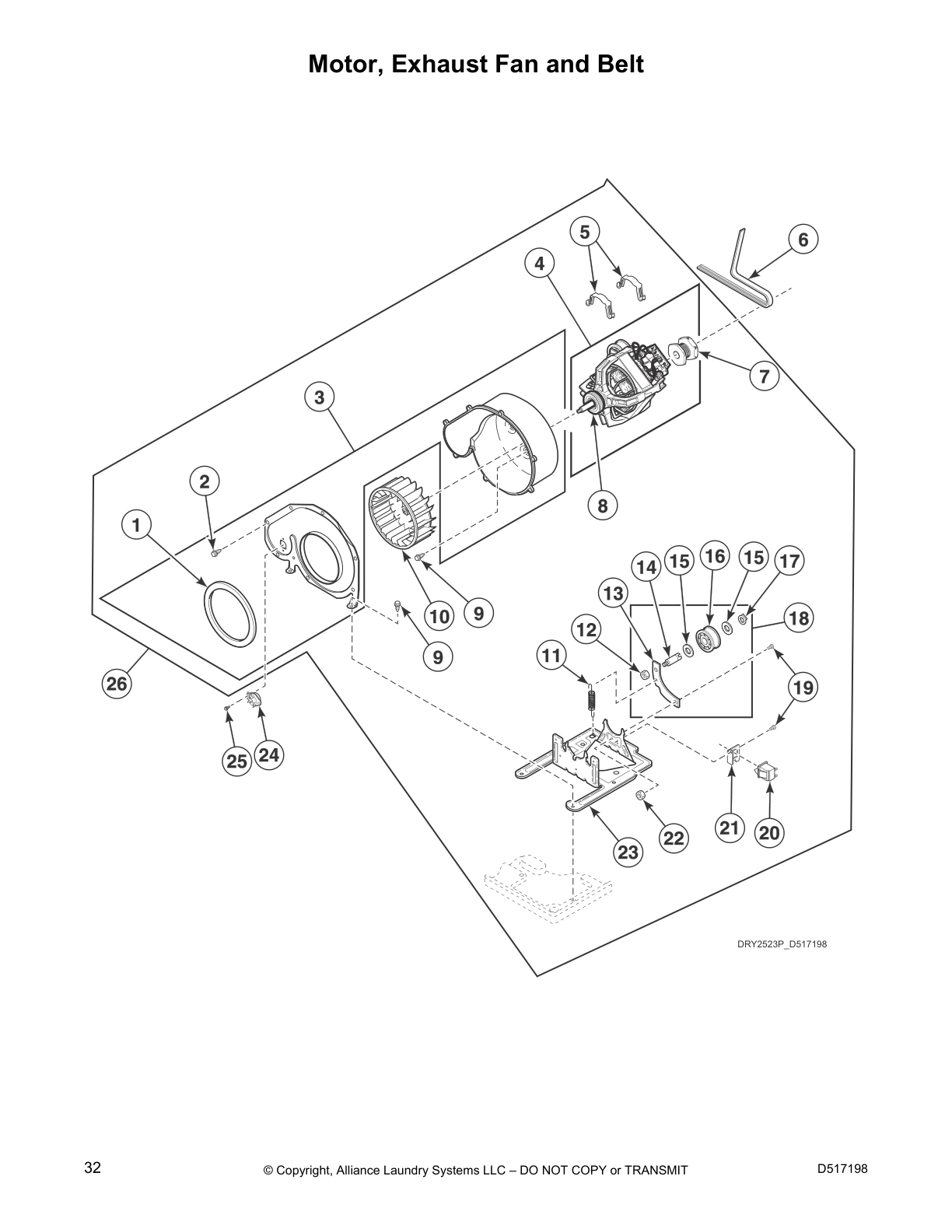

Motor, Exhaust Fan and Belt

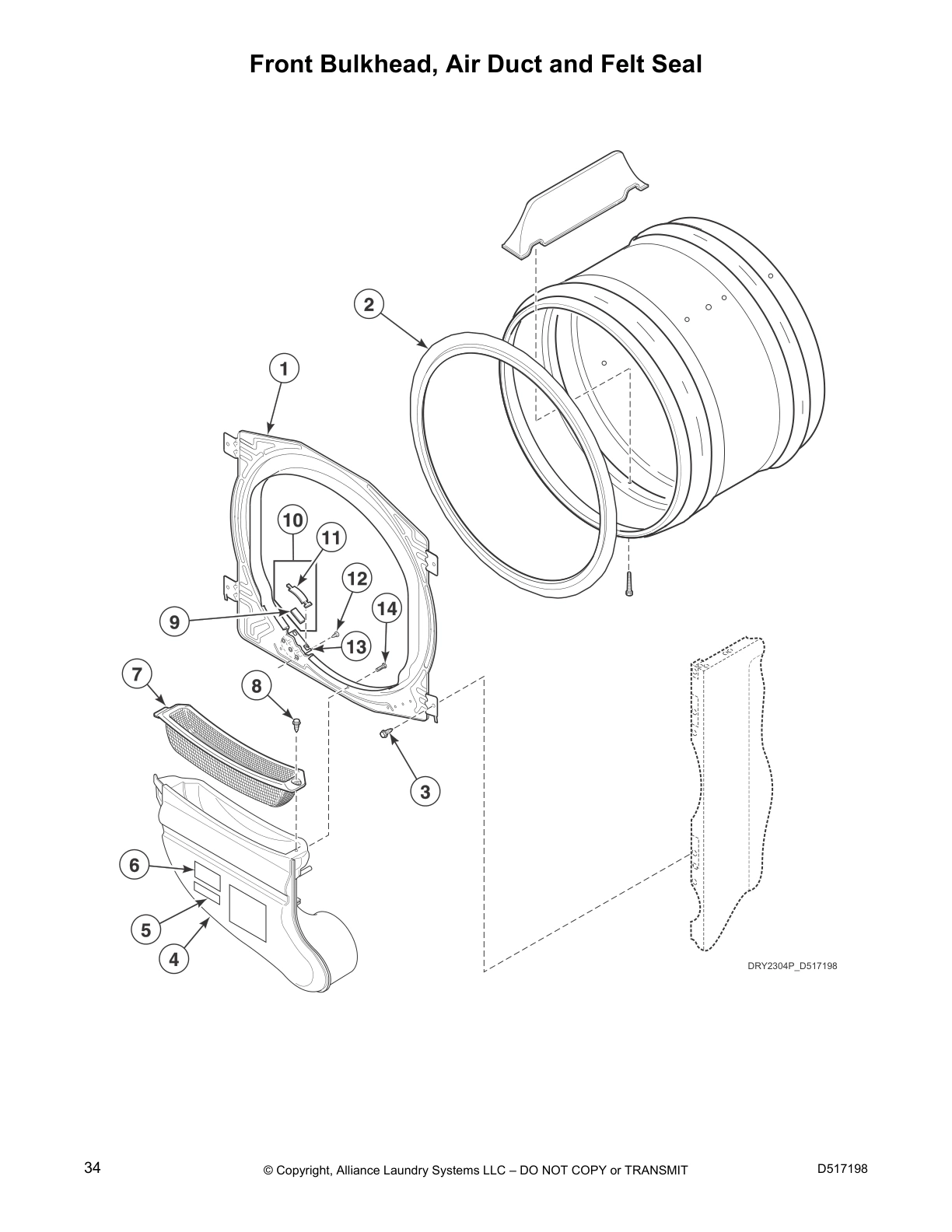

Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly

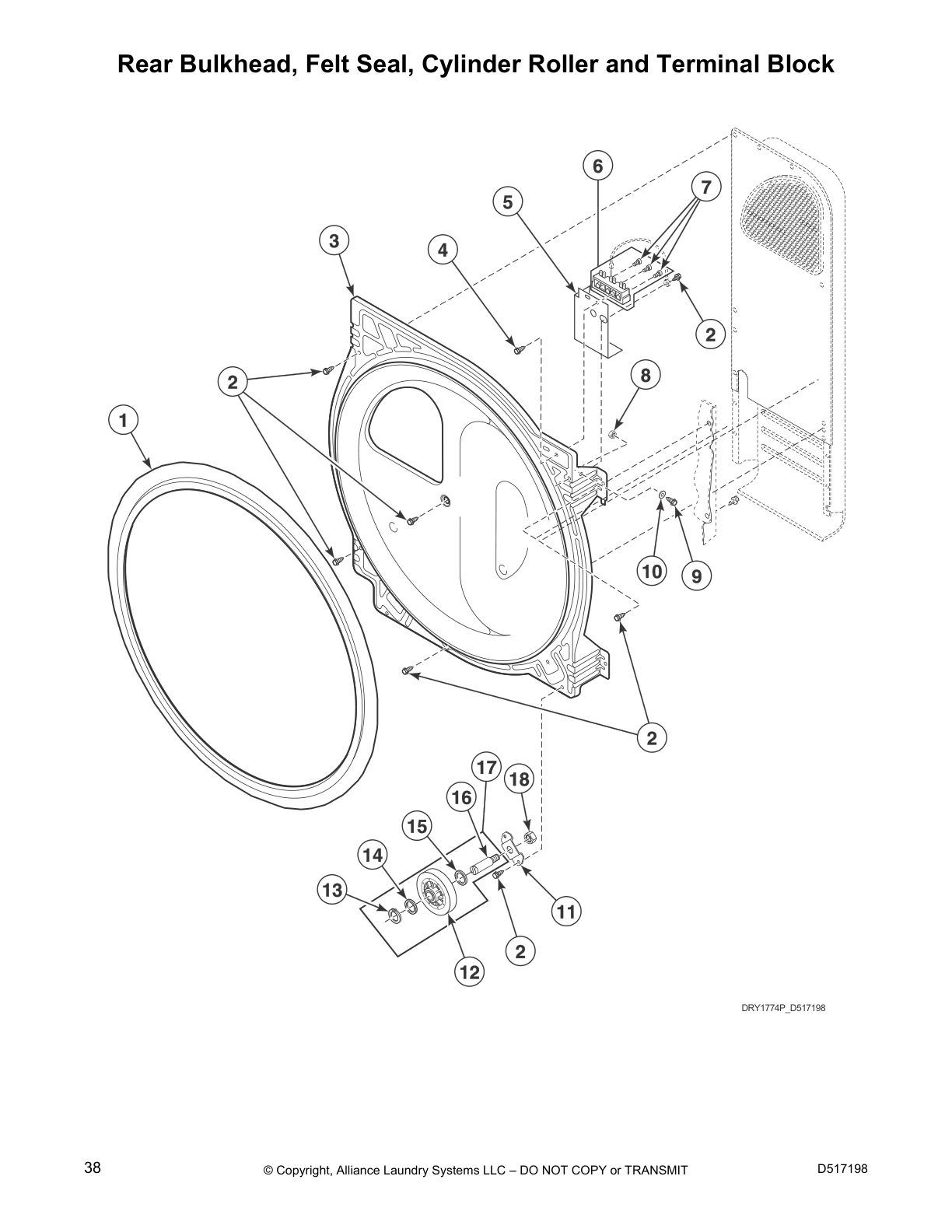

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

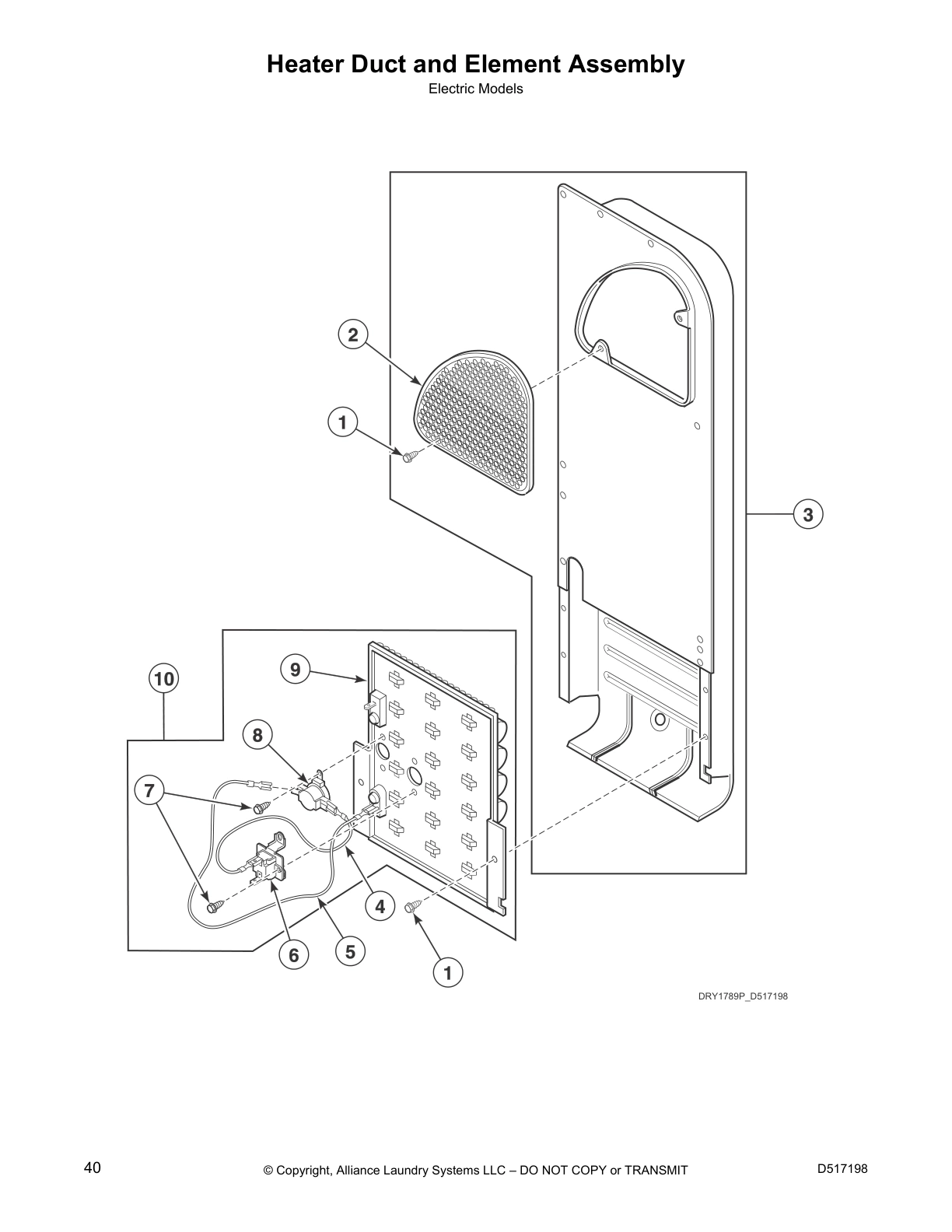

Heater Duct and Element Assembly

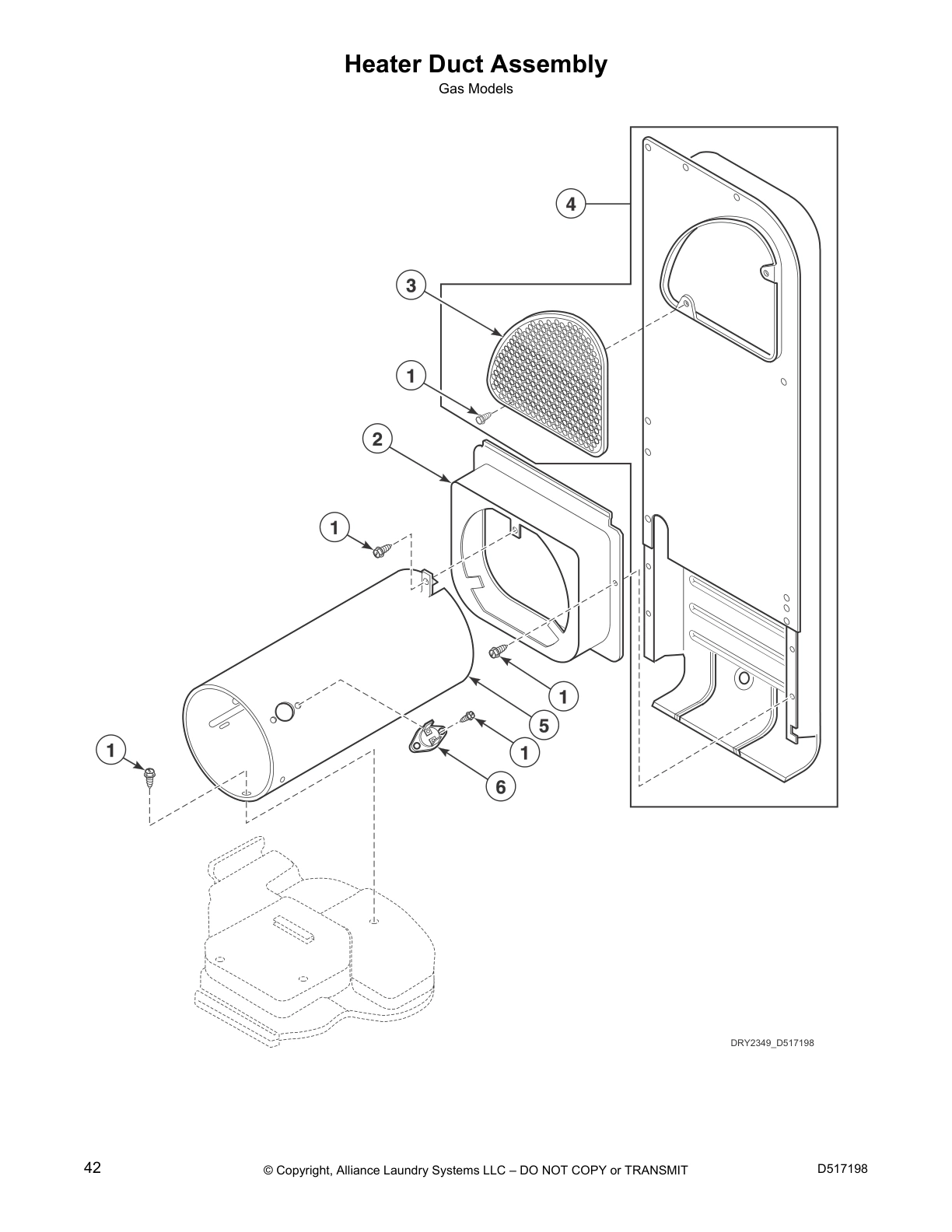

Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits

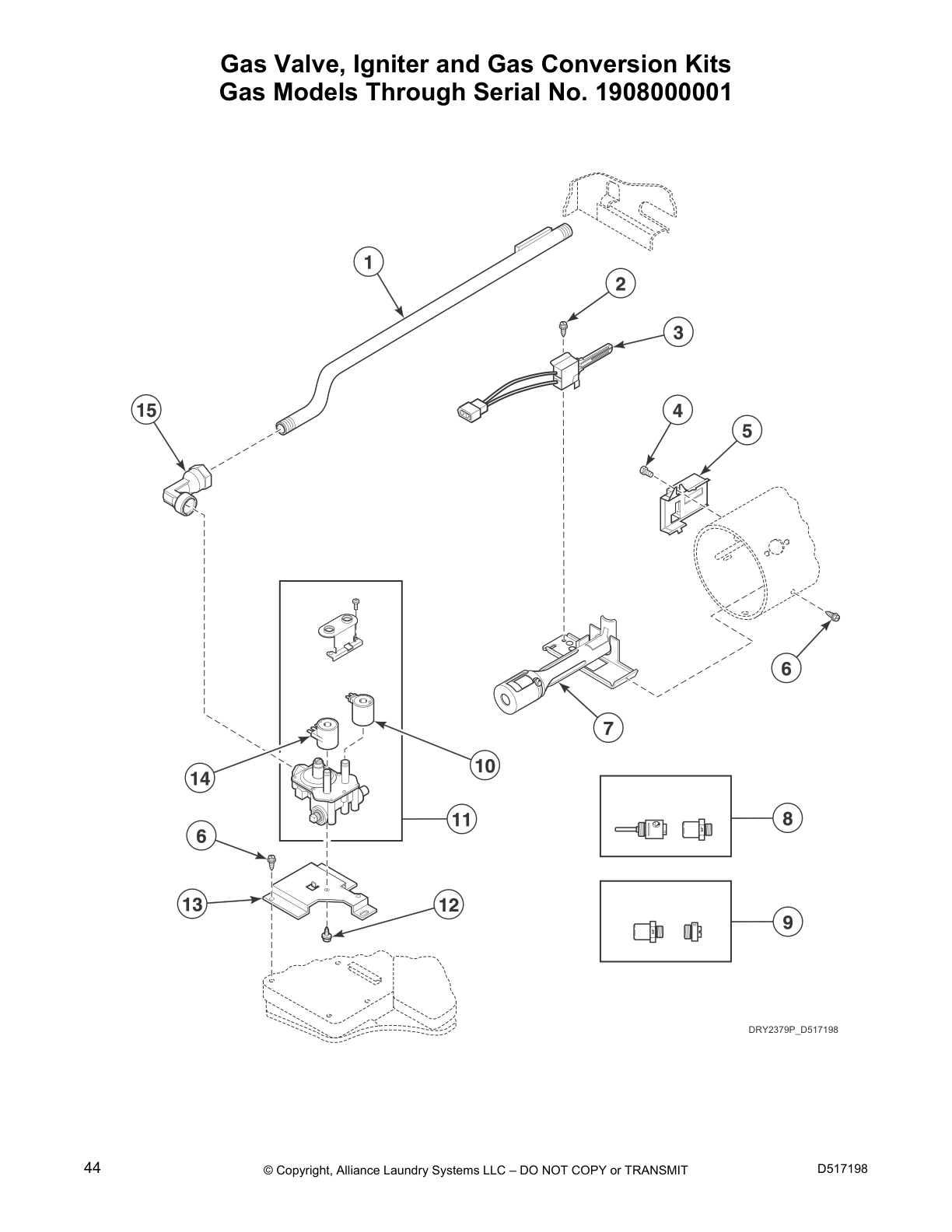

Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits

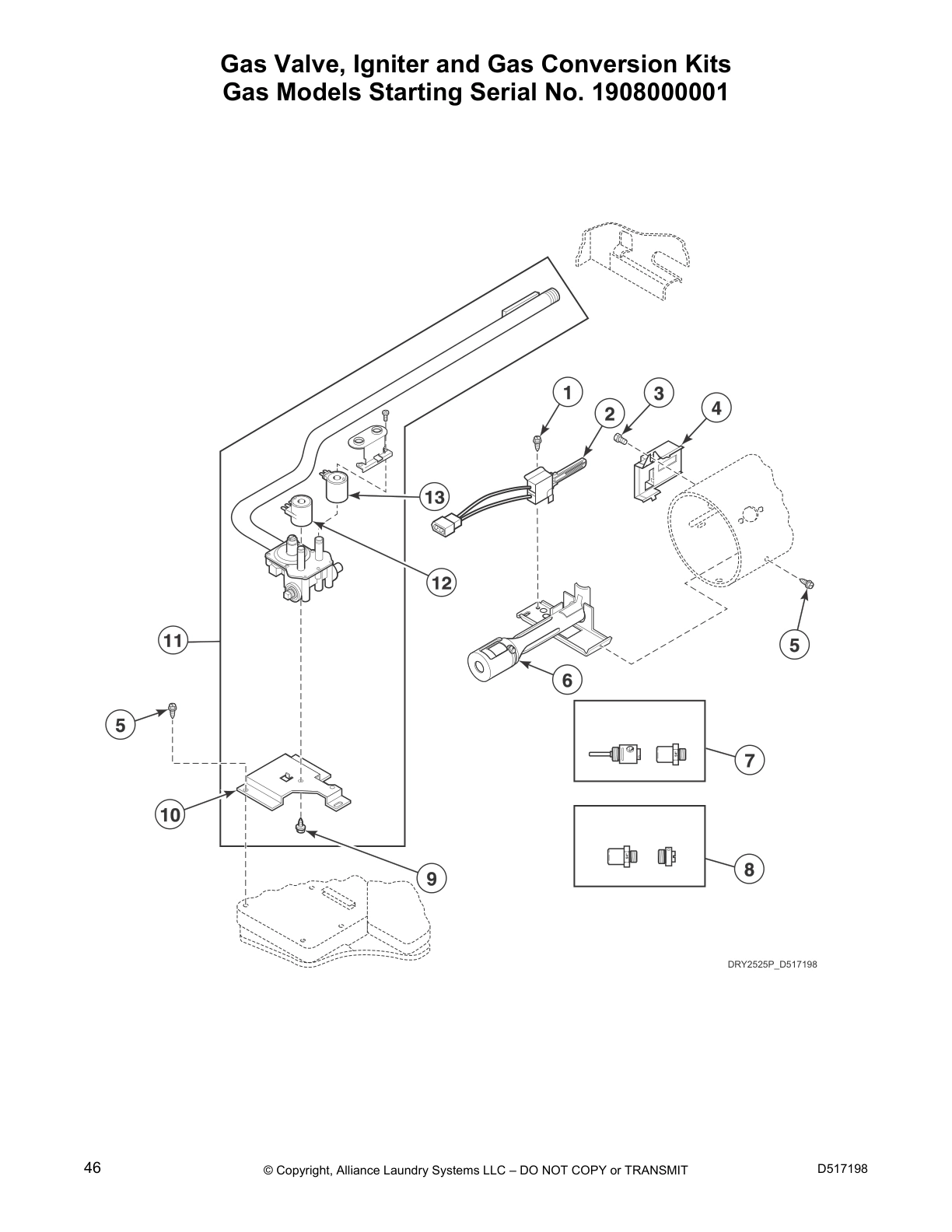

Gas Models Starting Serial No. 1908000001

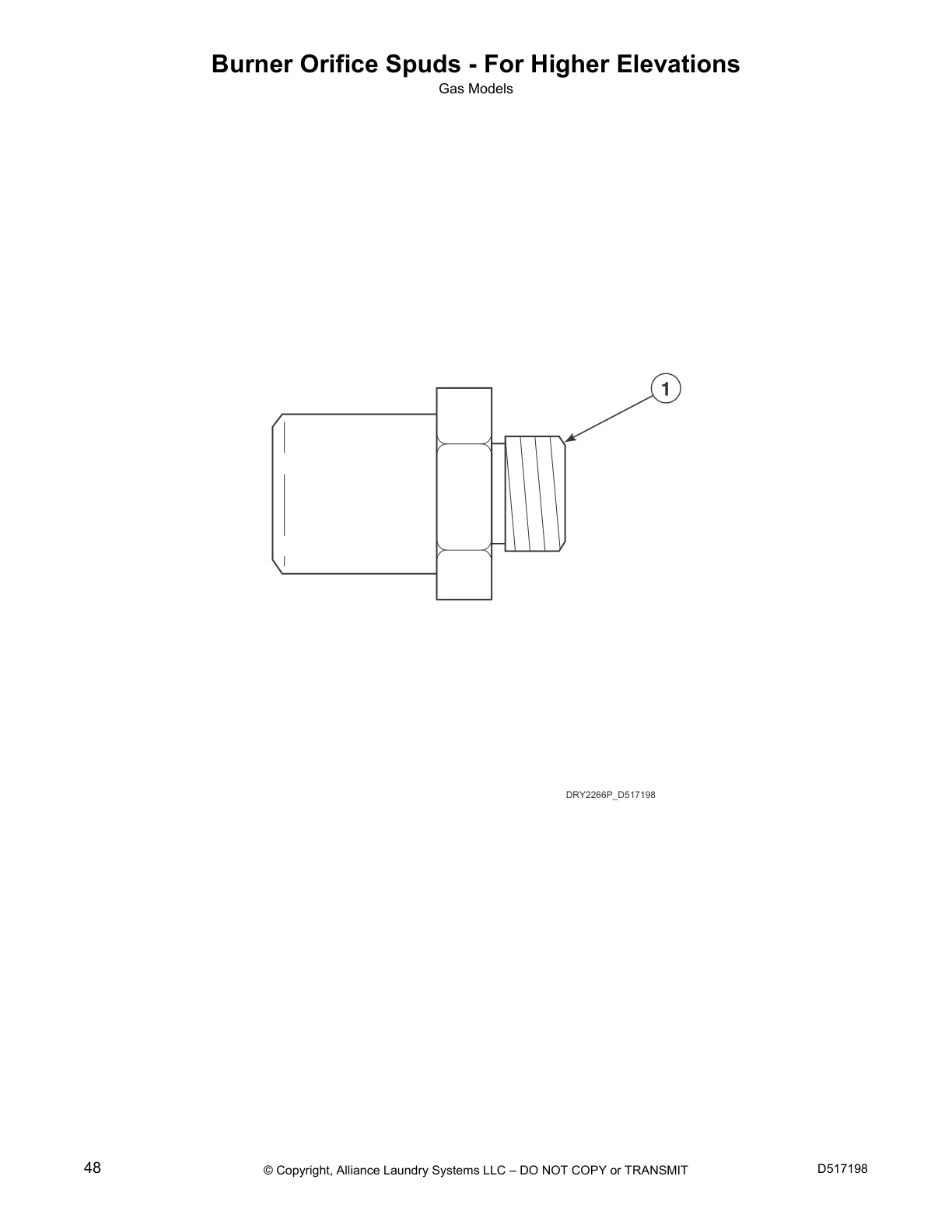

Burner Orifice Spuds - For Higher Elevations

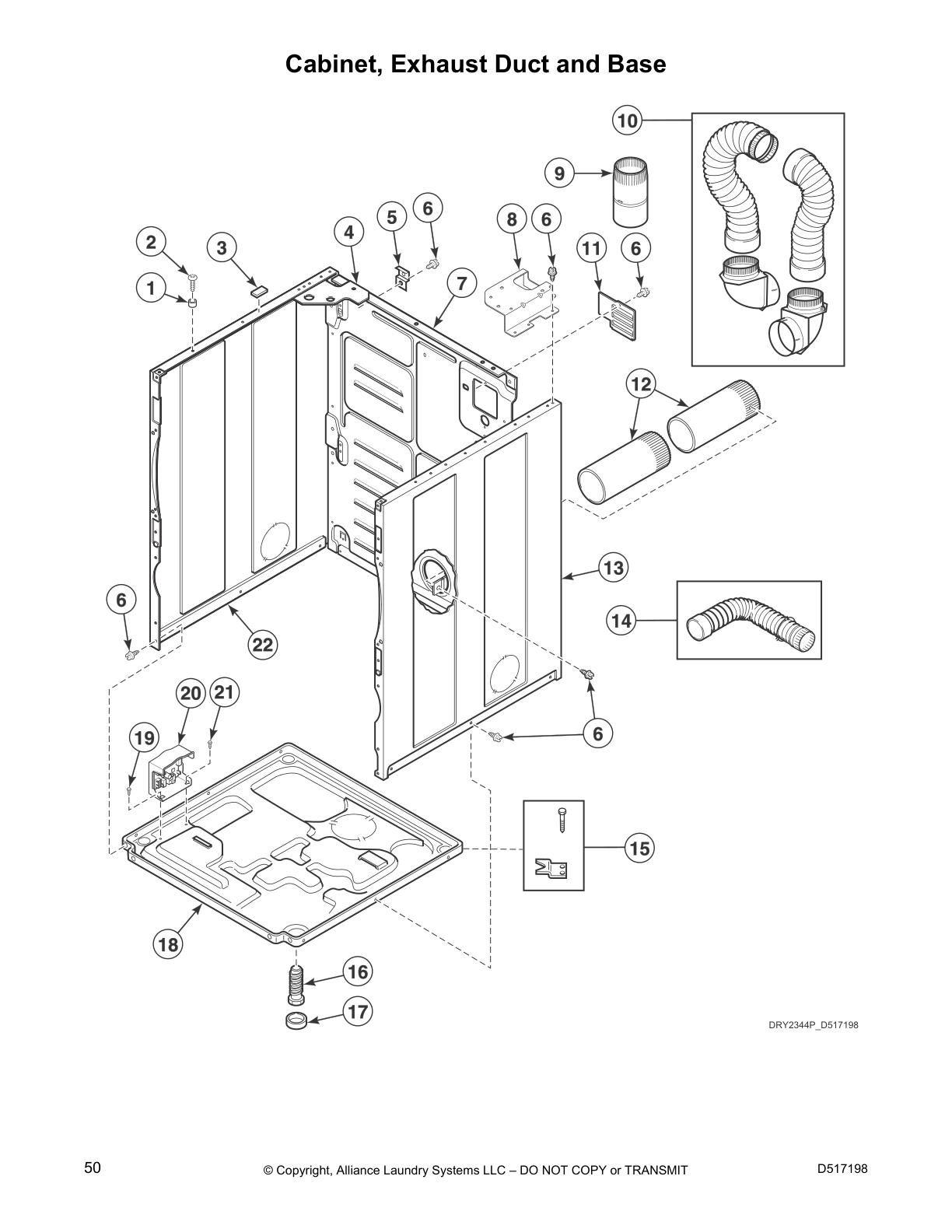

Cabinet, Exhaust Duct and Base

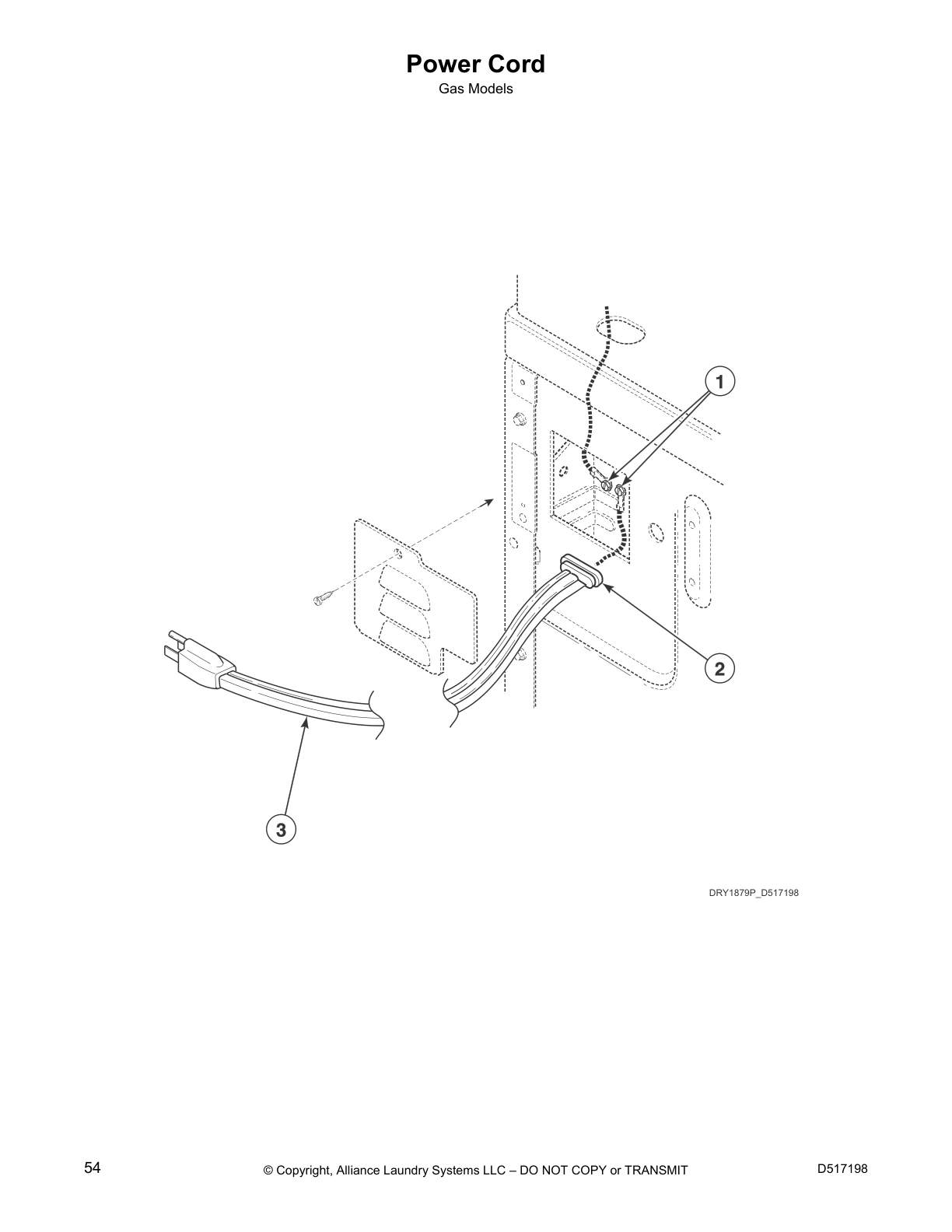

Power Cord

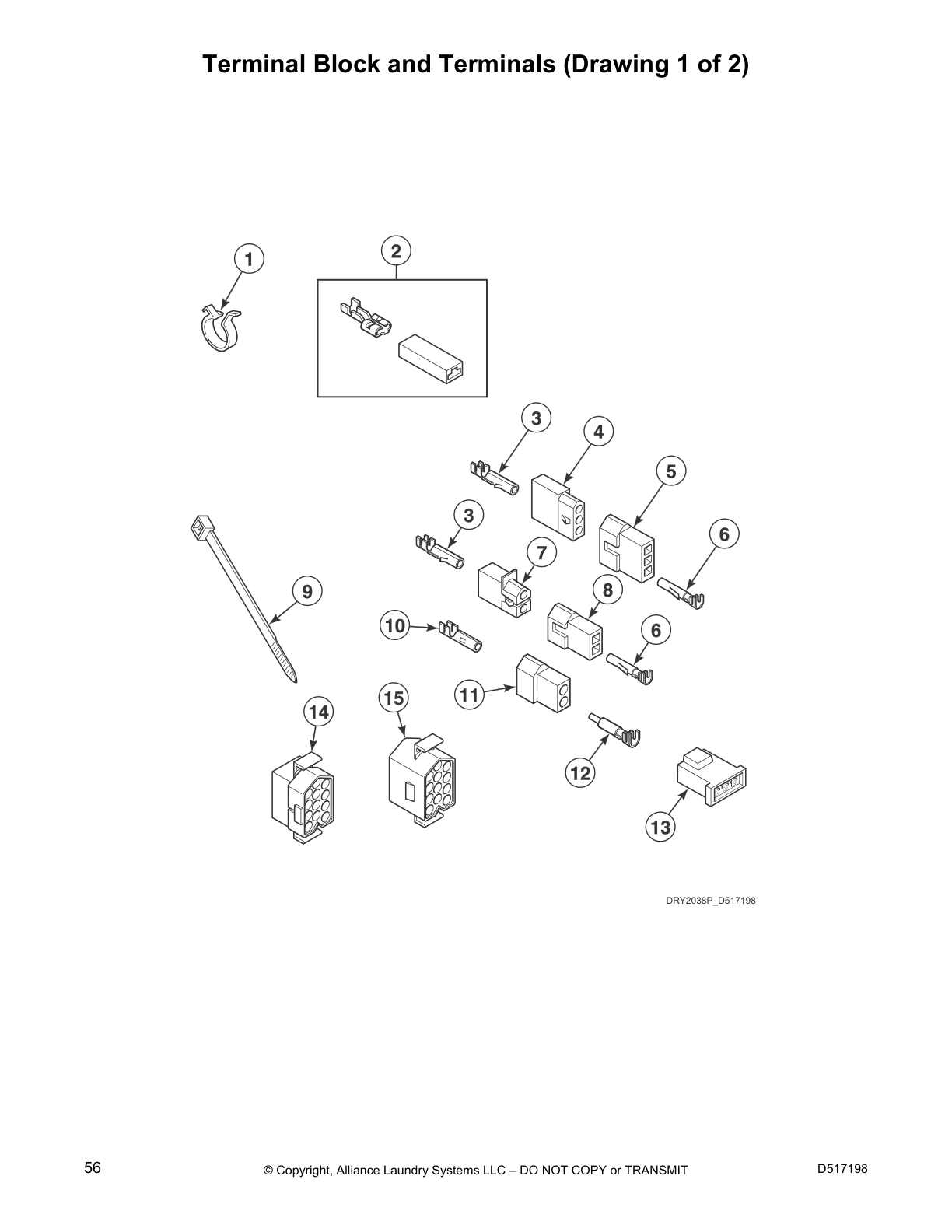

Terminal Block and Terminals (Drawing 1 of 2)

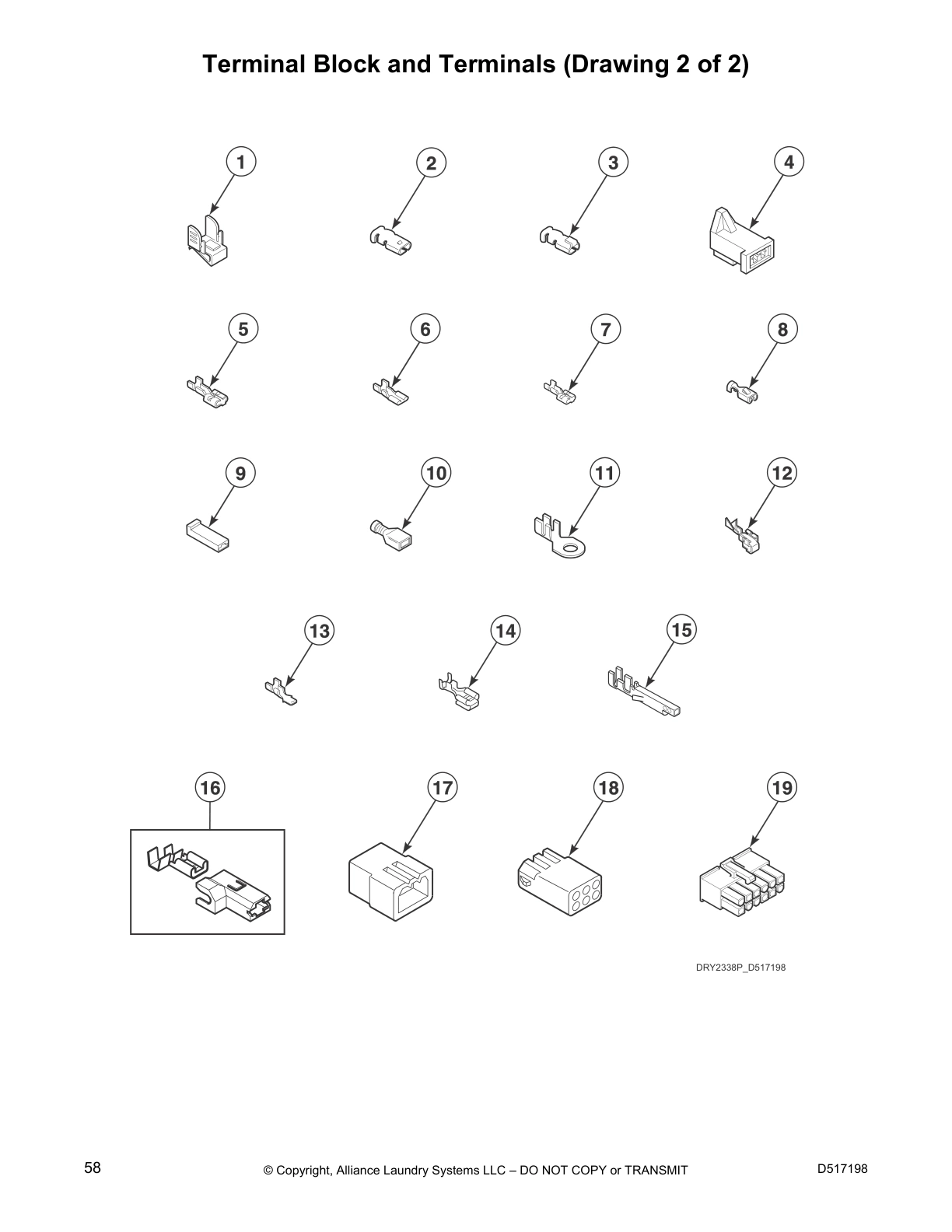

Terminal Block and Terminals (Drawing 2 of 2)

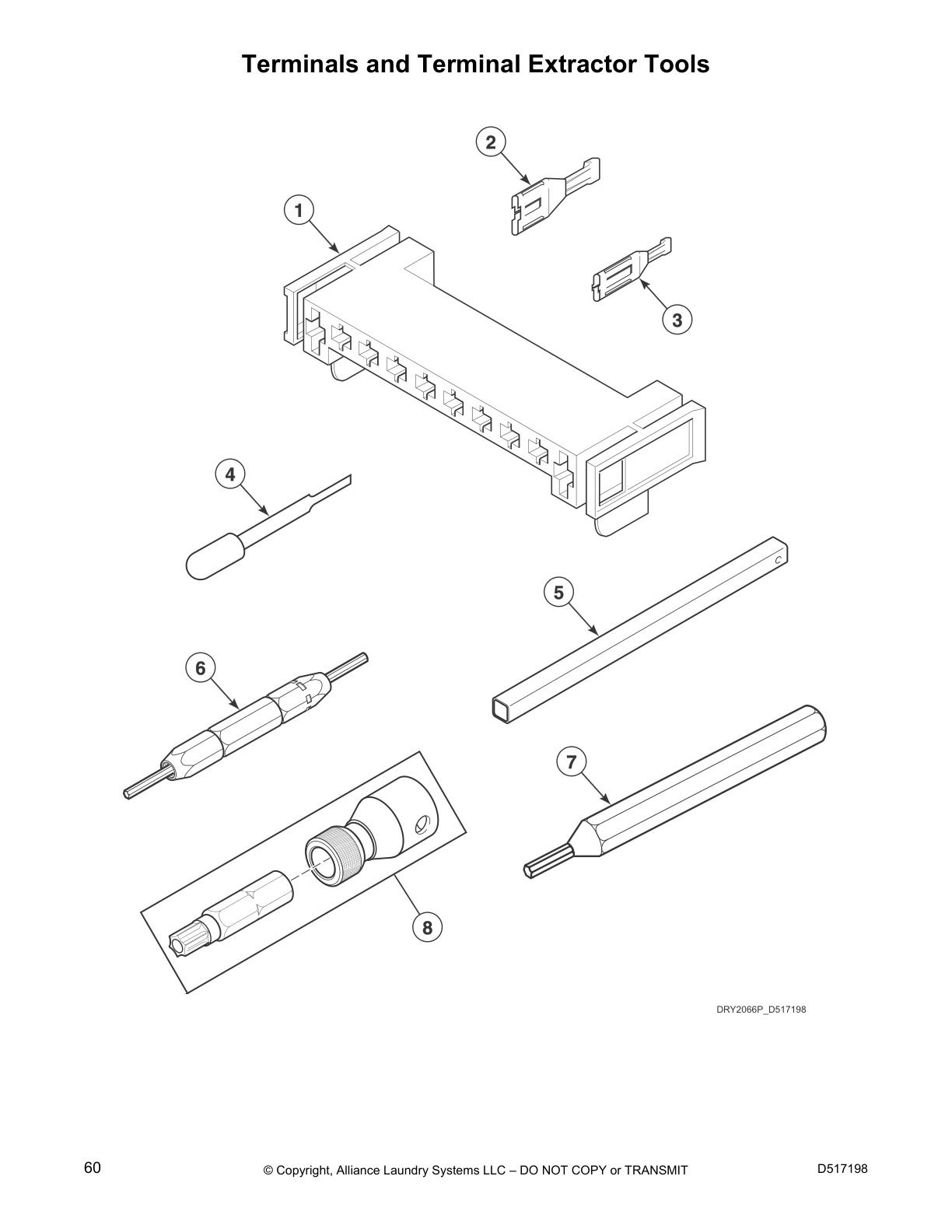

Terminals and Terminal Extractor Tools

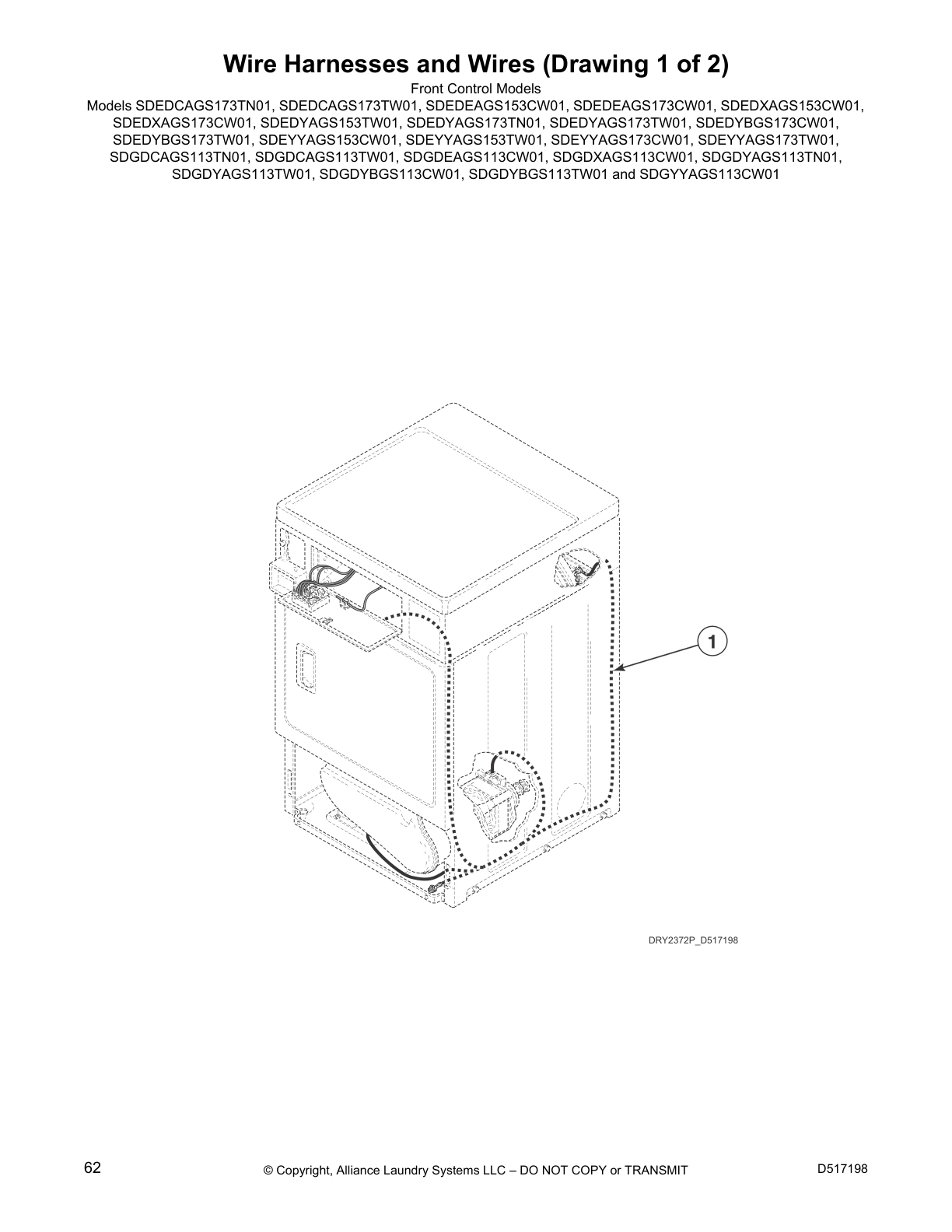

Wire Harnesses and Wires (Drawing 1 of 2)

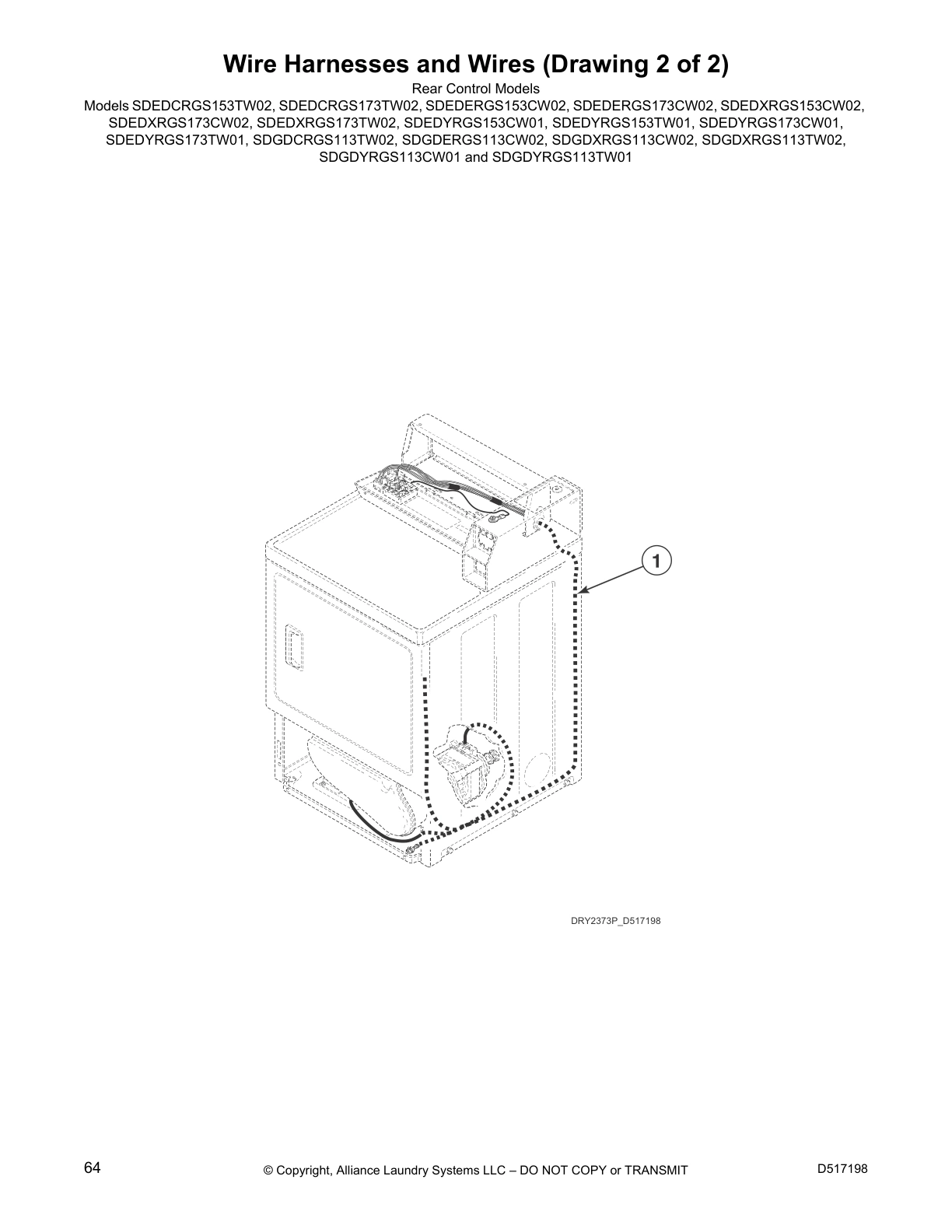

Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Speed Queen SDGDYRGS113CW01 Dryer
1
Door Strike SPQ D510181 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Cylinder Baffle SPQ D510102W Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
L.P. Orifice SPQ 58755 Contact Us For Availability
1
Lead-In Pipe Assembly SPQ D510204 Contact Us For Availability
1
Speed Clip SPQ 28835 Contact Us For Availability
1
Screw SPQ 51782 Contact Us For Availability
1
Wire Clip SPQ 687500 Contact Us For Availability
2
Igniter and Bracket Assembly SPQ D510184P Contact Us For Availability
2
Switch SPQ D512973 Contact Us For Availability
2
Adhesive SPQ RB170001 Contact Us For Availability
2
Cylinder Assembly SPQ D510265WP Contact Us For Availability
2
Door Liner Grill SPQ D503870W Contact Us For Availability
2
Heat Duct Shroud SPQ D510101 Contact Us For Availability
2
Strain Relief SPQ 38384 Contact Us For Availability
3
Rear Bulkhead Assembly SPQ RB170002 Contact Us For Availability
3
Outlet Cover SPQ D518524 Contact Us For Availability
3
Cylinder Belt SPQ D511969WP Contact Us For Availability
3
Cylinder Seal Assembly SPQ D511637P Contact Us For Availability
3
Door Liner Assembly SPQ D516508 Contact Us For Availability
3
Front Panel Seal SPQ D511056 Contact Us For Availability
3
Screw SPQ 62588 Contact Us For Availability
3
Cabinet Rear Panel SPQ 56128 Contact Us For Availability
3
Bracket SPQ D510146 Contact Us For Availability
4
Motor Pulley SPQ D511629P Contact Us For Availability
4
Heater Duct Assembly SPQ D500820 Contact Us For Availability
4
Air Duct Assembly SPQ D510207P Contact Us For Availability
4
Burner Assembly SPQ D510213 Contact Us For Availability
4
Front Panel SPQ D510066WP Contact Us For Availability
5
Extractor Tool SPQ 310P4 Contact Us For Availability
5
Hinge SPQ D500226 Contact Us For Availability
5
Motor Hub Ring Kit SPQ D510180 Contact Us For Availability
5
Damper SPQ D510136 Contact Us For Availability
6
Anti-Seize Compound SPQ D511255P Contact Us For Availability
6
Access Panel Assembly SPQ D514250WP Contact Us For Availability
6
Door Pull and Wedge Kit SPQ D511036 Contact Us For Availability
6
L.P. Conversion Kit SPQ D510149P Contact Us For Availability
6
Limit Thermostat SPQ D510131 Contact Us For Availability
6
Screw SPQ D503673 Contact Us For Availability
7
SPQ D500011 SPQ D500011 Contact Us For Availability
7
SPQ D511082P SPQ D511082P Contact Us For Availability
7
N.G. Conversion Kit SPQ 458P3 Contact Us For Availability
7
SPQ D514632P SPQ D514632P Contact Us For Availability
7
Door Handle Wedge SPQ D511213P Contact Us For Availability
7
Screw SPQ 33562 Contact Us For Availability
7
SPQ 00360 SPQ 00360 Contact Us For Availability
8
Dryer Door SPQ D510103WP Contact Us For Availability
8
Felt Pad SPQ D518433 Contact Us For Availability
8
SPQ 590P3 SPQ 590P3 Contact Us For Availability
9
SPQ D503980W SPQ D503980W Contact Us For Availability
10
Blower Fan Assembly SPQ D510139P Contact Us For Availability
10
Glide Kit SPQ RB170003 Contact Us For Availability
10
Door Catch Assembly SPQ D510177 Contact Us For Availability
10
Gas Valve Mounting Bracket SPQ D510128 Contact Us For Availability
11
Cylinder Glide SPQ D513710 Contact Us For Availability
11
Idler Spring SPQ D510185 Contact Us For Availability
11
Access Panel Plate SPQ D510903 Contact Us For Availability
12
Hinge Hole Plug SPQ D510186 Contact Us For Availability
12
Exhaust Duct SPQ D516196 Contact Us For Availability
13
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
13
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
13
Cylinder Roller Bracket SPQ D510100 Contact Us For Availability
13
Transformer Kit SPQ 203423 Contact Us For Availability
14
Cylinder Roller SPQ D510708P Contact Us For Availability
14
Shaft SPQ 56461P Contact Us For Availability
14
Seal Kit SPQ D505295 Contact Us For Availability
15
Washer SPQ 52549 Contact Us For Availability
15
Elbow SPQ D513072 Contact Us For Availability
16
Idler Wheel and Bearing Assembly SPQ D510142P Contact Us For Availability
16
Leveling Leg SPQ D510135 Contact Us For Availability
17
Retaining Ring SPQ 23748 Contact Us For Availability
17
Rubber Foot SPQ D501855 Contact Us For Availability
17
Roller Kit SPQ D504082 Contact Us For Availability
18
Idler Lever and Wheel Assembly SPQ D516792 Contact Us For Availability
18
Dryer Base SPQ D514245 Contact Us For Availability
19
Screw SPQ D500824 Contact Us For Availability
20
Bumper Pad SPQ D513797P Contact Us For Availability
20
Motor Switch Bracket SPQ D516391 Contact Us For Availability
21
Frame Gusset SPQ 804667 Contact Us For Availability
22
Top Hinge SPQ D510001WP Contact Us For Availability
24
Blower Housing SPQ D510523 Contact Us For Availability
25
Motor and Pulley Assembly SPQ D502535 Contact Us For Availability
26
Motor Mount Clamp SPQ D510717P Contact Us For Availability
NI
SPQ D510702 SPQ D510702 Contact Us For Availability
NI
SPQ D510189 SPQ D510189 Contact Us For Availability
NI
SPQ D501285 SPQ D501285 Contact Us For Availability
NI
SPQ D503778 SPQ D503778 Contact Us For Availability
NI
SPQ D503786 SPQ D503786 Contact Us For Availability
NI
USB Gateway Kit SPQ D501086 Contact Us For Availability
NI
SPQ 55881 SPQ 55881 Contact Us For Availability
NI
Screw Orifice SPQ 58719 Contact Us For Availability
NI
SPQ D510129W SPQ D510129W Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
× ![]()
