Model Speed Queen SDGDXAGS113CW01 Dryer – Common Parts & Diagrams

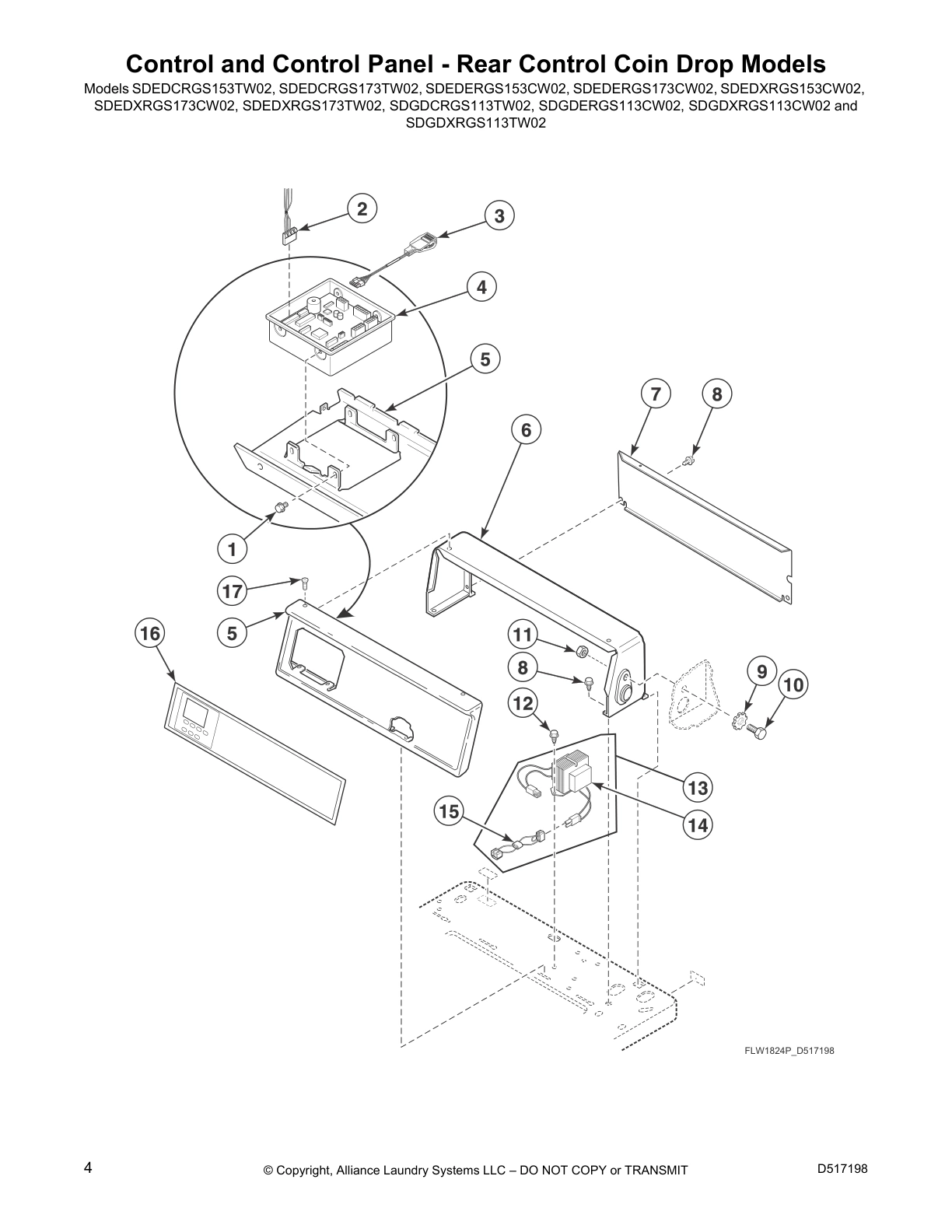

Control and Control Panel - Rear Control Coin Drop Models

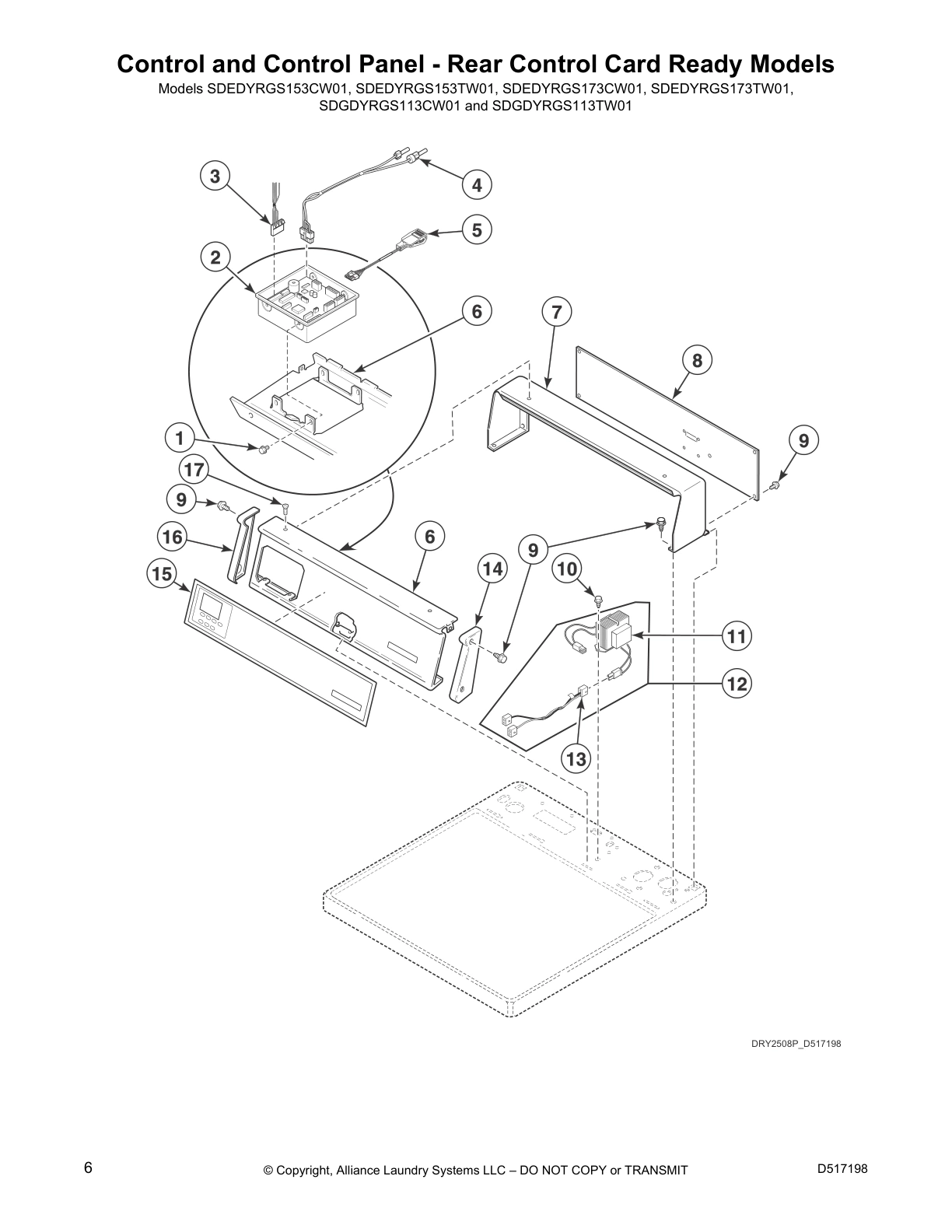

Control and Control Panel - Rear Control Card Ready Models
Meter Case - Rear Control Coin Drop Models
Non-Electronic Coin Drop
Electronic Coin Drop
Control Panel and Controls - 10 Degree Front Control Models
Control Cabinet - Front Control Coin Drop Models
Control Cabinet Controls - Front Control Card Ready Models
Cabinet Top - 10 Degree Front Control Models
Control Panel and Controls - 45 Degree Front Control Models
Loading Door
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt
Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Starting Serial No. 1908000001
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base
Power Cord
Terminal Block and Terminals (Drawing 1 of 2)
Terminal Block and Terminals (Drawing 2 of 2)
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires (Drawing 1 of 2)
Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Speed Queen SDGDXAGS113CW01 Dryer
× ![]()
