Model Speed Queen SDGBXAGS543DW01 Dryer – Common Parts & Diagrams

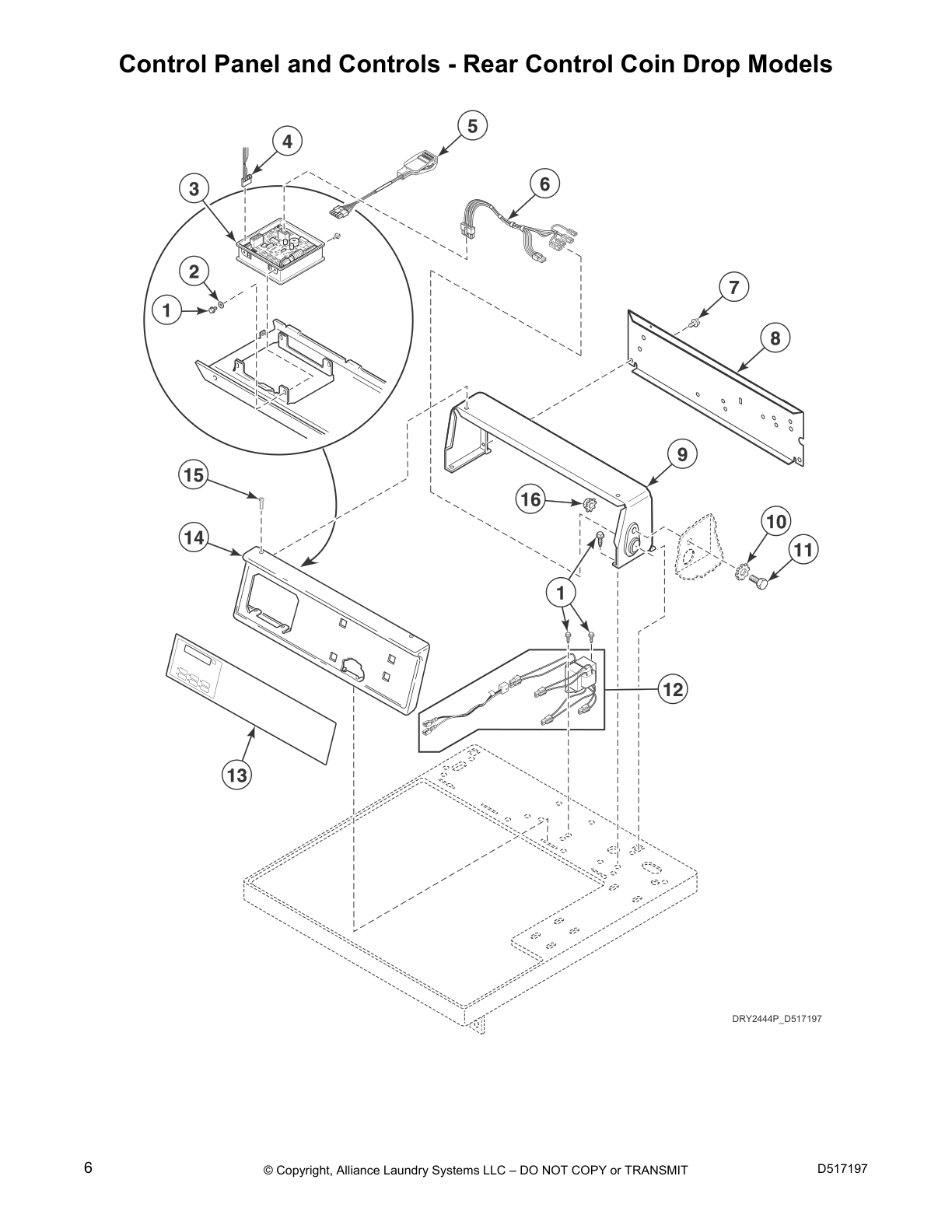

Control Panel and Controls - Rear Control Coin Drop Models

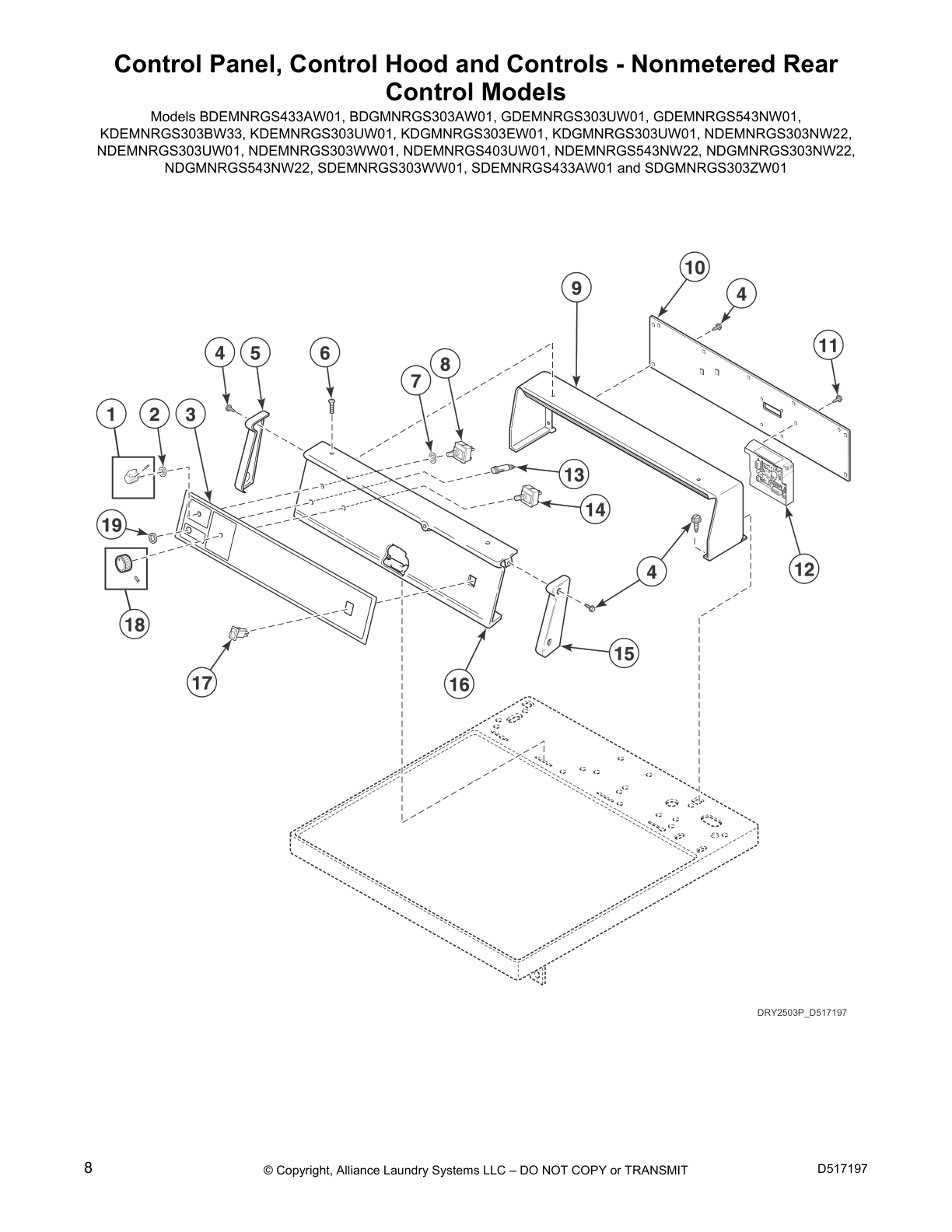

Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models
Control Panel and Control Hood - Coin Slide Rear Control Models
Meter Case - Rear Control Coin Drop Models

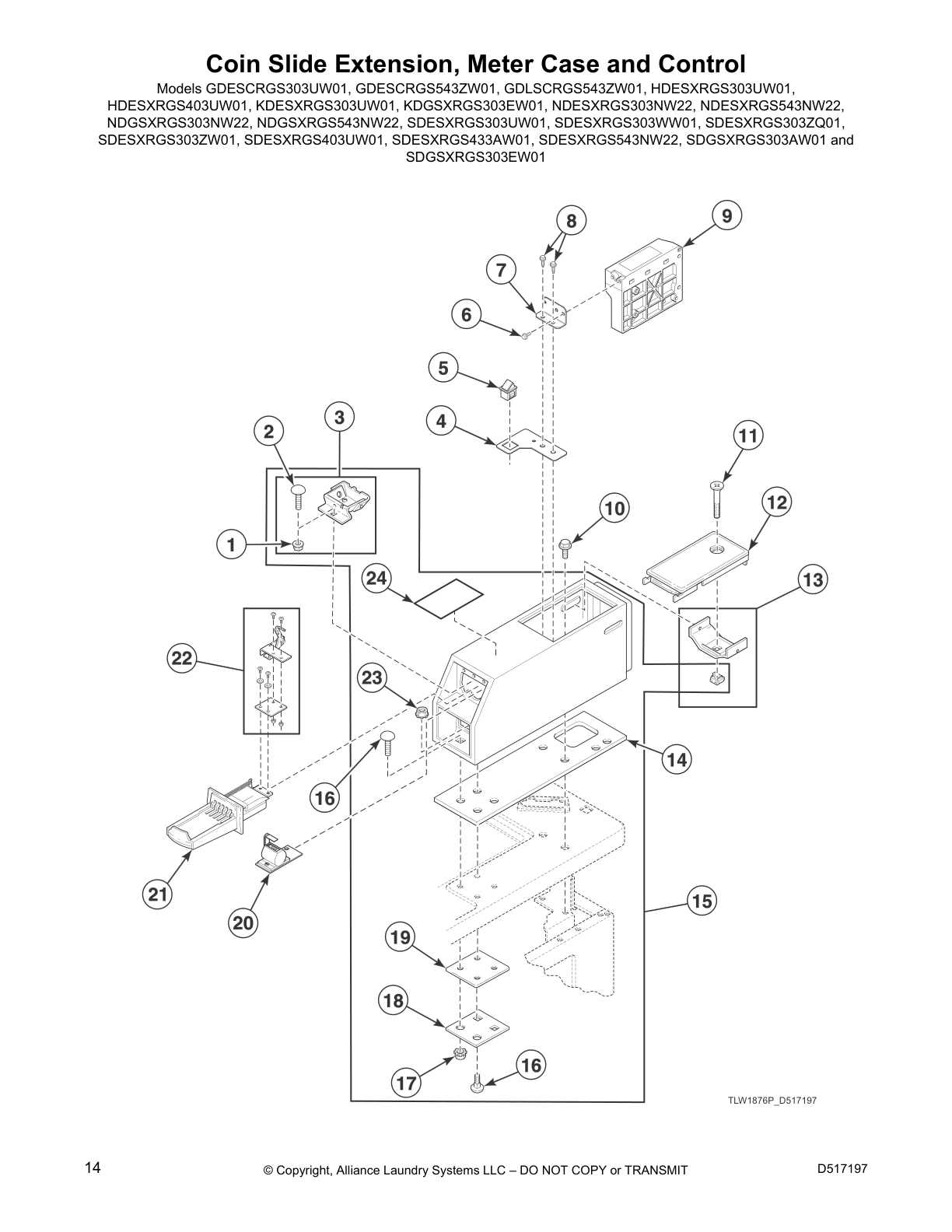

Coin Slide Extension, Meter Case and Control
Non-Electronic Coin Drop
Electronic Coin Drop

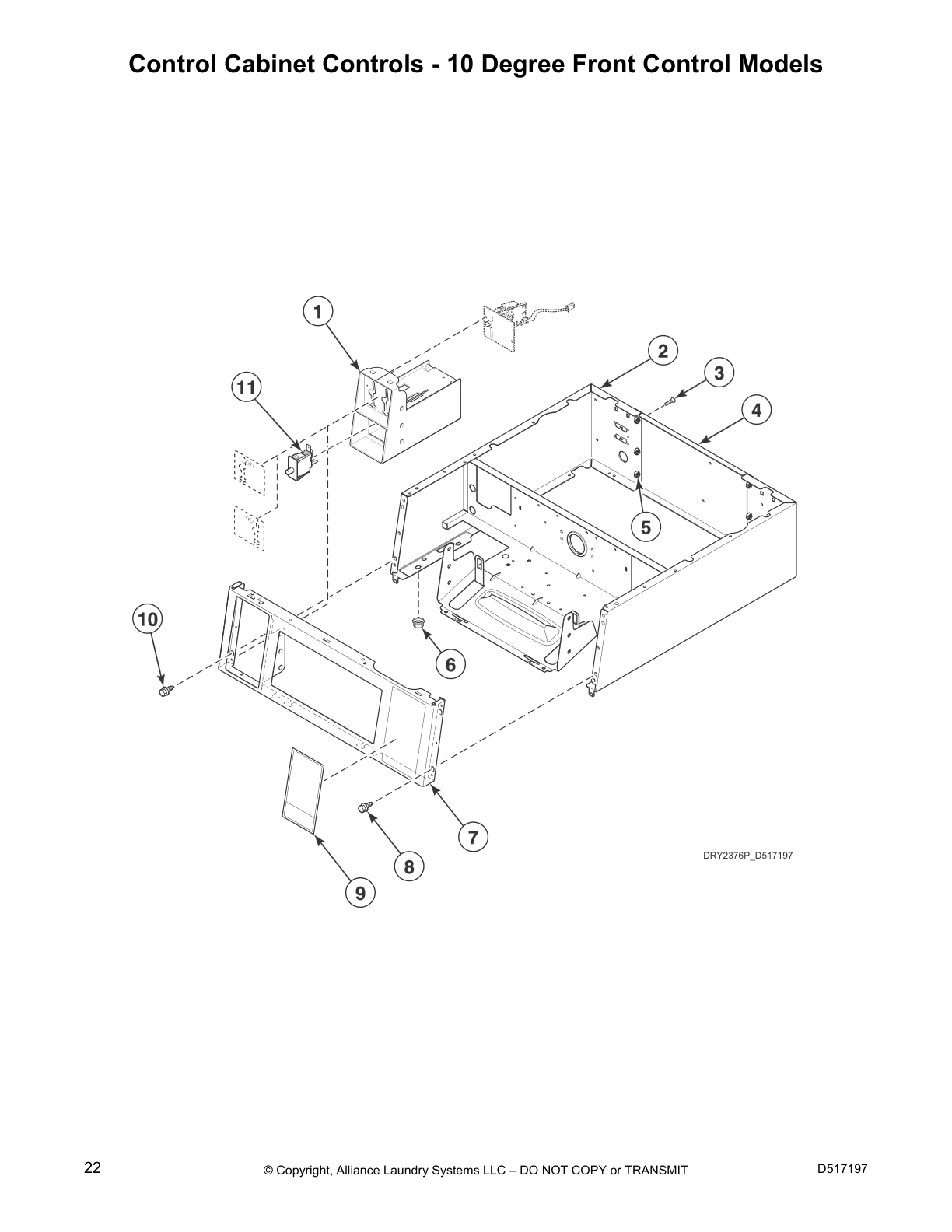

Control Cabinet Controls - 10 Degree Front Control Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

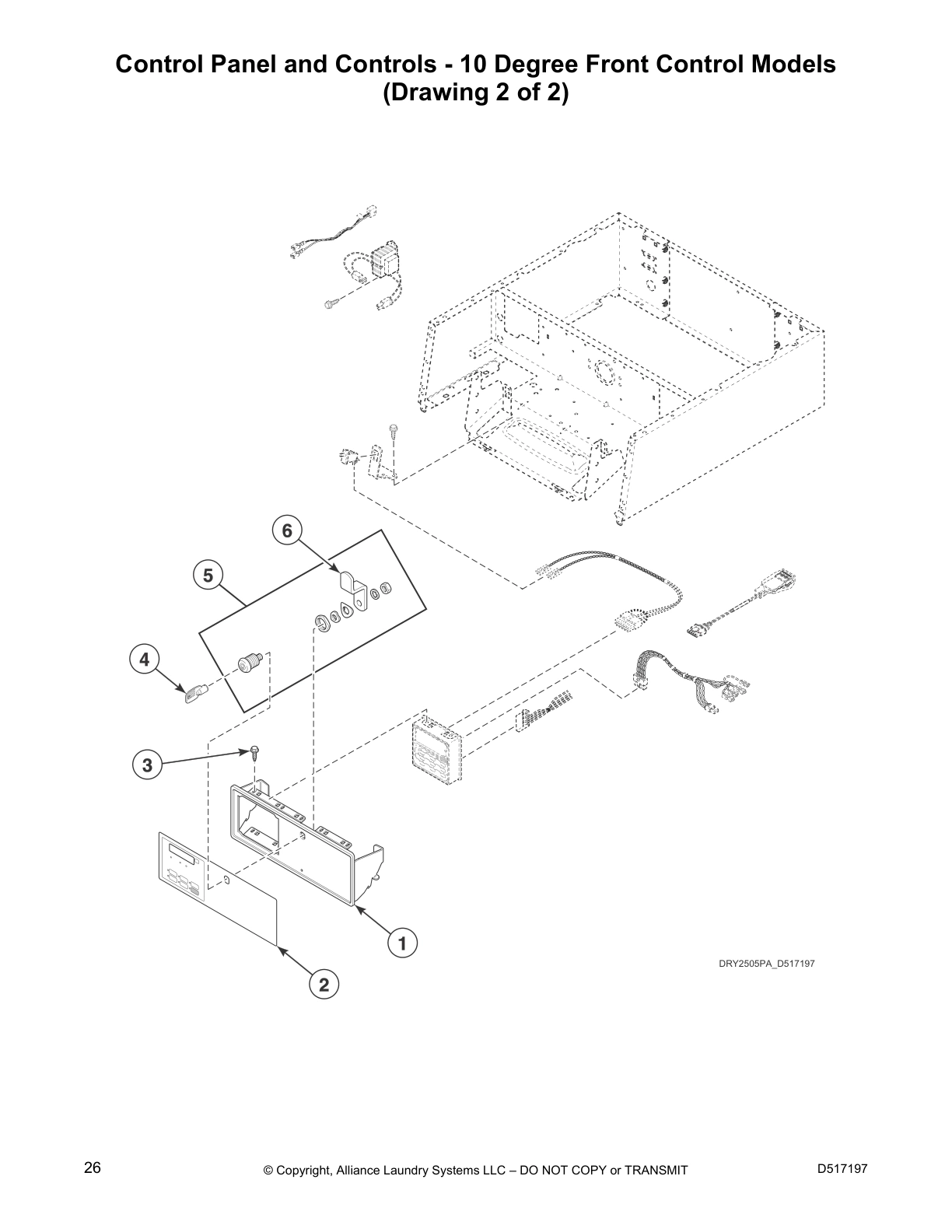

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

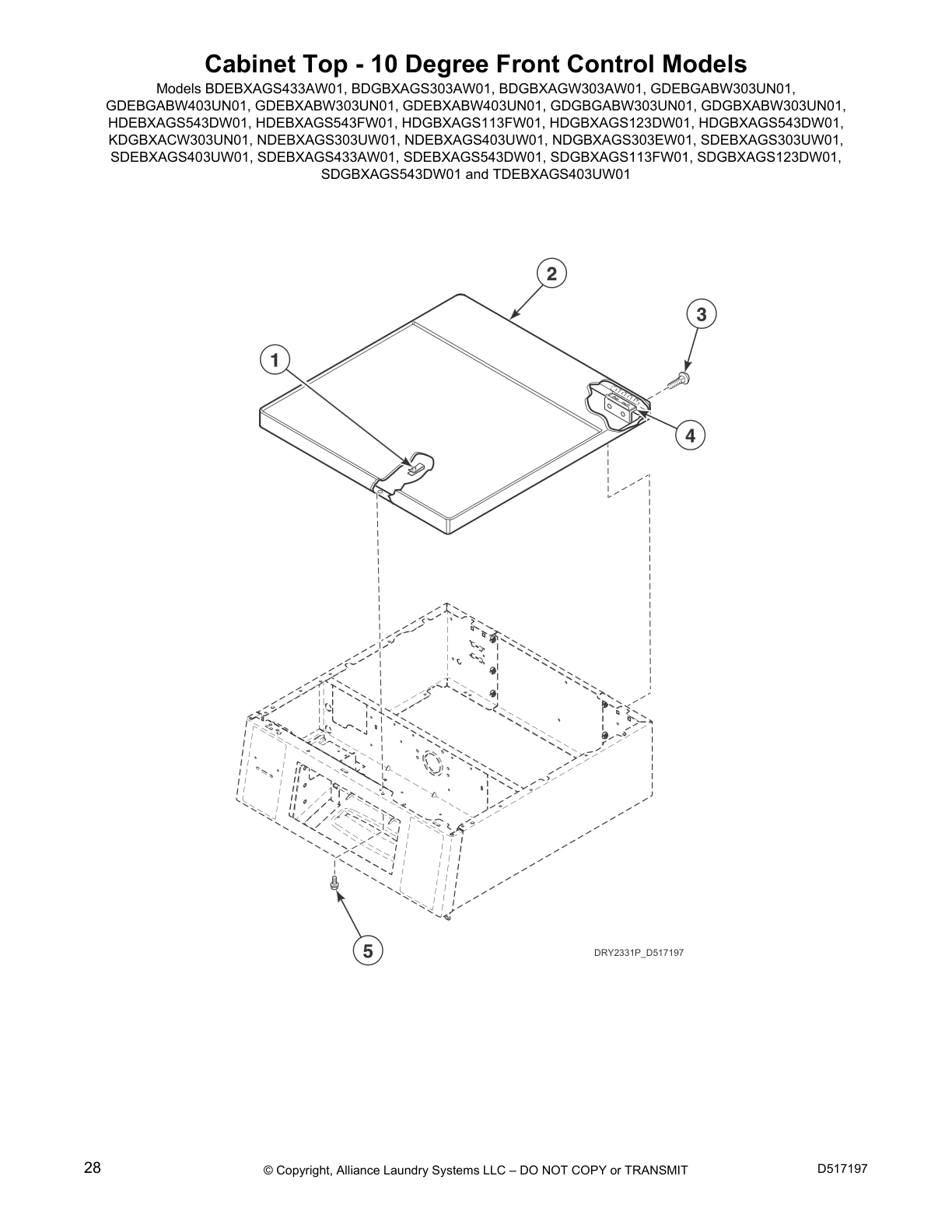

Cabinet Top - 10 Degree Front Control Models
Control Panel and Controls - 45 Degree Front Control Models
Loading Door Without Window
Loading Door With Window
Loading Door With Window

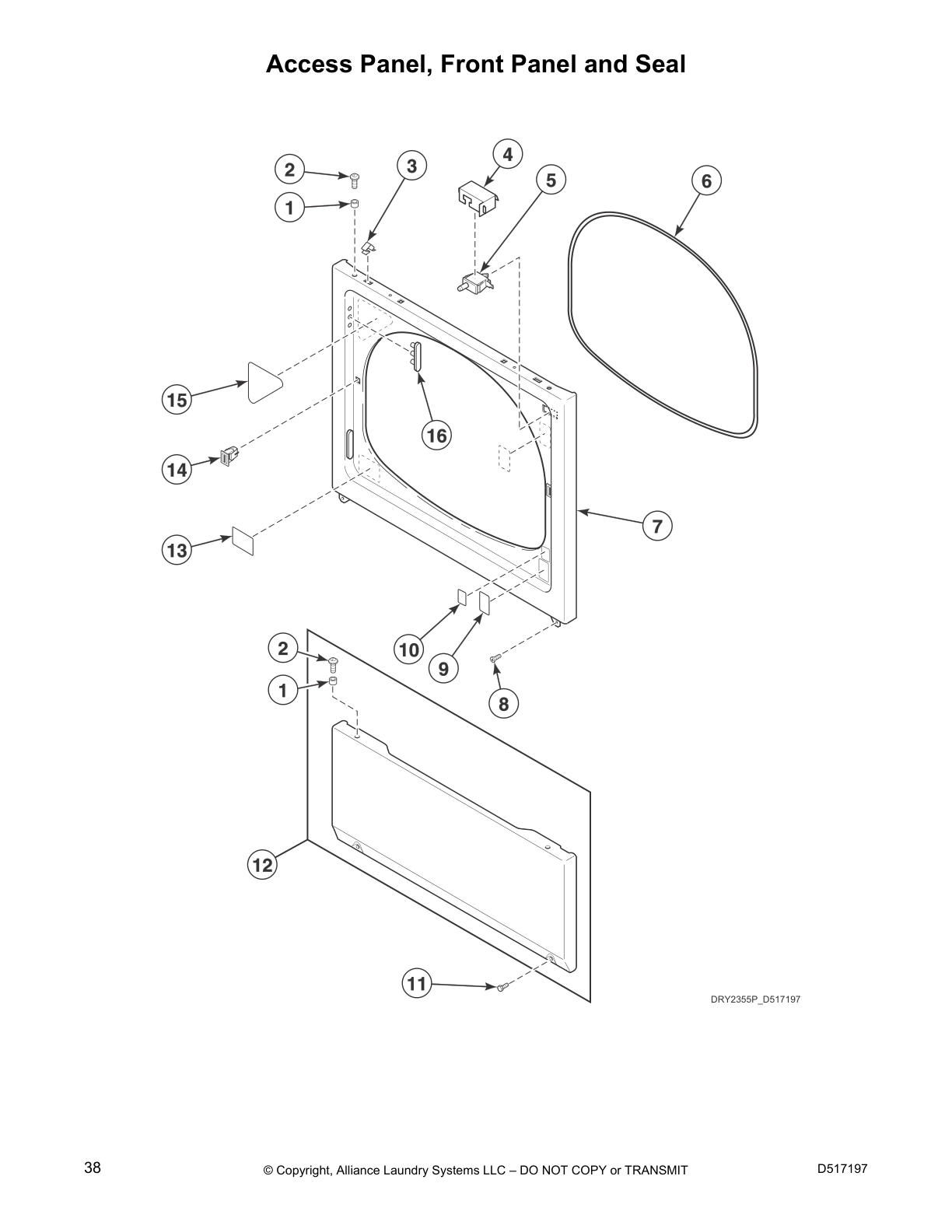

Access Panel, Front Panel and Seal
Motor and Belt

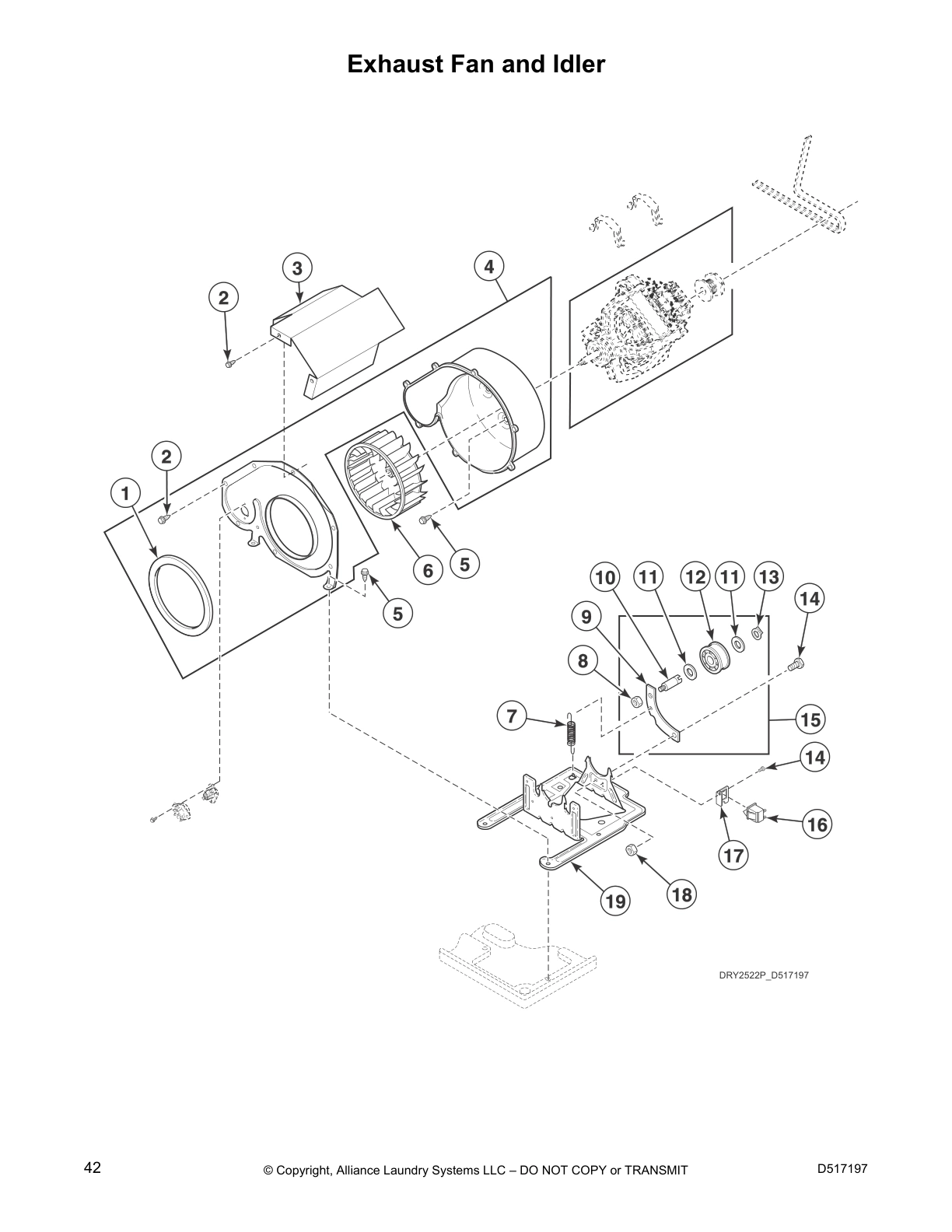

Exhaust Fan and Idler
Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)

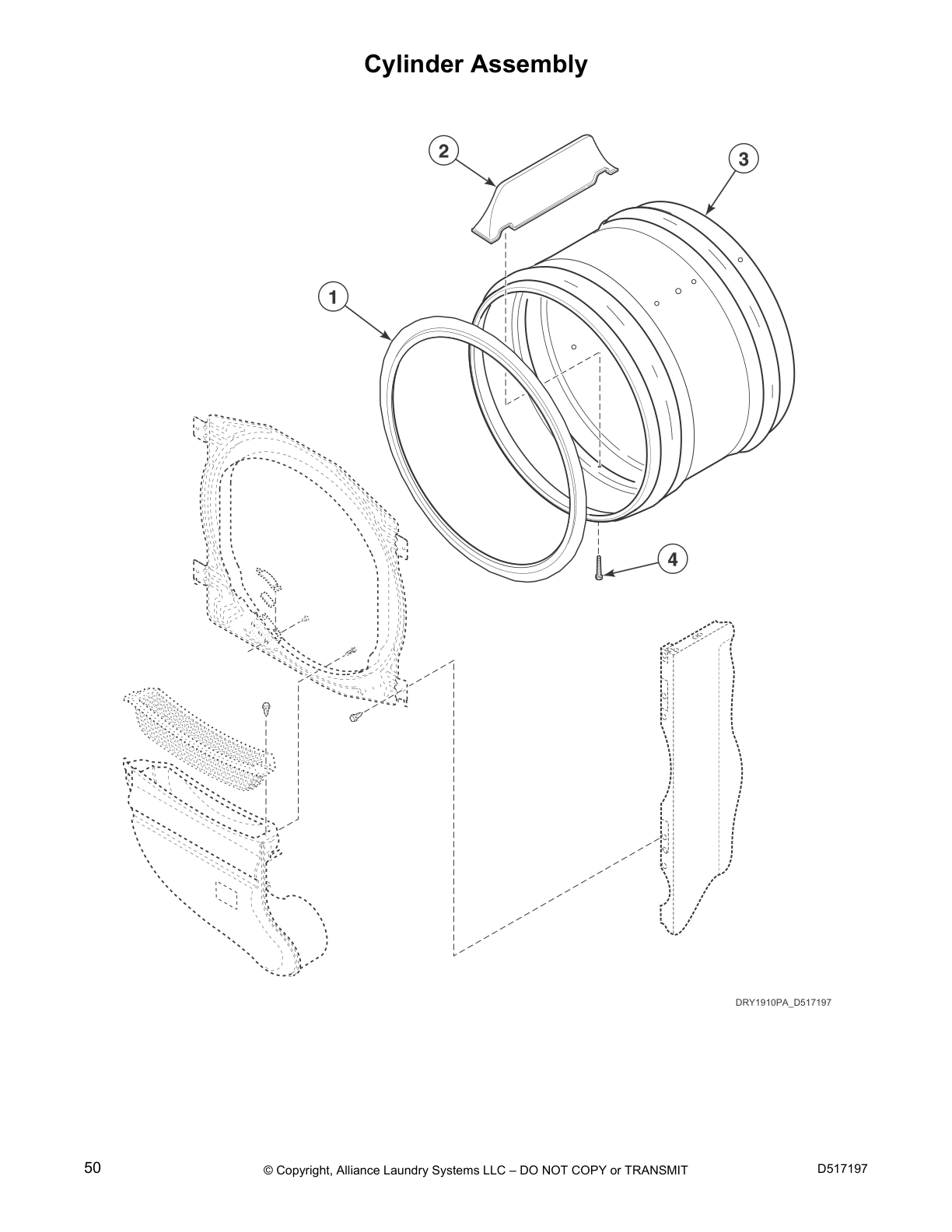

Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

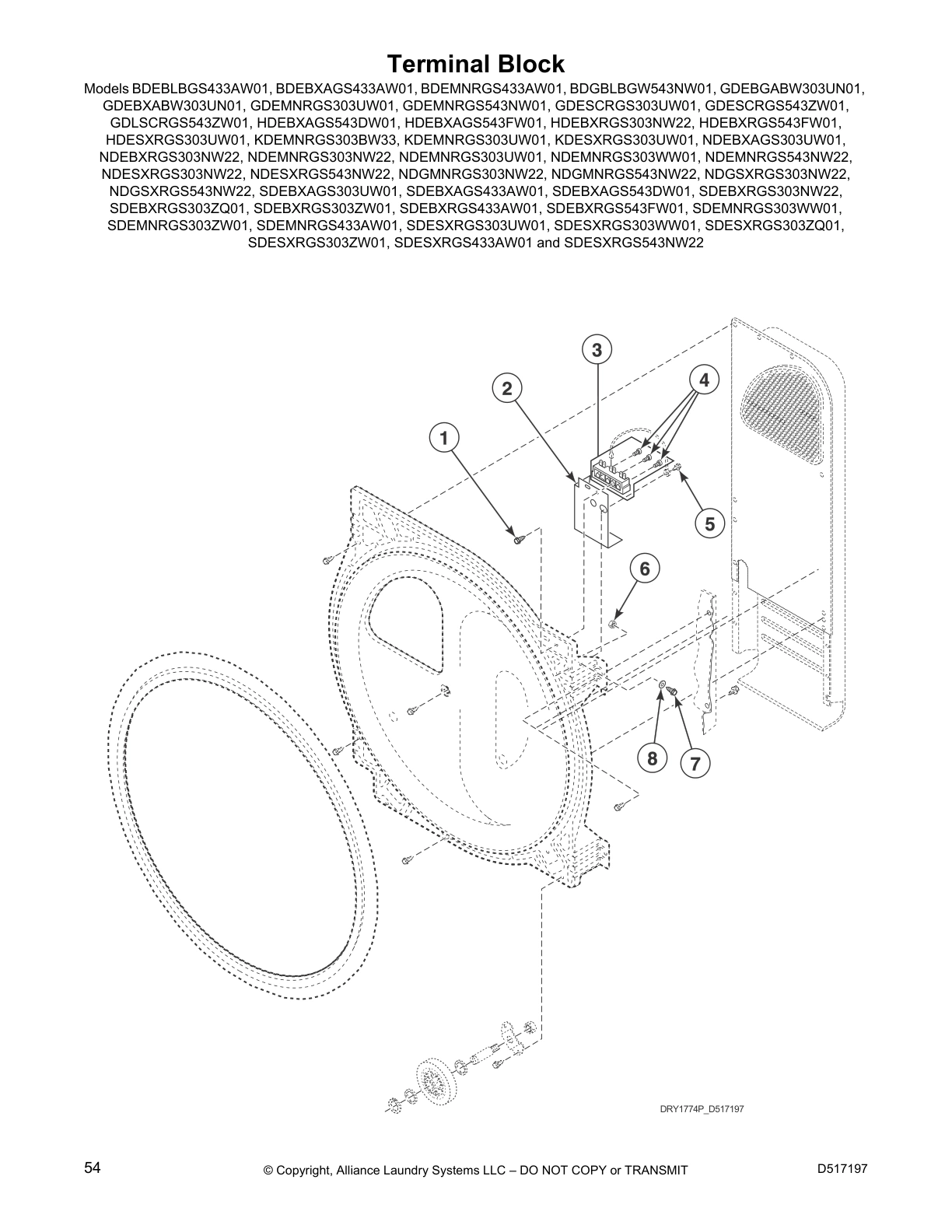

Terminal Block

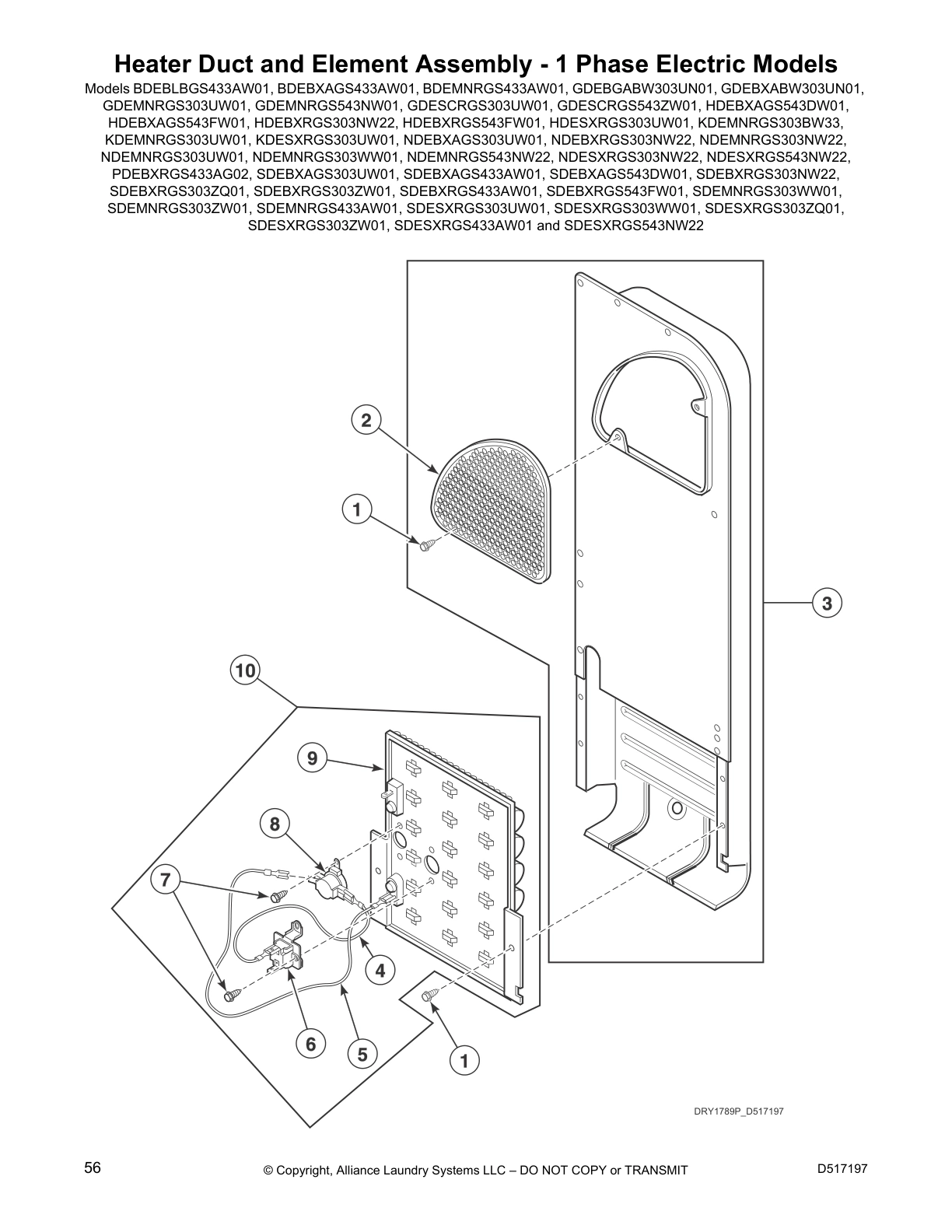

Heater Duct and Element Assembly - 1 Phase Electric Models

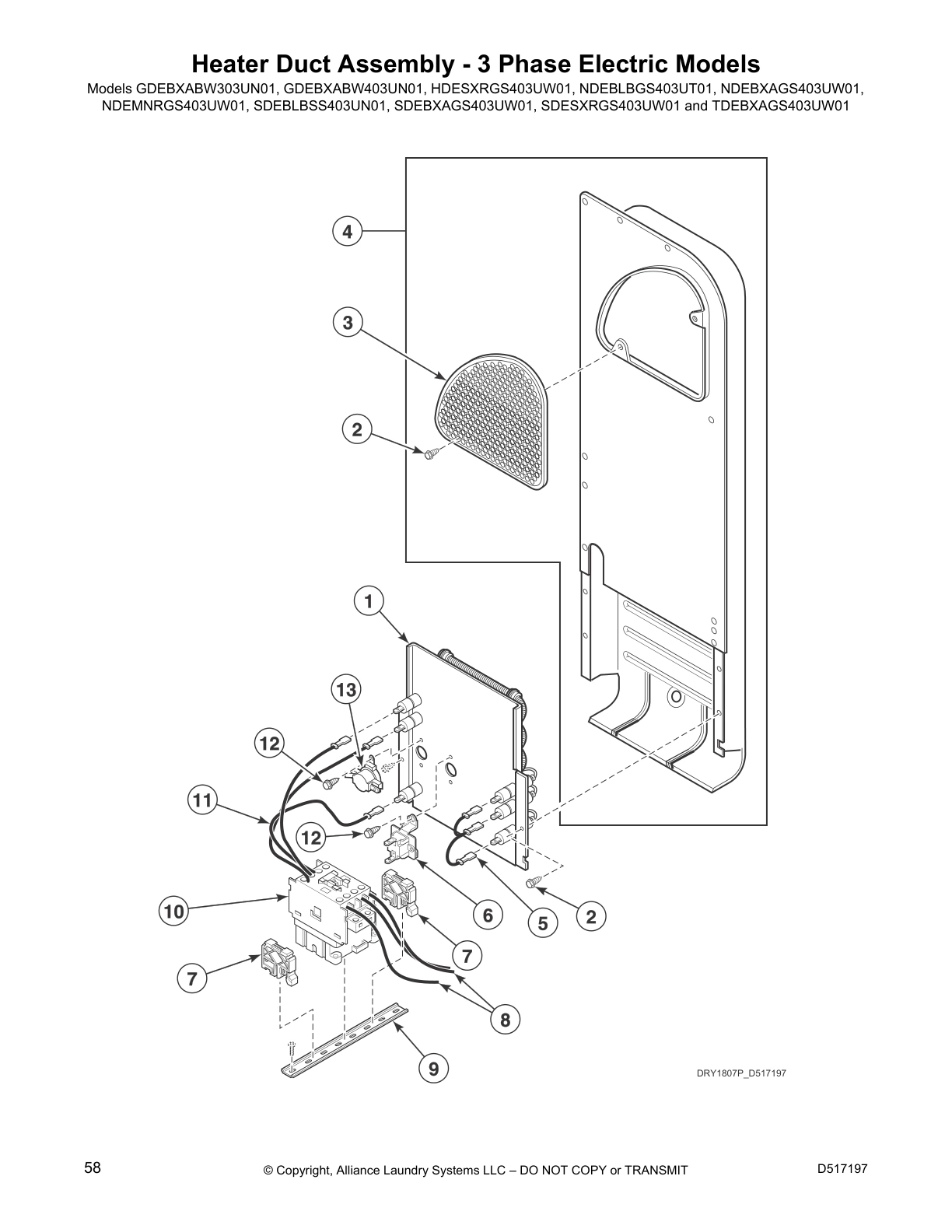

Heater Duct Assembly - 3 Phase Electric Models
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits

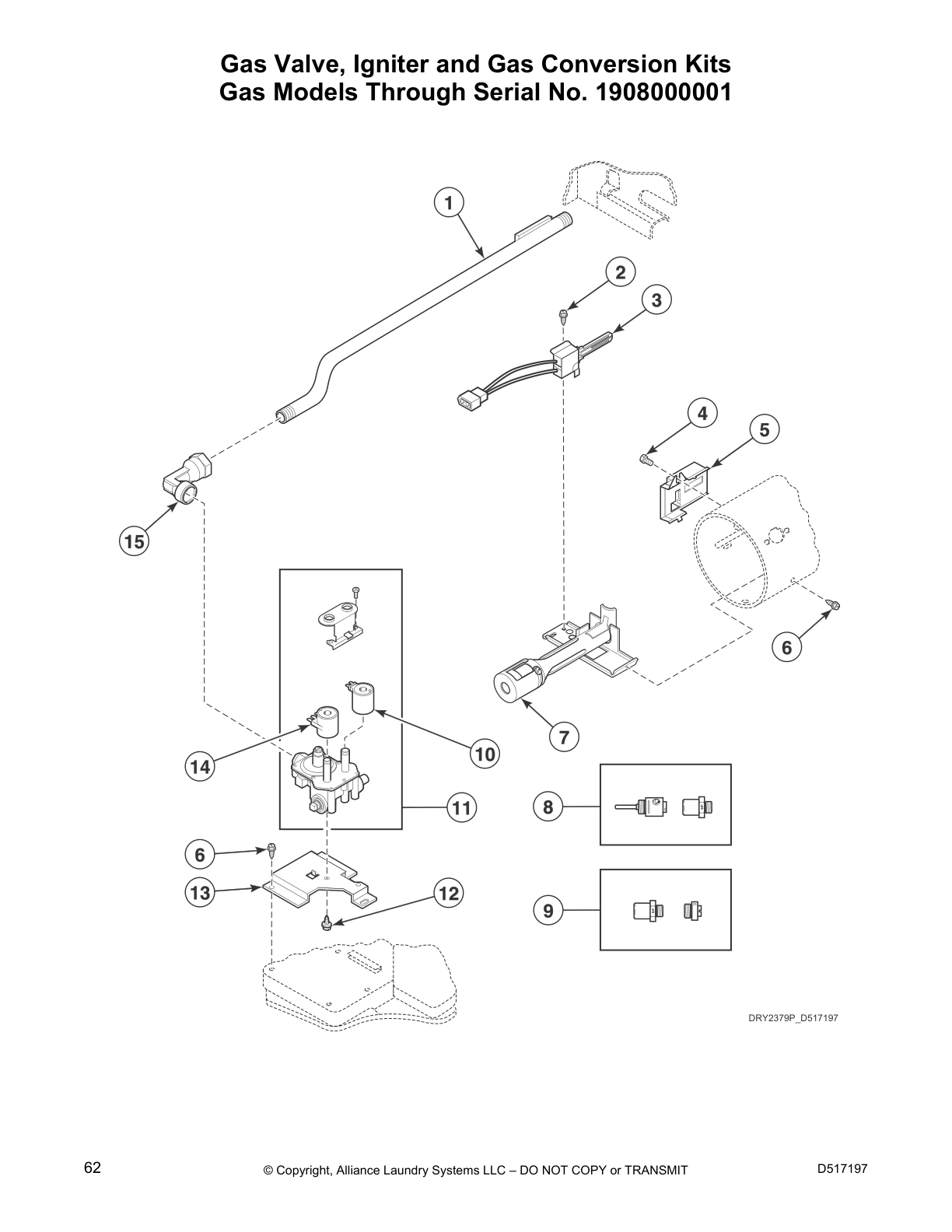

Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits

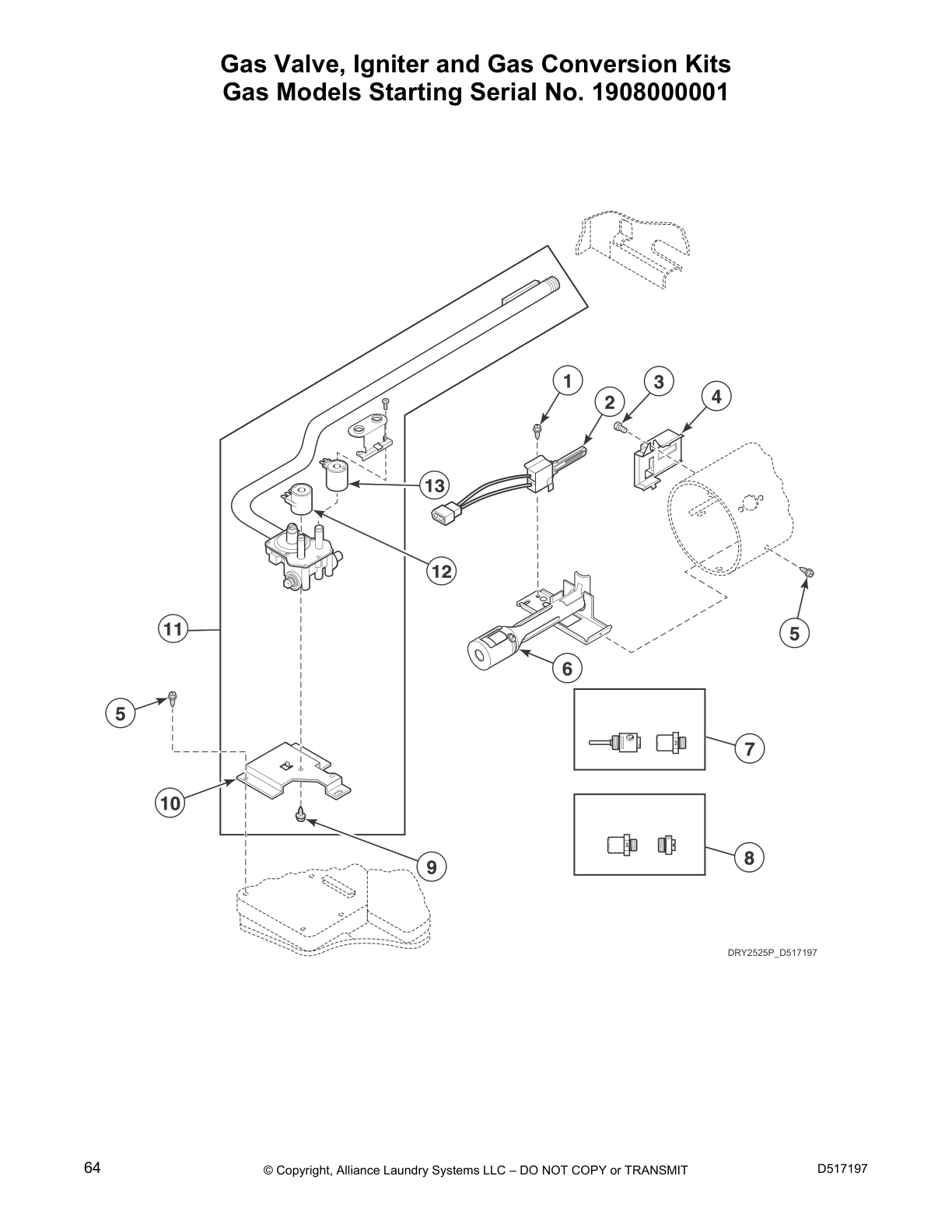

Gas Models Starting Serial No. 1908000001

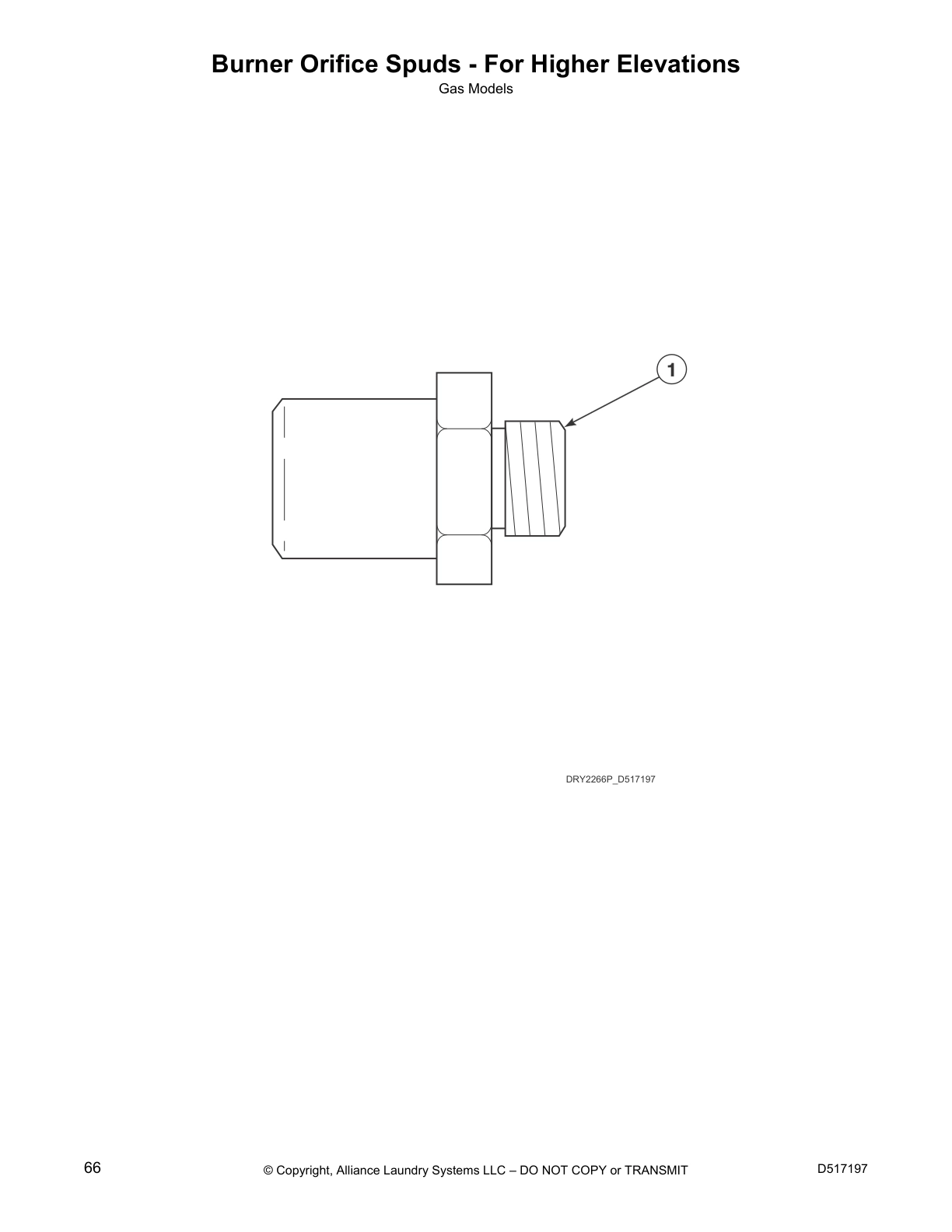

Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base

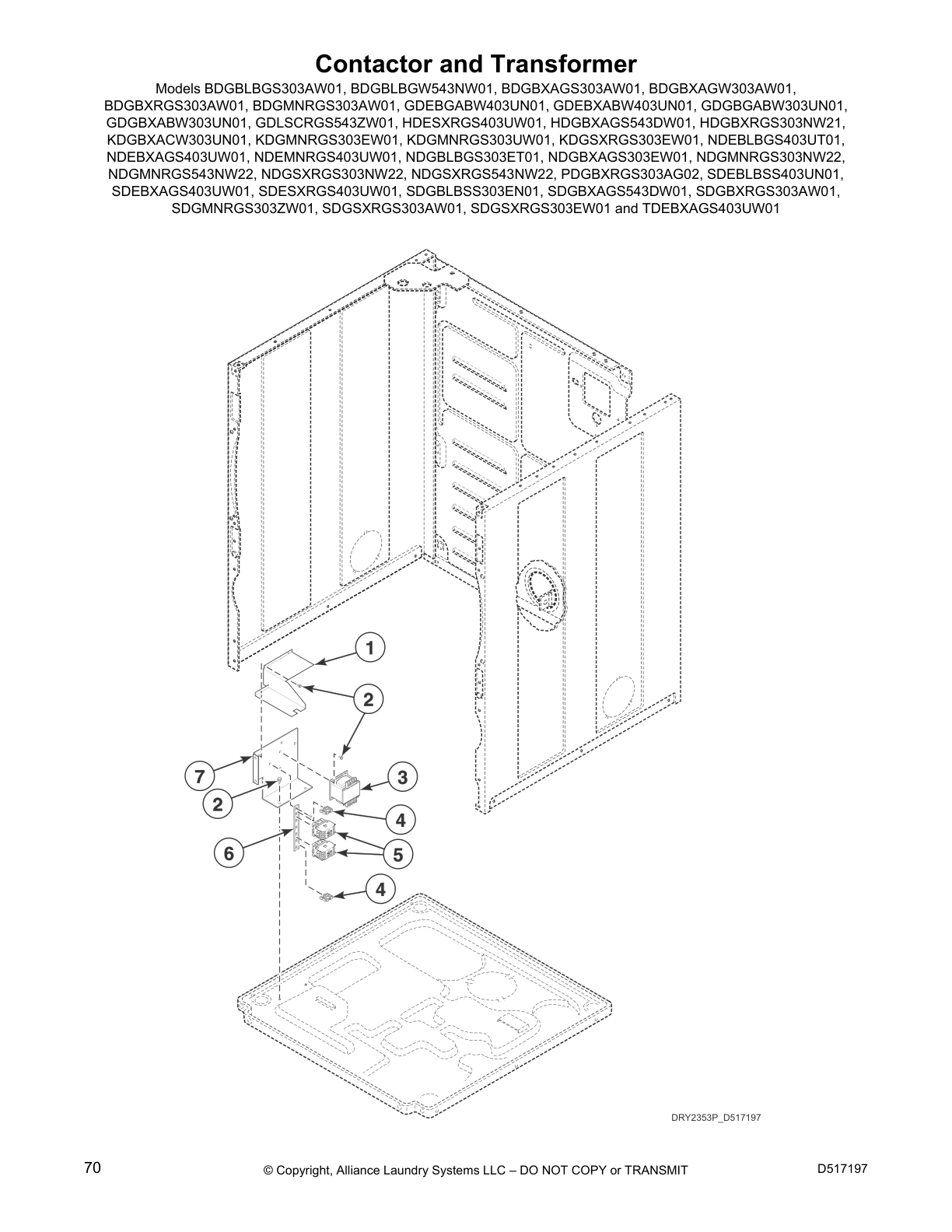

Contactor and Transformer
Power Cord

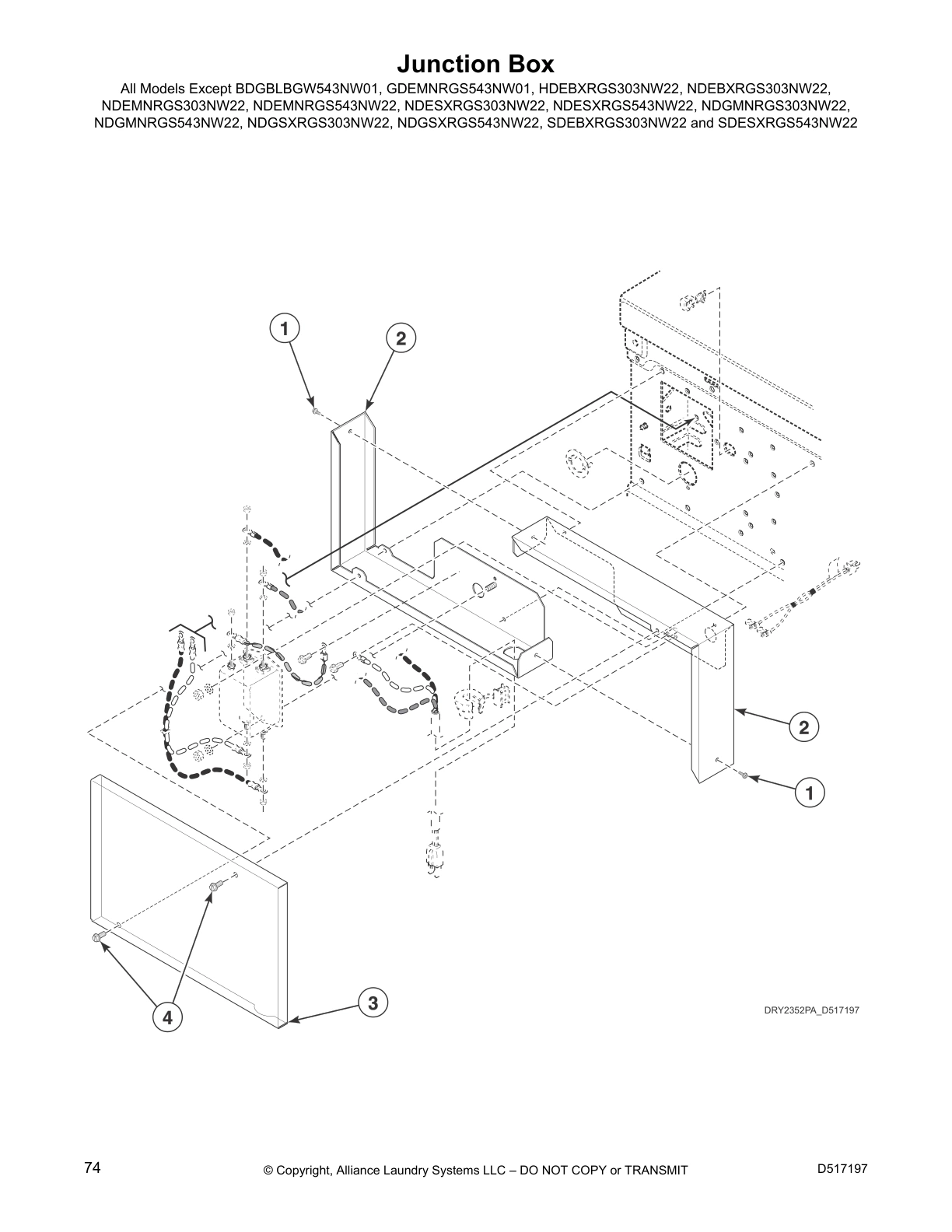

Junction Box

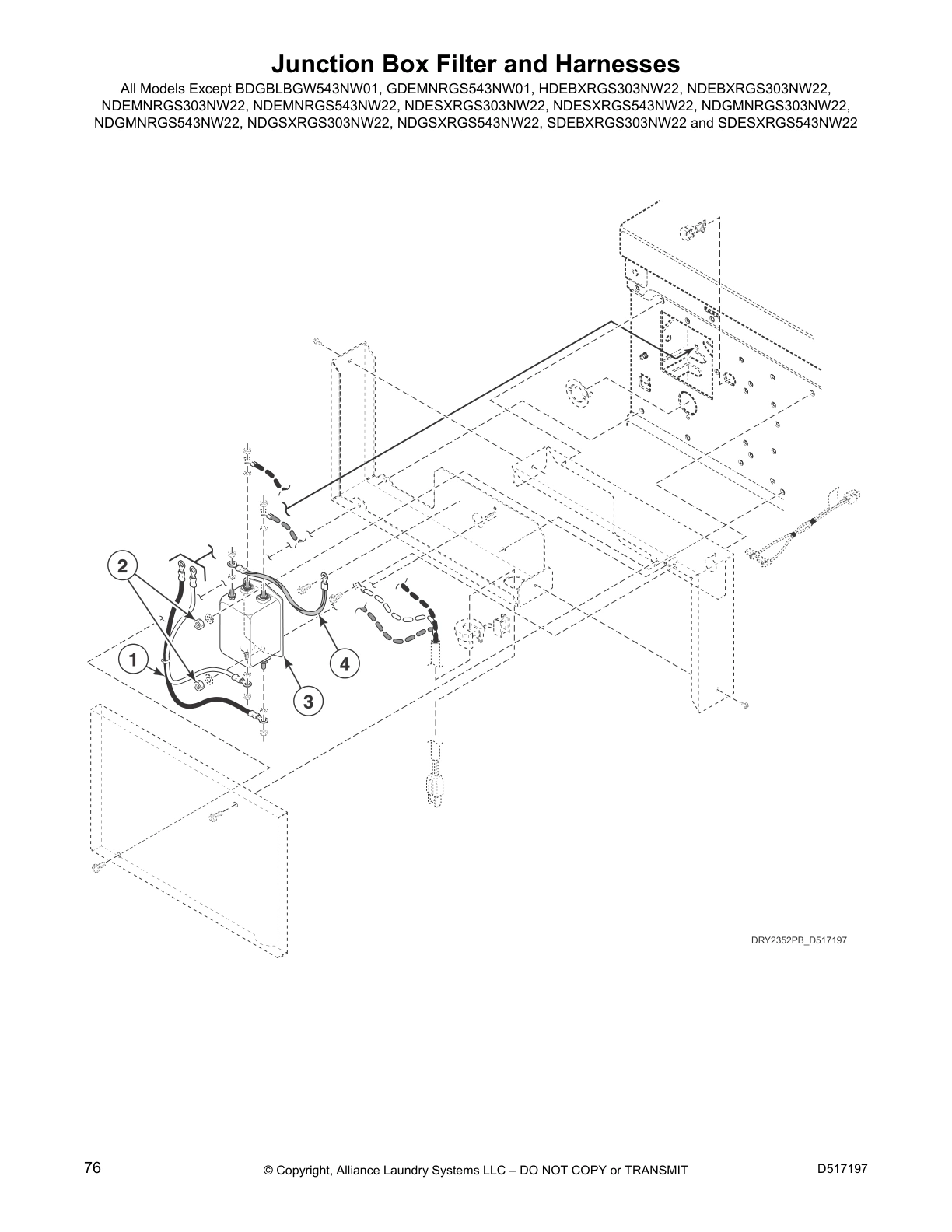

Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

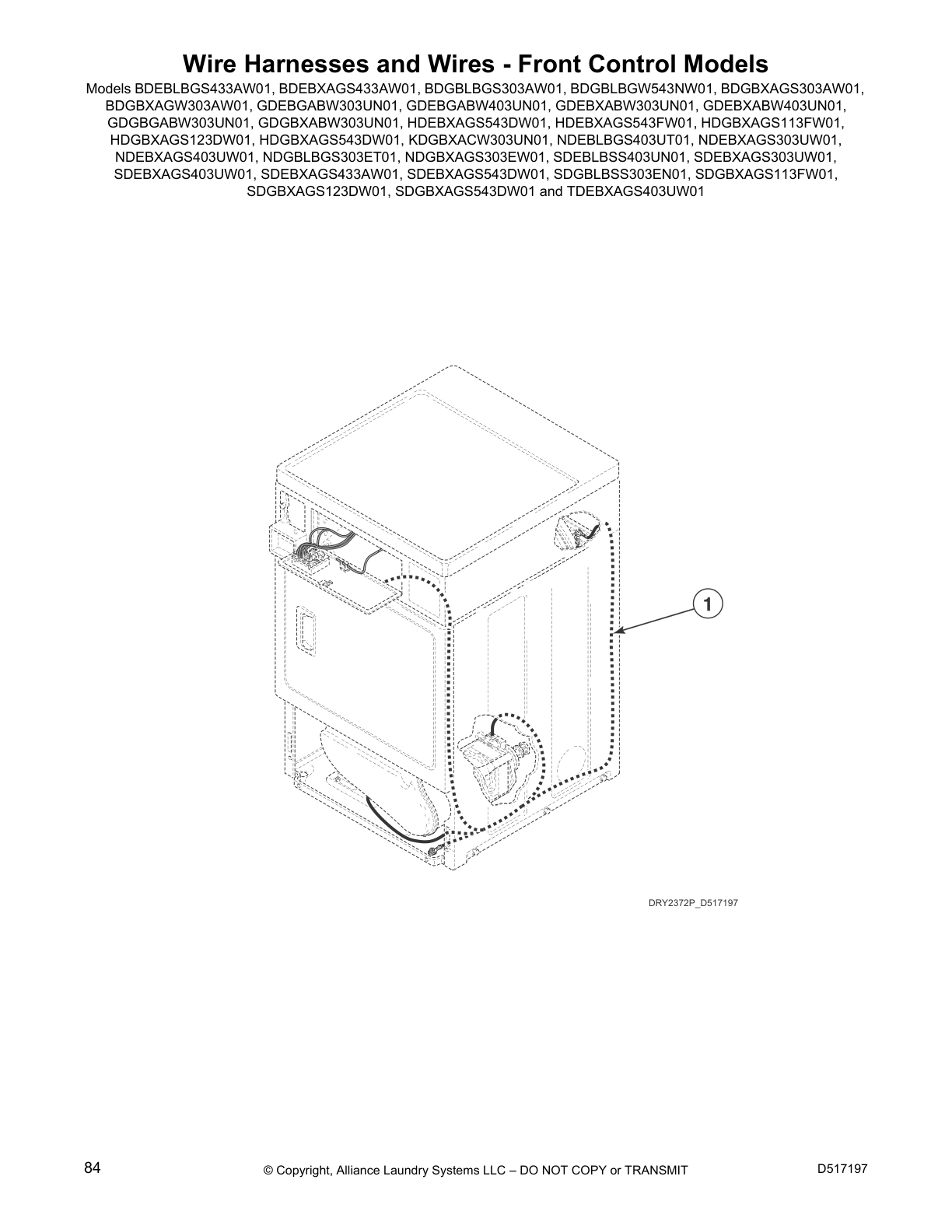

Wire Harnesses and Wires - Front Control Models

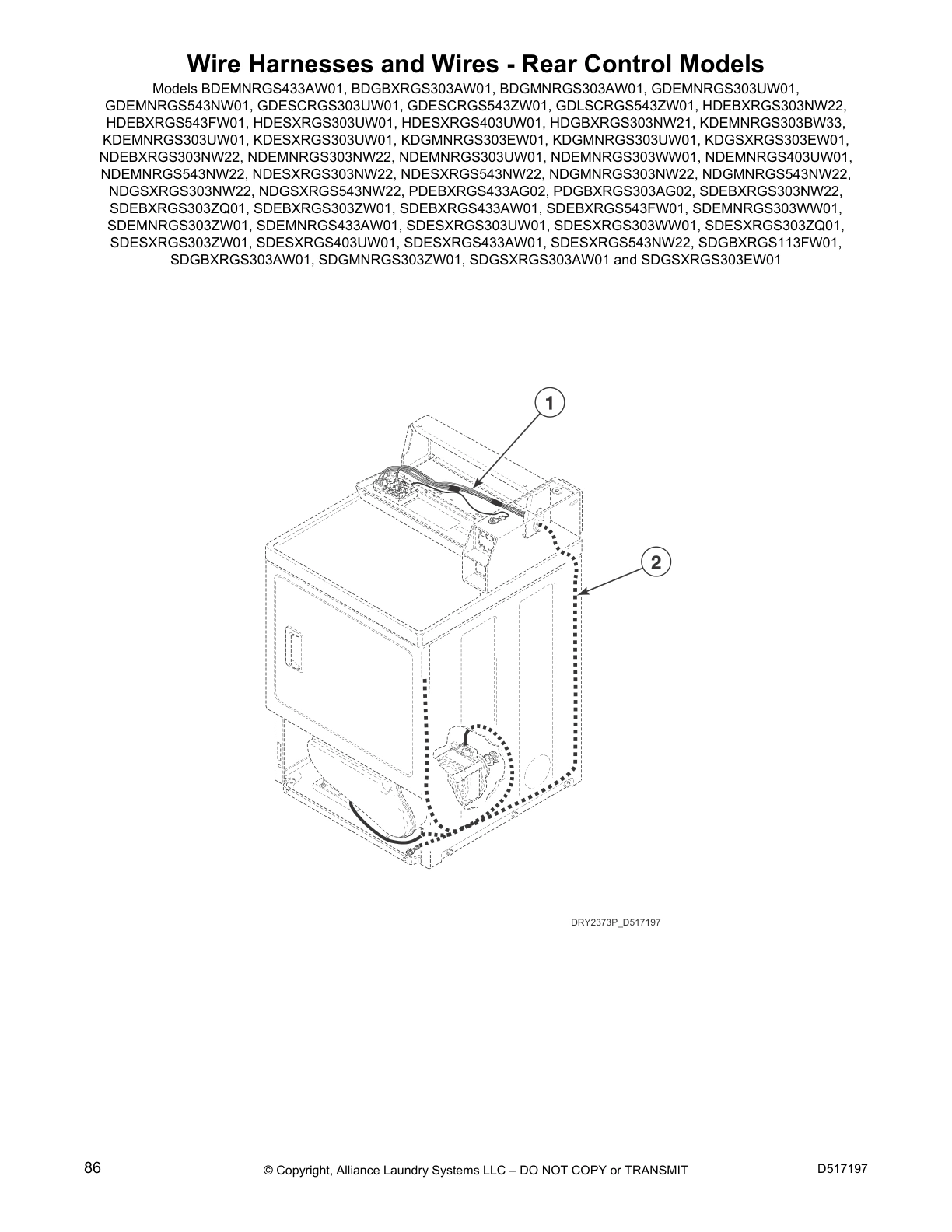

Wire Harnesses and Wires - Rear Control Models

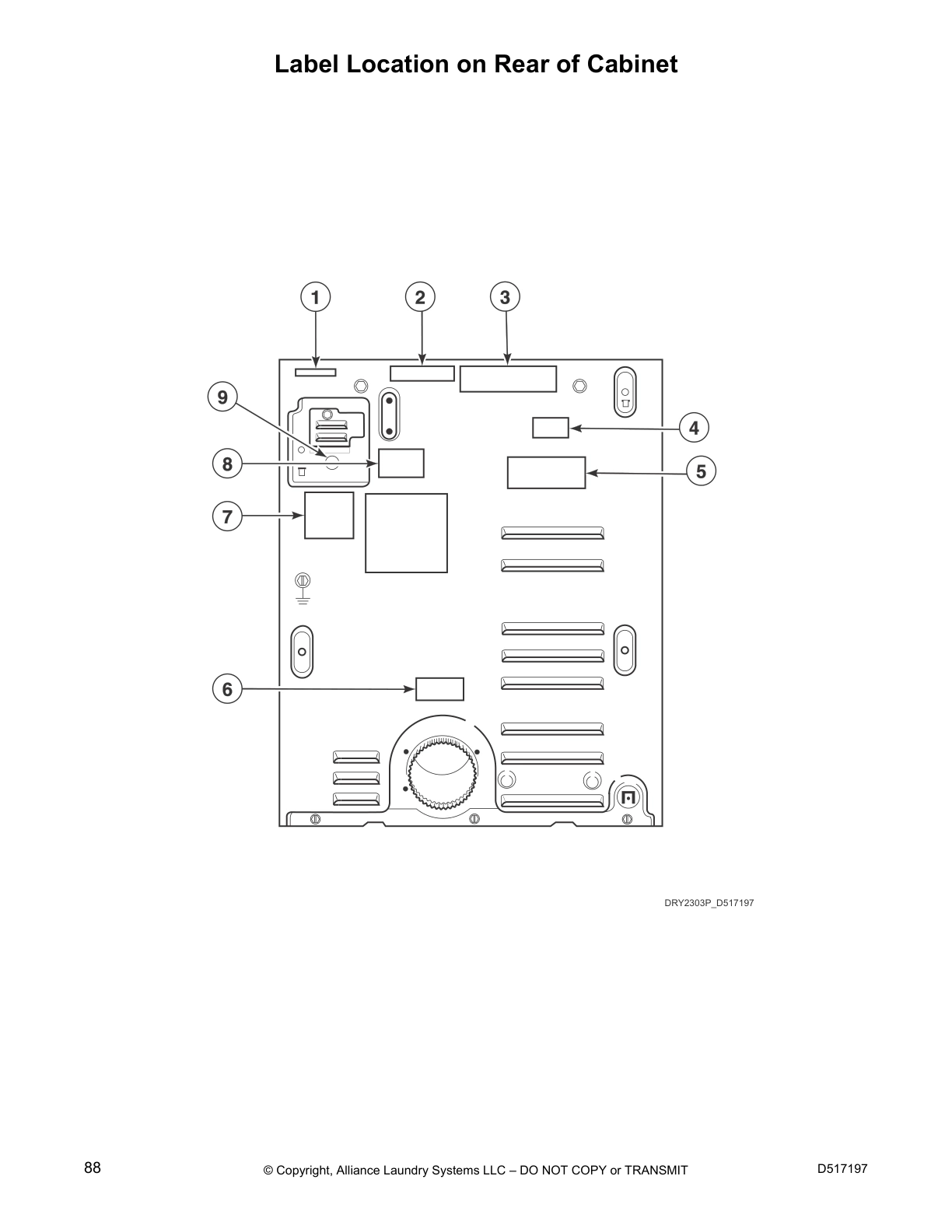

Label Location on Rear of Cabinet
Common parts from model Speed Queen SDGBXAGS543DW01 Dryer
× ![]()
