Model Speed Queen SDGBXAGS113TW01 Dryer – Common Parts & Diagrams

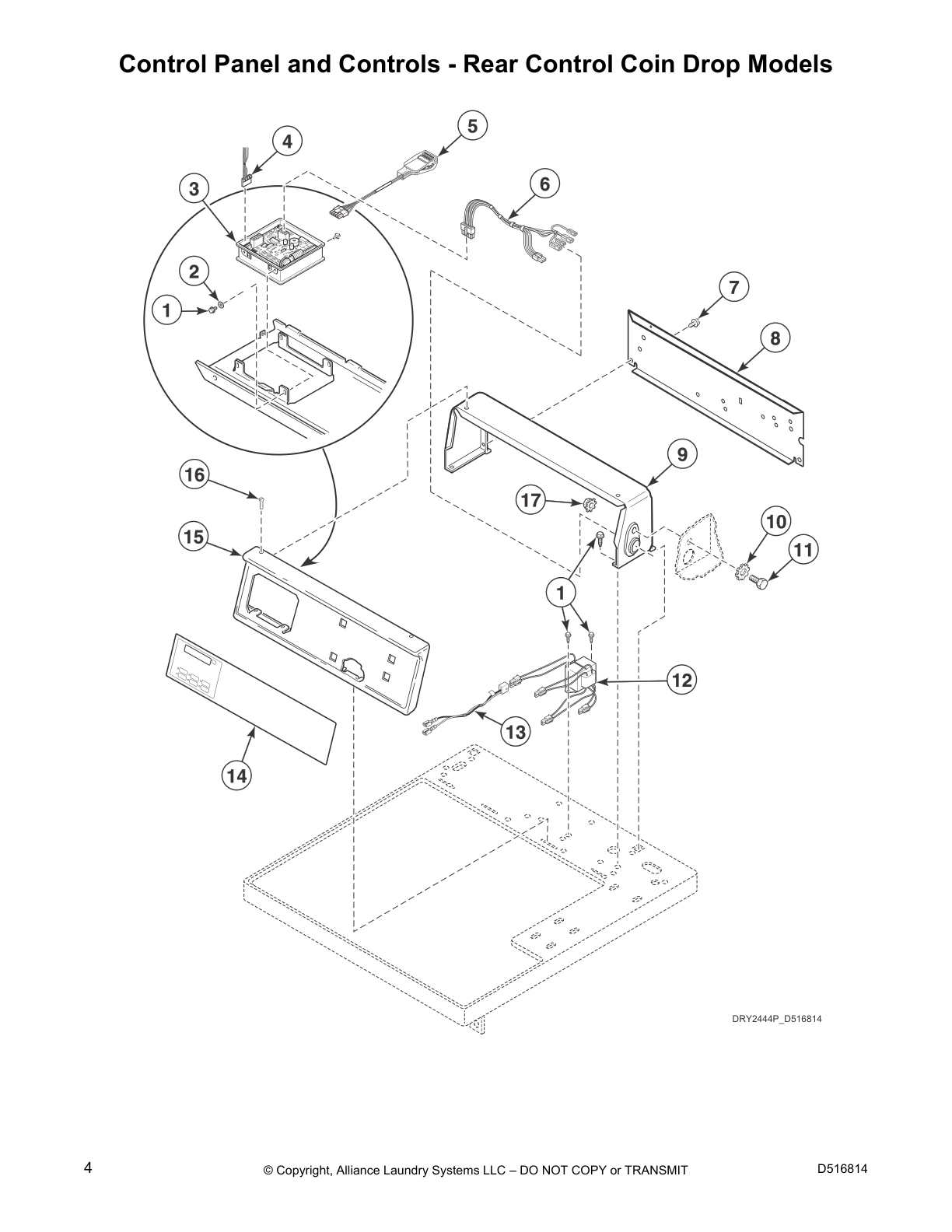

Control Panel and Controls - Rear Control Coin Drop Models

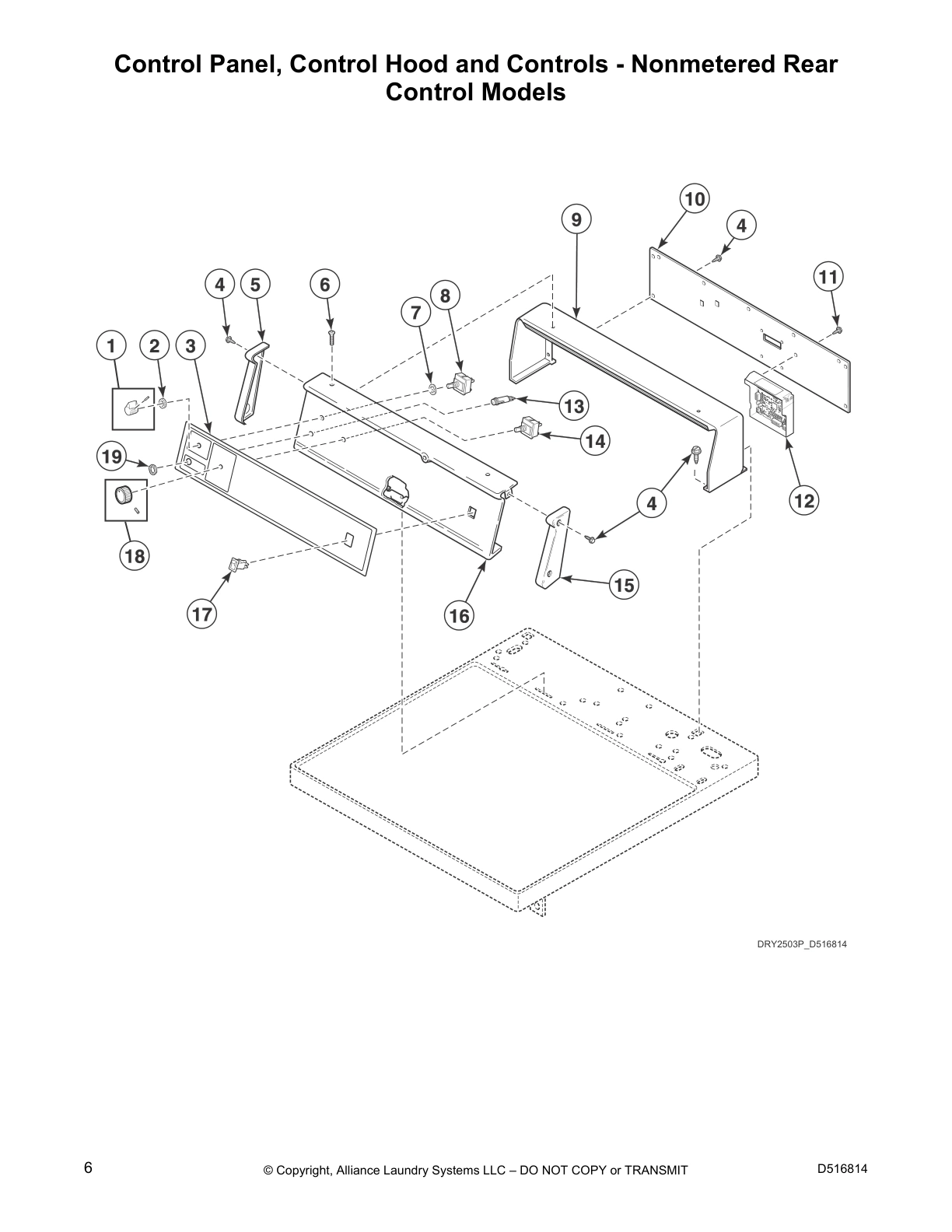

Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models
Control Panel and Controls - Rear Control Card Models
Control Panel and Control Hood - Coin Slide Rear Control Models
Meter Case - Rear Control Coin Drop Models
Coin Slide Extension, Meter Case and Control
Non-Electronic Coin Drop
Electronic Coin Drop
Control Cabinet Controls - 10 Degree Front Control Coin Models
Control Cabinet Controls -
10 Degree Front Control Card/OPL Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)
Cabinet Top - 10 Degree Front Control Models
Loading Door Without Window
Loading Door With Window
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt
Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block
Heater Duct and Element Assembly - Electric Models
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Starting Serial No. 1908000001
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base
Power Cord (Drawing 1 of 2)
Power Cord (Drawing 2 of 2)
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Rear Control Models
Common parts from model Speed Queen SDGBXAGS113TW01 Dryer
× ![]()
