Model Maytag SDE3606AYQ ELECTRIC DRYER – Common Parts & Diagrams

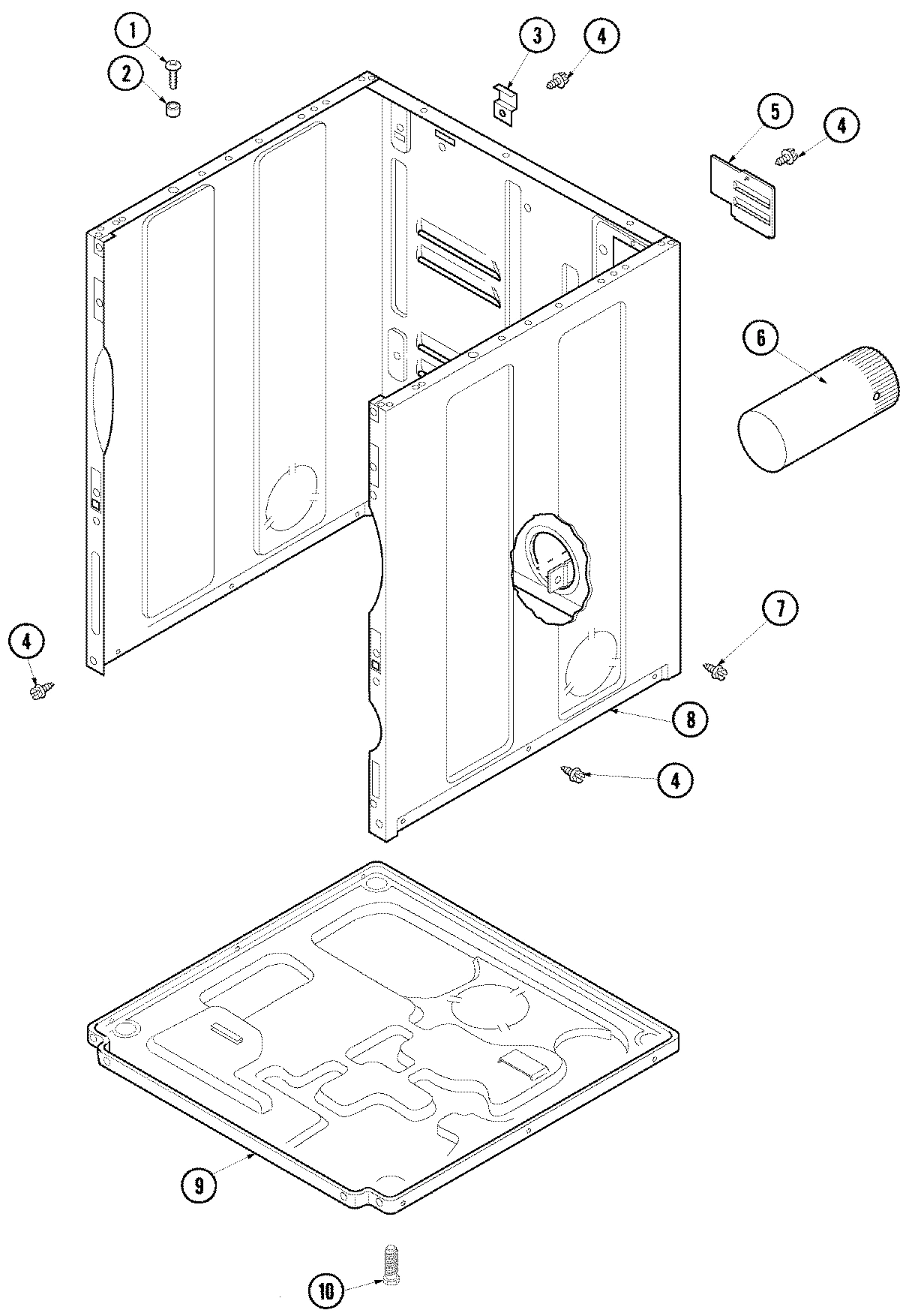

01 - CABINET & BASE

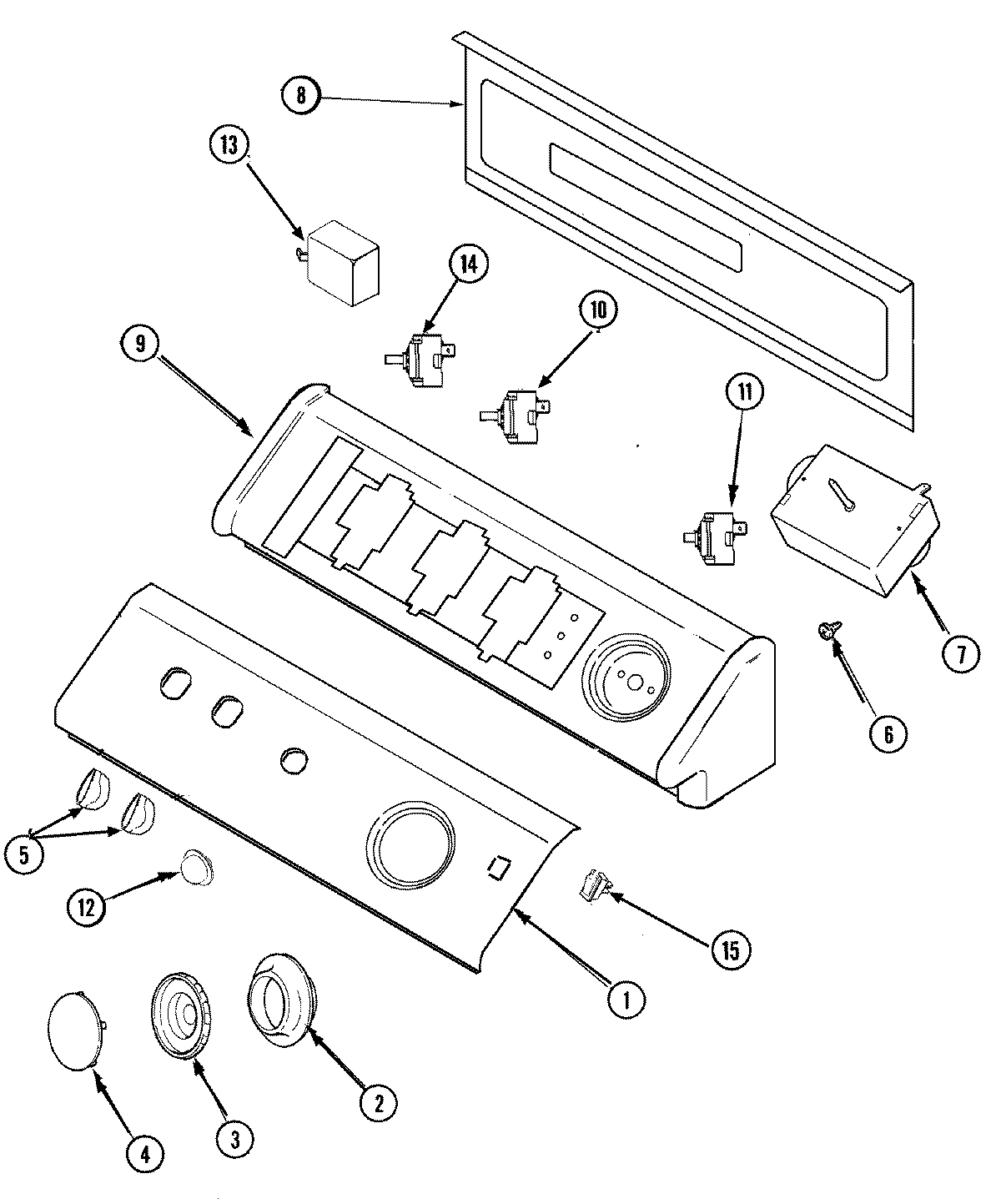

02 - CONTROL PANEL

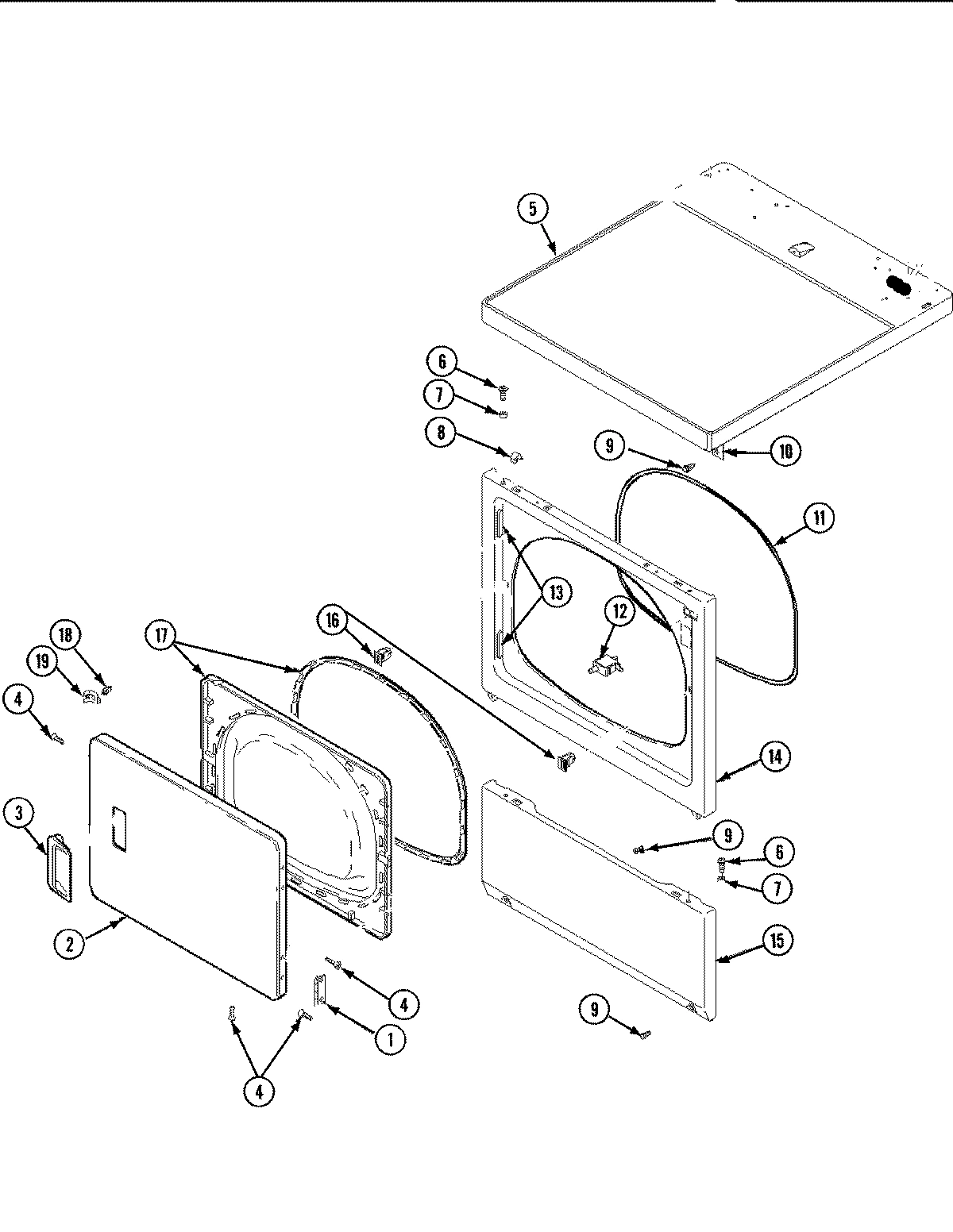

03 - DOOR, FRONT, ACCESS & TOP PANELS

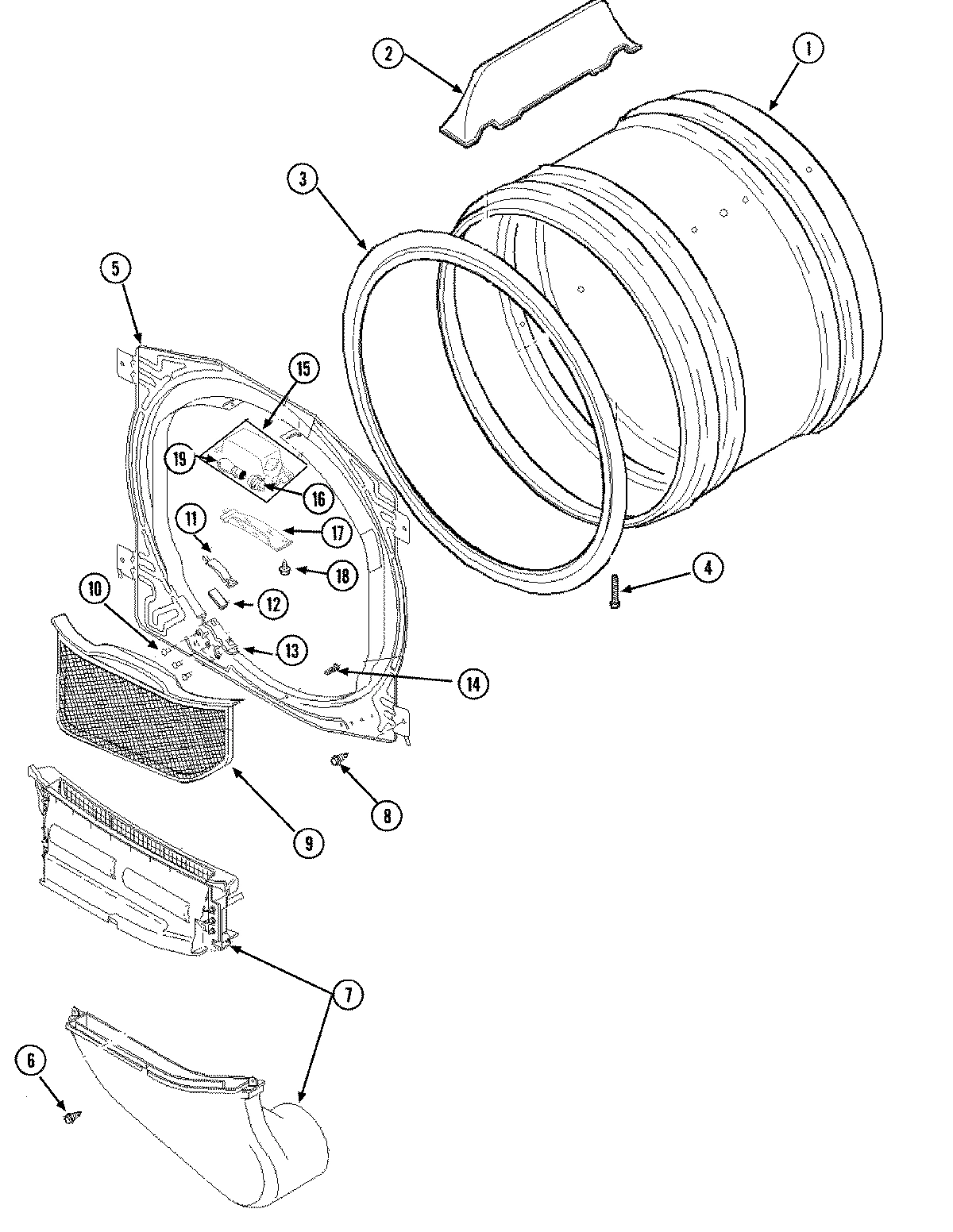

04 - FRONT BULKHEAD, AIR DUCT & CYLINDER

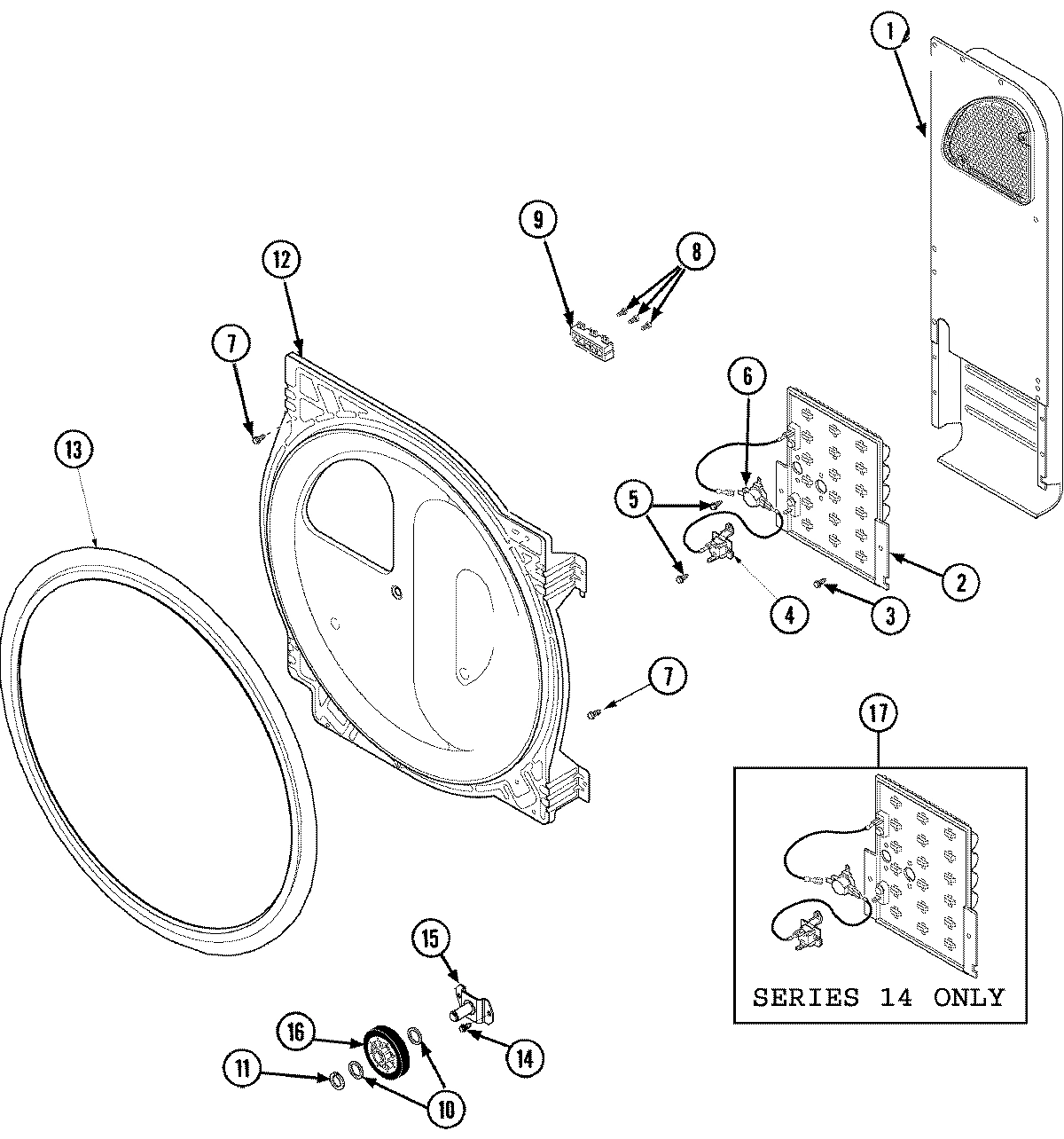

05 - REAR BLKHD, AIR DUCT, ROLLER&HTR (ELE)

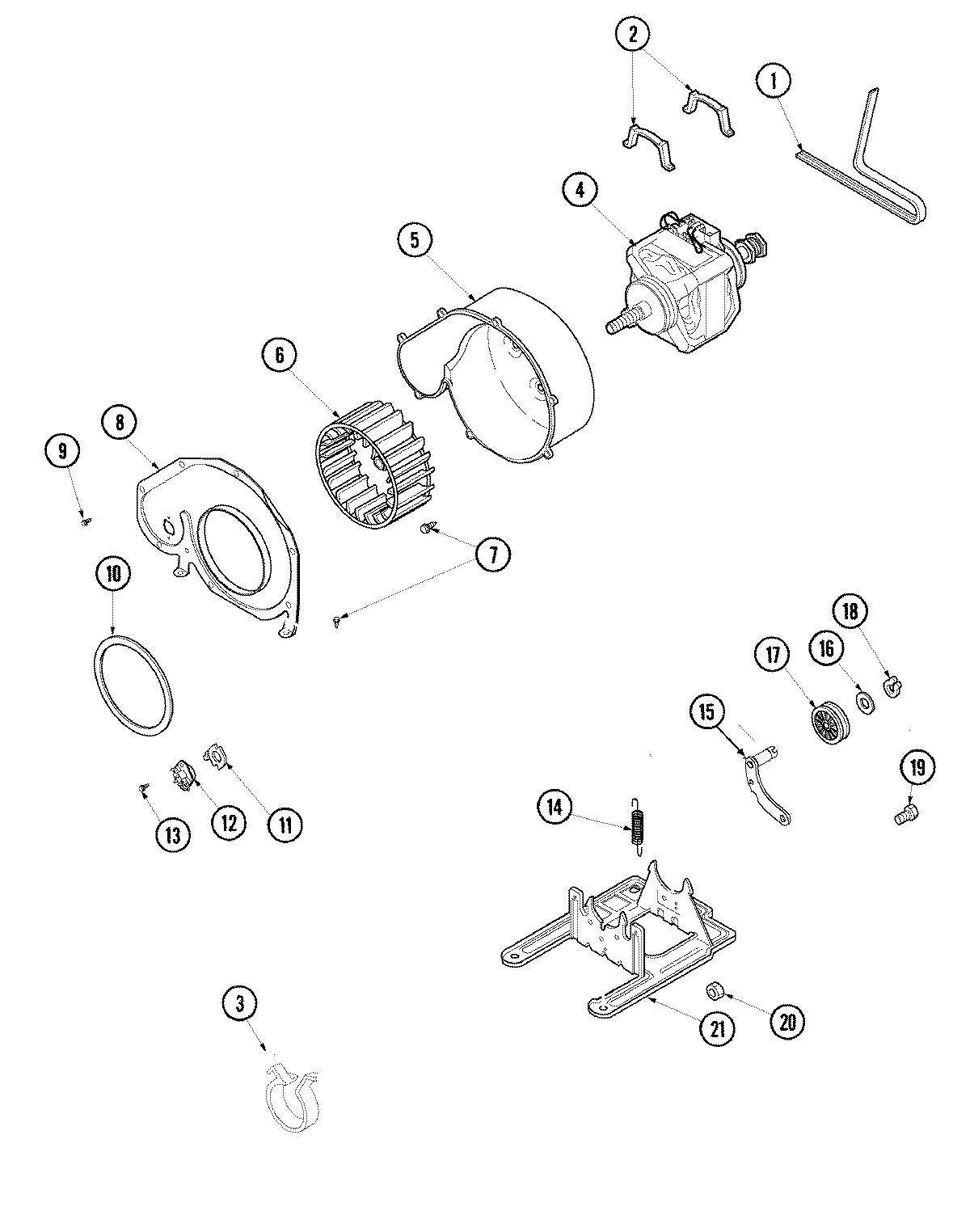

06 - REAR BULKHEAD
07 - SUPPLEMENTAL INFORMATION

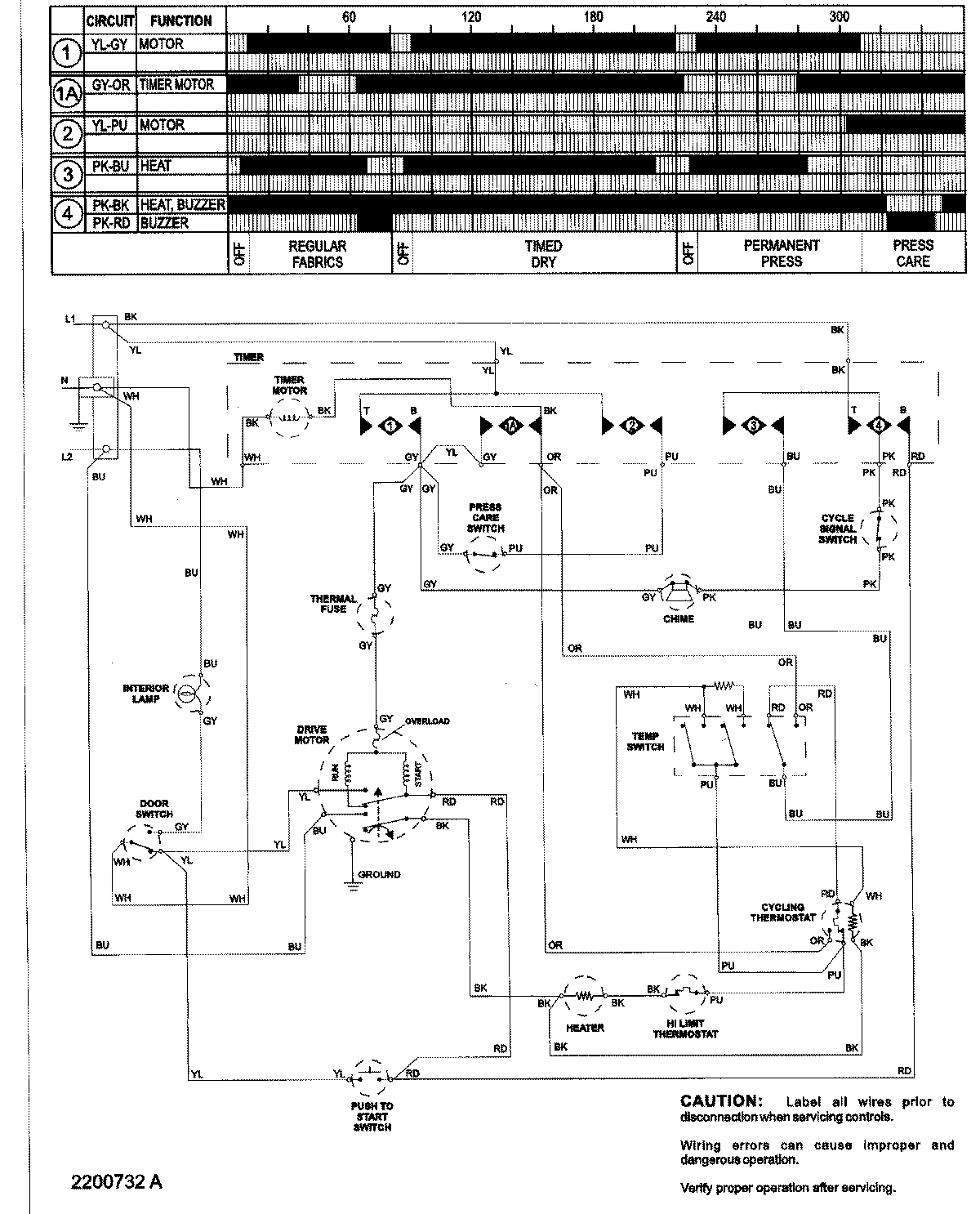

08 - WIRING INFORMATION

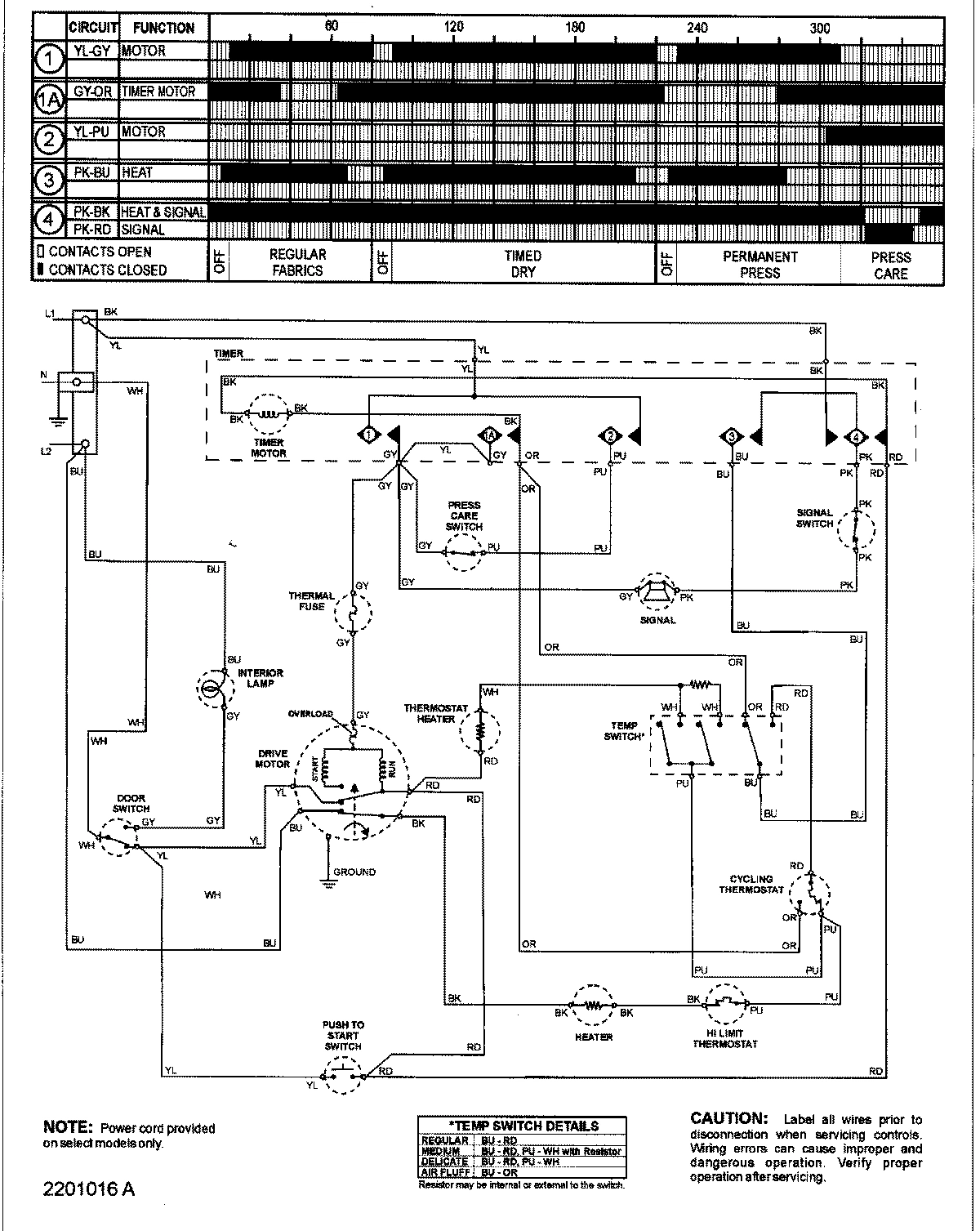

09 - WIRING INFORMATION (SERIES 12)

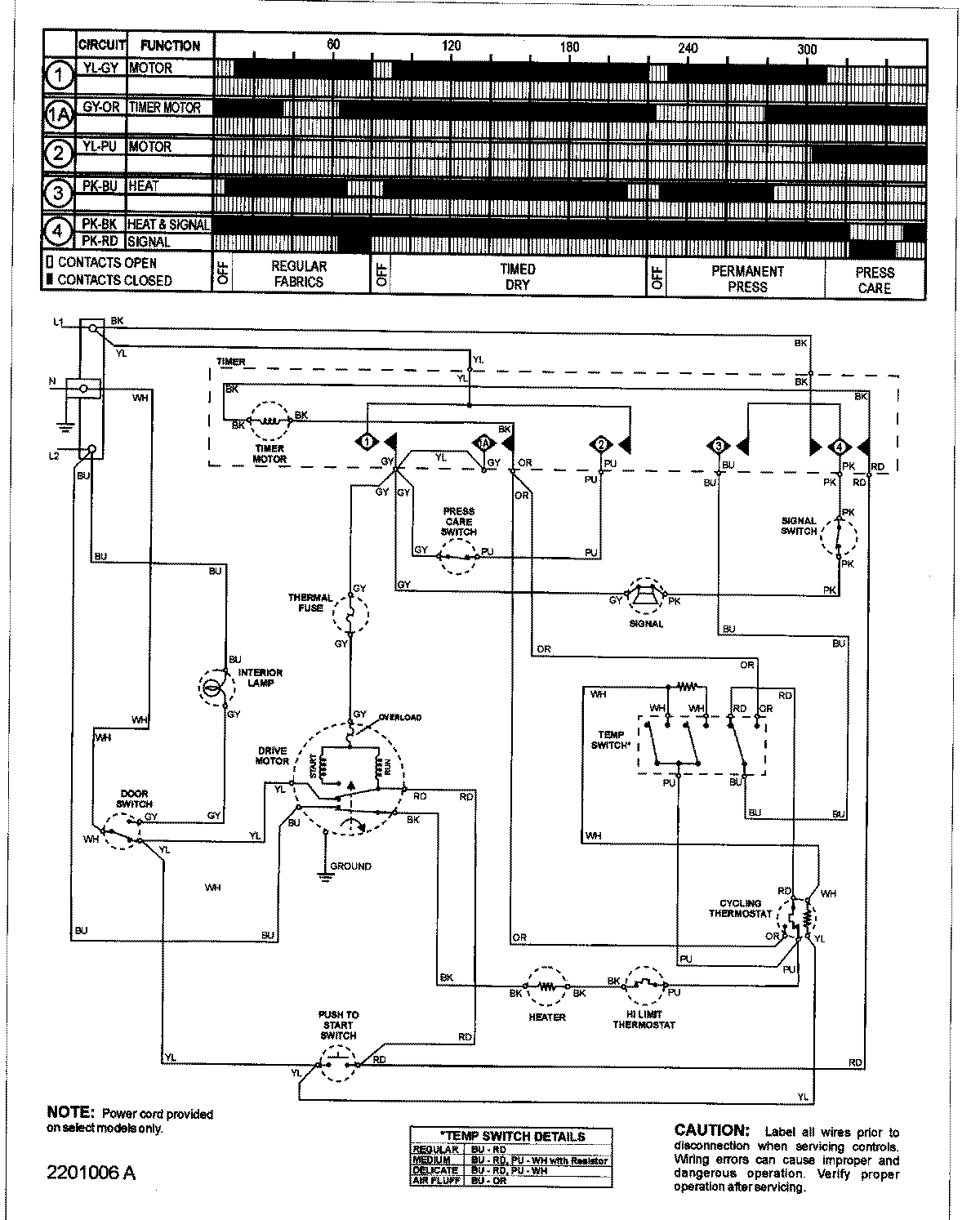

10 - WIRING INFORMTION (SERIES 11)
Common parts from model Maytag SDE3606AYQ ELECTRIC DRYER
1
MAY 504467WP MAY 504467WP Contact Us For Availability
1
MAY 503605 MAY 503605 Contact Us For Availability
1
MAY 40111201 MAY 40111201 Contact Us For Availability
1
MAY RS3200007 MAY RS3200007 Contact Us For Availability
1
MAY Y2200698 MAY Y2200698 Contact Us For Availability
2
MAY 37001034 MAY 37001034 Contact Us For Availability
2
MAY 503703 MAY 503703 Contact Us For Availability
2
MAY 37001094 MAY 37001094 Contact Us For Availability
2
MAY Y2201011 MAY Y2201011 Contact Us For Availability
3
MAY 37001047 MAY 37001047 Contact Us For Availability
3
MAY 504034 MAY 504034 Contact Us For Availability
4
MAY 37001030 MAY 37001030 Contact Us For Availability
4
MAY Y62588 MAY Y62588 Contact Us For Availability
4
MAY 40113801 MAY 40113801 Contact Us For Availability
5
MAY 503616WP MAY 503616WP Contact Us For Availability
5
MAY 37001033 MAY 37001033 Contact Us For Availability
5
MAY Y56128 MAY Y56128 Contact Us For Availability
5
MAY 56020 MAY 56020 Contact Us For Availability
5
MAY Y504105 MAY Y504105 Contact Us For Availability
6
MAY 32671 MAY 32671 Contact Us For Availability
6
MAY 501285 MAY 501285 Contact Us For Availability
6
MAY 56000 MAY 56000 Contact Us For Availability
7
MAY 505187 MAY 505187 Contact Us For Availability
7
MAY 503661 MAY 503661 Contact Us For Availability
7
MAY 40124501 MAY 40124501 Contact Us For Availability
7
MAY 20530 MAY 20530 Contact Us For Availability
8
MAY 56080 MAY 56080 Contact Us For Availability
8
MAY Y61199 MAY Y61199 Contact Us For Availability
8
MAY 500078 MAY 500078 Contact Us For Availability
9
MAY 61923 MAY 61923 Contact Us For Availability
10
MAY 22001794 MAY 22001794 Contact Us For Availability
10
MAY 40130801 MAY 40130801 Contact Us For Availability
10
MAY 40090001 MAY 40090001 Contact Us For Availability
11
MAY 61623 MAY 61623 Contact Us For Availability
11
MAY 37001117 MAY 37001117 Contact Us For Availability
11
MAY 504005 MAY 504005 Contact Us For Availability
11
MAY 40116501 MAY 40116501 Contact Us For Availability
12
MAY 502614WP MAY 502614WP Contact Us For Availability
12
MAY 33002435 MAY 33002435 Contact Us For Availability
12
MAY 500121 MAY 500121 Contact Us For Availability
12
MAY 503979 MAY 503979 Contact Us For Availability
13
MAY 33001623 MAY 33001623 Contact Us For Availability
13
MAY 501086 MAY 501086 Contact Us For Availability
13
MAY 503126 MAY 503126 Contact Us For Availability
13
MAY 31260 MAY 31260 Contact Us For Availability
14
MAY 503656CP MAY 503656CP Contact Us For Availability
14
MAY 500226 MAY 500226 Contact Us For Availability
14
MAY 56076 MAY 56076 Contact Us For Availability
15
MAY 40045301CP MAY 40045301CP Contact Us For Availability
15
MAY Y504452 MAY Y504452 Contact Us For Availability
16
MAY 54660 MAY 54660 Contact Us For Availability
16
MAY 504458 MAY 504458 Contact Us For Availability
16
MAY 52549 MAY 52549 Contact Us For Availability
17
MAY 37001028 MAY 37001028 Contact Us For Availability
17
MAY 40094301 MAY 40094301 Contact Us For Availability
18
MAY 500039 MAY 500039 Contact Us For Availability
18
MAY 505295 MAY 505295 Contact Us For Availability
18
MAY 23748 MAY 23748 Contact Us For Availability
19
MAY 40116201 MAY 40116201 Contact Us For Availability
19
MAY Y60954 MAY Y60954 Contact Us For Availability
20
MAY 52566 MAY 52566 Contact Us For Availability
21
MAY 503613 MAY 503613 Contact Us For Availability
NI
MAY 15003298 MAY 15003298 Contact Us For Availability
NI
MAY 15003425 MAY 15003425 Contact Us For Availability
NI
MAY 15003413 MAY 15003413 Contact Us For Availability
× ![]()
