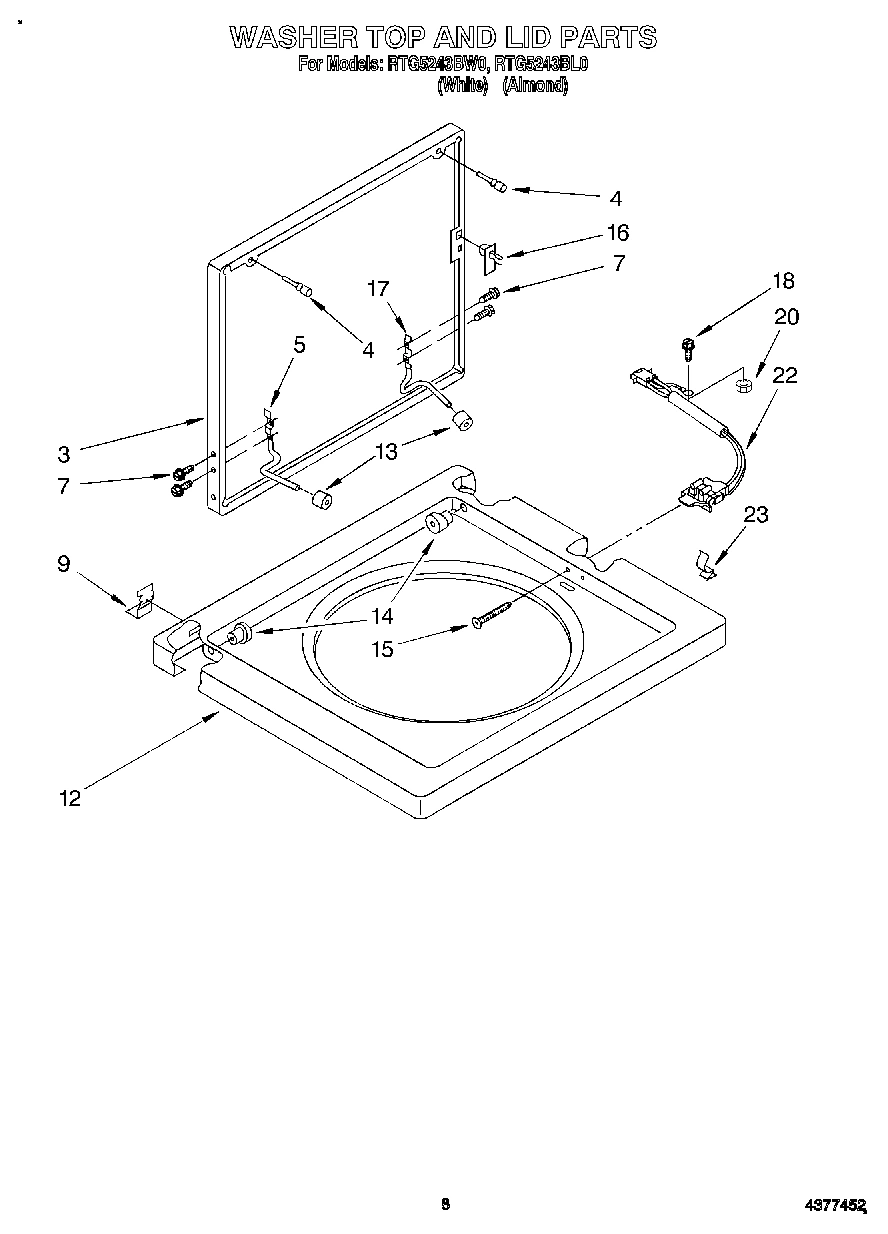

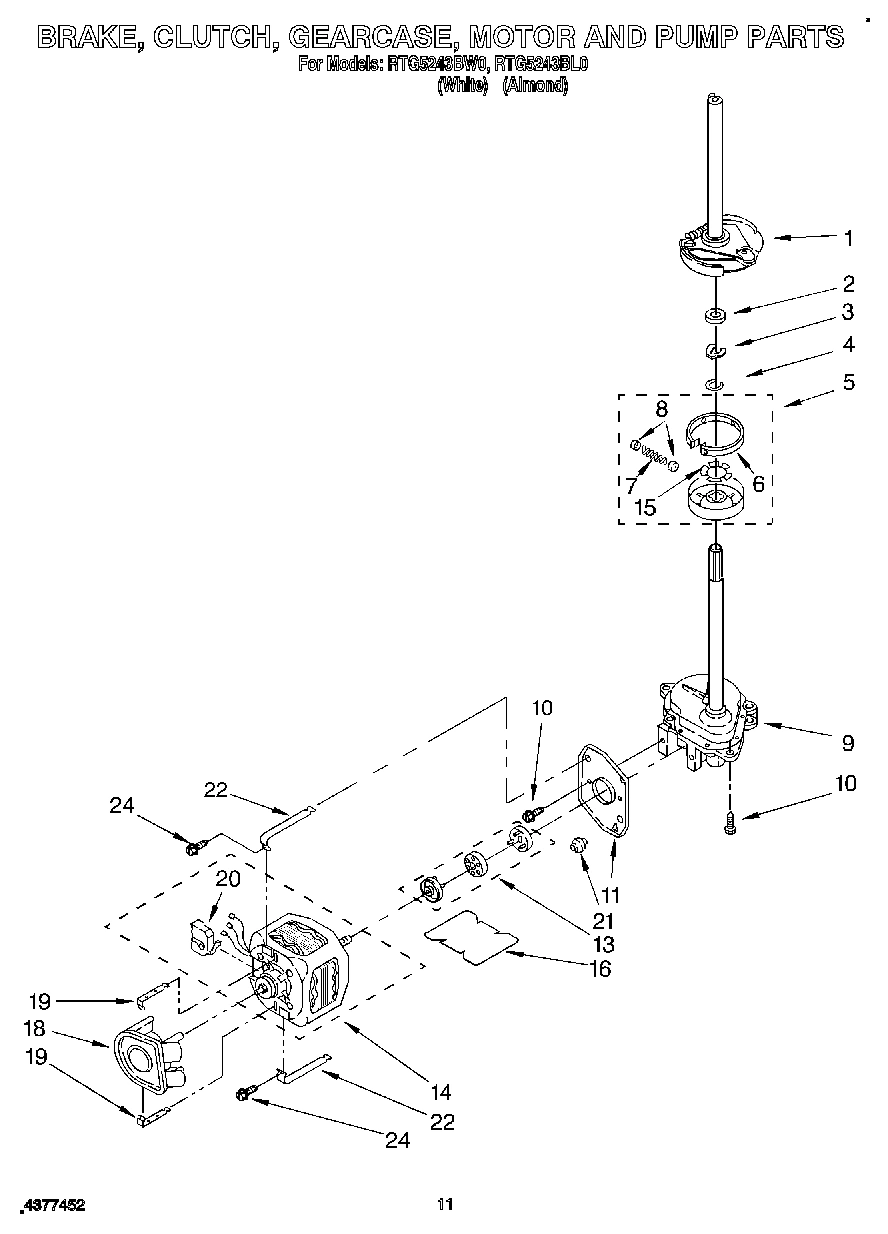

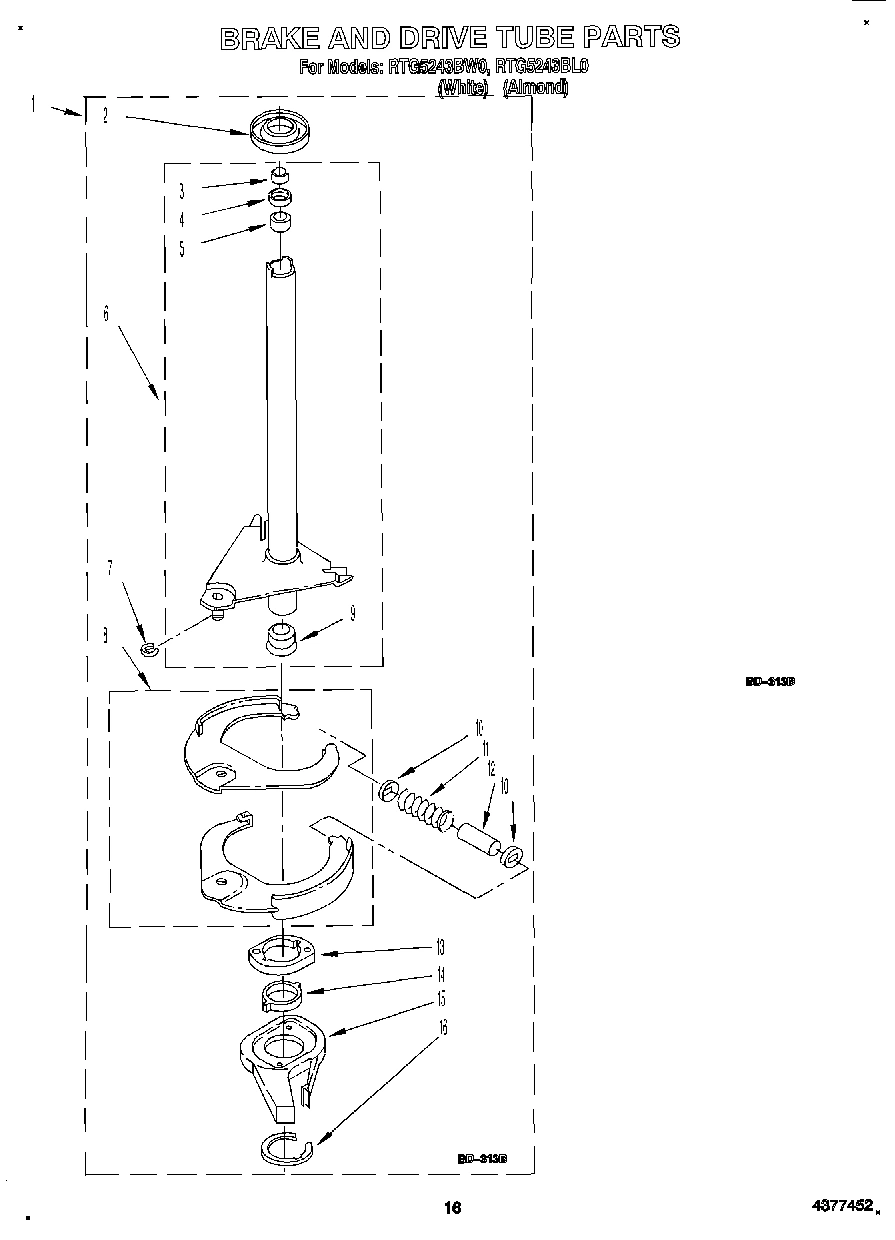

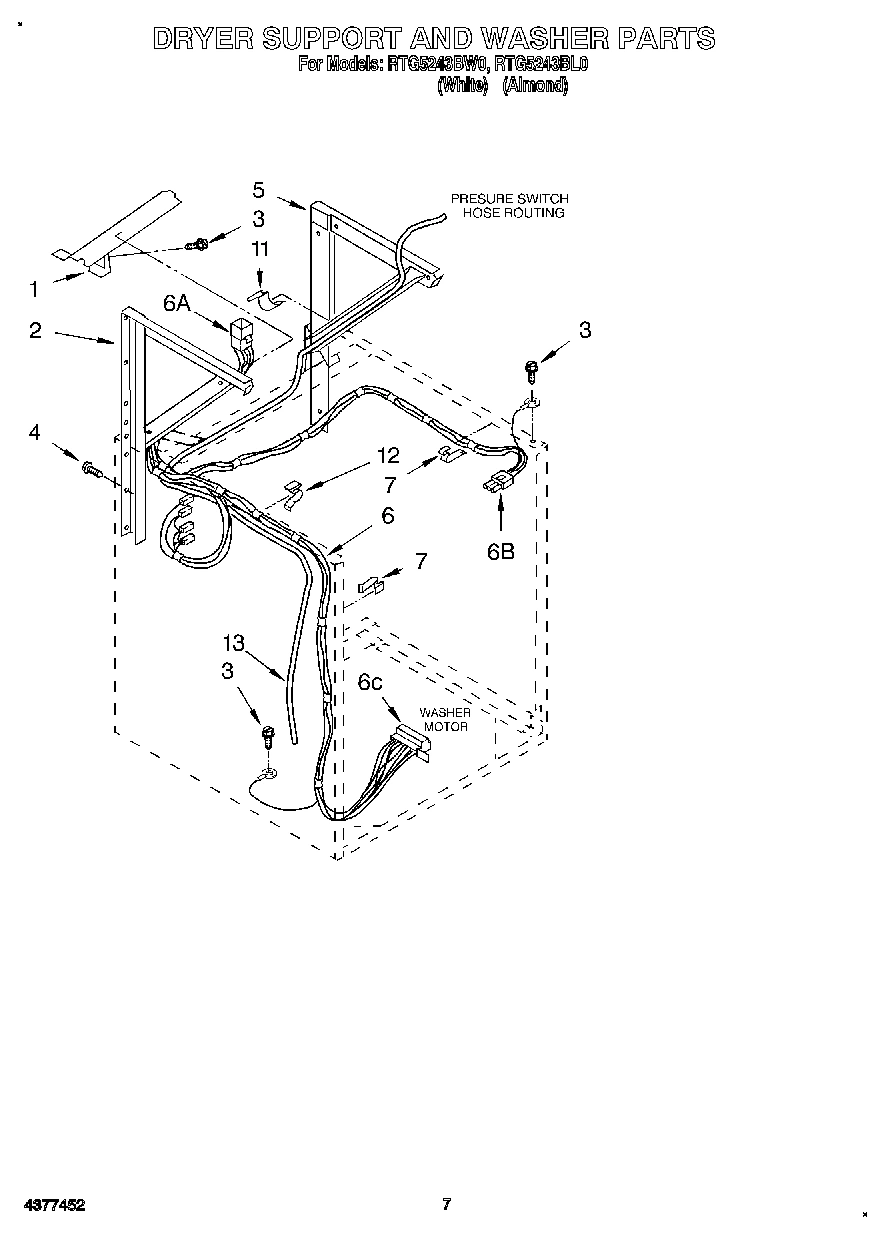

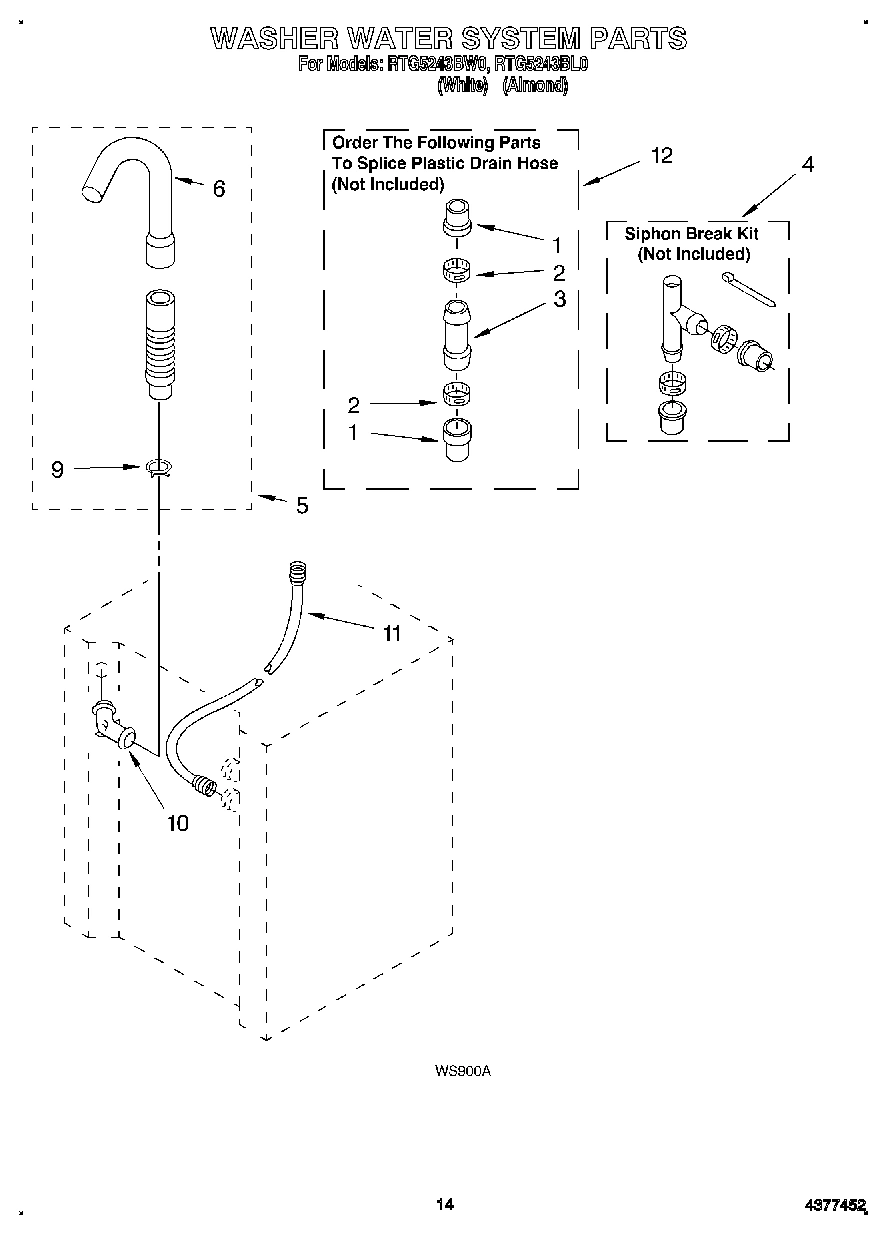

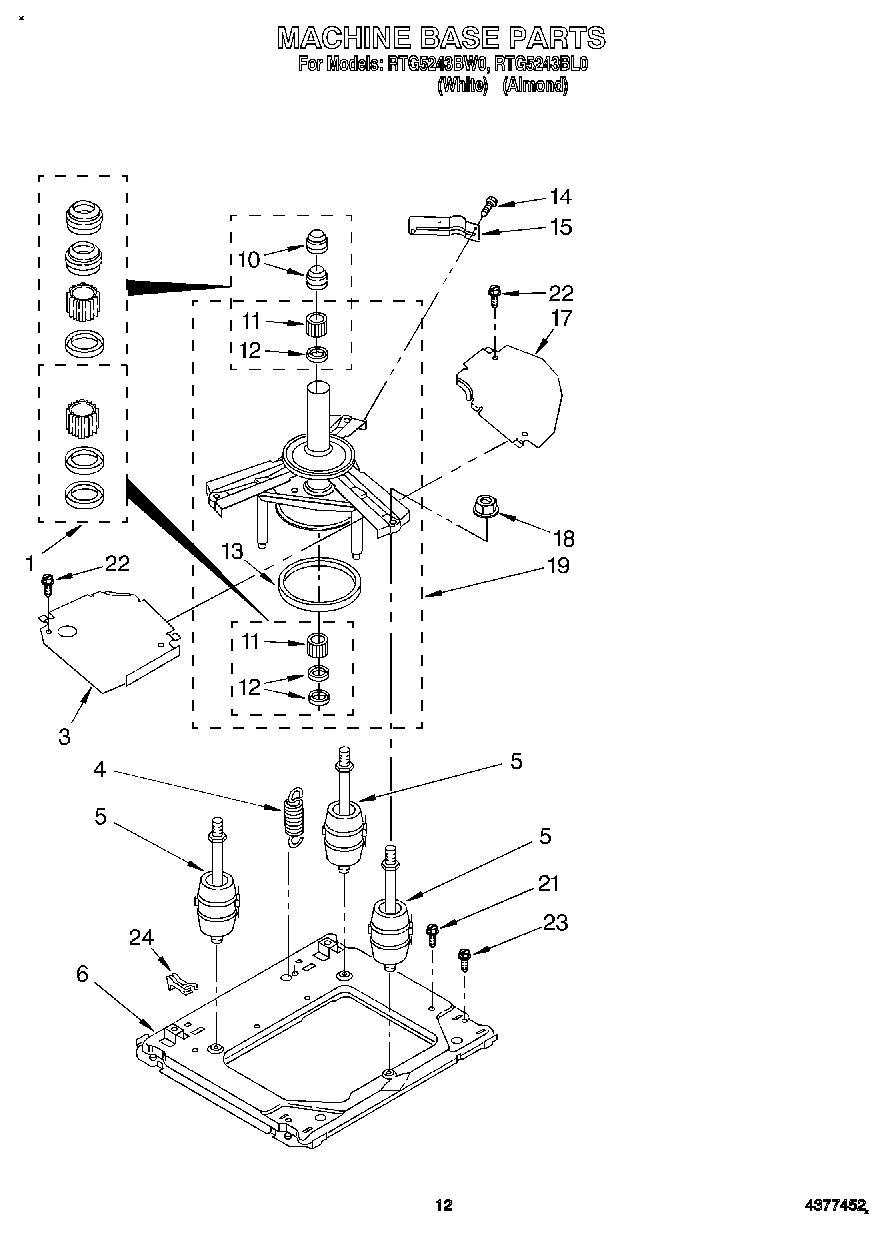

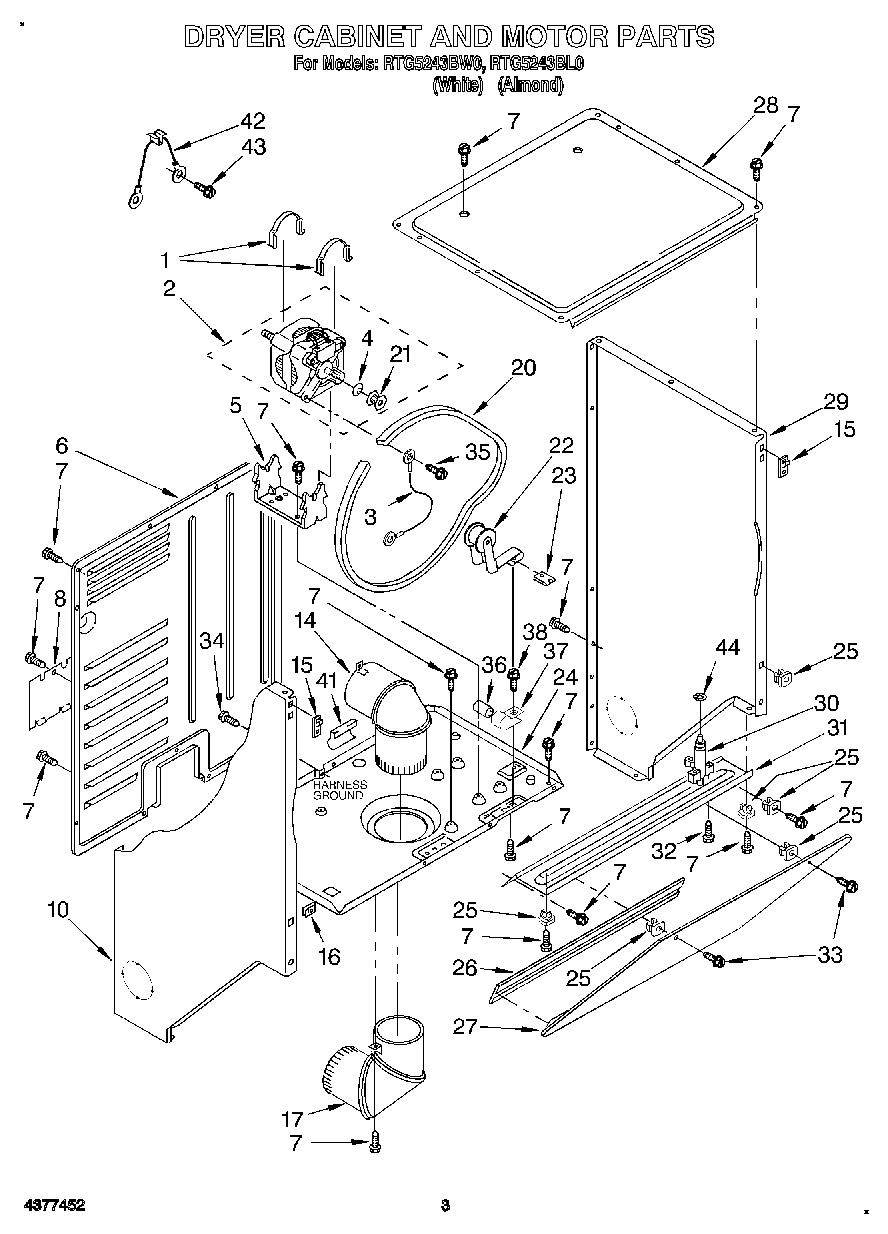

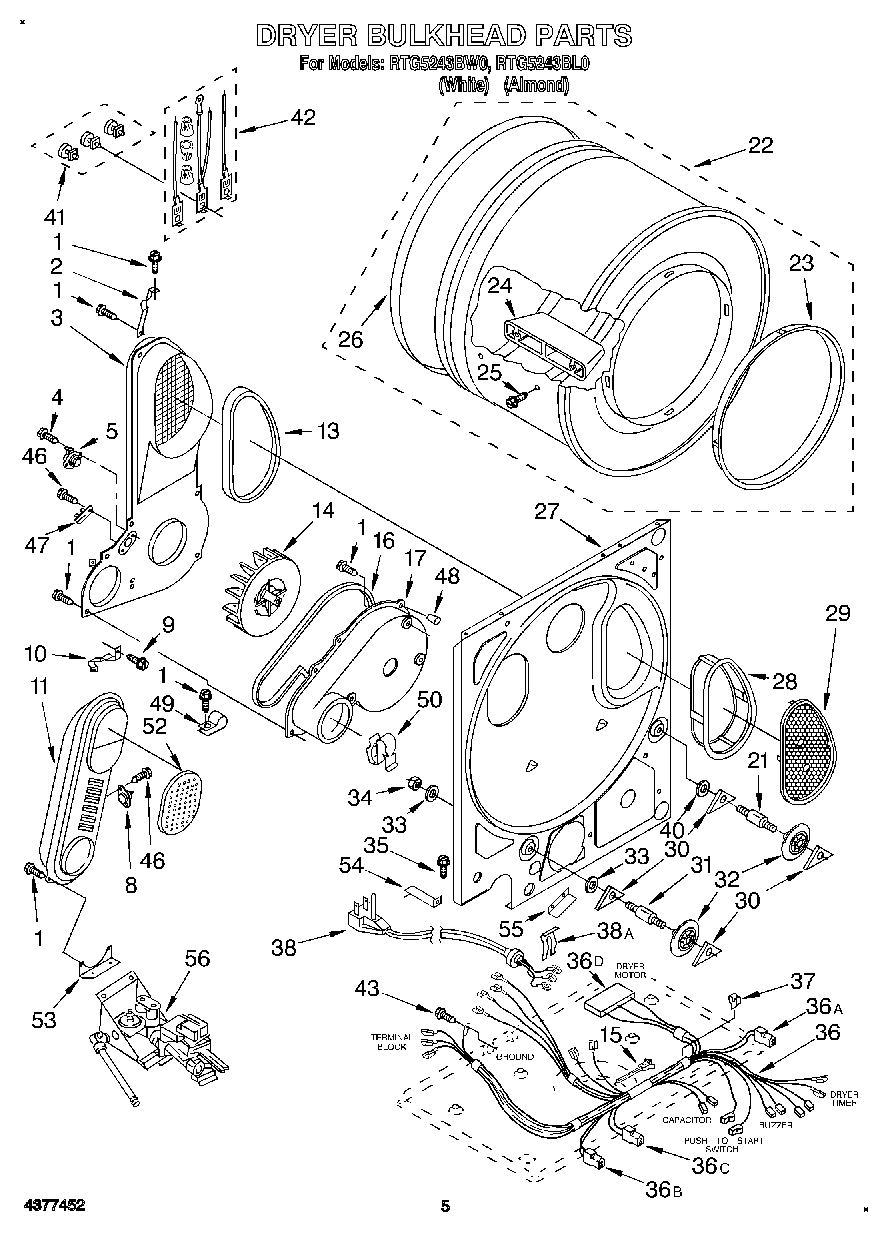

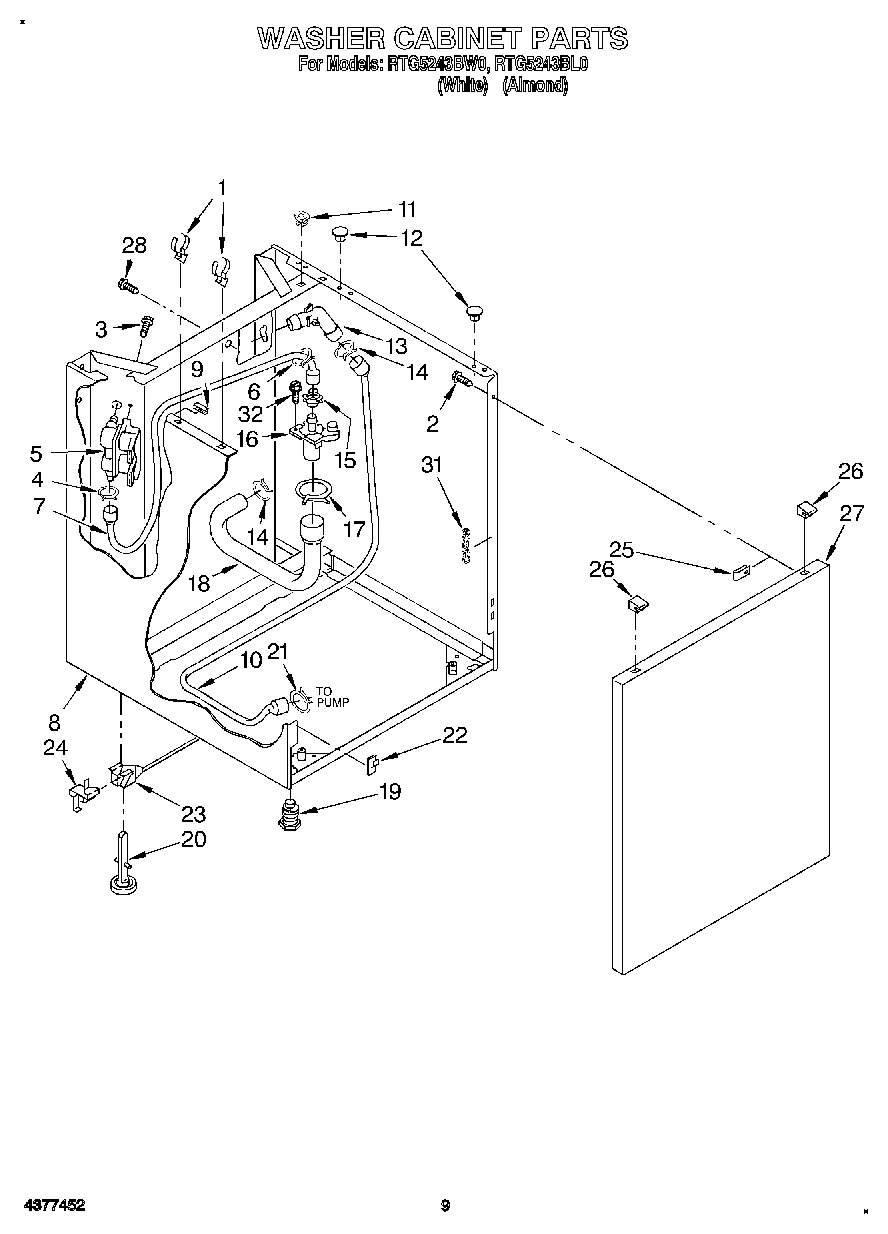

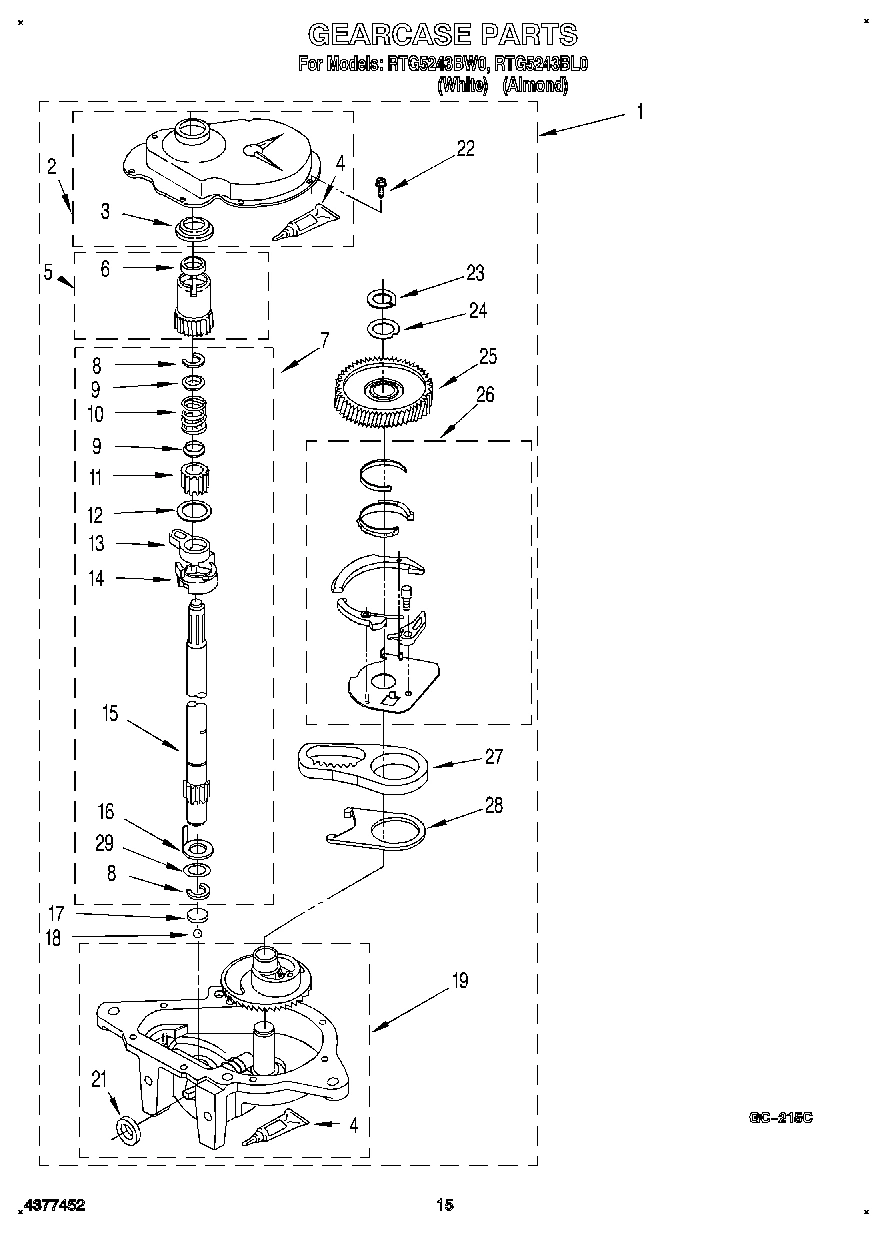

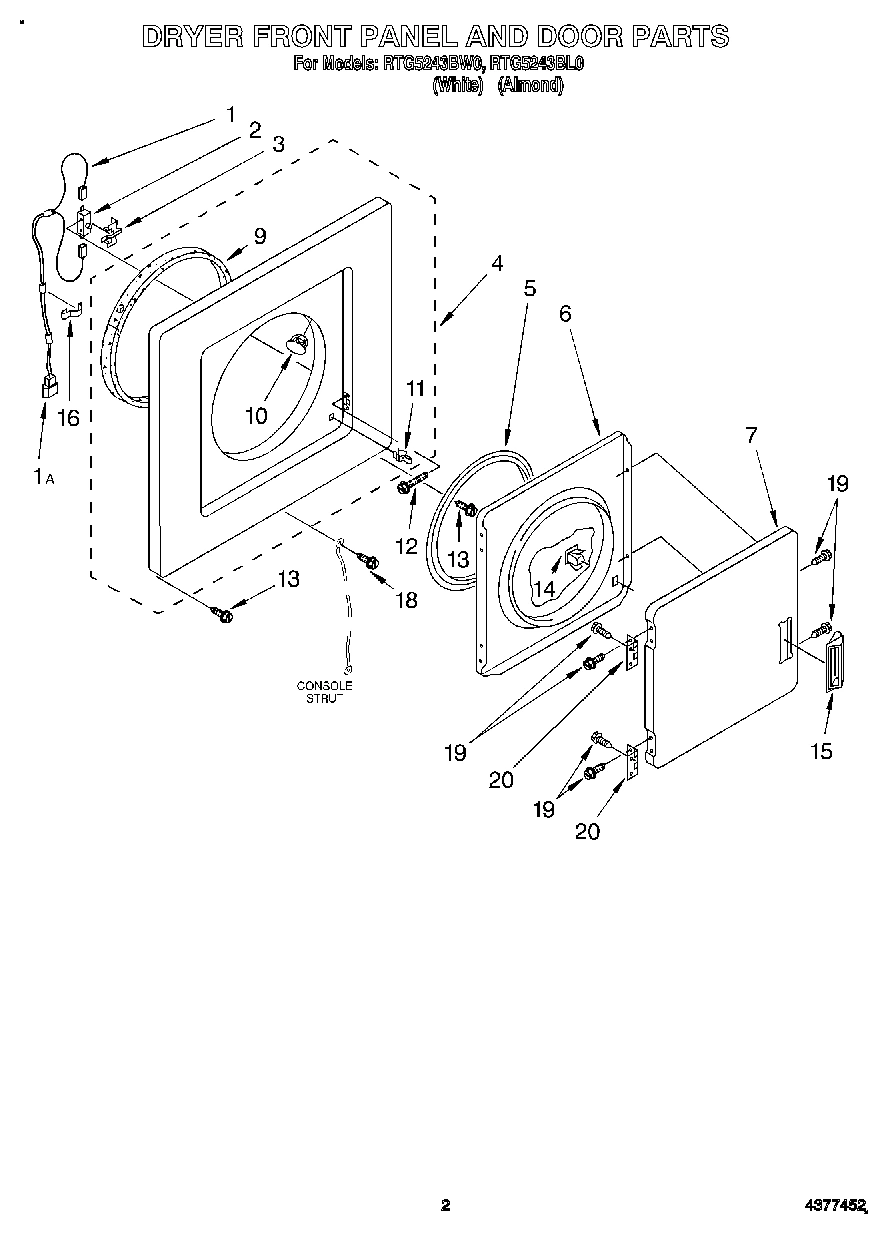

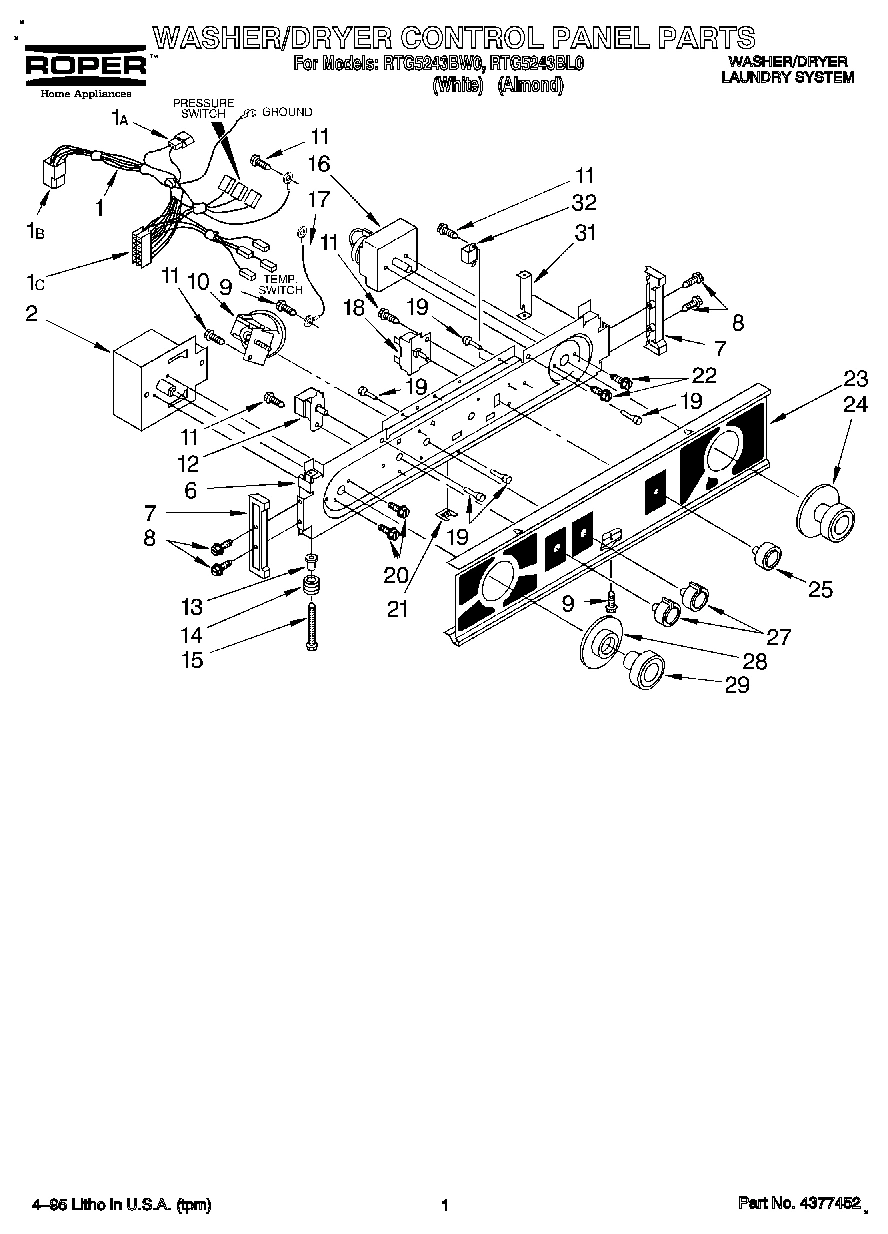

Model Whirlpool RTG5243BW0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $97.29

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

1

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

1

356746 Whirlpool Clip Backorder WPL 356746 $10.76

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.31

1B

696073 Whirlpool Connector Backorder WPL 696073 $30.25

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

345396 Whirlpool Clip Backorder WPL 345396 $27.52

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP3946432 Whirlpool Timer In Stock WPL WP3946432 $187.66

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

3

696529 Whirlpool Air Duct Backorder WPL 696529 $48.24

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $94.05

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.11

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $72.06

4

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $19.14

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.62

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

696541 Whirlpool Base Backorder WPL 696541 $30.89

5

W11174024 Whirlpool Support Backorder WPL W11174024 $94.84

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $21.52

5

WP3398128 Whirlpool Cycling Thermostat In Stock WPL WP3398128 $42.14

5

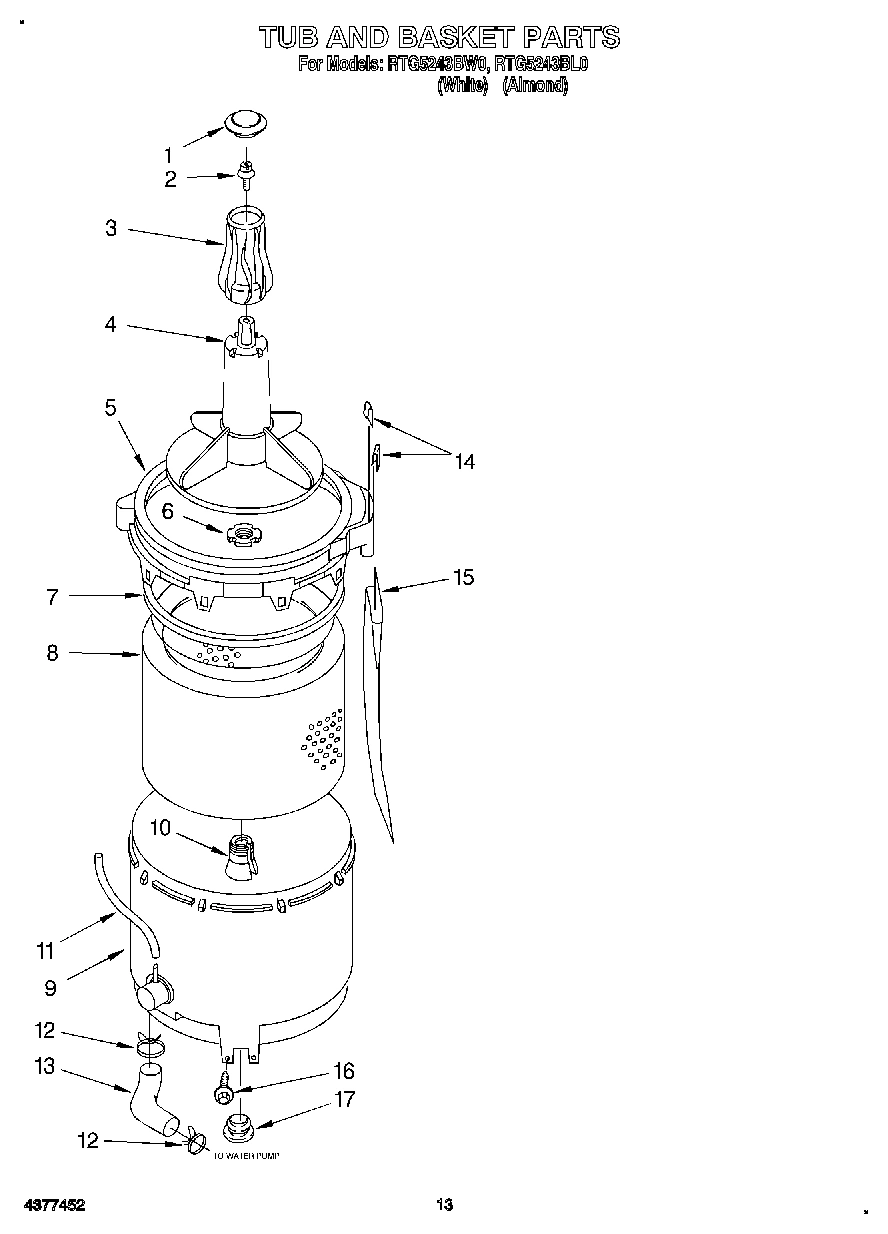

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

6

Harness, Upper (Automatic) (Includes Illus. 6 WPL 3388677 Contact Us For Availability

6A

Plug, Terminal (12-Way) (Connects With Automa WPL 696074 Contact Us For Availability

6B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

6C

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

7

End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available

7

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $9.37

7

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

7

WP692699 Whirlpool Hose In Stock WPL WP692699 $17.39

8

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

8

Basket WPL 3351985 Contact Us For Availability

8

Cabinet (White) WPL 696013 Contact Us For Availability

8

Cabinet (Almond) WPL 696014 Contact Us For Availability

8

Thermostat, Heater Box (205~F) (96~c) WPL 660036 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

3390046 Whirlpool Protector Backorder WPL 3390046 $5.38

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

9

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $3.70

9

Tub WPL 63782 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

W11213338 Whirlpool Connector Backorder WPL W11213338 $28.26

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $97.25

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP696710 Whirlpool Hose In Stock WPL WP696710 $26.28

Spring, Agitator WPL 62676 Contact Us For Availability

11

W10834213 Whirlpool Hose Backorder WPL W10834213 $16.84

11

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

11

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $156.84

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

280120 Whirlpool Hose Backorder WPL 280120 $13.36

693711 Whirlpool Sleeve Backorder WPL 693711 $4.59

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.52

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $146.58

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $3.70

WP696426 Whirlpool Wheel In Stock WPL WP696426 $42.16

356398 Whirlpool Tube Backorder WPL 356398 $30.25

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.70

Handle, Door (Almond) WPL 689308 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $10.41

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.44

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Seal, Fan Scroll WPL 696658 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

3399603 Whirlpool Elbow Backorder WPL 3399603 $44.62

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

WP696418 Whirlpool Fan Scroll Backorder WPL WP696418 $43.37

18

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

18

WP696394 Whirlpool Hose In Stock WPL WP696394 $49.21

693152 Whirlpool Bumper In Stock WPL 693152 $7.89

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $28.27

20

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

20

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.09

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

694037 Whirlpool Clip Backorder WPL 694037 $30.25

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

3391834 Whirlpool Drum Backorder WPL 3391834 $171.22

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.32

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $26.55

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

Valve, Shutoff WPL 697441 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $27.74

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $43.76

WP358652 Whirlpool Link In Stock WPL WP358652 $30.25

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Ring, Retaining WPL 3362552 Contact Us For Availability

696044 Whirlpool Block In Stock WPL 696044 $30.89

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.70

BAFFLE-DRM WPL 685207 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

WP692400 Whirlpool Nut In Stock WPL WP692400 $4.52

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $3.33

Nut, Compression WPL 233076 Contact Us For Availability

26

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $51.71

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $4.70

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

692933 Whirlpool Panel Backorder WPL 692933 $105.81

Panel, Front (White) WPL 692628 Contact Us For Availability

Panel, Front (Almond) WPL 692629 Contact Us For Availability

Bulkhead WPL 697540 Contact Us For Availability

28

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $33.01

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP693145 Whirlpool Lid Latch Backorder WPL WP693145 $30.25

30

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

31

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $30.25

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $30.25

31

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

32

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

32

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $32.52

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

36

Harness, Main Dryer Wiring (Includes Illus. 3 WPL 3398874 Contact Us For Availability

36A

Receptacle, Terminal (2-Way) (Connects With D WPL 717252 Contact Us For Availability

36B

Receptacle, (Gas Valve) WPL 697780 Contact Us For Availability

36D

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

37

CLIP WPL 693141 Contact Us For Availability

38

WPW10581952 Whirlpool Power Cord In Stock WPL WPW10581952 $75.33

38A

W11712577 Whirlpool Clip In Stock WPL W11712577 $3.26

40

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $16.18

42

279318 Whirlpool Terminal In Stock WPL 279318 $42.38

43

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

44

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

46

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

47

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

48

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

49

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

50

WP3400935 Whirlpool Dishwasher Clip Backorder WPL WP3400935 $4.65

52

345335 Whirlpool Cover In Stock WPL 345335 $59.75

53

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.31

54

SUPPORT Backorder WPL 3387208 $7.81

55

WPL 697571 WPL 697571 Contact Us For Availability

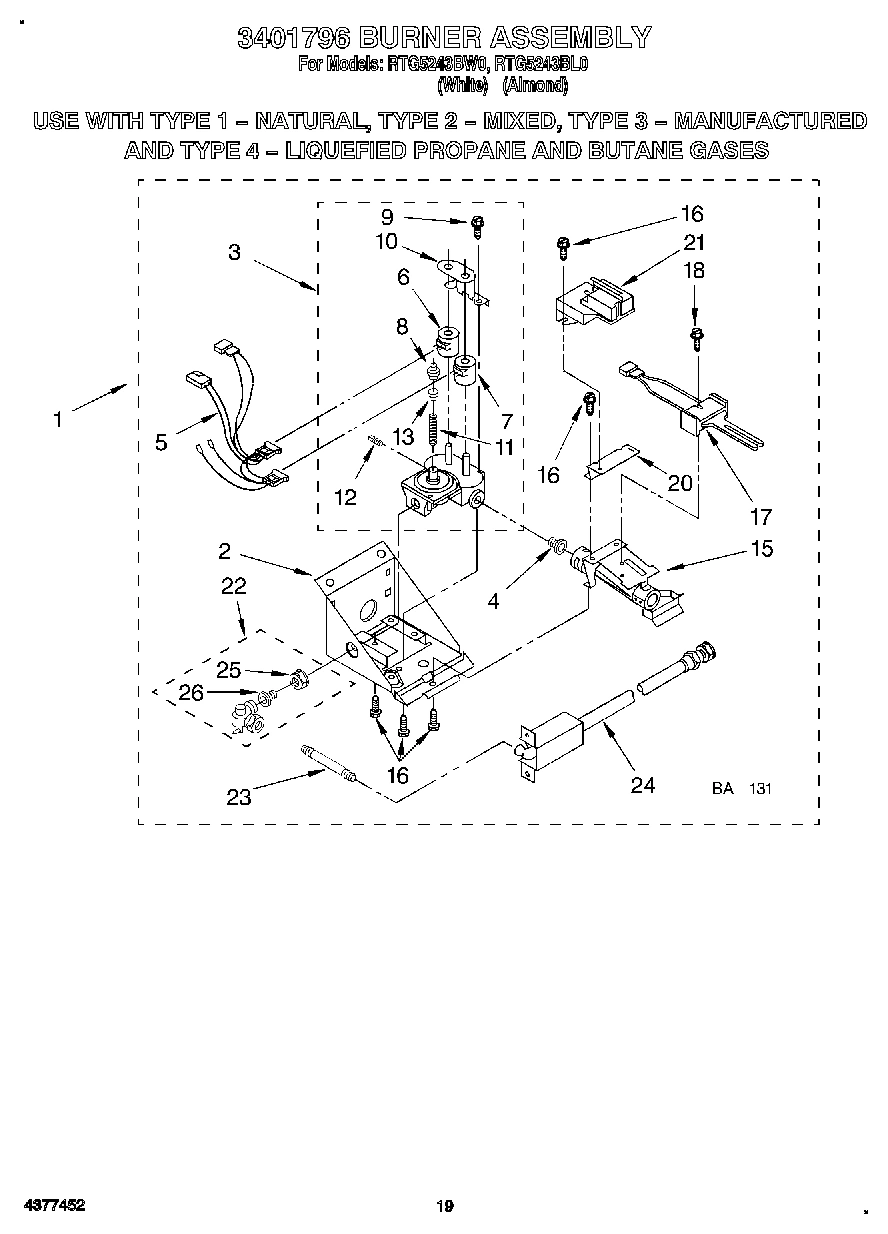

56

WPL 3401796 WPL 3401796 Contact Us For Availability
