Model GE PFNE3RSP115TG01 General Electric Model PFNE3RSP115TG01 – Common Parts & Diagrams
Control Panel and Control
Dispenser Assembly

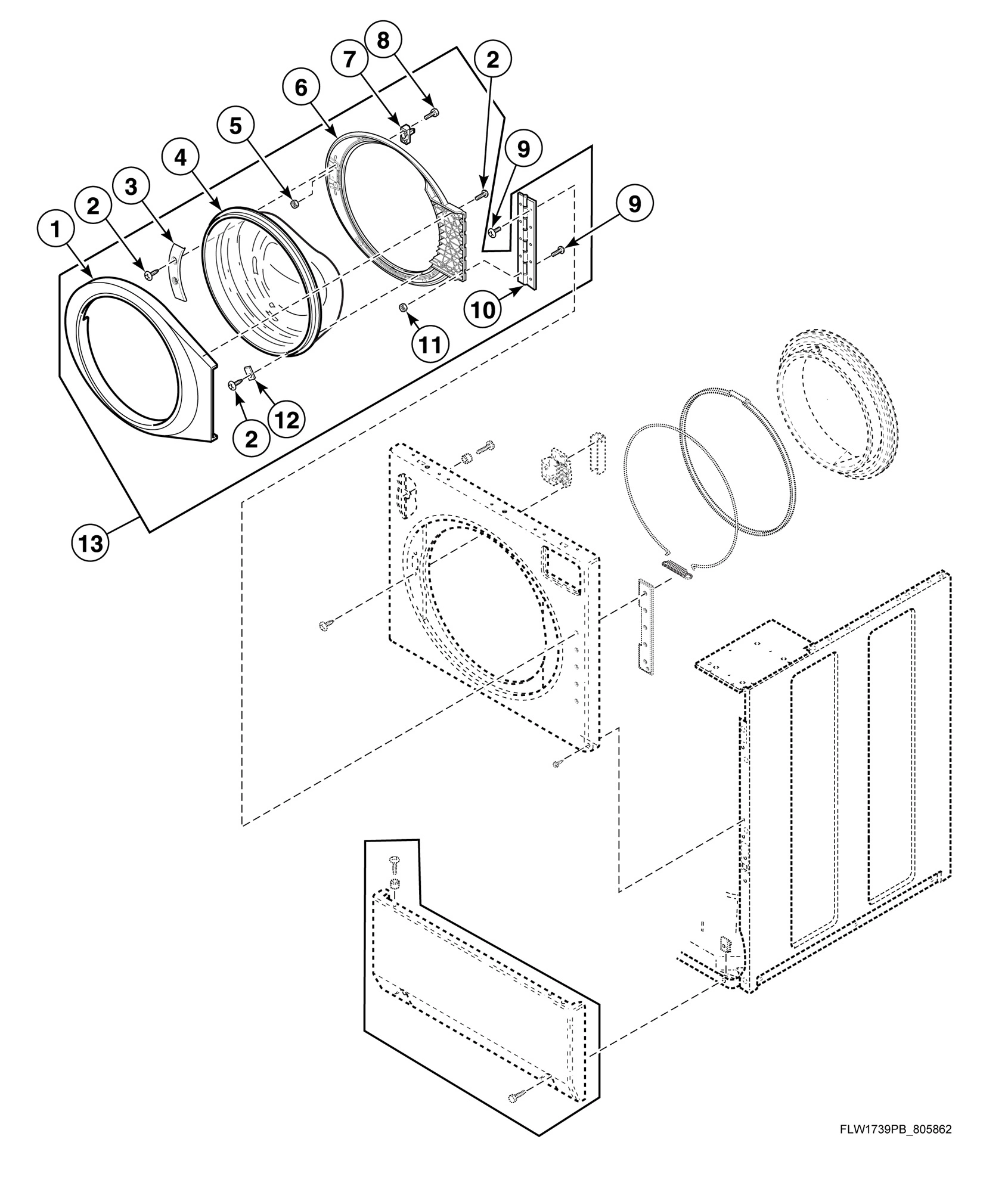

Door Assembly

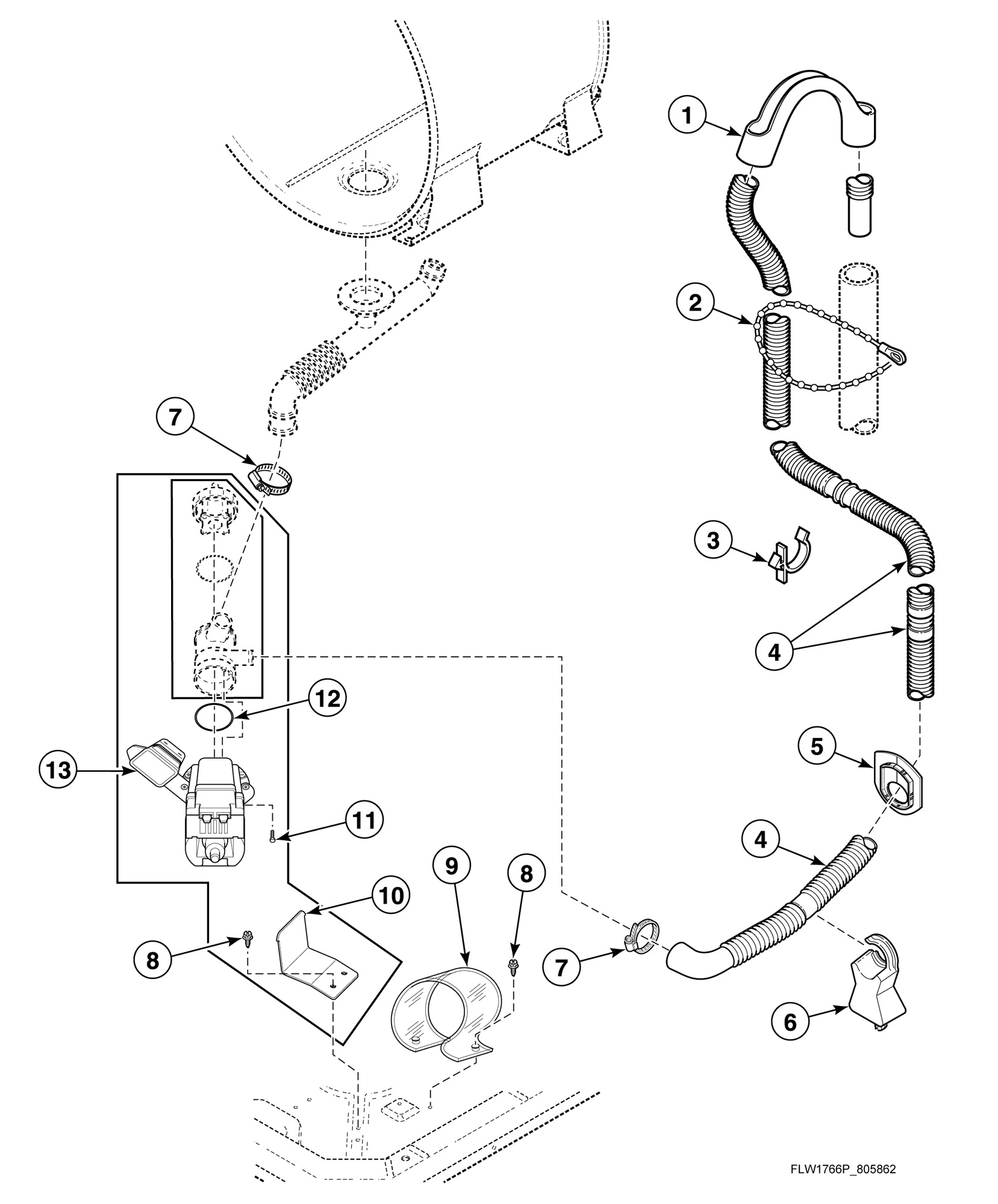

Drain Hose and Pump (Drawing 1 of 2)

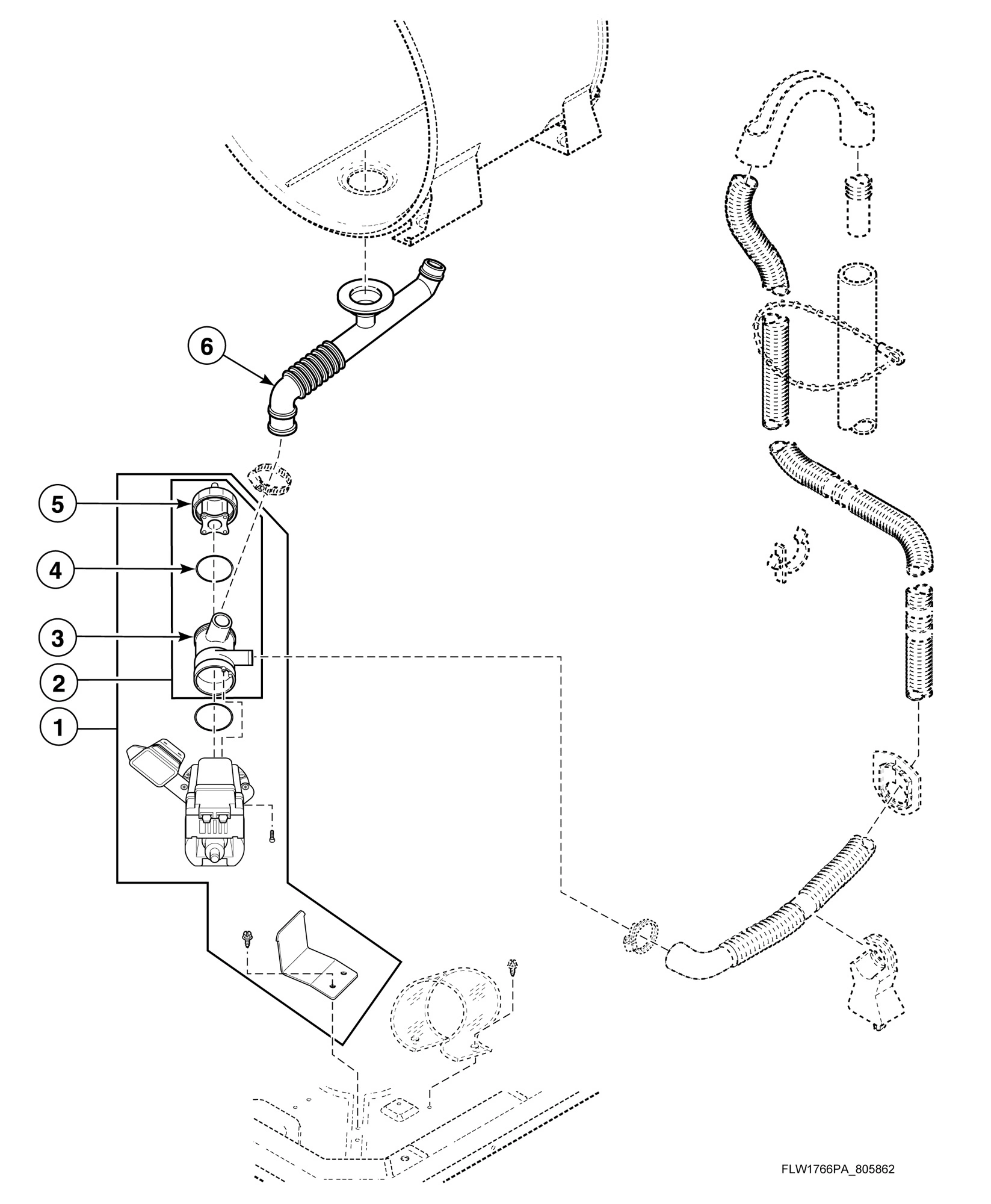

Drain Hose and Pump (Drawing 2 of 2)

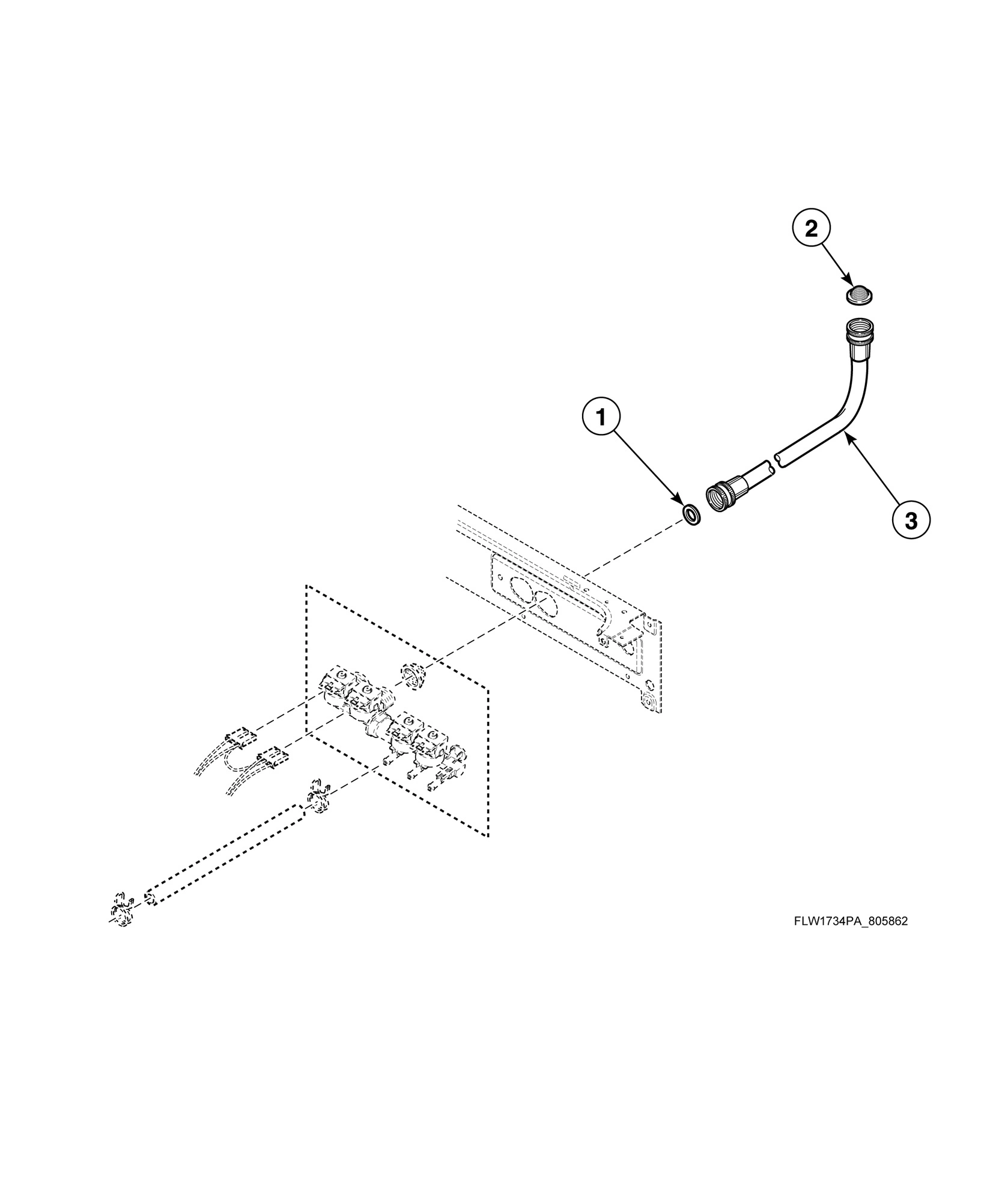

Fill Hose

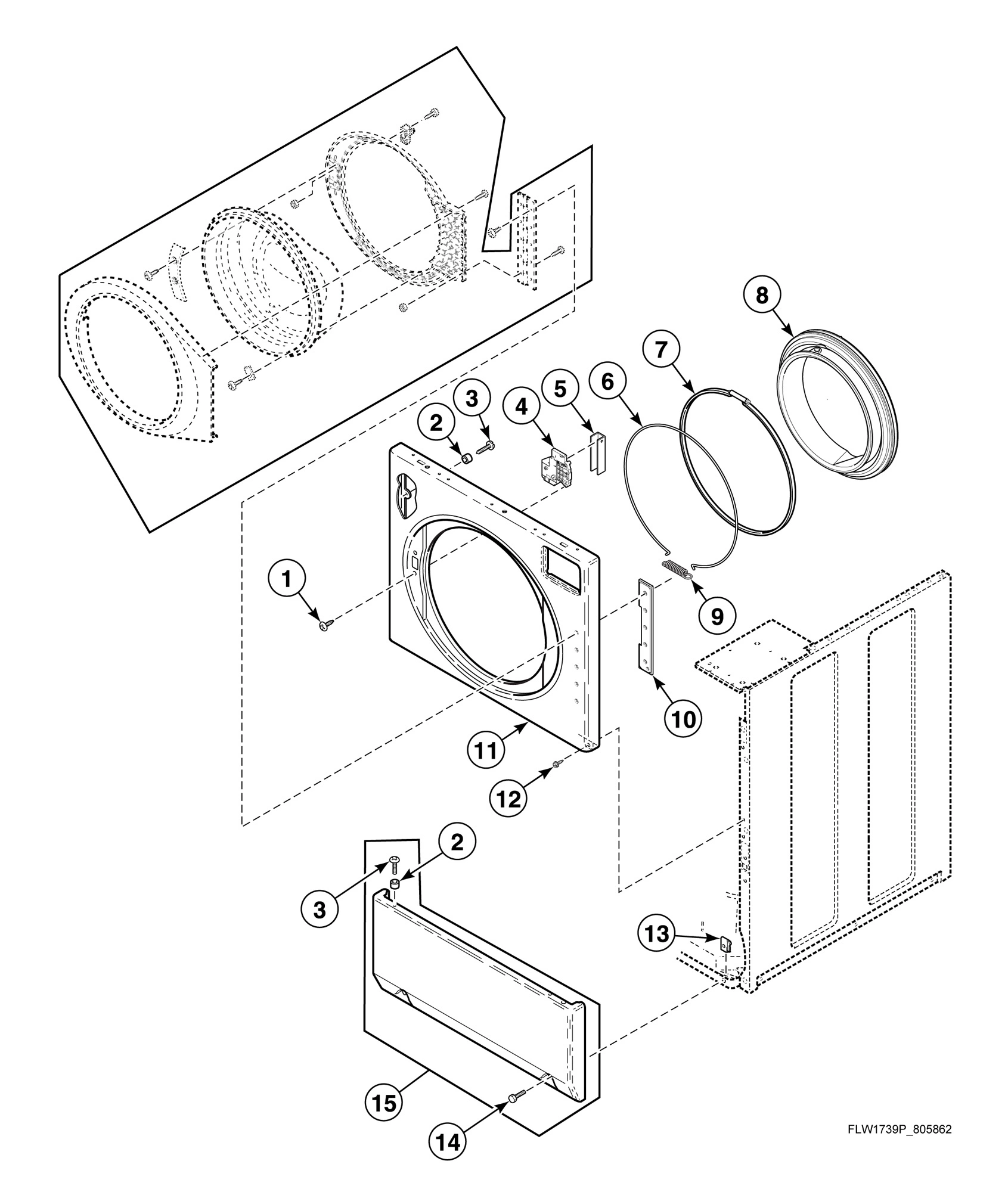

Front Panel and Door Seal

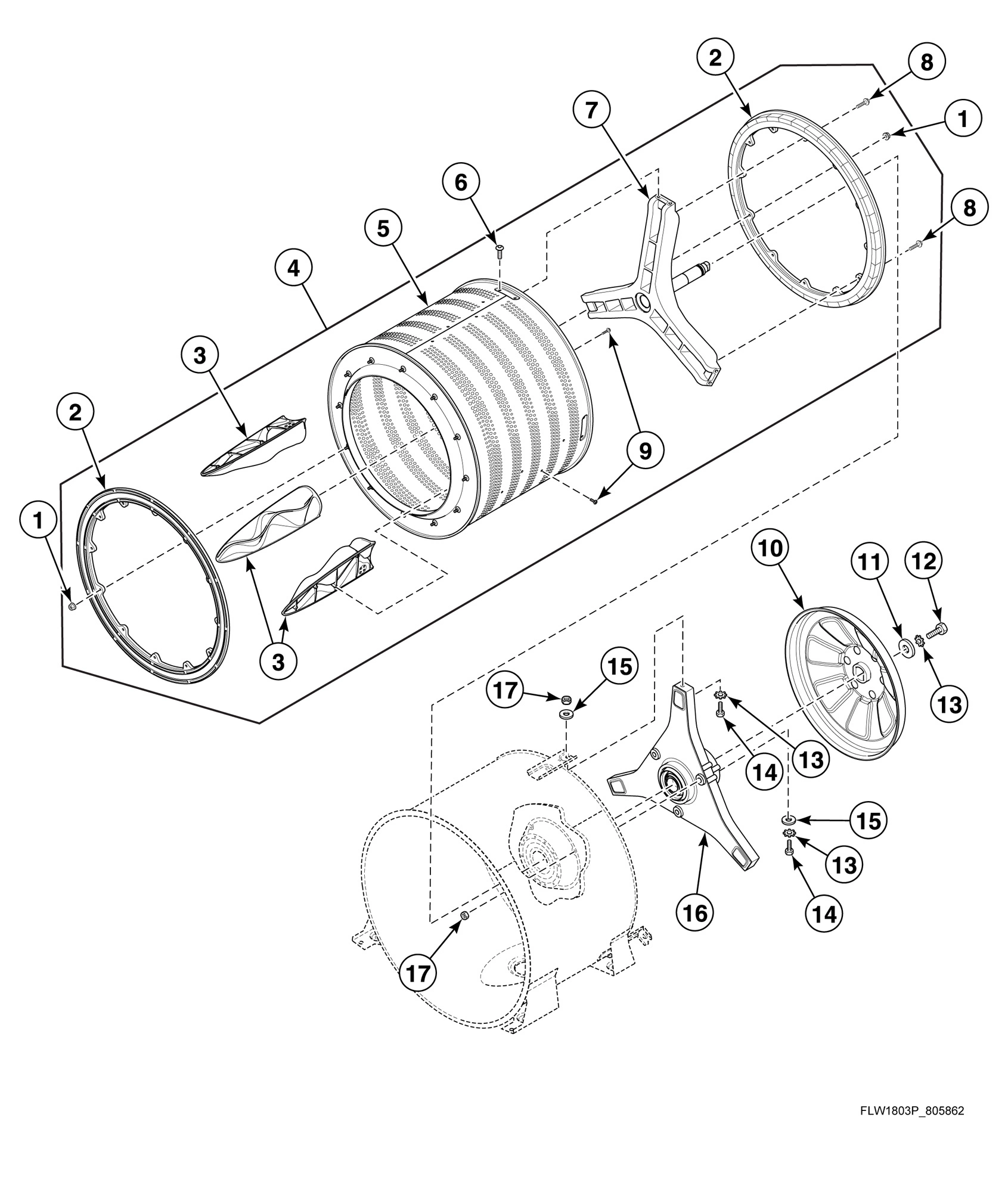

Inner Basket, Trunnion, Bearing Housing and Pulley

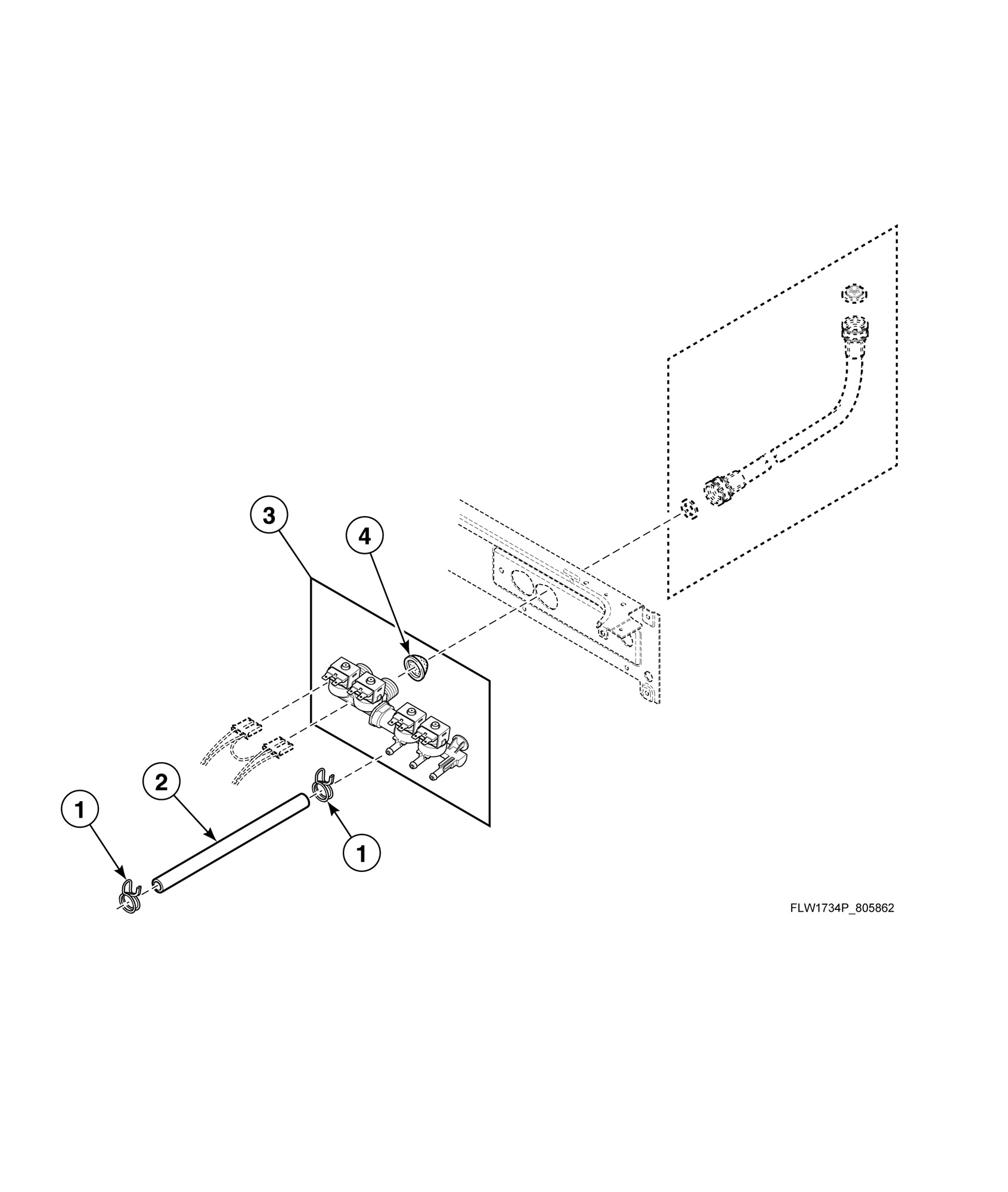

Mixing Valve and Valve-to-Dispenser Hose

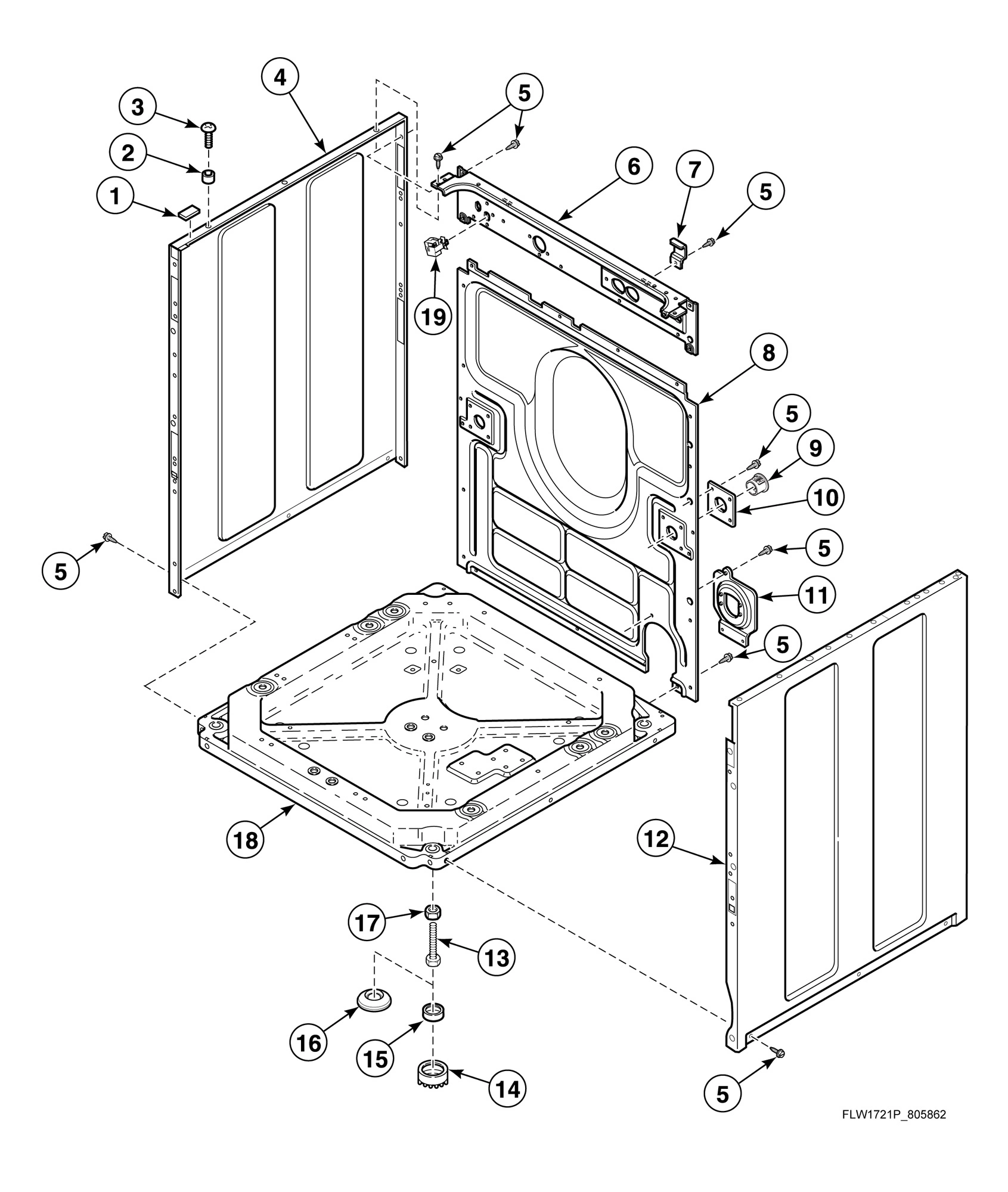

Washer Base, Side Panels and Rear Panel

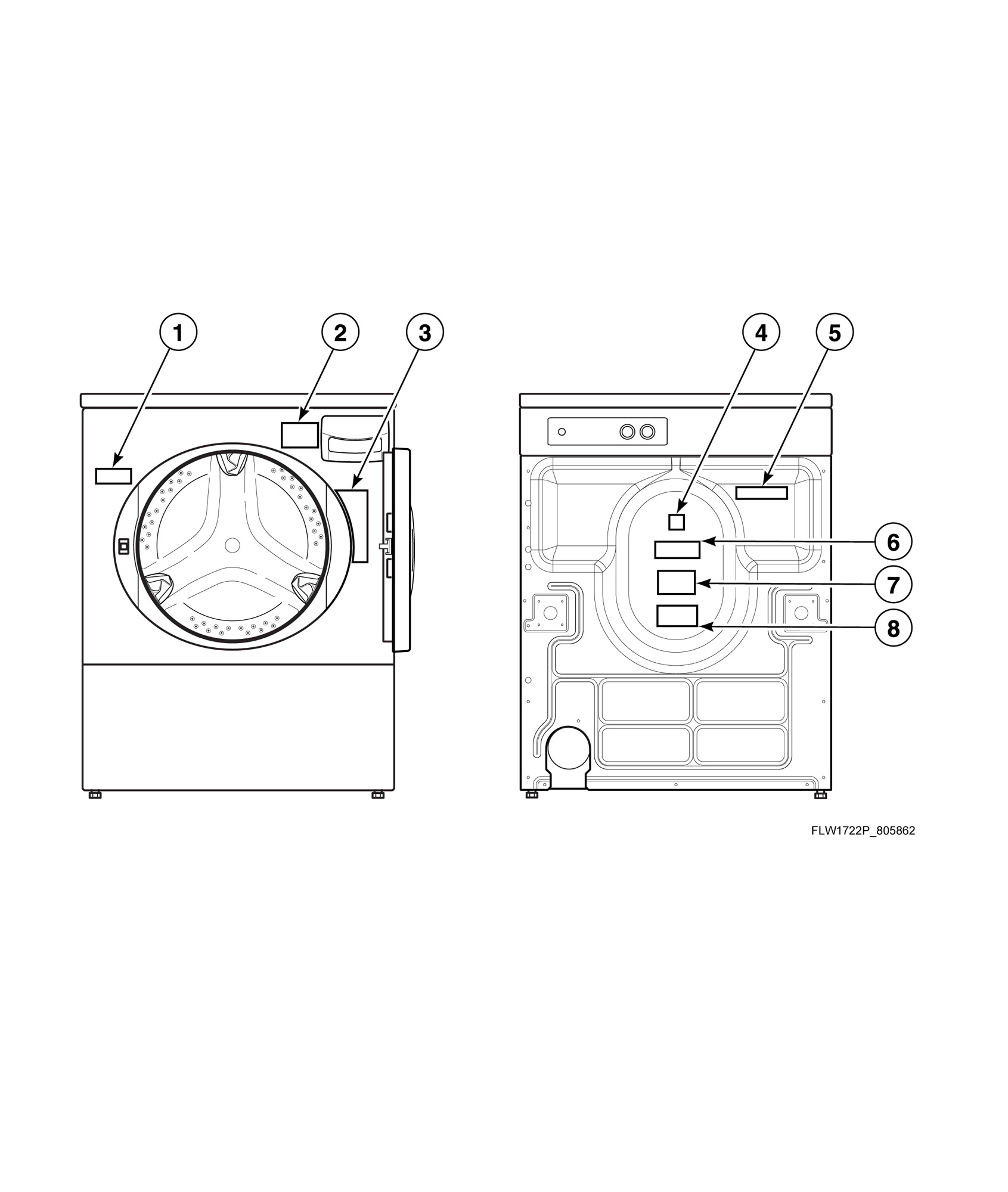

Washer Labels

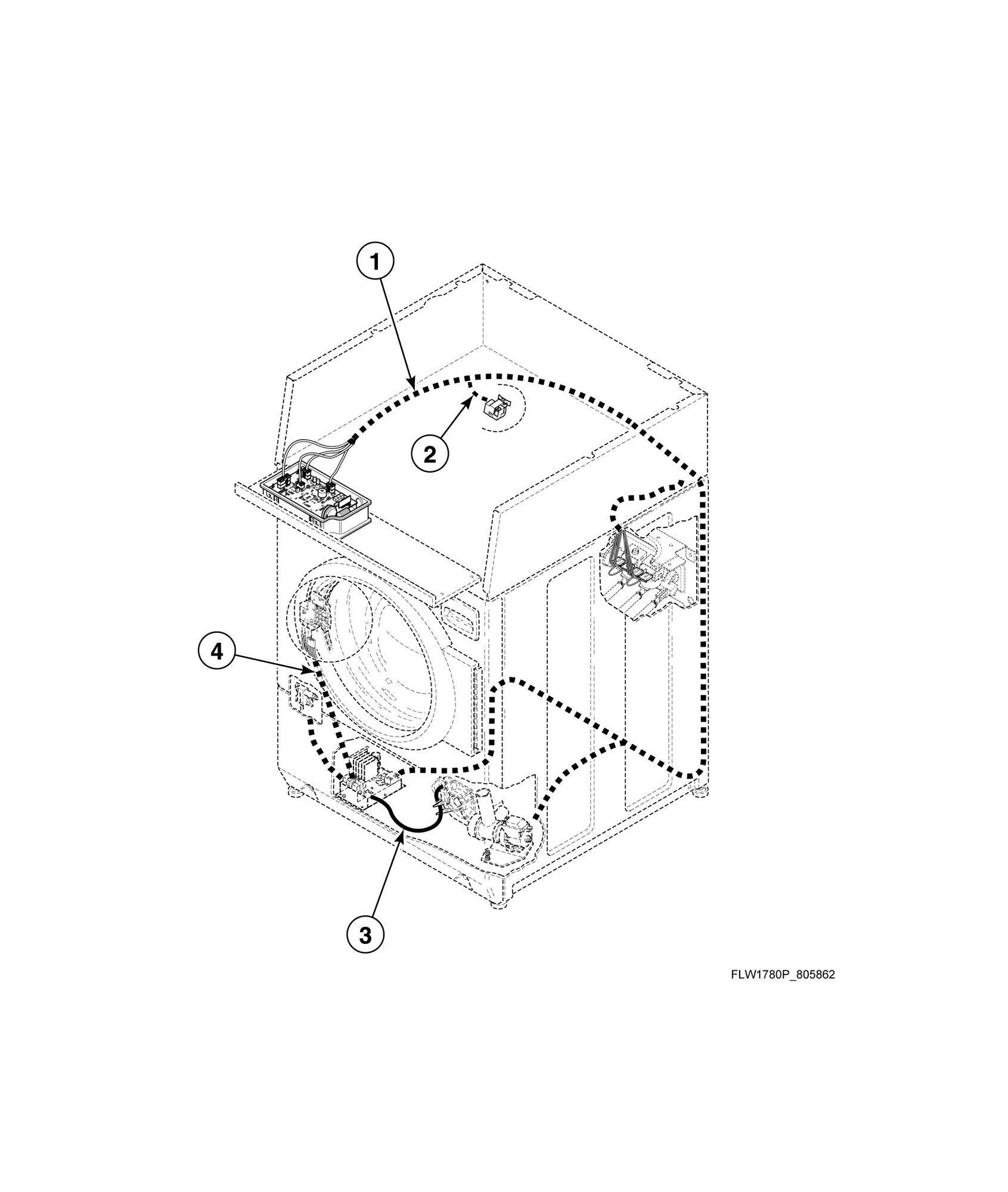

Wire Harnesses and Wires

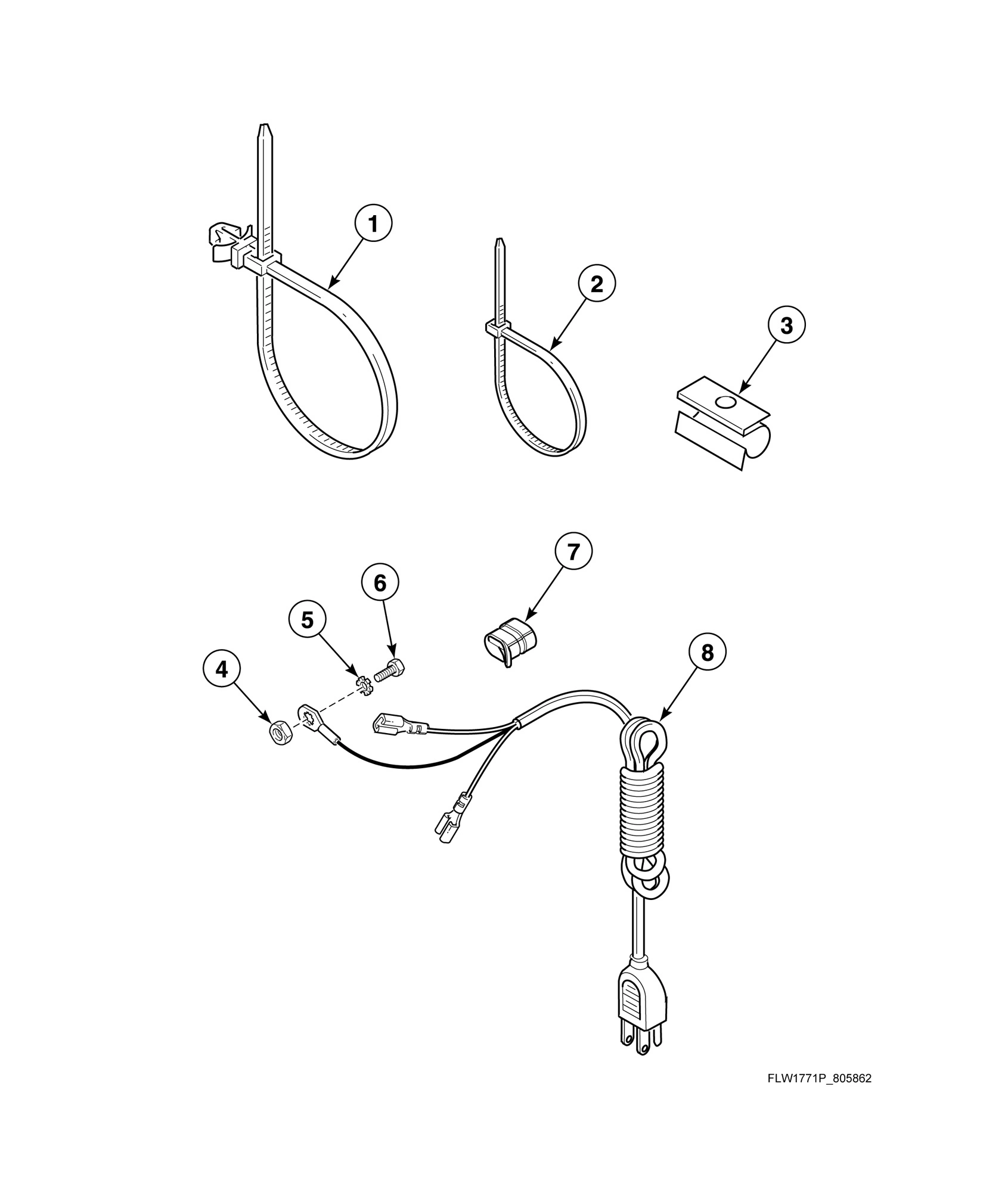

Wire Ties, Clips and Lead-In Cord
Common parts from model GE PFNE3RSP115TG01 General Electric Model PFNE3RSP115TG01
1
Screw GEN D501086 Contact Us For Availability
1
Dispenser Plate GEN 803843 Contact Us For Availability
1
Hose Clamp (Comment: 6 required) GEN 804173 Contact Us For Availability
1
Outer Door Bezel (Comment: White) GEN 803710WP Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Drain Pump Assembly (Comment: 120 Volt, 60 He GEN 803921P Contact Us For Availability
1
Washer GEN 20290 Contact Us For Availability
1
Nut GEN 804418 Contact Us For Availability
1
Notice Label GEN 803011 Contact Us For Availability
1
Front Control Harness GEN 806031 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
End Panel (Comment: Left) GEN D504007P Contact Us For Availability
2
Screw GEN 801001 Contact Us For Availability
2
Dispenser Inlet Hose GEN 803849 Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Pump Housing Assembly (Comment: Includes item GEN 802434P Contact Us For Availability
2
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
2
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Balance Ring Assembly GEN 804393 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Pressure Sensor Harness GEN 804433 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
3
Top Cover GEN D505808DG Contact Us For Availability
3
Door Glass Mounting Plate GEN 804239 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Pump Housing GEN 802428 Contact Us For Availability
3
Fill Hose (Comment: Marked for hot water, 4 f GEN 203718 Contact Us For Availability
3
Fill Hose (Comment: Marked for hot water, 4 f GEN 203719 Contact Us For Availability
3
Fill Hose (Comment: Marked for cold water, 4 GEN 203720 Contact Us For Availability
3
Fill Hose (Comment: Marked for cold water, 4 GEN 203750 Contact Us For Availability
3
Fill Hose (Comment: Marked for hot water, 4 f GEN 204102 Contact Us For Availability
3
Fill Hose (Comment: Marked for cold water, 4 GEN 204103 Contact Us For Availability
3
Screw (Comment: Use with painted panels) GEN 39733 Contact Us For Availability
3
Screw (Comment: Use with stainless steel pane GEN 806086 Contact Us For Availability
3
Lifter GEN 804382 Contact Us For Availability
3
Mixing Valve (Comment: 120 Volt, GHT thread, GEN 803809 Contact Us For Availability
3
Screw (Comment: Use with stainless steel pane GEN 806276 Contact Us For Availability
3
Warning Label (Comment: English, Reduce fire GEN 802367 Contact Us For Availability
3
Warning Label (Comment: Brazilian Portuguese, GEN 804500 Contact Us For Availability
3
Warning Label (Comment: Arabic, Reduce fire r GEN 804924 Contact Us For Availability
3
Warning Label (Comment: Japanese, Reduce fire GEN 805962 Contact Us For Availability
3
Warning Label (Comment: Chinese, Reduce fire GEN 805964 Contact Us For Availability
3
Warning Label (Comment: Korean, Reduce fire r GEN 805965 Contact Us For Availability
3
Warning Label (Comment: Thai, Reduce fire ris GEN 805966 Contact Us For Availability
3
Warning Label (Comment: Vietnamese, Reduce fi GEN 806550 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
4
End Panel (Comment: Right) GEN D504006P Contact Us For Availability
4
Door Glass GEN 802695P Contact Us For Availability
4
Drain Hose GEN 803976 Contact Us For Availability
4
Gasket GEN 802427 Contact Us For Availability
4
Door Latch Assembly GEN 803920 Contact Us For Availability
4
Inner Basket Assembly Kit GEN 804376P Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Gray) GEN 800004DG Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left, White, Incl GEN 800004WP Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Stainless GEN 802525P Contact Us For Availability
4
Notice Label GEN D516073 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
4
Nut GEN 03673 Contact Us For Availability
5
Control Support Panel GEN 804836 Contact Us For Availability
5
Nut GEN 685846 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Screw GEN D503661 Contact Us For Availability
5
Lid Assembly (Comment: Includes filter) GEN 802426P Contact Us For Availability
5
Inner Basket Assembly GEN 804374P Contact Us For Availability
5
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
5
Warning Label (Comment: Brazilian Portuguese, GEN 804582 Contact Us For Availability
5
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
5
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
5
Washer GEN 03815 Contact Us For Availability
6
Control Assembly (Comment: Includes item 7) GEN 806255P Contact Us For Availability
6
Inner Door Bezel Kit GEN 802307P Contact Us For Availability
6
Inner Door Bezel (Comment: Glass filled polyp GEN 804562P Contact Us For Availability
6
Hose Stand GEN 38732 Contact Us For Availability
6
Sealant (Comment: Tub-to-pump hose to outer t GEN 27615P Contact Us For Availability
6
Tub-to-Pump Hose GEN 803829 Contact Us For Availability
6
Wire Clamp Ring GEN 802283 Contact Us For Availability
6
Screw GEN 804699 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Through Serial No GEN 803790 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Starting Serial N GEN 806716 Contact Us For Availability
6
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
6
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
6
Screw GEN 20530 Contact Us For Availability
7
Overlay GEN 806191 Contact Us For Availability
7
Detergent Hose GEN 804717 Contact Us For Availability
7
Door Catch Assembly GEN 802803 Contact Us For Availability
7
Hose Clamp GEN F200204 Contact Us For Availability
7
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
7
Trunnion Shaft Kit (Comment: Includes hardwar GEN 804405P Contact Us For Availability
7
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
7
Electrical Shock Label GEN F8211201 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
Graphic Panel GEN 805608 Contact Us For Availability
8
NOT ON YOUR MODEL GEN - Contact Us For Availability
8
Hose Clamp GEN 685725 Contact Us For Availability
8
Screw GEN 801993 Contact Us For Availability
8
Door Seal (Comment: Black) GEN 804428P Contact Us For Availability
8
Door Seal Assembly (Comment: Gray) GEN 804429P Contact Us For Availability
8
Screw GEN 804399 Contact Us For Availability
8
Rear Panel (Comment: Removable) GEN 803789 Contact Us For Availability
8
GEN D500049 GEN D500049 Contact Us For Availability
8
GEN D500314 GEN D500314 Contact Us For Availability
8
GEN F8211301 GEN F8211301 Contact Us For Availability
9
Dispenser Assembly GEN 803698 Contact Us For Availability
9
Screw GEN 800548 Contact Us For Availability
9
Screw GEN 801019 Contact Us For Availability
9
Extension Spring GEN 802285 Contact Us For Availability
9
Shipping Plug GEN 803859 Contact Us For Availability
10
Dispenser Drawer GEN 803667 Contact Us For Availability
10
Door Hinge GEN 802934 Contact Us For Availability
10
Drain Base Bracket GEN 803814 Contact Us For Availability
10
Hinge Plate GEN 802206 Contact Us For Availability
10
Pulley Assembly GEN 803974 Contact Us For Availability
11
Nut GEN 23951 Contact Us For Availability
11
Screw GEN 802431 Contact Us For Availability
11
Front Panel (Comment: Gray) GEN 802277DG Contact Us For Availability
11
Front Panel (Comment: White) GEN 802277WP Contact Us For Availability
11
Front Panel (Comment: Stainless steel) GEN 802288P Contact Us For Availability
11
Washer GEN 800464 Contact Us For Availability
12
Dispenser Handle (Comment: Black) GEN 804227B Contact Us For Availability
12
Dispenser Handle (Comment: White) GEN 804227WP Contact Us For Availability
12
Dispenser Handle (Comment: Gray) GEN 804228 Contact Us For Availability
12
Glass Mounting Clip (Comment: 7 required) GEN 802700 Contact Us For Availability
12
O-Ring GEN 802429P Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
13
Compartment Cover GEN 803669 Contact Us For Availability
13
Door Assembly (Comment: White, Includes items GEN 804083WP Contact Us For Availability
13
Door Assembly (Comment: Gray, Includes items GEN 804210 Contact Us For Availability
13
Door Assembly (Comment: Black Includes items GEN 805550 Contact Us For Availability
13
Drain Pump Isolator GEN 803815 Contact Us For Availability
13
Nut GEN 36020 Contact Us For Availability
13
Washer (Comment: Used on models through Seria GEN M403958 Contact Us For Availability
14
Dispenser Assembly (Comment: Includes items 9 GEN 805494P Contact Us For Availability
14
Screw GEN 801045 Contact Us For Availability
14
Screw GEN M400043 Contact Us For Availability
15
Access Panel Assembly (Comment: Gray) GEN 804617DGP Contact Us For Availability
15
Access Panel Assembly (Comment: White) GEN 804617W Contact Us For Availability
15
Access Panel Assembly (Comment: Stainless ste GEN 804618 Contact Us For Availability
15
Washer GEN M400081 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes hardwa GEN 805525 Contact Us For Availability
17
Nut GEN 800452 Contact Us For Availability
19
Pressure Sensor GEN 202470 Contact Us For Availability
NA
Foam Pad GEN 804875 Contact Us For Availability
NA
Chemical Injection Conversion Kit (Comment: I GEN 805938 Contact Us For Availability
NA
Chemical Injection Conversion Kit (Comment: I GEN 805939 Contact Us For Availability
NA
Pump-to-Gravity Drain Kit (Comment: 120 Volt) GEN 805771 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Bearing Kit GEN 805730 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Paint (Comment: Gray) GEN 806436P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
