Model Primus PDGJXAGS304AG01 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Coin Drop Models
Control Panel and Controls - Rear Control Card Models
Non-Electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models

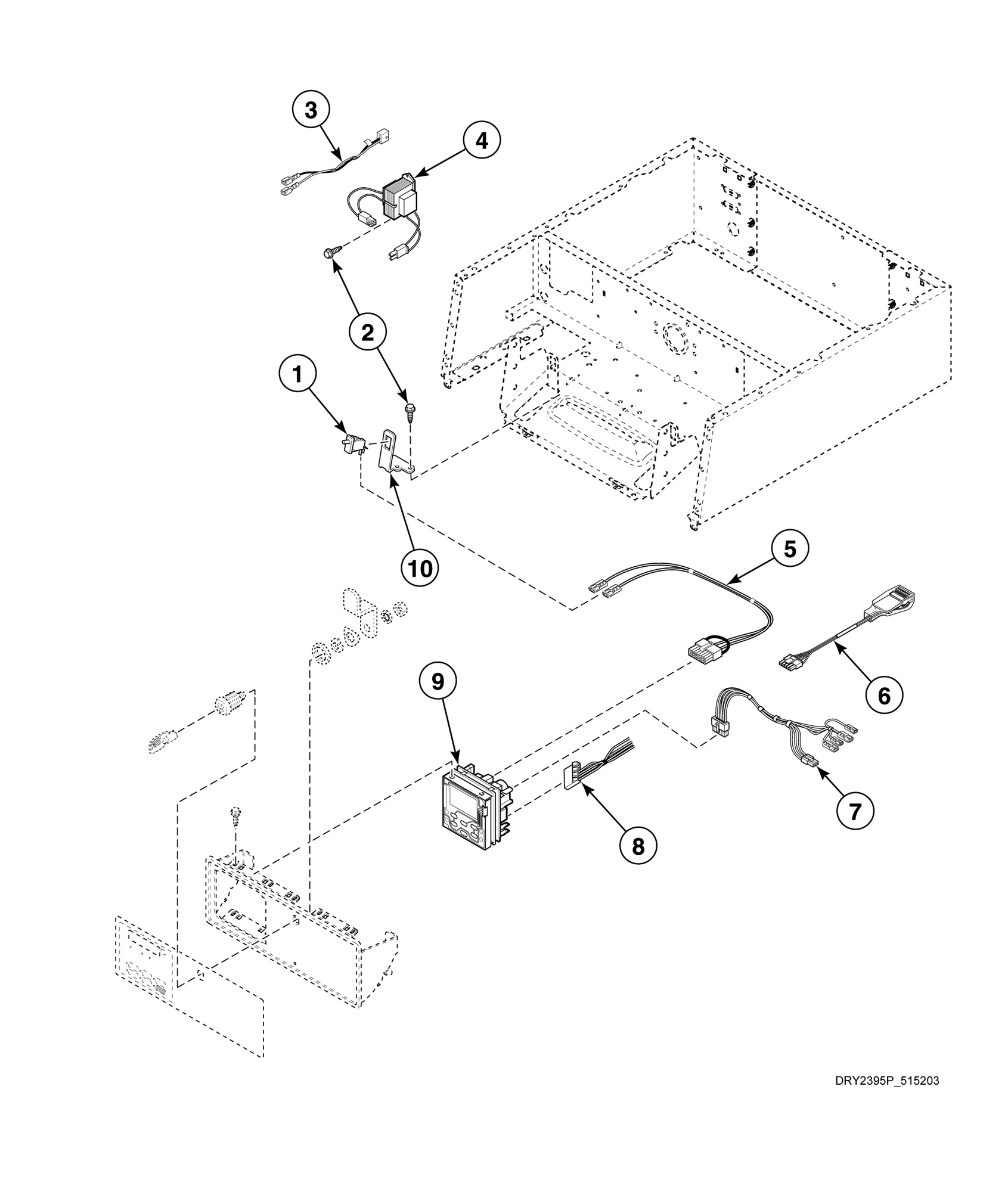

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 10 Degree Front Control Models

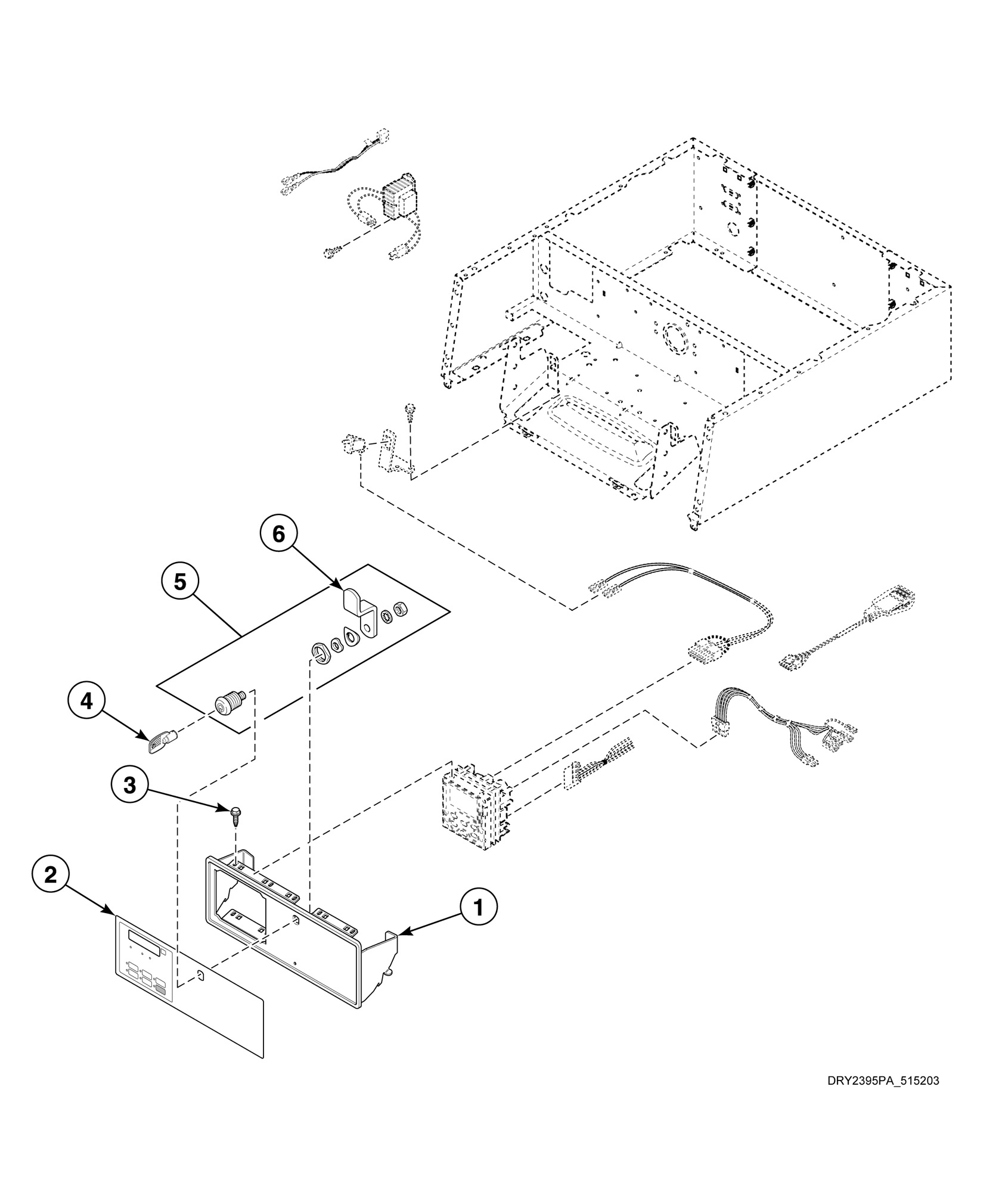

(Drawing 2 of 2)
Network Board Assembly

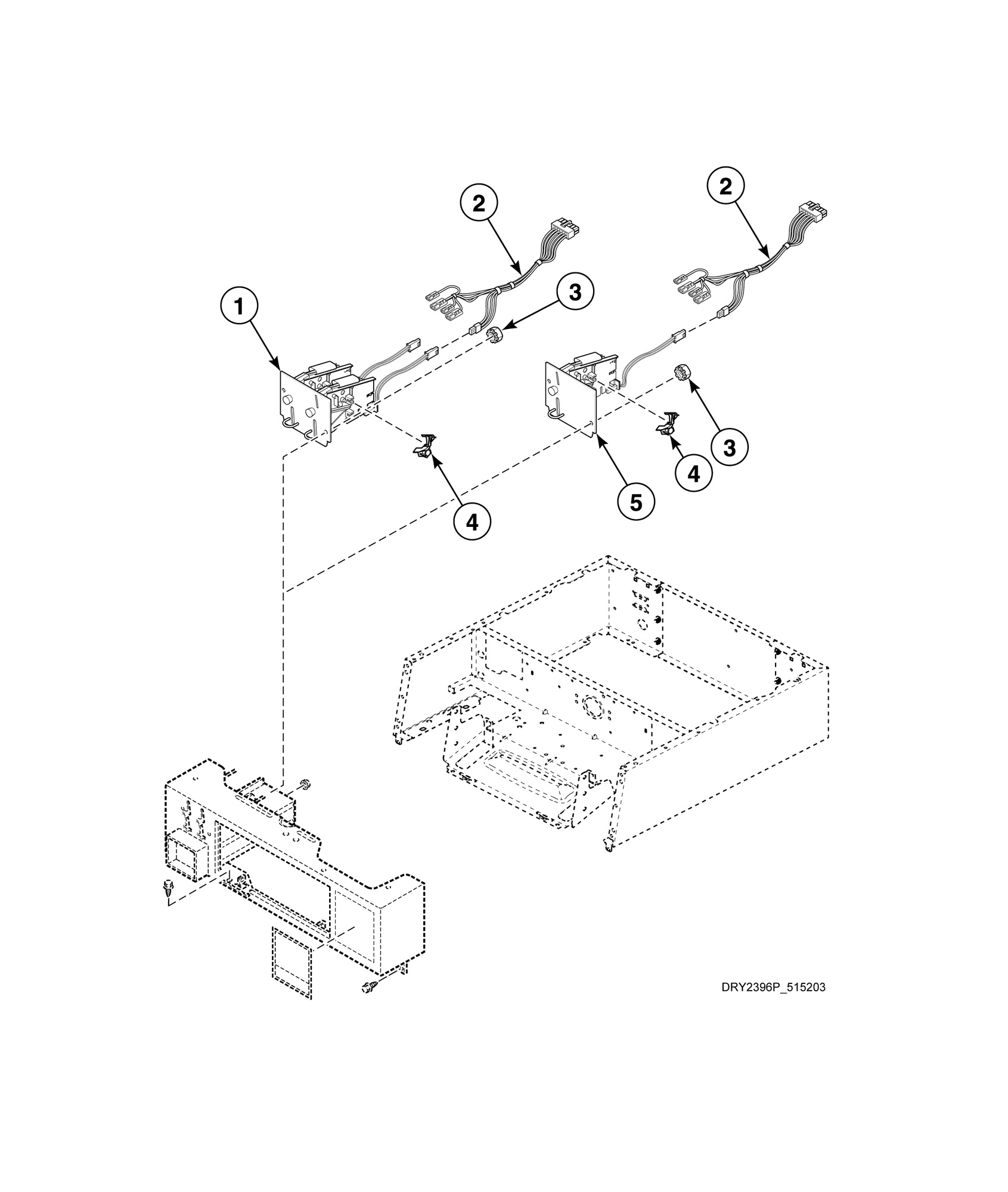

Non-Electronic Coin Drop - Front Control Models

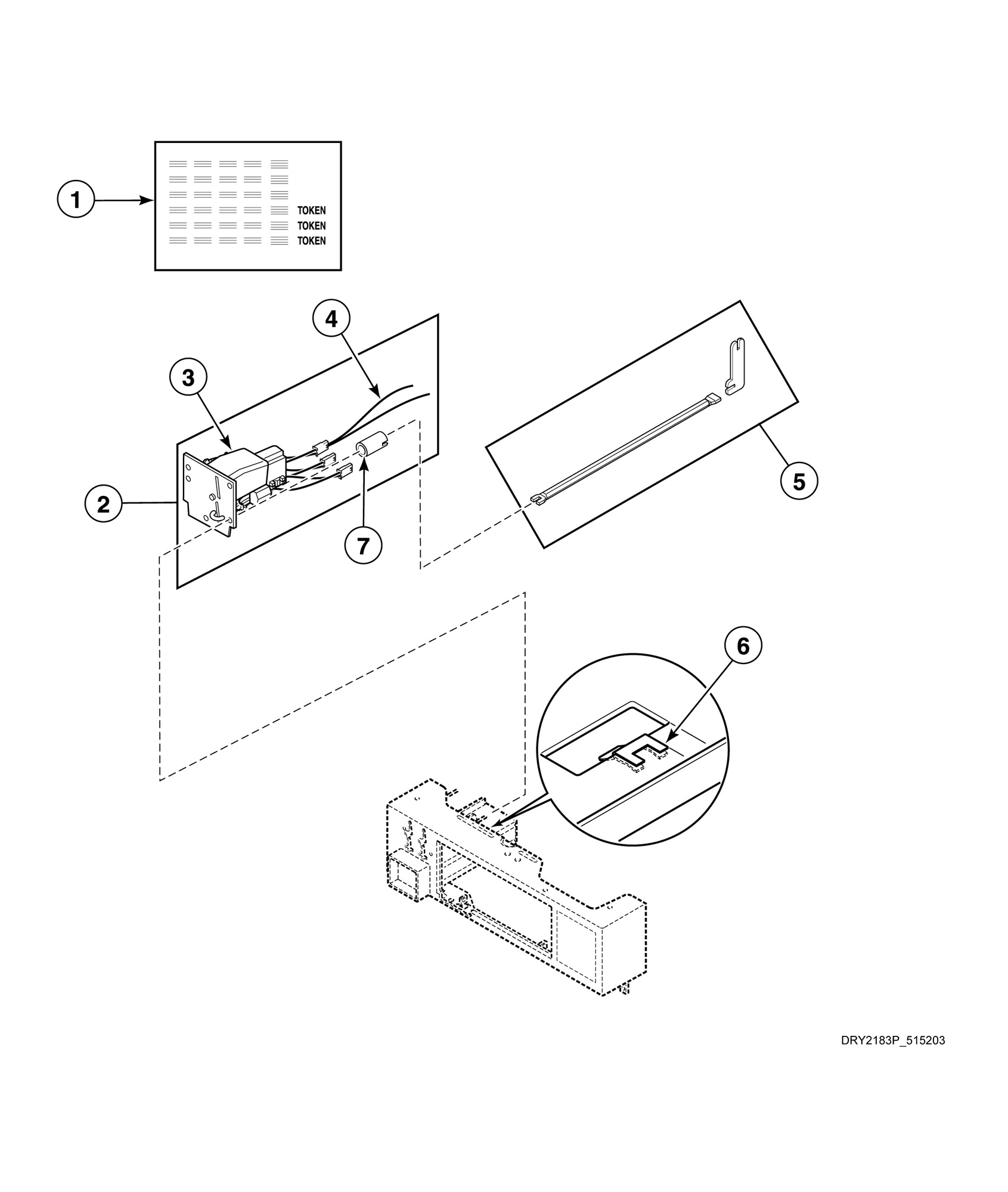

Electronic Coin Drop - Front Control Models

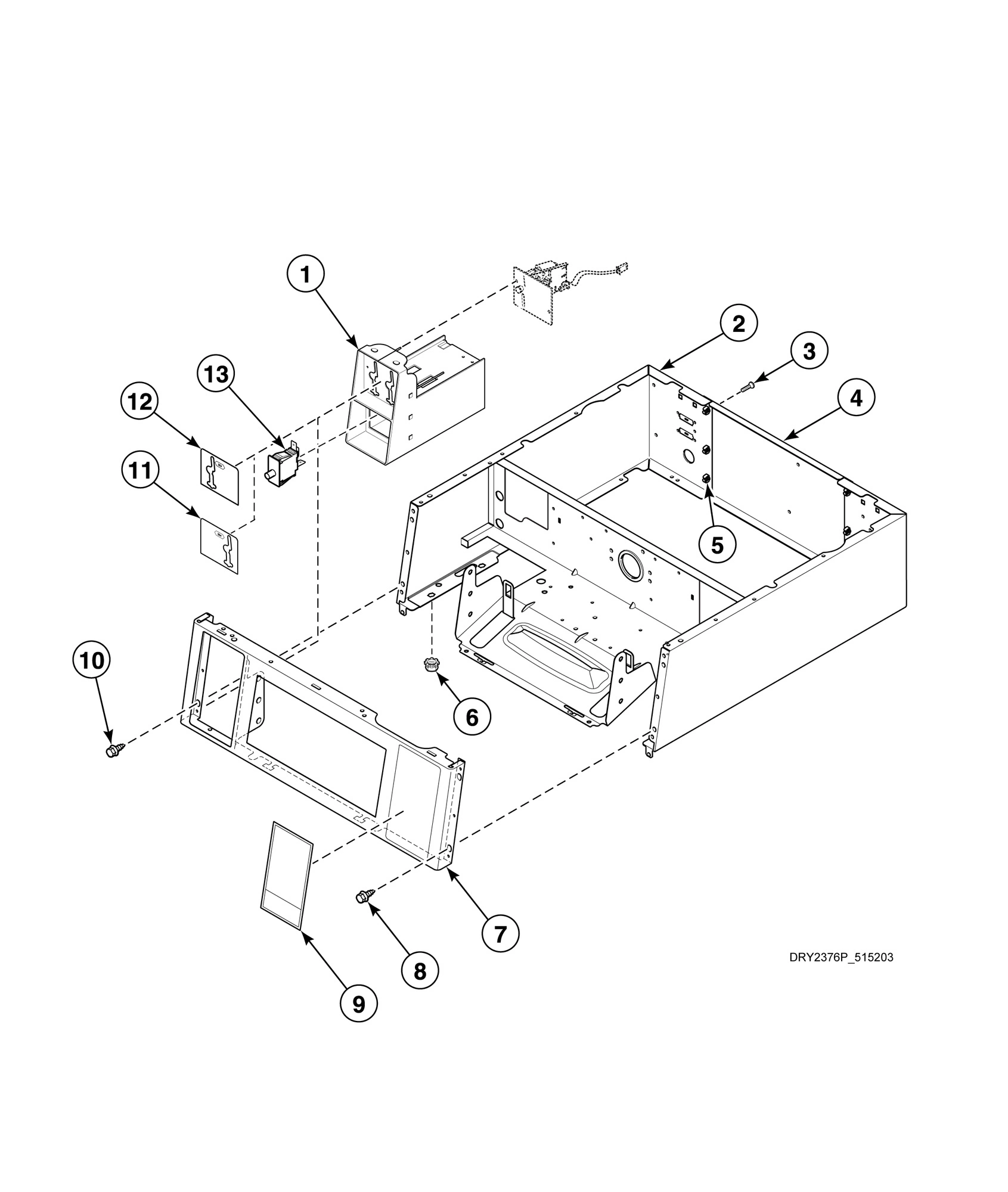

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

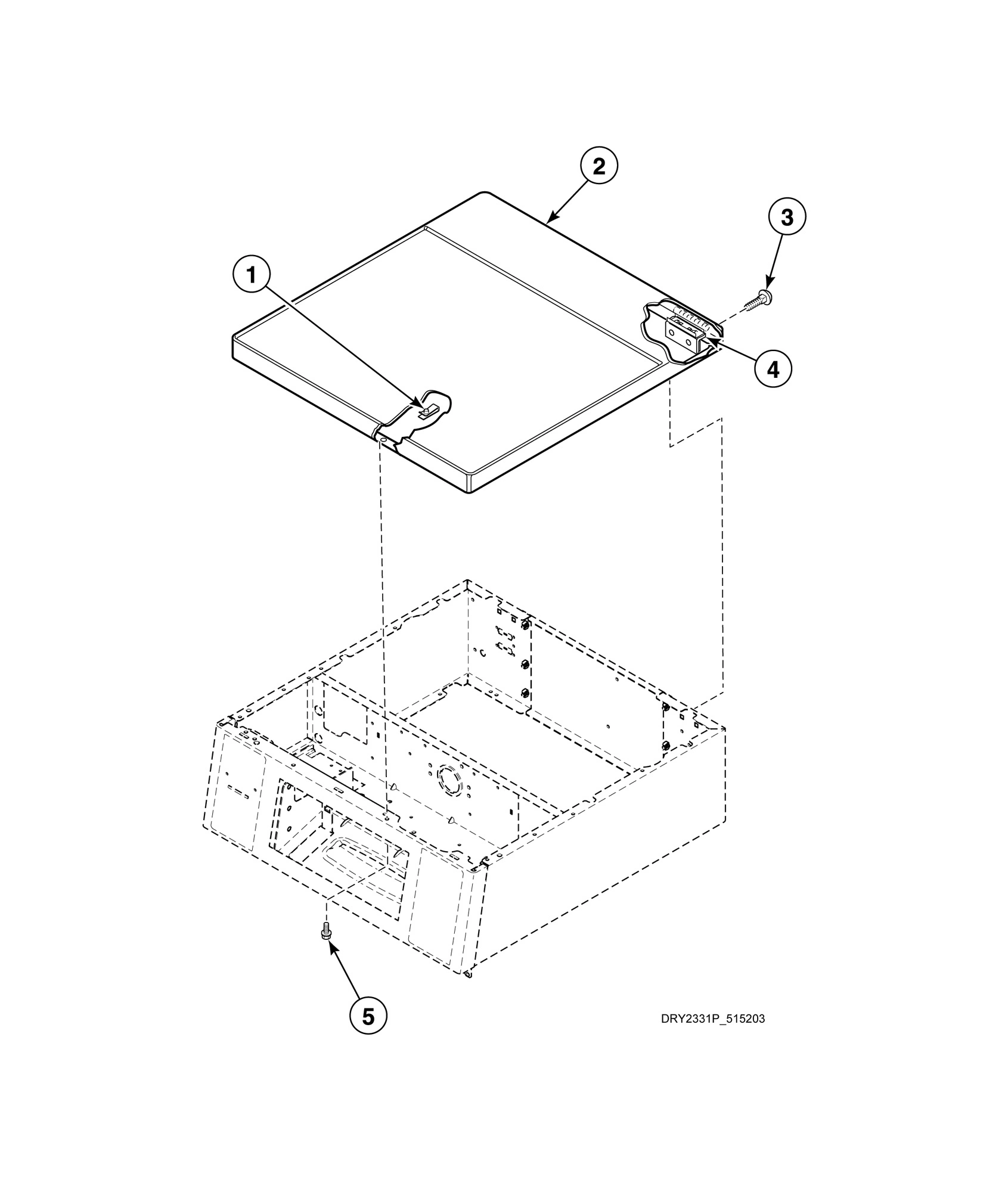

Cabinet Top - 10 Degree Front Control Models
Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)
Loading Door without Window
Loading Door with Window
Access Panel
Front Panel and Seal
Motor and Belt
Exhaust Fan and Idler
Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block
Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly

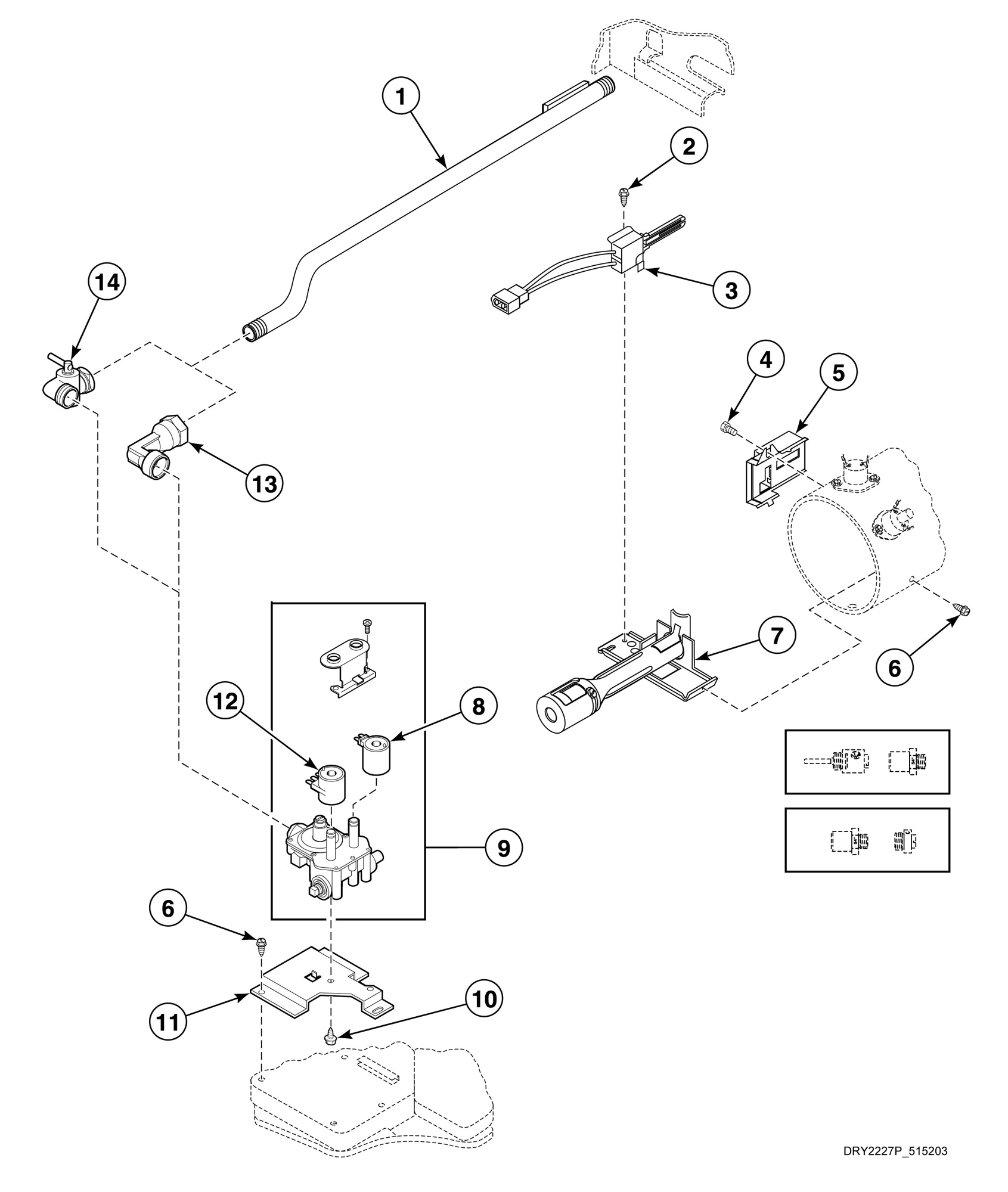

Gas Valve and Igniter - Through Serial No. 1908000001
Gas Valve and Igniter - Starting Serial No. 1908000001
Gas Valve - Through Serial No. 1908000001
Gas Valve - Starting Serial No. 1908000001

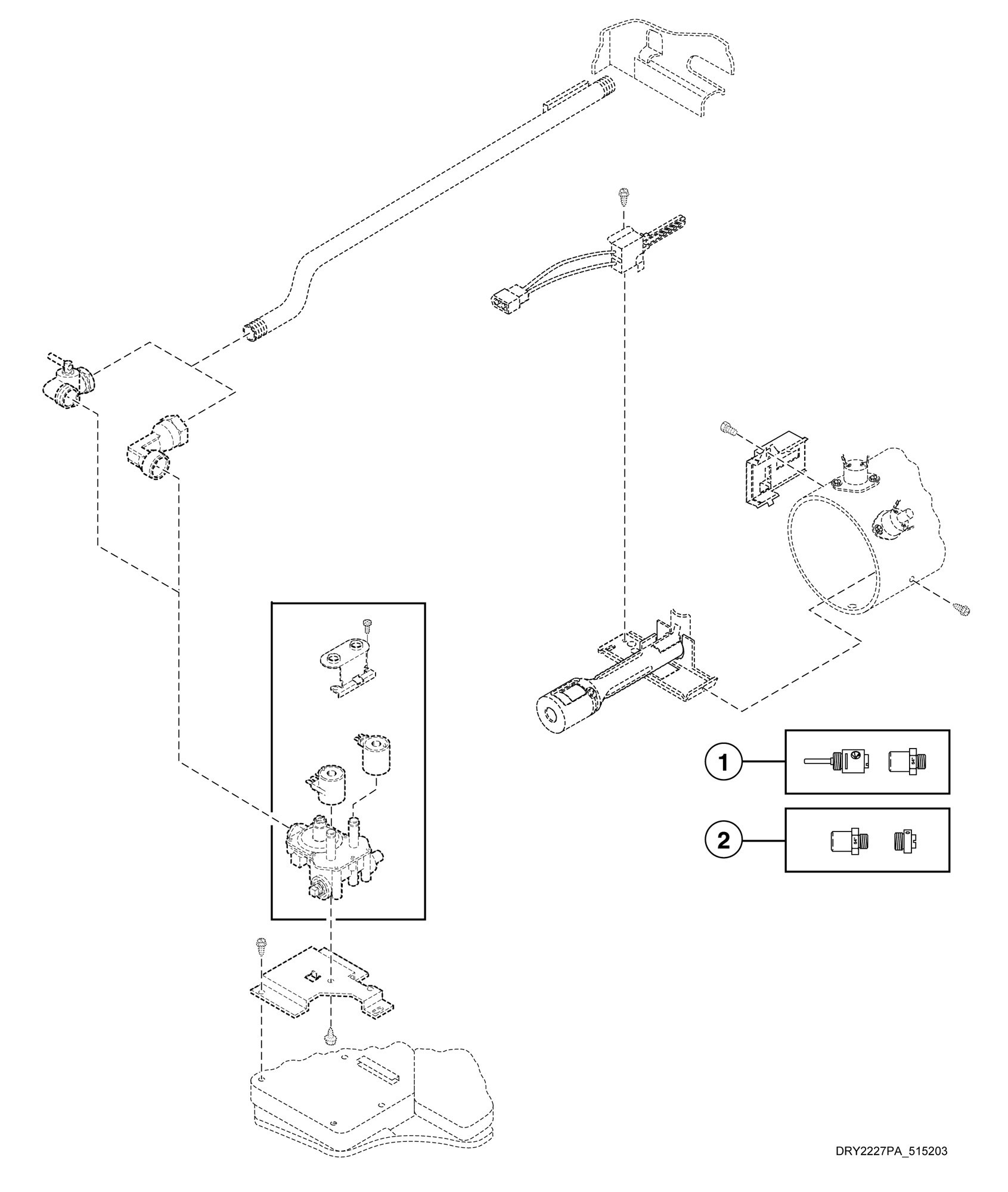

Gas Conversion Kits
Burner Orifice Spuds - For Higher Elevations

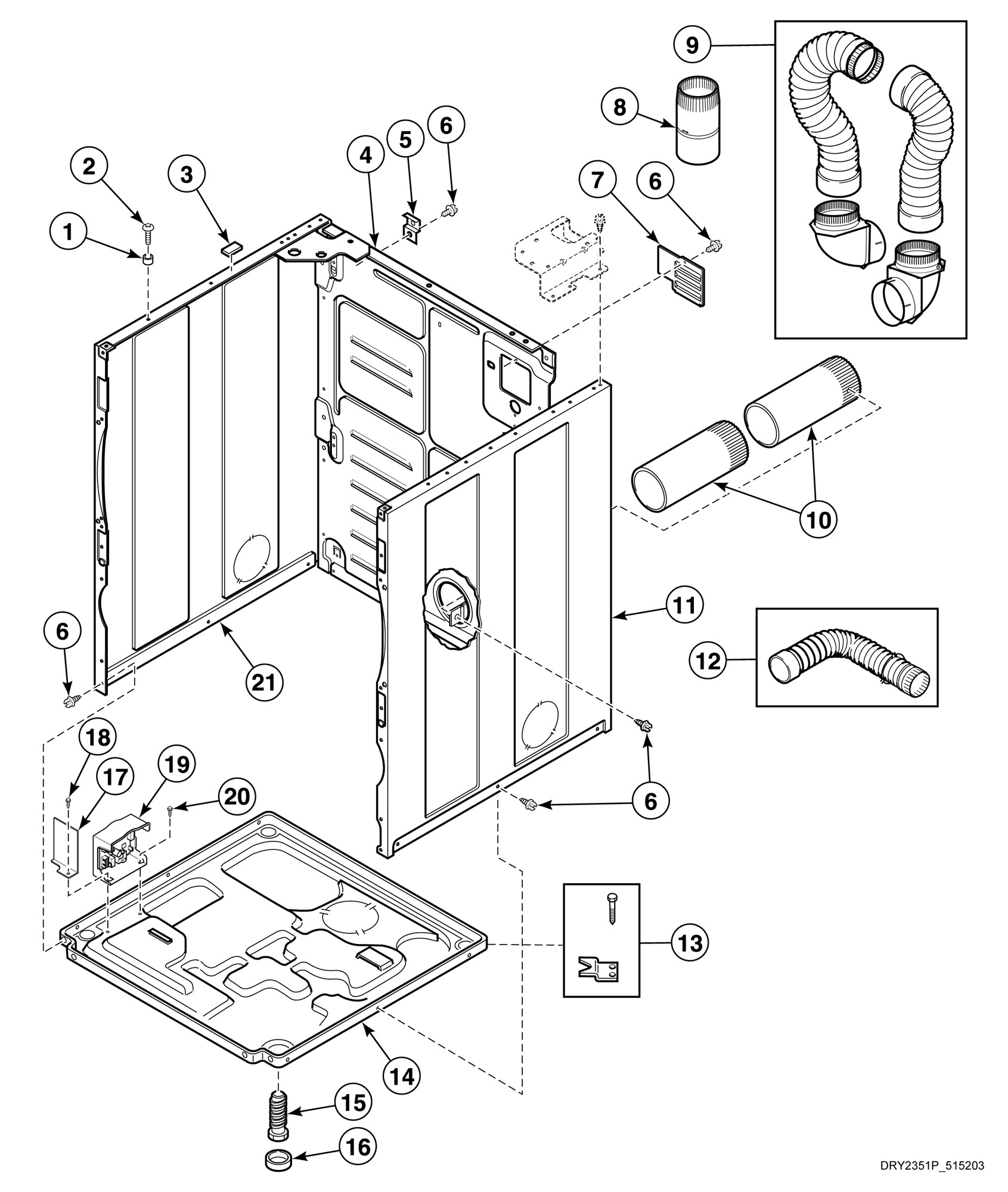

Cabinet, Exhaust Duct and Base

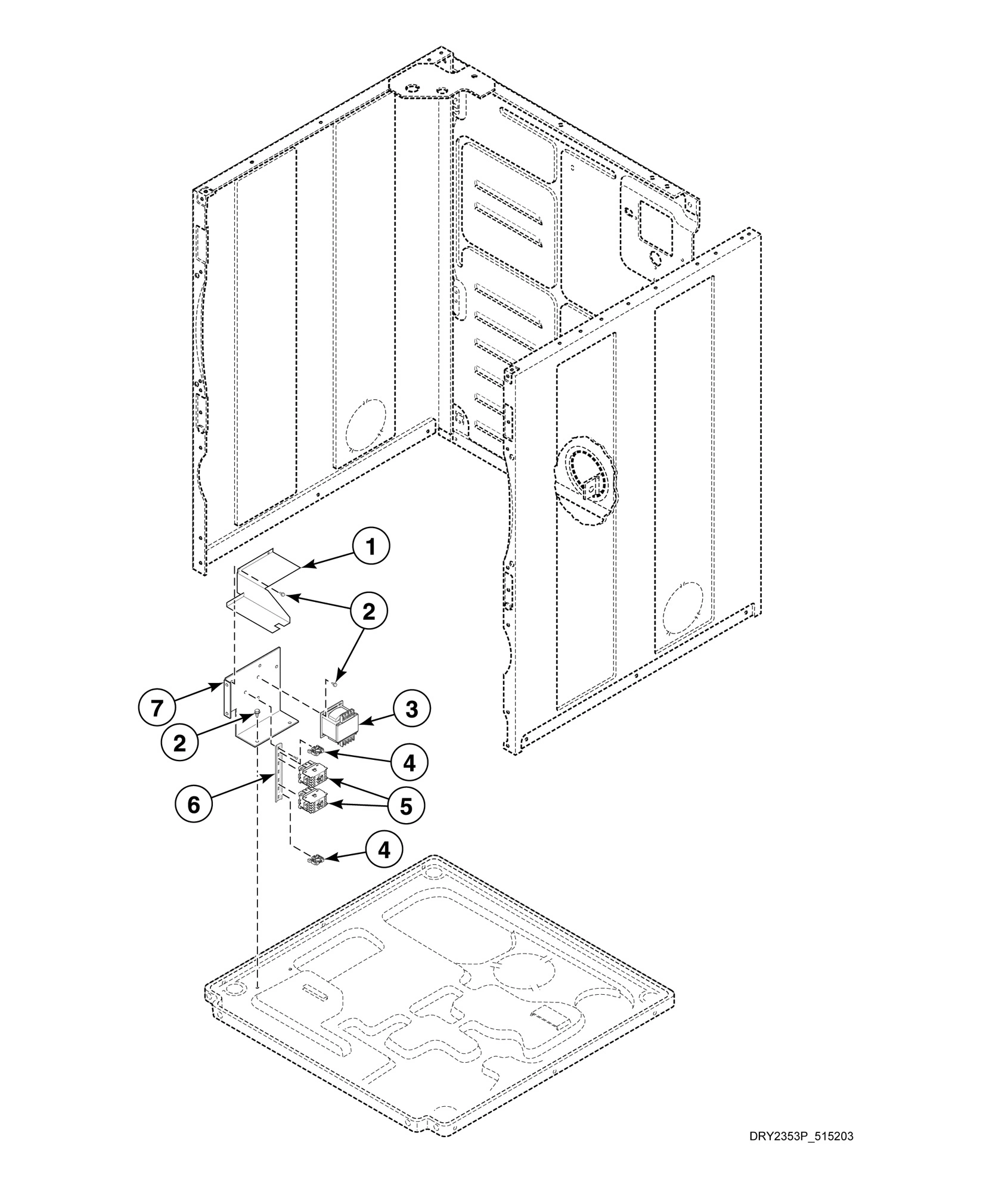

Contactor and Transformer
Ignition Control Module
Power Cord

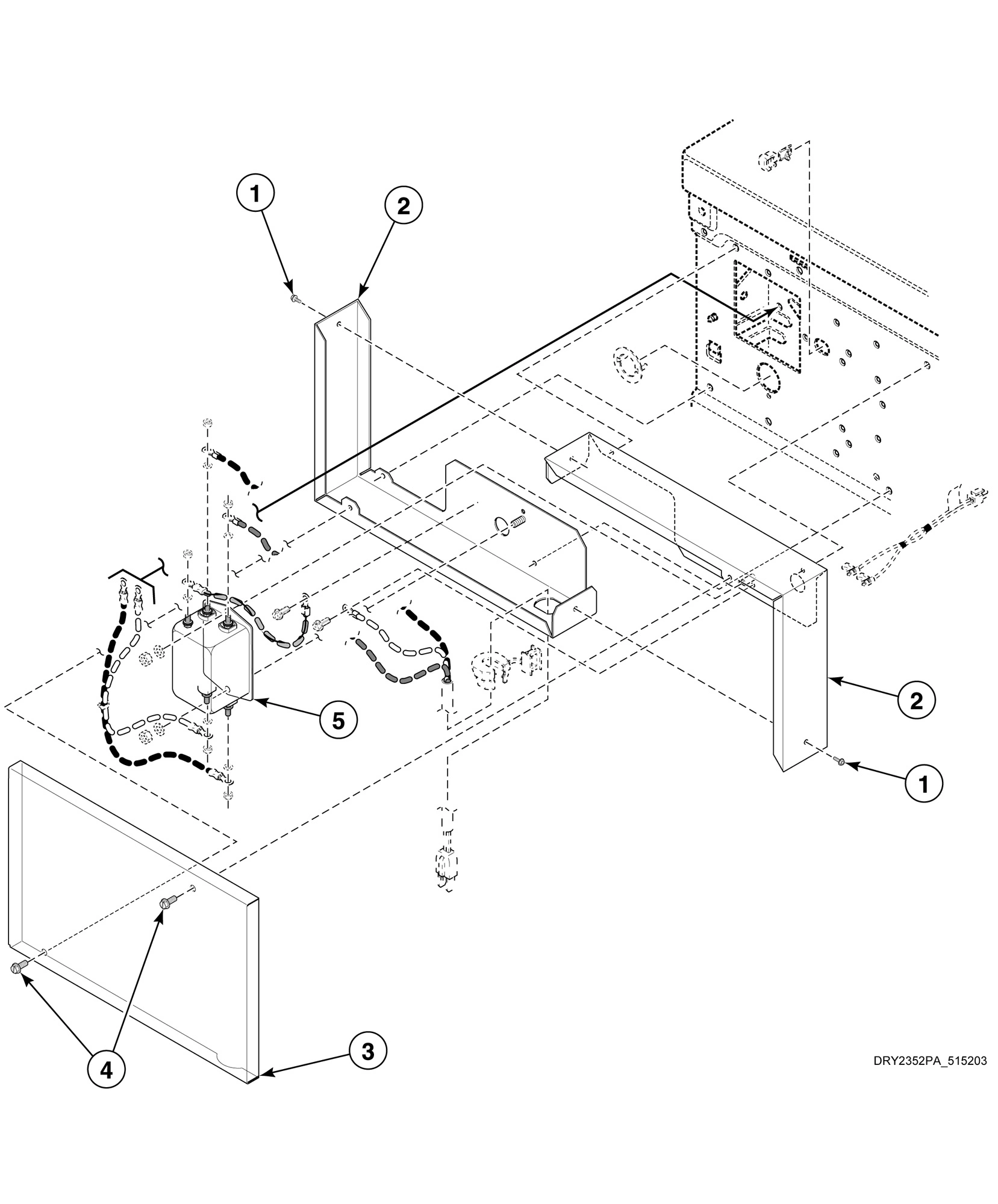

Junction Box

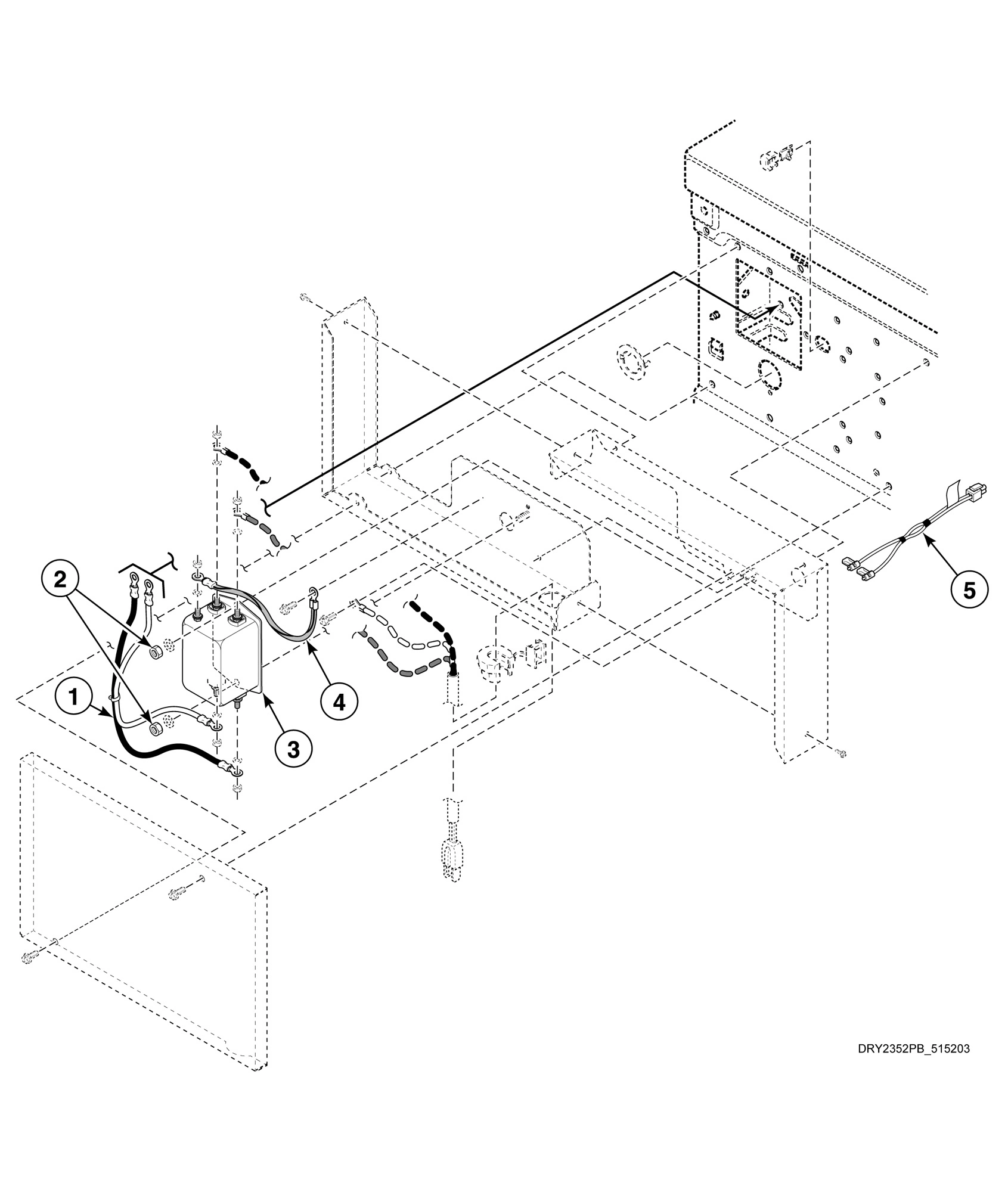

Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Rear Control Models
Burner Orifice Spuds - For Higher Elevations (gas Models)
Terminals
Terminal Block And Terminals
Power Cord
Cylinder Assembly
Access Panel
Terminals
Motor Connection Block And Tools
Electronic Coin Drop - Front Control Models
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Terminal Block And Terminals
Non-electronic Coin Drop - Front Control Models

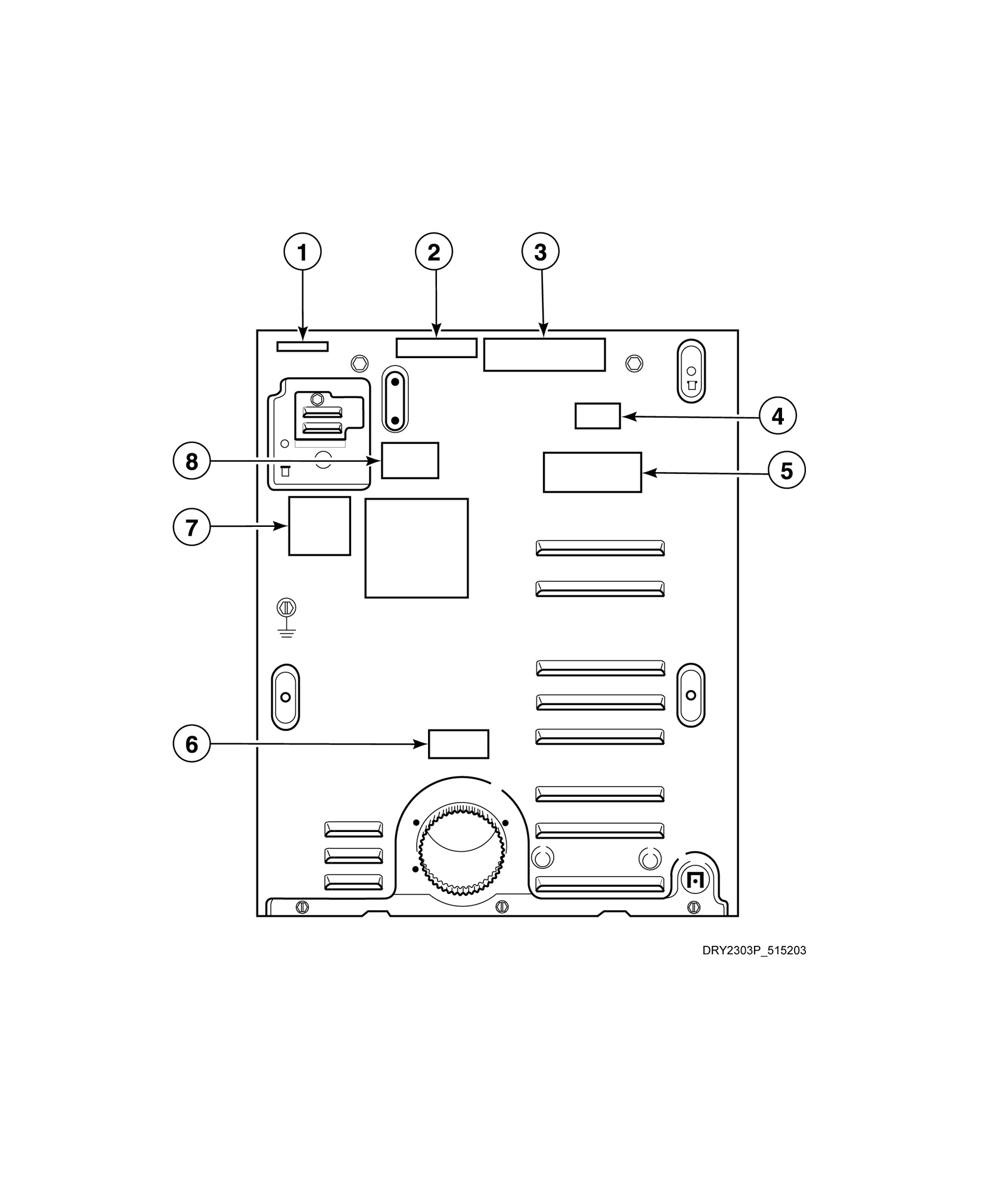

Label Location On Rear Of Cabinet
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Junction Box Filter And Harnesses
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Label Location On Rear Of Cabinet
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Electronic Coin Drop - Front Control Models
Non-electronic Coin Drop - Front Control Models
Motor Connection Block And Tools
Non-electronic Coin Drop - Front Control Models
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Motor And Belt
Motor Connection Block And Tools
Burner Orifice Spuds - For Higher Elevations (gas Models)
Gas Conversion Kits (gas Models)
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Motor And Belt
Gas Valve And Igniter (gas Models)
Non-electronic Coin Drop - Front Control Models
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Cabinet Top - 10 Degree Front Control Models
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Electronic Coin Drop - Front Control Models
Non-electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Non-electronic Coin Drop - Front Control Models
Loading Door Without Window
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Access Panel
Label Location On Rear Of Cabinet

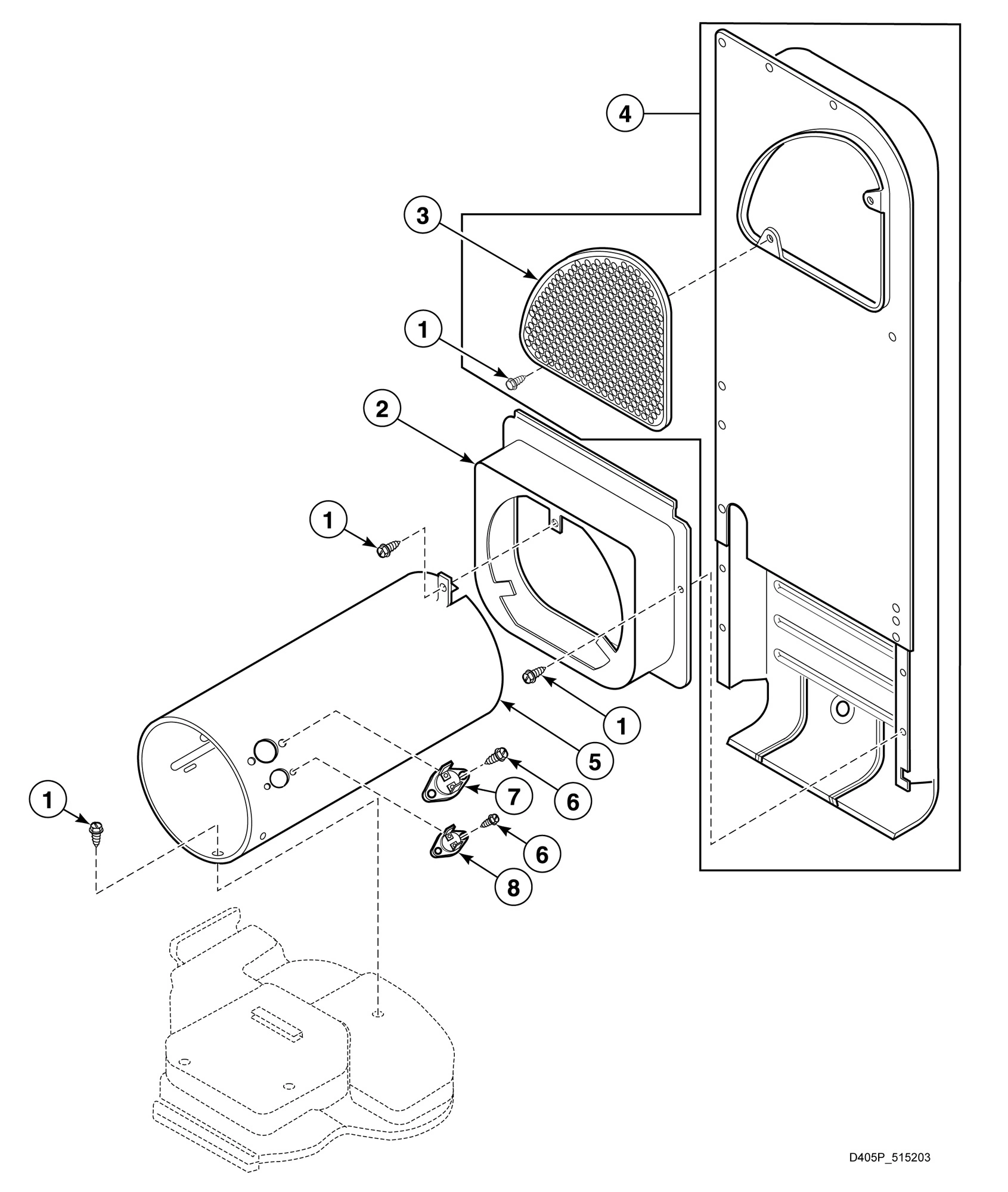

Heater Duct Assembly (gas Models)
Label Location On Rear Of Cabinet
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Label Location On Rear Of Cabinet
Terminals
Thermistor
Access Panel
Label Location On Rear Of Cabinet
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Rear Bulkhead, Felt Seal And Cylinder Roller
Junction Box Filter And Harnesses
Heater Duct Assembly (gas Models)
Gas Valve And Igniter (gas Models)
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Exhaust Fan And Idler
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Contactor And Transformer
Cabinet, Exhaust Duct And Base
Burner Orifice Spuds - For Higher Elevations (gas Models)
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cabinet Top - 10 Degree Front Control Models
Label Location On Rear Of Cabinet
Motor And Belt
Loading Door Without Window
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Front Panel And Seal
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Gas Valve And Igniter (gas Models)
Loading Door Without Window
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Exhaust Fan And Idler
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Gas Valve And Igniter (gas Models)
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Loading Door Without Window
Motor And Belt
Loading Door Without Window
Gas Valve And Igniter (gas Models)
Exhaust Fan And Idler
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Gas Valve And Igniter (gas Models)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Gas Valve And Igniter (gas Models)
Cylinder Assembly
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Burner Orifice Spuds - For Higher Elevations (gas Models)
Heater Duct Assembly (gas Models)
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Front Panel And Seal
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor And Belt
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Cylinder Assembly
Wire Harnesses And Wires - Front Control Models (drawing 1 Of 2)
Cabinet, Exhaust Duct And Base
Front Panel And Seal
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Contactor And Transformer
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Cabinet, Exhaust Duct And Base
Junction Box Filter And Harnesses
Access Panel
Front Panel And Seal
Contactor And Transformer
Heater Duct Assembly (gas Models)
Cabinet, Exhaust Duct And Base
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Exhaust Fan And Idler
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Front Panel And Seal
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Power Cord
Non-electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Exhaust Fan And Idler
Common parts from model Primus PDGJXAGS304AG01 Dryer
SPQ 70294106 SPQ 70294106 Contact Us For Availability
1
Filter Harness (comment: Filter To Rear Bulkh SPQ D514037 Contact Us For Availability
1
Transformer Shield SPQ D514334 Contact Us For Availability
2
Control Overlay SPQ D515652 Contact Us For Availability
3
Transformer SPQ D513763 Contact Us For Availability
3
Junction Box Cover SPQ D514363 Contact Us For Availability
4
Key SPQ 54612 No Longer Available
4
Ground Filter Harness (comment: Earth/ground) SPQ D514039 Contact Us For Availability
4
Motor Shield SPQ D514602 Contact Us For Availability
5
Coin Drop SPQ 70441601P Contact Us For Availability
6
Access Panel Assembly (comment: Gray) SPQ D514250DG Contact Us For Availability
7
Screw (comment: Torx Head, Optional For Added SPQ 62853 Contact Us For Availability
7
NUT SPQ WP487939 Contact Us For Availability
9
Operating Instructions Label SPQ D514929 Contact Us For Availability
9
Control Assembly SPQ D515809P Contact Us For Availability
17
NUT SPQ WPW10139757 Contact Us For Availability
NA
Junction Box Seal SPQ D514379P Contact Us For Availability
NA
Pinched Fingers Label (comment: Icon, Crush H SPQ F8211301 Contact Us For Availability
NA
Ethernet Gateway Kit (comment: Wireless) SPQ NK320 Contact Us For Availability
NA
Usb Gateway Kit (comment: Wireless) SPQ NK330 Contact Us For Availability
NA
SCREW SPQ WP3351614 Contact Us For Availability
× ![]()
