Model Alliance NSGBXAGW303NW22 Dryer – Common Parts & Diagrams

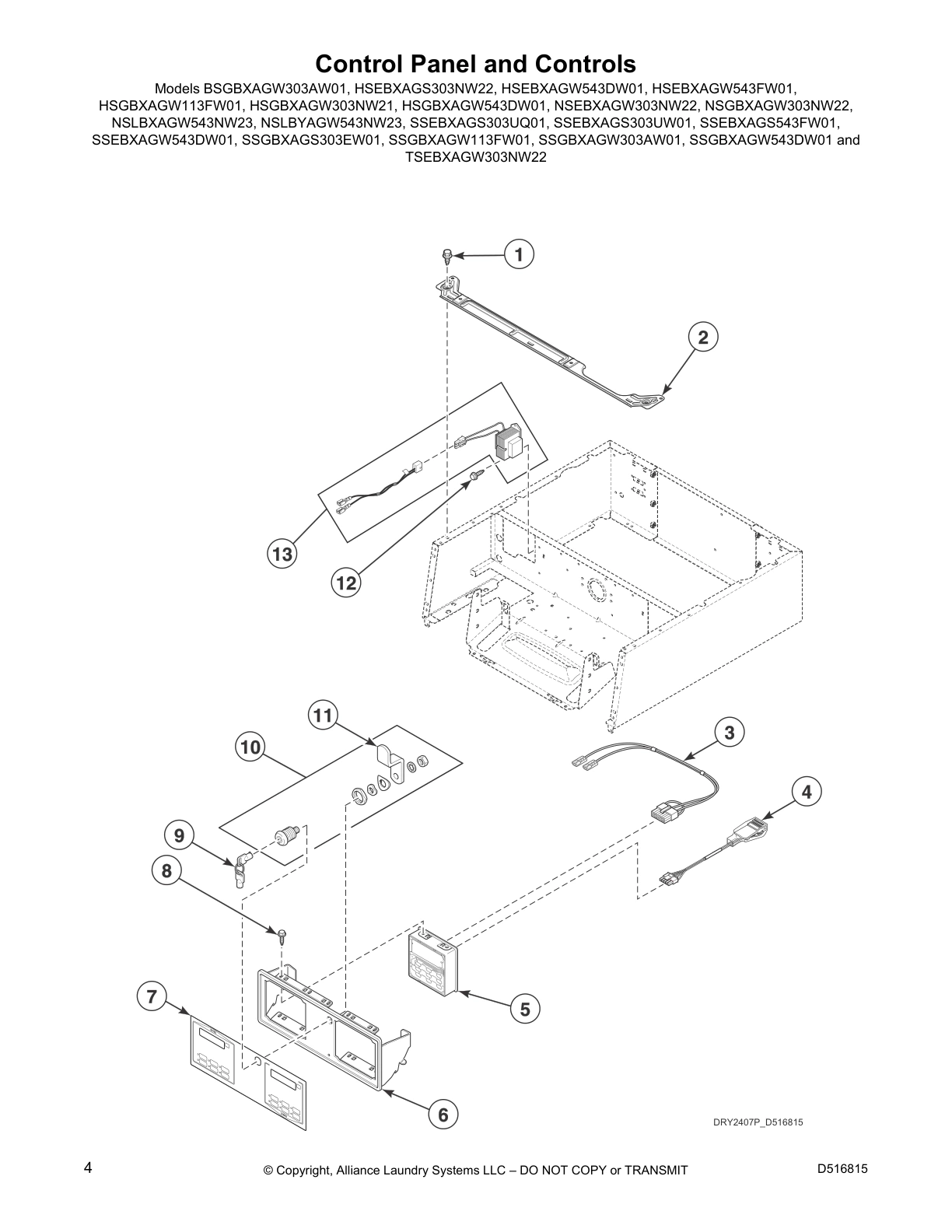

Control Panel and Controls

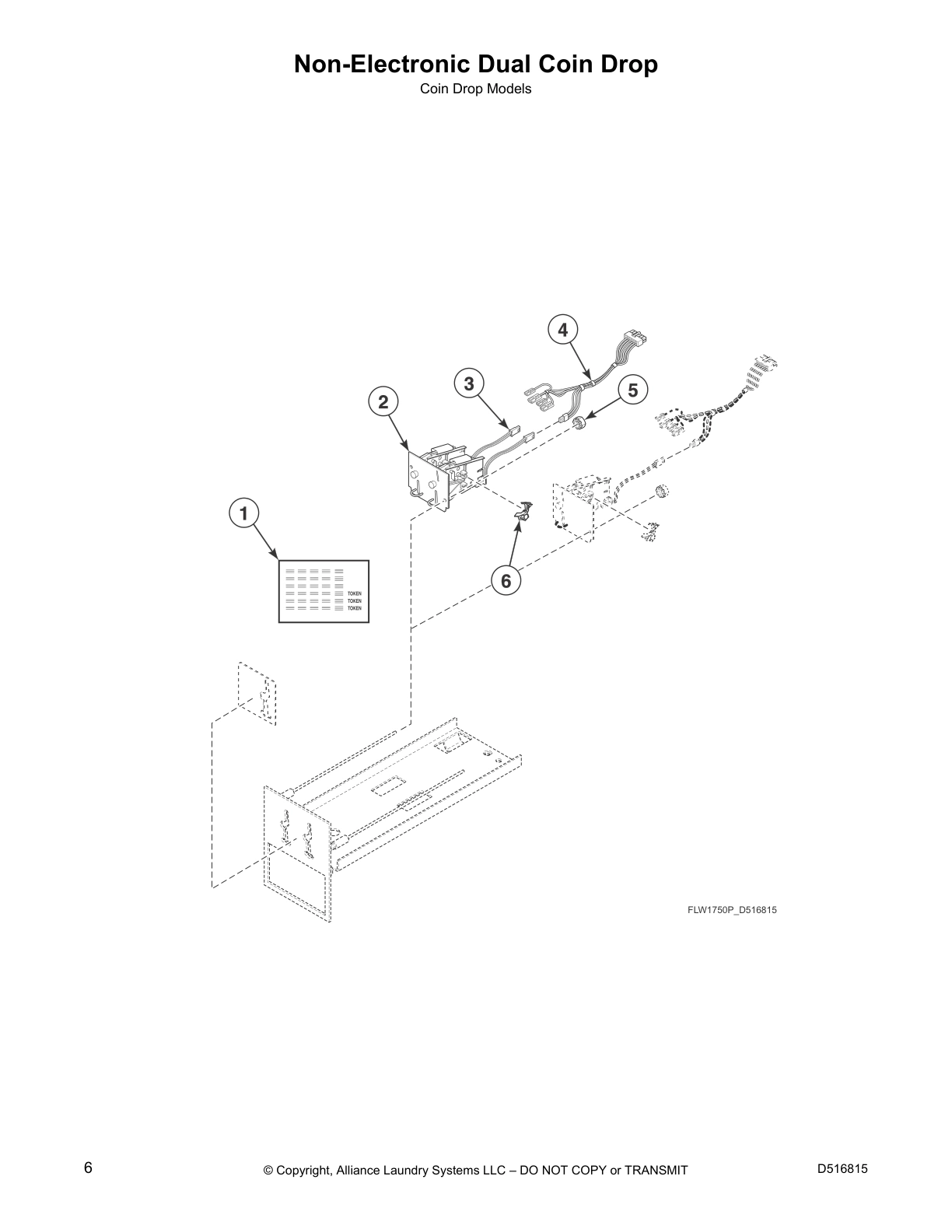

Non-Electronic Dual Coin Drop
Non-Electronic Single Coin Drop
Electronic Coin Drop
Control Cabinet (Drawing 1 of 2)
Control Cabinet (Drawing 2 of 2)
Control Panel and Controls - Nonmetered
Control Panel and Controls - Coin Slide Models
Loading Door With Window
Loading Door Without Window
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt (Drawing 1 of 2)
Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Starting Serial No. 1908000001
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base
Contactor and Transformer
Cabinet Top
Junction Box
Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires
Wire Harnesses and Wires
Common parts from model Alliance NSGBXAGW303NW22 Dryer
× ![]()
