Model Alliance NDGNXAGS303EW01 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Coin Drop Models
Control Panel and Controls - Rear Control Card Models

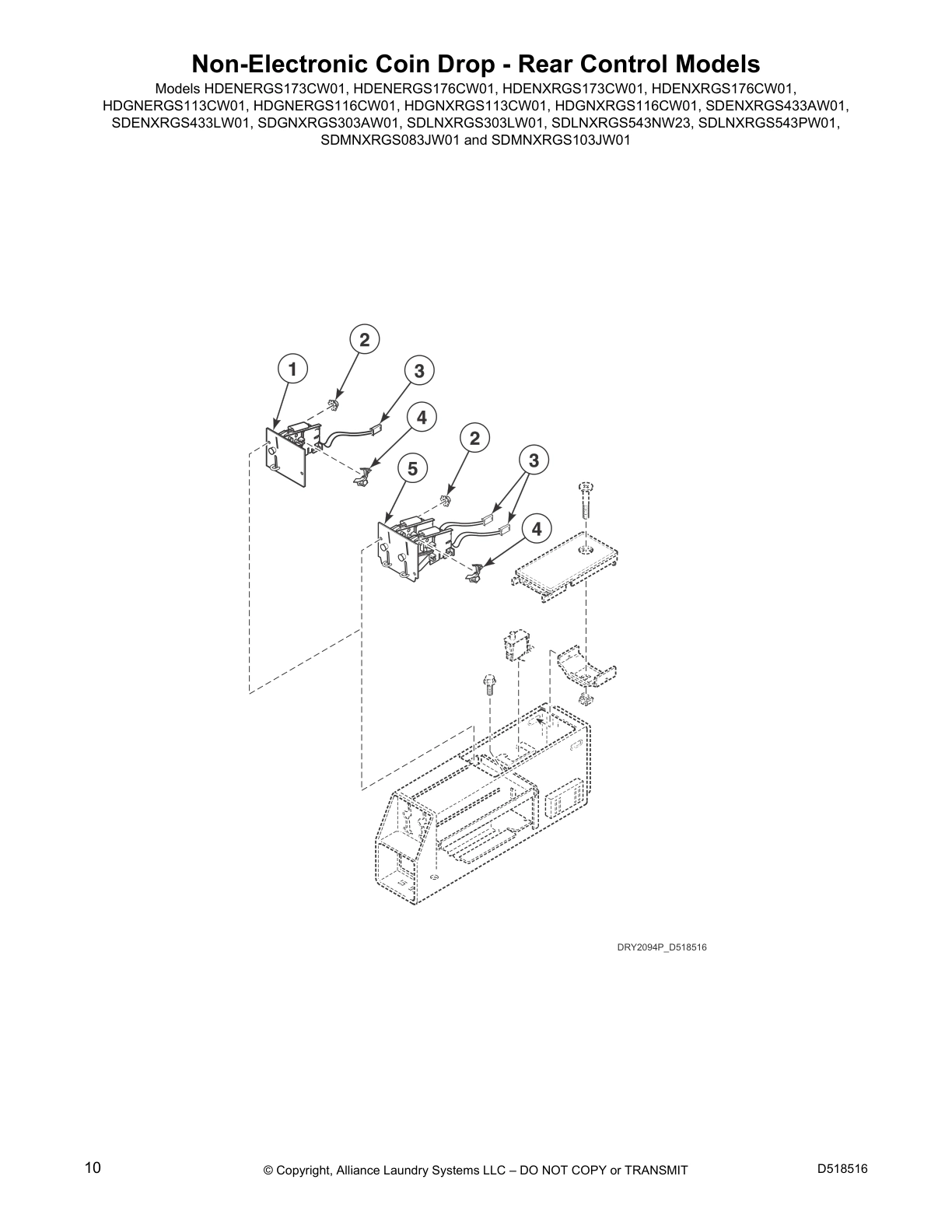

Non-Electronic Coin Drop - Rear Control Models

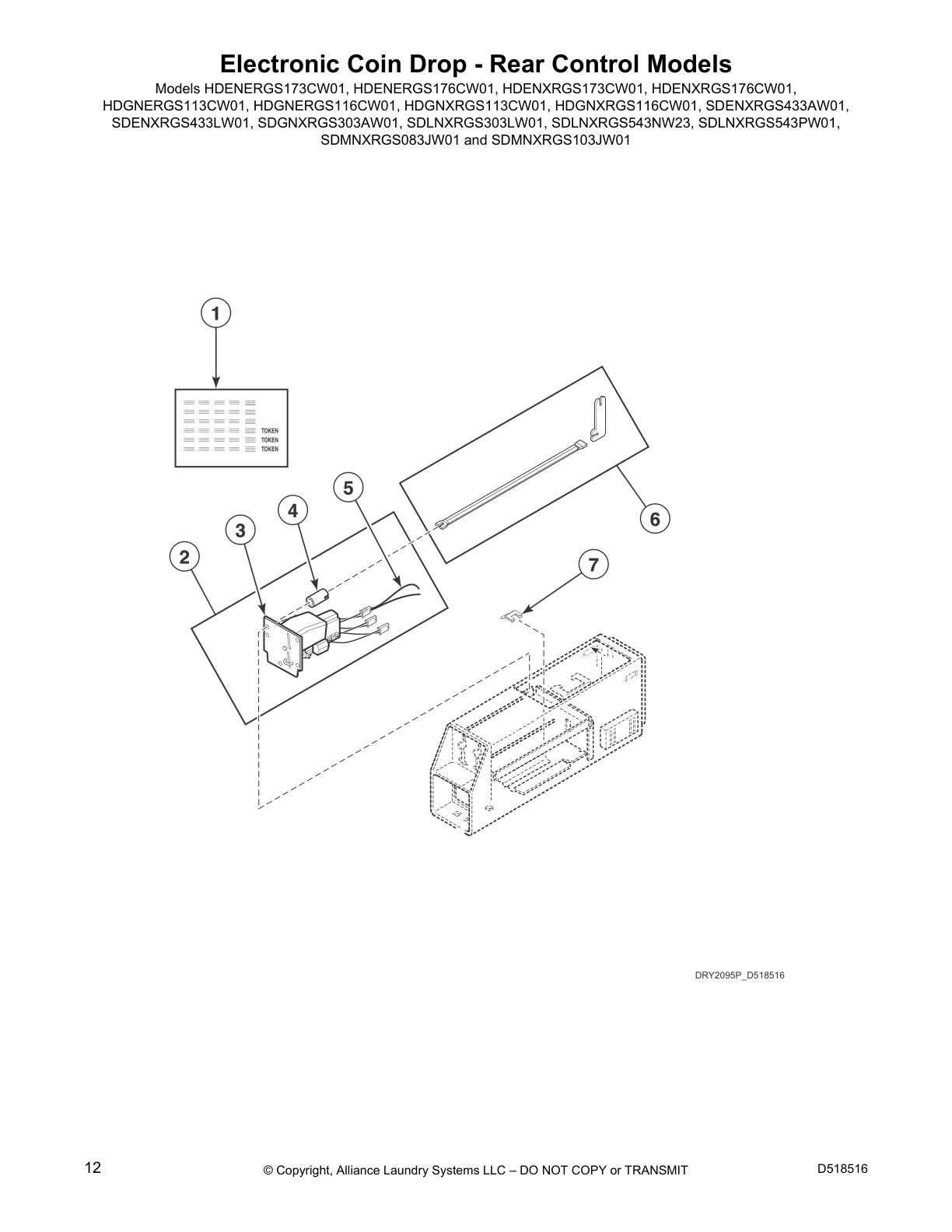

Electronic Coin Drop - Rear Control Models

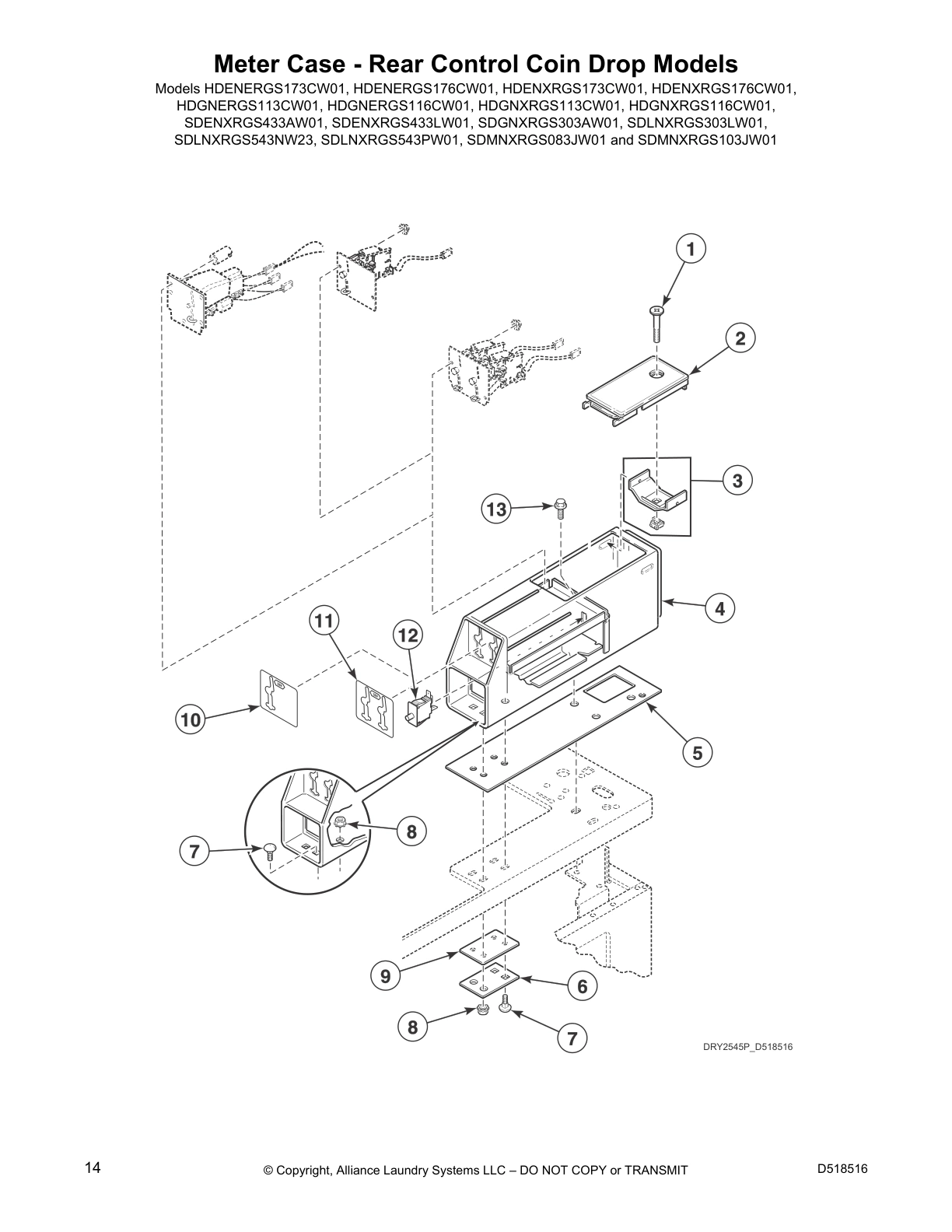

Meter Case - Rear Control Coin Drop Models

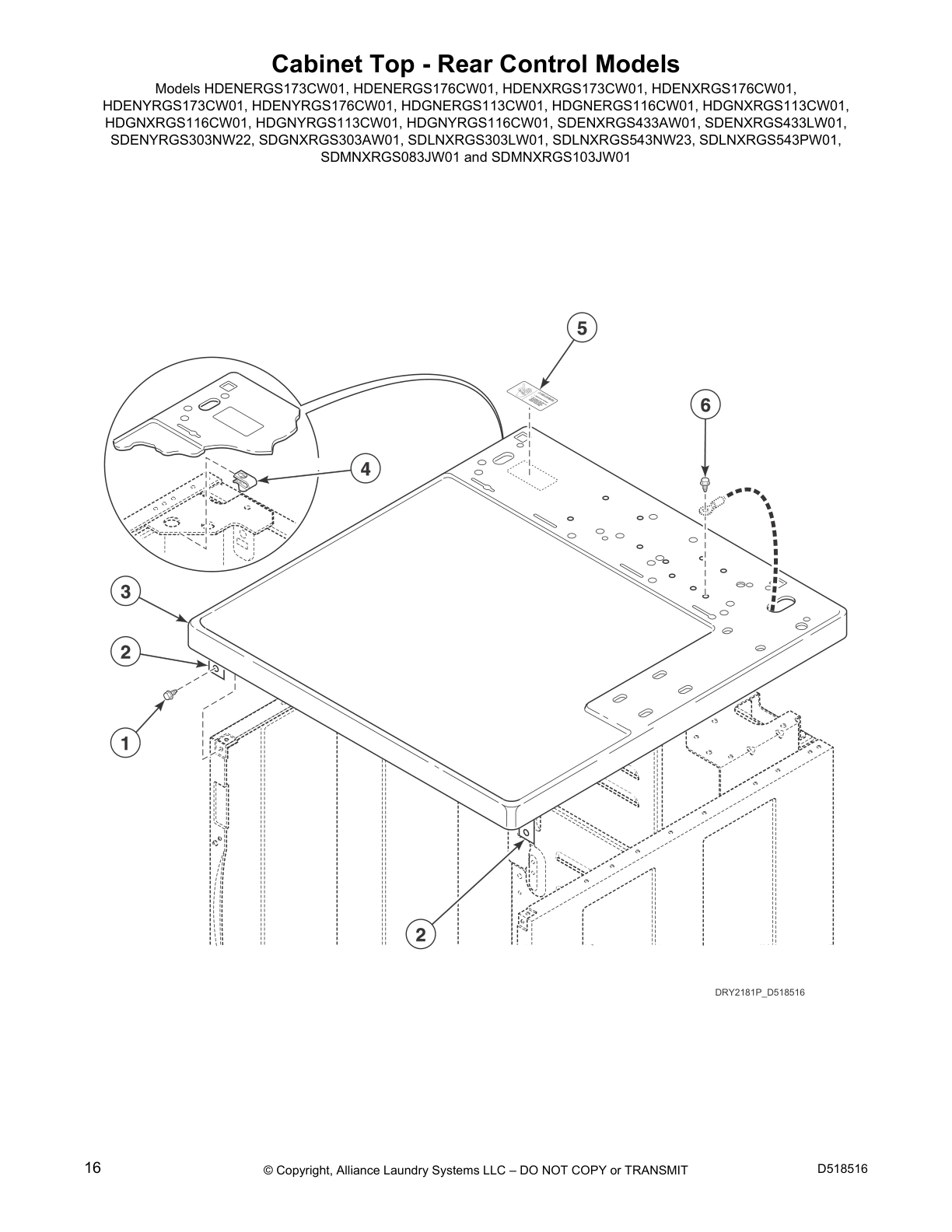

Cabinet Top - Rear Control Models

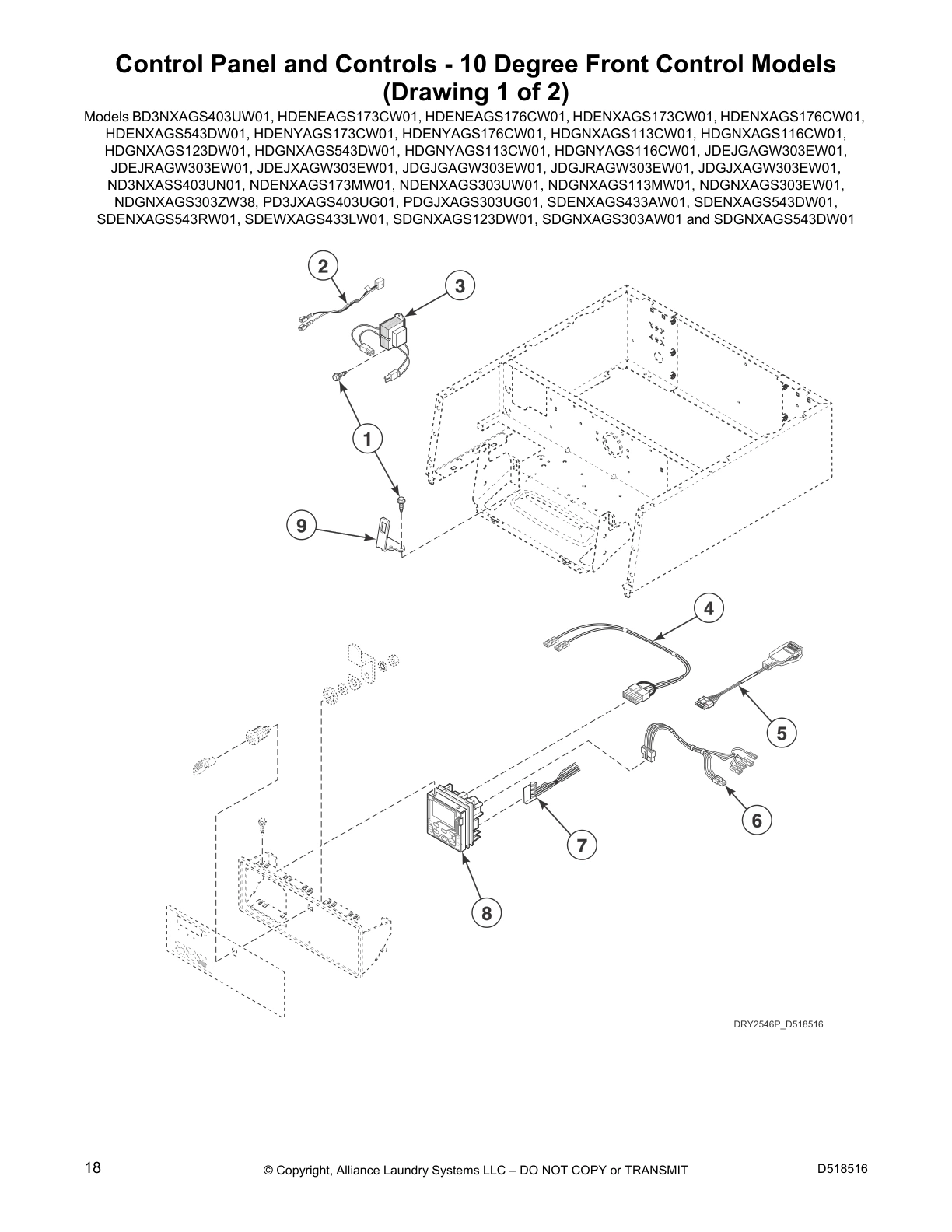

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

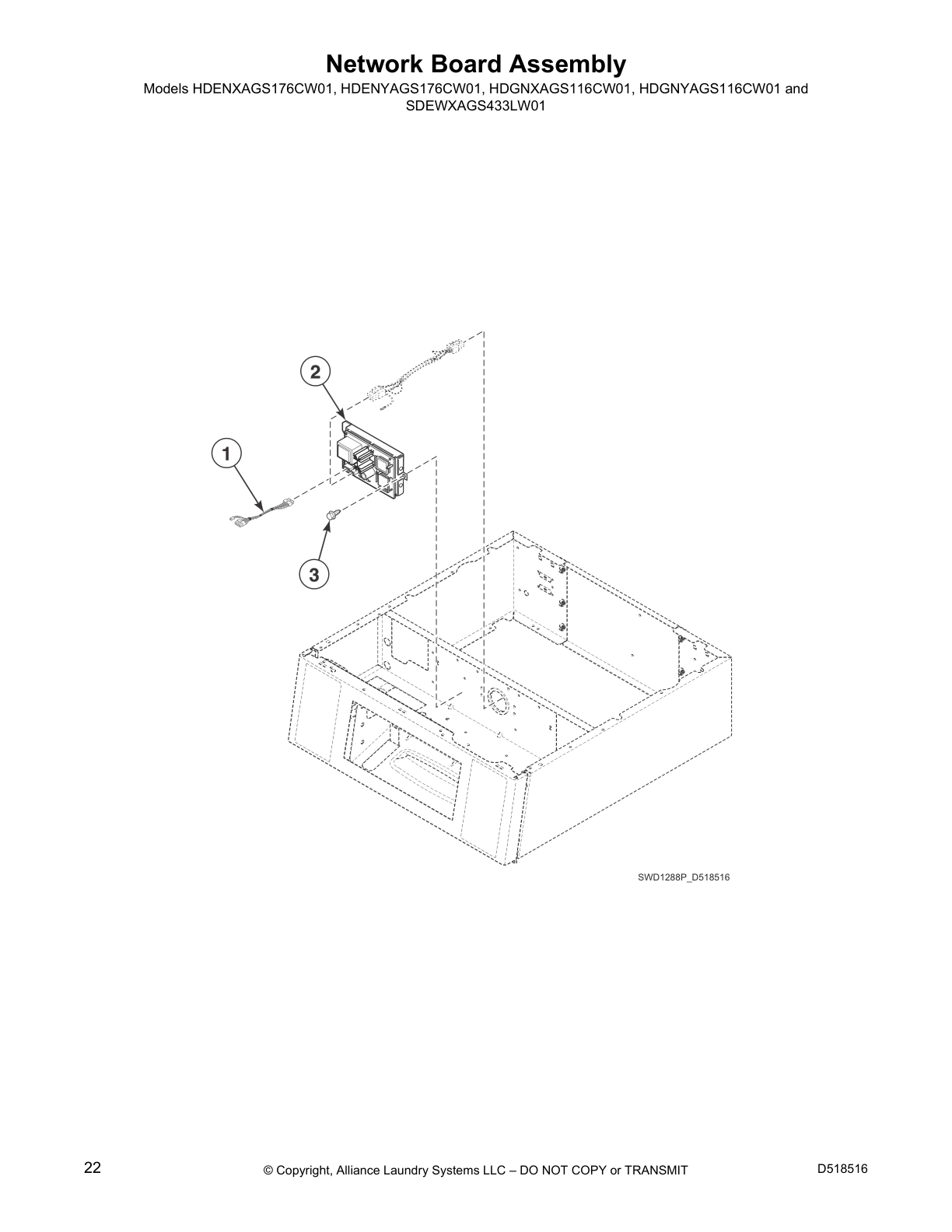

Network Board Assembly

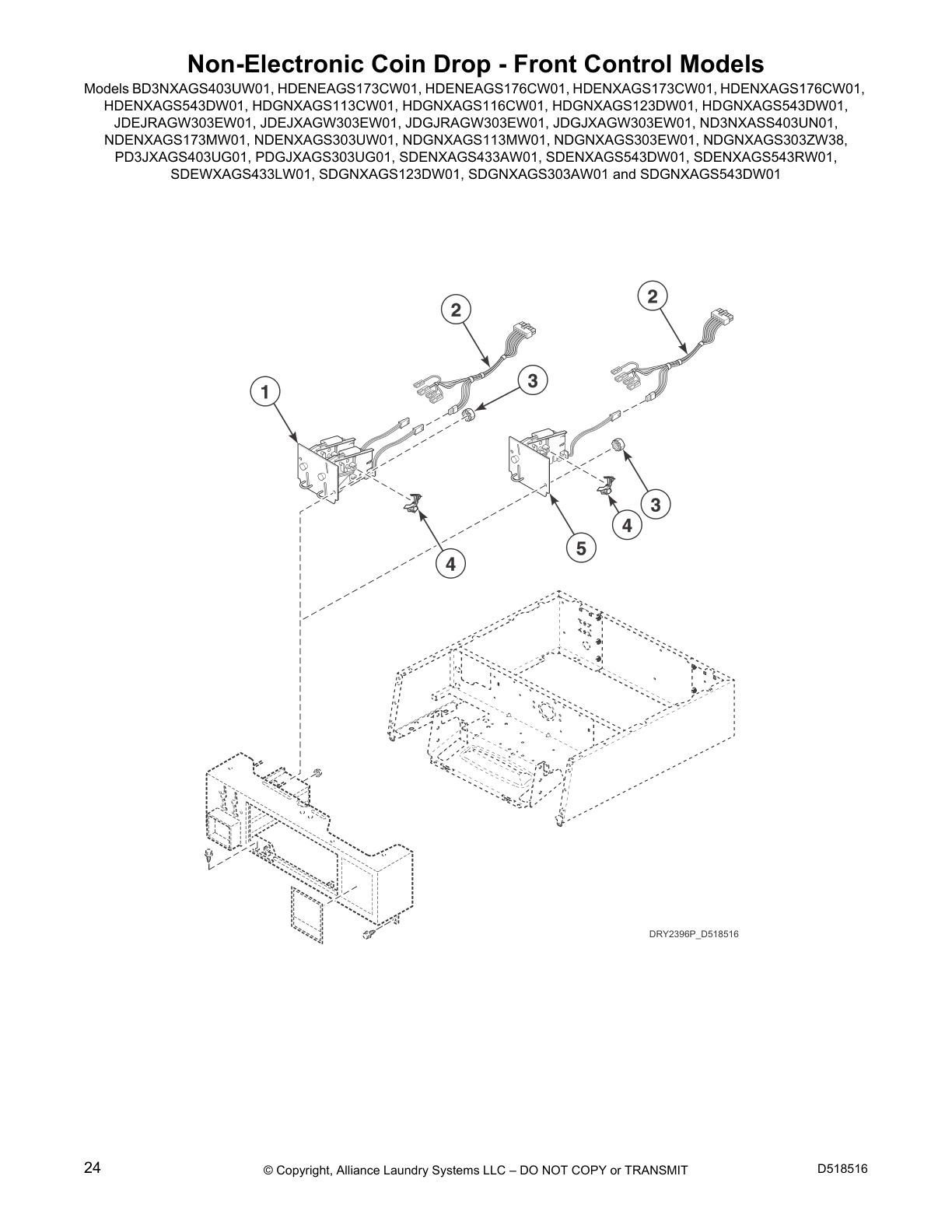

Non-Electronic Coin Drop - Front Control Models

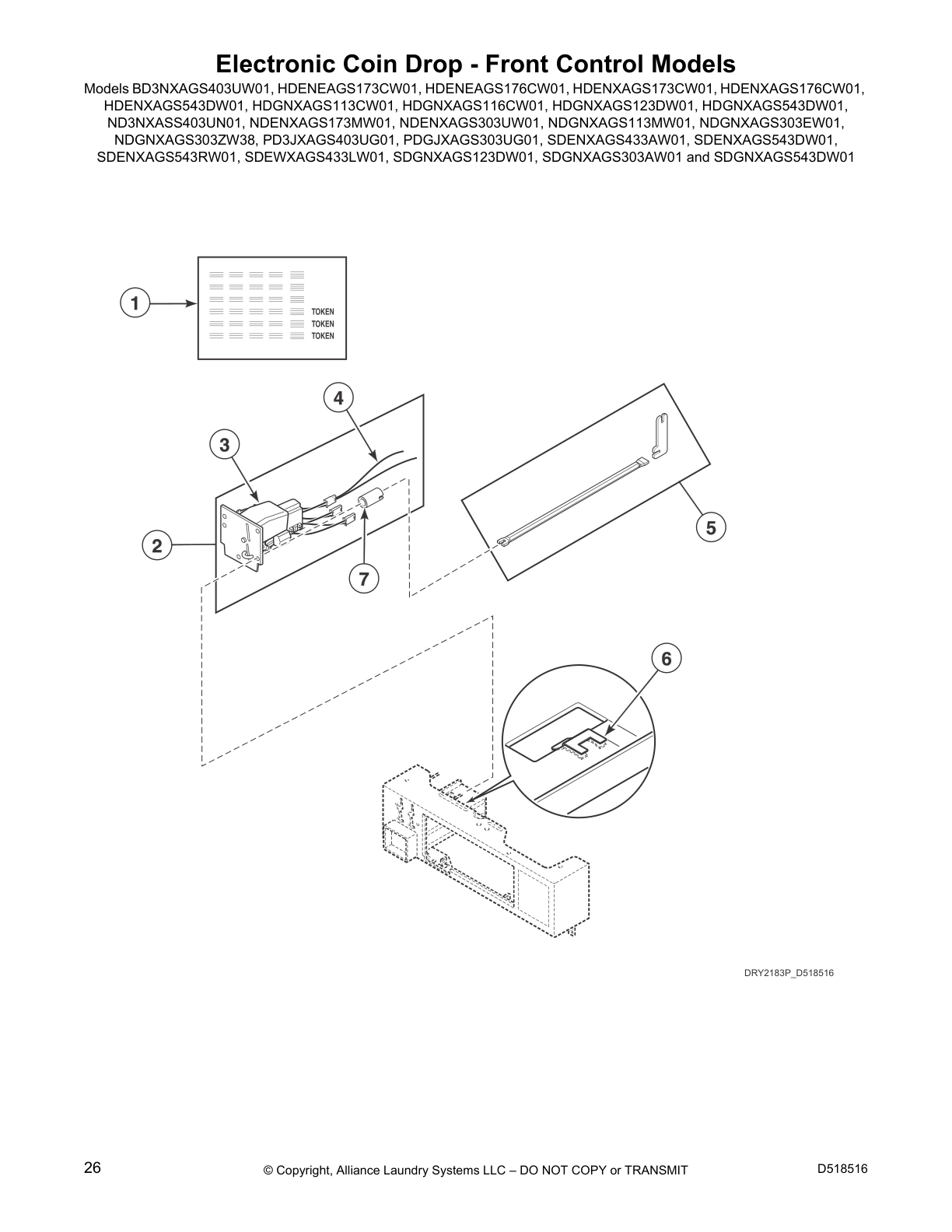

Electronic Coin Drop - Front Control Models

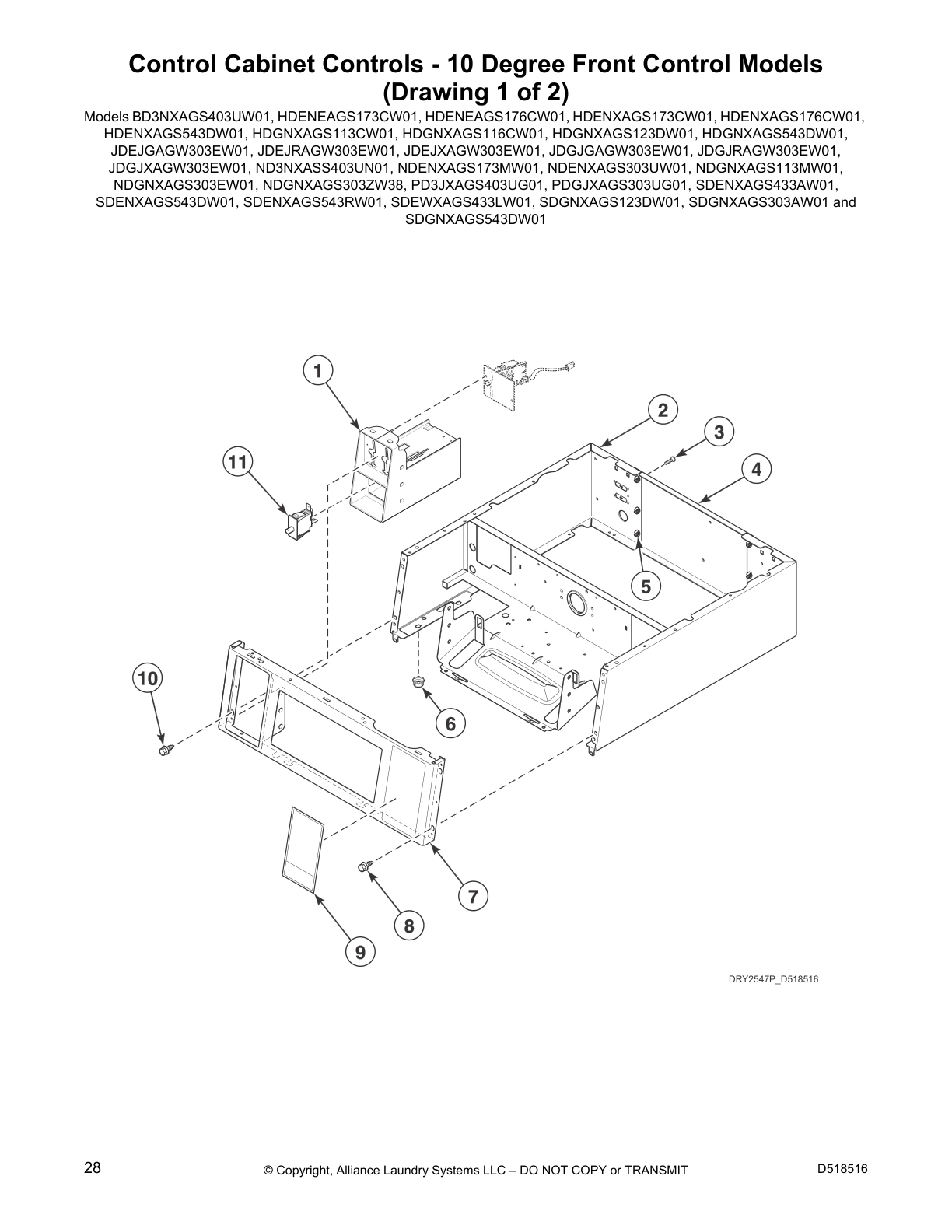

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

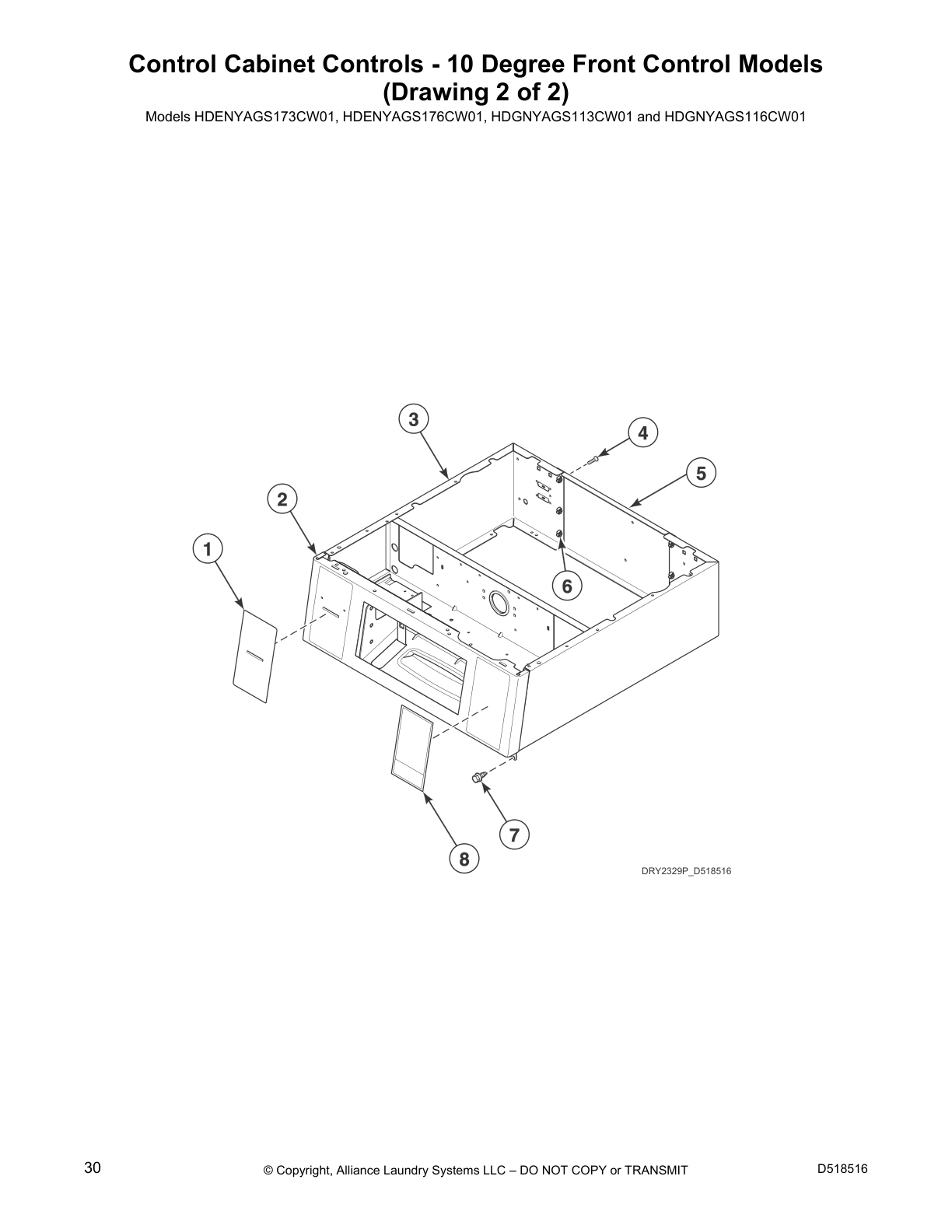

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

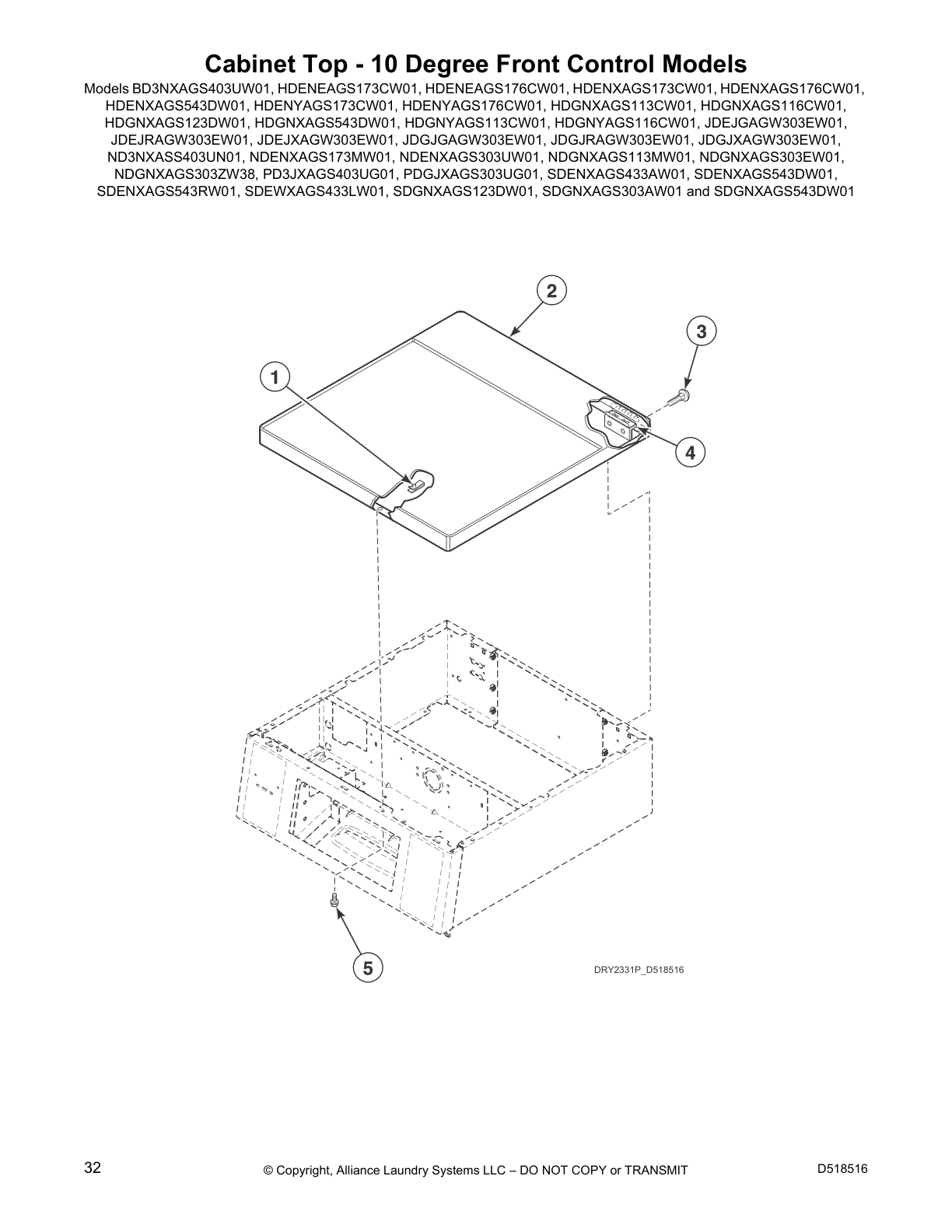

Cabinet Top - 10 Degree Front Control Models

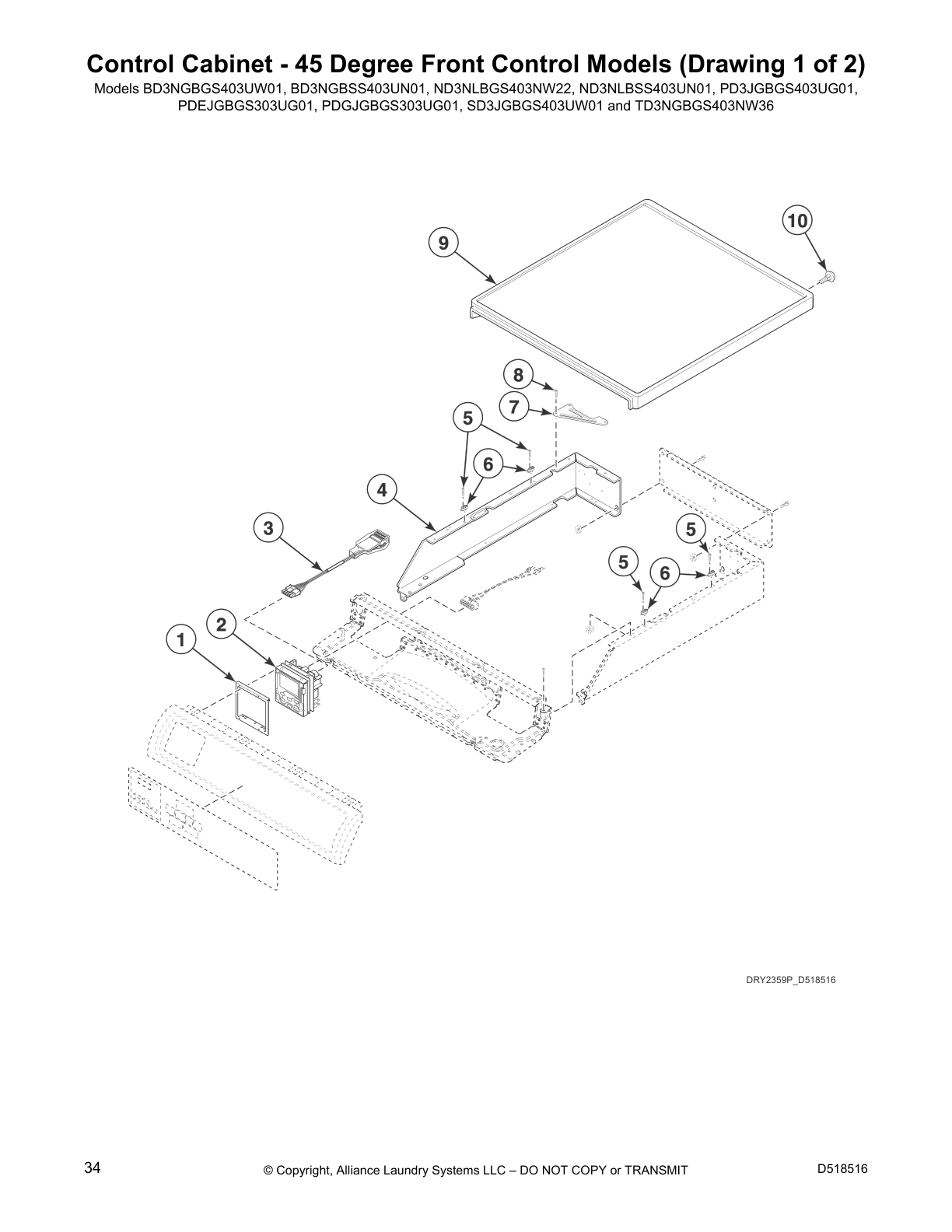

Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)

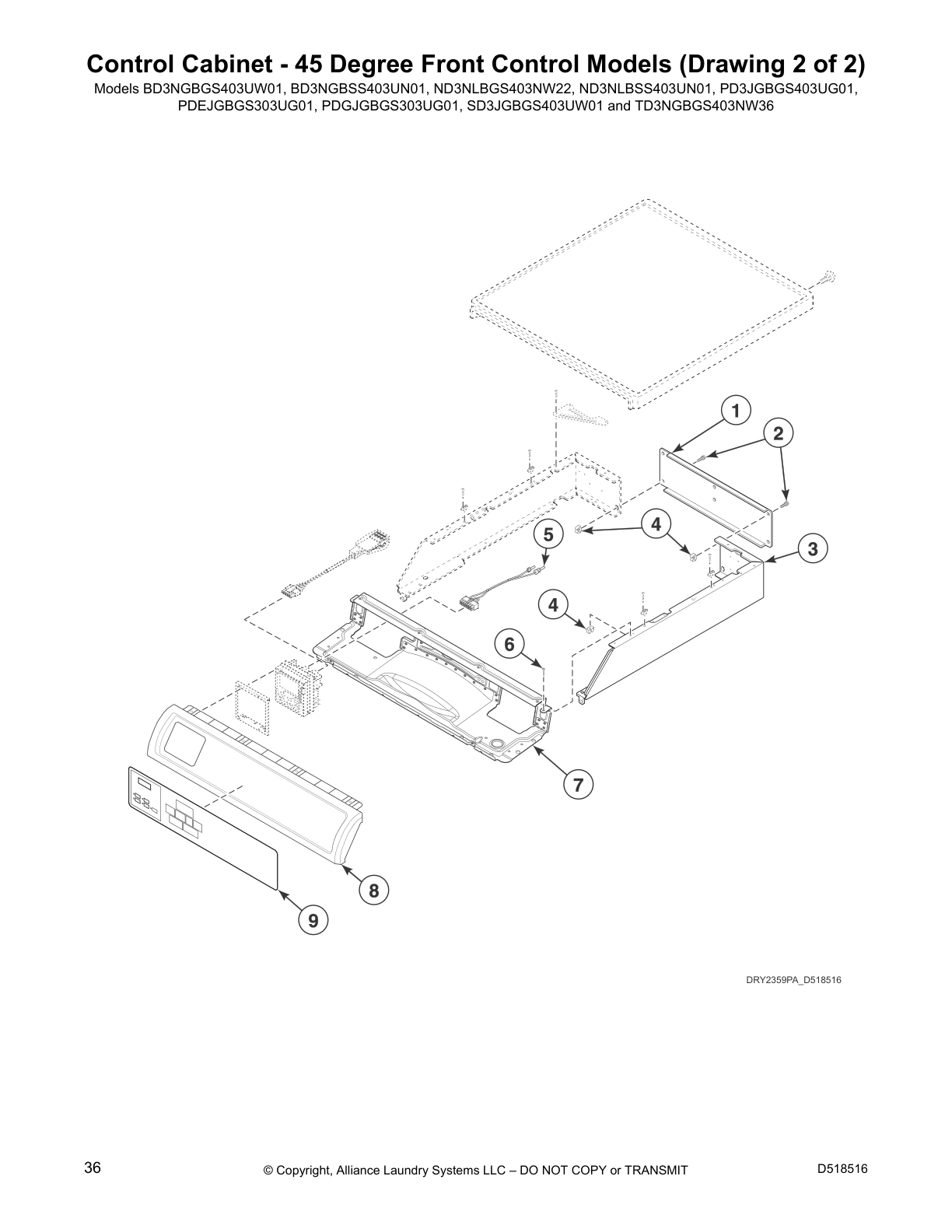

Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)
Loading Door without Window

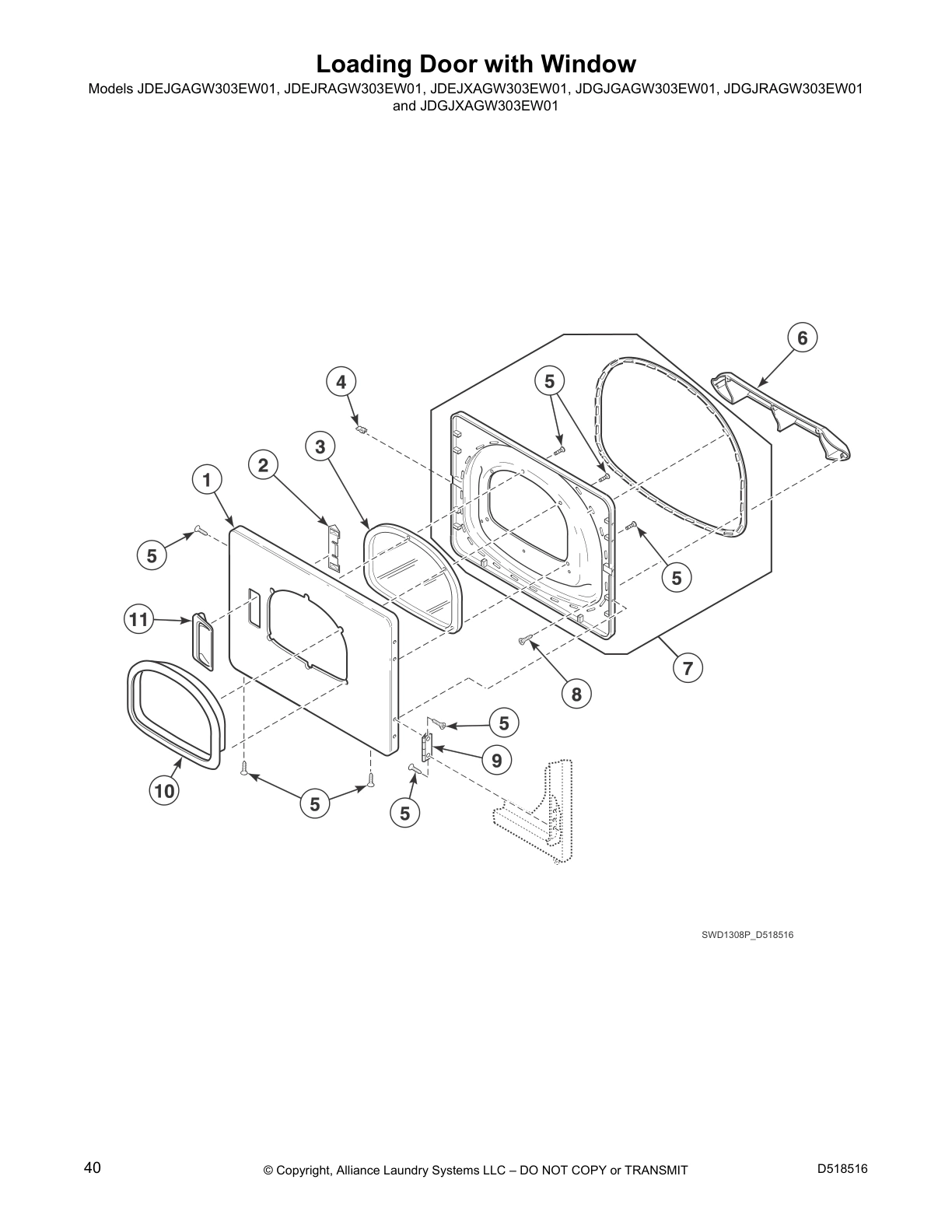

Loading Door with Window

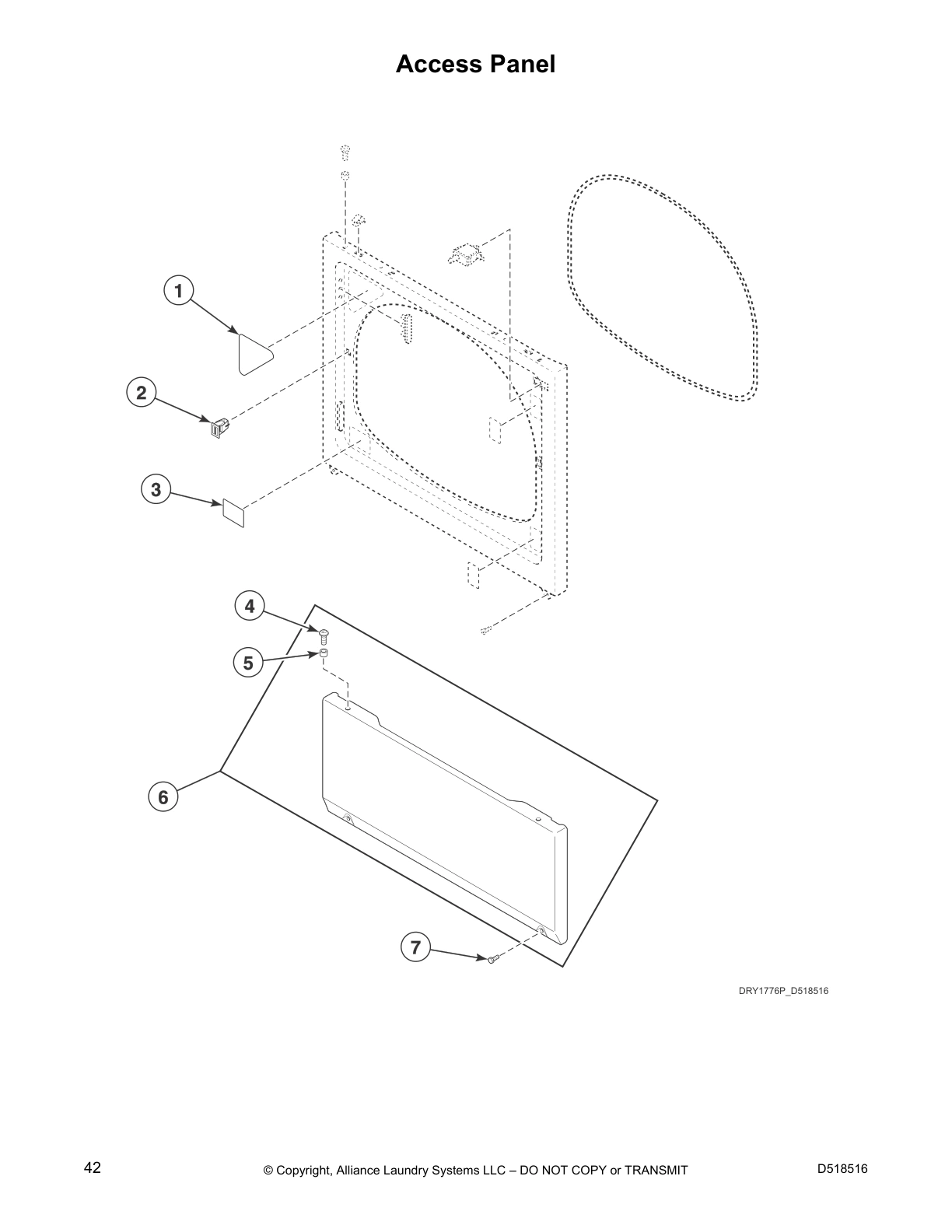

Access Panel

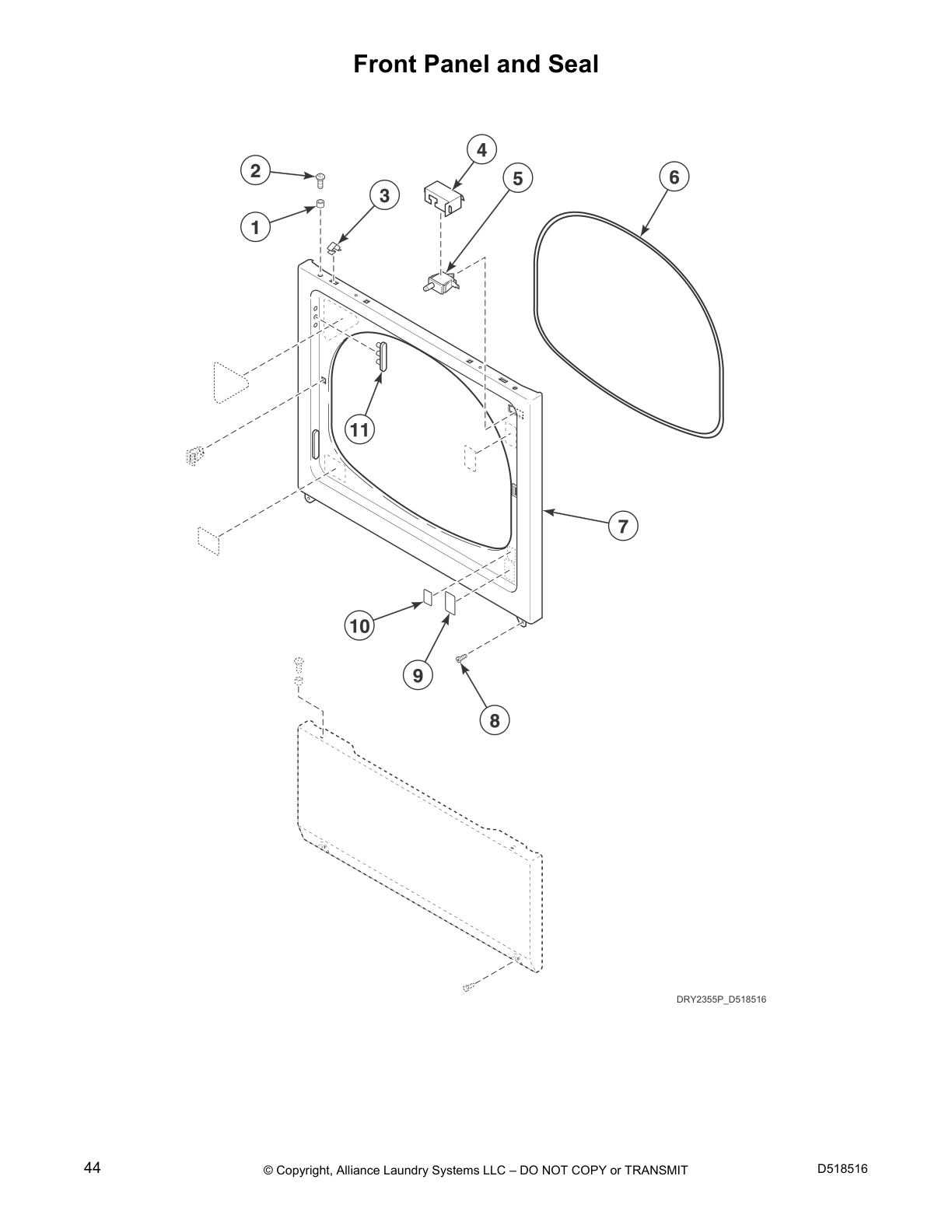

Front Panel and Seal
Motor and Belt

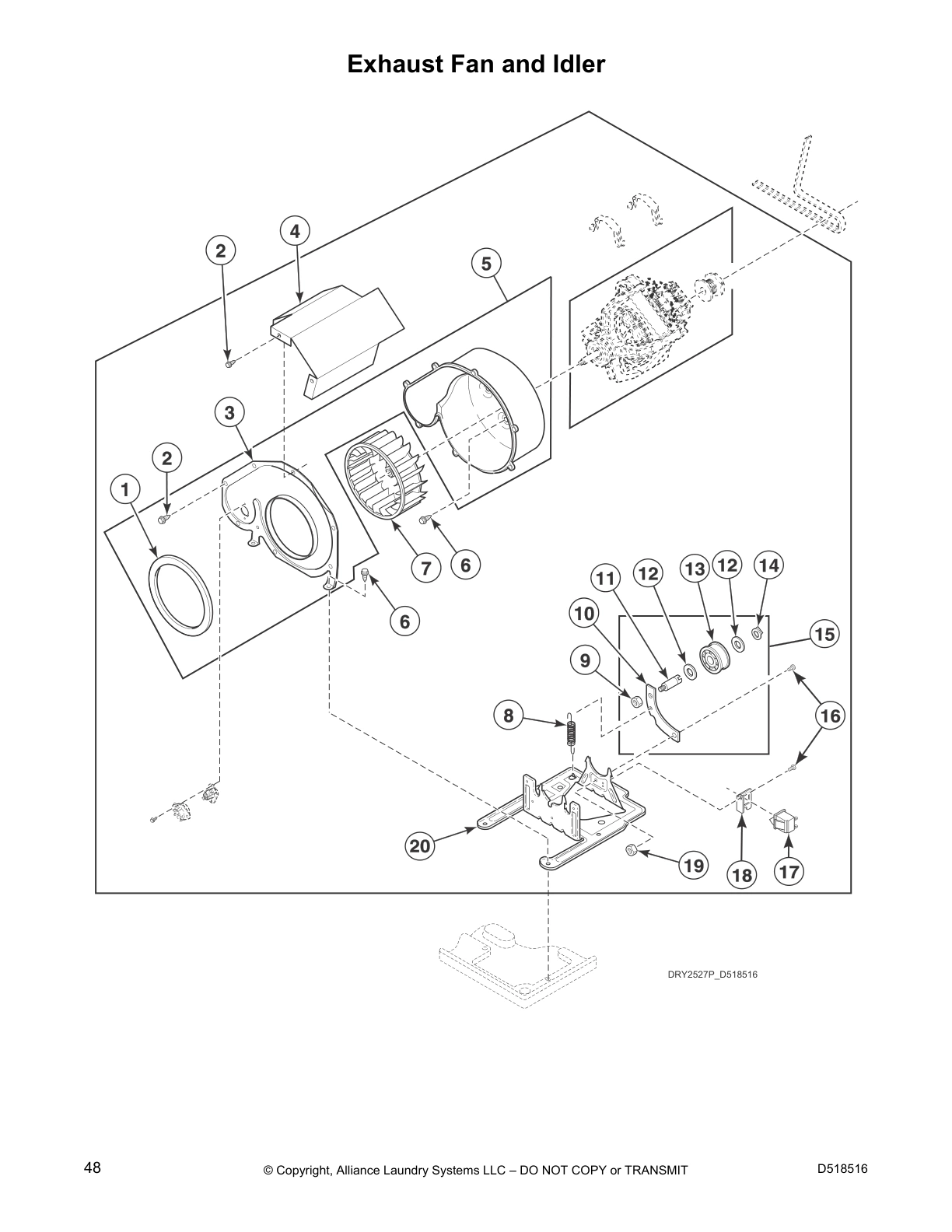

Exhaust Fan and Idler

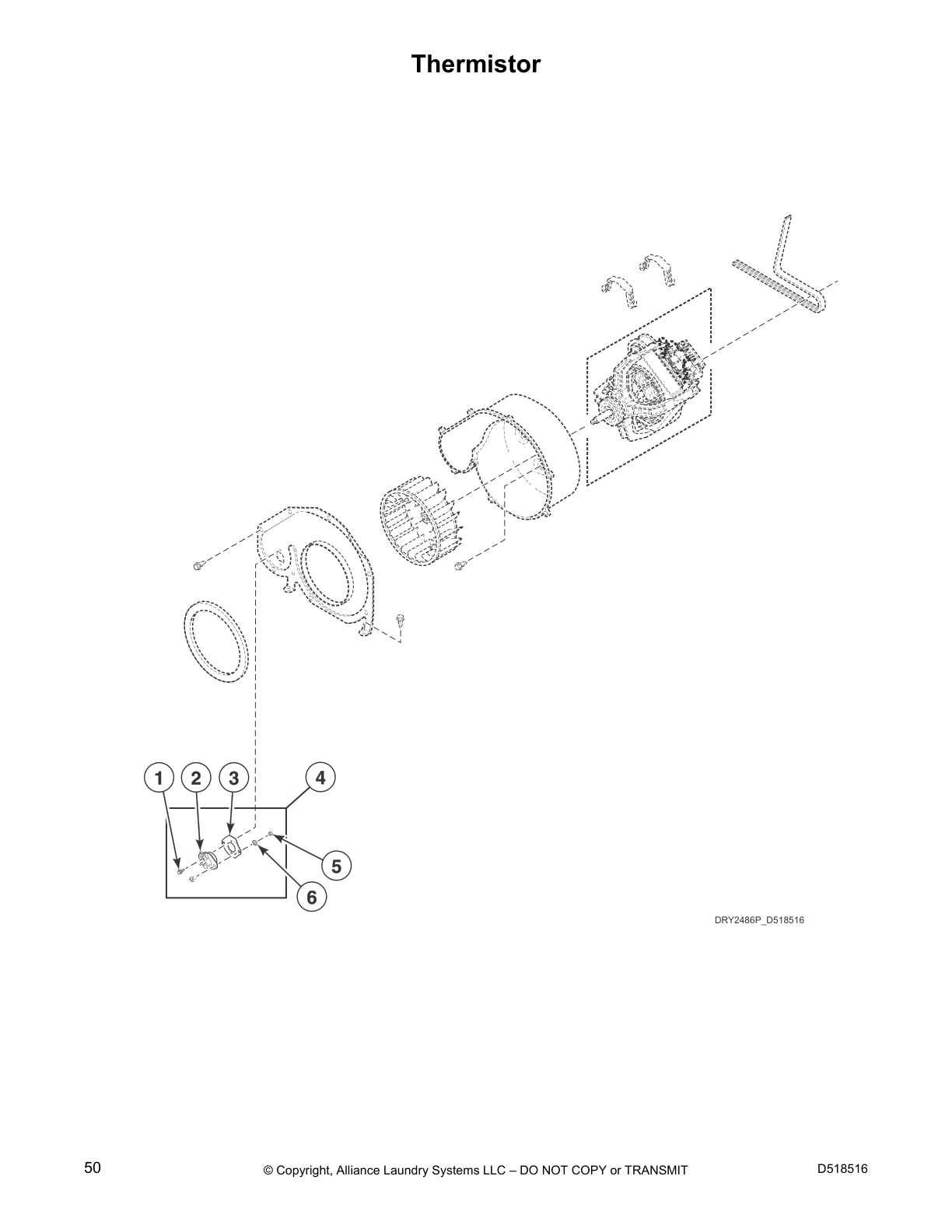

Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)

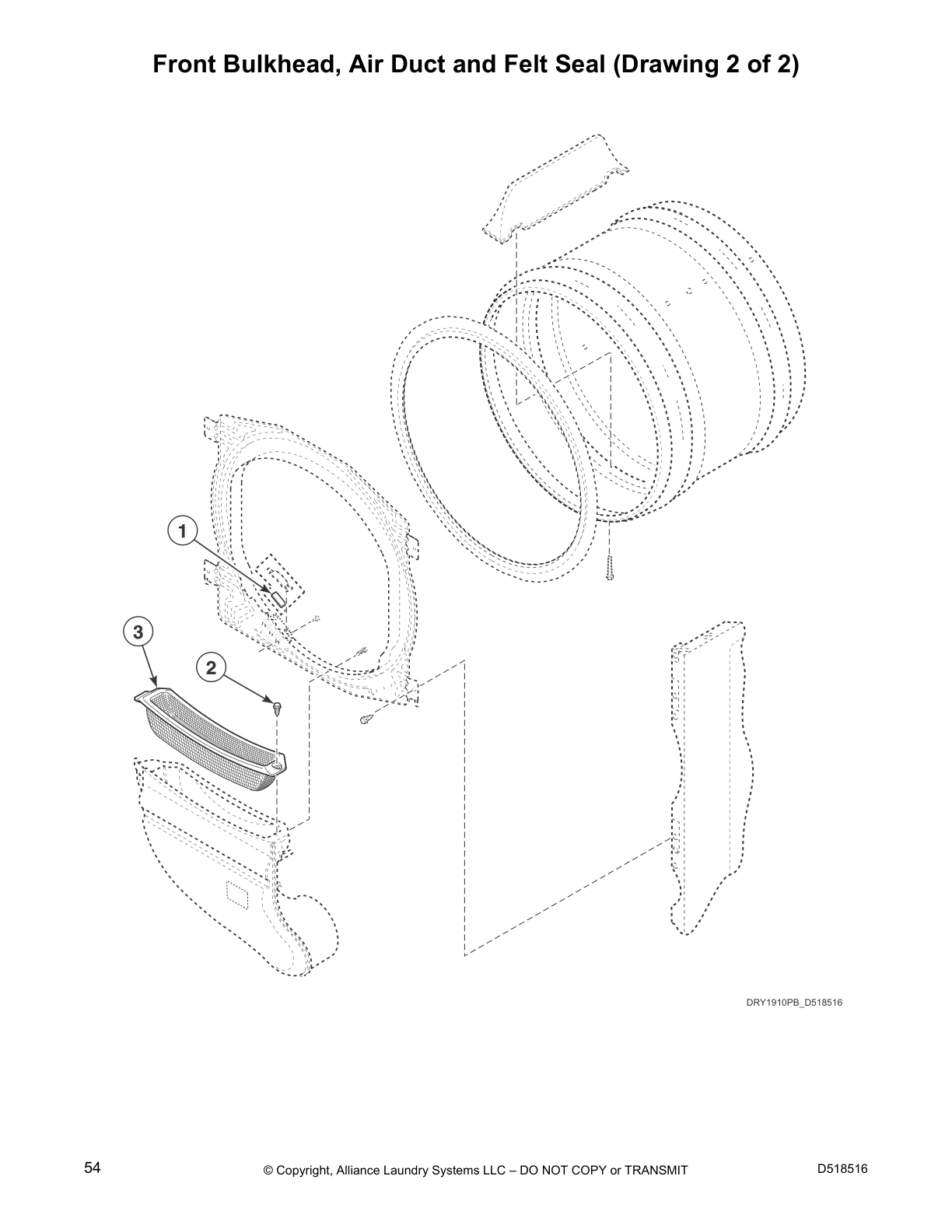

Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)

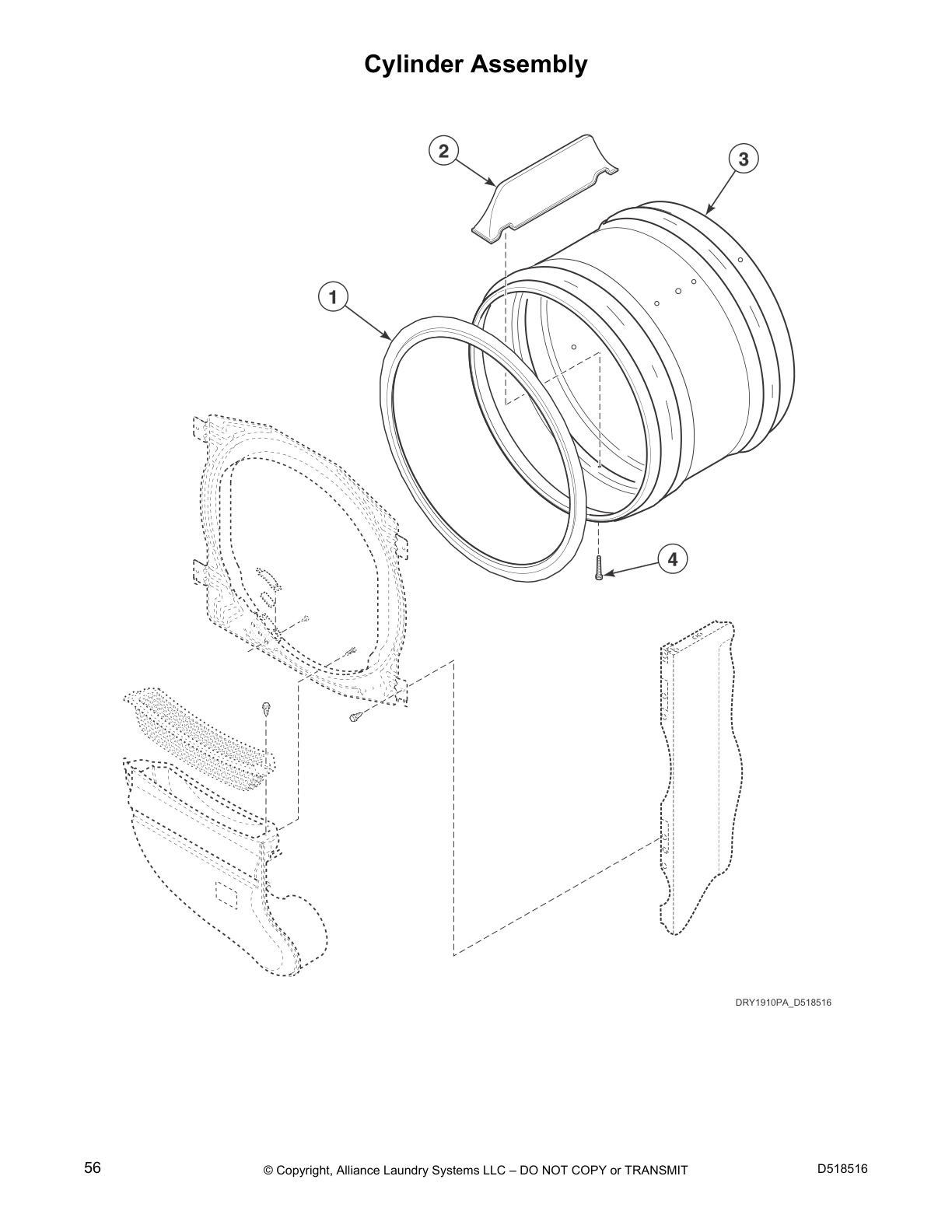

Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block

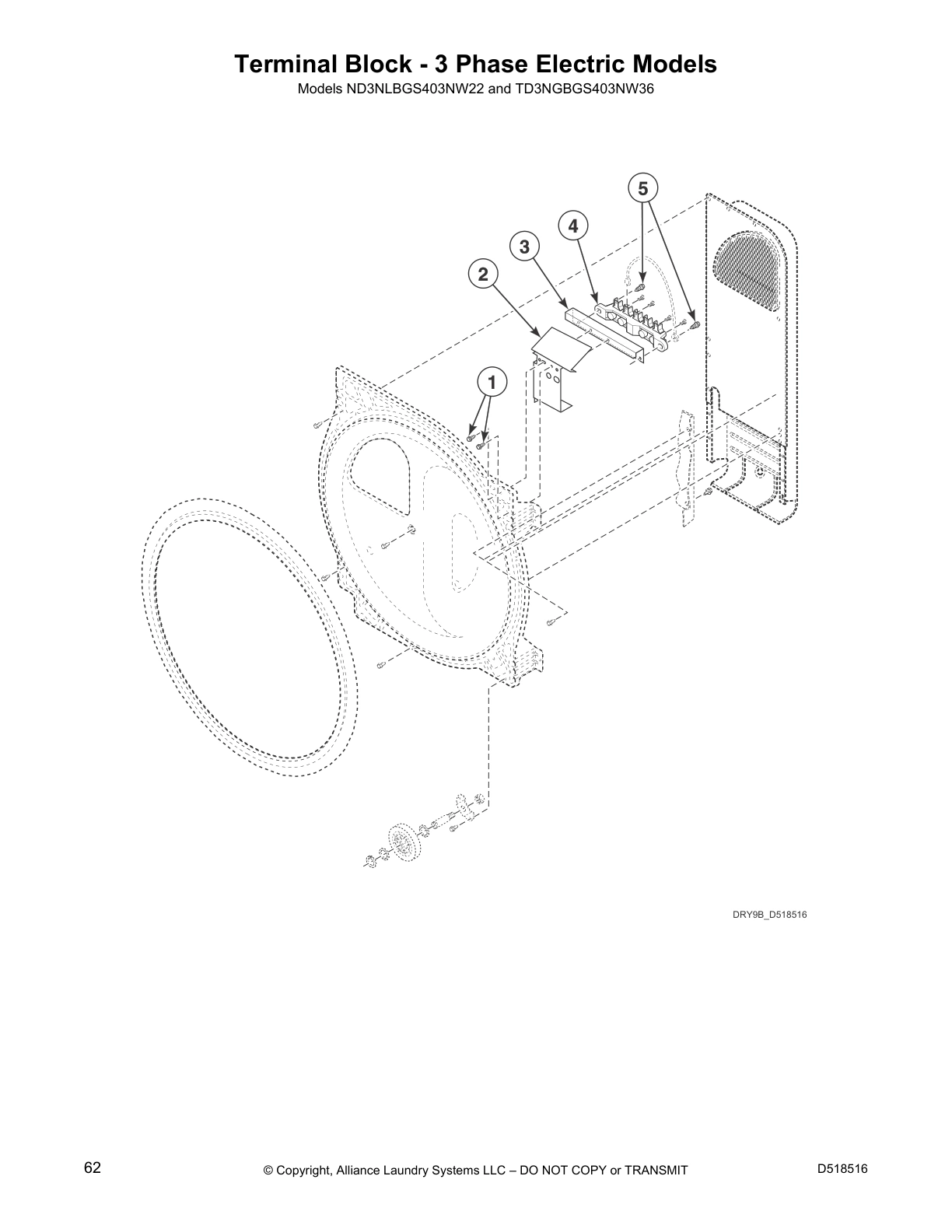

Terminal Block - 3 Phase Electric Models

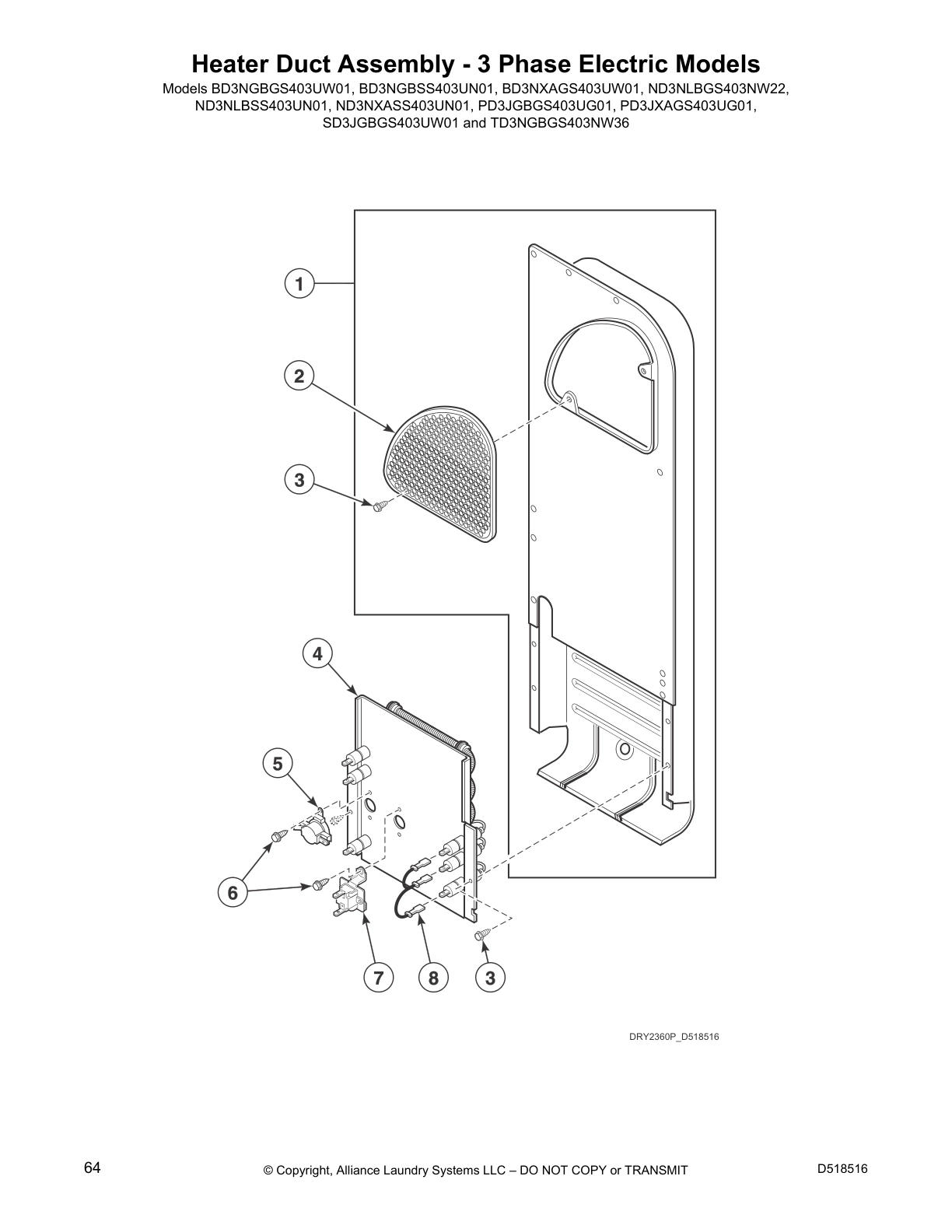

Heater Duct Assembly - 3 Phase Electric Models

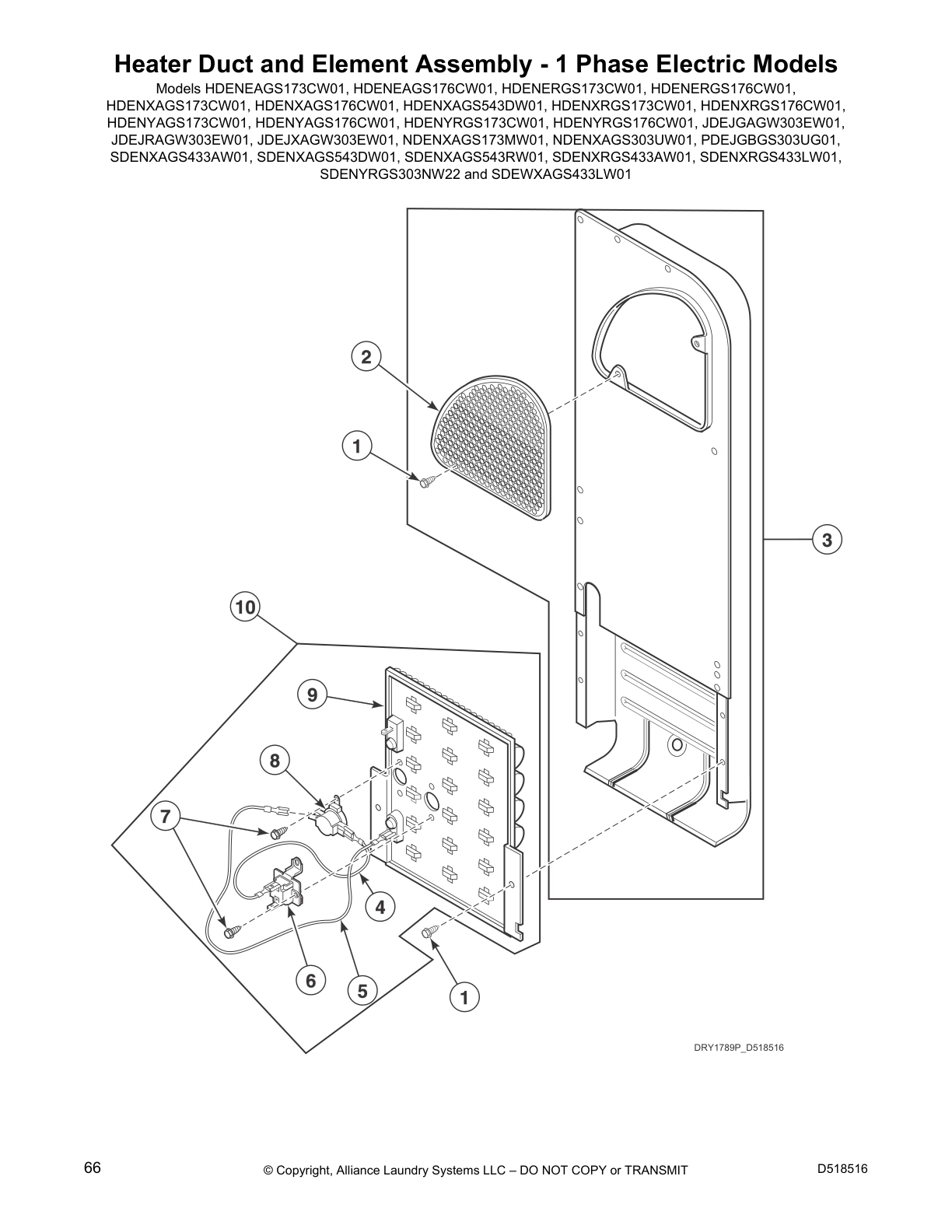

Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly

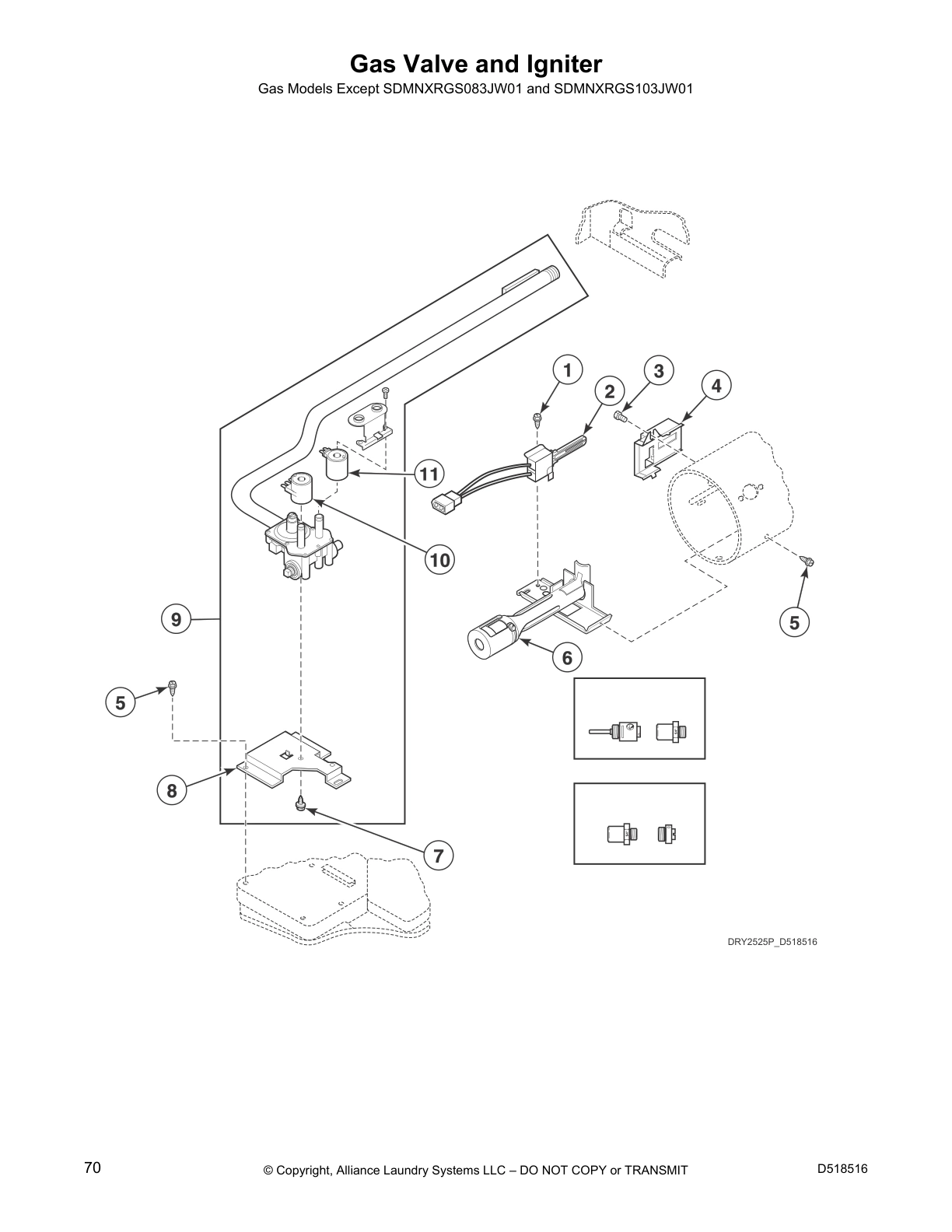

Gas Valve and Igniter

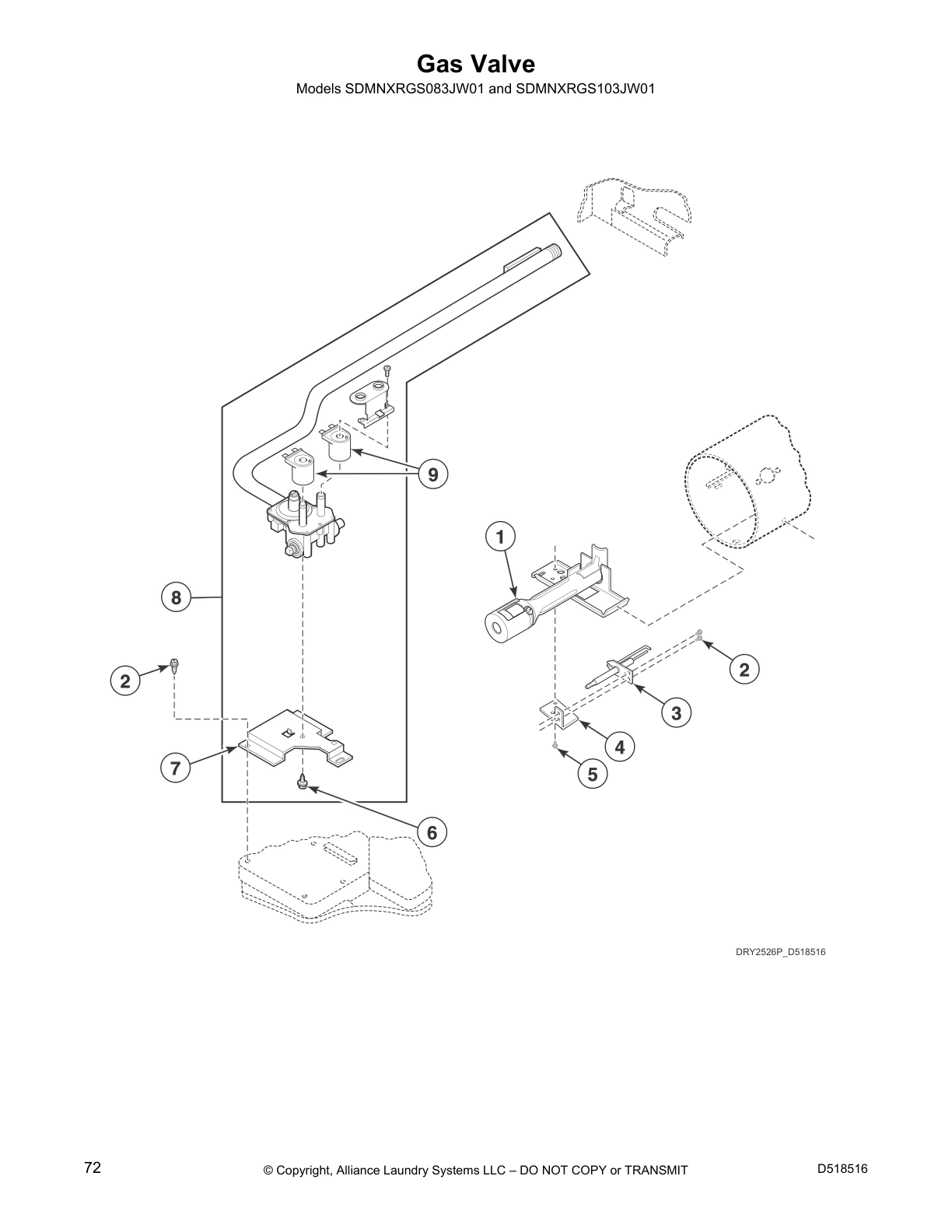

Gas Valve

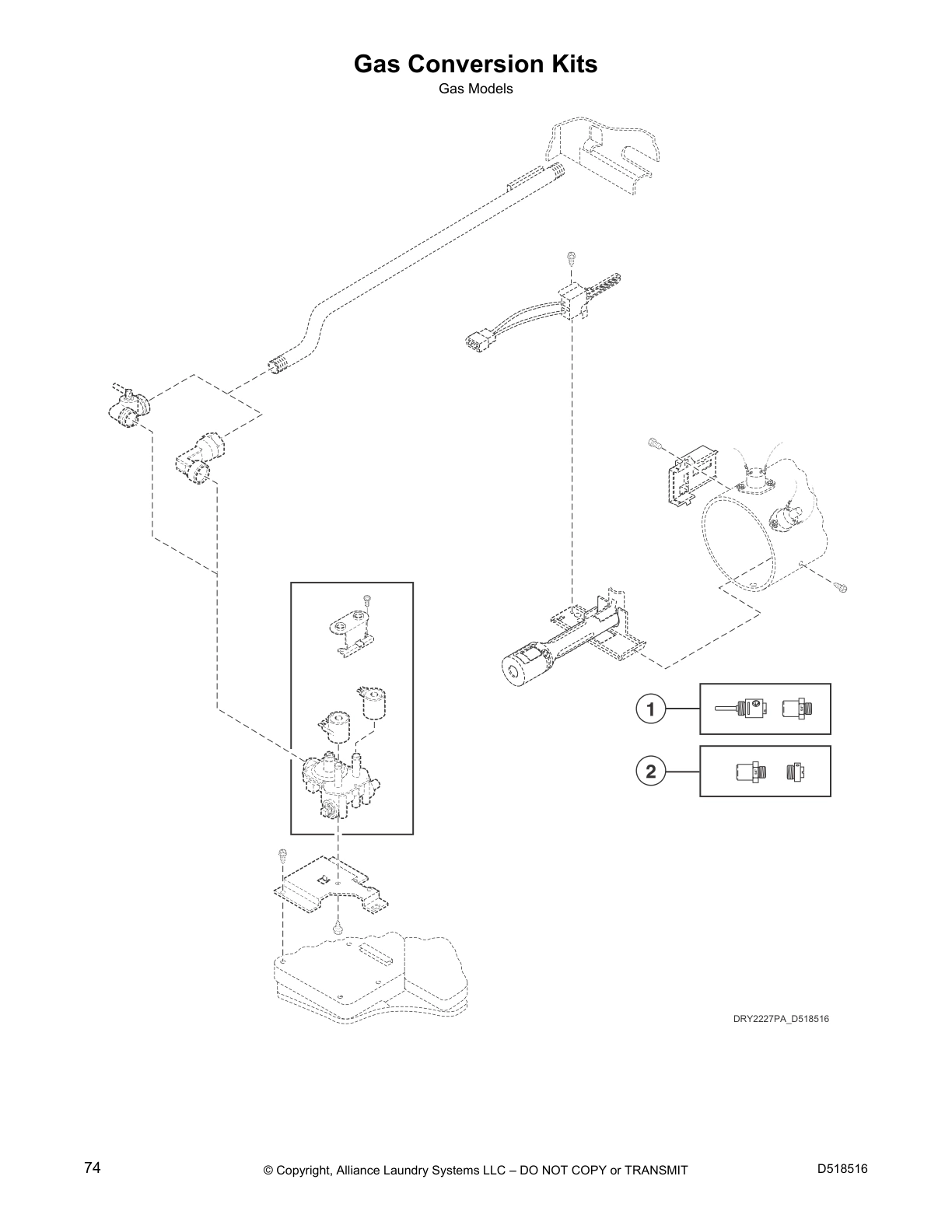

Gas Conversion Kits
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base

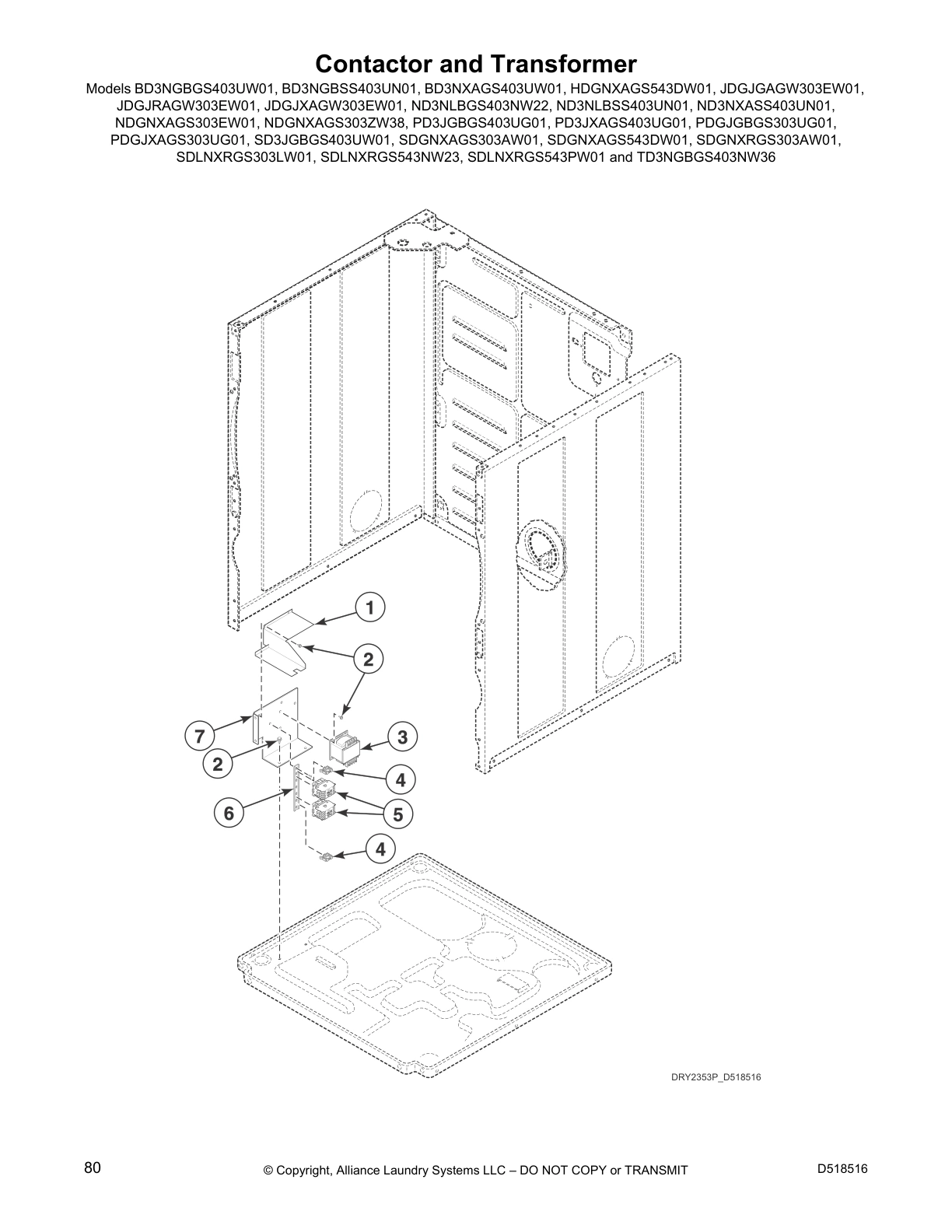

Contactor and Transformer

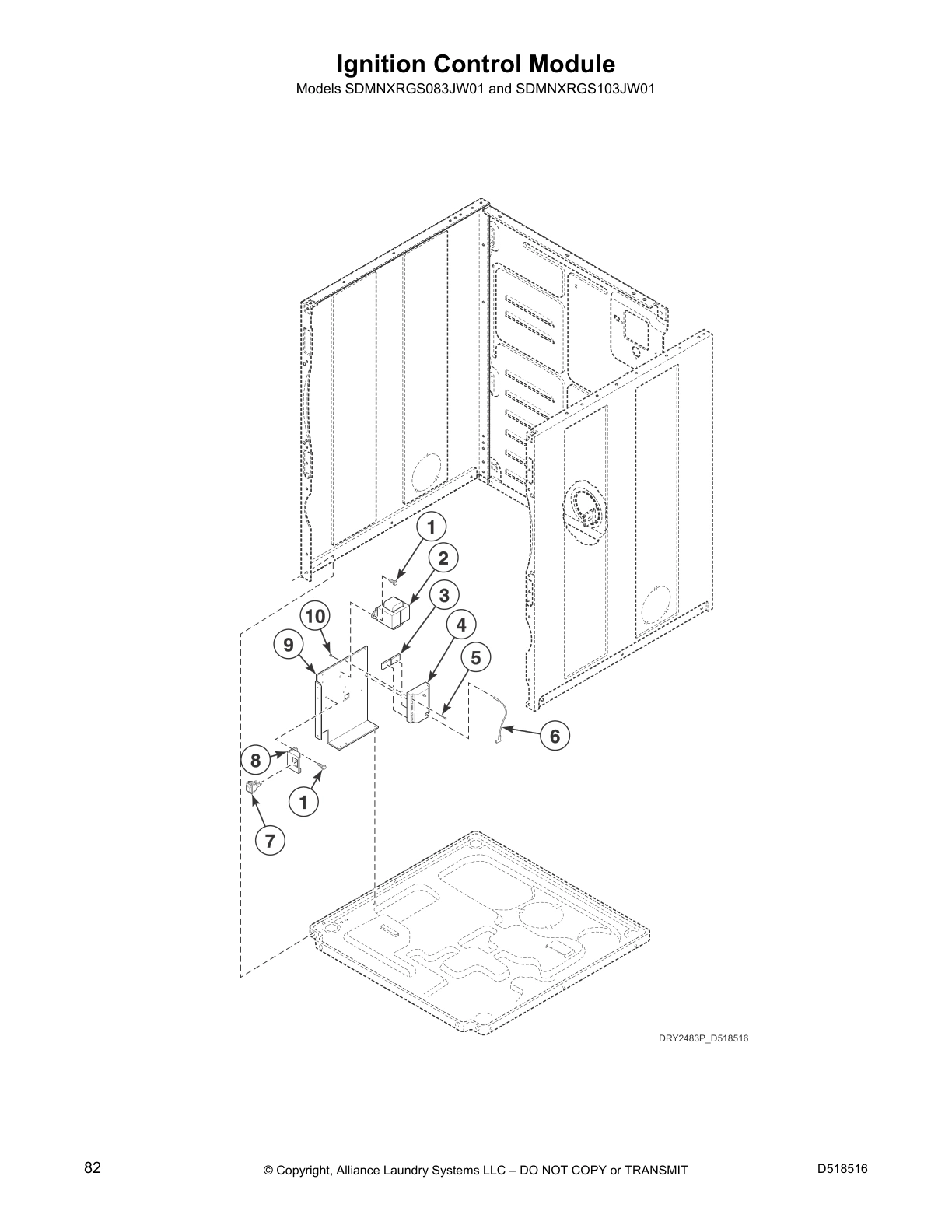

Ignition Control Module

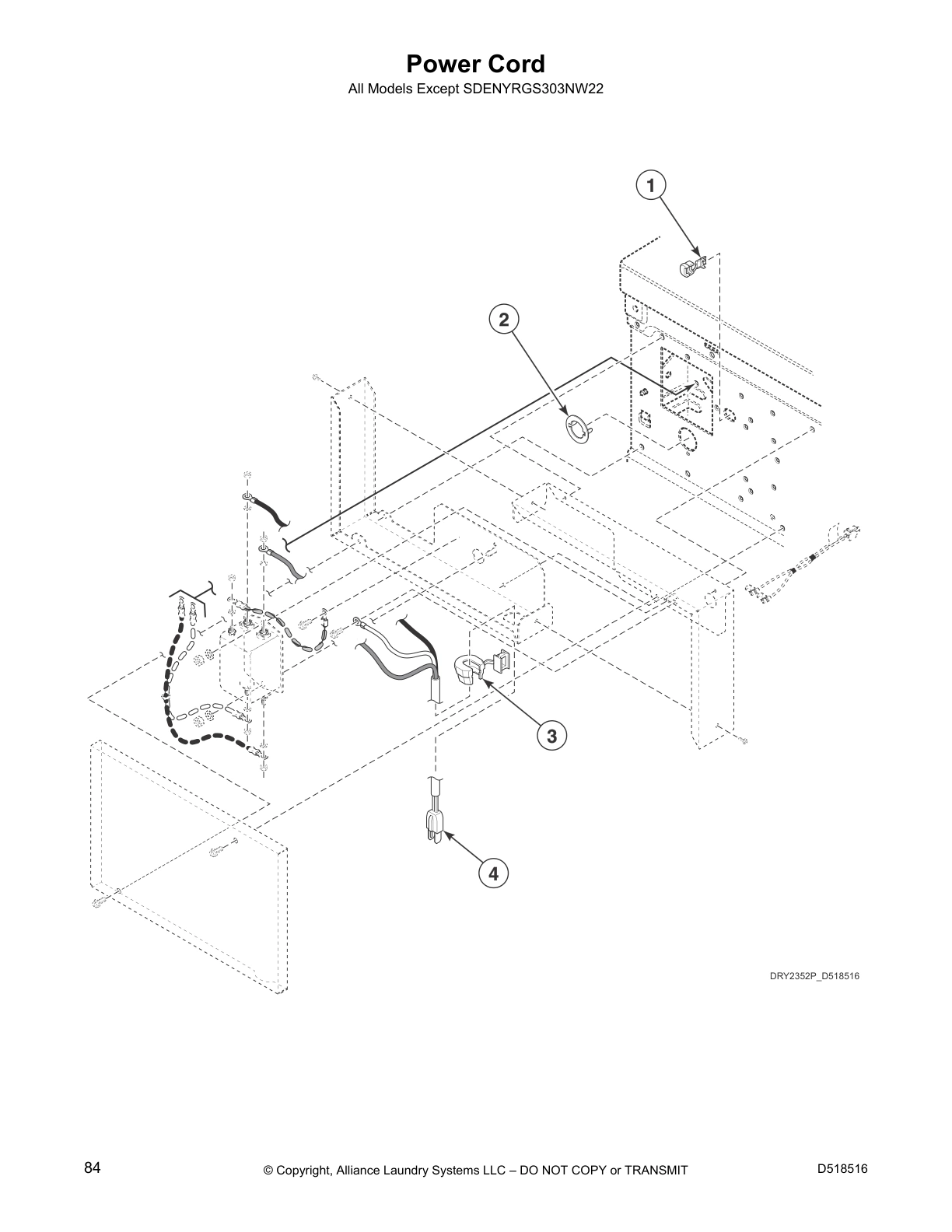

Power Cord

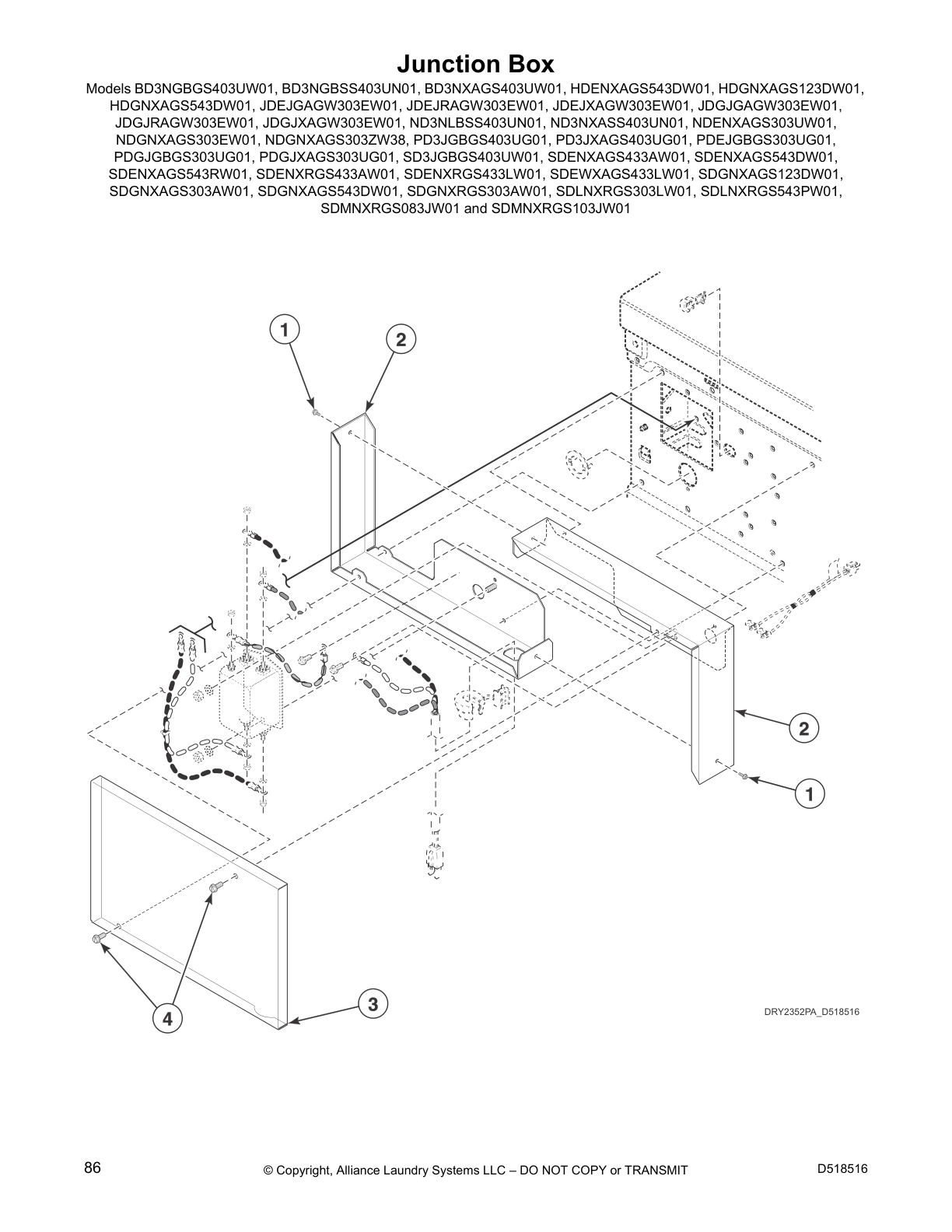

Junction Box

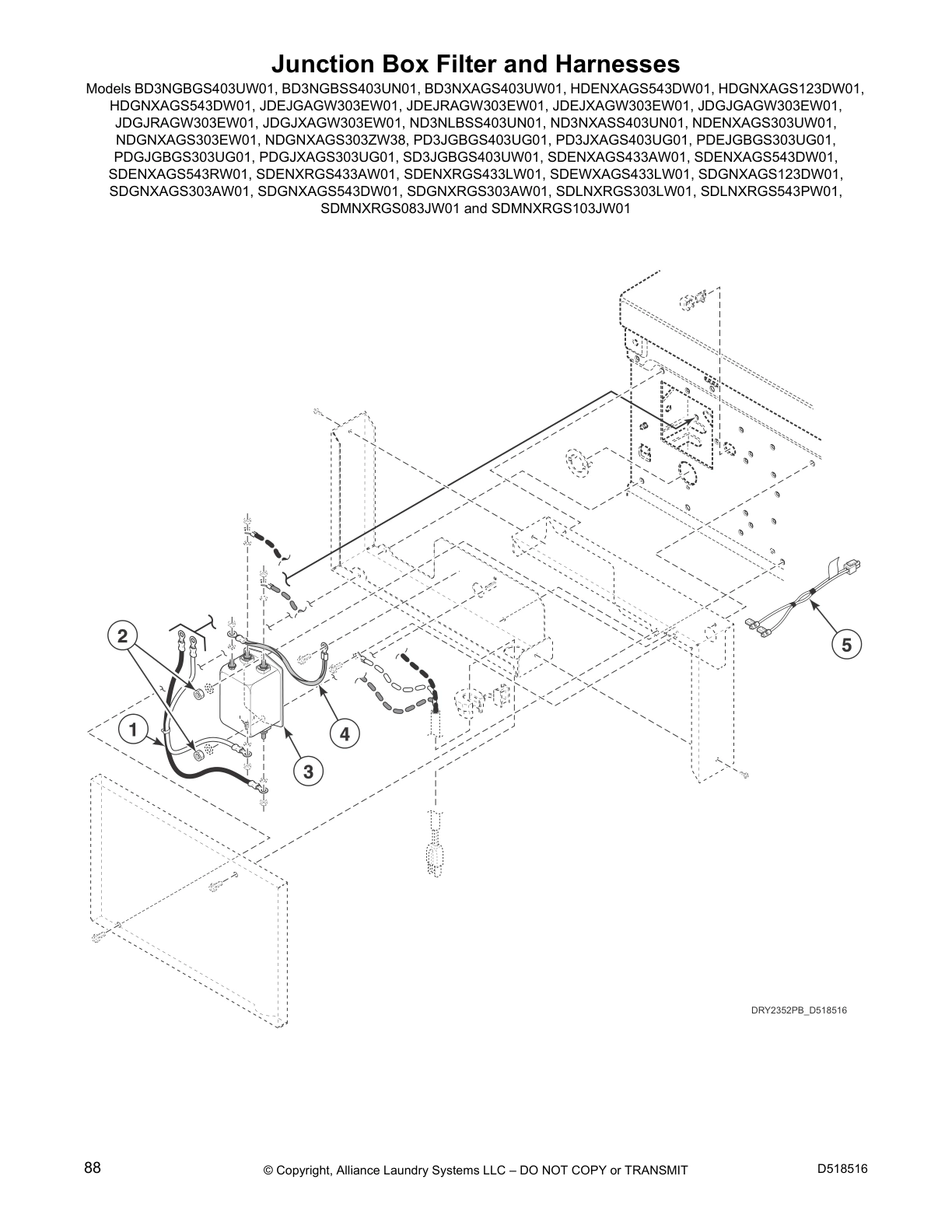

Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)

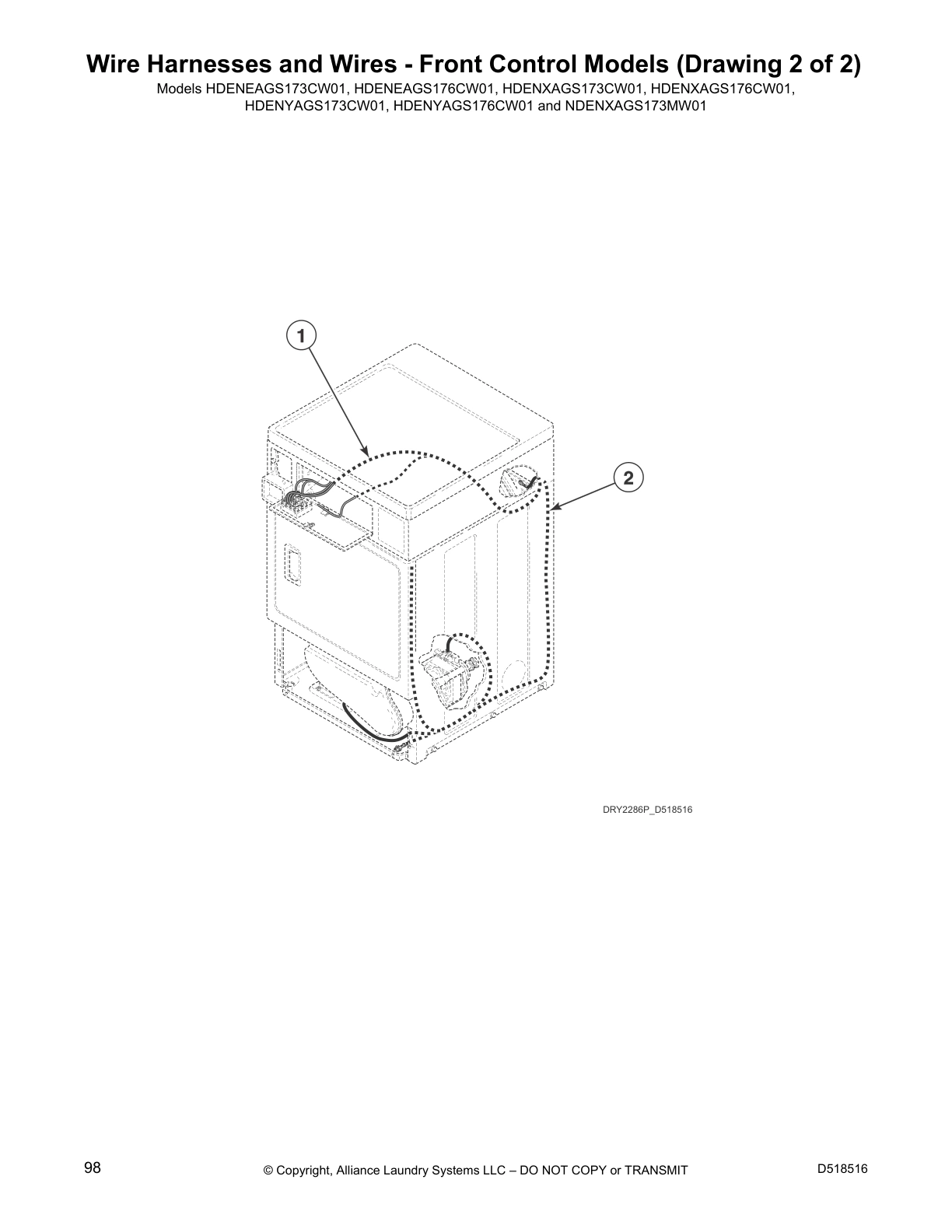

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)

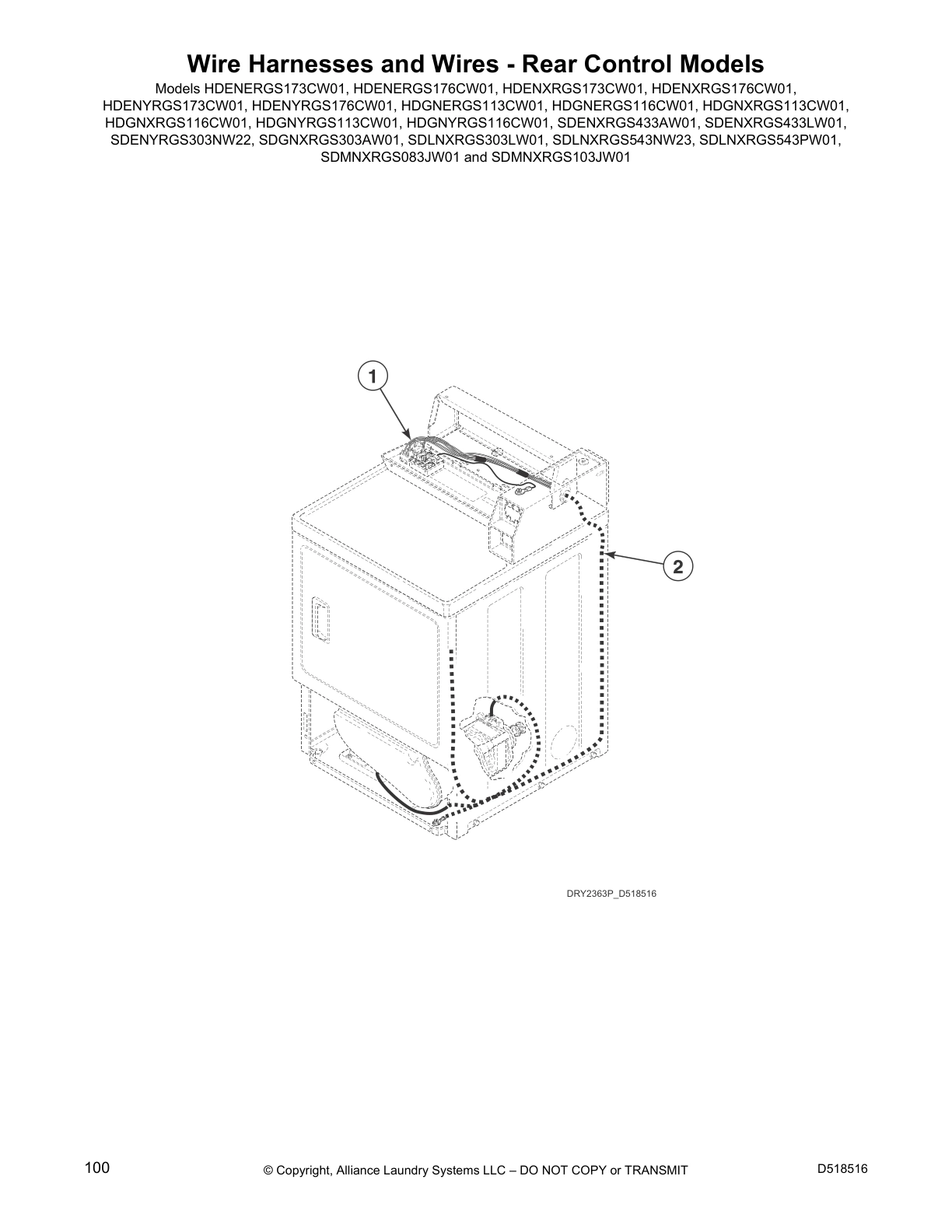

Wire Harnesses and Wires - Rear Control Models
Label Location on Rear of Cabinet
Common parts from model Alliance NDGNXAGS303EW01 Dryer
1
Terminal Block Label SPQ D506072 Contact Us For Availability
2
Female Terminal SPQ 00256 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
Key SPQ 54612 No Longer Available
4
Ratchet Extension Tool SPQ 00188 Contact Us For Availability
NI
SPQ 70441601P No Longer Available
NI
SPQ 93501 SPQ 93501 Contact Us For Availability
NI
SPQ 281P4 SPQ 281P4 Contact Us For Availability
NI
SPQ D516365 SPQ D516365 Contact Us For Availability
× ![]()
