Model Alliance NDGNXAGS113MW01 Dryer – Common Parts & Diagrams

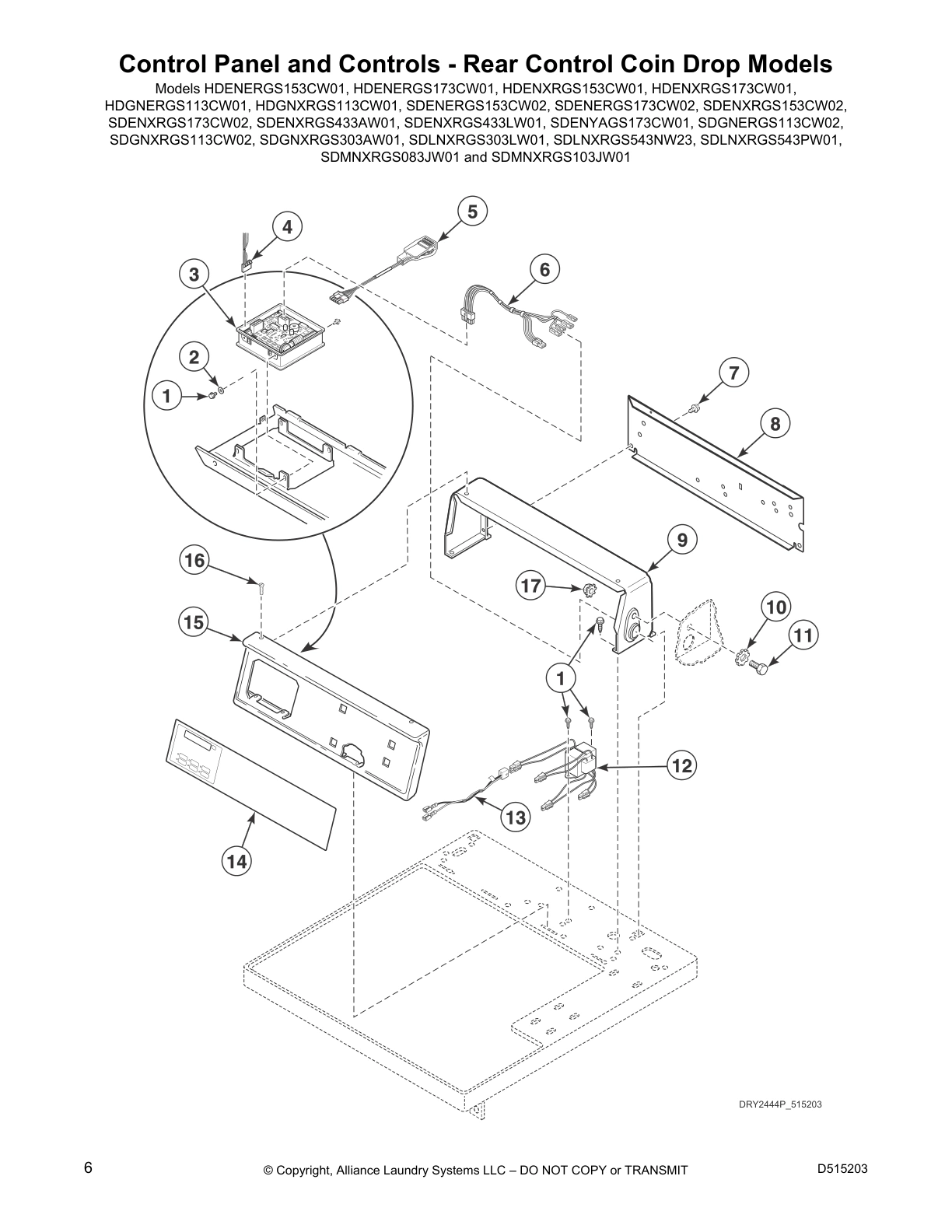

Control Panel and Controls - Rear Control Coin Drop Models

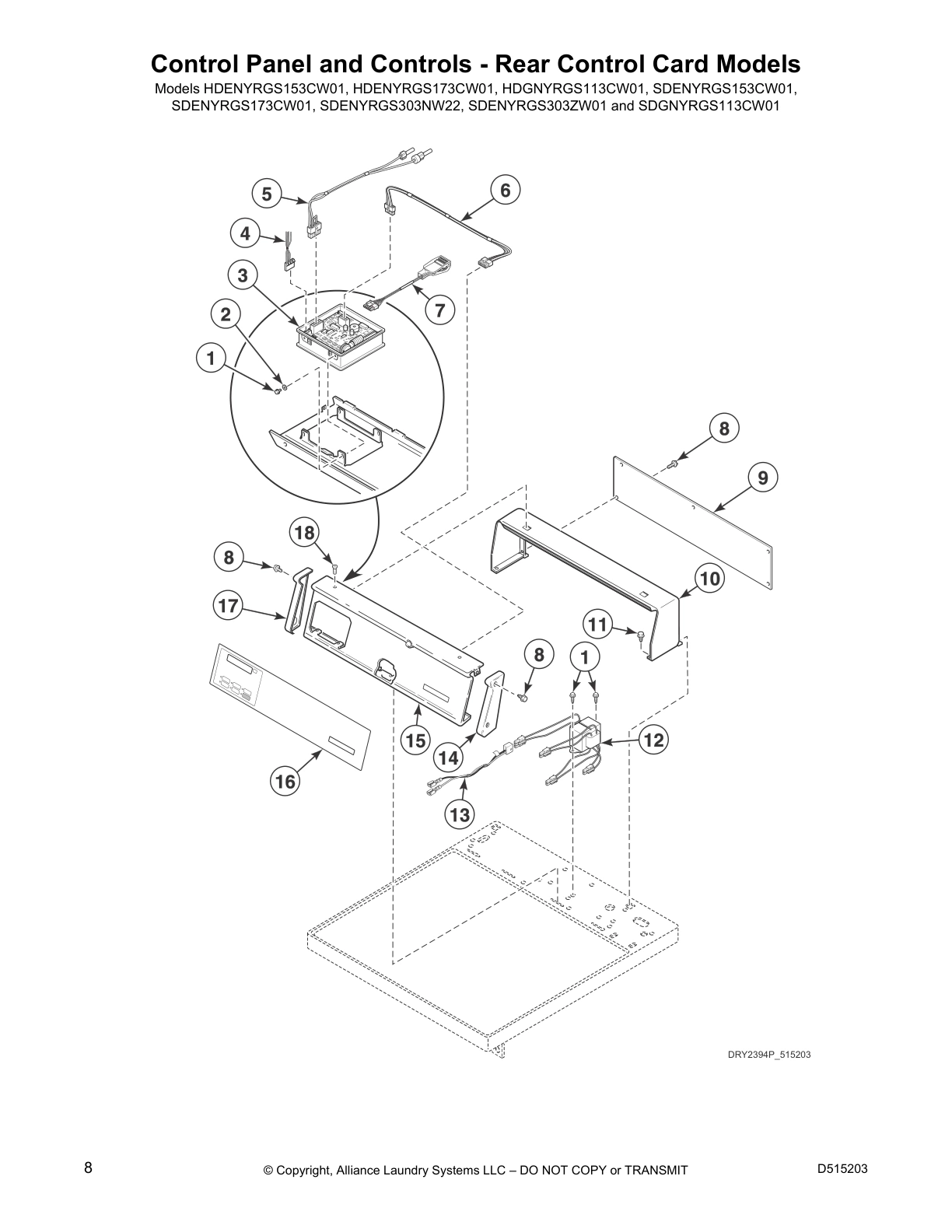

Control Panel and Controls - Rear Control Card Models
Non-Electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)
Network Board Assembly
Non-Electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 2 of 2)
Cabinet Top - 10 Degree Front Control Models
Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)
Loading Door without Window
Loading Door with Window
Access Panel
Front Panel and Seal
Motor and Belt
Exhaust Fan and Idler
Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block
Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly
Gas Valve and Igniter - Through Serial No. 1908000001
Gas Valve and Igniter - Starting Serial No. 1908000001
Gas Valve - Through Serial No. 1908000001
Gas Valve - Starting Serial No. 1908000001
Gas Conversion Kits
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base
Contactor and Transformer
Ignition Control Module
Power Cord
Junction Box
Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Rear Control Models
