Model Whirlpool MSD2651HEW REFRIGERATOR – Common Parts & Diagrams
16 - FREEZER COMPARTMENT (SERIES 10)
17 - FREEZER COMPARTMENT (SERIES 50)
31 - ICE MAKER (SERIES 50)
34 - REFRIGERATOR SHELVES (SERIES 10)
03 - COMPRESSOR (SERIES 10)

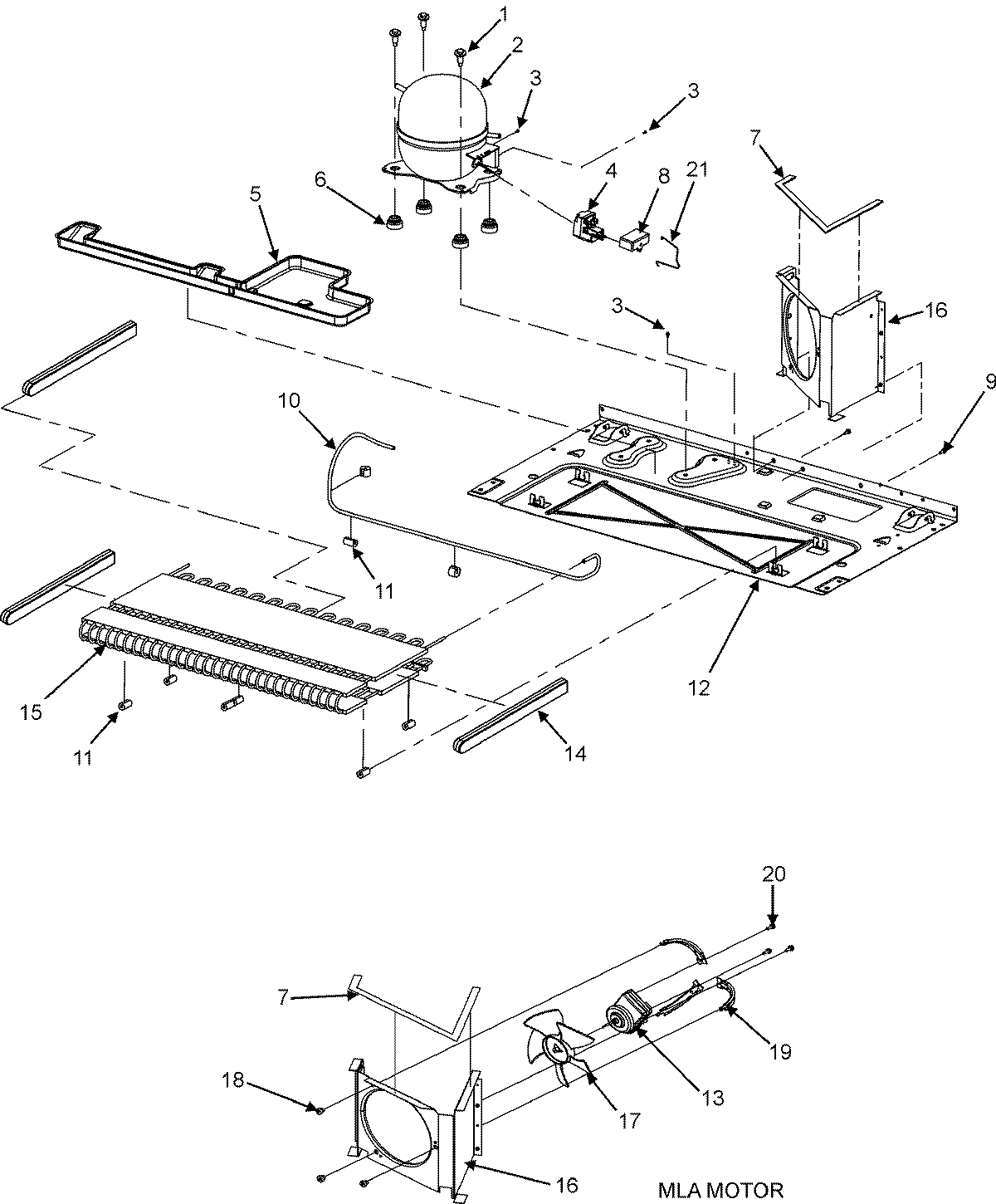

05 - COMPRESSOR (SERIES 51)
28 - ICE BUCKET ASSY. (SERIES 10)
30 - ICE MAKER (SERIES 10)

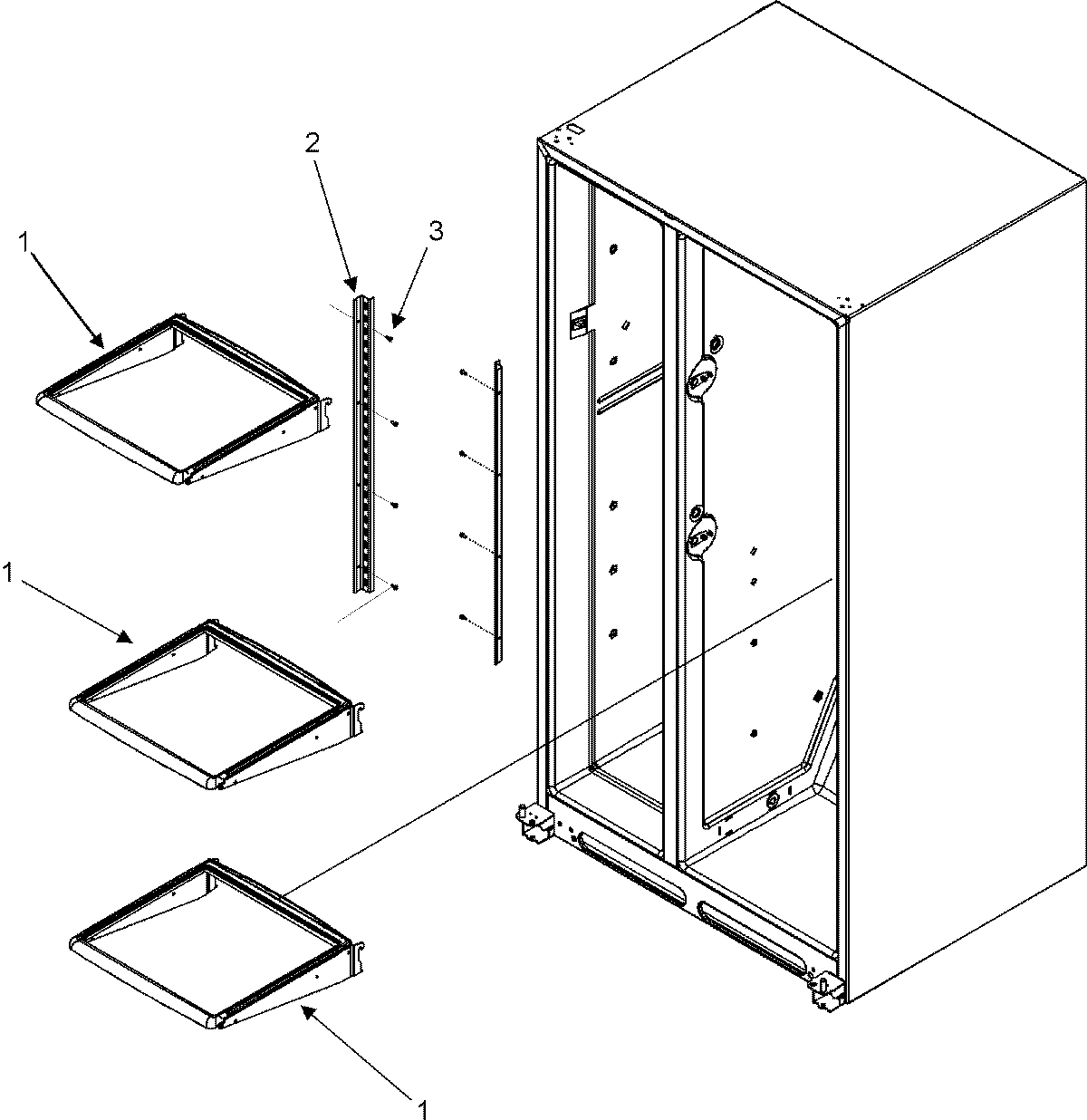

35 - REFRIGERATOR SHELVES (SERIES 50)
37 - SUPPLEMENTAL INFORMATION (SERIES 50)
39 - WIRING INFORMATION (SERIES 50)

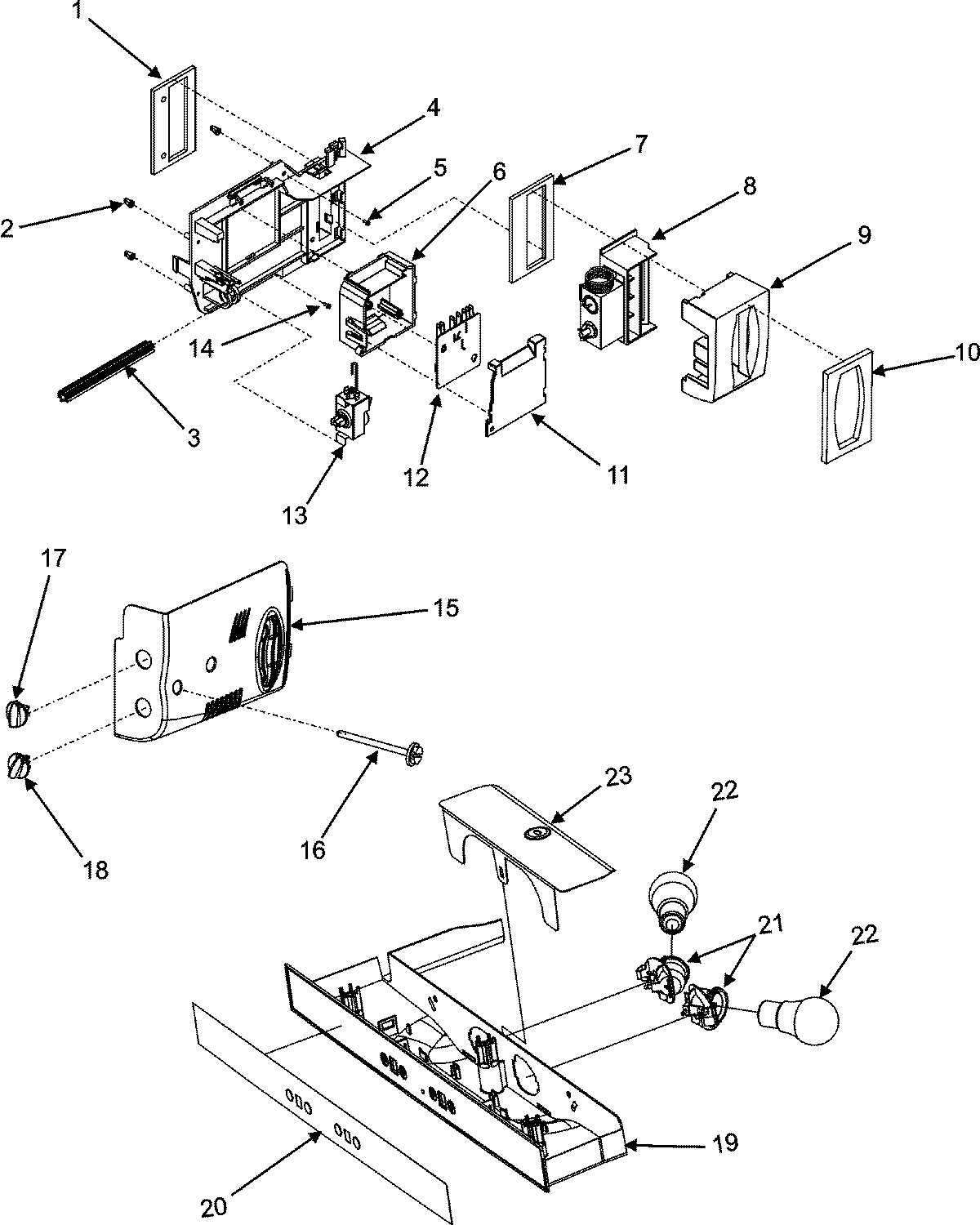

06 - CONTROLS (SERIES 10)

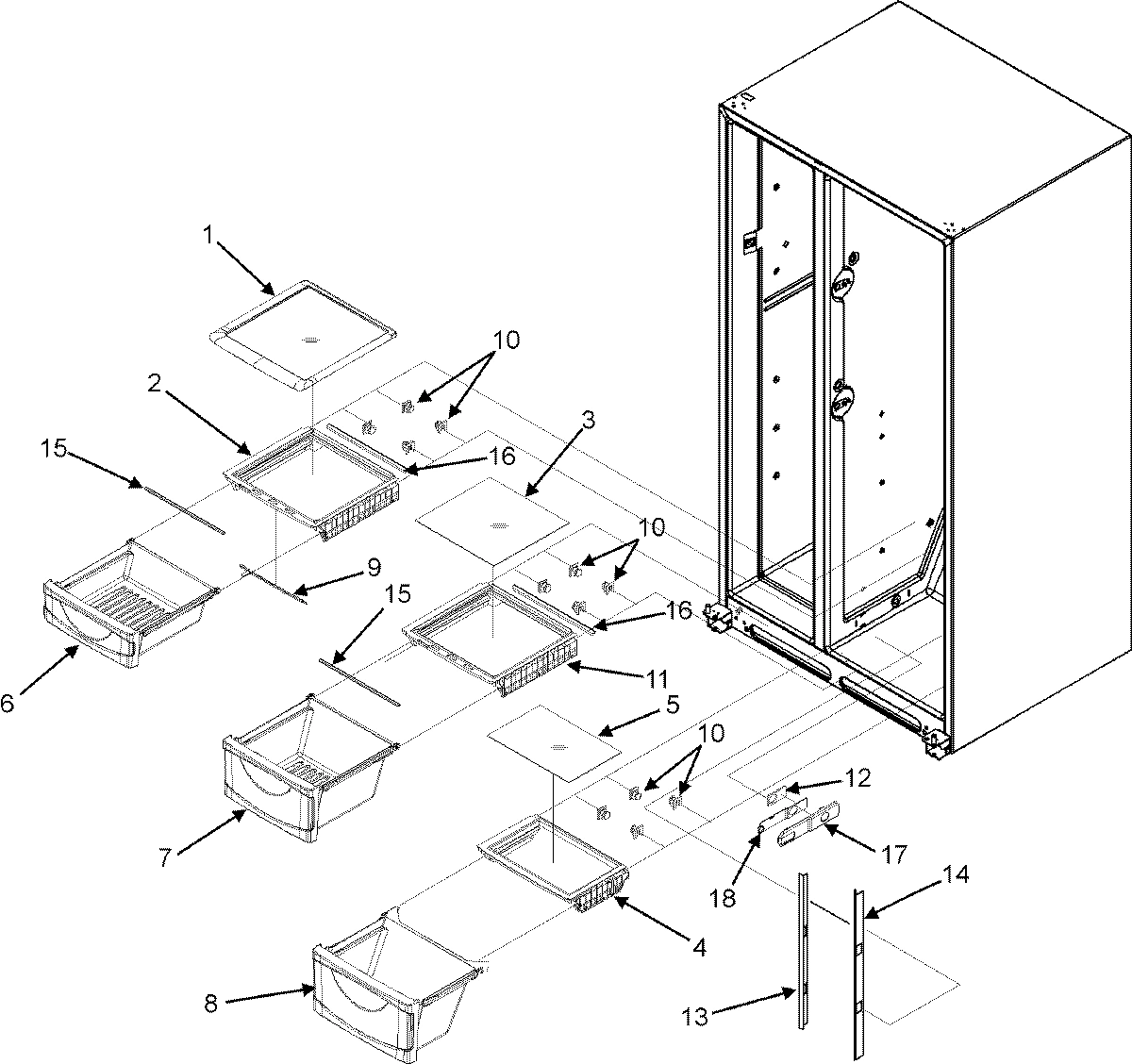

08 - CRISPER ASSEMBLY (SERIES 10)

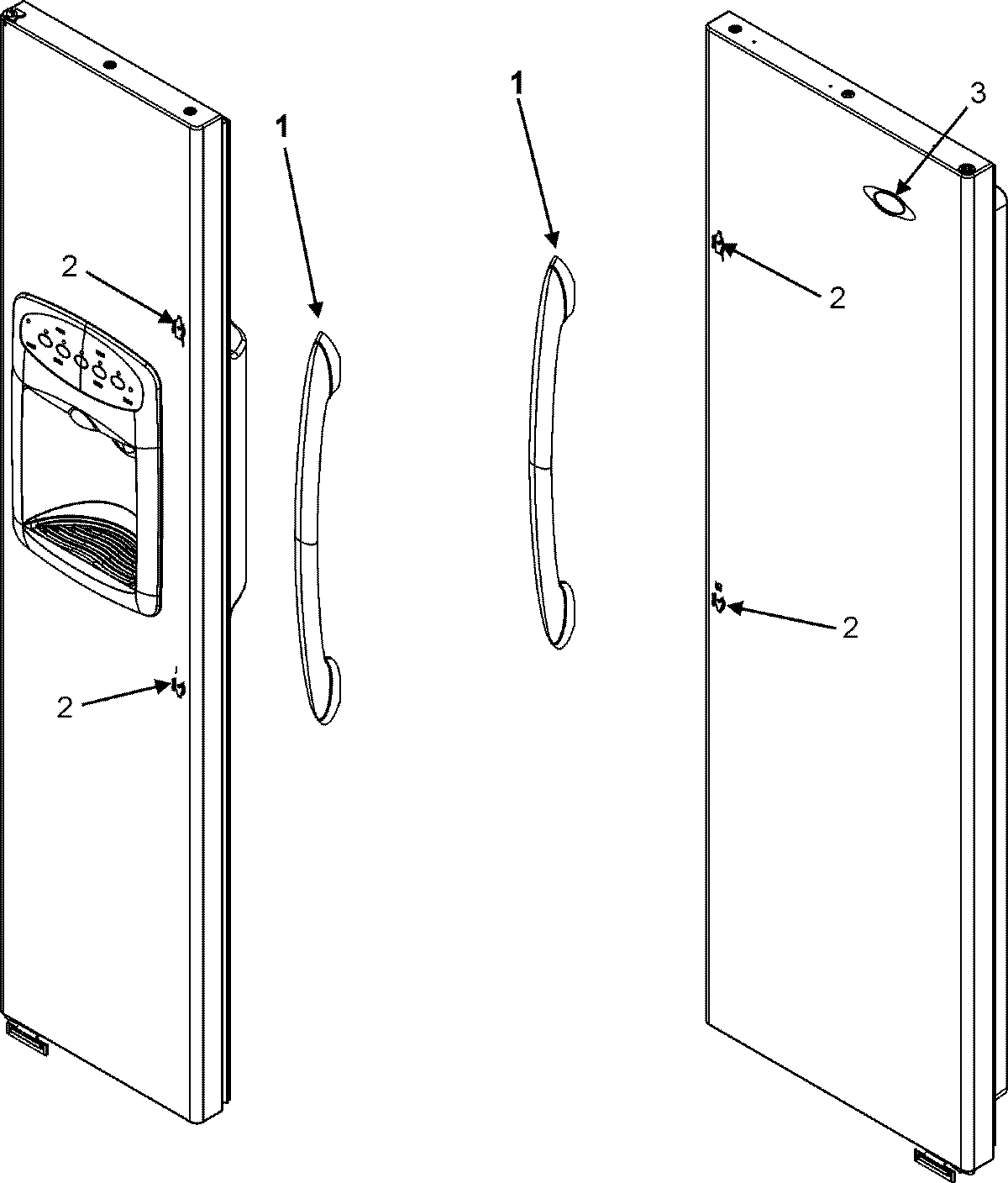

23 - HANDLES (MSD2651HEB/Q/W-SERIES 10)

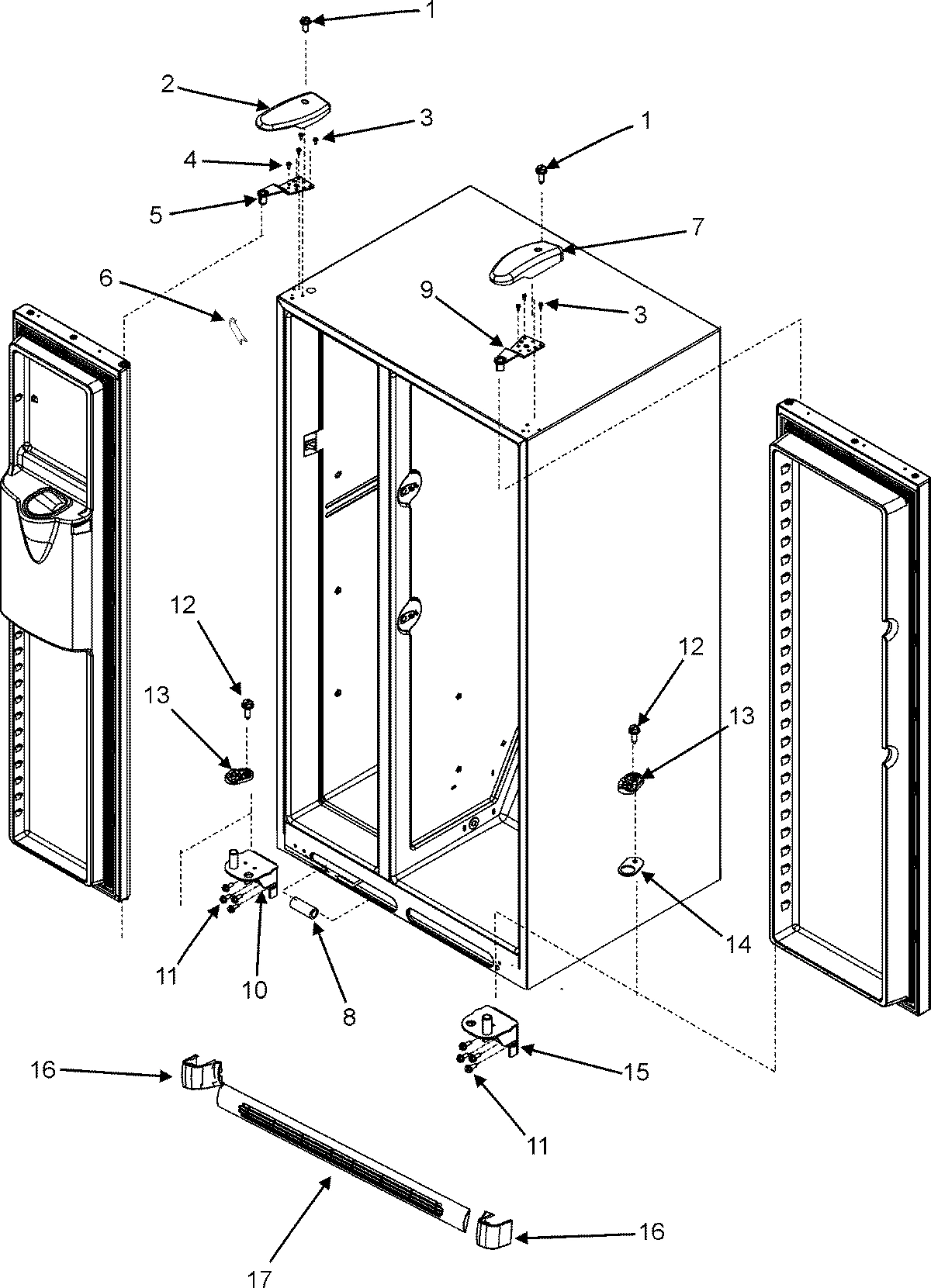

25 - HINGES & TOE GRILLE (SERIES 10)

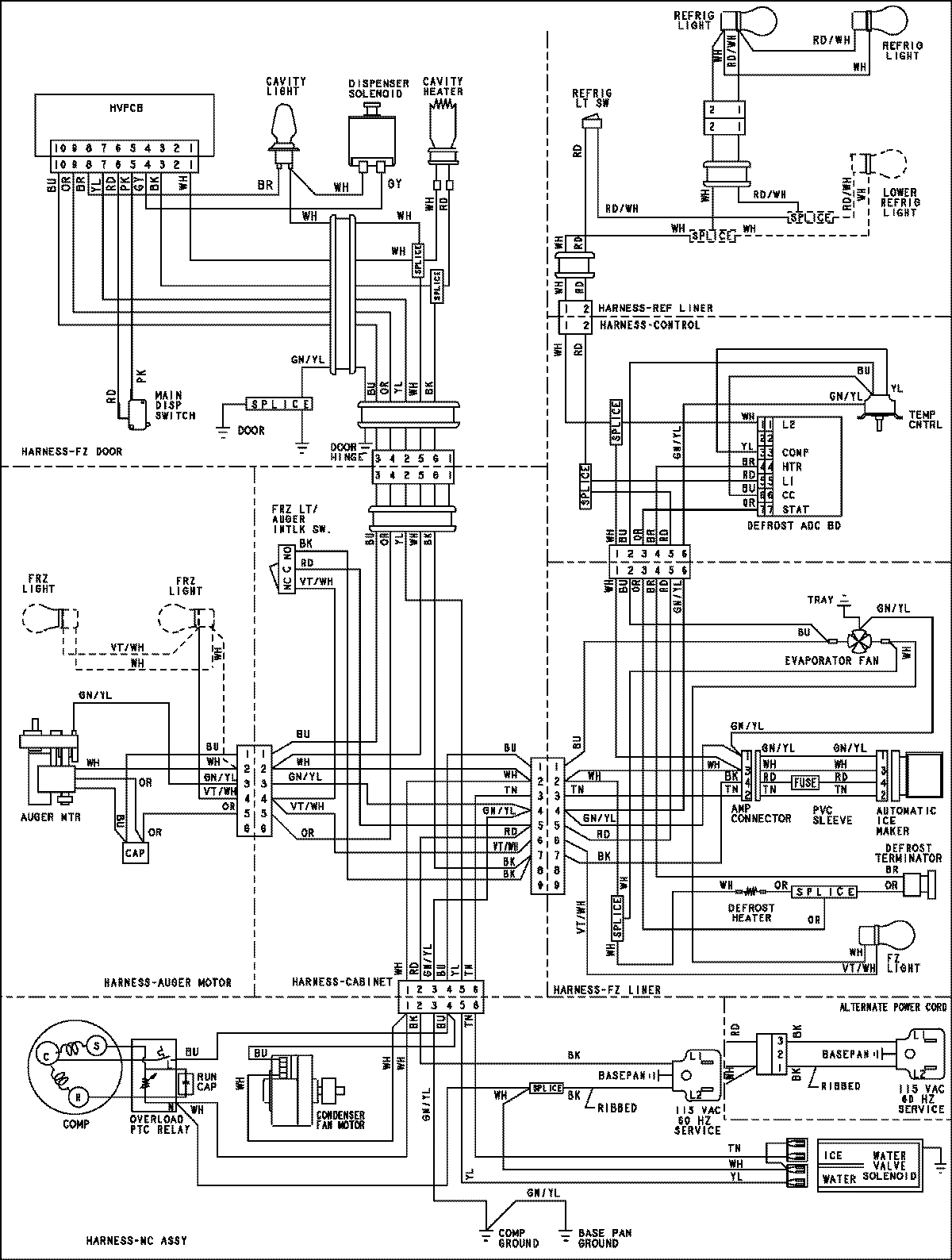

40 - WIRING INFORMATION (SERIES 53)
01 - CABINET BACK (SERIES 10)

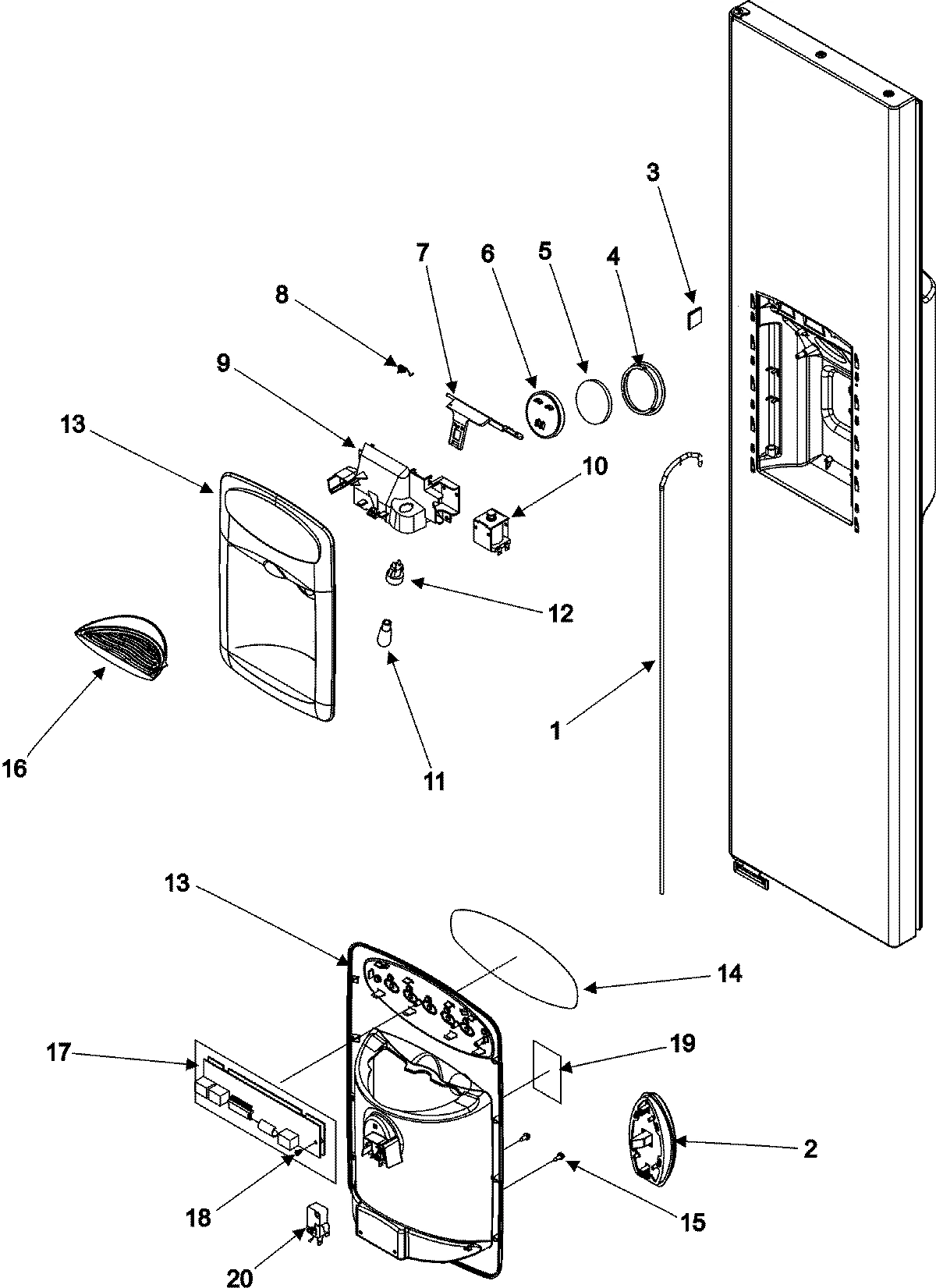

14 - FOUNTAIN (SERIES 10)
15 - FOUNTAIN (SERIES 50)

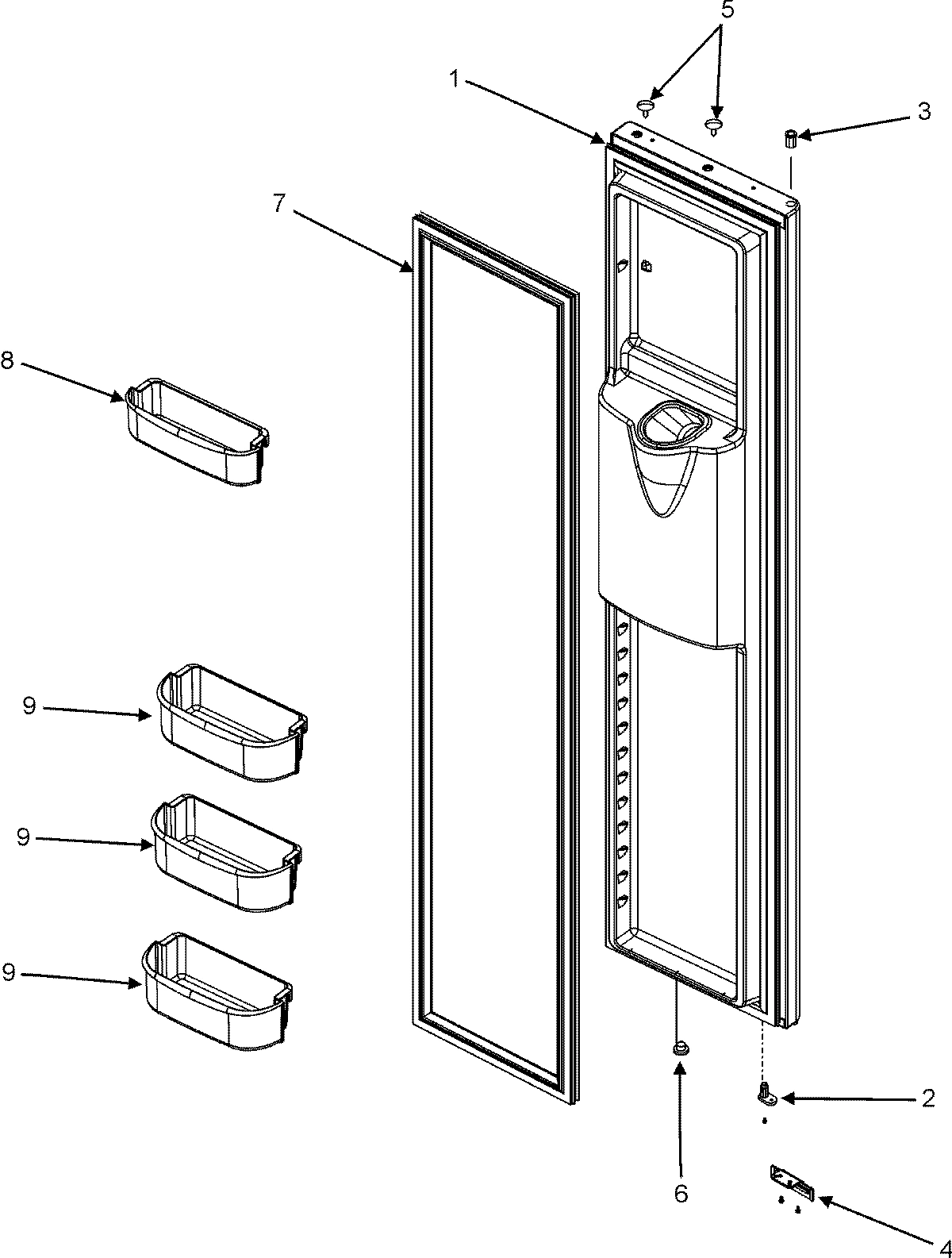

18 - FREEZER DOOR (SERIES 10)

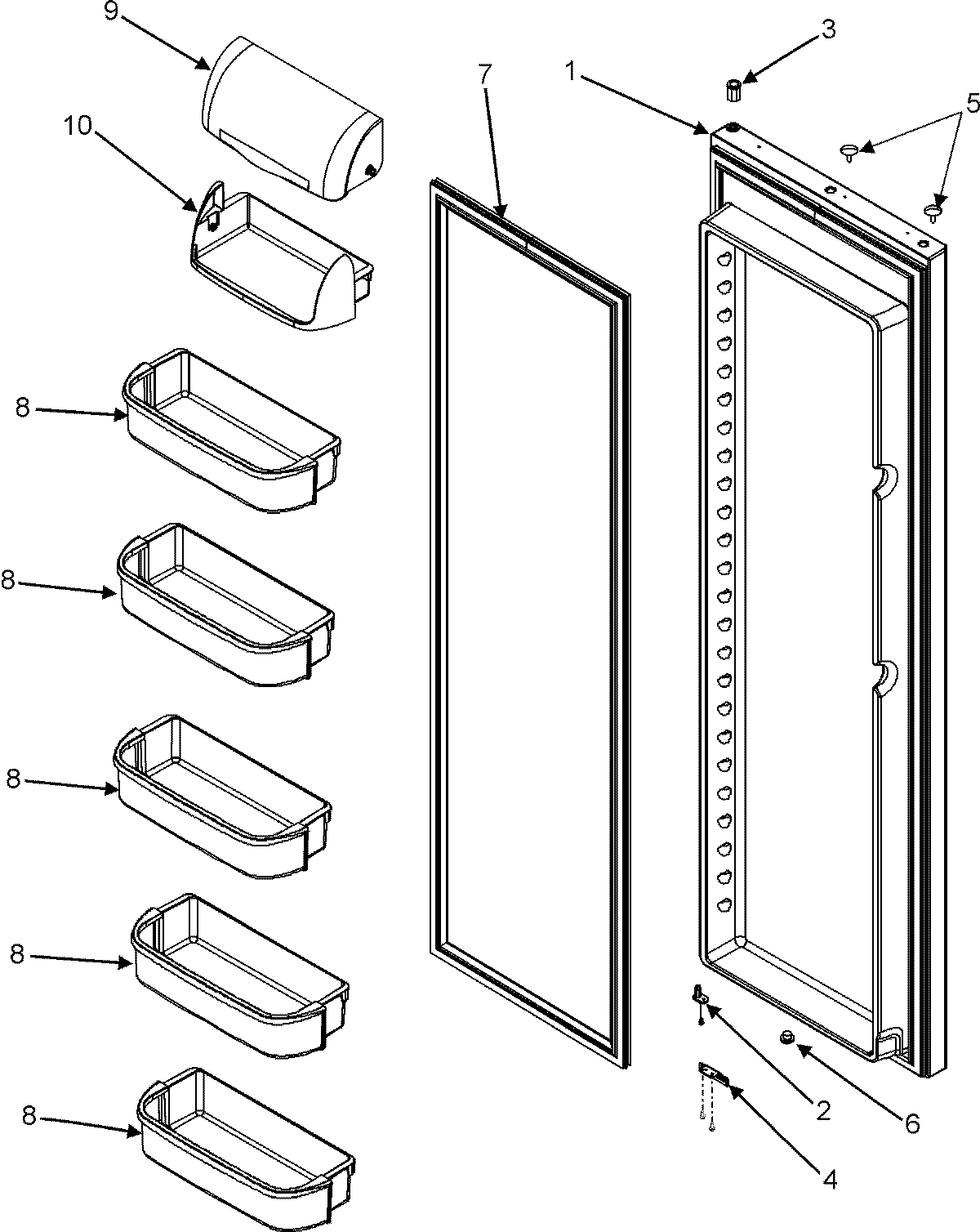

32 - REFRIGERATOR DOOR (SERIES 10)
33 - REFRIGERATOR DOOR (SERIES 50)
10 - EVAP FAN/CRISP LIGHT/FILTER (SER.10)
12 - EVAPORATOR/ROLLERS/WATER TANK (SER.10)
19 - FREEZER DOOR (SERIES 50)
21 - FREEZER SHELVES (SERIES 50)

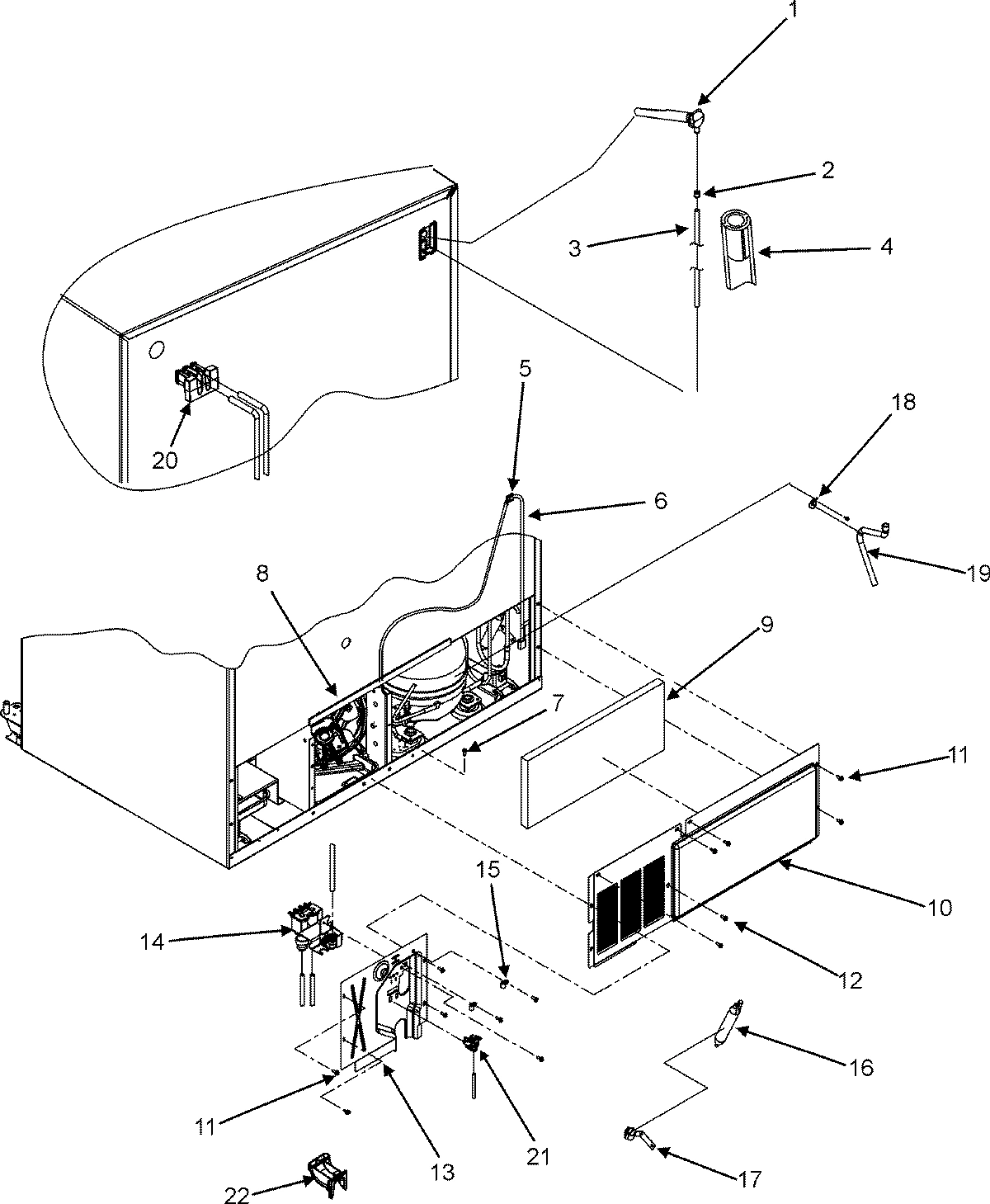

02 - CABINET BACK (SERIES 50)
13 - EVAPORATOR/ROLLERS/WATER TANK (SER.50)

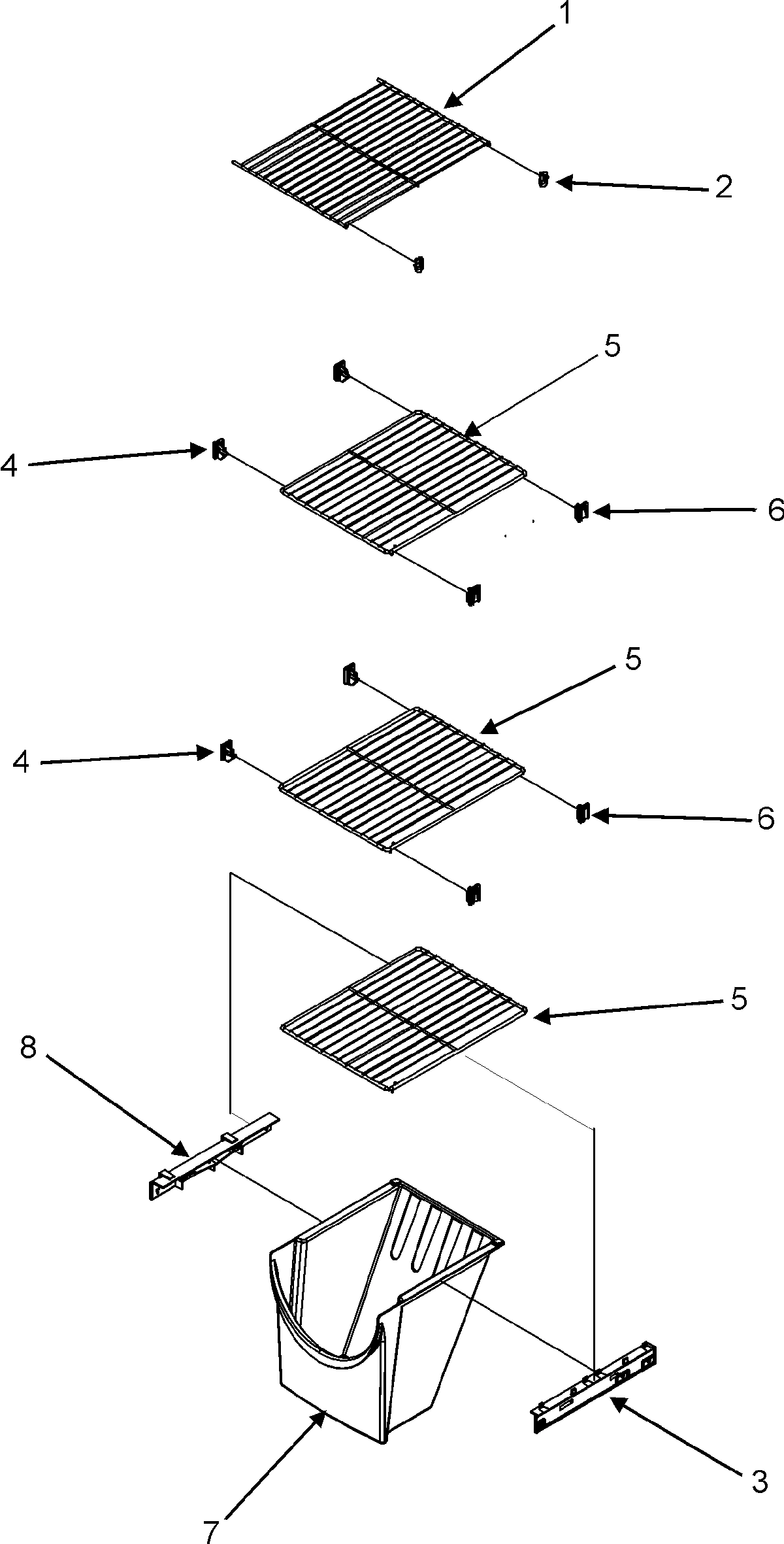

20 - FREEZER SHELVES (SERIES 10)

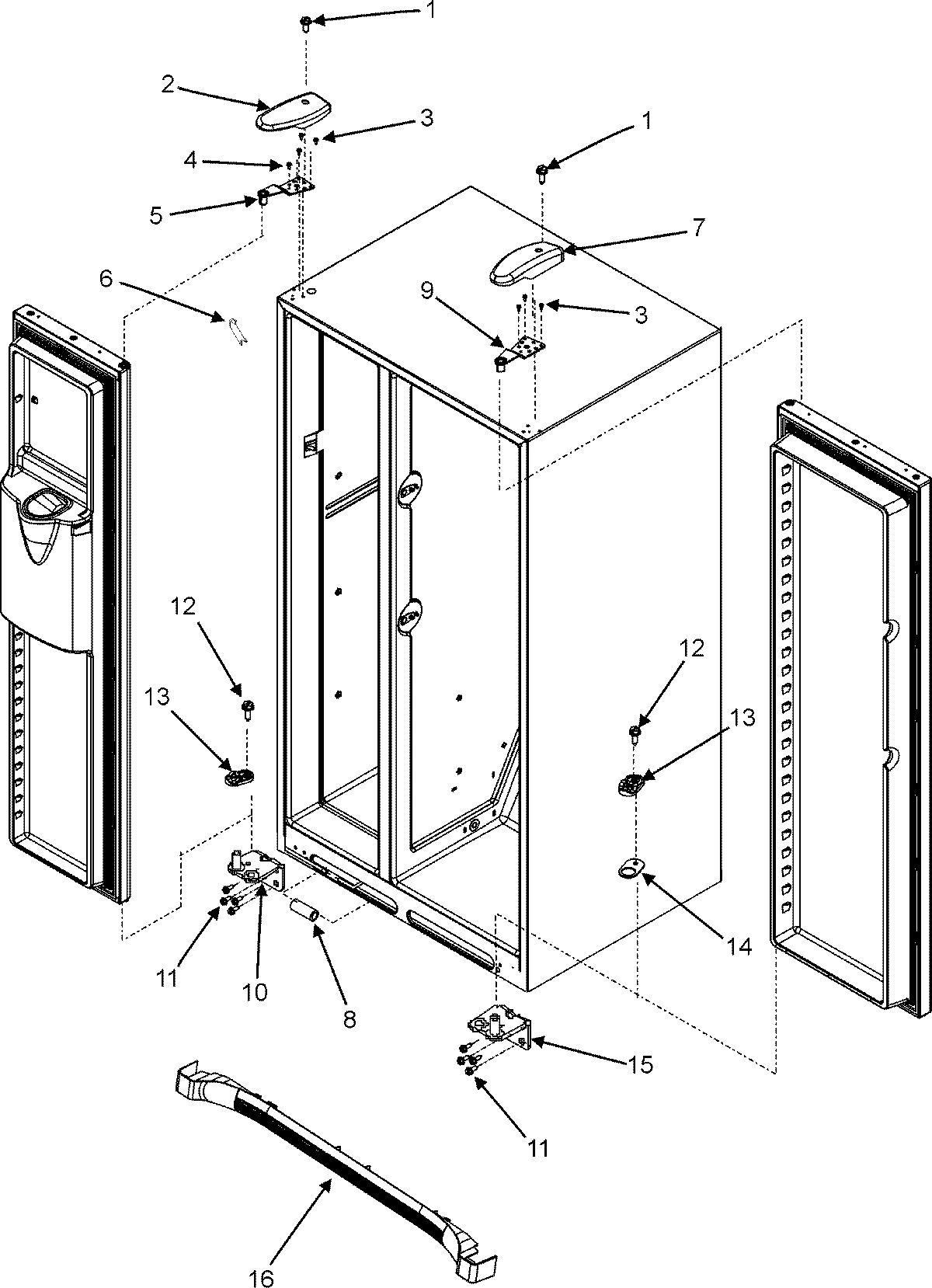

27 - HINGES & TOE GRILLE (SERIES 53)

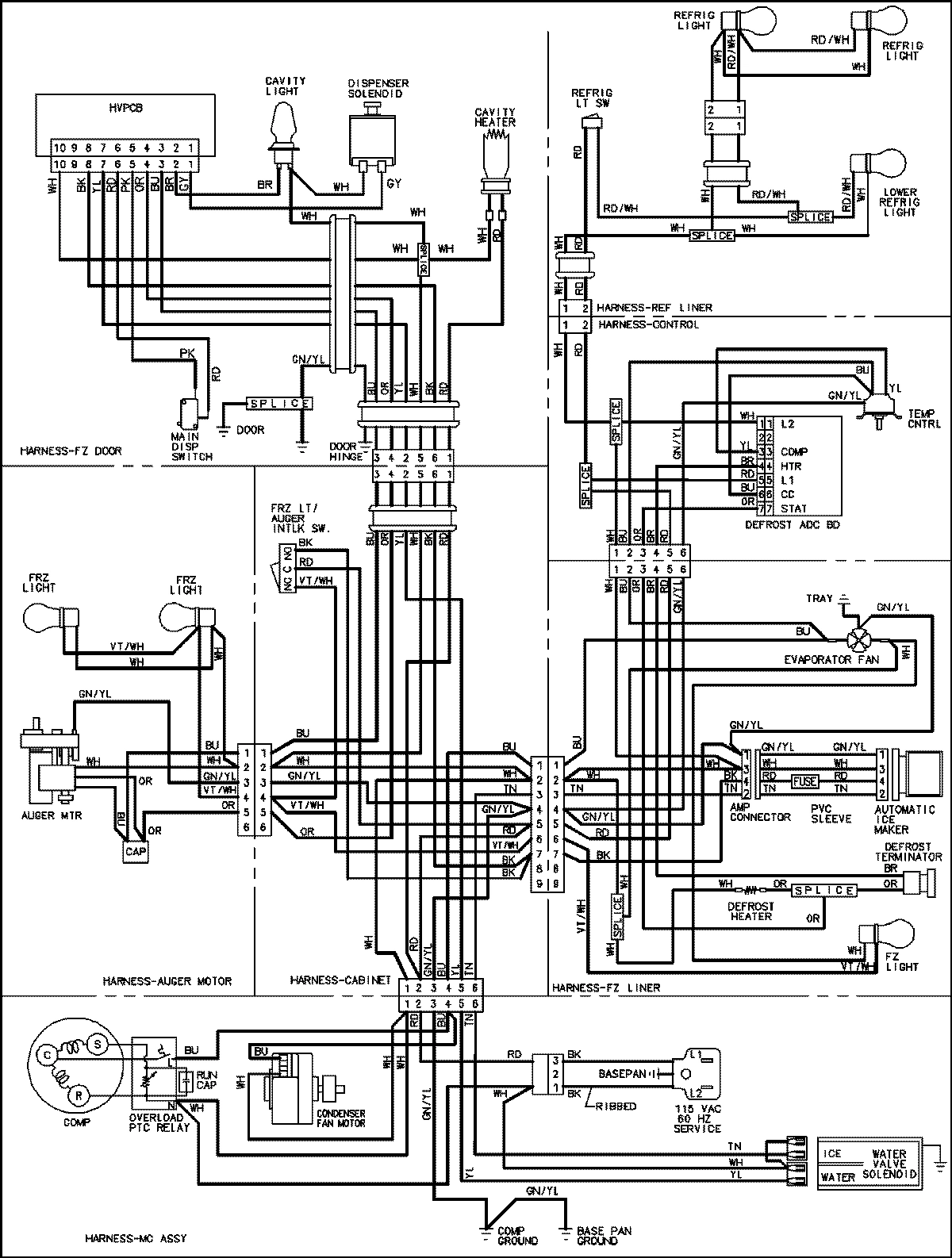

38 - WIRING INFORMATION (SERIES 10)
07 - CONTROLS (SERIES 50)
09 - CRISPER ASSEMBLY (SERIES 50)
24 - HANDLES (MSD2651HEB/Q/W-SERIES 50)
26 - HINGES & TOE GRILLE (SERIES 50)
04 - COMPRESSOR (SERIES 50)

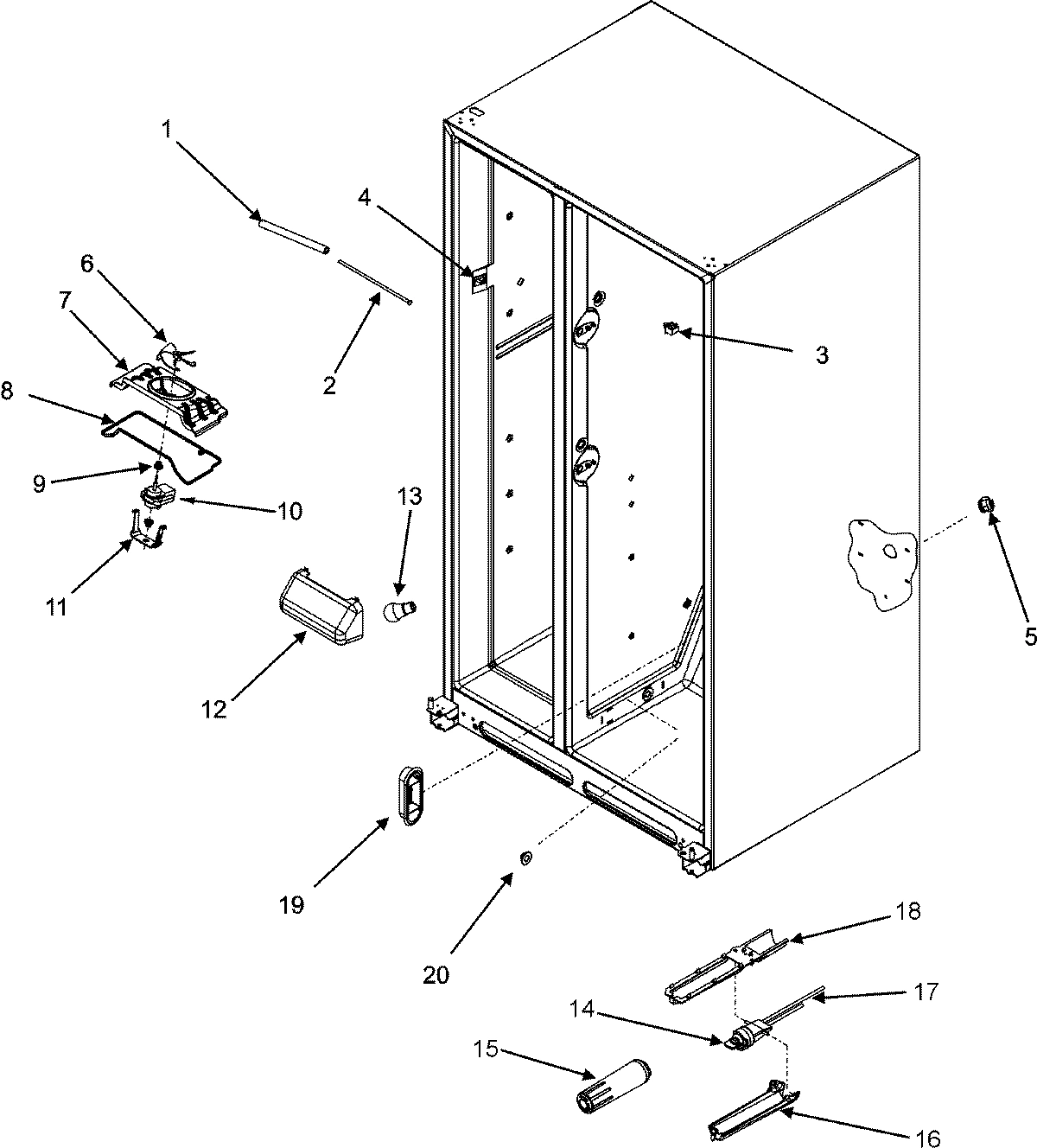

11 - EVAP FAN/CRISP LIGHT/FILTER (SER.50)

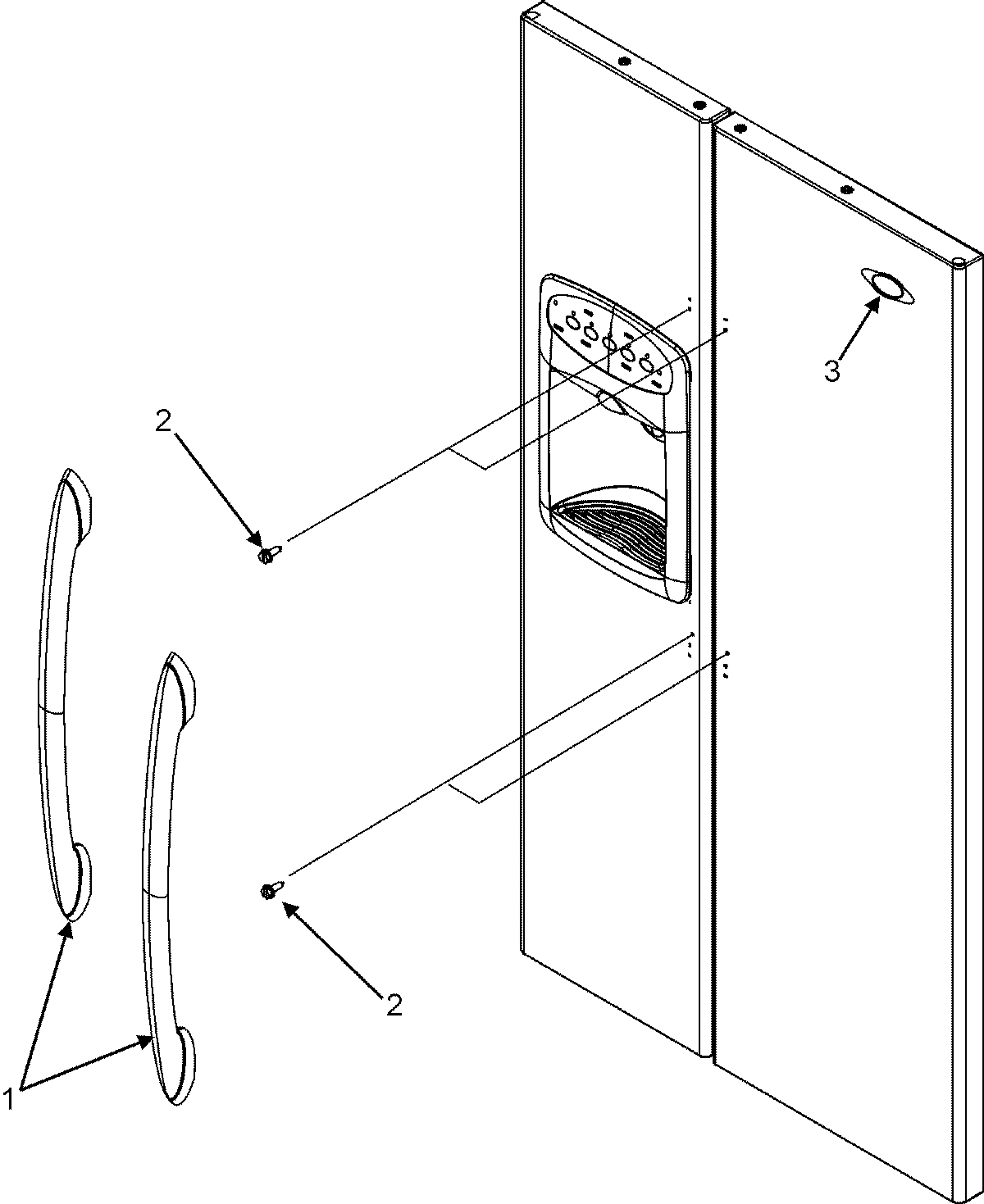

22 - HANDLES (MSD2651HEB/Q/S-SERIES 53)
29 - ICE BUCKET ASSY. (SERIES 50)
36 - SUPPLEMENTAL INFORMATION (SERIES 10)
Common parts from model Whirlpool MSD2651HEW REFRIGERATOR
1
EVAP KIT (SXS) WPL 12001940 Contact Us For Availability
1
SCREW SHOULDER WPL M0238833 Contact Us For Availability
1
SHELF, STATIONARY WPL 67004348 Contact Us For Availability
1
SCREW, SHLDR WPL M0221523 Contact Us For Availability
1
MANUAL, USE & CARE WPL 12842103 Contact Us For Availability
1
MANUAL, USE & CARE WPL 12842123 Contact Us For Availability
1
MANUAL, USE & CARE WPL 12842129 Contact Us For Availability
1
GASKET, DAMPER WPL 67004031 Contact Us For Availability
1
SHELF, CRISPER TOP WPL 67004130 Contact Us For Availability
1
HANDLE ASSY., DOOR (WHT) WPL 67004055 Contact Us For Availability
1
DOOR ASSY., FRZ. FOAM (WHT) WPL 67004617 Contact Us For Availability
1
DOOR ASSY., REF. FOAM (WHT) WPL 67004616 Contact Us For Availability
1
DOOR ASSY., REF. FOAM (WHT) WPL 67003982 Contact Us For Availability
1
DOOR ASSY., REF. FOAM (WHT) WPL 67006452 Contact Us For Availability
1
INSULATION, TUBING WPL 67004185 Contact Us For Availability
1
DOOR ASSY., FRZ. FOAM (WHT) WPL 67003997 Contact Us For Availability
1
DOOR ASSY., FRZ. FOAM (WHT) WPL 67006448 Contact Us For Availability
1
SHELF, UPR FRZ. WPL 67004354 Contact Us For Availability
2
ASSY, IM ARM/WIRE WPL 12671401 Contact Us For Availability
2
GROMMET, SCREW WPL M0580205 Contact Us For Availability
2
RAIL, L/R SM SXS WPL 67003839 Contact Us For Availability
2
TECH SHT, SXS WPL 16023088 Contact Us For Availability
2
TECH SHT, SXS WPL 16026204 Contact Us For Availability
2
TECH SHT, SXS WPL 16026981 Contact Us For Availability
2
COVER, TOP HINGE (LT-WHT) WPL 67004029 Contact Us For Availability
2
ACTR PAD FRAME ASSY. (STNLS) WPL 12598902S Contact Us For Availability
2
CLOSURE, DOOR (BLK) WPL 12571301B Contact Us For Availability
2
CLOSURE, DOOR (BLK) WPL 12113204 Contact Us For Availability
2
CLOSURE, DOOR (BLK) WPL 67006134 Contact Us For Availability
2
TUBE, PLASTIC WPL 67004186 Contact Us For Availability
2
BLOCK, AIR COIL (RT) WPL 12590102 Contact Us For Availability
2
CLOSURE, DOOR (BLK) WPL 67006677 Contact Us For Availability
2
SUPPORT, FRZ SHELF WPL C8973801 Contact Us For Availability
2
COVER, TOP HINGE (LT-BSQ) WPL 67003976 Contact Us For Availability
3
AGITATOR, ICE WPL 10114401 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
TAG, ENERGY WPL 67004860 Contact Us For Availability
3
EXTENSION, KNOB WPL 12571801 Contact Us For Availability
3
GLASS, CRISPER SHELF WPL 67004246 Contact Us For Availability
3
CLIP, CORD WPL M0104102 Contact Us For Availability
3
BUSHING, DOOR (BLK) WPL 12395501B Contact Us For Availability
3
BUSHING, DOOR (BLK) WPL 10961002 Contact Us For Availability
3
RAIL, BIN (RT) WPL 67004356 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
BAR, CRSH ICE BUCKET WPL 10113801 Contact Us For Availability
4
SVC MAN, SXS WPL 16022689 Contact Us For Availability
4
BRACKET, CONTROL WPL 67002981 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 67004247 Contact Us For Availability
4
SEAL, ICE CHUTE WPL 12665101 Contact Us For Availability
4
STOP, DOOR (WHT) WPL 12636401W Contact Us For Availability
4
STOP, DOOR (WHT) WPL 67006517 Contact Us For Availability
4
SCREW WPL 67006672 Contact Us For Availability
4
BLOCK, AIR COIL (LT) WPL 12590101 Contact Us For Availability
4
STOP, DOOR (WHT) WPL 67006478 Contact Us For Availability
4
SUPPORT, SHELF (LT) WPL 12015002 Contact Us For Availability
5
INLET, WATER WPL 951001 Contact Us For Availability
5
PAN, DRAIN WPL 67004848 Contact Us For Availability
5
SCREW, HEX HEAD WPL 59001208 Contact Us For Availability
5
SCREW WPL M0216539 Contact Us For Availability
5
GLASS, MEAT SHELF WPL 67004132 Contact Us For Availability
5
HINGE, TOP (LT-BLK) WPL 67004126 Contact Us For Availability
5
INSUL, CHUTE DOORxx WPL 12563401 Contact Us For Availability
5
PLUG, BUTTON (WHT) WPL M0311605 Contact Us For Availability
5
GASKET, FOAM WPL 67002226 Contact Us For Availability
5
SHELF, LWR FZ WPL 67004250 Contact Us For Availability
6
IM ARM/WIRE ASSY WPL 12671401Q Contact Us For Availability
6
BOX, DEFROST CONTROL WPL 12624801 Contact Us For Availability
6
PAN ASSY., SM CRISPER WPL 67004349 Contact Us For Availability
6
PLUG, BUTTON (BLK) WPL A3080001 Contact Us For Availability
6
SUPPORT, SHELF (RT) WPL 10941102 Contact Us For Availability
7
GLIDE, FRZ. (RT) WPL 67004323 Contact Us For Availability
7
COVER, BLADE WPL 67002271 Contact Us For Availability
7
GASKET, DAMPER WPL 12582801 Contact Us For Availability
7
PAN ASSY., LG CRISPER WPL 67004350 Contact Us For Availability
7
COVER, TOP HINGE (RT-WHT) WPL 67004030 Contact Us For Availability
7
HINGE, ICE CHUTE WPL 67004119 Contact Us For Availability
7
GASKET, FRZ. DOOR (WHT) WPL 67003968 Contact Us For Availability
7
GASKET, REF. DOOR (WHT) WPL 67003966 Contact Us For Availability
7
SHROUD, EVAP WPL 67004253 Contact Us For Availability
7
BIN, FZ WPL 12596501 Contact Us For Availability
7
COVER, TOP HINGE (RT-BSQ) WPL 67004026 Contact Us For Availability
8
BACK INNER FZ 26 WPL 67003577 Contact Us For Availability
8
FRONT, ICE CRUSHER WPL 10115001 Contact Us For Availability
8
CONTROL, DAMPER WPL 12571701 Contact Us For Availability
8
PAN ASSY., MEAT WPL 67004351 Contact Us For Availability
8
GASKET, MC BACK WPL B5759649 Contact Us For Availability
8
BUCKET, UPR FZ DR WPL 12556901 Contact Us For Availability
8
BUCKET-36``REF GAL WPL 67004110 Contact Us For Availability
8
GASKET WPL 67001508 Contact Us For Availability
8
TRAY, EVAP DRIP WPL 12558101WD Contact Us For Availability
8
RAIL, BIN (LT) WPL 67004355 Contact Us For Availability
9
FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability
9
COVER, SUPPLY AIR WPL 12583101 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
PIN, ROLL WPL M1200108 Contact Us For Availability
9
INSULATION, DAMPER WPL 12604201 Contact Us For Availability
9
SLIDE, CONTROL WPL 67004168 Contact Us For Availability
9
HINGE, TOP (RT-BLK) WPL 67004083 Contact Us For Availability
9
BUCKET, LWR FZ DR WPL 12557501 Contact Us For Availability
9
DOOR, DAIRY WPL 67001325 Contact Us For Availability
9
CLIP, EVAPORATOR WPL 10623003 Contact Us For Availability
10
COVER, MC BACK WPL 67006101 Contact Us For Availability
10
DUCT, QUICK ICE 26 WPL 67003578 Contact Us For Availability
10
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
10
ANCHOR, BLADE WPL 10114101 Contact Us For Availability
10
GASKET, CONTROL COVER WPL 12582901 Contact Us For Availability
10
HINGE, BOTTOM (LT-BLK) WPL 12636901ED Contact Us For Availability
10
BACK, MACH COMP WPL 12575101ED Contact Us For Availability
10
SOLENOID WPL 12575401 Contact Us For Availability
10
TRAY, DAIRY WPL 67002304 Contact Us For Availability
10
SCREW, ADJUSTING WPL 10093313 Contact Us For Availability
10
HINGE, BOTTOM (LT-BLK) WPL 67006685 Contact Us For Availability
11
SCREW WPL 67006491 Contact Us For Availability
11
COVER, DEFROST CONTROL WPL 12624901 Contact Us For Availability
11
FRAME, CRISPER SHELF WPL 67004140 Contact Us For Availability
11
SCREW, BOTTOM HINGE WPL 67003858 Contact Us For Availability
11
TANK, WATER WPL 67003504 Contact Us For Availability
12
THERMOSTAT WPL 950921 Contact Us For Availability
12
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
12
PAN, BASE WPL 67001512 Contact Us For Availability
12
SPACER, COVER WPL 10113901 Contact Us For Availability
12
GASKET, TEMP. CONTROL WPL 67004177 Contact Us For Availability
12
SCREW, TC WPL M0220431 Contact Us For Availability
12
SOCKET, LIGHT WPL 12617501 Contact Us For Availability
12
SHIELD, CRISPER LIGHT WPL 67001507 Contact Us For Availability
13
COVER, AUGER MOTOR WPL 12561701 Contact Us For Availability
13
STRAP, BALE WPL 12576801 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability
13
DAMPER, ICE WPL 10275201 Contact Us For Availability
13
PILLAR (LT) WPL 67004170 Contact Us For Availability
13
COVER, WATER VALVE WPL 67004098 Contact Us For Availability
13
FACADE, 5 BUTTON (WHT) WPL 67004399 Contact Us For Availability
13
FACADE, 5 BUTTON (WHT) WPL 67006835 Contact Us For Availability
13
CLOSURE, DOOR (BLK) WPL 67006493 Contact Us For Availability
14
BLOCK-EPS COND WPL 67002235 Contact Us For Availability
14
BLADE, STATIC WPL 10114601 Contact Us For Availability
14
PILLAR (RT) WPL 67004171 Contact Us For Availability
14
PLUG, BYPASS WPL 67003146 Contact Us For Availability
15
BLADE, ROTATING WPL 10114501 Contact Us For Availability
15
COVER, CONTROL WPL 67004158 Contact Us For Availability
15
SEAL, CRISPER FRAME (FRT) WPL 67004248 Contact Us For Availability
15
HINGE, BOTTOM (RT-BLK) WPL 12636902ED Contact Us For Availability
15
SCREW WPL 67001510 Contact Us For Availability
15
HINGE, BOTTOM (RT-BLK) WPL 67006686 Contact Us For Availability
16
SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability
16
WASHER, WAVED WPL 10275101 Contact Us For Availability
16
SCREW WPL M0231426 Contact Us For Availability
16
SEAL, CRISPER FRAME (REAR) WPL 67004249 Contact Us For Availability
16
COVER, LWR HINGE (WHT) WPL 12630301W Contact Us For Availability
16
ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability
17
SHIELD, FZ LIGHT WPL 67004433 Contact Us For Availability
17
WASHER STEPPED WPL 10114301 Contact Us For Availability
17
KNOB, CONTROL WPL 12581101 Contact Us For Availability
17
HOUSING, TEMP. CONTROL WPL 67004175 Contact Us For Availability
17
CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability
17
TOE GRILLE ASSY (WHT) WPL 67002223 Contact Us For Availability
17
CLIP, DRIER WPL 10547002 Contact Us For Availability
17
BOARD, CONTROL WPL 67003817 Contact Us For Availability
18
BRKT, ECM COND MOTOR WPL 67003644 Contact Us For Availability
18
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
18
KNOB, CONTROL WPL 12581102 Contact Us For Availability
18
SLIDE, TEMP. CONTROL WPL 67004176 Contact Us For Availability
18
CLAMP WPL M0102303 Contact Us For Availability
18
PLATE, FILTER BACKING WPL 12688503 Contact Us For Availability
19
SCREW, TR WPL M0223816 Contact Us For Availability
19
COVER, EVAP WPL 67004192 Contact Us For Availability
19
HOUSING, FZ CONTROL WPL 67004240 Contact Us For Availability
19
SCREW-SM WPL M0238636 Contact Us For Availability
19
TUBE, DRAIN WPL 12580401 Contact Us For Availability
19
LABEL, DISPENSER WPL 67003351 Contact Us For Availability
19
GRILLE, RETURN AIR WPL 12634801 Contact Us For Availability
19
RIVET WPL M1205302 Contact Us For Availability
20
MOTOR, CONDENSER FAN (ECM) WPL 12628701 Contact Us For Availability
20
COVER, ICE BUCKET WPL 67004255 Contact Us For Availability
20
OVERLAY WPL 67004241 Contact Us For Availability
20
PLUG, AIR TUNNEL WPL 67003018 Contact Us For Availability
20
FUNNEL, DRAIN WPL 12456901 Contact Us For Availability
21
DOOR, ICE BUCKET WPL 67004256 Contact Us For Availability
21
CLIP, WATERLINE WPL 67004100 Contact Us For Availability
21
NOT REQUIRED PART OR SEE NOTE CLIP-NOT REQUIR WPL W10124350 Contact Us For Availability
22
SHIELD, FZ LIGHT WPL 67004135 Contact Us For Availability
22
HARNESS, MC WPL 67004097 Contact Us For Availability
23
REFLECTOR, LIGHT WPL 67004157 Contact Us For Availability
23
TRACK, WATERLINE WPL 67004102 Contact Us For Availability
23
BLOCK, WATER TANK WPL 67004309 Contact Us For Availability
24
HARNESS, CONTROL WPL 67004154 Contact Us For Availability
24
HEATER/HARNESS, FRZ WPL 67004189 Contact Us For Availability
24
HEATER/HARNESS, FRZ WPL 67006839 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003523 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003928 Contact Us For Availability
× ![]()
Login and Registration Form
