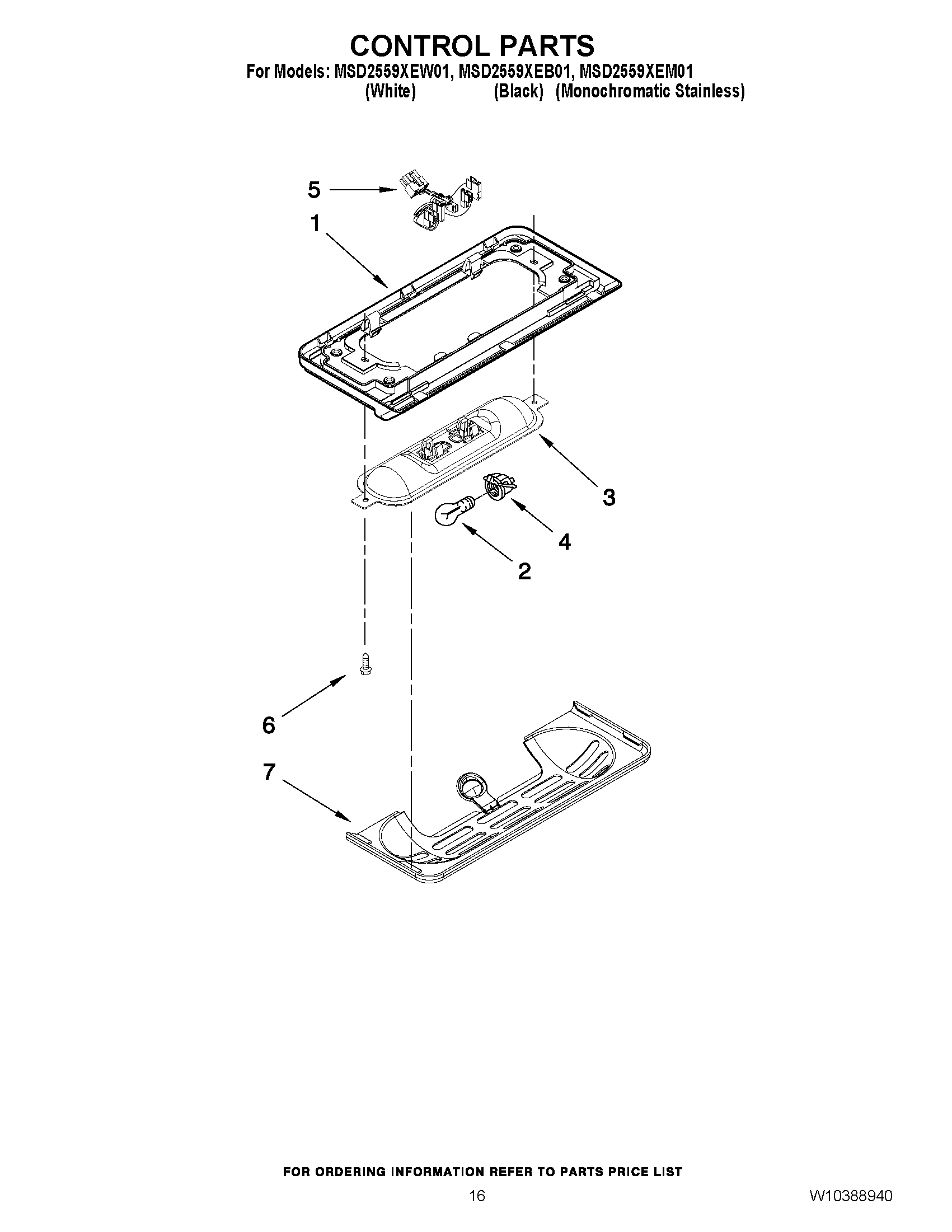

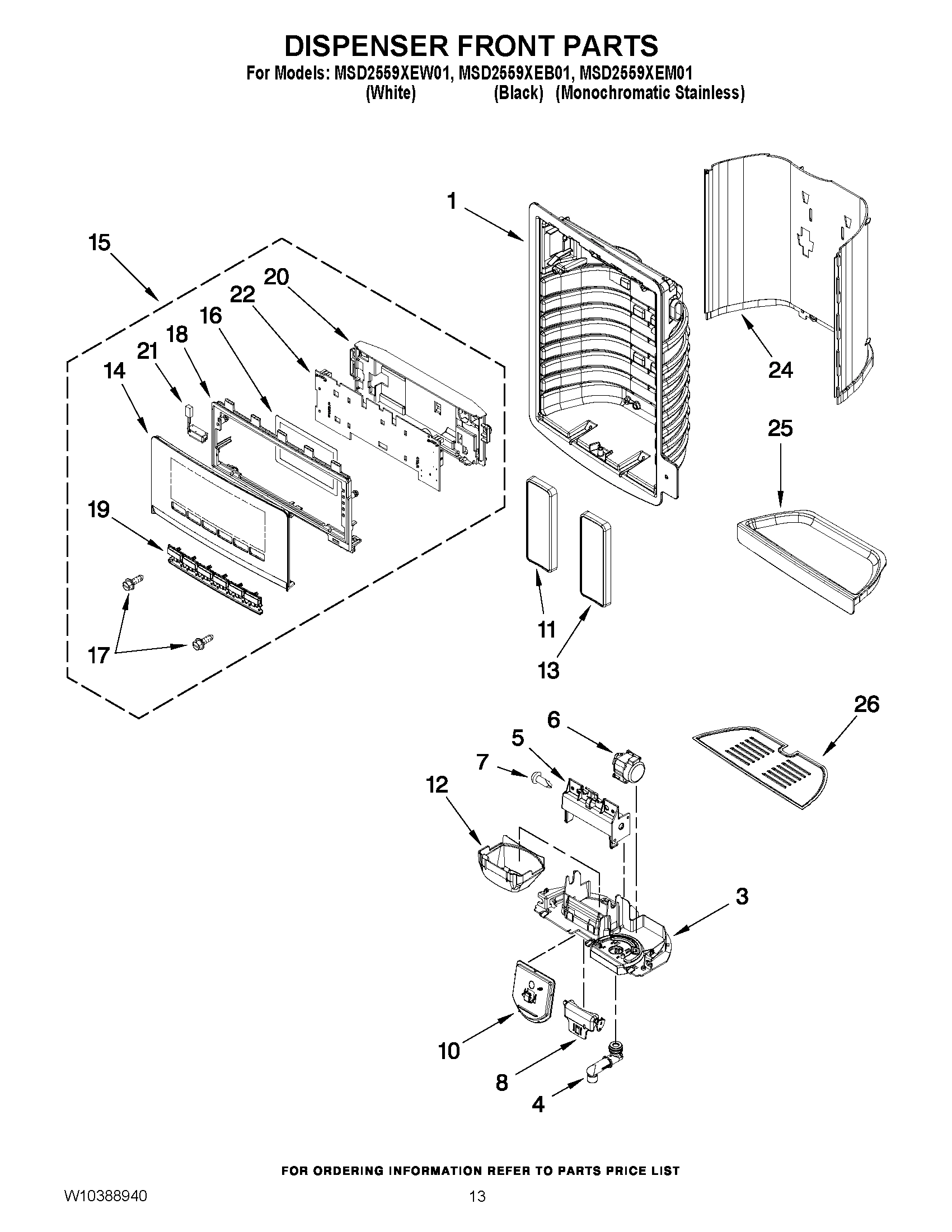

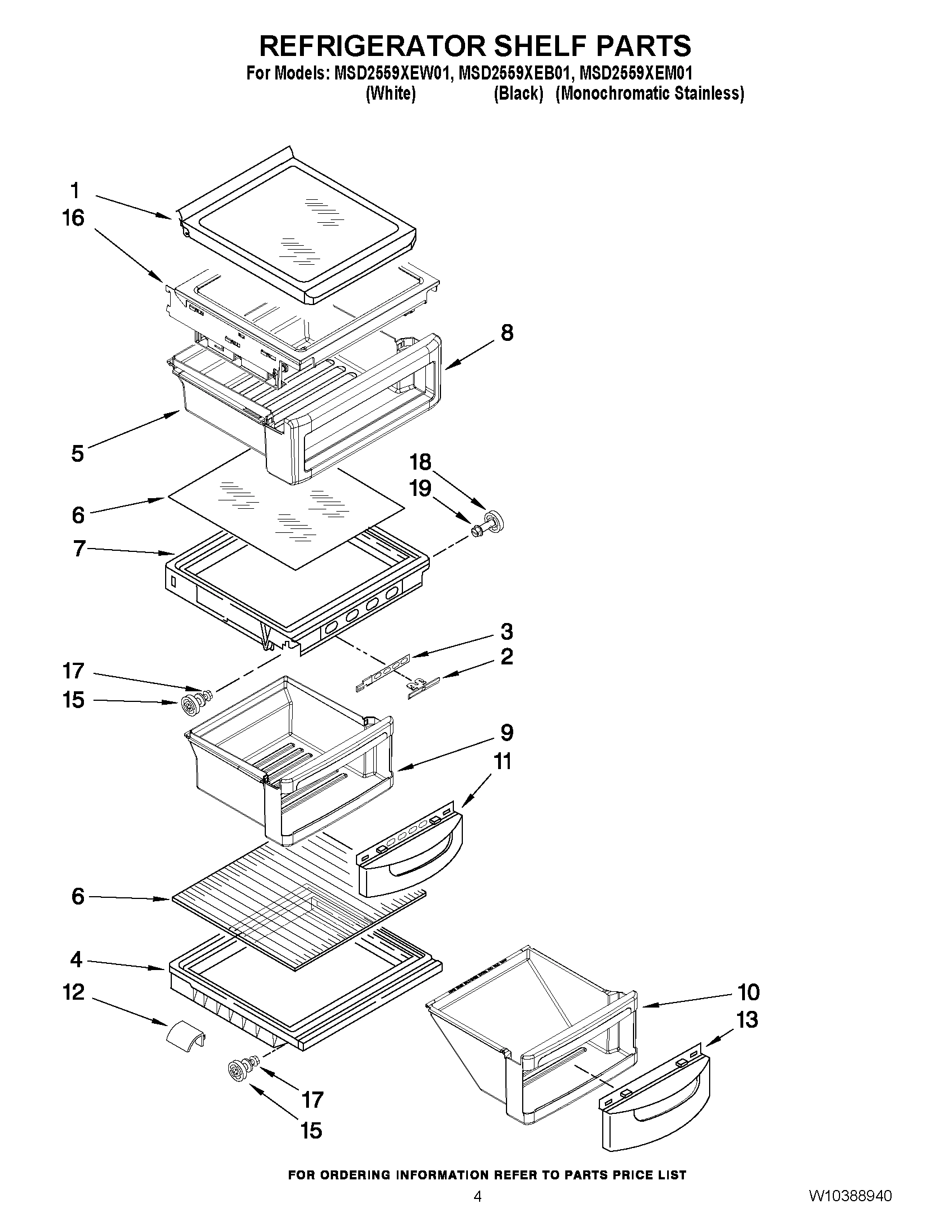

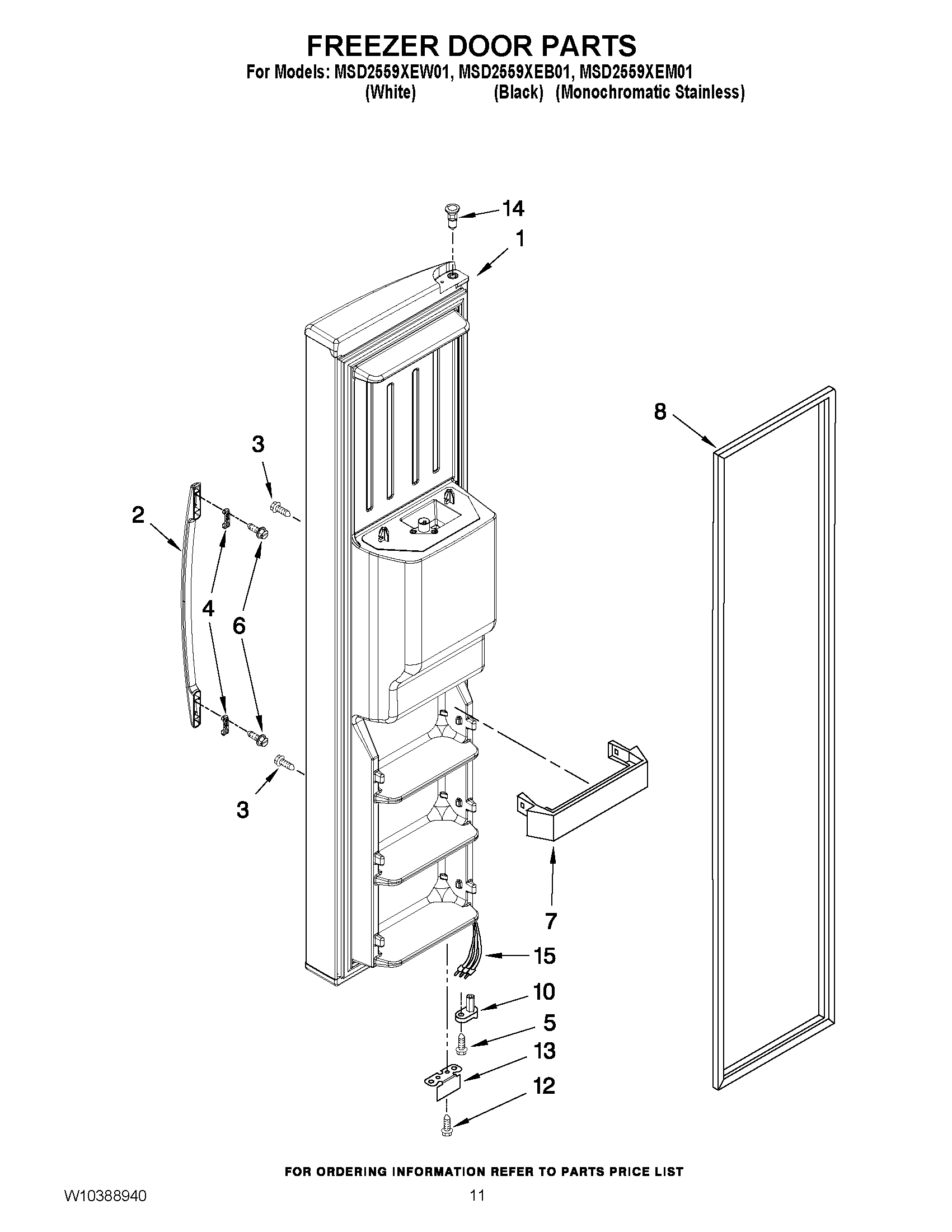

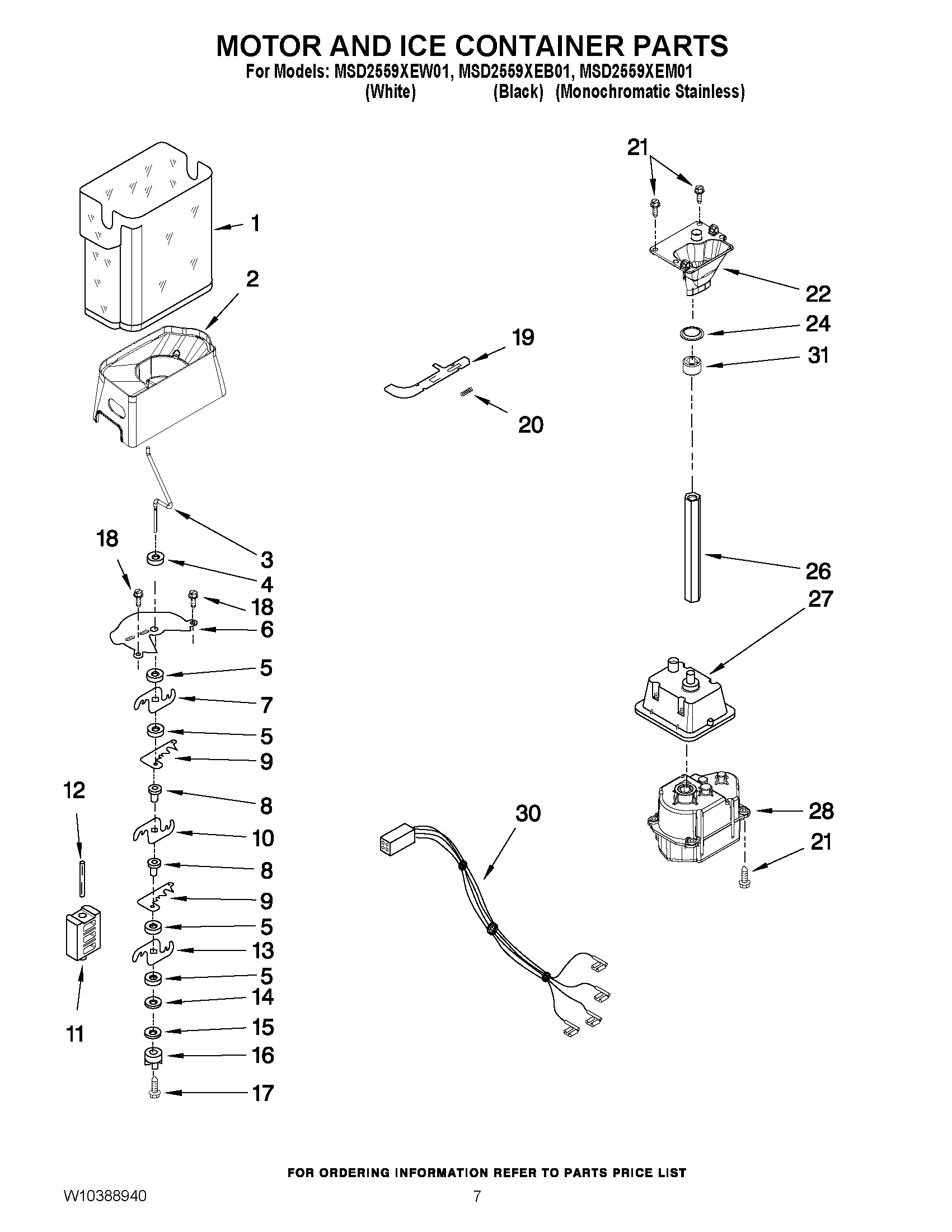

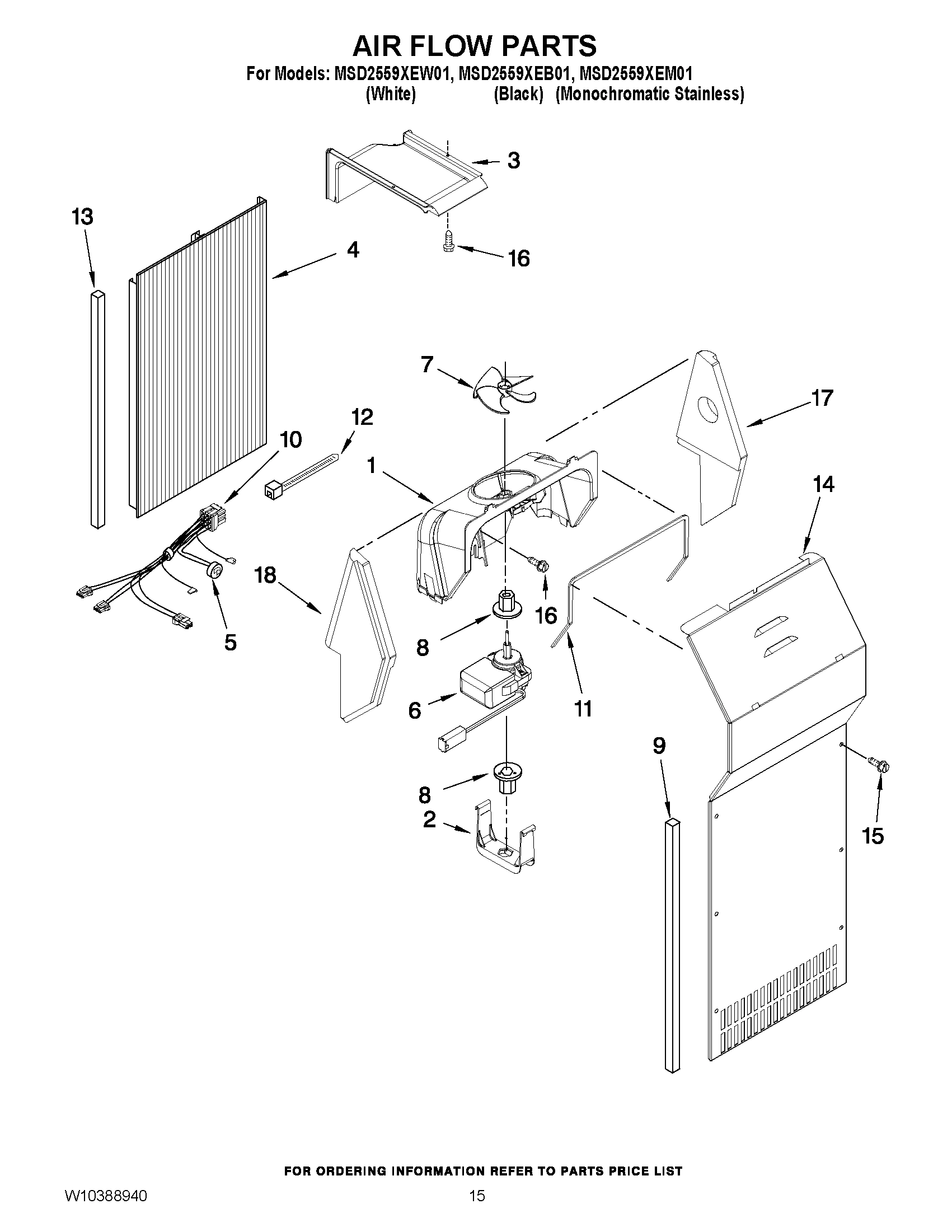

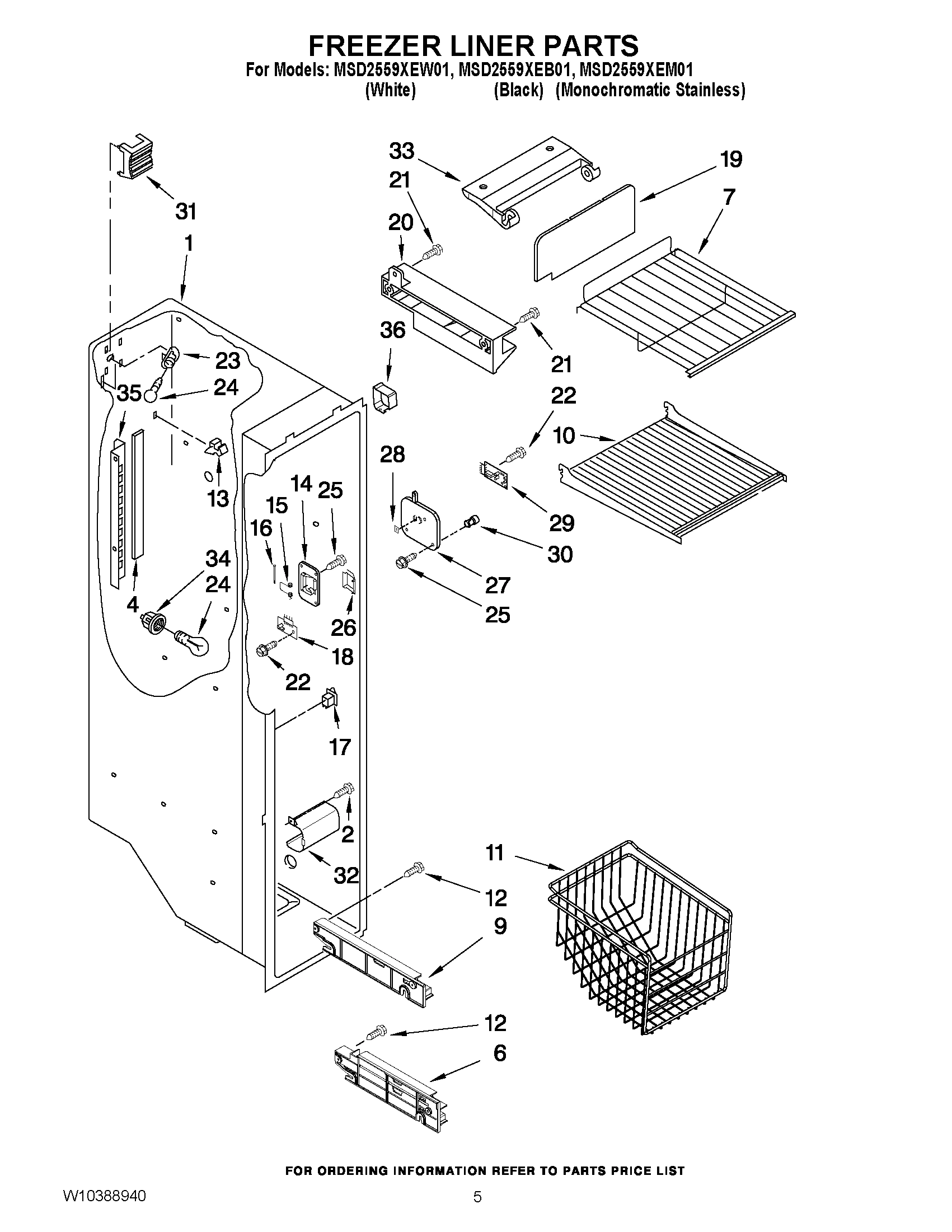

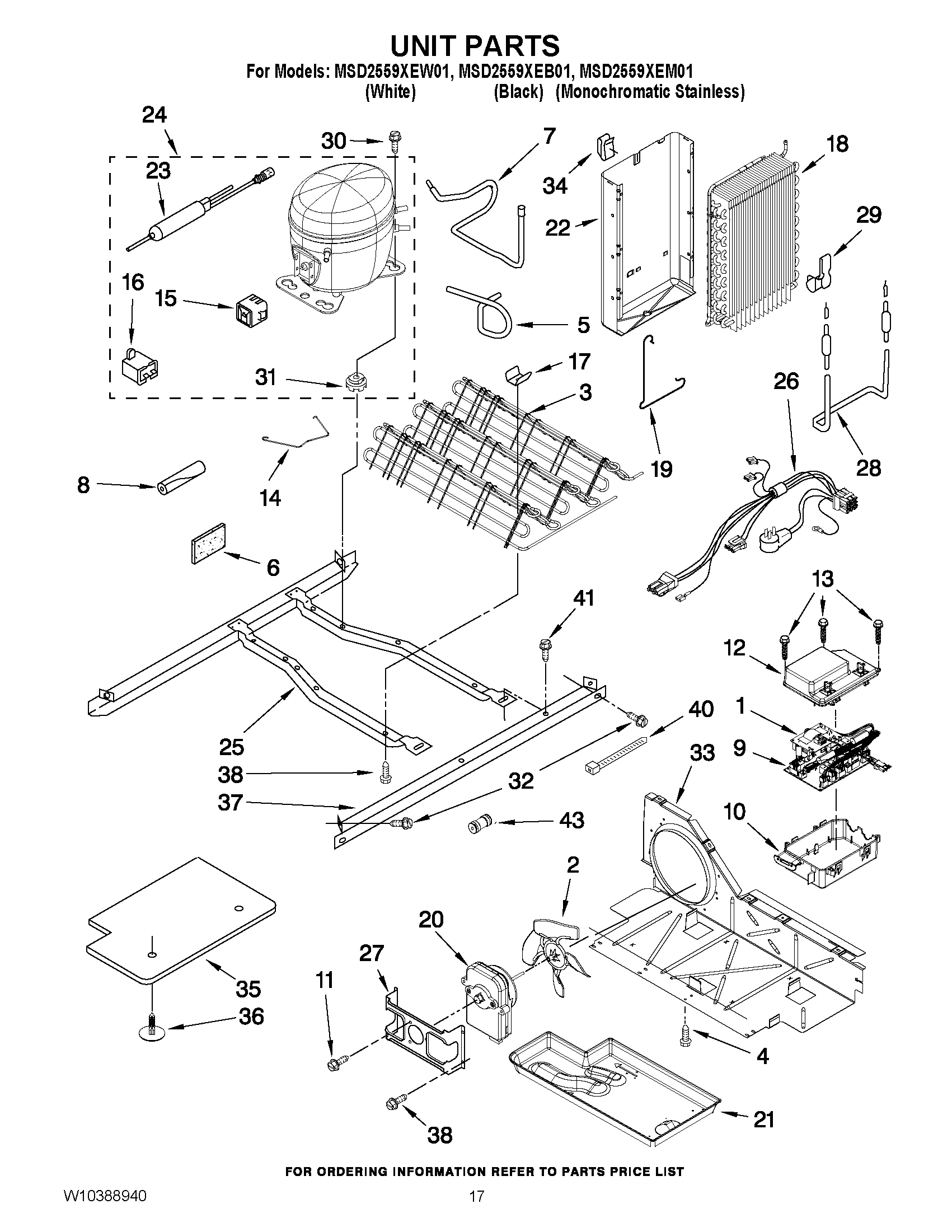

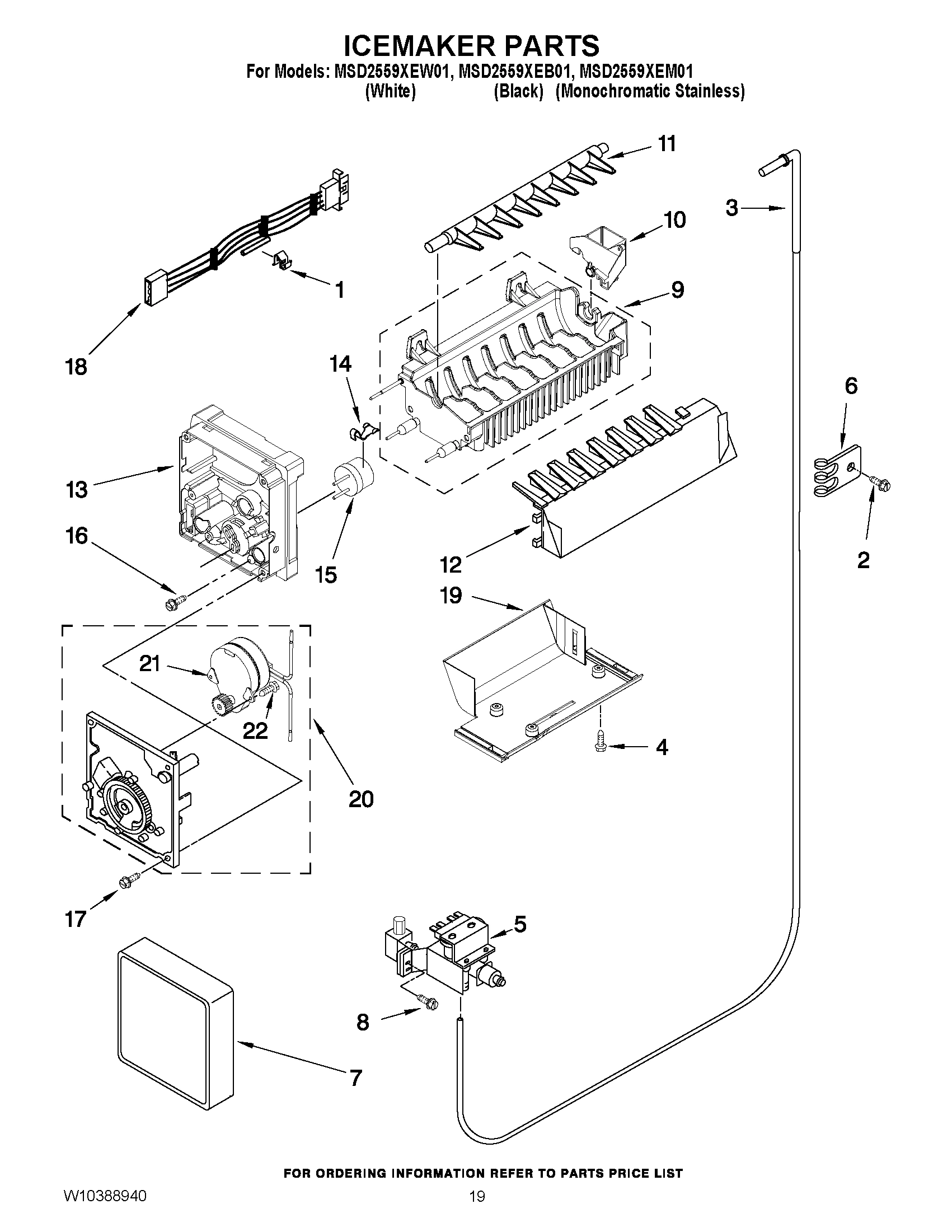

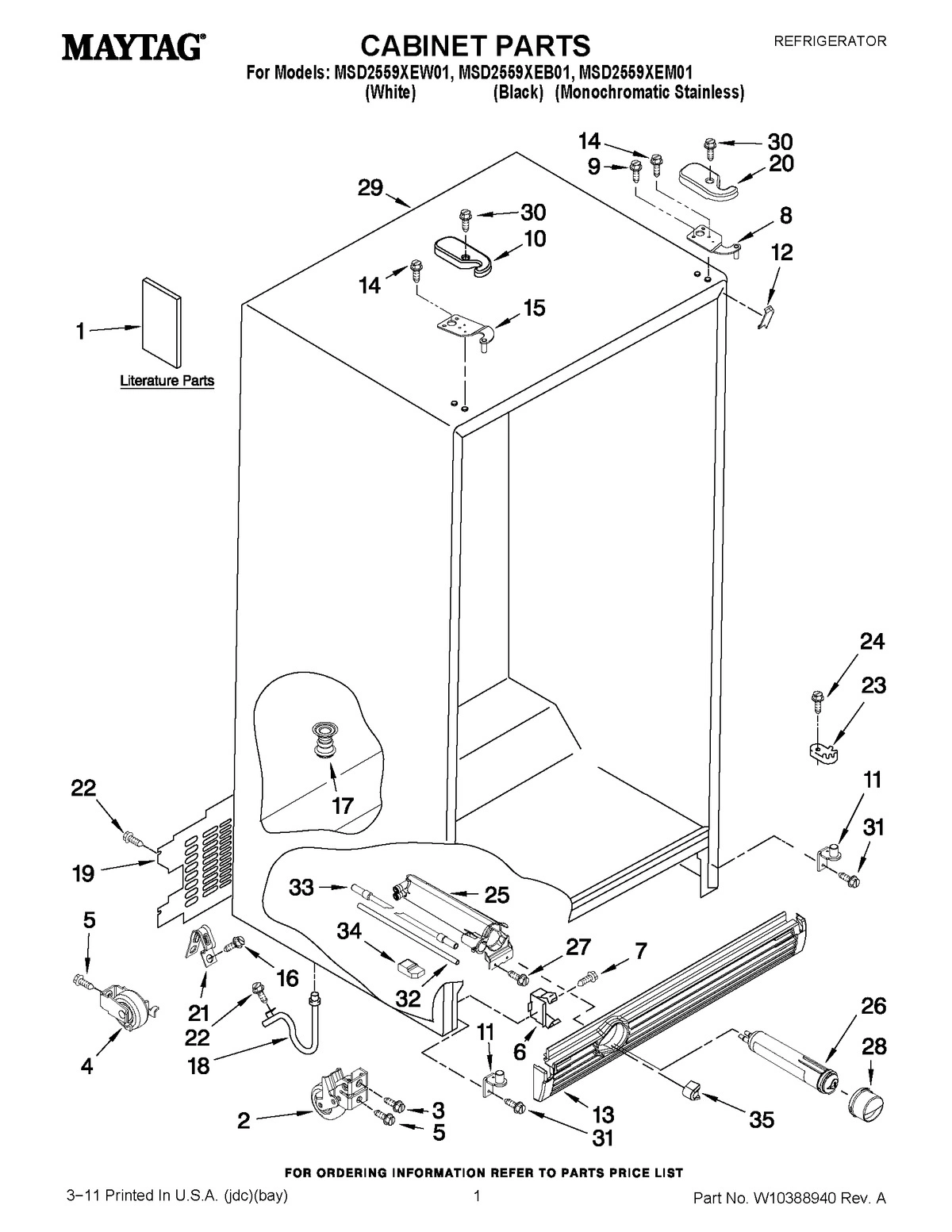

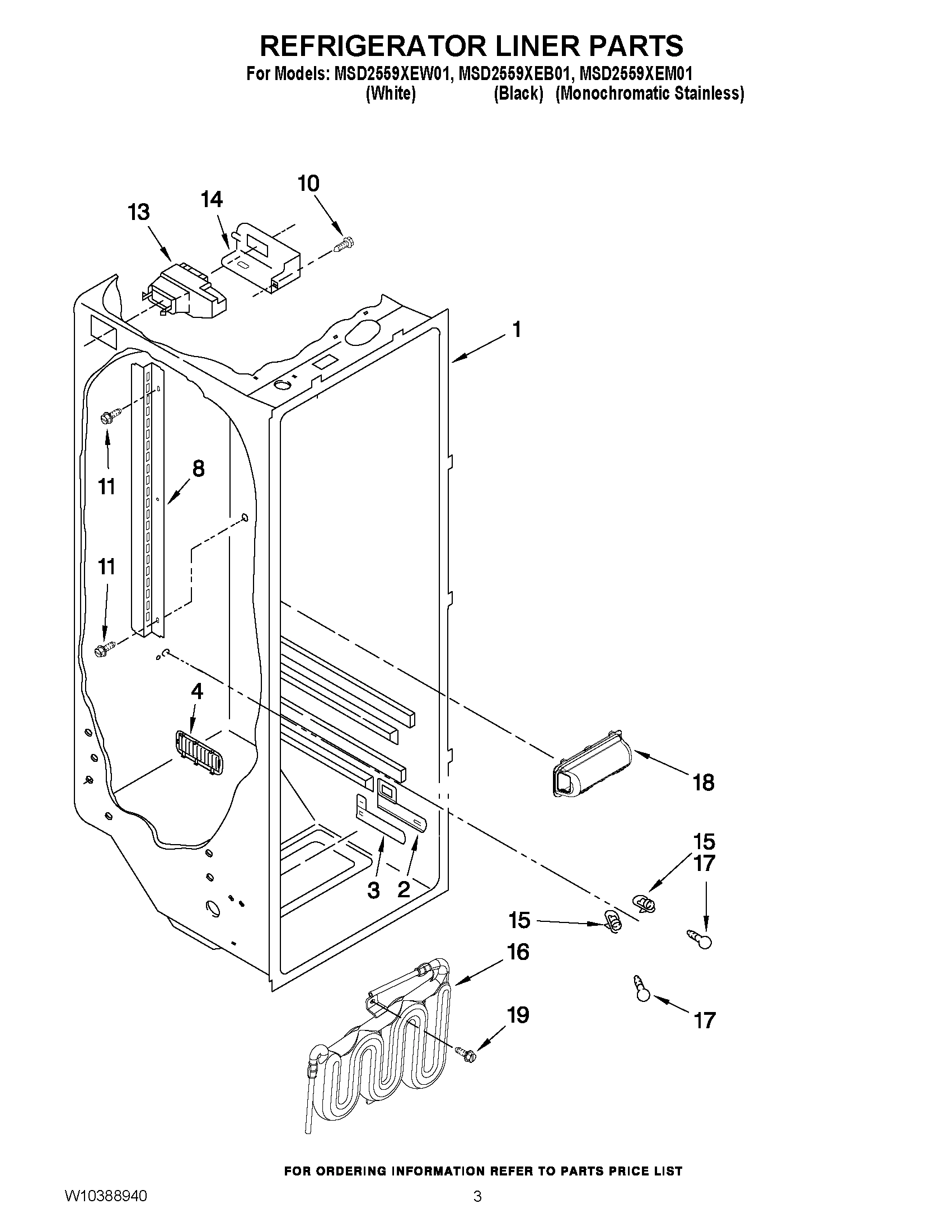

Model Whirlpool MSD2559XEB01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $37.27

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.69

1

CTRL-ELEK, GEMINI WPL W10318714 Contact Us For Availability

1

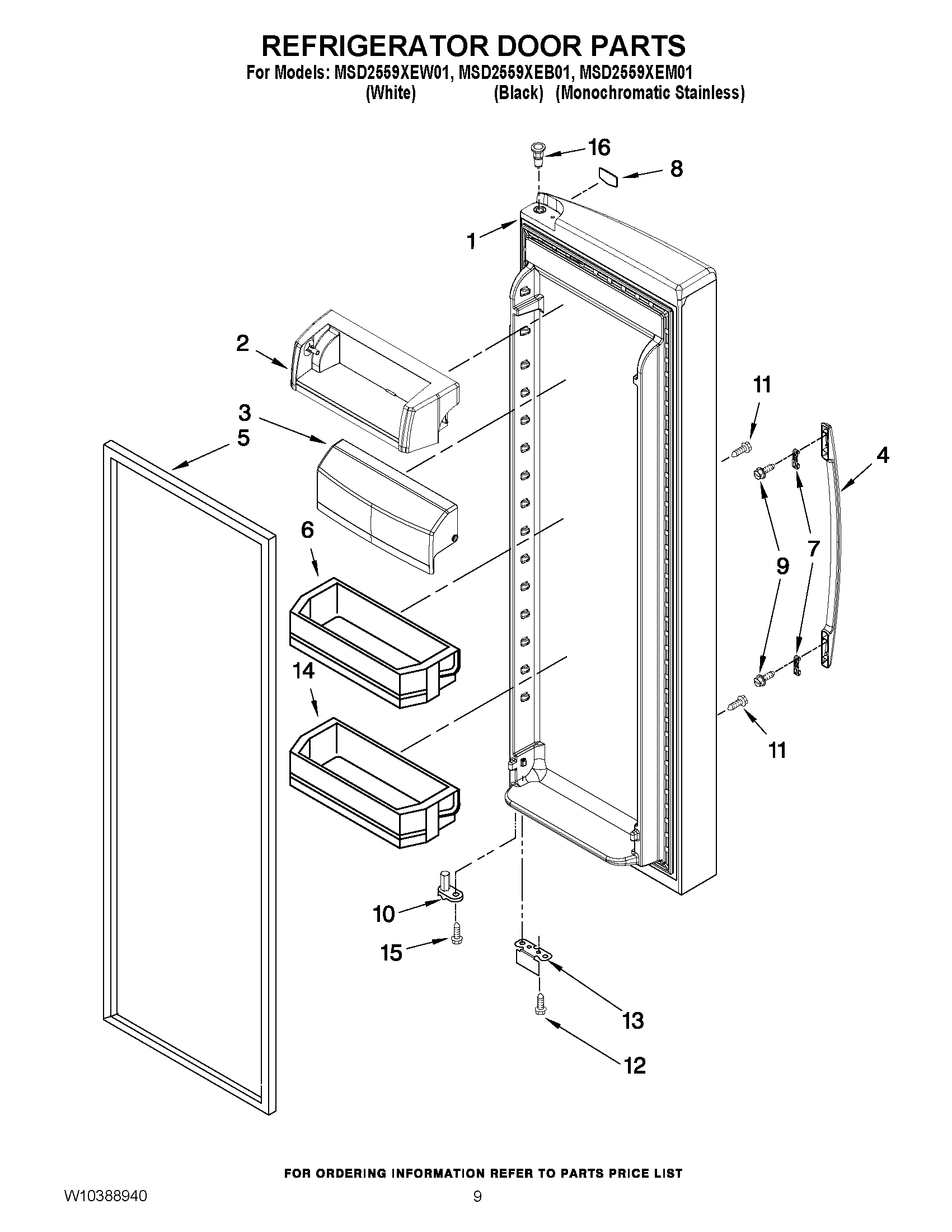

REFRIGERATOR DOOR (INCLUDES No.7) (WHITE) WPL W10189214 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (MONO STAIN WPL W10257897 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (BLACK) WPL W10317497 Contact Us For Availability

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

2

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.25

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $8.42

2

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $14.21

2

SCREW WPL W10141645 Contact Us For Availability

2

DOOR, COMPARTMENT WPL 2255420 Contact Us For Availability

3

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $61.14

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $171.84

3

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.25

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

3

TUBE, WATER WPL 2303216 Contact Us For Availability

4

WPW10170743 Whirlpool Refrigerator Handle Backorder WPL WPW10170743 $237.82

4

WPW10170749 Whirlpool Refrigerator Handle Backorder WPL WPW10170749 $165.94

4

WPW10170750 Whirlpool Refrigerator Handle Backorder WPL WPW10170750 $163.23

4

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.64

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.73

4

Washer WPL 2258220 Contact Us For Availability

4

GASKET WPL 2198697 Contact Us For Availability

5

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $129.84

5

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $113.75

5

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $75.05

5

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $29.37

5

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $58.19

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $73.42

6

W10562834 Whirlpool Refrigerator Clip Backorder WPL W10562834 $5.77

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

6

W11780227 Whirlpool Motor-Evap In Stock WPL W11780227 $77.72

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.55

6

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $38.06

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $26.50

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

TRACK, BASKET-DUAL (RIGHT SIDE) WPL 2301291 Contact Us For Availability

7

W10174818 Whirlpool Refrigerator Clip Backorder WPL W10174818 $7.91

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

7

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $41.89

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.68

7

LIGHT LENS WPL 2223506 Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

SHELF, SLIDE OUT UPPER WPL 2211746 Contact Us For Availability

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

8

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $36.83

8

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

8

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.96

8

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $32.53

8

WPW10346124 Whirlpool Refrigerator Support Backorder WPL WPW10346124 $17.17

8

LADDER, SHELF (2) WPL 2319866 Contact Us For Availability

9

WPW10178772 Whirlpool Crisper Pan In Stock WPL WPW10178772 $100.74

9

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $102.80

9

WPW10356039-includeCORE Whirlpool WPW10356039 Backorder WPL WPW10356039-includeCORE $230.93

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

SCREW WPL W10142288 Contact Us For Availability

9

SCREW, CLIP WPL W10184500 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $38.43

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $34.63

WPW10317279 Whirlpool Refrigerator Door Chute Backorder WPL WPW10317279 $7.83

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Shelf (2) WPL 2205837K Contact Us For Availability

11

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $14.12

11

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $81.33

11

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.69

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.55

WPW10142233 Whirlpool Refrigerator Screw Backorder WPL WPW10142233 $2.75

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

ICE STRIPER WPL W10286877 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.69

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $87.63

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.98

BRACKET, DOOR STOP (BLACK) WPL W10175741 Contact Us For Availability

BRACKET, DOOR STOP (CHROME) WPL W10219805 Contact Us For Availability

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $75.31

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $39.73

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $34.84

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.67

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Washer, Plain WPL 489235 Contact Us For Availability

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $45.87

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $30.86

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.69

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $34.11

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.55

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.52

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.75

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.76

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.01

WP8281164 Whirlpool Refrigerator Screw Backorder WPL WP8281164 $4.56

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $41.07

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $237.68

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $52.25

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $246.89

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.55

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.75

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $46.43

Bracket, Ice Maker Mounting WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Screw WPL W10191952 Contact Us For Availability

W10254277 Whirlpool Cover Assembly Backorder WPL W10254277 $29.65

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.76

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $86.64

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $41.83

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.55

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.63

22

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.22

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.63

22

WPW10286929 Whirlpool Refrigerator Electronic Backorder WPL WPW10286929 $95.57

23

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.58

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.26

FALSE WALL (WHITE) WPL W10286898 Contact Us For Availability

FALSE WALL (BLACK) WPL W10286899 Contact Us For Availability

FALSE WALL (STAINLESS) WPL W10286900 Contact Us For Availability

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

DRIP TRAY (WHITE) WPL W10286894 Contact Us For Availability

DRIP TRAY (BLACK) WPL W10286895 Contact Us For Availability

DRIP TRAY (STAINLESS) WPL W10286896 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.23

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.05

GRATE, DRIP TRAY (STAINLESS) WPL W10286922 Contact Us For Availability

GRATE, DRIP TRAY (WHITE) WPL W10286920 Contact Us For Availability

GRATE, DRIP TRAY (BLACK) WPL W10286921 Contact Us For Availability

27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.77

27

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.55

27

Cover, Receiver WPL W10173569 Contact Us For Availability

28

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.85

28

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $30.78

28

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

P.C. BOARD, RECEIVER WPL W10279461 Contact Us For Availability

30

W10295559 Whirlpool Refrigerator Dispenser Ha Backorder WPL W10295559 $64.75

30

WP2198643 Whirlpool Refrigerator Lens Backorder WPL WP2198643 $2.55

30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.65

31

Light Shield WPL 2198589 Contact Us For Availability

32

Light Lens WPL 2212340 Contact Us For Availability

33

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

33

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

34

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $38.22

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.31

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.52

Ladder (Left Side) WPL 2198609 Contact Us For Availability

Ladder (Right Side) WPL 2198610 Contact Us For Availability

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $32.59

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.80

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.75

43

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $12.07

100

W11512152 Whirlpool Ice Maker Assembly In Stock WPL W11512152 $98.01

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

285006 Whirlpool Spray In Stock WPL 285006 $44.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.52

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.52

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.97

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 qt.) (Biscuit) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 qt.) (Black) WPL 799340 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT. GRAPHITE) WPL 8171358 Contact Us For Availability

Previous Architect Series Handle Kit (Stainle WPL 8201806 Contact Us For Availability
