Model Maytag MSB26C6MDH00 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

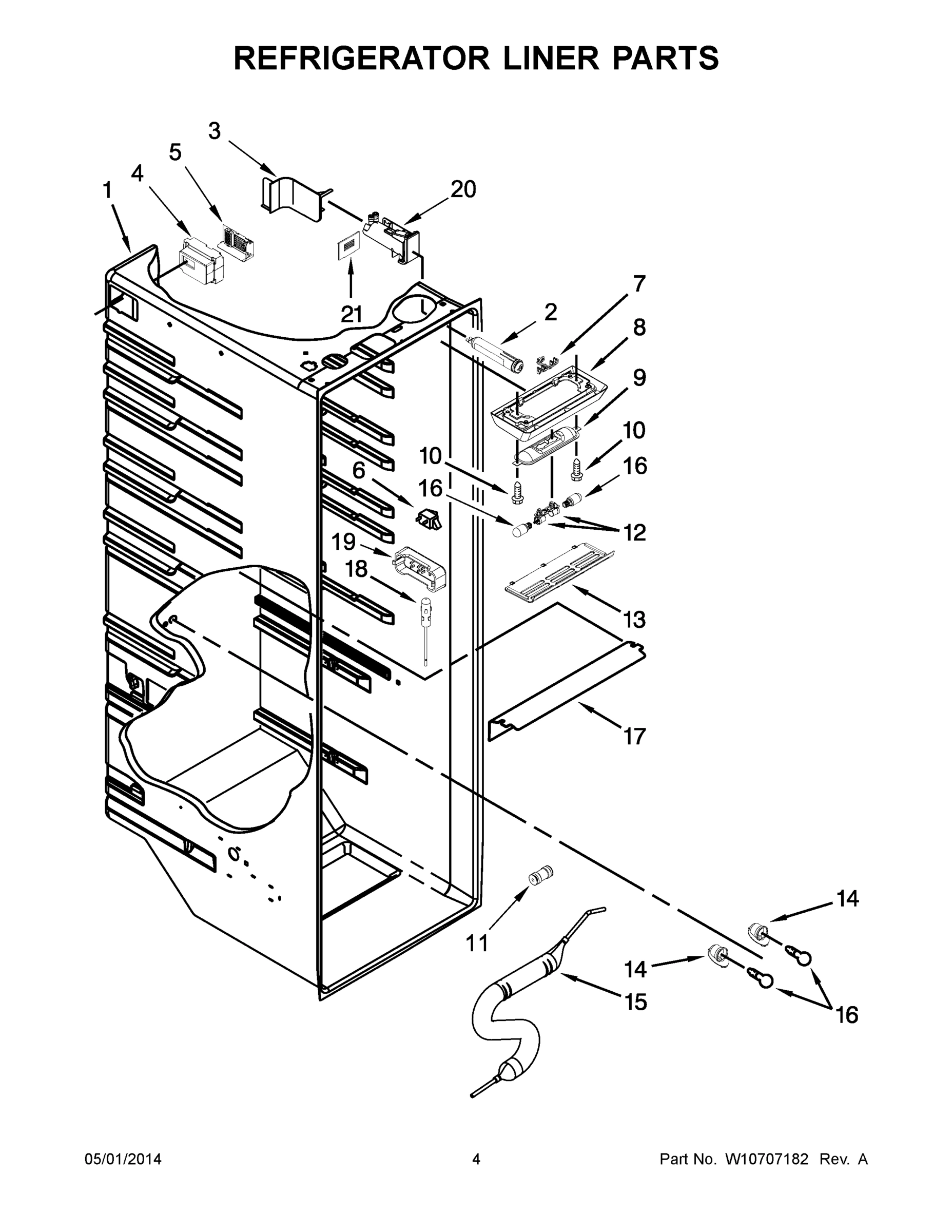

03 - REFRIGERATOR LINER PARTS

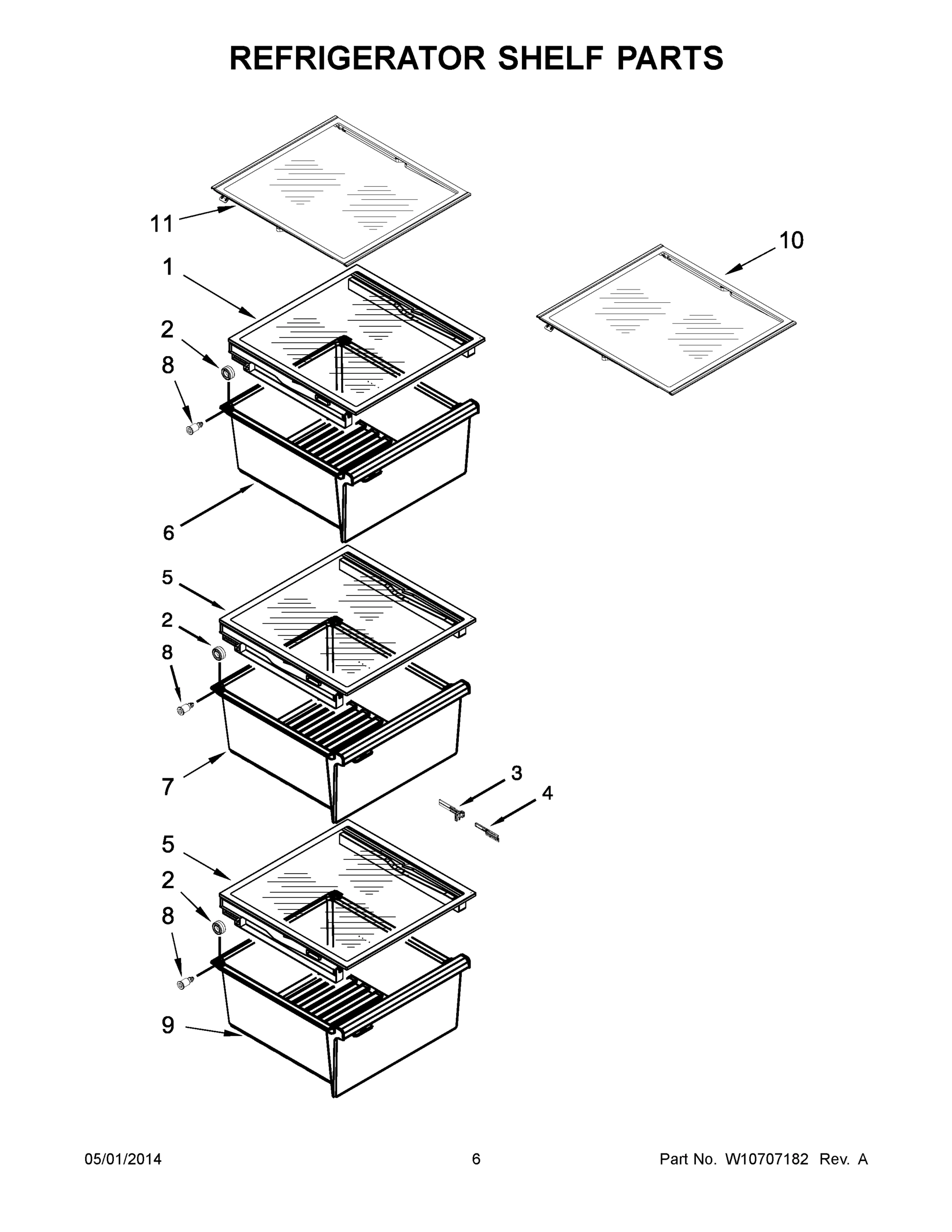

04 - REFRIGERATOR SHELF PARTS

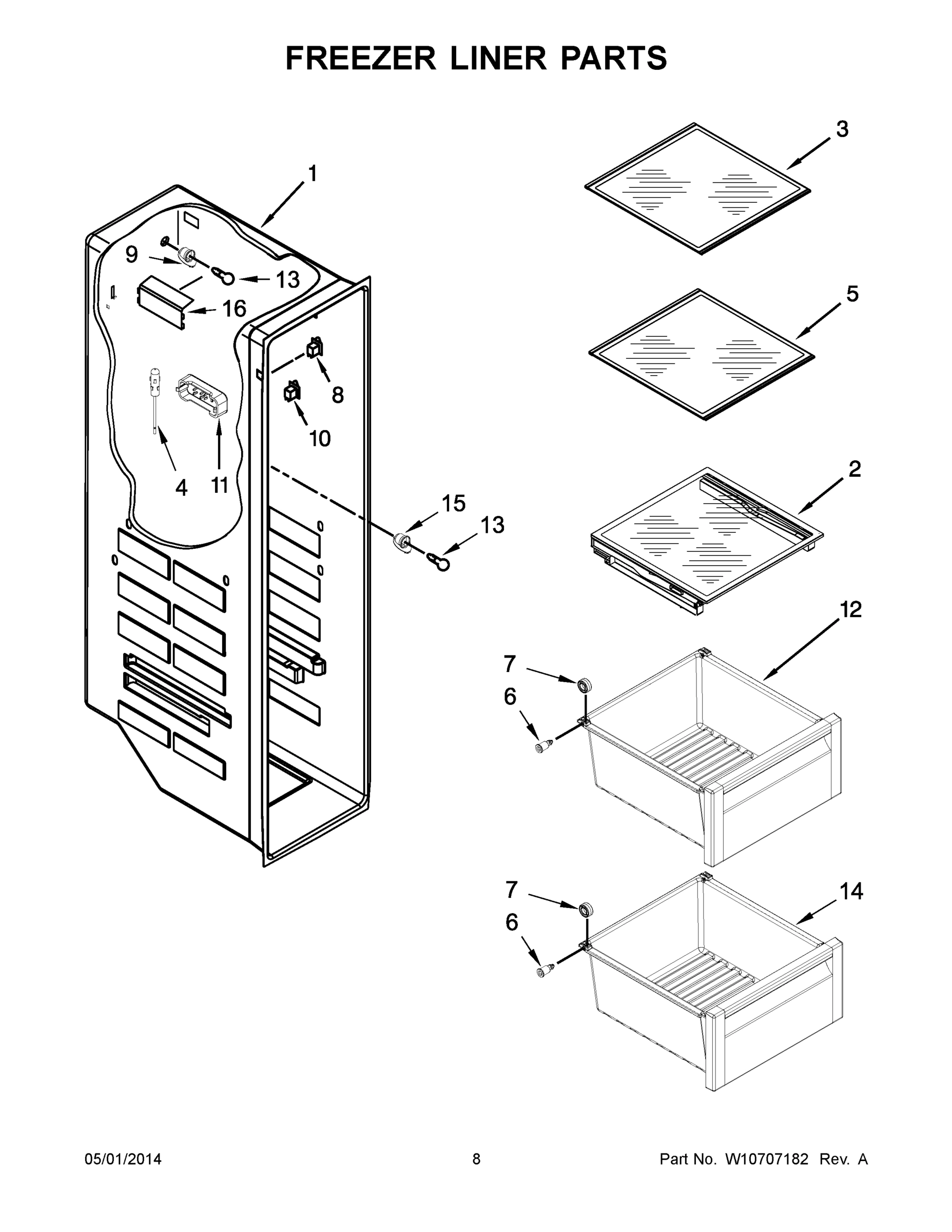

05 - FREEZER LINER PARTS

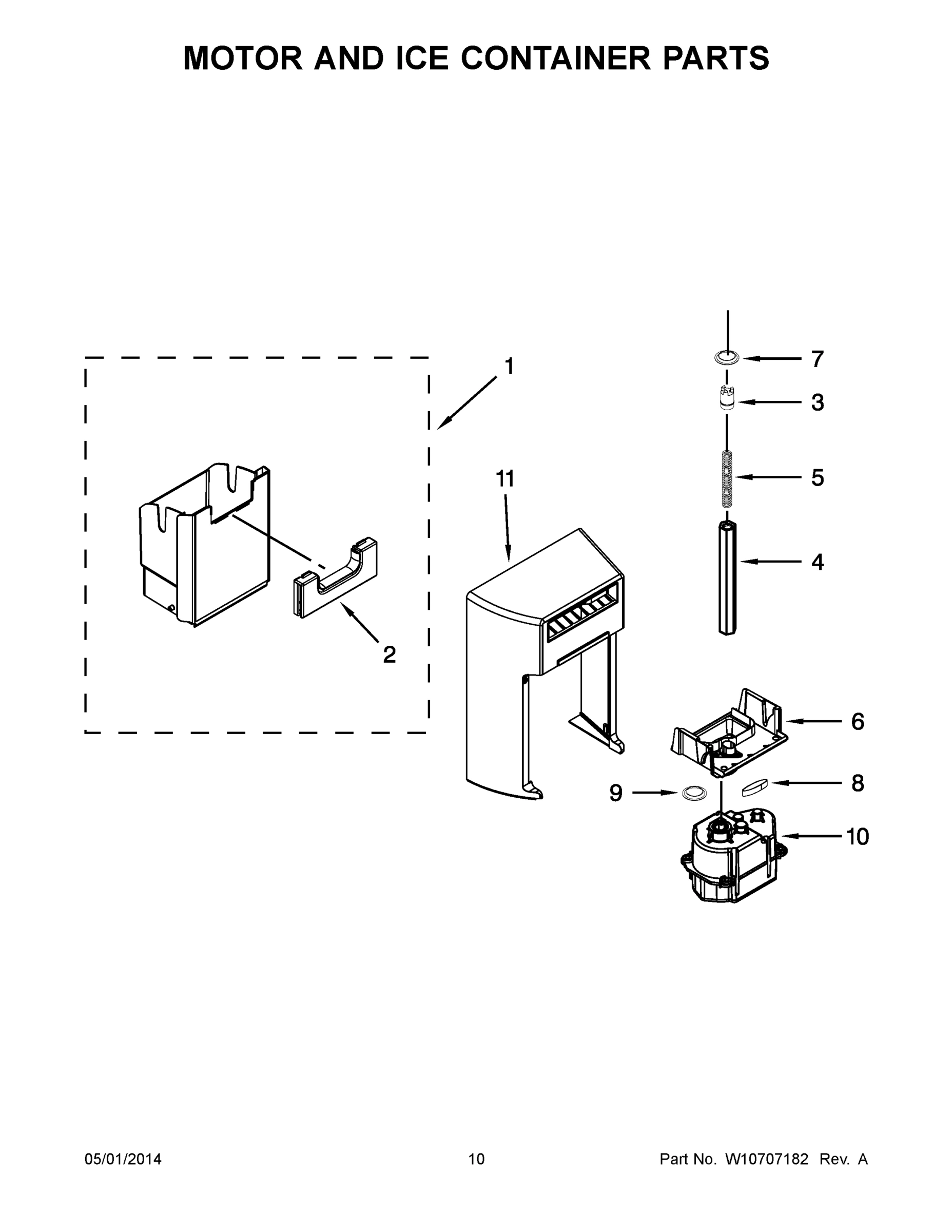

06 - MOTOR AND ICE CONTAINER PARTS

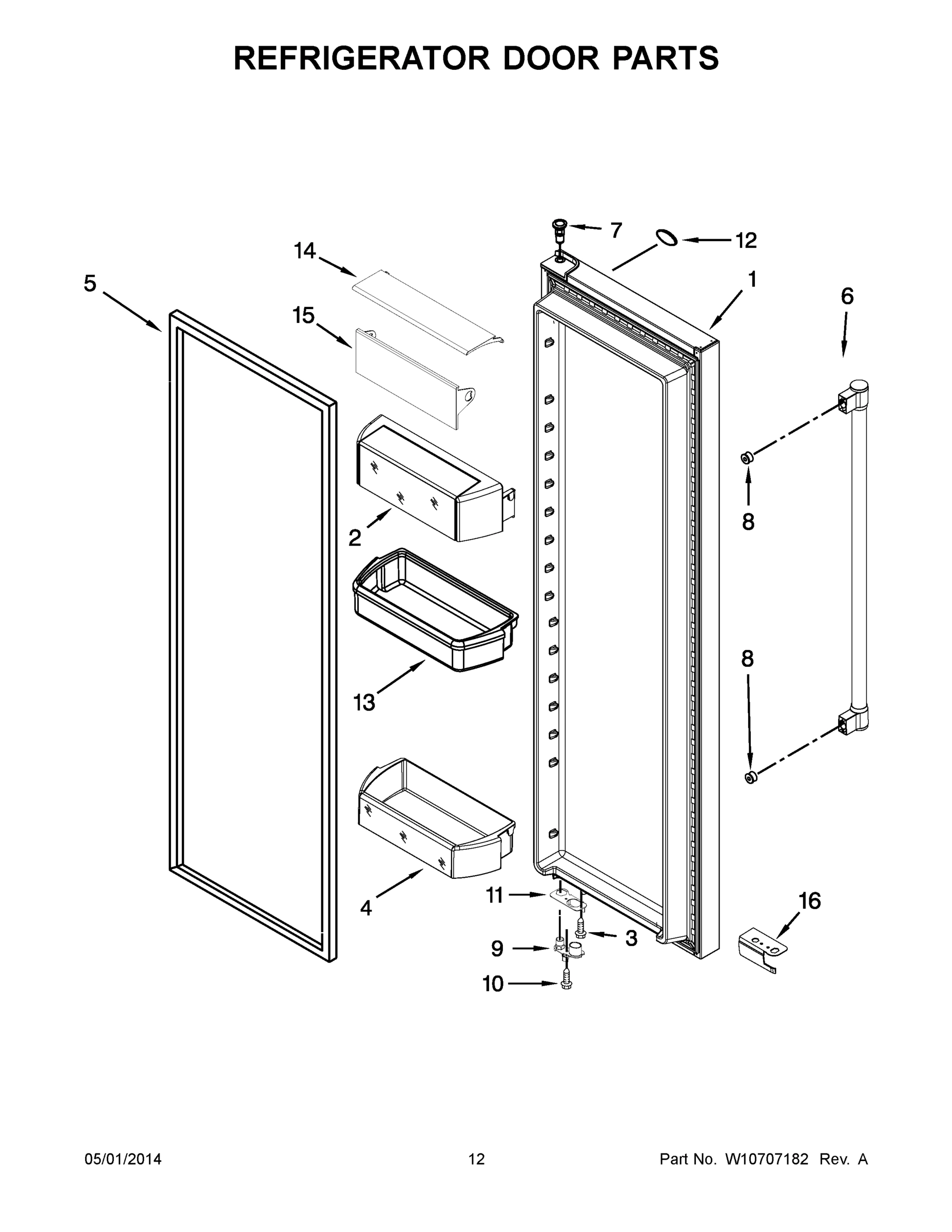

07 - REFRIGERATOR DOOR PARTS

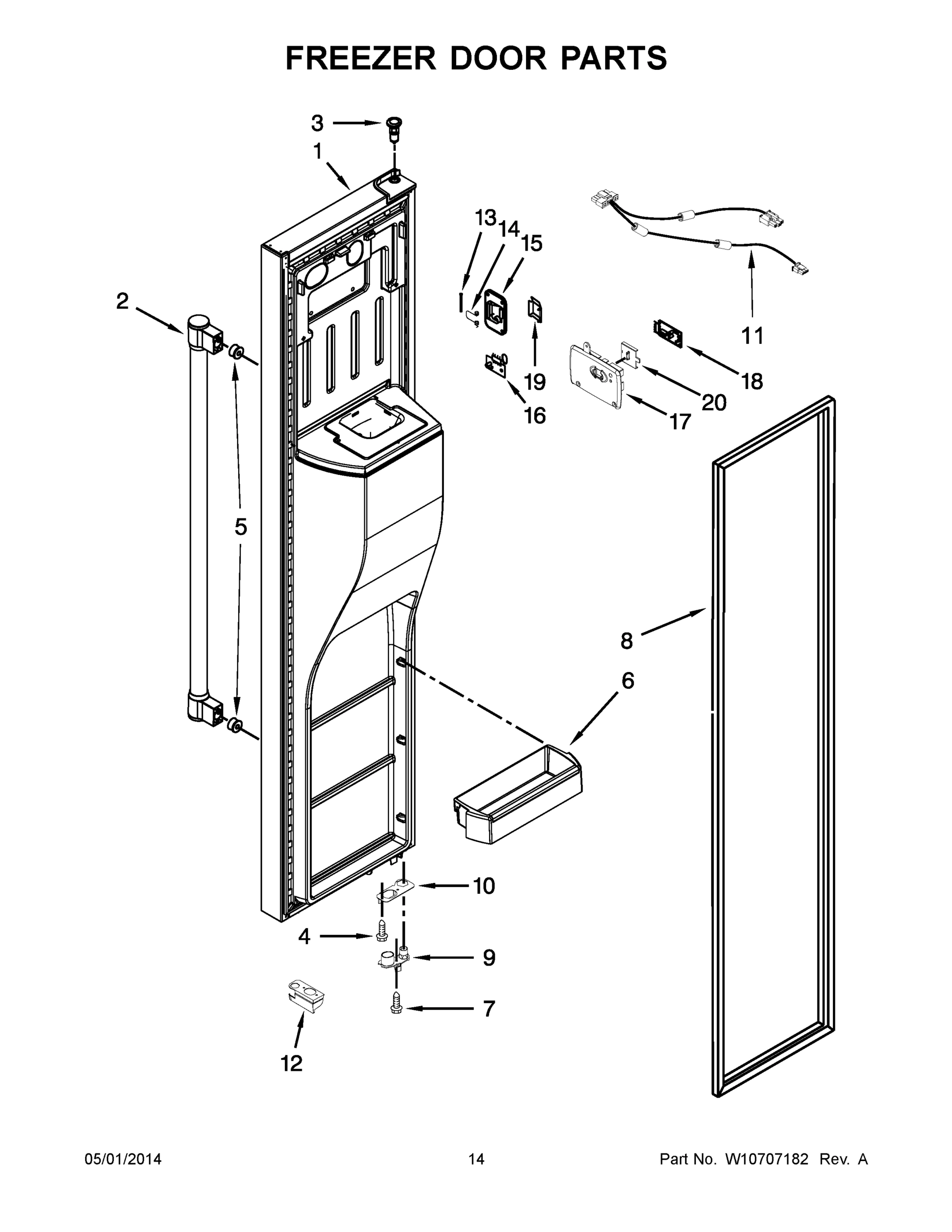

08 - FREEZER DOOR PARTS

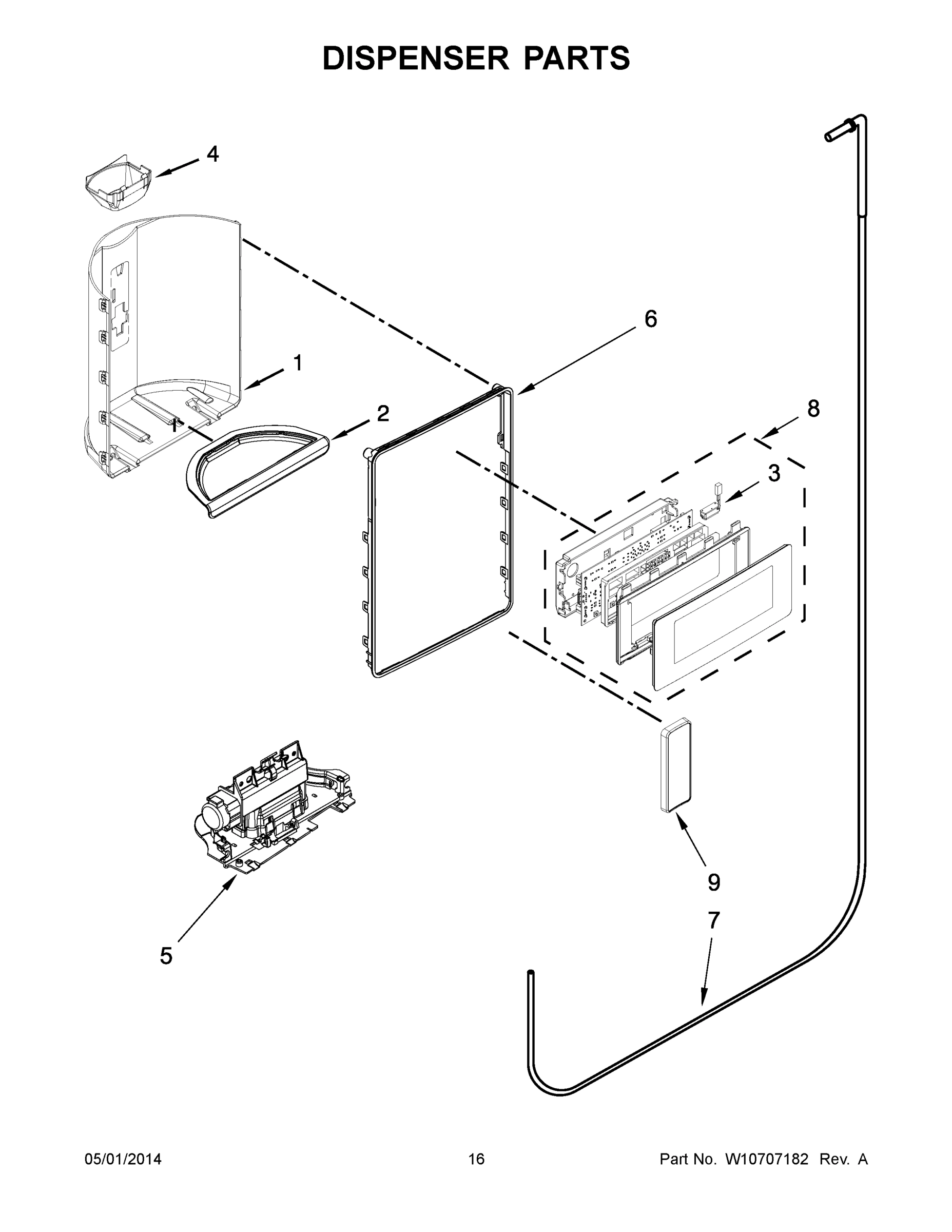

09 - DISPENSER PARTS

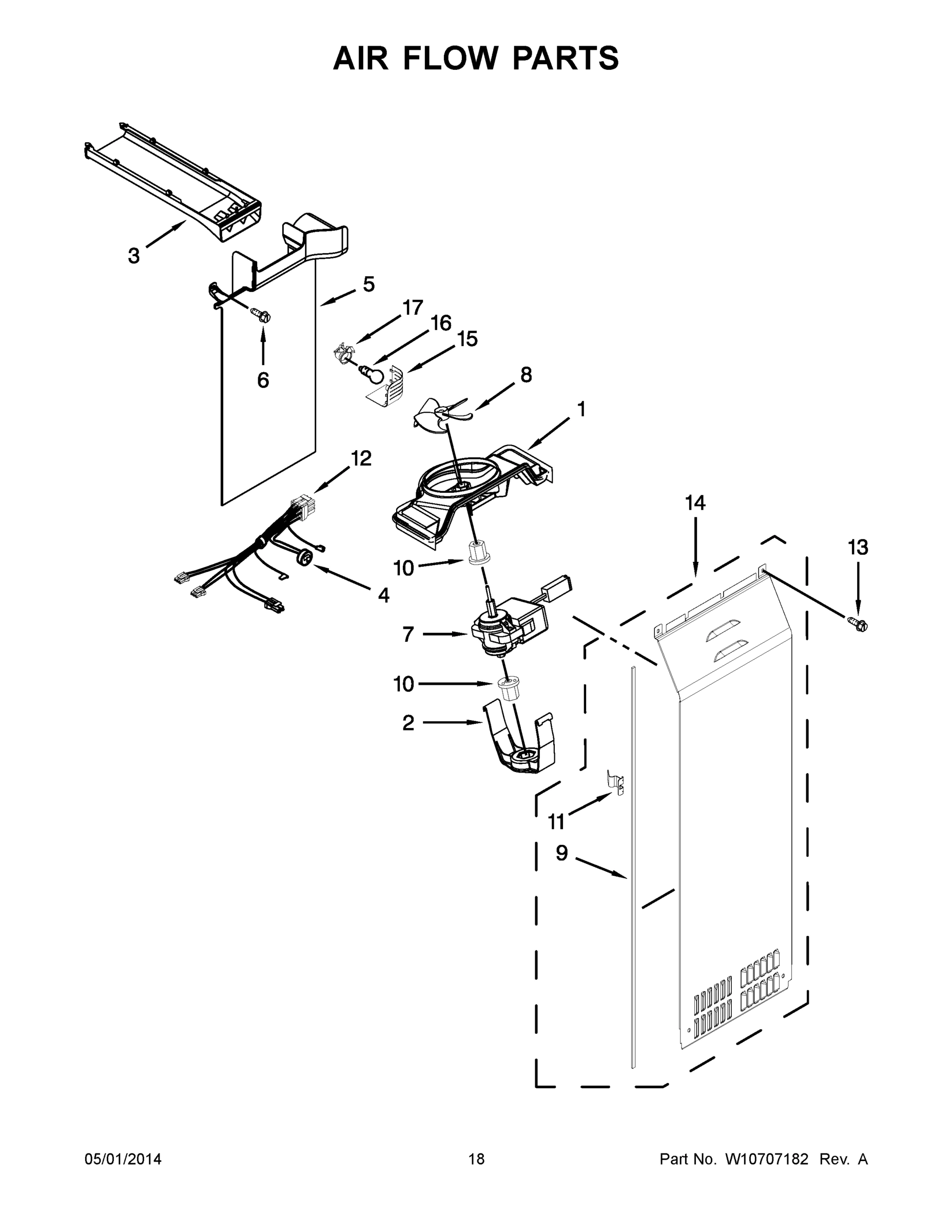

10 - AIR FLOW PARTS

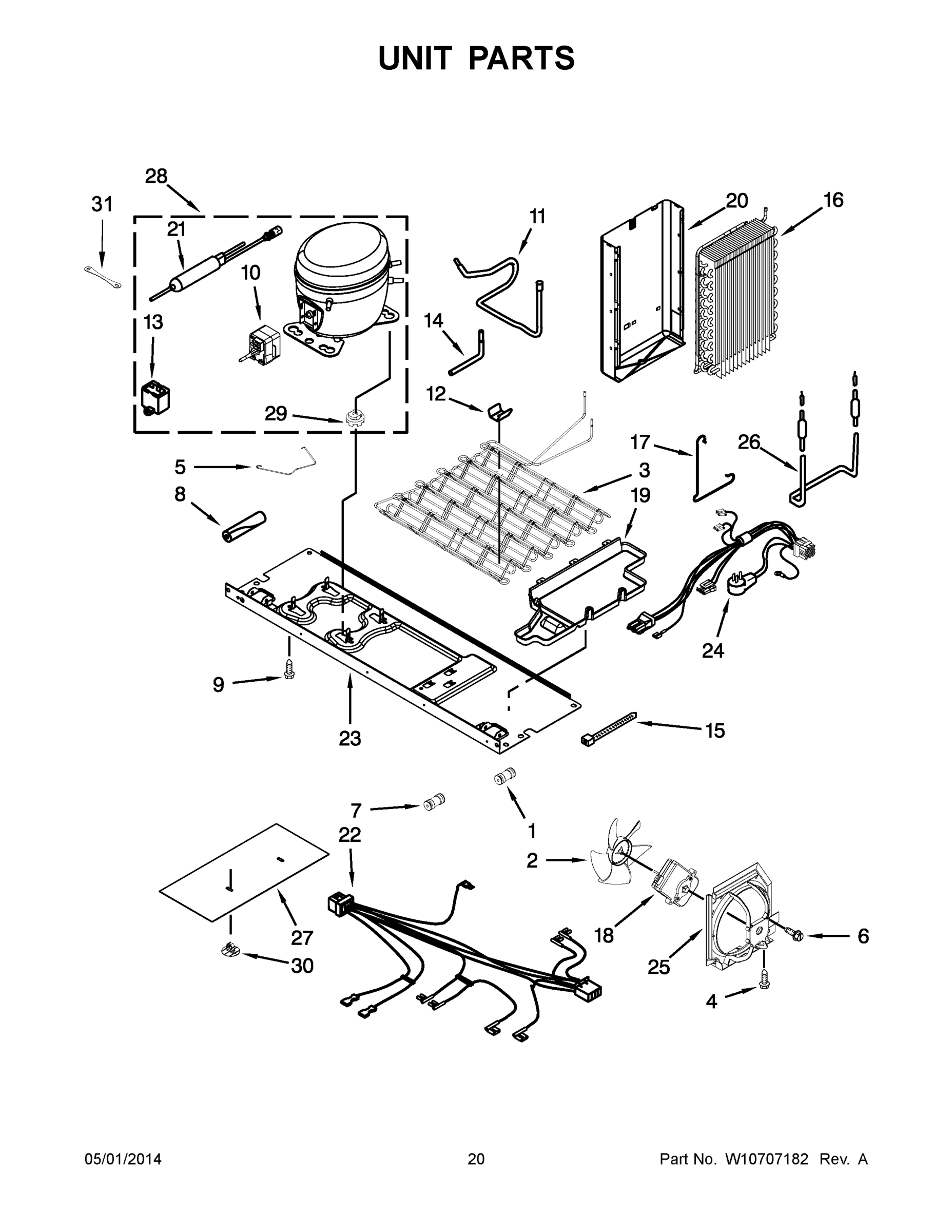

11 - UNIT PARTS

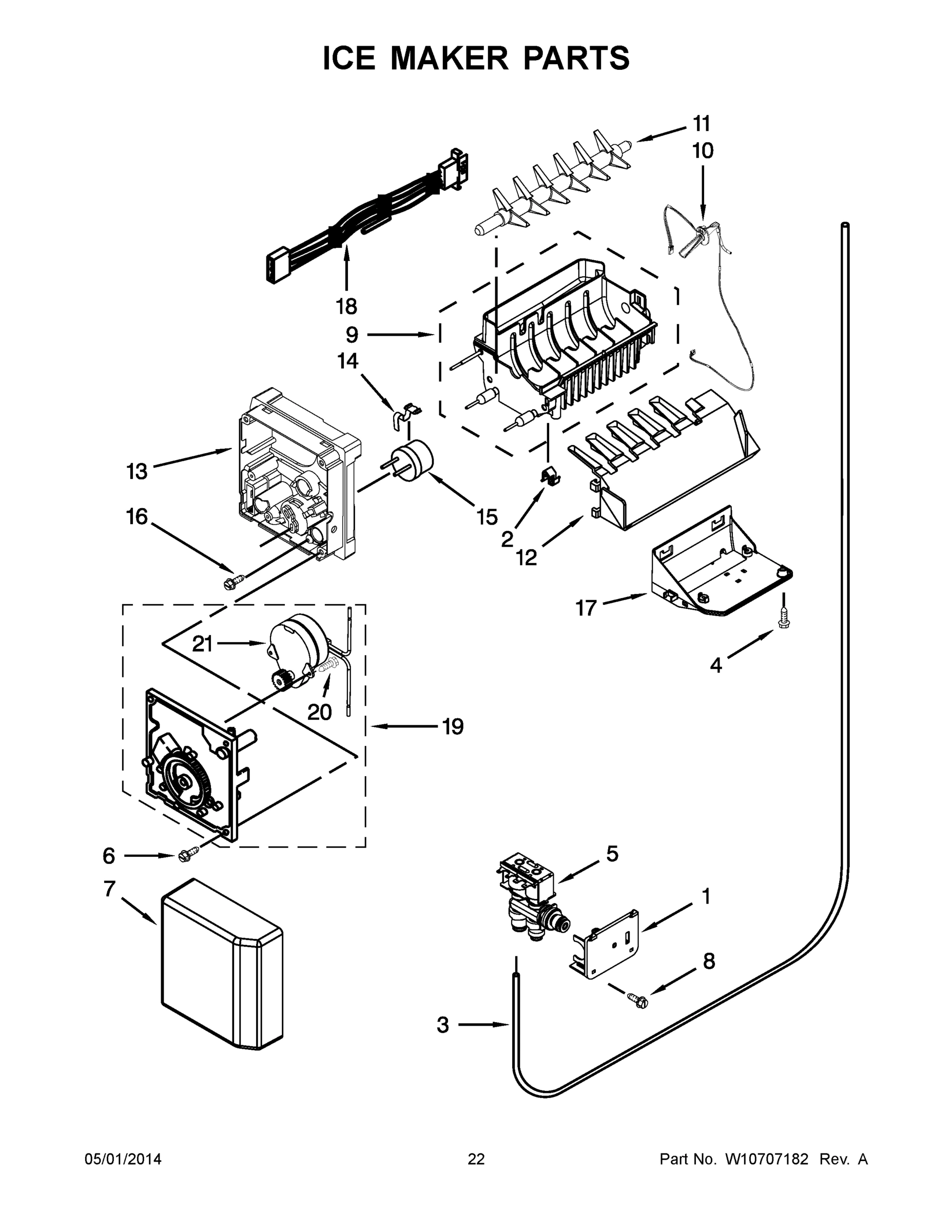

12 - ICE MAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSB26C6MDH00 REFRIGERATOR
1
MAY W10632880 MAY W10632880 Contact Us For Availability
1
MAY W10639147 MAY W10639147 Contact Us For Availability
1
SERVICE & WIRING SHEET MAY W10647266 Contact Us For Availability
1
MAY W10463649 MAY W10463649 Contact Us For Availability
1
MAY W10373134 MAY W10373134 Contact Us For Availability
1
MAY W10373135 MAY W10373135 Contact Us For Availability
1
MAY W10638103 MAY W10638103 Contact Us For Availability
1
MAY W10646623 MAY W10646623 Contact Us For Availability
1
MAY W10646624 MAY W10646624 Contact Us For Availability
1
MAY W10646625 MAY W10646625 Contact Us For Availability
1
HOUSING, DISPENSER (GREY) MAY W10520869 Contact Us For Availability
1
MAY W10251462 MAY W10251462 Contact Us For Availability
1
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
1
BRACKET, WATER VALVE MAY W10237915 Contact Us For Availability
2
Roller MAY 2150304 Contact Us For Availability
2
MAY W10569758 MAY W10569758 Contact Us For Availability
2
MAY W10463654 MAY W10463654 Contact Us For Availability
2
ASSEMBLY, LATCH MAY W10258552 Contact Us For Availability
2
DOOR, COMPARTMENT ASSEMBLY MAY W10316889 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10643725 Contact Us For Availability
2
GRATE, DRIP TRAY (WHITE) MAY W10322872 Contact Us For Availability
2
GRATE, DRIP TRAY (BLACK) MAY W10322873 Contact Us For Availability
2
GRATE, DRIP TRAY (GREY) MAY W10410105 Contact Us For Availability
2
MAY W10260421 MAY W10260421 Contact Us For Availability
2
Blade, Fan MAY 2225834 Contact Us For Availability
2
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
3
MAY W10297485 MAY W10297485 Contact Us For Availability
3
MAY W10300482 MAY W10300482 Contact Us For Availability
3
MAY W10257334 MAY W10257334 Contact Us For Availability
3
MAY W10463643 MAY W10463643 Contact Us For Availability
3
Coupling, Bottom MAY 2220458 Contact Us For Availability
3
THIMBLE, TOP MAY 2200086 Contact Us For Availability
3
ASSEMBLY, LED MAY W10470750 Contact Us For Availability
3
AIR DUCT, UPPER MAY W10550199 Contact Us For Availability
3
MAY W10276899 MAY W10276899 Contact Us For Availability
3
TUBE, WATER MAY W10238092 Contact Us For Availability
4
ROLLER MAY 12477102 Contact Us For Availability
4
MAY W10362947 MAY W10362947 Contact Us For Availability
4
MAY W10257332 MAY W10257332 Contact Us For Availability
4
MAY W10280386 MAY W10280386 Contact Us For Availability
4
SHAFT, DRIVE MAY W10258544 Contact Us For Availability
4
MAY W10672344 MAY W10672344 Contact Us For Availability
4
MAY W10296804 MAY W10296804 Contact Us For Availability
4
MAY W10435760 MAY W10435760 Contact Us For Availability
4
MAY W10260437 MAY W10260437 Contact Us For Availability
4
MAY W10142255 MAY W10142255 Contact Us For Availability
4
MAY 489478 MAY 489478 Contact Us For Availability
5
MAY 12477202 MAY 12477202 Contact Us For Availability
5
AIR DIFFUSER COVER MAY W10457601 Contact Us For Availability
5
MAY W10463651 MAY W10463651 Contact Us For Availability
5
MAY W10463645 MAY W10463645 Contact Us For Availability
5
MAY 2198607 MAY 2198607 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (BEIGE) MAY W10247884 Contact Us For Availability
5
MAY W10249912 MAY W10249912 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (GREY) MAY W10249916 Contact Us For Availability
5
MAY W10460893 MAY W10460893 Contact Us For Availability
5
MAY W10577864 MAY W10577864 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W10260378 Contact Us For Availability
5
MAY W10204187 MAY W10204187 Contact Us For Availability
5
WATER VALVE ASSEMBLY MAY W10341320 Contact Us For Availability
6
MAY 981125 MAY 981125 Contact Us For Availability
6
MAY W10656773 MAY W10656773 Contact Us For Availability
6
MAY W10643315 MAY W10643315 Contact Us For Availability
6
MAY W10257246 MAY W10257246 Contact Us For Availability
6
ASSEMBLY, MOUNTING PLATE MAY W10293212 Contact Us For Availability
6
MAY W10646629 MAY W10646629 Contact Us For Availability
6
TRIM RING (BLACK) MAY W10587908 Contact Us For Availability
6
TRIM RING (GREY) MAY W10587909 Contact Us For Availability
6
MAY W10001260 MAY W10001260 Contact Us For Availability
6
MAY W10171469 MAY W10171469 Contact Us For Availability
6
MAY W10001240 MAY W10001240 Contact Us For Availability
7
TUBE, DRAIN MAY W10379525 Contact Us For Availability
7
WIRE ASSEMBLY, TOP LIGHT MAY W10253300 Contact Us For Availability
7
MAY W10278139 MAY W10278139 Contact Us For Availability
7
MAY W10643317 MAY W10643317 Contact Us For Availability
7
MAY 2198628 MAY 2198628 Contact Us For Availability
7
MAY W10296816 MAY W10296816 Contact Us For Availability
7
TUBE-WATER MAY W10238091 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
CONNECTOR, WATER MAY W10277958 Contact Us For Availability
7
MAY W10251088 MAY W10251088 Contact Us For Availability
8
MAY W10257186 MAY W10257186 Contact Us For Availability
8
MAY W10280178 MAY W10280178 Contact Us For Availability
8
MAY W10656771 MAY W10656771 Contact Us For Availability
8
MAY W10291905 MAY W10291905 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (BEIGE) MAY W10247885 Contact Us For Availability
8
MAY W10249913 MAY W10249913 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (GREY) MAY W10249917 Contact Us For Availability
8
MAY W10688646 MAY W10688646 Contact Us For Availability
8
MAY W10688650 MAY W10688650 Contact Us For Availability
8
MAY 2169142 MAY 2169142 Contact Us For Availability
8
MAY W10303521 MAY W10303521 Contact Us For Availability
8
MAY W10141625 MAY W10141625 Contact Us For Availability
9
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
9
MAY 2223680 MAY 2223680 Contact Us For Availability
9
MAY W10643316 MAY W10643316 Contact Us For Availability
9
MAY 2212370 MAY 2212370 Contact Us For Availability
9
MAY W10248011 MAY W10248011 Contact Us For Availability
9
MAY W10257201 MAY W10257201 Contact Us For Availability
9
DOOR CLOSER, UPPER CAM (GREY) MAY W10257203 Contact Us For Availability
9
MAY W10248015 MAY W10248015 Contact Us For Availability
9
MAY W10257204 MAY W10257204 Contact Us For Availability
9
DOOR CLOSER, UPPER CAM (GREY) MAY W10257206 Contact Us For Availability
9
MAY W10429205 MAY W10429205 Contact Us For Availability
9
MAY W10240370 MAY W10240370 Contact Us For Availability
9
MAY W10142287 MAY W10142287 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER (ALSO ORDER No.5426 MAY W10251081 Contact Us For Availability
10
SCREW (WHITE) MAY W10308750 Contact Us For Availability
10
SCREW (BLACK) MAY W10308751 Contact Us For Availability
10
MAY W10141632 MAY W10141632 Contact Us For Availability
10
MAY W10463279 MAY W10463279 Contact Us For Availability
10
MAY W10656772 MAY W10656772 Contact Us For Availability
10
DISPENSER, MOTOR MAY W10225313 Contact Us For Availability
10
BRACKET, DOOR STOP (BLACK) MAY W10247907 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
10
ASSEMBLY, FILL TUBE MAY W10347034 Contact Us For Availability
11
MAY W10498992 MAY W10498992 Contact Us For Availability
11
CONNECTOR, WATER TUBE MAY W10271543 Contact Us For Availability
11
MAY W10425252 MAY W10425252 Contact Us For Availability
11
MAY W10463259 MAY W10463259 Contact Us For Availability
11
MAY W10287594 MAY W10287594 Contact Us For Availability
11
BRACKET, DOOR STOP (BLACK) MAY W10367462 Contact Us For Availability
11
MAY W10411699 MAY W10411699 Contact Us For Availability
11
MAY W10369602 MAY W10369602 Contact Us For Availability
11
MAY W10219381 MAY W10219381 Contact Us For Availability
11
MAY W10318644 MAY W10318644 Contact Us For Availability
12
MAY W10247899 MAY W10247899 Contact Us For Availability
12
MAY W10249920 MAY W10249920 Contact Us For Availability
12
HINGE, TOP (FC) (GREY) MAY W10249922 Contact Us For Availability
12
MAY W10440814 MAY W10440814 Contact Us For Availability
12
MAY W10643347 MAY W10643347 Contact Us For Availability
12
BADGE (GREY) MAY W10612926 Contact Us For Availability
12
MAY W10257220 MAY W10257220 Contact Us For Availability
12
MAY W10257221 MAY W10257221 Contact Us For Availability
12
COVER, DOOR STOP (GREY) MAY W10257223 Contact Us For Availability
12
MAY W10242409 MAY W10242409 Contact Us For Availability
12
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
12
STRIPPER, ICE MAY W10251078 Contact Us For Availability
13
MAY W10247901 MAY W10247901 Contact Us For Availability
13
MAY W10249923 MAY W10249923 Contact Us For Availability
13
HINGE, TOP (RC) (GREY) MAY W10249925 Contact Us For Availability
13
MAY W10280420 MAY W10280420 Contact Us For Availability
13
MAY W10672337 MAY W10672337 Contact Us For Availability
13
MAY W10331749 MAY W10331749 Contact Us For Availability
13
SCREW MAY W10142292 Contact Us For Availability
13
MAY W10350564 MAY W10350564 Contact Us For Availability
13
MAY 2194712 MAY 2194712 Contact Us For Availability
14
MAY W10142283 MAY W10142283 Contact Us For Availability
14
MAY W10308487 MAY W10308487 Contact Us For Availability
14
SCREW (GREY) MAY W10308489 Contact Us For Availability
14
MAY W10643348 MAY W10643348 Contact Us For Availability
14
LID, UTILITY BIN MAY W10316883 Contact Us For Availability
14
SPRING, DOOR MAY 2198635 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10388268 Contact Us For Availability
14
TUBE, PROCESS MAY 2325479 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY W10249940 MAY W10249940 Contact Us For Availability
15
MAY W10249941 MAY W10249941 Contact Us For Availability
15
BOTTOM HINGE (FC) (GREY) MAY W10249943 Contact Us For Availability
15
MAY W10366790 MAY W10366790 Contact Us For Availability
15
Socket, Light MAY 2155597 Contact Us For Availability
15
MAY W10316885 MAY W10316885 Contact Us For Availability
15
MAY W10258502 MAY W10258502 Contact Us For Availability
15
MAY W10260382 MAY W10260382 Contact Us For Availability
15
TIE, WIRE MAY 2205813 Contact Us For Availability
15
THERMOSTAT (ALSO ORDER No.542369) MAY 2321258 Contact Us For Availability
16
MAY W10412758 MAY W10412758 Contact Us For Availability
16
MAY W10412759 MAY W10412759 Contact Us For Availability
16
MAY W10412761 MAY W10412761 Contact Us For Availability
16
MAY W10574850 MAY W10574850 Contact Us For Availability
16
MAY W10565137 MAY W10565137 Contact Us For Availability
16
LENS MAY W10269101 Contact Us For Availability
16
MAY W10248013 MAY W10248013 Contact Us For Availability
16
MAY W10257216 MAY W10257216 Contact Us For Availability
16
COVER, DOOR STOP (GREY) MAY W10257218 Contact Us For Availability
16
MAY W10518659 MAY W10518659 Contact Us For Availability
16
MAY 2188822 MAY 2188822 Contact Us For Availability
16
MAY W10001280 MAY W10001280 Contact Us For Availability
17
MAY W10412751 MAY W10412751 Contact Us For Availability
17
DOOR CLOSER (RC) (WHITE) MAY W10412762 Contact Us For Availability
17
DOOR CLOSER (RC) (GREY) MAY W10412764 Contact Us For Availability
17
Socket, Light MAY 2162085 Contact Us For Availability
17
LENS-LIGHT MAY W10269099 Contact Us For Availability
17
MAY W10258510 MAY W10258510 Contact Us For Availability
17
MAY 2161324 MAY 2161324 Contact Us For Availability
17
MAY W10251080 MAY W10251080 Contact Us For Availability
18
MAY W10141645 MAY W10141645 Contact Us For Availability
18
MAY W10280385 MAY W10280385 Contact Us For Availability
18
MAY W10518658 MAY W10518658 Contact Us For Availability
18
MAY W10527155 MAY W10527155 Contact Us For Availability
18
MAY W10242365 MAY W10242365 Contact Us For Availability
19
Clamp, Power Cord MAY 549193 Contact Us For Availability
19
DOOR, EMITTER MAY W10258520 Contact Us For Availability
19
MAY W10238584 MAY W10238584 Contact Us For Availability
19
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
20
MAY W10333887 MAY W10333887 Contact Us For Availability
20
MAY W10394053 MAY W10394053 Contact Us For Availability
20
MAY W10258540 MAY W10258540 Contact Us For Availability
20
SHIELD, HEAT MAY W10274575 Contact Us For Availability
20
Screw MAY 489136 Contact Us For Availability
21
FILLER, WRAPPER (GREY) MAY 12587703AP Contact Us For Availability
21
MAY 12587703B MAY 12587703B Contact Us For Availability
21
MAY 12587703W MAY 12587703W Contact Us For Availability
21
MOTOR (NOT SERVICED, ORDER No.19) MAY N/P Contact Us For Availability
21
AIR FILTER COVER MAY W10457603 Contact Us For Availability
21
Drier MAY W10177049 Contact Us For Availability
22
GRILLE (GREY) MAY W10631241 Contact Us For Availability
22
MAY W10631243 MAY W10631243 Contact Us For Availability
22
MAY W10631244 MAY W10631244 Contact Us For Availability
22
ASSEMBLY, UNIT WIRE MAY W10209479 Contact Us For Availability
23
MAY W10142234 MAY W10142234 Contact Us For Availability
23
BASEPAN MAY W10277704 Contact Us For Availability
24
MAY W10247903 MAY W10247903 Contact Us For Availability
24
MAY W10257198 MAY W10257198 Contact Us For Availability
24
DOOR CLOSER (FC) (GREY) MAY W10257200 Contact Us For Availability
24
CORD, POWER MAY W10242407 Contact Us For Availability
25
MAY W10001250 MAY W10001250 Contact Us For Availability
25
BAFFLE, AIR MAY W10251467 Contact Us For Availability
26
MAY W10279882 MAY W10279882 Contact Us For Availability
26
MAY W10495967 MAY W10495967 Contact Us For Availability
27
MAY W10279884 MAY W10279884 Contact Us For Availability
27
COVER, BOTTOM UNIT MAY W10278140 Contact Us For Availability
28
MAY W10370680 MAY W10370680 Contact Us For Availability
28
COMPRESSOR MAY W10200250 Contact Us For Availability
29
LID, HV BOX MAY 12957702 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
ELECTRONIC CONTROL MAY W10516800 Contact Us For Availability
30
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
31
MAY W10236396 MAY W10236396 Contact Us For Availability
32
CONTROL BOX MAY W10247993 Contact Us For Availability
100
ICE CONTAINER (COMPLETE) MAY W10353205 Contact Us For Availability
100
MAY W10122576 MAY W10122576 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BRUSH TOUCH-UP KIT GR MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, HANDLE INSTALLATION KIT MAY W10300794 Contact Us For Availability
× ![]()
