Model Maytag MRT118FFFH01 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

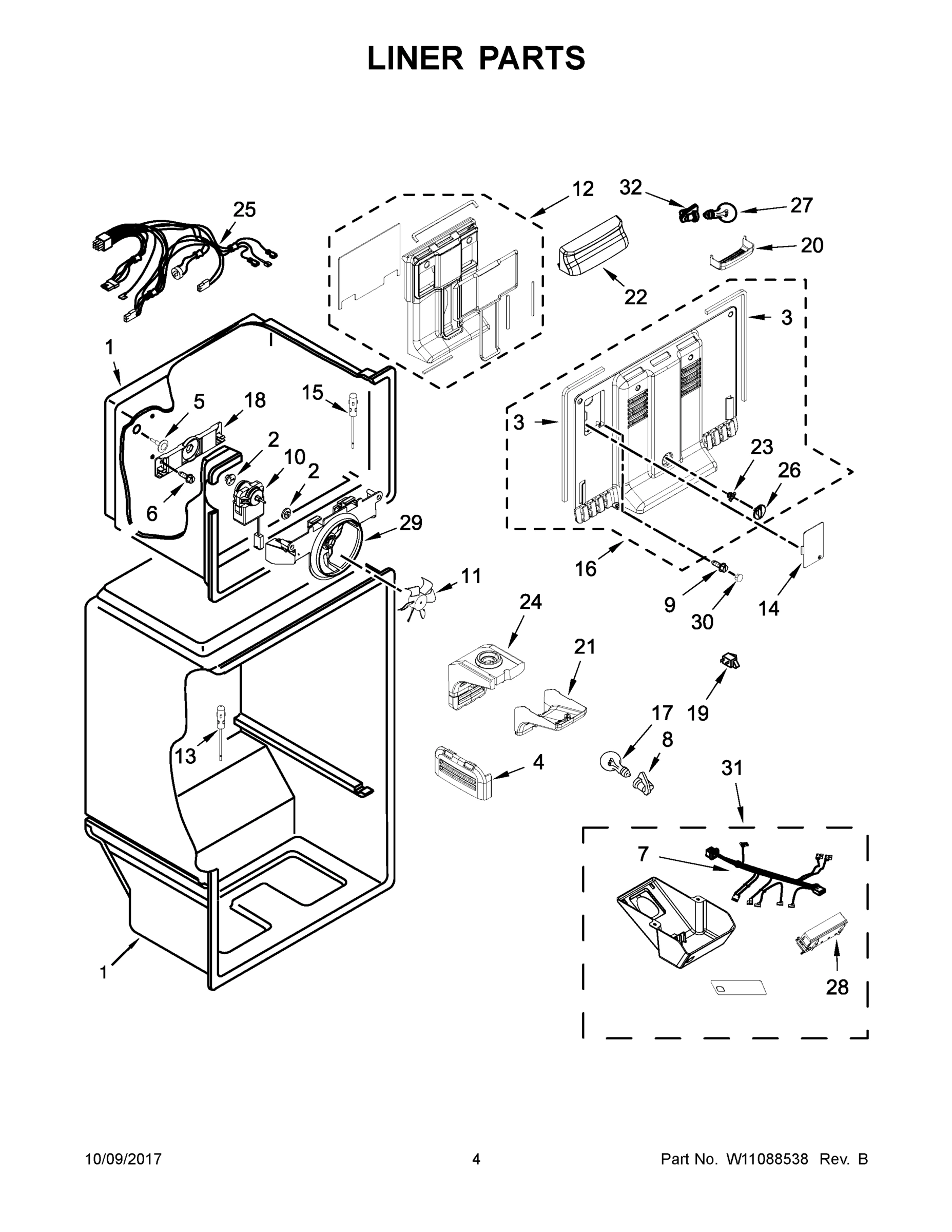

03 - LINER PARTS

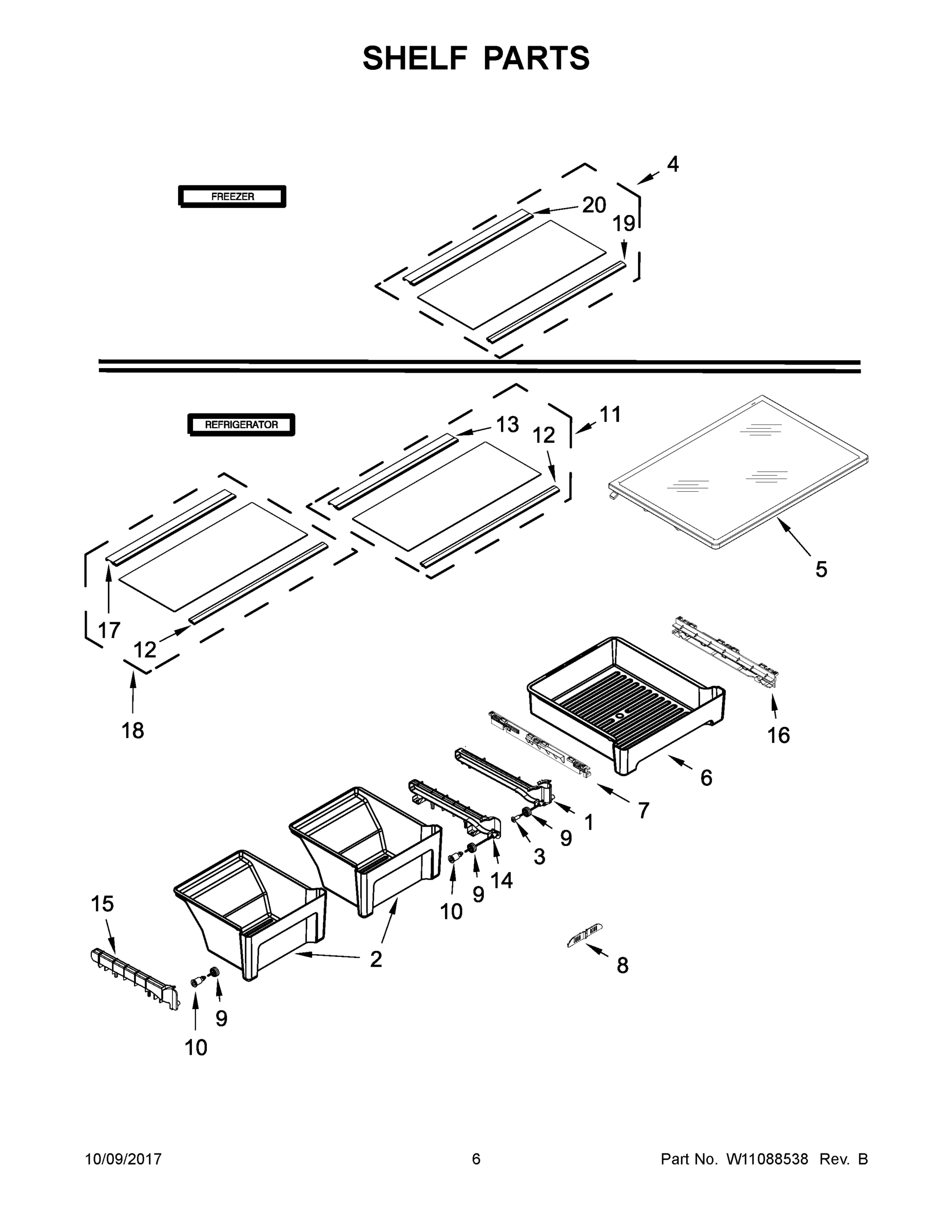

04 - SHELF PARTS

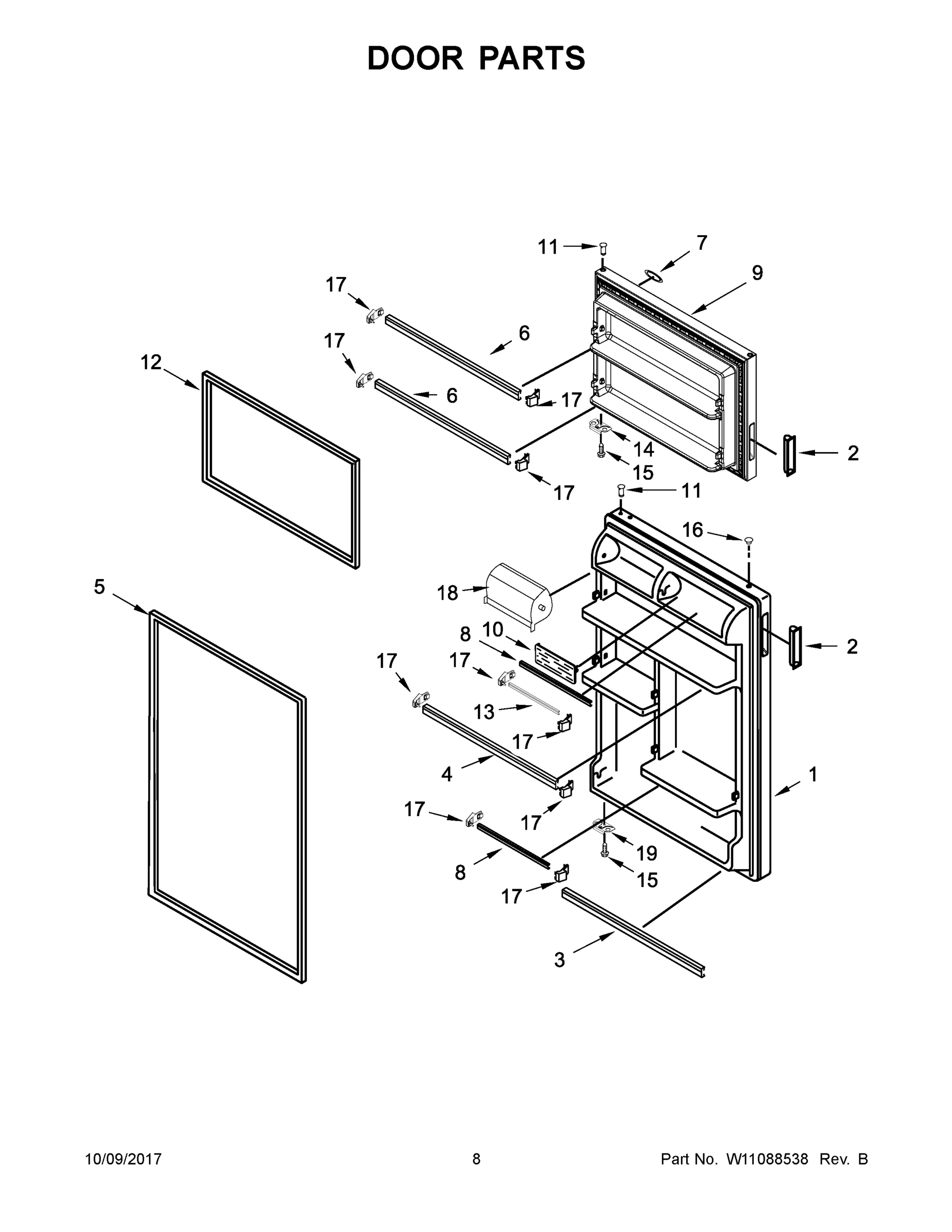

05 - DOOR PARTS

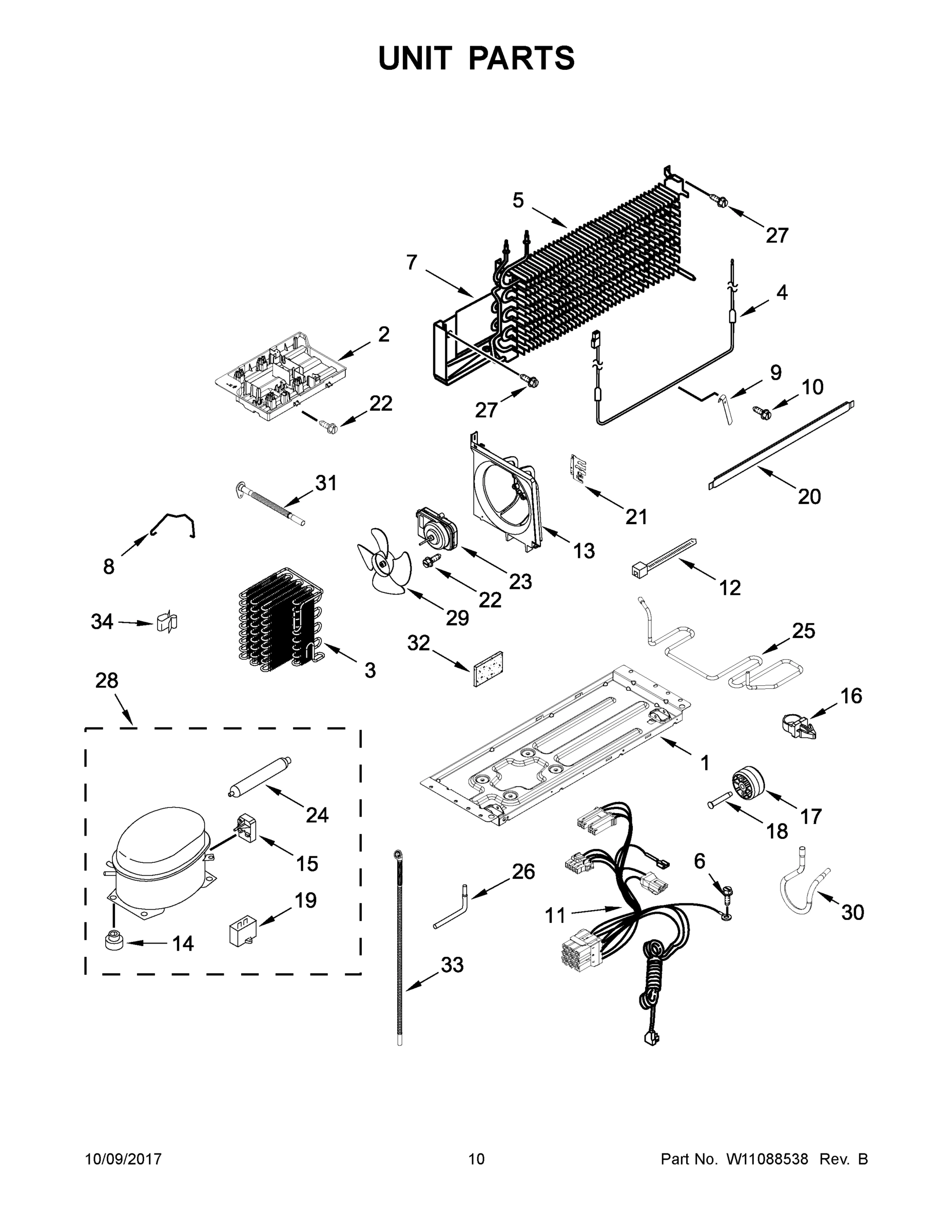

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag MRT118FFFH01 REFRIGERATOR, TOP MOUNT
1
TECH SHEET MAY W10872104 Contact Us For Availability
1
TRACK, RAIL CENTER MAY W10694127 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) ( MAY W10680726 Contact Us For Availability
1
SUPPORT PLATE, COMPRESSOR MAY W10638694 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10885251 Contact Us For Availability
1A
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) ( MAY W10680725 Contact Us For Availability
1B
MAY W11095239 MAY W11095239 Contact Us For Availability
1B
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) ( MAY W10852152 Contact Us For Availability
1C
REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) ( MAY W10680727 Contact Us For Availability
2
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
2
GROMMET MAY 2197380 Contact Us For Availability
2
ASSEMBLY, CRISPER PAN MAY W10668872 Contact Us For Availability
2
HANDLE CUP (WHITE) MAY W10352523 Contact Us For Availability
2
TRAY, EVAPORATOR MAY W10633582 Contact Us For Availability
2A
HANDLE CUP (BLACK) MAY W10174743 Contact Us For Availability
2B
HANDLE CUP (GREY) MAY W10240002 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10842654 Contact Us For Availability
3
GASKET, EVAPORATOR COVER MAY W10709194 Contact Us For Availability
3
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
3
TRIM, DOOR MAY W10719703 Contact Us For Availability
3
CONDENSER MAY W10633575 Contact Us For Availability
4
COVER, AIR FILTER MAY W10848854 Contact Us For Availability
4
ASSEMBLY, SHELF MAY W10809781 Contact Us For Availability
4
TRIM, DOOR MAY W10678772 Contact Us For Availability
4
HEATER, DEFROST MAY W10316428 Contact Us For Availability
5
HOLE PLUG (WHITE) MAY 941839 Contact Us For Availability
5
ASSEMBLY, SHELF MAY W10704017 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (WHITE) MAY W10638676 Contact Us For Availability
5
ASSEMBLY, EVAPORATOR MAY W10570565 Contact Us For Availability
5A
DOOR GASKET, MAGNETIC (BLACK) MAY W10678768 Contact Us For Availability
5B
DOOR GASKET, MAGNETIC (GREY) MAY W11030683 Contact Us For Availability
6
SCREW MAY 488208 Contact Us For Availability
6
MEAT PAN MAY W10308848 Contact Us For Availability
6
TRIM, DOOR MAY W10719702 Contact Us For Availability
6
SCREW MAY 488500 Contact Us For Availability
7
SCREW MAY 489497 Contact Us For Availability
7
WIRE ASSEMBLY, CONTROL BOX MAY W10855785 Contact Us For Availability
7
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
7
BADGE MAY W10612925 Contact Us For Availability
7
SHIELD, HEAT MAY W10314195 Contact Us For Availability
8
HINGE, CENTER MAY 2254618 Contact Us For Availability
8
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
8
CONTROL, HUMIDITY MAY W10356844 Contact Us For Availability
8
TRIM, DOOR MAY W10719700 Contact Us For Availability
8
STRAP, BALE MAY W10174383 Contact Us For Availability
9
SHIM, HINGE CENTER MAY 2183852 Contact Us For Availability
9
SCREW MAY 8281232 Contact Us For Availability
9
ROLLER, PAN MAY W10628713 Contact Us For Availability
9
FREEZER DOOR (INCLUDES ILLUSTRATION 12) (WHIT MAY W10680729 Contact Us For Availability
9
HEAT PROBE MAY 2258429 Contact Us For Availability
9A
FREEZER DOOR (INCLUDES ILLUSTRATION 12) (BLAC MAY W10680728 Contact Us For Availability
9B
FREEZER DOOR (INCLUDES ILLUSTRATION 12) (MONO MAY W10852154 Contact Us For Availability
9C
FREEZER DOOR (INCLUDES ILLUSTRATION 12) (STAI MAY W10680730 Contact Us For Availability
10
LOWER HINGE AND ROLLER ASSEMBLY MAY W10843861 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN MAY 2315539 Contact Us For Availability
10
AXLE, ROLLER MAY W10628712 Contact Us For Availability
10
DOOR, FLIP UP MAY 2188234 Contact Us For Availability
10
SCREW MAY 489478 Contact Us For Availability
11
HOLE PLUG (WHITE) MAY W10520304 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
ASSEMBLY, SHELF MAY W10821670 Contact Us For Availability
11
THIMBLE MAY 2262054 Contact Us For Availability
11
HARNESS, UNIT MAY W10637655 Contact Us For Availability
11A
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
11B
HOLE PLUG (GREY) MAY W10520307 Contact Us For Availability
12
HINGE PIN MAY W10638688 Contact Us For Availability
12
ASSEMBLY, EVAPORATOR PLENUM MAY W10676682 Contact Us For Availability
12
TRIM, SHELF FRONT MAY W10809771 Contact Us For Availability
12
DOOR GASKET, MAGNETIC (WHITE) MAY W10638675 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
12A
DOOR GASKET, MAGNETIC (BLACK) MAY W10667843 Contact Us For Availability
12B
DOOR GASKET, MAGNETIC (GREY) MAY W11030682 Contact Us For Availability
13
WASHER, PLASTIC MAY 489341 Contact Us For Availability
13
THERMISTOR, REFRIGERATOR MAY W10556397 Contact Us For Availability
13
TRIM, SHELF REAR MAY W10628686 Contact Us For Availability
13
TRIM, SHELF DOOR MAY W10719701 Contact Us For Availability
13
BRACKET, FAN MAY W10633579 Contact Us For Availability
14
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
14
COVER, HOLE MAY W10677275 Contact Us For Availability
14
RAIL, TRACK (RIGHT HAND) MAY W10694126 Contact Us For Availability
14
BRACKET, DOOR STOP MAY 2189202 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
15
THERMISTOR MAY W10384183 Contact Us For Availability
15
RAIL, TRACK (LEFT HAND) MAY W10694125 Contact Us For Availability
15
SCREW MAY 488921 Contact Us For Availability
15
DEVICE, START MAY W10798748 Contact Us For Availability
16
SHIM, TOP HINGE (WHITE) MAY 2221885 Contact Us For Availability
16
COVER, EVAPORATOR MAY W10668482 Contact Us For Availability
16
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
16
HOLE PLUG (WHITE) MAY 2212648 Contact Us For Availability
16
CLIP, HARNESS MAY 2219077 Contact Us For Availability
16A
HOLE PLUG (BLACK) MAY 2212651 Contact Us For Availability
16B
HOLE PLUG (GREY) MAY 2254517 Contact Us For Availability
17
ROLLER MAY W10475495 Contact Us For Availability
17
COVER, UNIT MAY W10633591 Contact Us For Availability
17
LAMP, LED MAY W10820003 Contact Us For Availability
17
TRIM, SHELF REAR MAY W10730133 Contact Us For Availability
17
ENDCAP, TRIM MAY 2156003 Contact Us For Availability
18
AXLE, ROLLER MAY 981126 Contact Us For Availability
18
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
18
ASSEMBLY, SHELF MAY W10809782 Contact Us For Availability
18
DOOR, COMPARTMENT MAY 2218113 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
19
CLIP, ROLLER MAY 2174706 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
19
TRIM, SHELF FRONT MAY W10809770 Contact Us For Availability
19
BRACKET, DOOR STOP MAY W10638692 Contact Us For Availability
19
CAPACITOR MAY W10590083 Contact Us For Availability
20
DOME CAP (WHITE) MAY W10674771 Contact Us For Availability
20
LENS, LIGHT MAY W10313918 Contact Us For Availability
20
TRIM, SHELF REAR MAY W10628690 Contact Us For Availability
20
COVER, HEATER MAY W10300902 Contact Us For Availability
20A
DOME CAP (BLACK) MAY W10679135 Contact Us For Availability
20B
DOME CAP (GREY) MAY W10679139 Contact Us For Availability
21
DOME CAP, WASHER MAY W10674773 Contact Us For Availability
21
COVER, AIR DIFFUSER MAY W10637058 Contact Us For Availability
21
BRACKET, EVAPORATOR MAY W10314197 Contact Us For Availability
22
COVER, HINGE (WHITE) MAY 2213360 Contact Us For Availability
22
HOUSING, FREEZER LIGHTING MAY W10313917 Contact Us For Availability
22
SCREW MAY W10622701 Contact Us For Availability
22A
COVER, HINGE (BLACK) MAY 2213363 Contact Us For Availability
22B
COVER, HINGE (GREY) MAY 2254510 Contact Us For Availability
23
LEVELER MAY W10671258 Contact Us For Availability
23
BAFFLE, AIR MANUAL MAY W10570951 Contact Us For Availability
23
MOTOR, CONDENSER FAN MAY W10527155 Contact Us For Availability
24
ASSEMBLY, AIR DIFFUSER MAY W10633587 Contact Us For Availability
24
DRIER MAY W10669573 Contact Us For Availability
25
ASSEMBLY, EVAPORATOR FAN WIRE MAY W10637660 Contact Us For Availability
25
TUBE, DISCHARGE MAY W10810952 Contact Us For Availability
26
KNOB, AIR CONTROL MAY W10570952 Contact Us For Availability
26
TUBE, PROCESS MAY W10908782 Contact Us For Availability
27
SCREW MAY 489442 Contact Us For Availability
27
LAMP, LED MAY W10574850 Contact Us For Availability
28
CONTROL, ELECTRONIC MAY W10874481 Contact Us For Availability
28
COMPRESSOR MAY W10810988 Contact Us For Availability
29
BRACKET, FAN MOTOR MAY W10321162 Contact Us For Availability
29
BLADE, FAN MAY W10817071 Contact Us For Availability
30
COVER, SCREW MAY W10487421 Contact Us For Availability
30
TUBE, SUCTION MAY W10810959 Contact Us For Availability
31
ASSEMBLY, CONTROL BOX MAY W10883378 Contact Us For Availability
31
EXTENSION, DRAIN TUBE MAY W10646247 Contact Us For Availability
32
SOCKET, LIGHT MAY W10440814 Contact Us For Availability
32
INSULATION, SOUND MAY 2215468 Contact Us For Availability
33
TUBE, DRAIN MAY W10633573 Contact Us For Availability
34
CLIP, WIRE MAY 2326941 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
CEMENT, ALUMILASTIC (1 1/4 OZ.) MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, ICE MAKER ASSEMB MAY W10715709 Contact Us For Availability
× ![]()
