Model Maytag MFD2562VEW6 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

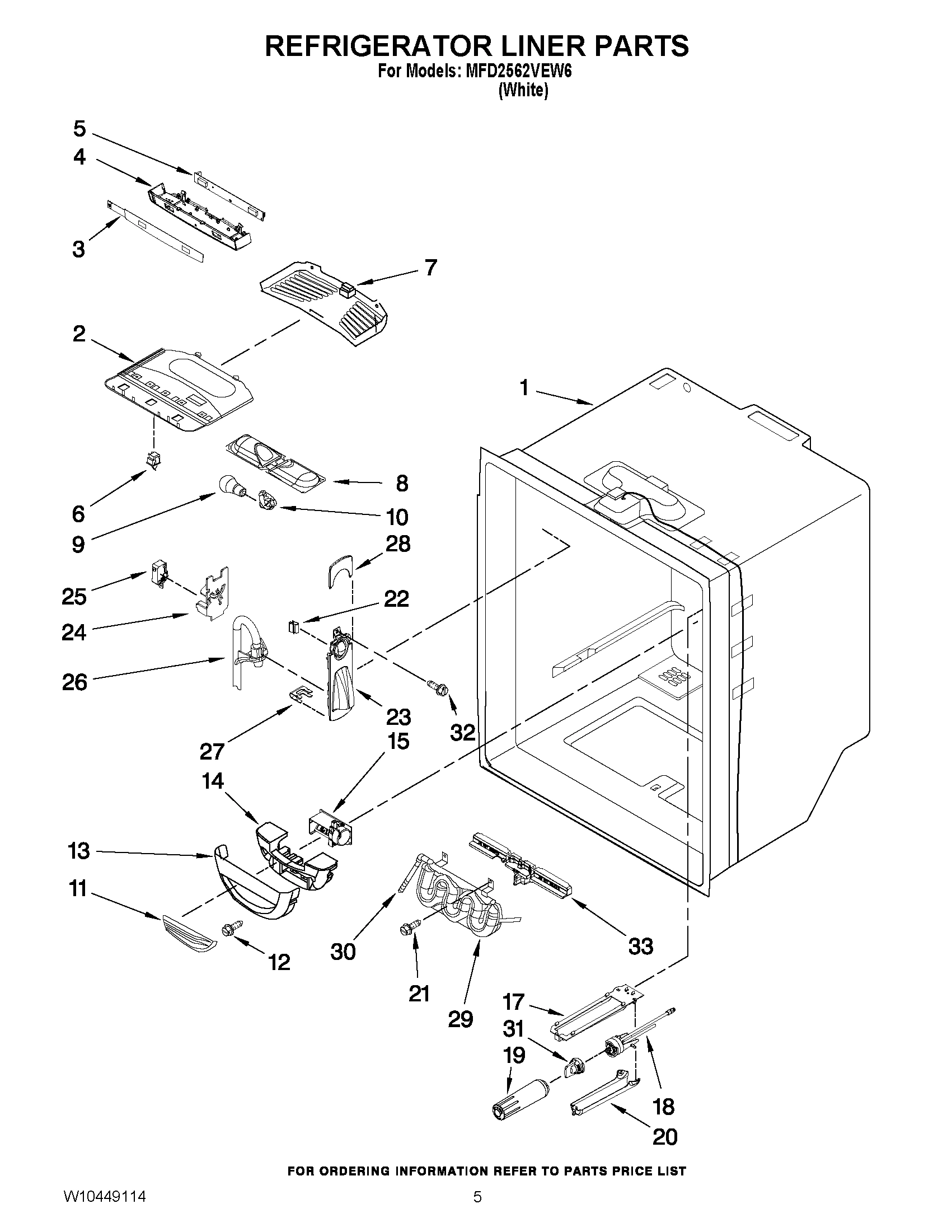

03 - REFRIGERATOR LINER PARTS

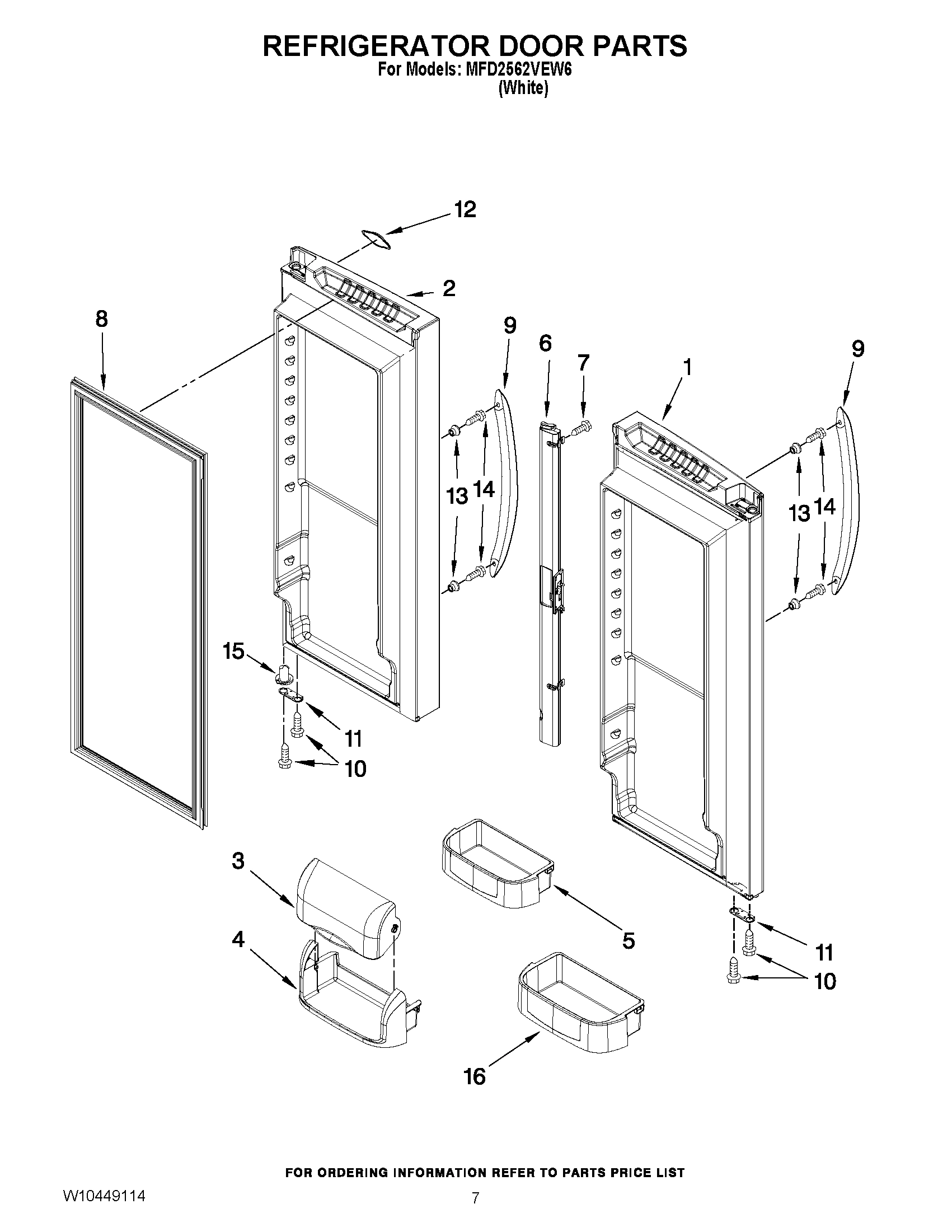

04 - REFRIGERATOR DOOR PARTS

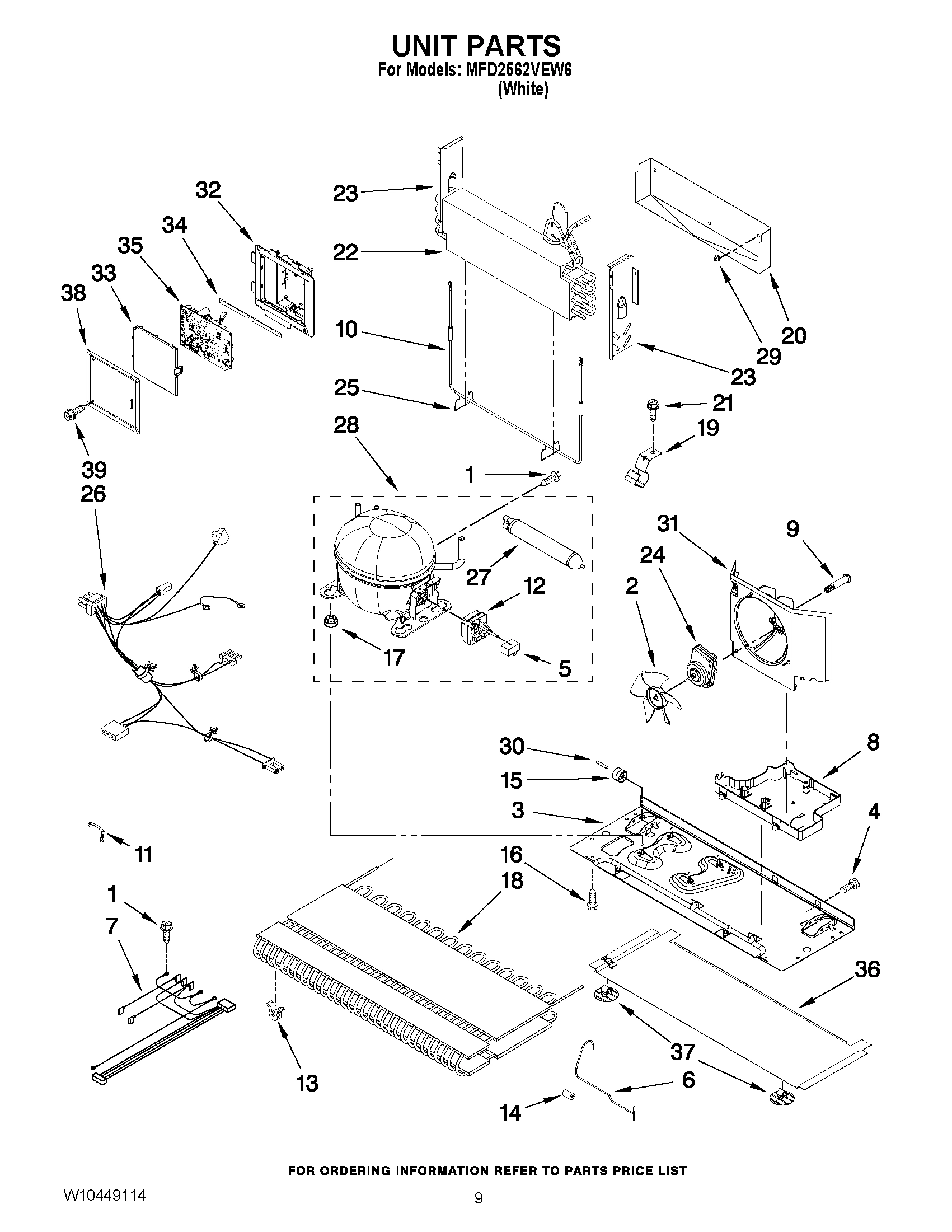

05 - UNIT PARTS

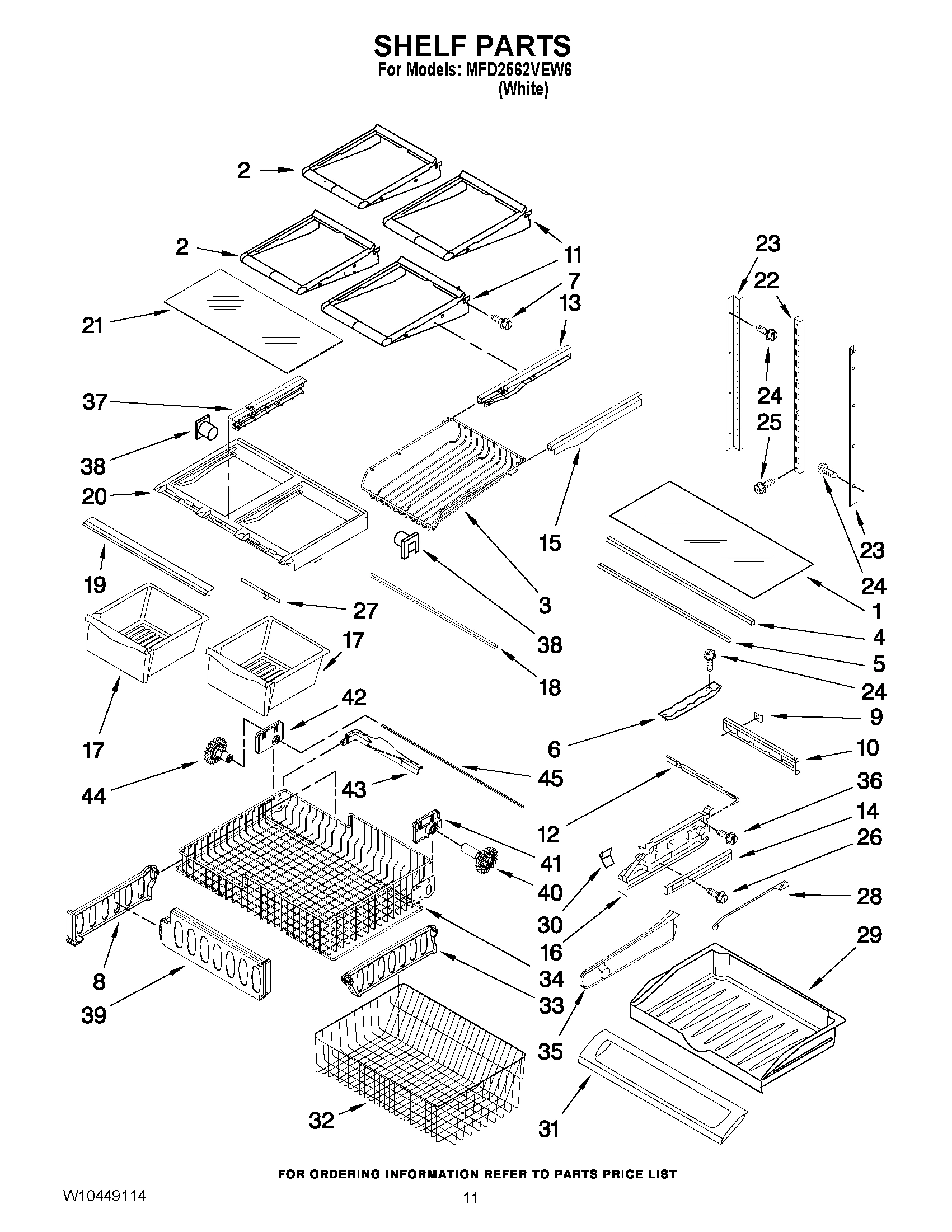

06 - SHELF PARTS

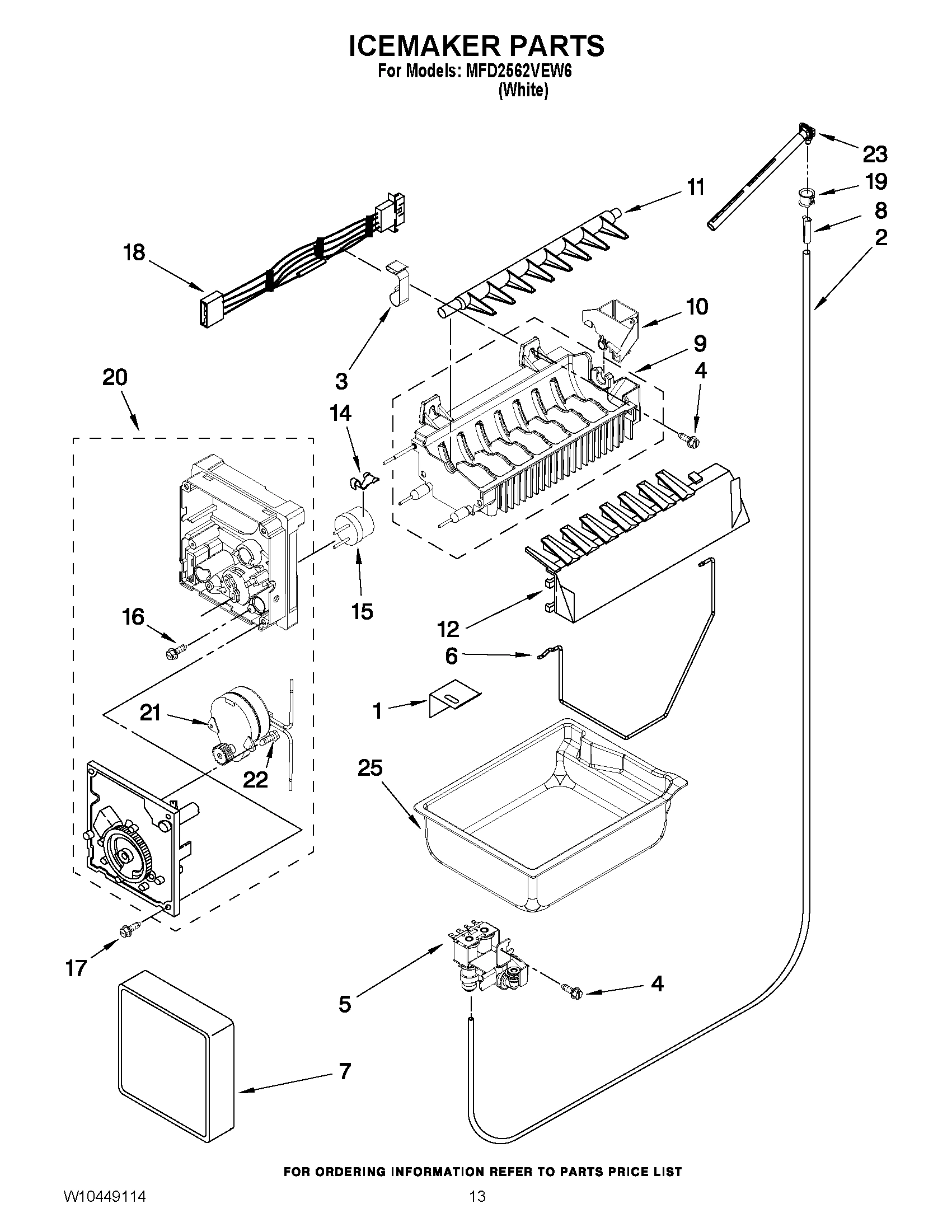

07 - ICEMAKER PARTS

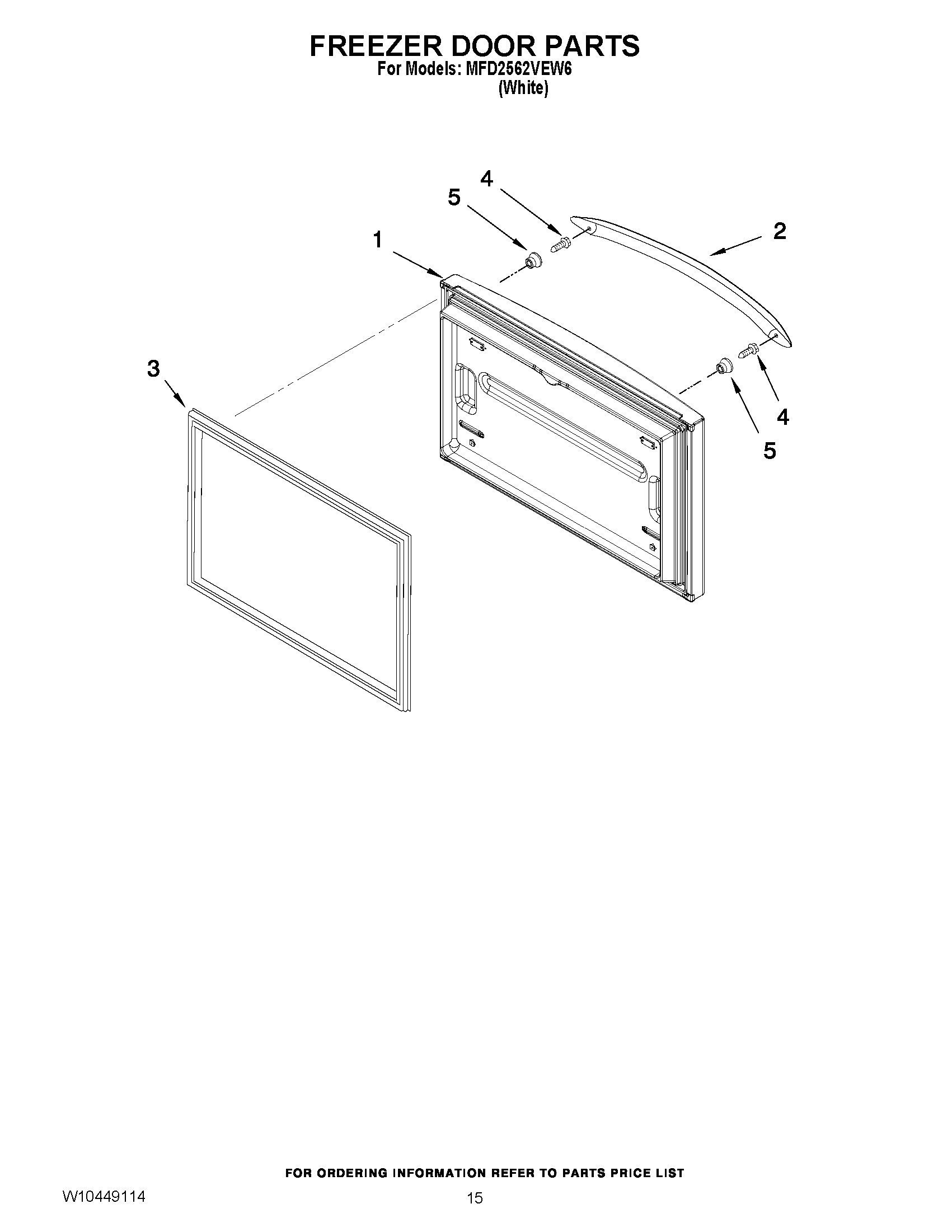

08 - FREEZER DOOR PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFD2562VEW6 REFRIGERATOR
1
MAY 12978033LGW MAY 12978033LGW Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
GLASS, PANTRY MAY 12204830 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1
FREEZER DOOR (WHITE) MAY 12977817LGW Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MODULE, LIGHT MAY 12806302 Contact Us For Availability
2
MAY 12978032LGW MAY 12978032LGW Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
SHELF, GLIDE OUT MAY 12654610 Contact Us For Availability
2
MAY B5705333 MAY B5705333 Contact Us For Availability
2
MAY 13004702W MAY 13004702W Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
OVERLAY MAY W10316108 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 12503805SP MAY 12503805SP Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
3
MAY W10164040 MAY W10164040 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12812903WD MAY 12812903WD Contact Us For Availability
4
MAY 12806405 MAY 12806405 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
SCREW MAY W10290759 Contact Us For Availability
4
MAY 12655902SP MAY 12655902SP Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
MAY 12963205ED MAY 12963205ED Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
MAY W10428901 MAY W10428901 Contact Us For Availability
5
BIN, SHELF (3) (MEDIUM) MAY 12801904 Contact Us For Availability
5
MAY 13001201 MAY 13001201 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY 12227305WH MAY 12227305WH Contact Us For Availability
5
VALVE, WATER MAY W10420083 Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680310V Contact Us For Availability
6
MAY 12722803W MAY 12722803W Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
ARM-SHUT OFF MAY W10378255 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAP. (HEATER) MAY W10292242 Contact Us For Availability
7
Screw (4) MAY 12990302SP Contact Us For Availability
7
COVER MAY W10377174 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10368228 MAY W10368228 Contact Us For Availability
8
Gasket, Door (2) (White) MAY W10163894 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
Divider, Upper Basket MAY W10241046 Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT (2) MAY 2255743N Contact Us For Availability
9
HANDLE, DOOR (WHITE) MAY 13004701W Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) MAY W10300025 Contact Us For Availability
10
MAY M0108107 MAY M0108107 Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
11
SCREW (6) MAY 12992201 Contact Us For Availability
11
MAY W10308416 MAY W10308416 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
SHELF, STAT (2) MAY 12654710SP Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
12
HINGE SHIM (LEFT) MAY 12999501 Contact Us For Availability
12
HINGE SHIM (RIGHT) MAY 12999502 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
START DEVICE MAY W10361443 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
ICE STRIPPER MAY W10122563 Contact Us For Availability
13
COVER, LEFT HINGE (WHITE) MAY 12962301W Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
GLIDE, LEFT MAY 12656601SP Contact Us For Availability
14
OWNERS MANUAL MAY 12992403 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
GLIDE, DRAWER (2) MAY W10235370 Contact Us For Availability
14
RETAINER, THERMOSTAT MAY 628379 Contact Us For Availability
15
Hinge, Center (RT) (White) MAY 13000002WD Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10207517 MAY W10207517 Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
GLIDE, RIGHT MAY 12656602SP Contact Us For Availability
15
THERMOSTAT (ORDER 542369 CEMENT) MAY W10290336 Contact Us For Availability
16
BLOCK, FILTER (2) MAY 12777701 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
BIN, SHELF (2) (GALLON) MAY 12840002 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (RIGHT) MAY 12656019 Contact Us For Availability
16
ENDCAP, PANTRY (LEFT) MAY 12656106 Contact Us For Availability
16
Screw (2) MAY 8533917 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
PLATE MAY 12704801 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
MAY 12804601 MAY 12804601 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY 12963204ED MAY 12963204ED Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY 12590620 MAY 12590620 Contact Us For Availability
18
MAY W10346415 MAY W10346415 Contact Us For Availability
18
Brace, Crisper MAY 12642303WD Contact Us For Availability
18
MAY W10404661 MAY W10404661 Contact Us For Availability
19
ROLLER ASSY.(RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSY.(LEFT) MAY W10275850 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY UKF8001 MAY UKF8001 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY W10231345 MAY W10231345 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY W10329866 MAY W10329866 Contact Us For Availability
20
MODULE ASSEMBLY INCLUDES ITEMS 21& 22) MAY W10281342 Contact Us For Availability
21
MOTOR (ORDER No. 20) MAY N/P Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
GLASS, CRISPER (COVER) MAY 12204824 Contact Us For Availability
22
MAY W10244559 MAY W10244559 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
Clip, Facade (2) MAY B8390302 Contact Us For Availability
22
MAY W10317014 MAY W10317014 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12706909 MAY 12706909 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
24
Hinge, Center (LT) (White) MAY 13000001WD Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12707303 MAY 12707303 Contact Us For Availability
24
Screw (6) MAY 12990513 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
BRACKET, DOOR (LEFT) MAY W10330994 Contact Us For Availability
25
BRACKET, DOOR (RIGHT) MAY W10330995 Contact Us For Availability
25
SCREW (2) MAY W10215666 Contact Us For Availability
25
MAY W10171529 MAY W10171529 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
Screw (8) MAY 12990521 Contact Us For Availability
26
Screw (4) MAY 12990512 Contact Us For Availability
26
MAY 12707206 MAY 12707206 Contact Us For Availability
26
MAY W10234025 MAY W10234025 Contact Us For Availability
27
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
27
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
27
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
27
CLIP, WATERLINE MAY 12251001 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
SCREW (2) MAY 12990303 Contact Us For Availability
28
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
28
FACADE, DISP (TOP) MAY 12707005 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11,12,17,27) MAY W10187125 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY 12655304 Contact Us For Availability
29
MAY 12831101 MAY 12831101 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT) MAY W10284684 Contact Us For Availability
29
ADAPTER, SLIDE (RIGHT) MAY W10284685 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12731302 MAY 12731302 Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
Screw (6) MAY 12990501 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY 12655204V MAY 12655204V Contact Us For Availability
31
MAY W10210988 MAY W10210988 Contact Us For Availability
31
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
DOOR, PANTRY DRAWER MAY 12656815 Contact Us For Availability
32
MAY M0114003 MAY M0114003 Contact Us For Availability
32
MAY W10257665 MAY W10257665 Contact Us For Availability
32
Basket, Freezer (Lower) MAY W10150039 Contact Us For Availability
33
Insulation, Sound MAY 12820505 Contact Us For Availability
33
RACK-SIDE (LEFT) MAY W10284694 Contact Us For Availability
33
RACK-SIDE (RIGHT) MAY W10284695 Contact Us For Availability
33
MAY W10117358 MAY W10117358 Contact Us For Availability
33
MAY 12957702SP MAY 12957702SP Contact Us For Availability
33
Divider, Lower Basket MAY W10146440 Contact Us For Availability
34
FOOT, BRAKE MAY W10141622 Contact Us For Availability
34
MAY 12957801SP MAY 12957801SP Contact Us For Availability
34
MAY W10348246 MAY W10348246 Contact Us For Availability
35
Cover, Right Hinge (White) MAY 12962302W Contact Us For Availability
35
BOARD, CONTROL MAY W10268635 Contact Us For Availability
35
DIVIDER, PANTRY DRAWER MAY 12731901 Contact Us For Availability
36
Screw (4) MAY 12990504 Contact Us For Availability
36
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
37
MAY W10206339 MAY W10206339 Contact Us For Availability
37
RAIL, CENTER CRISPER FRAME MAY W10326469 Contact Us For Availability
38
MAY 12961602 MAY 12961602 Contact Us For Availability
38
Supports, Crisper Frame MAY 13062602 Contact Us For Availability
39
MAY 12990702 MAY 12990702 Contact Us For Availability
39
Divider, Upper Freezer MAY W10171558 Contact Us For Availability
40
Gear MAY W10146446 Contact Us For Availability
41
MOUNT, RH GEAR MAY W10348260 Contact Us For Availability
42
MOUNT, LH GEAR MAY W10348259 Contact Us For Availability
43
MAY W10149389 MAY W10149389 Contact Us For Availability
44
Gear MAY W10158749 Contact Us For Availability
45
SHAFT MAY 12812904WD Contact Us For Availability
100
ICEMAKER ASSEMBLY MAY W10377152 Contact Us For Availability
NI
MAY W10224292 MAY W10224292 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
