Model Maytag MFD2562KEW11 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

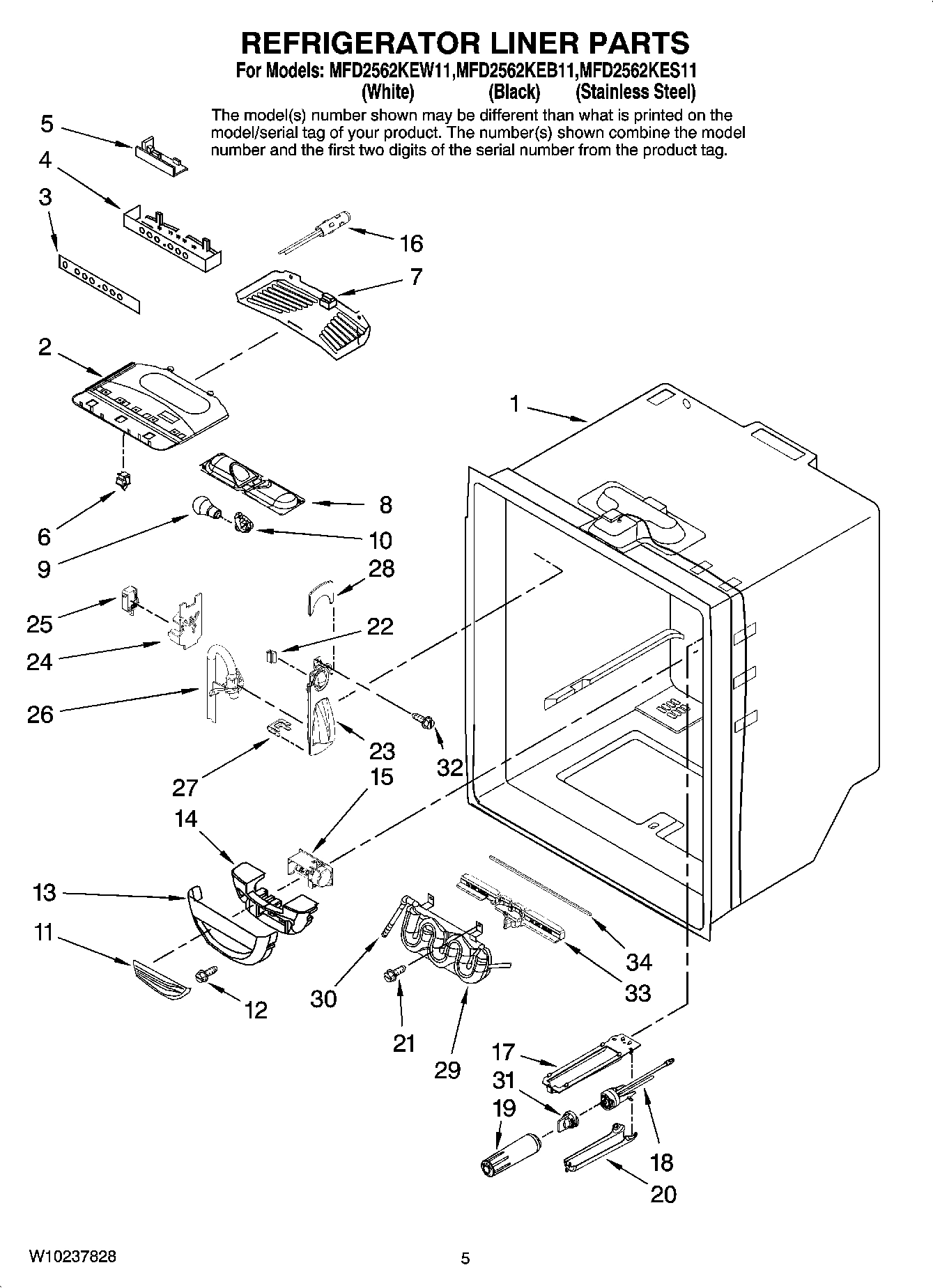

03 - REFRIGERATOR LINER PARTS

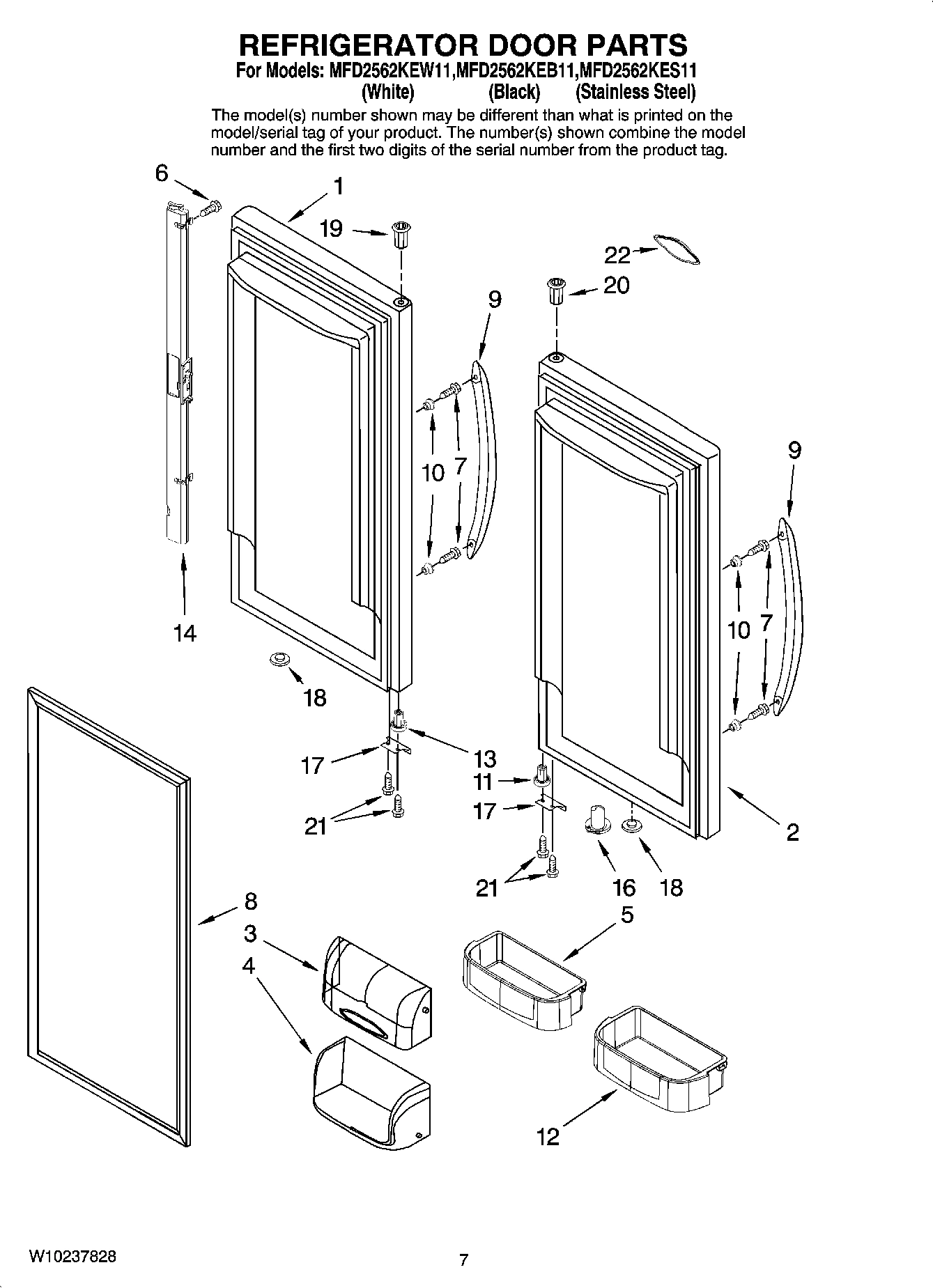

04 - REFRIGERATOR DOOR PARTS

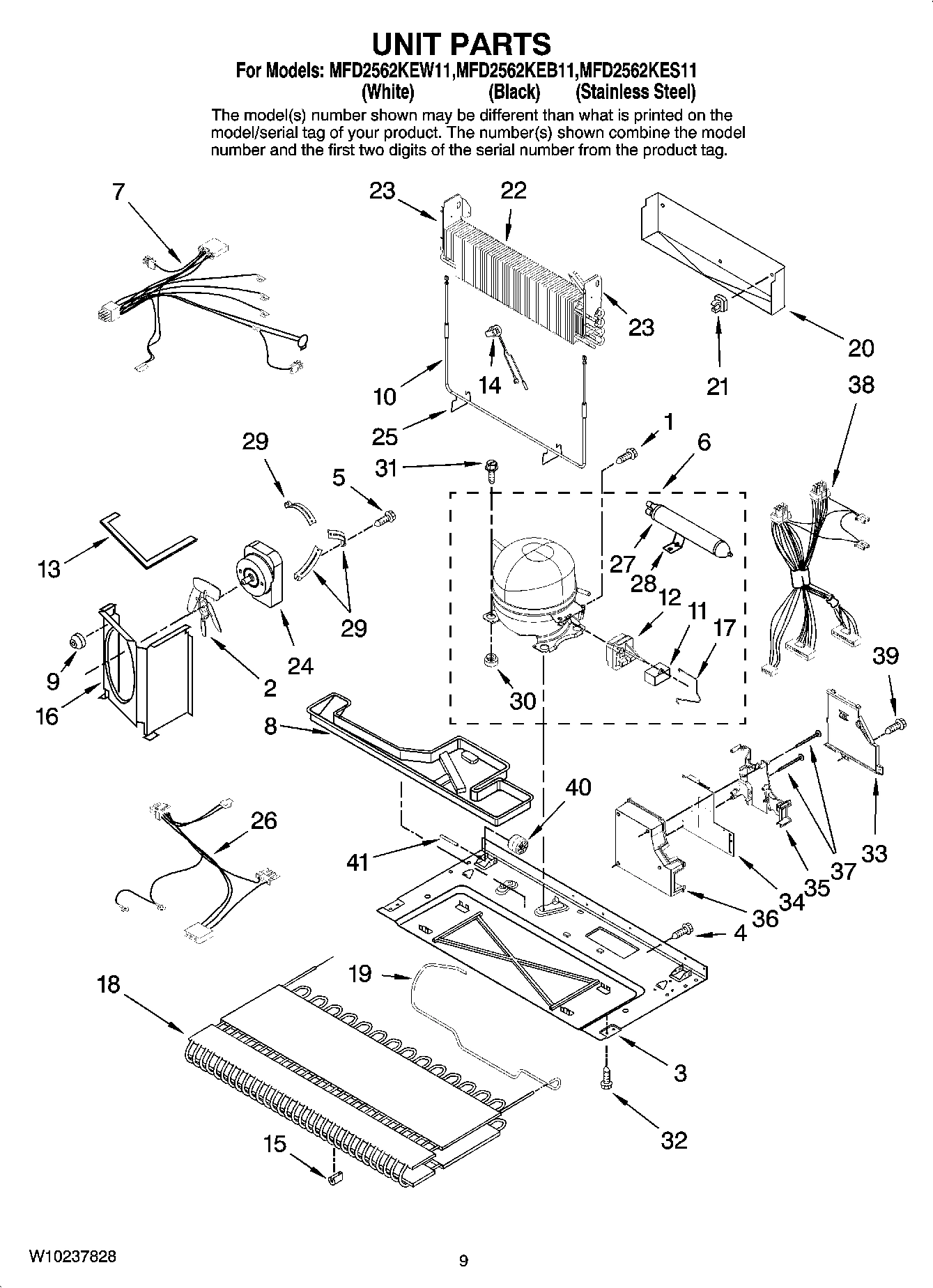

05 - UNIT PARTS

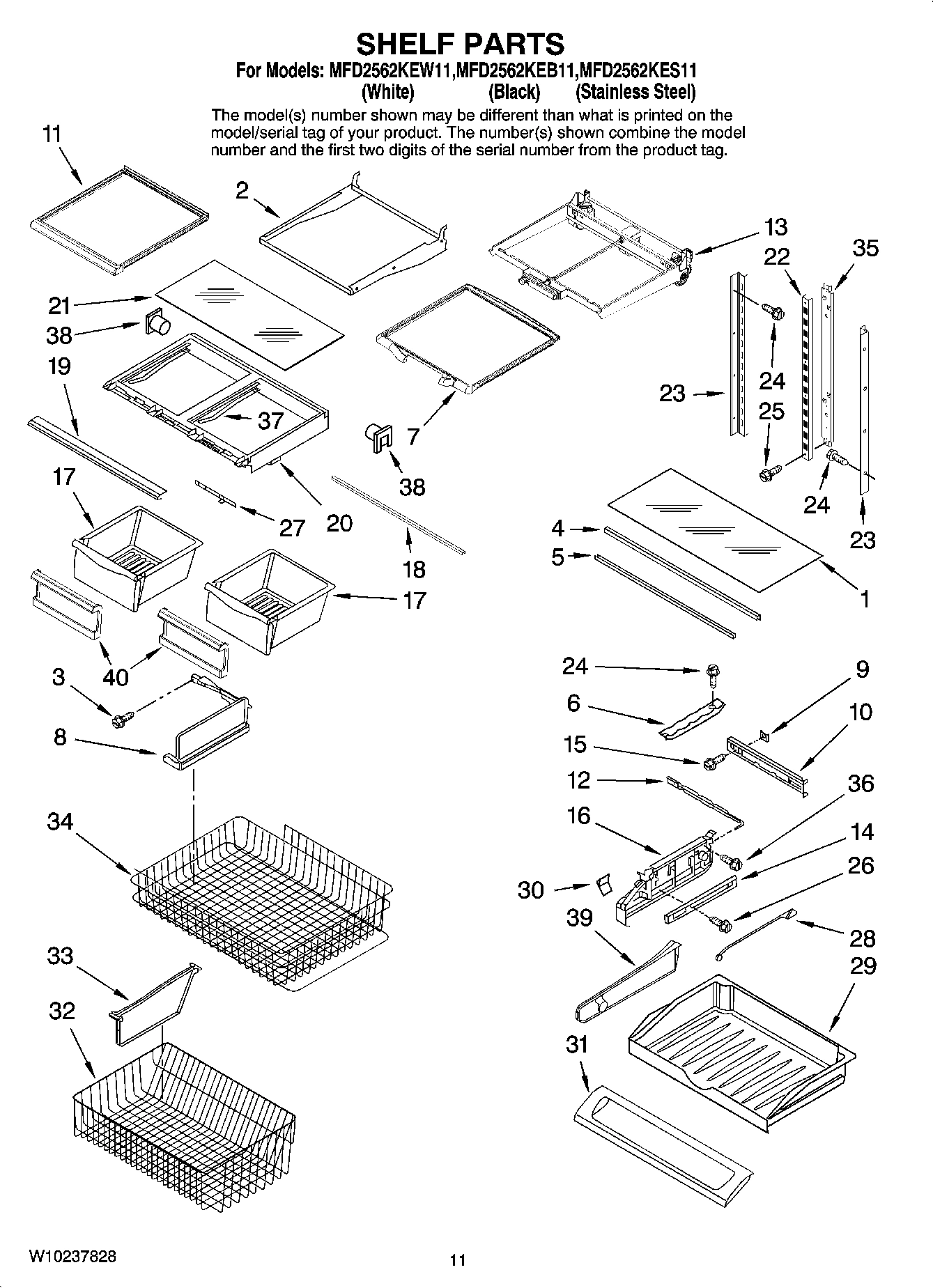

06 - SHELF PARTS
07 - FREEZER DOOR PARTS

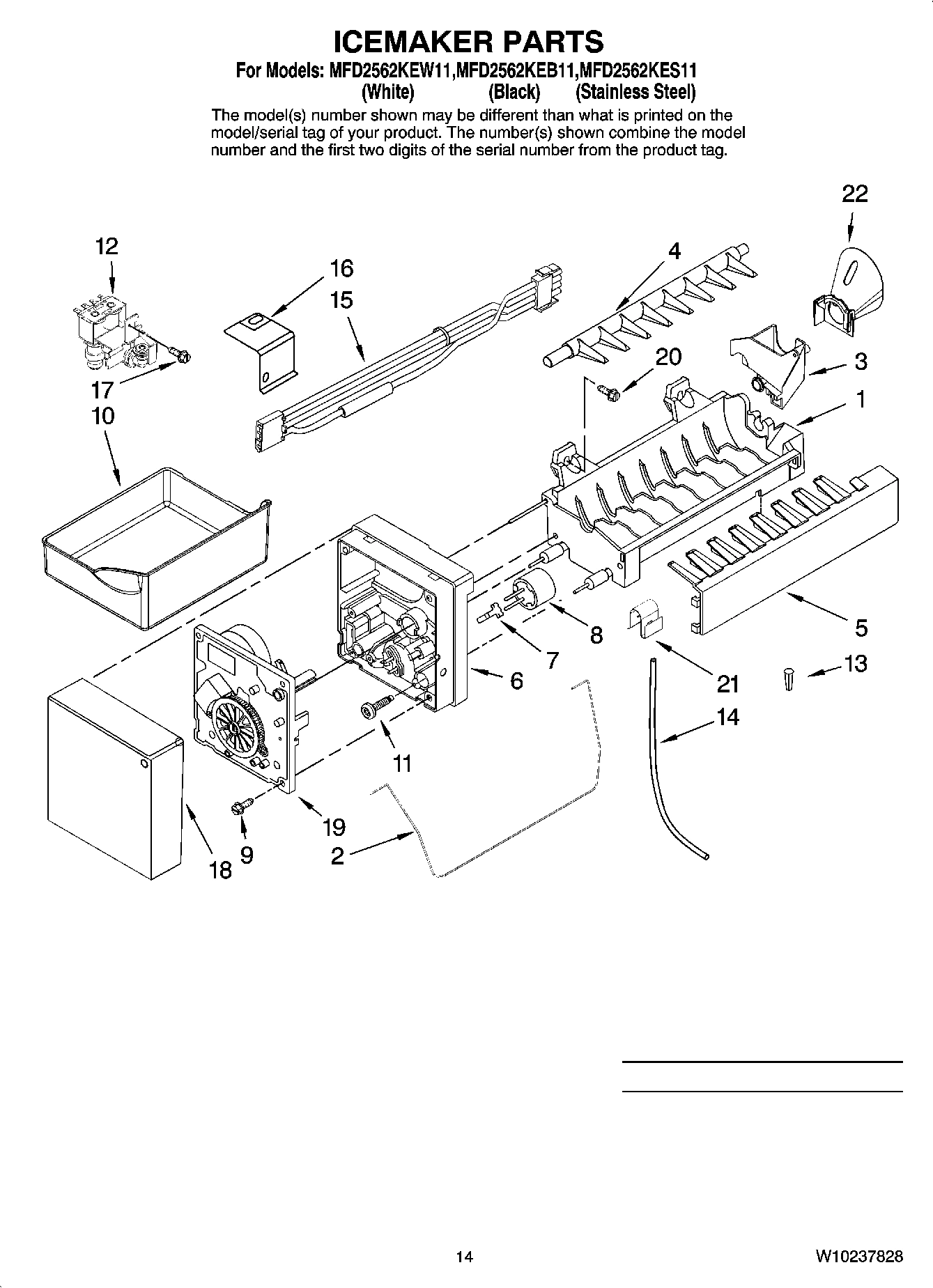

08 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFD2562KEW11 REFRIGERATOR
1
MAY 67002761 MAY 67002761 Contact Us For Availability
1
MAY 13024022BQ MAY 13024022BQ Contact Us For Availability
1
MAY 13024022WQ MAY 13024022WQ Contact Us For Availability
1
MAY 13024038SQ MAY 13024038SQ Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1
Freezer Door (Black) MAY 13092207BQ Contact Us For Availability
1
Freezer Door (White) MAY 13092207WQ Contact Us For Availability
1
Freezer Door (Stainless Steel) MAY 13092213SQ Contact Us For Availability
1
Mold & Heater Assembly MAY 628228 Contact Us For Availability
2
Bracket, Control and Lights MAY 67004078 Contact Us For Availability
2
MAY 13024021BQ MAY 13024021BQ Contact Us For Availability
2
MAY 13024021WQ MAY 13024021WQ Contact Us For Availability
2
MAY 13024037SQ MAY 13024037SQ Contact Us For Availability
2
Handle (Stainless Steel) MAY W10197295 Contact Us For Availability
2
Handle (Black) MAY W10197298 Contact Us For Availability
2
MAY W10156818 MAY W10156818 Contact Us For Availability
2
Frame, Shelf (3) MAY 61005966 Contact Us For Availability
3
MAY Y67005640 MAY Y67005640 Contact Us For Availability
3
MAY 12457109 MAY 12457109 Contact Us For Availability
3
MAY 67006608 MAY 67006608 Contact Us For Availability
3
Bearing & Inlet MAY 628515 Contact Us For Availability
4
Housing, Control MAY W10185585 Contact Us For Availability
4
Screw (2) MAY 67006425 Contact Us For Availability
4
MAY W10164040 MAY W10164040 Contact Us For Availability
4
MAY W10164041 MAY W10164041 Contact Us For Availability
5
Board, Control MAY W10207861 Contact Us For Availability
5
SCREW MAY 67006901 Contact Us For Availability
6
Switch, Light (2) MAY C3680310 Contact Us For Availability
6
MAY 67006786 MAY 67006786 Contact Us For Availability
6
Compressor (Incudes items 11,12,17,27, & 30) MAY 67005565 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10119857 Contact Us For Availability
7
Shelf, Adj. MAY 61004747 Contact Us For Availability
8
Gasket, Door (2) (White) MAY W10163894 Contact Us For Availability
8
MAY W10163895 MAY W10163895 Contact Us For Availability
8
MAY 12579803 MAY 12579803 Contact Us For Availability
8
Divider, Upper Basket MAY 67004127 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422 Contact Us For Availability
9
Screw (3) MAY 95106-1 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
Socket, Light (2) MAY Y12570701 Contact Us For Availability
10
MAY 67005625 MAY 67005625 Contact Us For Availability
11
Capacitor MAY 67005562 Contact Us For Availability
11
Shelf, Slide (3) MAY 61002917 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
12
Bin, Shelf (2) (Gallon) MAY 67004641 Contact Us For Availability
12
Screw (2) MAY 67006602 Contact Us For Availability
12
Relay Assy. (Inc. Capacitor) MAY 67005561 Contact Us For Availability
12
MAY 67003793 MAY 67003793 Contact Us For Availability
13
Frame Assy., Adj. MAY Y61006052 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
MAY 67006604 MAY 67006604 Contact Us For Availability
14
Thermostat, Def. MAY W10165425 Contact Us For Availability
14
Glide, Drawer(2) MAY 67007026 Contact Us For Availability
14
Tubing, Plastic MAY 67003729 Contact Us For Availability
15
Control, Damper MAY W10127429 Contact Us For Availability
15
MAY W10153408 MAY W10153408 Contact Us For Availability
16
MAY 12575309 MAY 12575309 Contact Us For Availability
17
MAY 12968202W MAY 12968202W Contact Us For Availability
17
MAY 67007052 MAY 67007052 Contact Us For Availability
17
MAY 67006662 MAY 67006662 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
19
MAY 12395501B MAY 12395501B Contact Us For Availability
19
BUSHING, DOOR UPPER LEFT (WHITE) MAY 12395501W Contact Us For Availability
19
MAY W10183707 MAY W10183707 Contact Us For Availability
19
MAY 626678 MAY 626678 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
21
MAY 10623002 MAY 10623002 Contact Us For Availability
22
Clip, Facade (2) MAY B8390302 Contact Us For Availability
22
Nameplate MAY W10170766 Contact Us For Availability
22
MAY 67004644 MAY 67004644 Contact Us For Availability
22
MAY 67005603 MAY 67005603 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23
Ladder, Side MAY 67004645 Contact Us For Availability
24
MAY 12707303SP MAY 12707303SP Contact Us For Availability
24
Screw (6) MAY 67006400 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
26
MAY 67003728 MAY 67003728 Contact Us For Availability
26
Harness, MC MAY 13060202 Contact Us For Availability
26
Screw (4) MAY 67006415 Contact Us For Availability
27
MAY 2317845 MAY 2317845 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
28
MAY 10547003 MAY 10547003 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY W10153959 MAY W10153959 Contact Us For Availability
29
MAY 67004953 MAY 67004953 Contact Us For Availability
30
MAY W10169124 MAY W10169124 Contact Us For Availability
31
MAY 67003146 MAY 67003146 Contact Us For Availability
31
MAY 67006432 MAY 67006432 Contact Us For Availability
32
Screw (6) MAY 67006406 Contact Us For Availability
32
Screw (4) MAY 67006573 Contact Us For Availability
32
MAY W10143562 MAY W10143562 Contact Us For Availability
33
MAY 67006530 MAY 67006530 Contact Us For Availability
33
Insulation, Tank MAY W10117358 Contact Us For Availability
33
MAY 67005421 MAY 67005421 Contact Us For Availability
33
Divider, Lower Basket MAY 67006644 Contact Us For Availability
34
MAY W10130483 MAY W10130483 Contact Us For Availability
34
Board, HV Control (Inc. Inst. Sheet) MAY W10205114 Contact Us For Availability
34
Basket, Freezer (Upper) MAY W10143524 Contact Us For Availability
35
MAY 67005418 MAY 67005418 Contact Us For Availability
35
Adapter, Center Ladder MAY 67003721 Contact Us For Availability
36
MAY 67004969 MAY 67004969 Contact Us For Availability
37
MAY 67006550 MAY 67006550 Contact Us For Availability
38
Harness, HV MAY 12972902 Contact Us For Availability
38
Supports, Crisper Frame MAY 13062602 Contact Us For Availability
39
MAY 67006615 MAY 67006615 Contact Us For Availability
NI
HARNESS, FZ MODULE MAY 67006095 Contact Us For Availability
NI
MAY 67005417 MAY 67005417 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Enamel, White (13 Oz. Spray Can) MAY 350930 Contact Us For Availability
NI
MAY 350939 MAY 350939 Contact Us For Availability
NI
Primer, White (13 Oz. Spray Can) MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
NI
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
