Model Maytag MEDB800VB0 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS

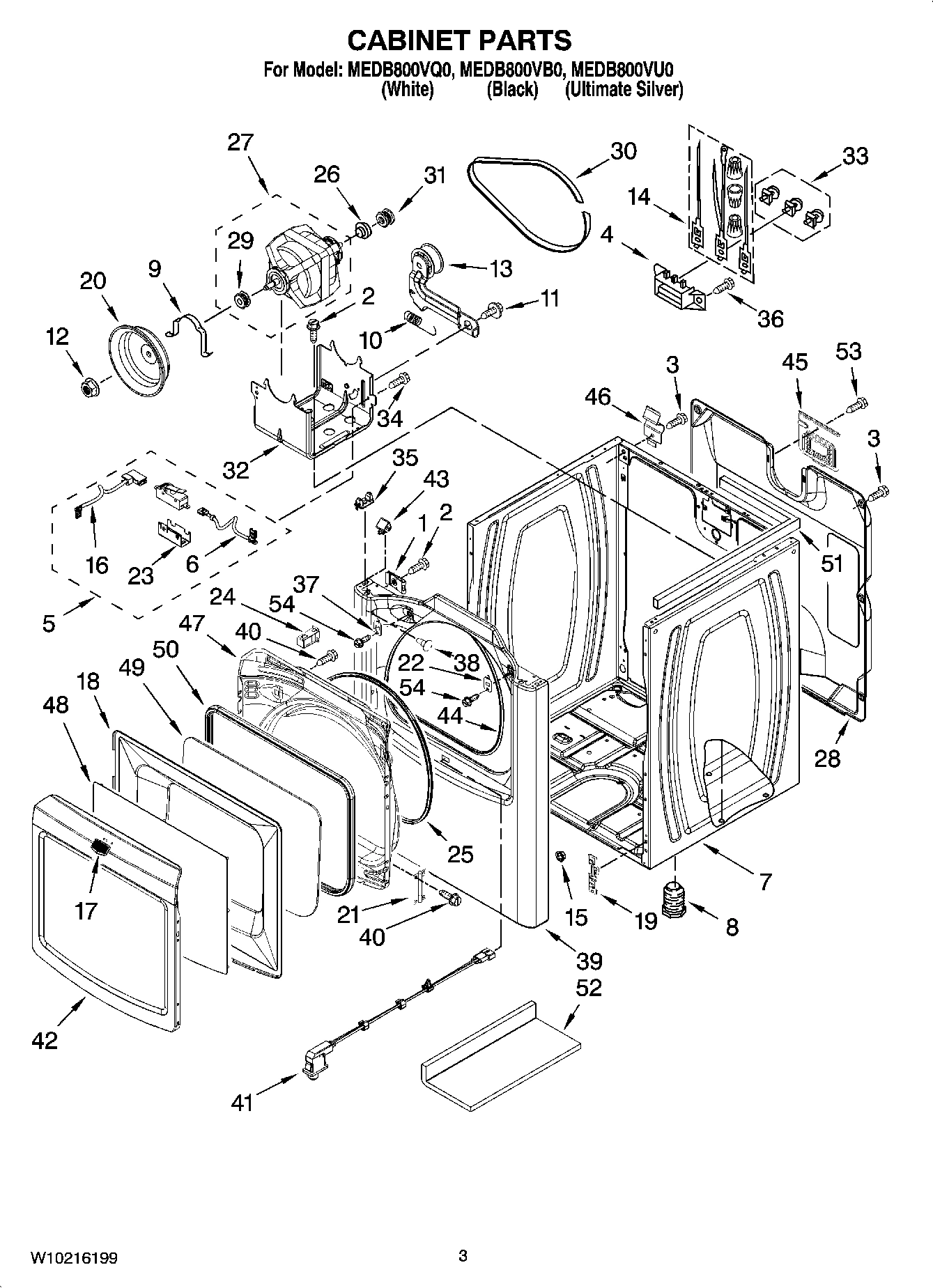

02 - CABINET PARTS

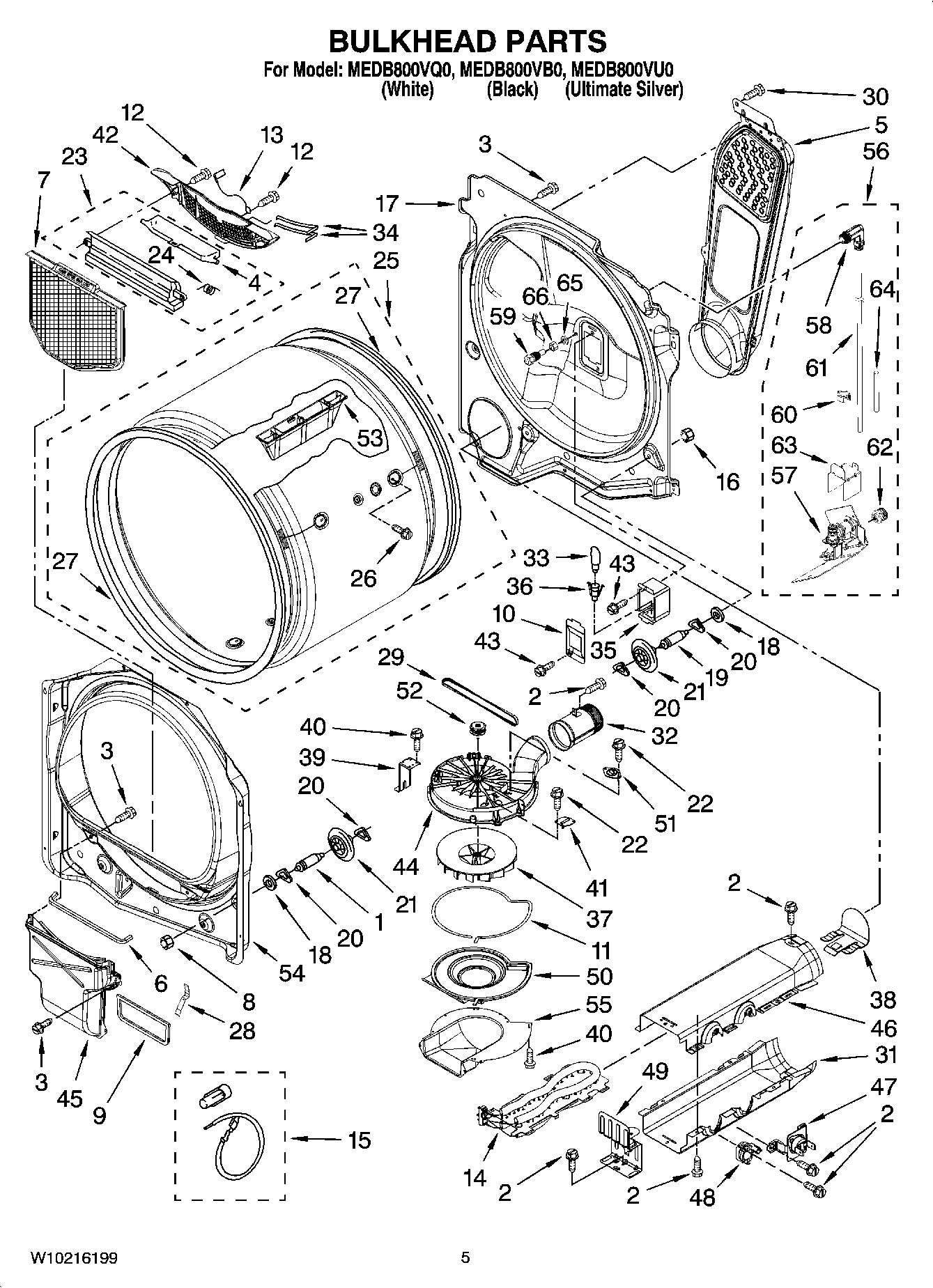

03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDB800VB0 ELECTRIC DRYER
1
MAY W10134980 MAY W10134980 Contact Us For Availability
1
MAY W10156733 MAY W10156733 Contact Us For Availability
1
MAY W10165147 MAY W10165147 Contact Us For Availability
1
MAY W10200963 MAY W10200963 Contact Us For Availability
1
MAY W10201171 MAY W10201171 Contact Us For Availability
1
MAY W10201176 MAY W10201176 Contact Us For Availability
1
Clip, Ground (2) MAY W10007520 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
MAY W10110296 MAY W10110296 Contact Us For Availability
2
MAY W10110299 MAY W10110299 Contact Us For Availability
2
MAY W10166669 MAY W10166669 Contact Us For Availability
2
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
3
User Interface MAY W10051114 Contact Us For Availability
3
MAY 3390631 MAY 3390631 Contact Us For Availability
4
MAY W10051124 MAY W10051124 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3394984 MAY 3394984 Contact Us For Availability
5
MAY W10051126 MAY W10051126 Contact Us For Availability
5

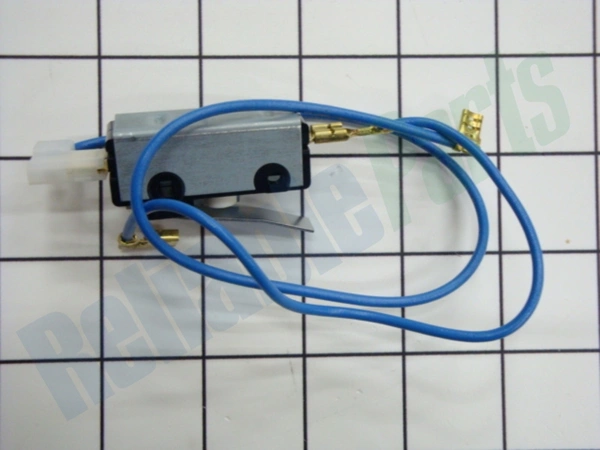

MAY 8564012 MAY 8564012 Contact Us For Availability
5
MAY 8544730 MAY 8544730 Contact Us For Availability
6
MAY W10111620 MAY W10111620 Contact Us For Availability
6
Wire, Belt (To Protector) MAY W10167613 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
7
Cabinet (White) MAY W10183827 Contact Us For Availability
7
MAY W10183831 MAY W10183831 Contact Us For Availability
7
Cabinet (Ultimate Silver) MAY W10183832 Contact Us For Availability
7
MAY W10178353 MAY W10178353 Contact Us For Availability
8
MAY W10180206 MAY W10180206 Contact Us For Availability
8
MAY W10180858 MAY W10180858 Contact Us For Availability
8
MAY 279810 MAY 279810 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
9
MAY 8563853 MAY 8563853 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
MAY 8544721 MAY 8544721 Contact Us For Availability
10
MAY W10003770 MAY W10003770 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
11
Screw, Grommet (3) MAY W10112673 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY 8573068 MAY 8573068 Contact Us For Availability
12
Connector 6-Circuit MAY 3347243 Contact Us For Availability
12
MAY W10001340 MAY W10001340 Contact Us For Availability
12
Screw, 10-16 x 13/16 MAY 3387230 Contact Us For Availability
13
Top (White) MAY W10111848 Contact Us For Availability
13
MAY W10111902 MAY W10111902 Contact Us For Availability
13
MAY W10111911 MAY W10111911 Contact Us For Availability
13
MAY 8547160 MAY 8547160 Contact Us For Availability
13
Wire MAY 3392258 Contact Us For Availability
14
CLIP, HARNESS MAY 3394427 Contact Us For Availability
14
Terminal, Brass & Tinned (3) (Includes Illus. MAY 279318 Contact Us For Availability
14
Heater Element MAY 8544771 Contact Us For Availability
15
Screw (3) MAY W10131402 Contact Us For Availability
15
Plug, Hole (Cabinet Base) MAY 8578560 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
Connector-Timer MAY 3397269 Contact Us For Availability
16
MAY 8539892 MAY 8539892 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
17
MAY 337686 MAY 337686 Contact Us For Availability
17
MAY W10153170 MAY W10153170 Contact Us For Availability
17
MAY W10139797 MAY W10139797 Contact Us For Availability
18
MAY W10110295 MAY W10110295 Contact Us For Availability
18
MAY W10111880 MAY W10111880 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10163628 MAY W10163628 Contact Us For Availability
19
Clip (2) MAY 3394083 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
Fly Wheel MAY 8576626 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
Terminal MAY 94614 Contact Us For Availability
21
Hinge Assembly (2) (White) MAY 8579717 Contact Us For Availability
21
Hinge Assembly (2) (Black) MAY W10111912 Contact Us For Availability
21
MAY W10166512 MAY W10166512 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
MAY 3936144 MAY 3936144 Contact Us For Availability
22
MAY W10111888 MAY W10111888 Contact Us For Availability
22
MAY 3350424 MAY 3350424 Contact Us For Availability
23
Tie, Cable (Push-Mount) MAY 3391018 Contact Us For Availability
23
MAY 8564011 MAY 8564011 Contact Us For Availability
23
Outlet Housing Assembly MAY 3394985 Contact Us For Availability
24
Seal, Spill Guard MAY W10216185 Contact Us For Availability
24
MAY W10111905 MAY W10111905 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
MAY W10215728 MAY W10215728 Contact Us For Availability
25
MAY 8557269 MAY 8557269 Contact Us For Availability
26
MAY 3393657 MAY 3393657 Contact Us For Availability
26
MAY W10109200 MAY W10109200 Contact Us For Availability
27
MAY W10136932 MAY W10136932 Contact Us For Availability
27
MAY W10116344 MAY W10116344 Contact Us For Availability
28
MAY W10140148 MAY W10140148 Contact Us For Availability
28
MAY 8573070 MAY 8573070 Contact Us For Availability
29
MAY W10139247 MAY W10139247 Contact Us For Availability
29
MAY 8544742 MAY 8544742 Contact Us For Availability
30
Screw MAY 693995 Contact Us For Availability
30
MAY W10136934 MAY W10136934 Contact Us For Availability
31
MAY W10136930 MAY W10136930 Contact Us For Availability
31
MAY 8544770 MAY 8544770 Contact Us For Availability
32
MAY 8547158 MAY 8547158 Contact Us For Availability
32
MAY 8544755 MAY 8544755 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
Screw, 6-20 x 1 1/4 MAY W10002600 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
Locator, Snap-Down (2) MAY 8568303 Contact Us For Availability
35
MAY 3977373 MAY 3977373 Contact Us For Availability
36
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
36
Socket Assembly MAY W10168632 Contact Us For Availability
37
Strike, Door MAY W10111906 Contact Us For Availability
37
MAY 8544737 MAY 8544737 Contact Us For Availability
38
MAY W10144494 MAY W10144494 Contact Us For Availability
38
MAY 8544776 MAY 8544776 Contact Us For Availability
39
Front Panel (White) MAY W10111883 Contact Us For Availability
39
MAY W10111885 MAY W10111885 Contact Us For Availability
39
MAY W10194731 MAY W10194731 Contact Us For Availability
39
MAY 8544741 MAY 8544741 Contact Us For Availability
40
Screw, 8-18 x 1/8 MAY 342055 Contact Us For Availability
40
MAY 97787 MAY 97787 Contact Us For Availability
41
MAY W10201785 MAY W10201785 Contact Us For Availability
41
THERMAL FUSE MAY 3390719 Contact Us For Availability
42
MAY W10111875 MAY W10111875 Contact Us For Availability
42
MAY W10111898 MAY W10111898 Contact Us For Availability
42
MAY W10111909 MAY W10111909 Contact Us For Availability
42
Grille, Outlet MAY 8544723 Contact Us For Availability
43
Lock-Top Front (2) MAY 8576625 Contact Us For Availability
43
MAY 487909 MAY 487909 Contact Us For Availability
44
MAY W10044490 MAY W10044490 Contact Us For Availability
44
MAY 8544735 MAY 8544735 Contact Us For Availability
45
Cover, Terminal Block MAY W10110241 Contact Us For Availability
45
MAY 8544786 MAY 8544786 Contact Us For Availability
46
MAY 238088 MAY 238088 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY W10111878 MAY W10111878 Contact Us For Availability
47
Door, Inner (Ultimate Silver) MAY W10111900 Contact Us For Availability
47
MAY W10111910 MAY W10111910 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. 48) MAY 8318314 Contact Us For Availability
48
Windor-Outer MAY W10111858 Contact Us For Availability
48
Thermister-HC Stat MAY 8557403 Contact Us For Availability
49

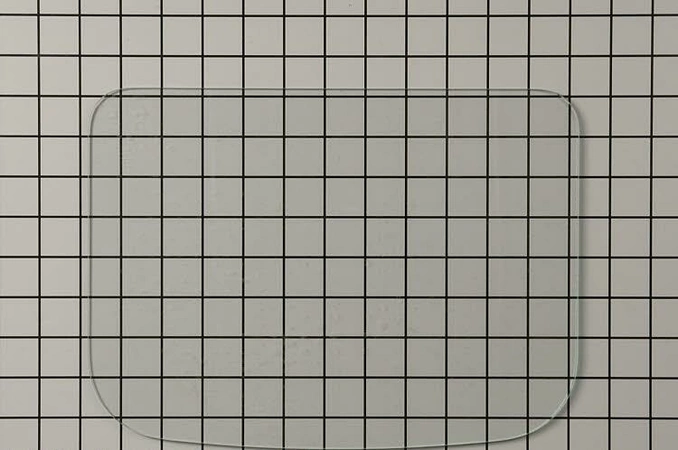

MAY W10111857 MAY W10111857 Contact Us For Availability
49
MAY 8544729 MAY 8544729 Contact Us For Availability
50
MAY W10111859 MAY W10111859 Contact Us For Availability
50
Blower, Cover (Includes No.11) MAY 8544719 Contact Us For Availability
51
Foam Seal MAY W10216065 Contact Us For Availability
51
THERMISTOR MAY 8577274 Contact Us For Availability
52
MAY W10215725 MAY W10215725 Contact Us For Availability
52
MAY 8544739 MAY 8544739 Contact Us For Availability
53
Screw, 10-32 x 1/16 MAY 697776 Contact Us For Availability
53
MAY 8563860 MAY 8563860 Contact Us For Availability
54
Screw, 8-18 x 1/2 MAY 3400885 Contact Us For Availability
54
MAY 8557244 MAY 8557244 Contact Us For Availability
55
MAY 8544718 MAY 8544718 Contact Us For Availability
56
Valve & Hose (Complete) MAY W10130506 Contact Us For Availability
57
MAY W10129424 MAY W10129424 Contact Us For Availability
58
Nozzle & Hose Assembly (Includes Items, 59, 6 MAY W10154992 Contact Us For Availability
59
MAY W10044629 MAY W10044629 Contact Us For Availability
60
Clip, Push-To-Connect MAY W10044615 Contact Us For Availability
61
Hose, Nylon (Not Servicable) (Service With MAY W10133422 Contact Us For Availability
62
MAY W10044605 MAY W10044605 Contact Us For Availability
63
MAY W10160575 MAY W10160575 Contact Us For Availability
64
MAY W10159631 MAY W10159631 Contact Us For Availability
65
MAY W10044579 MAY W10044579 Contact Us For Availability
66
Nut, 9/16 - 24 x .355 MAY W10044628 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
MAY 49611 MAY 49611 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
Hose, Inlet 6 Ft. Hose W/Elbow MAY 76314 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8212605 MAY 8212605 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8544761 MAY 8544761 Contact Us For Availability
NI
Hose, Inlet 1 Ft. Hose MAY W10044603 Contact Us For Availability
NI
CONNECTOR, HOSE ``Y`` MAY W10044604 Contact Us For Availability
NI
MAY W10044609 MAY W10044609 Contact Us For Availability
NI
Washer, 1 1/16 x 5/8 MAY W10194033 Contact Us For Availability
× ![]()
